Schematic and parts book for Tornado 97590 . Repairs should be done by trained technicians. Vacuums R Us & Sewing Too provides vacuum cleaner and carpet cleaner parts and accessories for vacuum cleaner repair purposes. We are committed to delivering high-quality components, but it is important to note that all appliance repairs involve risks, and we cannot guarantee the outcome of your repair. When using our vacuum parts for repairs, you accept the terms and conditions HERE

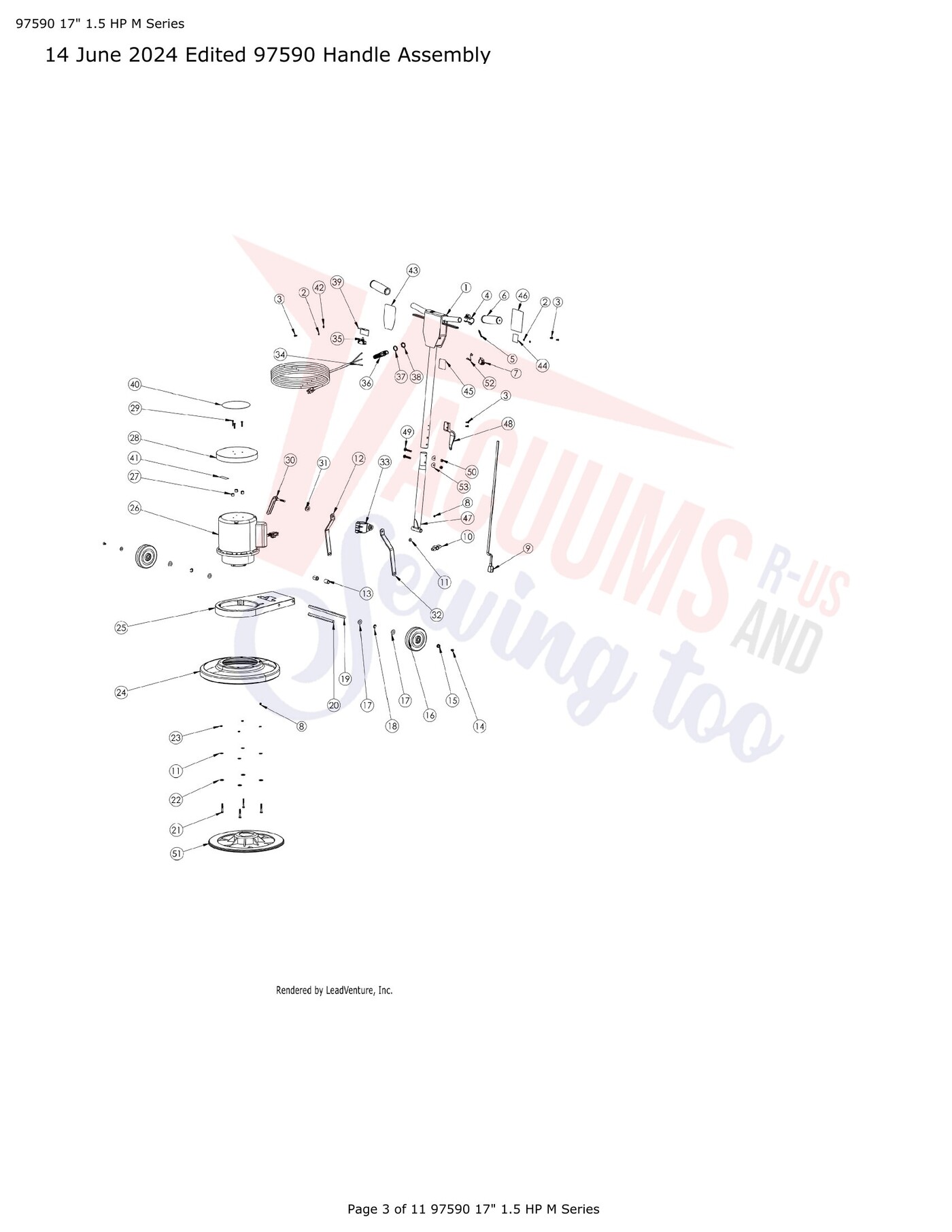

| # | Part image | Description | SKU | Price |
| 1 | No Image | Handle, 2 Piece - Upper | X1000A | $97.99Add to cart Special order: ships in 2 to 4 weeks |
| 2 |  | WASHER, No 10 INT TOOTH LOCK SS | 7CY001 | $2.99Add to cart Special order: ships in 2 to 4 weeks |
| 3 | No Image | Screw 10-24x1/2 Phil Pan St Type F Zinc | X8207 | $2.99Add to cart Special order: ships in 2 to 4 weeks |
| 4 | No Image | Actuator, Thumb Switch All Metal Handle Assembly | X8914 | $2.99Add to cart Special order: ships in 2 to 4 weeks |
| 5 | No Image | Spring, Thumb Actuator Metal Handle Assembly | X8915 | $4.99Add to cart Special order: ships in 2 to 4 weeks |
| 6 | No Image | Handle Grip 1dia fits all Metal Handle Assy | X8941 | $14.99Add to cart Special order: ships in 2 to 4 weeks |
| 7 | No Image | Circuit Breaker,Floor Machine,17Amp,W/Nuts | X8023A | $3.99Add to cart Special order: ships in 2 to 4 weeks |
| 8 | No Image | SCREW, 10-24 X 1/4 SOCKET SET | X8995 | $2.99Add to cart Special order: ships in 2 to 4 weeks |
| 9 |  | Cord,Floor Machine,50 IN,Black,14/3 SJTOW | X8989 | $28.99Add to cart Special order: ships in 2 to 4 weeks |
| 10 | No Image | Handle Clamp Knob, Plastic | X8016 | $4.99Add to cart Special order: ships in 2 to 4 weeks |
| 11 | No Image | Washer 5/16 SAE Flat Zinc | X8218 | $2.99Add to cart Special order: ships in 2 to 4 weeks |
| 12 | No Image | Bracket Brace,Floor Machine,Burnisher,Handle,W/Slot and 2-7/16 Offset | X8027L | $16.99Add to cart Special order: ships in 2 to 4 weeks |
| 13 | No Image | Spacer Handle Metal FM 1/2ID 3/4OD 1in | X8107 | $3.99Add to cart Special order: ships in 2 to 4 weeks |
| 14 | No Image | SCREW 1/4-20 X 3/4 FLAT PHIL MS ZINC | X8265 | $2.99Add to cart Special order: ships in 2 to 4 weeks |
| 15 | No Image | Washer, Countersunk | X8020 | $2.99Add to cart Special order: ships in 2 to 4 weeks |
| 16 | No Image | Wheel, Black 5 X 1-1/4 | X8024 | $18.99Add to cart Special order: ships in 2 to 4 weeks |
| 17 | No Image | Spring Washer, 1 OD X 1/2 ID X .0190-.022 | X8101 | $2.99Add to cart Special order: ships in 2 to 4 weeks |
| 18 | No Image | Ring Retaining Ext. E 1/2(Heavy Duty) | 3470 | $0.00Read more |
| 19 | No Image | Axle, Wheel 0.5 Dia. Classic Floor Machines | X9575 | $14.99Add to cart Special order: ships in 2 to 4 weeks |
| 20 |  | Pin, Pivot Metal Floor Machine | X8977 | $5.99Add to cart Special order: ships in 2 to 4 weeks |
| 21 |  | SCREW 1/4-20 X 1-3/4 HEX CAP GRADE 5 ZP | 72455A | $2.99Add to cart Special order: ships in 2 to 4 weeks |
| 22 | No Image | WASHER 3/8 SAE FLAT ZINC | X8219 | $2.99Add to cart Special order: ships in 2 to 4 weeks |
| 23 | No Image | WASHER, 1/4 SPLIT LOCK ZP | X8212 | $2.99Add to cart Special order: ships in 2 to 4 weeks |
| 24 | No Image | Brush Housing, 17 Inch And Bumper Metal Floor Machines | X8967A | $257.99Add to cart Special order: ships in 2 to 4 weeks |
| 25 |  | Base, Motor Metal | X8966 | $176.99Add to cart Special order: ships in 2 to 4 weeks |
| 26 | No Image | Motor Floor Mach 120/240VAC 1.5hp Chrome w/Gearbox | X8980TI | $1,049.99Add to cart Special order: ships in 2 to 4 weeks |
| 27 |  | Spacer, Mtr Cover Mtl Fm Only | X8106 | $2.99Add to cart Special order: ships in 2 to 4 weeks |
| 28 |  | Cover, Motor Top Chrome | 17731 | $56.99Add to cart Special order: ships in 2 to 4 weeks |
| 29 |  | SCREW, 10-32X1 PHIL PAN ZINC PLATED | 71661A | $1.99Add to cart Special order: ships in 2 to 4 weeks |
| 30 | No Image | Cam Lever, Assembled Sell X8012A | X1184 | $23.99Add to cart Special order: ships in 2 to 4 weeks |
| 31 | No Image | Washer, Cam W/Slot | X8028 | $3.99Add to cart Special order: ships in 2 to 4 weeks |
| 32 | No Image | Bracket Brace,Floor Machine,Burnisher,Handle,W/Hole and 2-7/16 Offset | X8027R | $16.99Add to cart Special order: ships in 2 to 4 weeks |
| 33 | No Image | Clamp, Handle Lock, Diecast | X1456 | $25.99Add to cart Special order: ships in 2 to 4 weeks |
| 34 | No Image | Cord Floor Machine 50Ft Yellow14/3 SJTW | M1369B | $96.99Add to cart Special order: ships in 2 to 4 weeks |
| 35 |  | Switch, Momentary On/Off Part Number X1039 for Cleanmax Models CM-WAV | X1039 | $15.99Add to cart Special order: ships in 2 to 4 weeks |
| 36 | No Image | Strain Relief, Metal Small | SR37 | $24.99Add to cart Special order: ships in 2 to 4 weeks |
| 37 | No Image | Washer, Strain Relief | SR36 | $4.99Add to cart |
| 38 |  | Nut Conduit 1/2 Part Number X8008N for Cleanmax Models CM-WAV | X8008N | $2.99Add to cart Special order: ships in 2 to 4 weeks |
| 39 | No Image | INSULATION SHEET 2.5X2X.020 ETL METAL HANDLE FMrev00 | X1040 | $2.99Add to cart Special order: ships in 2 to 4 weeks |
| 40 | No Image | LABEL, CLASSIC FM, FRONT TORNADO | X9483 | $3.99Add to cart Special order: ships in 2 to 4 weeks |
| 41 | No Image | LABEL DISCONNECT POWER CORD BEFORE SERVICING | X8413 | $2.99Add to cart Special order: ships in 2 to 4 weeks |
| 42 | No Image | LABEL GROUND SYMBOL | X9214 | $2.99Add to cart Special order: ships in 2 to 4 weeks |
| 43 | No Image | LABEL HANDLE FM / BURN TORNADO | X8815ATOR | $0.99Read more |
| 44 | No Image | Label Qualified Made In The USA 1.618 X 1.618 | X1003 | $2.99Add to cart Special order: ships in 2 to 4 weeks |
| 45 | No Image | Label Serial Number 2X2 Plain | X8459 | $2.99Add to cart Special order: ships in 2 to 4 weeks |
| 46 | Not Available | Warning Label | X1044 | Not Available |
| 47 | No Image | Handle, 2 Piece - Lower | X1000B | $38.99Add to cart Special order: ships in 2 to 4 weeks |
| 48 | No Image | Cord Hook,Floor Machine,Plated | X8013 | $7.99Add to cart Special order: ships in 2 to 4 weeks |
| 49 | No Image | Carriage Bolt, 5/16 - 18 X 2 , Zinc | X2272 | $0.33Add to cart Special order: ships in 2 to 4 weeks |
| 50 |  | Nut 5/16 Lock with Nylon Insert Zinc | X8248 | $2.99Add to cart Special order: ships in 2 to 4 weeks |
| 51 | No Image | Driver, Pad Trilok 16 Built In Clutch Plate | TL16 | $85.99Add to cart Special order: ships in 2 to 4 weeks |
| 52 | No Image | Wire, Lead 14G Black 4 With One F26 | X8009 | $8.99Add to cart Special order: ships in 2 to 4 weeks |
| 53 | No Image | Washer, Curved 1.5In | X2273 | $0.48Add to cart Special order: ships in 2 to 4 weeks |

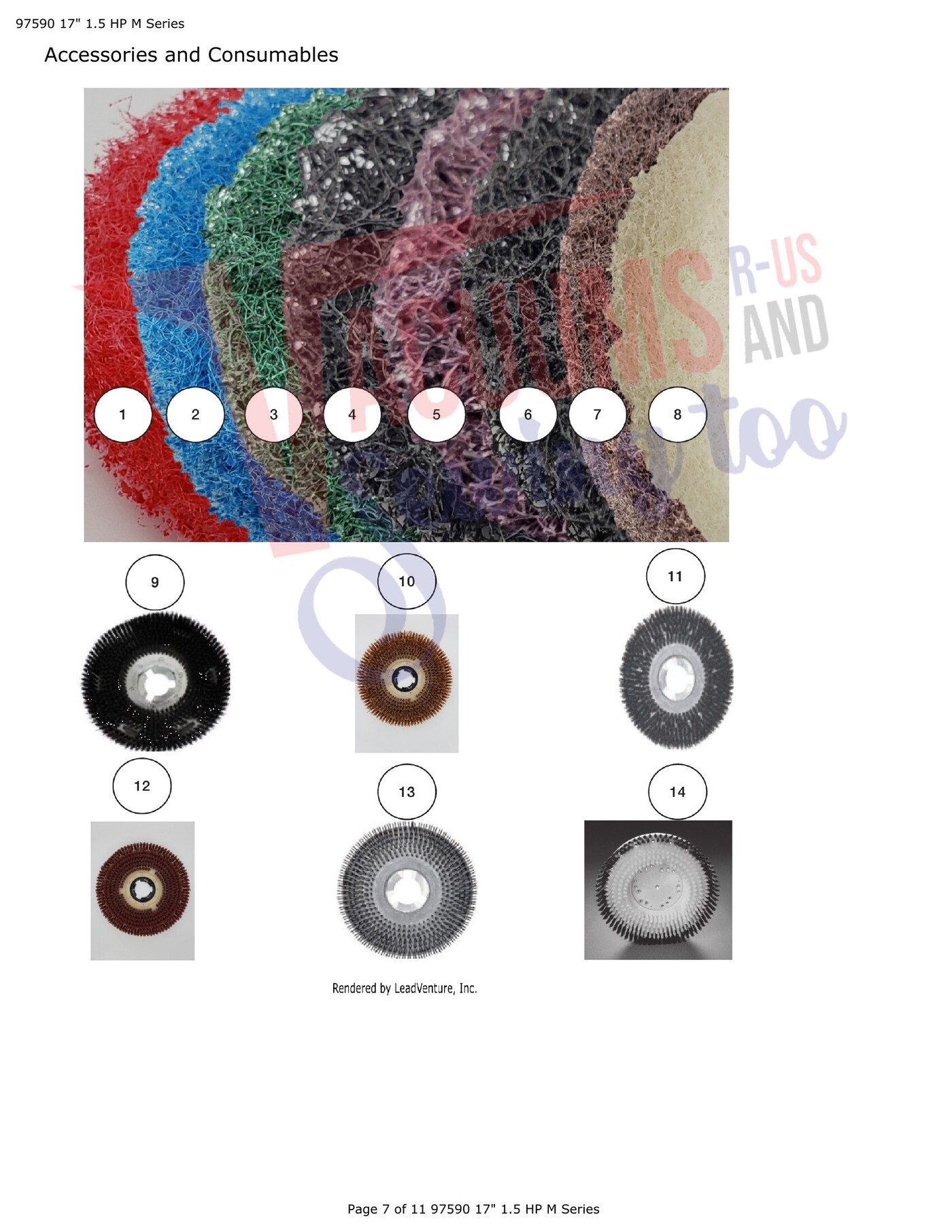

| # | Part image | Description | SKU | Price |
| 1 |  | Floor Pad General Scrub/Spray Buff Red 17in 5/cs | RD0517 | $46.99Add to cart Special order: ships in 2 to 4 weeks |
| 2 |  | Floor Pad Blue Cleaner 17in 5/case | BL0517 | $55.99Add to cart Special order: ships in 2 to 4 weeks |
| 3 |  | Floor Pad Green Scrub 17in 5/case | GR0517 | $55.99Add to cart Special order: ships in 2 to 4 weeks |
| 4 |  | Floor Pad Black Stripping 17in 5/case | BK0517 | $47.99Add to cart Special order: ships in 2 to 4 weeks |
| 5 |  | Pad Dominator Aggressive Stripping Burgundy 17in | DM0517 | $82.99Add to cart Special order: ships in 2 to 4 weeks |
| 6 |  | Floor Pad HD Black Strip 17in 5/case | BH0517 | $72.99Add to cart Special order: ships in 2 to 4 weeks |
| 7 | No Image | Floor Pad Eco Prep Maroon 17in 10/case | EPO17 | $197.99Read more |
| 8 | No Image | Floor Pad White Polish 17in 5/case | WT0517 | $55.99Add to cart Special order: ships in 2 to 4 weeks |
| 9 | Not Available | 16" Stiff Poly Showerfeed Scrub Brush w/Clutch Plate | SF616 | Not Available |
| 10 | No Image | 16" Lite Grit Scrub Brush (500 Grit) | PFLG16 | $0.00Read more |
| 11 | No Image | 16" Medium Grit Scrub Brush (180 Grit) | PFMG16 | $0.00Read more |
| 12 | No Image | 17" Ex-Heavy Grit 46 Scrub Brush | PST16 | $0.00Read more |
| 13 | No Image | 16" Wire Scrub Brush | WB816 | $0.00Read more |
| 14 | No Image | 16" Medium Poly Showerfeed Carpet Brush W/Clutch Plate | SF216 | $0.00Read more |
| # | Part image | Description | SKU | Price |
| Not Shown | No Image | Motor Coupling / Shear Pin | F3P | $32.99Add to cart Special order: ships in 2 to 4 weeks |
| Not Shown |  | SWITCH STATIONARY SMALL 2 PAIR CONTACTS 1 HP | SW46 | $30.99Add to cart Special order: ships in 2 to 4 weeks |
| Not Shown | No Image | Centrifugal Switch | X8855 | $0.00Read more |
| Not Shown | No Image | SCREW, 10-24 X 1/4 SOCKET SET | X8995 | $2.99Add to cart Special order: ships in 2 to 4 weeks |
| Not Shown | No Image | Driver, Pad Trilok 16 Built In Clutch Plate | TL16 | $85.99Add to cart Special order: ships in 2 to 4 weeks |
| Not Shown |  | Driver, Pad Trilok 19 Built In Clutch Plate | TL19 | $102.99Add to cart Special order: ships in 2 to 4 weeks |

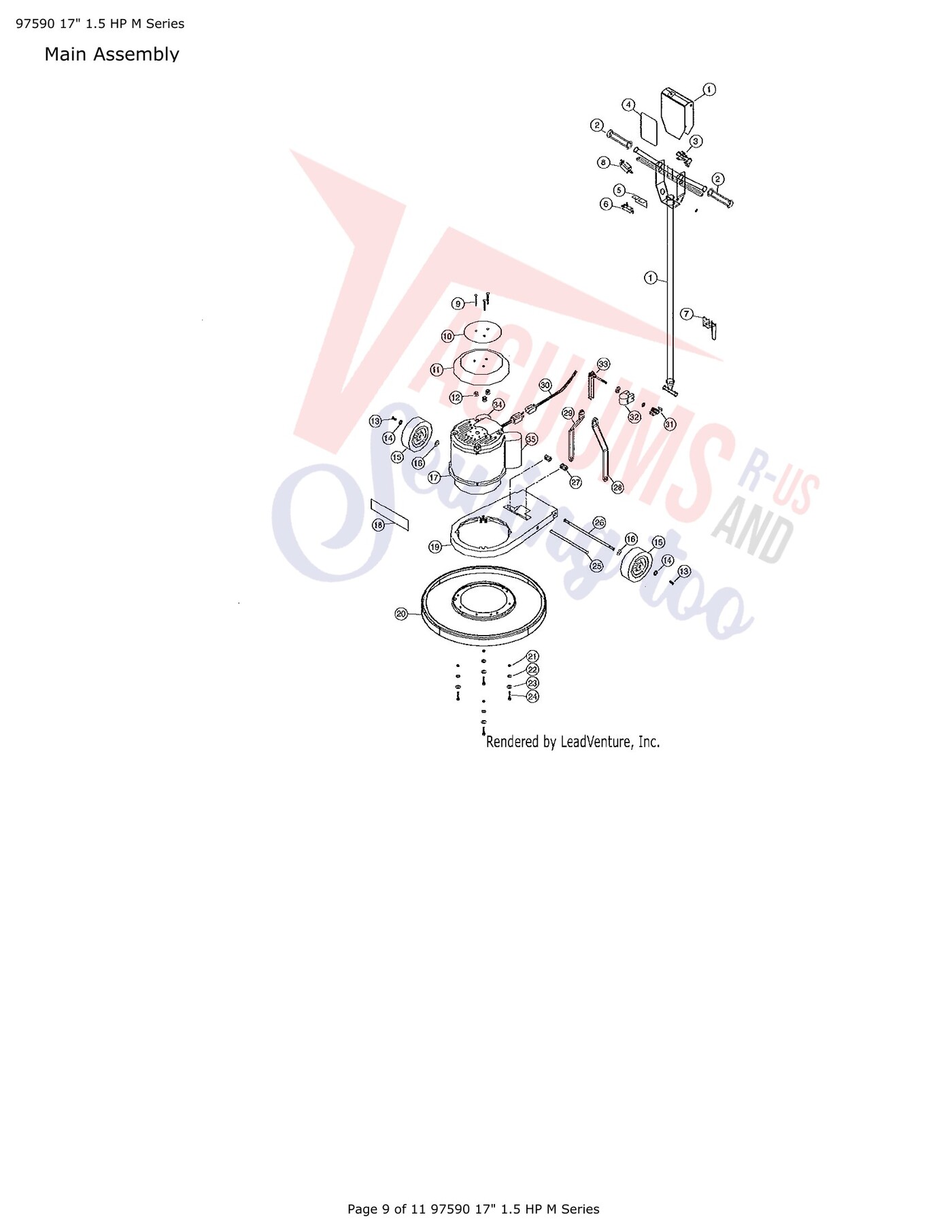

| 1 | No Image | HANDLE ASMB COMPLETE ORB1420 | X8911K | $635.99Add to cart Special order: ships in 2 to 4 weeks |
| 2 | No Image | Handle Grip 1dia fits all Metal Handle Assy | X8941 | $14.99Add to cart Special order: ships in 2 to 4 weeks |
| 3 | No Image | Actuator, Thumb Switch All Metal Handle Assembly | X8914 | $2.99Add to cart Special order: ships in 2 to 4 weeks |
| 4 | No Image | LABEL HANDLE FM / BURN TORNADO | X8815ATOR | $0.99Read more |
| 5 | No Image | Insulation Sheet All Metal Handle Assy 2.5x2x0.15 | X8923 | $2.99Add to cart Special order: ships in 2 to 4 weeks |
| 6 | | Switch, Momentary On/Off Part Number X1039 for Cleanmax Models CM-WAV | X1039 | $15.99Add to cart Special order: ships in 2 to 4 weeks |
| 7 | No Image | Cord Hook,Floor Machine,Plated | X8013 | $7.99Add to cart Special order: ships in 2 to 4 weeks |
| 8 | No Image | Circuit Breaker,Floor Machine,17Amp,W/Nuts | X8023A | $3.99Add to cart Special order: ships in 2 to 4 weeks |
| 9 | No Image | SCREW, 10-32 X 1 PHIL FLAT MS SS | X8266 | $2.99Add to cart Special order: ships in 2 to 4 weeks |
| 10 | No Image | Label Classic Metal Motor Top TOR Pad Driver | X9417 | $1.99Read more |
| 11 | | Cover, Motor Top Chrome | 17731 | $56.99Add to cart Special order: ships in 2 to 4 weeks |
| 12 | | Spacer, Mtr Cover Mtl Fm Only | X8106 | $2.99Add to cart Special order: ships in 2 to 4 weeks |
| 13 | No Image | SCREW 1/4-20 X 3/4 FLAT PHIL MS ZINC | X8265 | $2.99Add to cart Special order: ships in 2 to 4 weeks |
| 14 | No Image | Washer, Countersunk | X8020 | $2.99Add to cart Special order: ships in 2 to 4 weeks |
| 15 | No Image | Wheel, Black 5 X 1-1/4 | X8024 | $18.99Add to cart Special order: ships in 2 to 4 weeks |
| 16 | No Image | Spring Washer, 1 OD X 1/2 ID X .0190-.022 | X8101 | $2.99Add to cart Special order: ships in 2 to 4 weeks |
| 17 | No Image | Motor Floor Mach 120/240VAC 1.5hp Chrome w/Gearbox | X8980TI | $1,049.99Add to cart Special order: ships in 2 to 4 weeks |
| 18 | No Image | LABEL, CLASSIC FM, FRONT TORNADO | X9483 | $3.99Add to cart Special order: ships in 2 to 4 weeks |
| 19 | | Base, Motor Metal | X8966 | $176.99Add to cart Special order: ships in 2 to 4 weeks |
| 20 | No Image | Brush Housing, 17 Inch And Bumper Metal Floor Machines | X8967A | $257.99Add to cart Special order: ships in 2 to 4 weeks |
| 21 | No Image | WASHER, 1/4 SPLIT LOCK ZP | X8212 | $2.99Add to cart Special order: ships in 2 to 4 weeks |
| 22 | No Image | Washer 5/16 SAE Flat Zinc | X8218 | $2.99Add to cart Special order: ships in 2 to 4 weeks |
| 23 | No Image | WASHER 3/8 SAE FLAT ZINC | X8219 | $2.99Add to cart Special order: ships in 2 to 4 weeks |
| 24 | | SCREW 1/4-20 X 1-3/4 HEX CAP GRADE 5 ZP | 72455A | $2.99Add to cart Special order: ships in 2 to 4 weeks |
| 25 | | Pin, Pivot Metal Floor Machine | X8977 | $5.99Add to cart Special order: ships in 2 to 4 weeks |
| 26 | No Image | Axle, Wheel 0.5 Dia. Classic Floor Machines | X9575 | $14.99Add to cart Special order: ships in 2 to 4 weeks |
| 27 | No Image | Spacer Handle Metal FM 1/2ID 3/4OD 1in | X8107 | $3.99Add to cart Special order: ships in 2 to 4 weeks |
| 28 | No Image | Bracket Brace,Floor Machine,Burnisher,Handle,W/Slot and 2-7/16 Offset | X8027L | $16.99Add to cart Special order: ships in 2 to 4 weeks |
| 29 | No Image | Bracket Brace,Floor Machine,Burnisher,Handle,W/Hole and 2-7/16 Offset | X8027R | $16.99Add to cart Special order: ships in 2 to 4 weeks |
| 30 | | Cord,Floor Machine,50 IN,Black,14/3 SJTOW | X8989 | $28.99Add to cart Special order: ships in 2 to 4 weeks |
| 31 | No Image | Handle Clamp Knob, Plastic | X8016 | $4.99Add to cart Special order: ships in 2 to 4 weeks |
| 32 | No Image | Handle Clamp Assemlby | X8012A | $38.99Add to cart Special order: ships in 2 to 4 weeks |
| 33 | No Image | Handle Clamp Assemlby | X8012A | $38.99Add to cart Special order: ships in 2 to 4 weeks |
| 34 |  | Capacitor,Floor Machine,240,VAC,60UF,Run | X8038 | $37.99Add to cart Special order: ships in 2 to 4 weeks |
| 35 |  | Capacitor FM VAC 1hp 1-1/2hp 450UF Start | X8953 | $73.99Add to cart Special order: ships in 2 to 4 weeks |
