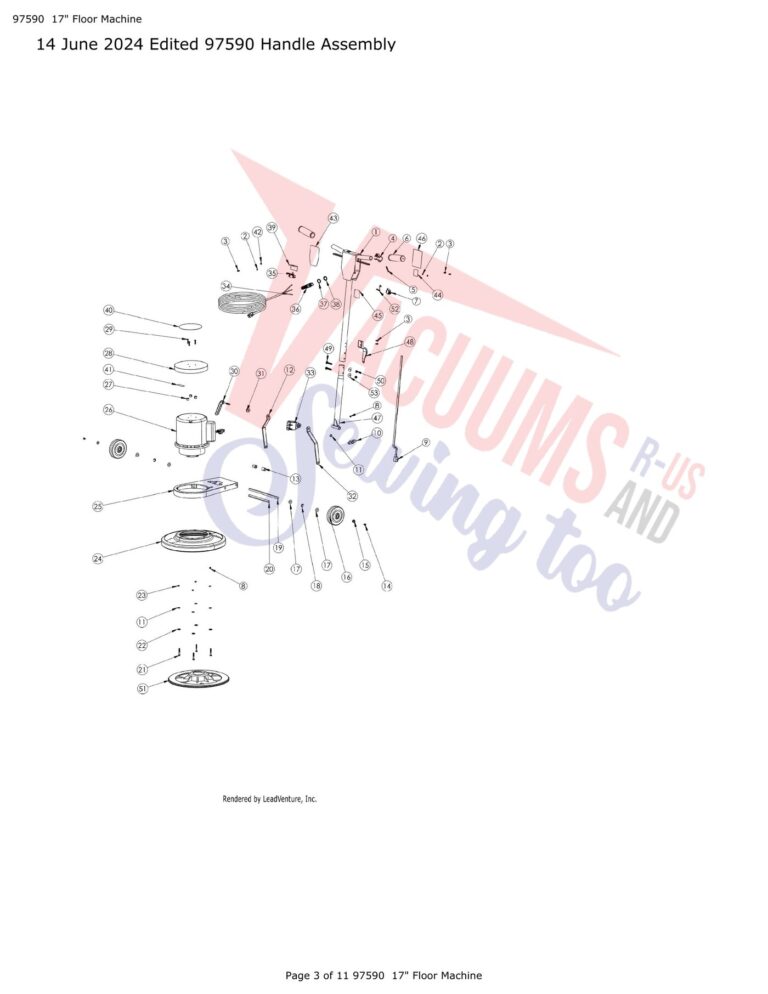

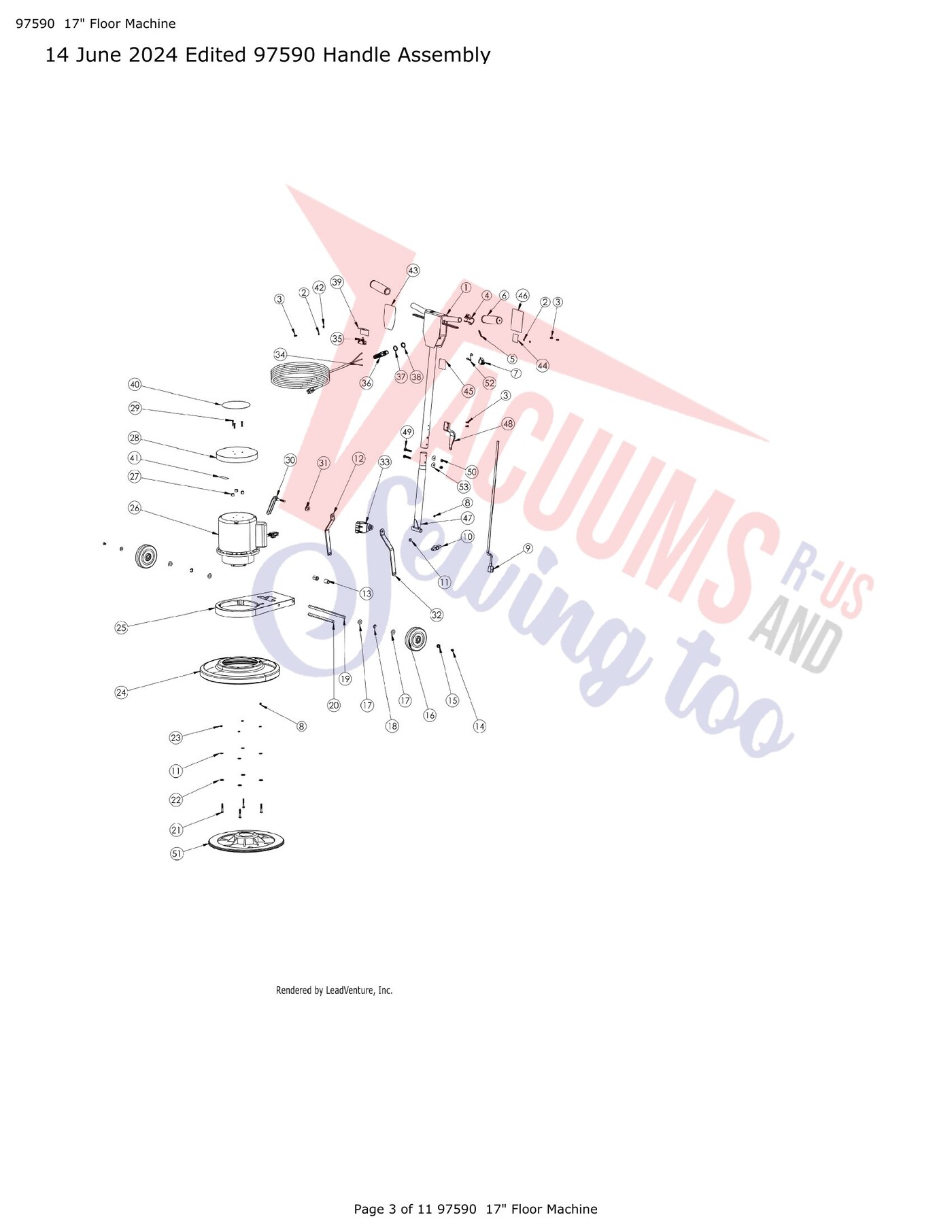

Schematic and parts book for Tornado 97590-17 . Repairs should be done by trained technicians. Vacuums R Us & Sewing Too provides vacuum cleaner and carpet cleaner parts and accessories for vacuum cleaner repair purposes. We are committed to delivering high-quality components, but it is important to note that all appliance repairs involve risks, and we cannot guarantee the outcome of your repair. When using our vacuum parts for repairs, you accept the terms and conditions HERE
| # | Part image | Description | SKU | Price |
| XX | No Image | 17 BUMPER ONLY (C171,C171HD,C172) | X8969 | $59.99Add to cart Product is special order please allow 2-4 weeks for delivery. |
| 1 | No Image | Handle, 2 Piece - Upper | X1000A | $97.99Add to cart Product is special order please allow 2-4 weeks for delivery. |
| 2 |  | WASHER, No 10 INT TOOTH LOCK SS | 7CY001 | $2.99Add to cart Product is special order please allow 2-4 weeks for delivery. |
| 3 | No Image | Screw 10-24x1/2 Phil Pan St Type F Zinc | X8207 | $2.99Add to cart Product is special order please allow 2-4 weeks for delivery. |
| 4 | No Image | Actuator, Thumb Switch All Metal Handle Assembly | X8914 | $2.99Add to cart Product is special order please allow 2-4 weeks for delivery. |
| 5 | No Image | Spring, Thumb Actuator Metal Handle Assembly | X8915 | $4.99Add to cart Product is special order please allow 2-4 weeks for delivery. |
| 6 | No Image | Handle Grip 1dia fits all Metal Handle Assy | X8941 | $14.99Add to cart Product is special order please allow 2-4 weeks for delivery. |
| 7 | No Image | Circuit Breaker,Floor Machine,17Amp,W/Nuts | X8023A | $3.99Add to cart Product is special order please allow 2-4 weeks for delivery. |
| 8 | No Image | SCREW, 10-24 X 1/4 SOCKET SET | X8995 | $2.99Add to cart Product is special order please allow 2-4 weeks for delivery. |
| 9 |  | Cord,Floor Machine,50 IN,Black,14/3 SJTOW | X8989 | $28.99Add to cart Product is special order please allow 2-4 weeks for delivery. |
| 10 | No Image | Handle Clamp Knob, Plastic | X8016 | $4.99Add to cart Product is special order please allow 2-4 weeks for delivery. |
| 11 | No Image | Washer 5/16 SAE Flat Zinc | X8218 | $2.99Add to cart Product is special order please allow 2-4 weeks for delivery. |
| 12 | No Image | Bracket Brace,Floor Machine,Burnisher,Handle,W/Slot and 2-7/16 Offset | X8027L | $16.99Add to cart Product is special order please allow 2-4 weeks for delivery. |
| 13 | No Image | Spacer Handle Metal FM 1/2ID 3/4OD 1in | X8107 | $3.99Add to cart Product is special order please allow 2-4 weeks for delivery. |
| 14 | No Image | SCREW 1/4-20 X 3/4 FLAT PHIL MS ZINC | X8265 | $2.99Add to cart Product is special order please allow 2-4 weeks for delivery. |
| 15 | No Image | Washer, Countersunk | X8020 | $2.99Add to cart Product is special order please allow 2-4 weeks for delivery. |
| 16 | No Image | Wheel, Black 5 X 1-1/4 | X8024 | $18.99Add to cart Product is special order please allow 2-4 weeks for delivery. |
| 17 | No Image | Spring Washer, 1 OD X 1/2 ID X .0190-.022 | X8101 | $2.99Add to cart Product is special order please allow 2-4 weeks for delivery. |
| 18 | No Image | Ring Retaining Ext. E 1/2(Heavy Duty) | 3470 | $0.00Read more |
| 19 | No Image | Axle, Wheel 0.5 Dia. Classic Floor Machines | X9575 | $14.99Add to cart Product is special order please allow 2-4 weeks for delivery. |
| 20 |  | Pin, Pivot Metal Floor Machine | X8977 | $5.99Add to cart Product is special order please allow 2-4 weeks for delivery. |
| 21 |  | SCREW 1/4-20 X 1-3/4 HEX CAP GRADE 5 ZP | 72455A | $2.99Add to cart Product is special order please allow 2-4 weeks for delivery. |
| 22 | No Image | WASHER 3/8 SAE FLAT ZINC | X8219 | $2.99Add to cart Product is special order please allow 2-4 weeks for delivery. |
| 23 | No Image | WASHER, 1/4 SPLIT LOCK ZP | X8212 | $2.99Add to cart Product is special order please allow 2-4 weeks for delivery. |
| 24 | No Image | Brush Housing, 17 Inch And Bumper Metal Floor Machines | X8967A | $257.99Add to cart Product is special order please allow 2-4 weeks for delivery. |
| 25 |  | Base, Motor Metal | X8966 | $176.99Add to cart Product is special order please allow 2-4 weeks for delivery. |
| 26 | No Image | Motor Floor Mach 120/240VAC 1.5hp Chrome w/Gearbox | X8980TI | $1,049.99Add to cart Product is special order please allow 2-4 weeks for delivery. |
| 27 |  | Spacer, Mtr Cover Mtl Fm Only | X8106 | $2.99Add to cart Product is special order please allow 2-4 weeks for delivery. |
| 28 |  | Cover, Motor Top Chrome | 17731 | $56.99Add to cart Product is special order please allow 2-4 weeks for delivery. |
| 29 |  | SCREW, 10-32X1 PHIL PAN ZINC PLATED | 71661A | $1.99Add to cart Product is special order please allow 2-4 weeks for delivery. |
| 30 | No Image | Cam Lever, Assembled Sell X8012A | X1184 | $23.99Add to cart Product is special order please allow 2-4 weeks for delivery. |
| 31 | No Image | Washer, Cam W/Slot | X8028 | $3.99Add to cart Product is special order please allow 2-4 weeks for delivery. |
| 32 | No Image | Bracket Brace,Floor Machine,Burnisher,Handle,W/Hole and 2-7/16 Offset | X8027R | $16.99Add to cart Product is special order please allow 2-4 weeks for delivery. |
| 33 | No Image | Clamp, Handle Lock, Diecast | X1456 | $25.99Add to cart Product is special order please allow 2-4 weeks for delivery. |
| 34 | No Image | Cord Floor Machine 50Ft Yellow14/3 SJTW | M1369B | $96.99Add to cart Product is special order please allow 2-4 weeks for delivery. |
| 35 |  | Switch, Momentary On/Off Part Number X1039 for Cleanmax Models CM-WAV | X1039 | $15.99Add to cart Product is special order please allow 2-4 weeks for delivery. |
| 36 | No Image | Strain Relief, Metal Small | SR37 | $24.99Add to cart Product is special order please allow 2-4 weeks for delivery. |
| 37 | No Image | Washer, Strain Relief | SR36 | $4.99Add to cart |
| 38 |  | Nut Conduit 1/2 Part Number X8008N for Cleanmax Models CM-WAV | X8008N | $2.99Add to cart Product is special order please allow 2-4 weeks for delivery. |
| 39 | No Image | INSULATION SHEET 2.5X2X.020 ETL METAL HANDLE FMrev00 | X1040 | $2.99Add to cart Product is special order please allow 2-4 weeks for delivery. |
| 40 | No Image | LABEL, CLASSIC FM, FRONT TORNADO | X9483 | $3.99Add to cart Product is special order please allow 2-4 weeks for delivery. |
| 41 | No Image | LABEL DISCONNECT POWER CORD BEFORE SERVICING | X8413 | $2.99Add to cart Product is special order please allow 2-4 weeks for delivery. |
| 42 | No Image | LABEL GROUND SYMBOL | X9214 | $2.99Add to cart Product is special order please allow 2-4 weeks for delivery. |
| 43 | No Image | LABEL HANDLE FM / BURN TORNADO | X8815ATOR | $0.99Read more |
| 44 | No Image | Label Qualified Made In The USA 1.618 X 1.618 | X1003 | $2.99Add to cart Product is special order please allow 2-4 weeks for delivery. |
| 45 | No Image | Label Serial Number 2X2 Plain | X8459 | $2.99Add to cart Product is special order please allow 2-4 weeks for delivery. |
| 46 | Not Available | Warning Label | X1044 | Not Available |
| 47 | No Image | Handle, 2 Piece - Lower | X1000B | $38.99Add to cart Product is special order please allow 2-4 weeks for delivery. |
| 48 | No Image | Cord Hook,Floor Machine,Plated | X8013 | $7.99Add to cart Product is special order please allow 2-4 weeks for delivery. |
| 49 | No Image | Carriage Bolt, 5/16 - 18 X 2 , Zinc | X2272 | $0.33Add to cart Product is special order please allow 2-4 weeks for delivery. |
| 50 |  | Nut 5/16 Lock with Nylon Insert Zinc | X8248 | $2.99Add to cart Product is special order please allow 2-4 weeks for delivery. |
| 51 | No Image | Driver, Pad Trilok 16 Built In Clutch Plate | TL16 | $85.99Add to cart Product is special order please allow 2-4 weeks for delivery. |
| 52 | No Image | Wire, Lead 14G Black 4 With One F26 | X8009 | $8.99Add to cart Product is special order please allow 2-4 weeks for delivery. |
| 53 | No Image | Washer, Curved 1.5In | X2273 | $0.48Add to cart Product is special order please allow 2-4 weeks for delivery. |
| # | Part image | Description | SKU | Price |

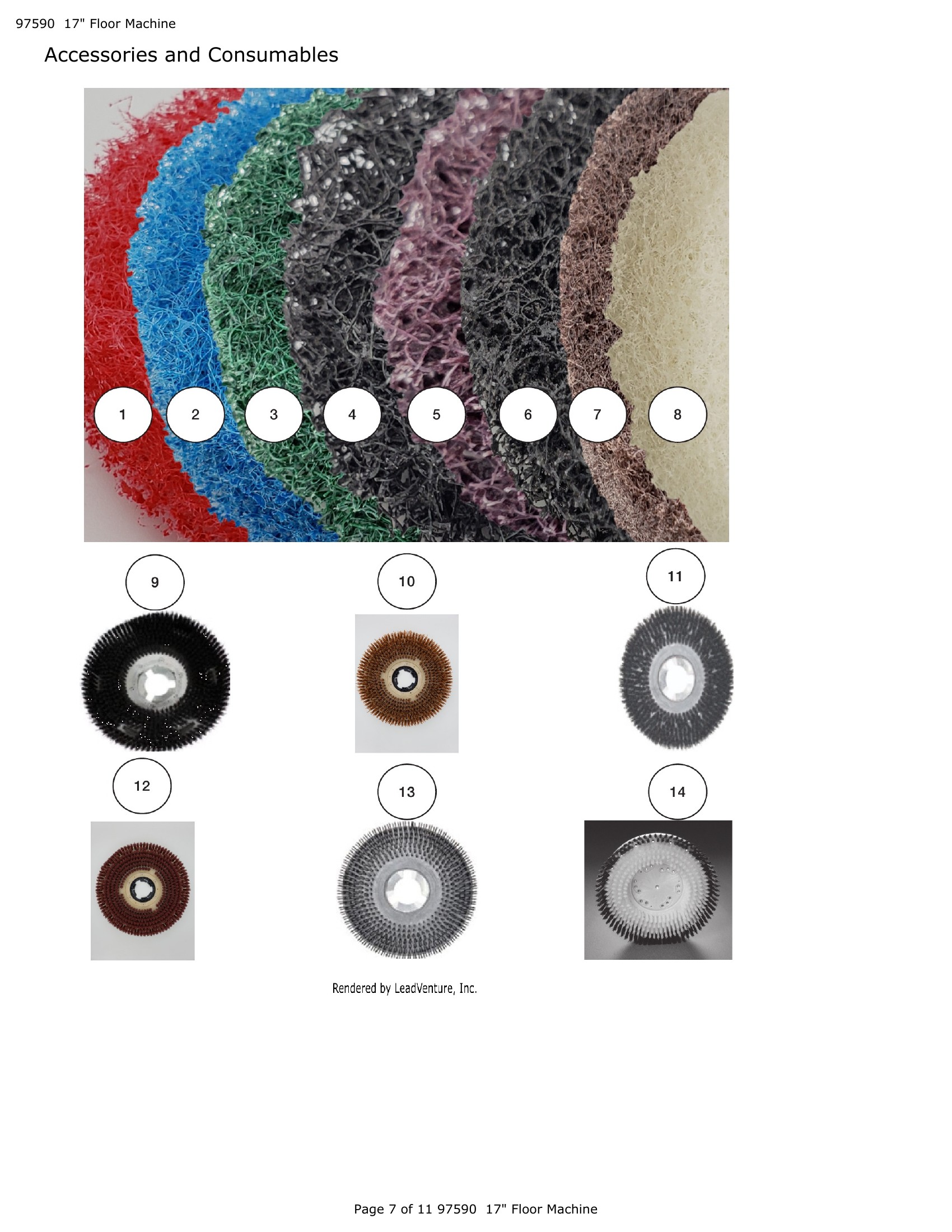

| 1 |  | Floor Pad General Scrub/Spray Buff Red 17in 5/cs | RD0517 | $46.99Add to cart Product is special order please allow 2-4 weeks for delivery. |
| 2 |  | Floor Pad Blue Cleaner 17in 5/case | BL0517 | $55.99Add to cart Product is special order please allow 2-4 weeks for delivery. |
| 3 |  | Floor Pad Green Scrub 17in 5/case | GR0517 | $55.99Add to cart Product is special order please allow 2-4 weeks for delivery. |
| 4 |  | Floor Pad Black Stripping 17in 5/case | BK0517 | $47.99Add to cart Product is special order please allow 2-4 weeks for delivery. |
| 5 |  | Pad Dominator Aggressive Stripping Burgundy 17in | DM0517 | $82.99Add to cart Product is special order please allow 2-4 weeks for delivery. |
| 6 |  | Floor Pad HD Black Strip 17in 5/case | BH0517 | $72.99Add to cart Product is special order please allow 2-4 weeks for delivery. |
| 7 | No Image | Floor Pad Eco Prep Maroon 17in 10/case | EPO17 | $197.99Read more |
| 8 | No Image | Floor Pad White Polish 17in 5/case | WT0517 | $55.99Add to cart Product is special order please allow 2-4 weeks for delivery. |
| 9 | Not Available | 16" Stiff Poly Showerfeed Scrub Brush w/Clutch Plate | SF616 | Not Available |
| 10 | No Image | 16" Lite Grit Scrub Brush (500 Grit) | PFLG16 | $0.00Read more |
| 11 | No Image | 16" Medium Grit Scrub Brush (180 Grit) | PFMG16 | $0.00Read more |
| 12 | No Image | 17" Ex-Heavy Grit 46 Scrub Brush | PST16 | $0.00Read more |
| 13 | No Image | 16" Wire Scrub Brush | WB816 | $0.00Read more |
| 14 | No Image | 16" Medium Poly Showerfeed Carpet Brush W/Clutch Plate | SF216 | $0.00Read more |
| # | Part image | Description | SKU | Price |
| Not Shown | No Image | Motor Coupling / Shear Pin | F3P | $32.99Add to cart Product is special order please allow 2-4 weeks for delivery. |
| Not Shown |  | SWITCH STATIONARY SMALL 2 PAIR CONTACTS 1 HP | SW46 | $30.99Add to cart Product is special order please allow 2-4 weeks for delivery. |
| Not Shown | No Image | Centrifugal Switch | X8855 | $0.00Read more |
| Not Shown | No Image | SCREW, 10-24 X 1/4 SOCKET SET | X8995 | $2.99Add to cart Product is special order please allow 2-4 weeks for delivery. |
| Not Shown | No Image | Driver, Pad Trilok 16 Built In Clutch Plate | TL16 | $85.99Add to cart Product is special order please allow 2-4 weeks for delivery. |
| Not Shown |  | Driver, Pad Trilok 19 Built In Clutch Plate | TL19 | $102.99Add to cart Product is special order please allow 2-4 weeks for delivery. |
| XX | No Image | 17 BUMPER ONLY (C171,C171HD,C172) | X8969 | $59.99Add to cart Product is special order please allow 2-4 weeks for delivery. |
| XX | No Image | Handle Clamp Assemlby | X8012A | $38.99Add to cart Product is special order please allow 2-4 weeks for delivery. |
| XX | No Image | Washer, Cam W/Slot | X8028 | $3.99Add to cart Product is special order please allow 2-4 weeks for delivery. |
| XX |  | Cord 50 ft 14/3 STJW Yellow Metal Strain Relief | M1369AS | $147.99Add to cart Product is special order please allow 2-4 weeks for delivery. |

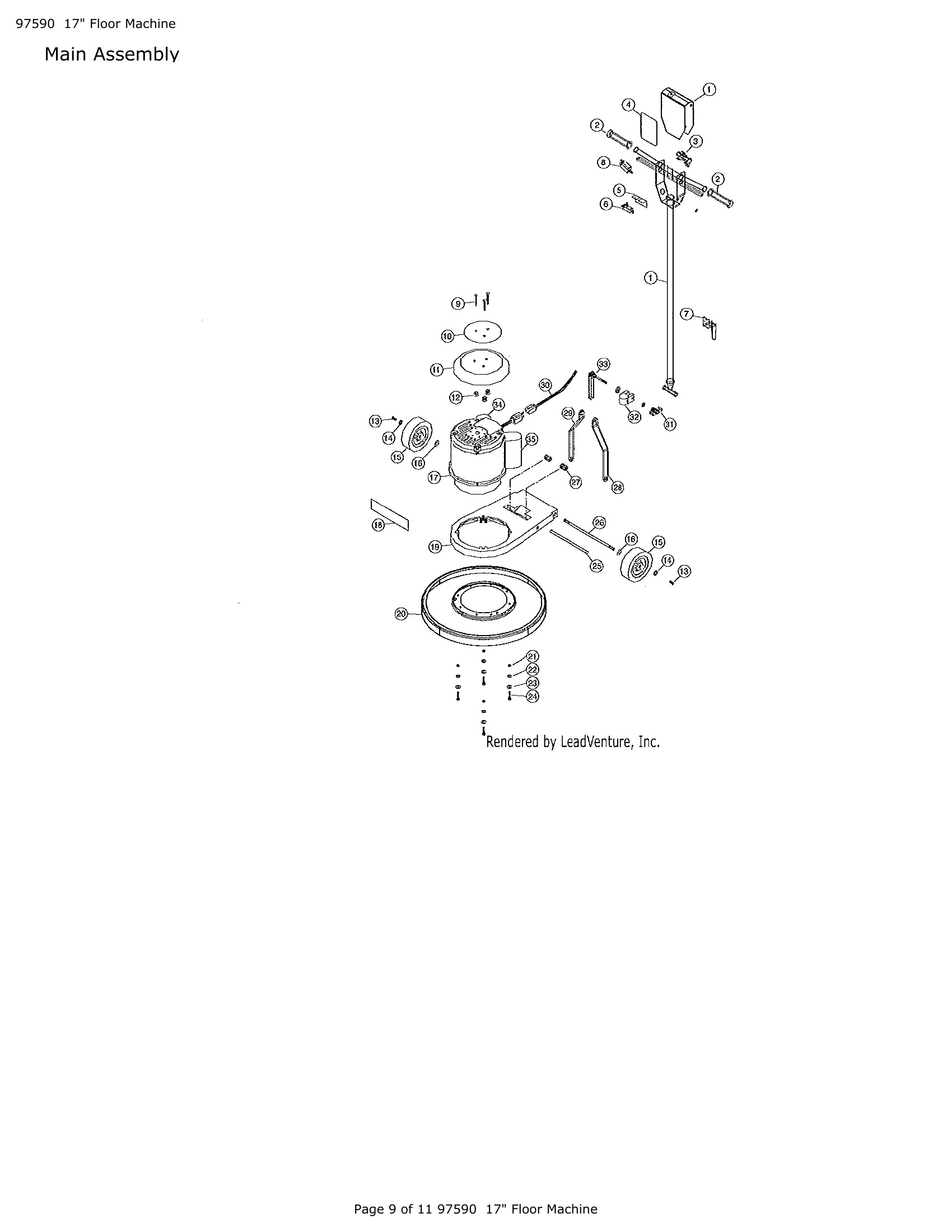

| 1 | No Image | HANDLE ASMB COMPLETE ORB1420 | X8911K | $635.99Add to cart Product is special order please allow 2-4 weeks for delivery. |
| 2 | No Image | Handle Grip 1dia fits all Metal Handle Assy | X8941 | $14.99Add to cart Product is special order please allow 2-4 weeks for delivery. |
| 3 | No Image | Actuator, Thumb Switch All Metal Handle Assembly | X8914 | $2.99Add to cart Product is special order please allow 2-4 weeks for delivery. |
| 4 | No Image | LABEL HANDLE FM / BURN TORNADO | X8815ATOR | $0.99Read more |
| 5 | No Image | Insulation Sheet All Metal Handle Assy 2.5x2x0.15 | X8923 | $2.99Add to cart Product is special order please allow 2-4 weeks for delivery. |
| 6 | | Switch, Momentary On/Off Part Number X1039 for Cleanmax Models CM-WAV | X1039 | $15.99Add to cart Product is special order please allow 2-4 weeks for delivery. |
| 7 | No Image | Cord Hook,Floor Machine,Plated | X8013 | $7.99Add to cart Product is special order please allow 2-4 weeks for delivery. |
| 8 | No Image | Circuit Breaker,Floor Machine,17Amp,W/Nuts | X8023A | $3.99Add to cart Product is special order please allow 2-4 weeks for delivery. |
| 9 | No Image | SCREW, 10-32 X 1 PHIL FLAT MS SS | X8266 | $2.99Add to cart Product is special order please allow 2-4 weeks for delivery. |
| 10 | No Image | Label Classic Metal Motor Top TOR Pad Driver | X9417 | $1.99Read more |
| 11 | | Cover, Motor Top Chrome | 17731 | $56.99Add to cart Product is special order please allow 2-4 weeks for delivery. |
| 12 | | Spacer, Mtr Cover Mtl Fm Only | X8106 | $2.99Add to cart Product is special order please allow 2-4 weeks for delivery. |
| 13 | No Image | SCREW 1/4-20 X 3/4 FLAT PHIL MS ZINC | X8265 | $2.99Add to cart Product is special order please allow 2-4 weeks for delivery. |
| 14 | No Image | Washer, Countersunk | X8020 | $2.99Add to cart Product is special order please allow 2-4 weeks for delivery. |
| 15 | No Image | Wheel, Black 5 X 1-1/4 | X8024 | $18.99Add to cart Product is special order please allow 2-4 weeks for delivery. |
| 16 | No Image | Spring Washer, 1 OD X 1/2 ID X .0190-.022 | X8101 | $2.99Add to cart Product is special order please allow 2-4 weeks for delivery. |
| 17 | No Image | Motor Floor Mach 120/240VAC 1.5hp Chrome w/Gearbox | X8980TI | $1,049.99Add to cart Product is special order please allow 2-4 weeks for delivery. |
| 18 | No Image | LABEL, CLASSIC FM, FRONT TORNADO | X9483 | $3.99Add to cart Product is special order please allow 2-4 weeks for delivery. |
| 19 | | Base, Motor Metal | X8966 | $176.99Add to cart Product is special order please allow 2-4 weeks for delivery. |
| 20 | No Image | Brush Housing, 17 Inch And Bumper Metal Floor Machines | X8967A | $257.99Add to cart Product is special order please allow 2-4 weeks for delivery. |
| 21 | No Image | WASHER, 1/4 SPLIT LOCK ZP | X8212 | $2.99Add to cart Product is special order please allow 2-4 weeks for delivery. |
| 22 | No Image | Washer 5/16 SAE Flat Zinc | X8218 | $2.99Add to cart Product is special order please allow 2-4 weeks for delivery. |
| 23 | No Image | WASHER 3/8 SAE FLAT ZINC | X8219 | $2.99Add to cart Product is special order please allow 2-4 weeks for delivery. |
| 24 | | SCREW 1/4-20 X 1-3/4 HEX CAP GRADE 5 ZP | 72455A | $2.99Add to cart Product is special order please allow 2-4 weeks for delivery. |
| 25 | | Pin, Pivot Metal Floor Machine | X8977 | $5.99Add to cart Product is special order please allow 2-4 weeks for delivery. |
| 26 | No Image | Axle, Wheel 0.5 Dia. Classic Floor Machines | X9575 | $14.99Add to cart Product is special order please allow 2-4 weeks for delivery. |
| 27 | No Image | Spacer Handle Metal FM 1/2ID 3/4OD 1in | X8107 | $3.99Add to cart Product is special order please allow 2-4 weeks for delivery. |
| 28 | No Image | Bracket Brace,Floor Machine,Burnisher,Handle,W/Slot and 2-7/16 Offset | X8027L | $16.99Add to cart Product is special order please allow 2-4 weeks for delivery. |
| 29 | No Image | Bracket Brace,Floor Machine,Burnisher,Handle,W/Hole and 2-7/16 Offset | X8027R | $16.99Add to cart Product is special order please allow 2-4 weeks for delivery. |
| 30 | | Cord,Floor Machine,50 IN,Black,14/3 SJTOW | X8989 | $28.99Add to cart Product is special order please allow 2-4 weeks for delivery. |
| 31 | No Image | Handle Clamp Knob, Plastic | X8016 | $4.99Add to cart Product is special order please allow 2-4 weeks for delivery. |
| 32 | No Image | Handle Clamp Assemlby | X8012A | $38.99Add to cart Product is special order please allow 2-4 weeks for delivery. |
| 33 | No Image | Handle Clamp Assemlby | X8012A | $38.99Add to cart Product is special order please allow 2-4 weeks for delivery. |
| 34 |  | Capacitor,Floor Machine,240,VAC,60UF,Run | X8038 | $37.99Add to cart Product is special order please allow 2-4 weeks for delivery. |
| 35 |  | Capacitor FM VAC 1hp 1-1/2hp 450UF Start | X8953 | $73.99Add to cart Product is special order please allow 2-4 weeks for delivery. |
