Schematic and parts book for tornado 97575t ProGlazer® Propane Burnisher - 28". Repairs should be done by trained technicians. Vacuums R Us & Sewing Too provides vacuum cleaner and carpet cleaner parts and accessories for vacuum cleaner repair purposes. We are committed to delivering high-quality components, but it is important to note that all appliance repairs involve risks, and we cannot guarantee the outcome of your repair. When using our vacuum parts for repairs, you accept the terms and conditions HERE

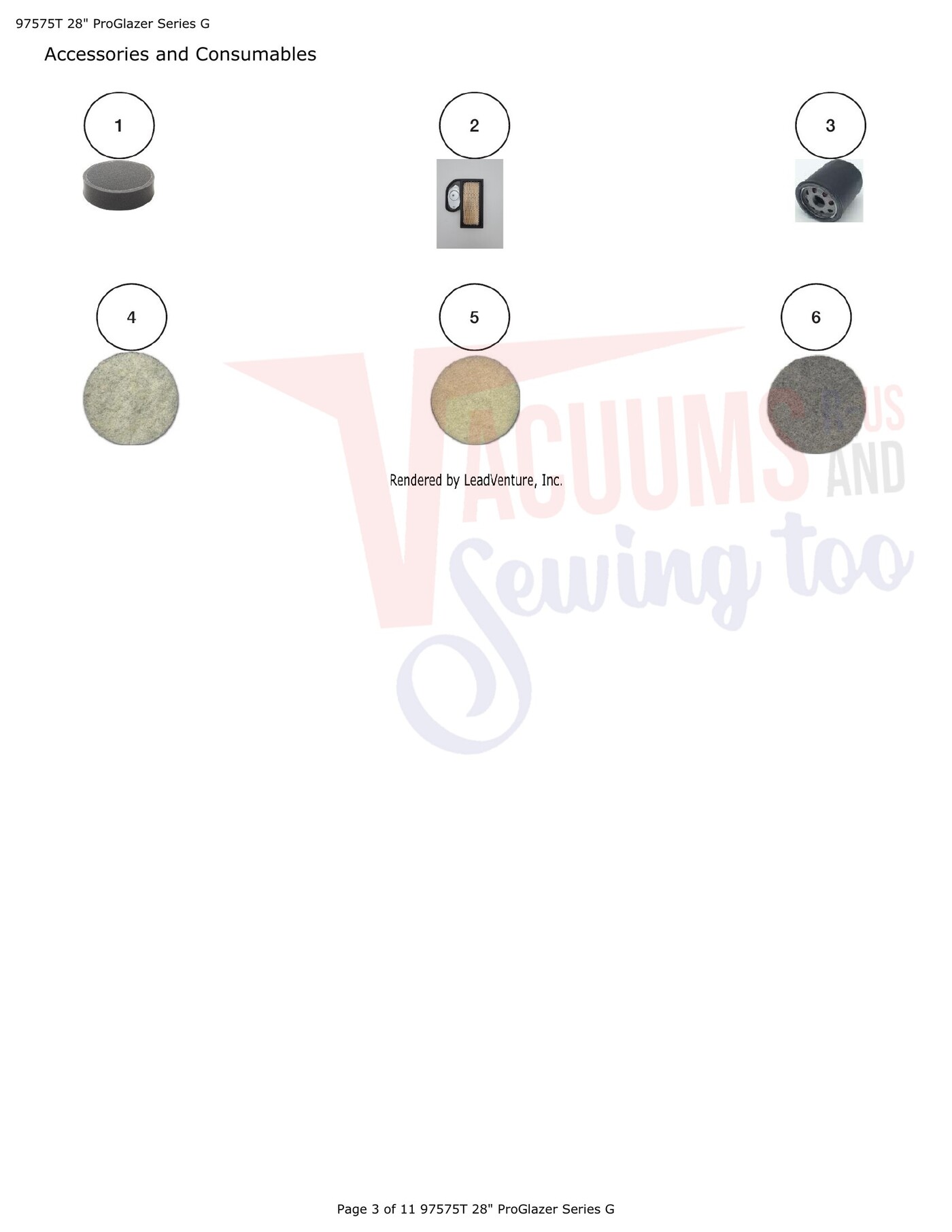

| # | Part image | Description | SKU | Price |
| 1 |  | Filter,Burnisher,Bonnet,9 Inch Wide by 3 Inch High | 33887 | $8.99Add to cart Special order: ships in 2 to 4 weeks |
| 2 |  | HOSE, 30" DIRECT CONNECT 4 WIRE 3 POS SWITCH SFT G Part Number: 99550 for Cen-Tec | 99550 | $219.41Read more |
| 3 | Not Available | Oil Filter | 99553 | Not Available |
| 4 | No Image | Floor Pad Combo Burnishing 27 2/case | CB0227 | $63.99Add to cart Special order: ships in 2 to 4 weeks |
| 5 | No Image | Floor Pad Burnishing Image Beige 27in 2/case | IB0227 | $51.99Add to cart Special order: ships in 2 to 4 weeks |
| 6 | Not Available | 27" Porko Burnishing Floor Pad (Case of 2) | PK0227 | Not Available |
| # | Part image | Description | SKU | Price |
| 1 | | Filter,Burnisher,Bonnet,9 Inch Wide by 3 Inch High | 33887 | $8.99Add to cart Special order: ships in 2 to 4 weeks |
| 2 | | HOSE, 30" DIRECT CONNECT 4 WIRE 3 POS SWITCH SFT G Part Number: 99550 for Cen-Tec | 99550 | $219.41Read more |
| 3 | Not Available | Oil Filter | 99553 | Not Available |
| 4 | No Image | Floor Pad Combo Burnishing 27 2/case | CB0227 | $63.99Add to cart Special order: ships in 2 to 4 weeks |
| 5 | No Image | Floor Pad Burnishing Image Beige 27in 2/case | IB0227 | $51.99Add to cart Special order: ships in 2 to 4 weeks |
| 6 | Not Available | 27" Porko Burnishing Floor Pad (Case of 2) | PK0227 | Not Available |
| # | Part image | Description | SKU | Price |
| 1 | No Image | SCREW, 1/4-20X3/4L | 33489 | $1.99Add to cart Special order: ships in 2 to 4 weeks |
| 2 |  | SWITCH AND KEY PROPANE D473 W/805 | 33486 | $30.99Add to cart Special order: ships in 2 to 4 weeks |
| 3 | No Image | Propane Battery Box Cover | 33483 | $0.00Read more |
| 4 |  | RELAY 12V DC 4 TERMINAL TROMBETTA CONTACTOR | 31453 | $48.99Add to cart Special order: ships in 2 to 4 weeks |
| 5 | No Image | Nut Hex Jam Lock Nylock 1/4 20 ZP | 02217 | $1.99Add to cart Special order: ships in 2 to 4 weeks |
| 6 |  | BATTERY,Burnisher,12,AGM,18A | 32401 | $191.99Add to cart Special order: ships in 2 to 4 weeks |
| 7 | No Image | Felt Back Battery Tray Propane | 30368 | $5.99Add to cart Special order: ships in 2 to 4 weeks |
| 8 | No Image | Propane Battery Box | 33482 | $0.00Read more |
| 9 |  | SCREW, No 10 12 X 1/2 TFT (A) P.H. | 10677 | $2.99Add to cart Special order: ships in 2 to 4 weeks |
| 10 | No Image | Wiring Harness | 33485 | $0.00Read more |
| 11 | No Image | NUT, 1/4-20 HEX SS | 7CN001 | $2.99Add to cart Special order: ships in 2 to 4 weeks |
| 12 | No Image | Handle, Assembly Propane | 33458 | $74.99Add to cart Special order: ships in 2 to 4 weeks |
| 13 |  | NUT, 10-24 NYLON INSERT LOCK 18-8 SS | 7BF030 | $2.99Add to cart Special order: ships in 2 to 4 weeks |
| 14 | No Image | Spacer | 32405 | $0.00Read more |
| 15 |  | Control, Throttle (Propane) | 30394 | $104.99Add to cart Special order: ships in 2 to 4 weeks |
| 16 | No Image | Screw #10-24 X 1-3/4" | 15378 | $0.00Read more |
| 17 | No Image | Shoulder Bolt ¼-20 x 1-3/4 | 18641 | $1.99Add to cart Special order: ships in 2 to 4 weeks |
| 18 |  | NUT 1/4 20 ACORN LOCK PT | 17130 | $2.99Add to cart Special order: ships in 2 to 4 weeks |
| 19 |  | WASHER, 0.313, LOCK | 33490 | $1.99Add to cart Special order: ships in 2 to 4 weeks |
| 20 | No Image | Washer | 00851 | $0.00Read more |
| 21 | No Image | Propane Tank Holder Assembly | 33464 | $0.00Read more |
| 22 |  | SCREW HEX FLANGE HEAD 5/16 18 X 3/4 (ZP) | 19196 | $1.99Add to cart Special order: ships in 2 to 4 weeks |
| 23 | No Image | SCREW, 5/16 18 X 1 1/4 FLAT HD.SOCKET CAP SS BLACK | 16069 | $1.99Add to cart Special order: ships in 2 to 4 weeks |
| 24 | Not Available | Screw #10 x 1/2" | 02-4323-0000 | Not Available |
| 25 | No Image | WASHER 3/8 SAE FLAT ZINC | X8219 | $2.99Add to cart Special order: ships in 2 to 4 weeks |
| 26 | No Image | BOLT, 3/8 16 X 2 3/4 HEX TAP FULL THREAD ZP | 31127 | $1.99Add to cart Special order: ships in 2 to 4 weeks |
| 27 | Not Available | Lock Washer | 03536 | Not Available |
| 28 |  | Washer 5/16 Plain ID ZP | 02568 | $2.99Add to cart Special order: ships in 2 to 4 weeks |
| 29 | No Image | Deck, 28 Black Propanes | 33454 | $1,576.99Add to cart Special order: ships in 2 to 4 weeks |
| 30 | No Image | CASTER, SWIVEL, 2.375 X 1.25 NON LOCKING | X1150 | $36.99Add to cart Special order: ships in 2 to 4 weeks |
| 31 | No Image | SCREW, 5/16-18X1/2 L BTTN | 33457 | $2.99Add to cart Special order: ships in 2 to 4 weeks |
| 32 | No Image | Wheel Bracket | 33924 | $0.00Read more |
| 33 |  | HAIRPIN COTTER .12 X 2.37 ZP | 30319 | $1.99Add to cart Special order: ships in 2 to 4 weeks |
| 34 |  | SPACER WHEEL 3/8 (NYLON) | 30316 | $1.99Add to cart Special order: ships in 2 to 4 weeks |
| 35 |  | Wheel, 6 Grey (Propane) | 30314 | $37.99Add to cart Special order: ships in 2 to 4 weeks |
| 36 |  | PIN CLEVIS (WHEEL) 5/16D X 2.6 LG (ZP) | 30315 | $2.99Add to cart Special order: ships in 2 to 4 weeks |
| 37 | No Image | Bushing Engine Propane | 32119 | $28.99Add to cart Special order: ships in 2 to 4 weeks |
| 38 | No Image | Square Key 1/4" X 1" | 30614 | $0.00Read more |
| 39 | No Image | Pulley, (Engine) Propanes 4.45 OD (Bk47H) | 32476 | $77.99Add to cart Special order: ships in 2 to 4 weeks |
| 40 | No Image | WASHER, .500 PLAIN ID ZP | 18666 | $1.99Add to cart Special order: ships in 2 to 4 weeks |
| 41 | No Image | WASHER SPRING LOCK 7/16 | 30340 | $1.99Add to cart Special order: ships in 2 to 4 weeks |
| 42 | No Image | SCREW, HEX HD CAP 7/16 20 X 1.75 ZP | 30557 | $1.99Add to cart Special order: ships in 2 to 4 weeks |
| 43 | No Image | Belt,Burnisher,Propane,Drive | 31848 | $57.99Add to cart Special order: ships in 2 to 4 weeks |
| 44 | Not Available | 28" Combo Burnishing Floor Pad (Case of 2) inch Floor Combo 28 2 Per Case | CB0528 | Not Available |
| 45 | No Image | Retainer, Pad Center Lok II | PB119 | $40.99Add to cart Special order: ships in 2 to 4 weeks |
| 46 | Not Available | Screw 1/4-20 x 1-1/4" | 33461 | Not Available |
| 47 | No Image | Pad Driver 28W/Riser | 33950 | $503.99Add to cart Special order: ships in 2 to 4 weeks |
| 48 | Not Available | Pulley Bushing | 30332 | Not Available |
| 49 | No Image | Pulley, 24 Cast Iron (Propane 24) | 30331 | $124.99Add to cart Special order: ships in 2 to 4 weeks |
| 50 |  | Key Shaft ZP Propane | 30609 | $4.99Add to cart Special order: ships in 2 to 4 weeks |
| 51 | No Image | Belt Tension Adjustment Assembly | 30662 | $0.00Read more |
| 52 | No Image | Plastic Front End Assembly (Propanes) | 32208 | $0.00Read more |
| 53 |  | WASHER PLAIN 7/16 ID (ZP) | 30335 | $1.99Add to cart Special order: ships in 2 to 4 weeks |
| 54 |  | Washer-plain Part Number 19616 for Cleanmax Models CM-WAV | 19616 | $2.99Add to cart Special order: ships in 2 to 4 weeks |
| 55 | No Image | SCREW HEX HD CAP 7/16 14 X 1 1/2 (ZP) | 32482 | $1.99Add to cart Special order: ships in 2 to 4 weeks |
| 56 | No Image | Catalytic Converter, Fs481V | X9625 | $0.00Read more |
| 57 | No Image | Washer 1/4 Flat USS Zinc | X8235 | $2.99Add to cart Special order: ships in 2 to 4 weeks |
| 58 |  | Screw Hex HD Cap 1/4 20x1/2 SS | 19240 | $1.99Add to cart Special order: ships in 2 to 4 weeks |
| 59 | No Image | Exhaust Manifold Fs481V | X9626 | $0.00Read more |
| 60 | Not Available | Clamp | X9644 | Not Available |
| 61 | No Image | Kawasaki Propane Engine Fs481V 603Cc | 322688 | $0.00Read more |
| 62 | No Image | Plastic Washer | 32163 | $0.00Read more |
| 63 | No Image | Oil Plug (Kawasaki Propane) | 32149 | $0.00Read more |
| 64 | No Image | Digital Hour Meter | 30561 | $0.00Read more |
| 65 | No Image | BOLT, 1/4-20 X 3/4 HEX TAP ZINC | X8268 | $1.99Add to cart Special order: ships in 2 to 4 weeks |
| 66 | No Image | Filter Cage | X9636 | $0.00Read more |
| 67 | | Filter,Burnisher,Bonnet,9 Inch Wide by 3 Inch High | 33887 | $8.99Add to cart Special order: ships in 2 to 4 weeks |
| 68 | No Image | Tank Strap | 33466 | $0.00Read more |
| 69 | No Image | FELT TANK RET. BACK (PROPANE) | 30377 | $6.99Add to cart Special order: ships in 2 to 4 weeks |
| 70 | No Image | HOSE, FUEL 1/2 ID X 25 L | X9633 | $15.99Add to cart Special order: ships in 2 to 4 weeks |
| 71 | No Image | Clamp 1/2 Worm Gear SS Hex Slot Phil SAE Size 6 | 7DL008 | $4.99Add to cart Special order: ships in 2 to 4 weeks |
| 72 | No Image | ELBOW 90 DEG. BRASS 3/8 NPT X 1/2 BARB | X9632 | $11.99Add to cart Special order: ships in 2 to 4 weeks |
| 73 | No Image | Elbow Street 1/4 90 Degree Brass | PC49 | $14.99Add to cart Special order: ships in 2 to 4 weeks |
| 74 |  | FUEL HOSE | 33922 | $24.99Add to cart Special order: ships in 2 to 4 weeks |
| 75 |  | Regulator, Vapor Kawasaki Engine (CandT) | 32270 | $563.99Add to cart Special order: ships in 2 to 4 weeks |
| 76 | No Image | Propane Fuel Lock Valve | 31157 | $0.00Read more |
| 77 | No Image | Vacuum Hose | 31162 | $0.00Read more |
| 78 | No Image | FITTING BARB 90 DEG. 1/8NPT TP 1/4 HOSE | 31161 | $14.99Add to cart Special order: ships in 2 to 4 weeks |
| 79 | No Image | Hose, 20 Male/Female (Fuel) | X9593 | $62.99Add to cart Special order: ships in 2 to 4 weeks |
| 80 |  | Coupling Tank 97430 | 31158 | $40.99Add to cart Special order: ships in 2 to 4 weeks |
| 81 | No Image | ELBOW 90 DEG 5/8 18 MALE X 1/4 NPT (BRASS) | 32398 | $7.99Add to cart Special order: ships in 2 to 4 weeks |
| 82 |  | Carbon Brush - Ametek 240 Motor For: ametek | 33465 | $17.79Add to cart Special order: ships in 2 to 4 weeks |
| 83 |  | Washer 1/4ID Tooth Part Number 7CY002 for Cleanmax Models CM-WAV,CM-WAV | 7CY002 | $2.99Add to cart Special order: ships in 2 to 4 weeks |
| 84 | No Image | Steel Propane Tank | 30396 | $0.00Read more |
