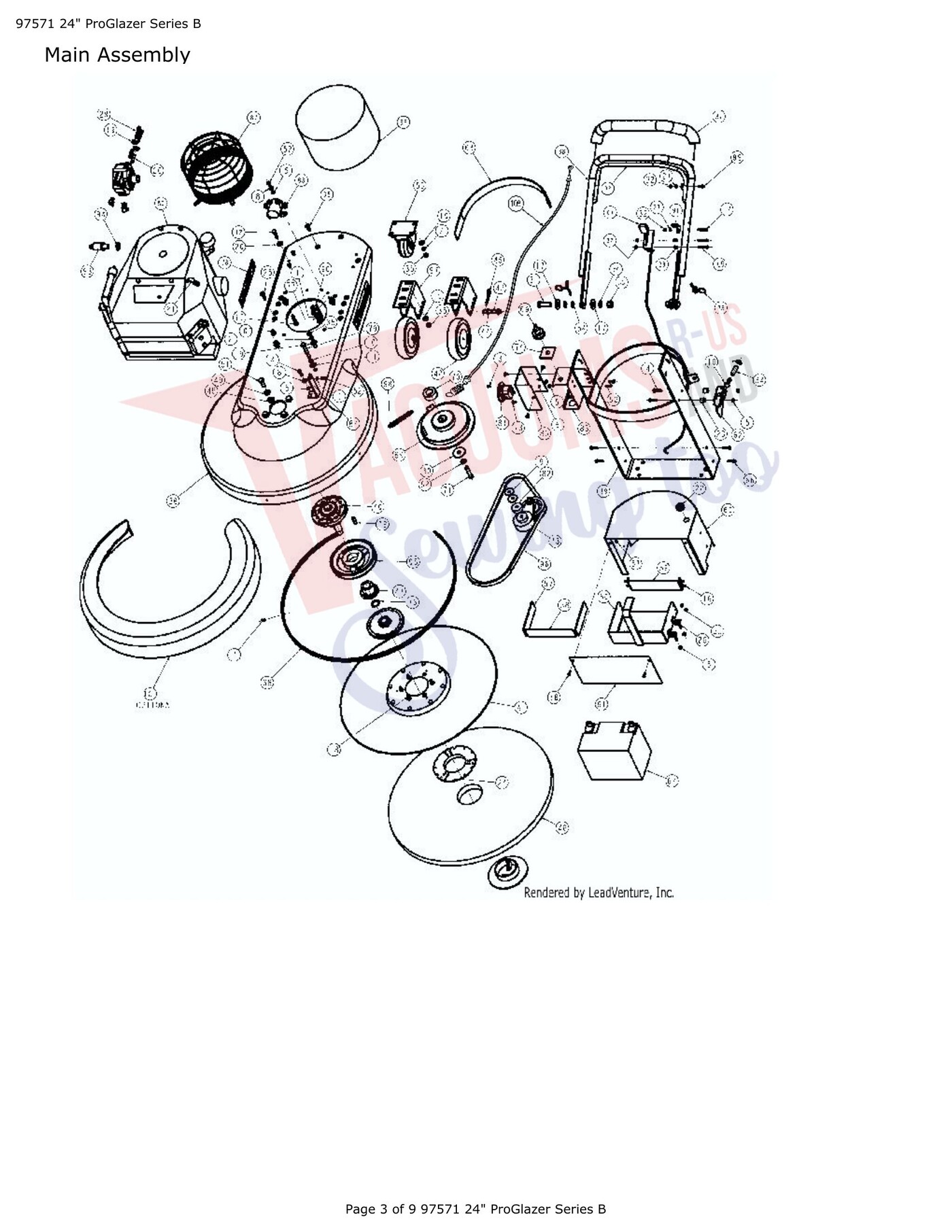

Schematic and parts book for Tornado 97571 . Repairs should be done by trained technicians. Vacuums R Us & Sewing Too provides vacuum cleaner and carpet cleaner parts and accessories for vacuum cleaner repair purposes. We are committed to delivering high-quality components, but it is important to note that all appliance repairs involve risks, and we cannot guarantee the outcome of your repair. When using our vacuum parts for repairs, you accept the terms and conditions HERE
| # | Part image | Description | SKU | Price |
| 1 | No Image | Lock Washer | 01574 | $0.00Read more |
| 2 |  | Washer Lock Split 5/16 Zn Regular | 01577 | $2.99Add to cart Product is special order please allow 2-4 weeks for delivery. |
| 3 |  | Screw PH Pan 6-32x3/8 MS Zn | 01734 | $2.99Add to cart Product is special order please allow 2-4 weeks for delivery. |
| 4 | No Image | Screw 1/4-20 X 1" | 02046 | $0.00Read more |
| 5 | No Image | Nut Hex Jam Lock Nylock 1/4 20 ZP | 02217 | $1.99Add to cart Product is special order please allow 2-4 weeks for delivery. |
| 6 | No Image | Keps Nut | 02958 | $0.00Read more |
| 7 | No Image | Rivet | 03124 | $0.00Read more |
| 8 |  | Washer-plain .265 Id Part Number 14142 for Cleanmax Models CM-WAV | 14142 | $2.99Add to cart Product is special order please allow 2-4 weeks for delivery. |
| 9 | Not Available | Washer | 03321 | Not Available |
| 10 | Not Available | Lock Washer | 03536 | Not Available |
| 11 | Not Available | Washer | 03736 | Not Available |
| 12 | Not Available | Screw | 10502 | Not Available |
| 13 |  | SCREW, No 10 12 X 1/2 TFT (A) P.H. | 10677 | $2.99Add to cart Product is special order please allow 2-4 weeks for delivery. |
| 14 | No Image | Screw #10-24 X 1" | 10895 | $0.00Read more |
| 15 | No Image | SCREW HEX HD CAP 5/16 18 X 1 3/4 (ZP) | 12812 | $1.99Add to cart Product is special order please allow 2-4 weeks for delivery. |
| 16 | No Image | SCREW, No 10 32 X 5/8 PHIL. RND HD MACH ZP | 12896 | $2.99Add to cart Product is special order please allow 2-4 weeks for delivery. |
| 17 |  | Washer 1/2 ID ZP | 12957 | $2.99Add to cart Product is special order please allow 2-4 weeks for delivery. |
| 18 | No Image | SCREW PHIL. OVAL HD MACH 1/4 20 X 1.00 (SS) | 14046 | $1.99Add to cart Product is special order please allow 2-4 weeks for delivery. |
| 19 | | Washer-plain .265 Id Part Number 14142 for Cleanmax Models CM-WAV | 14142 | $2.99Add to cart Product is special order please allow 2-4 weeks for delivery. |
| 21 | Not Available | Nozzle Bar Clamp | 15061 | Not Available |
| 22 | | STRAIN RELIEF BUSHING Part Number 15330 for Simplicity Models SCE | 15330 | $2.19Add to cart Product is special order please allow 2-4 weeks for delivery. |
| 23 | No Image | SPACER SQUEEGEE LIFT | 15666 | $10.99Add to cart Product is special order please allow 2-4 weeks for delivery. |
| 24 | No Image | Pad Retainer | 15887 | $0.00Read more |
| 25 | No Image | SCREW, 5/16 18 X 1 1/4 FLAT HD.SOCKET CAP SS BLACK | 16069 | $1.99Add to cart Product is special order please allow 2-4 weeks for delivery. |
| 26 |  | SCREW, 1/4-20X1 1/4 HCS SS | 7DC001 | $1.99Read more |
| 27 |  | Washer Plain no 10 ID SS | 17850 | $2.99Add to cart Product is special order please allow 2-4 weeks for delivery. |
| 28 | No Image | Spacer | 32405 | $0.00Read more |
| 29 | No Image | Shoulder Bolt ¼-20 x 1-3/4 | 18641 | $1.99Add to cart Product is special order please allow 2-4 weeks for delivery. |
| 30 | No Image | WASHER, .500 PLAIN ID ZP | 18666 | $1.99Add to cart Product is special order please allow 2-4 weeks for delivery. |
| 31 | No Image | Screw 1/2-13 X 1-3/4" | 18875 | $0.00Read more |
| 32 | | NUT-HEX LOCK (NYLON INSERT) #10-24 Part Number 19145 for Simplicity Models SCE | 19145 | |
| 33 | No Image | Nyloc Nut | 19337 | $0.00Read more |
| 34 | No Image | Spacer 5/16ID x 1/2OD x 1.4 Plastic | 19506 | $21.99Add to cart Product is special order please allow 2-4 weeks for delivery. |
| 35 |  | Nut 5/16 Lock with Nylon Insert Zinc | X8248 | $2.99Add to cart Product is special order please allow 2-4 weeks for delivery. |
| 36 | Not Available | Machined Deck 24" | 30272 | Not Available |
| 37 | Not Available | Handle Grip Pad | 30278 | Not Available |
| 38 | Not Available | Deluxe Upper Handle Assembly | 30280 | Not Available |
| 39 | No Image | WELDMENT LOWR.HANDL.ASSY (PROPANE) BLACK PAINT | 30293 | $253.99Read more |
| 40 | No Image | Plastic Front End Assembly (Propanes) | 32208 | $0.00Read more |
| 41 | Not Available | Pad Driver 24" Propane | 30308 | Not Available |
| 42 |  | Wheel, 6 Grey (Propane) | 30314 | $37.99Add to cart Product is special order please allow 2-4 weeks for delivery. |
| 43 |  | PIN CLEVIS (WHEEL) 5/16D X 2.6 LG (ZP) | 30315 | $2.99Add to cart Product is special order please allow 2-4 weeks for delivery. |
| 44 |  | SPACER WHEEL 3/8 (NYLON) | 30316 | $1.99Add to cart Product is special order please allow 2-4 weeks for delivery. |
| 45 |  | HAIRPIN COTTER .12 X 2.37 ZP | 30319 | $1.99Add to cart Product is special order please allow 2-4 weeks for delivery. |
| 46 | Not Available | Beige Pad 24" | 30323 | Not Available |
| 47 | Not Available | Pulley Bushing | 30332 | Not Available |
| 48 |  | WASHER PLAIN 7/16 ID (ZP) | 30335 | $1.99Add to cart Product is special order please allow 2-4 weeks for delivery. |
| 49 | No Image | WASHER SPRING LOCK 7/16 | 30340 | $1.99Add to cart Product is special order please allow 2-4 weeks for delivery. |
| 50 | Not Available | Spring Lock Washer | 30341 | Not Available |
| 51 | Not Available | Screw 7/16-14 x 1-1/4" | 30351 | Not Available |
| 52 | No Image | Nut Hex Jam Lock Nylock 1/4 20 ZP | 02217 | $1.99Add to cart Product is special order please allow 2-4 weeks for delivery. |
| 52 | No Image | SCREW HEX HD CAP 1/4 20 X 5/8 (ZP) | 30354 | $1.99Add to cart Product is special order please allow 2-4 weeks for delivery. |
| 53 | No Image | Caster Wheel | 30355 | $0.00Read more |
| 54 | Not Available | Lock Washer | 30356 | Not Available |
| 55 | | Nut Hex Lock Part Number 30358 for Cleanmax Models CM-WAV | 30358 | $2.99Add to cart Product is special order please allow 2-4 weeks for delivery. |
| 56 | No Image | WELDMENT BATTERY TRAY (PROPANE) PAINT BLACK | 30363 | $74.99Read more |
| 57 | No Image | Felt Side Battery Tray Propane | 30367 | $5.99Add to cart Product is special order please allow 2-4 weeks for delivery. |
| 58 | No Image | Felt Back Battery Tray Propane | 30368 | $5.99Add to cart Product is special order please allow 2-4 weeks for delivery. |
| 59 | Not Available | Battery Bracket | 30370 | Not Available |
| 60 | No Image | WELDMENT BATTERY COVER (PROPANE) PAINT BLACK | 30371 | $85.99Read more |
| 61 | No Image | Cover Battery Back Propane Paint Blk | 30374 | $198.99Add to cart Product is special order please allow 2-4 weeks for delivery. |
| 62 | Not Available | Propane Tank Latch | 30375 | Not Available |
| 63 | No Image | FELT TANK RET. BACK (PROPANE) | 30377 | $6.99Add to cart Product is special order please allow 2-4 weeks for delivery. |
| 64 |  | BATTERY,Burnisher,12,AGM,18A | 32401 | $191.99Add to cart Product is special order please allow 2-4 weeks for delivery. |
| 65 | No Image | Screw 5/16-18 X 1" | 30384 | $0.00Read more |
| 67 |  | Control, Throttle (Propane) | 30394 | $104.99Add to cart Product is special order please allow 2-4 weeks for delivery. |
| 68 | Not Available | Trim Guard Rail 63" | 30399 | Not Available |
| 69 |  | Switch Key Propane | 30414 | $50.99Add to cart Product is special order please allow 2-4 weeks for delivery. |
| 70 | No Image | SPACER CLUTCH (ZP) 1.06 I.D. X .80 WIDE | 30549 | $36.99Read more |
| 71 | No Image | SCREW, HEX HD CAP 7/16 20 X 1.75 ZP | 30557 | $1.99Add to cart Product is special order please allow 2-4 weeks for delivery. |
| 73 | No Image | Belt Tension Adjustment Assembly | 30662 | $0.00Read more |
| 74 | No Image | On/Off Decal | 30663 | $0.00Read more |
| 75 | No Image | Pin W/Ring | 30666 | $0.00Read more |
| 76 | No Image | Ext. Tooth Lock Washer | 30667 | $0.00Read more |
| 77 | No Image | SCREW PHIL. PAN HD MACH 1/4 20 X 5/8 (SS) | 30674 | $1.99Add to cart Product is special order please allow 2-4 weeks for delivery. |
| 78 | No Image | LABEL, TORNADO W/ LOGO 1.75 WIDE X 7.25 LG. BLK | 30814 | $1.99Add to cart Product is special order please allow 2-4 weeks for delivery. |
| 79 | No Image | BOLT, 3/8 16 X 2 3/4 HEX TAP FULL THREAD ZP | 31127 | $1.99Add to cart Product is special order please allow 2-4 weeks for delivery. |
| 80 | Not Available | Kawasaki Engine 17 HP Model FH500V (Converted) | 31290 | Not Available |
| 81 | No Image | Hour Meter | 31399 | $0.00Read more |
| 82 | No Image | Belt Tensioner Spacer | 31445 | $0.00Read more |
| 83 |  | RELAY 12V DC 4 TERMINAL TROMBETTA CONTACTOR | 31453 | $48.99Add to cart Product is special order please allow 2-4 weeks for delivery. |
| 84 | Not Available | Muffler Stand Bracket | 31455 | Not Available |
| 85 | No Image | Key/Meter Box Base | 31547 | $0.00Read more |
| 86 | No Image | Key/Meter Box Cover | 31548 | $0.00Read more |
| 87 | Not Available | Filter Cage | 31937 | Not Available |
| 88 | No Image | Filter,Burnisher,Foam,Engine Top,6,Kawasaki | 31970 | $83.99Add to cart Product is special order please allow 2-4 weeks for delivery. |
| 89 | Not Available | Mechanical Clutch | 32134 | Not Available |
| 90 | Not Available | Deck Cable Bracket | 32136 | Not Available |
| 91 | No Image | BRACKET HANDLE CABLE | 32137 | $482.99Read more |
| 92 | Not Available | Clutch Bail Lever | 32140 | Not Available |
| 93 | No Image | Oil Plug (Kawasaki Propane) | 32149 | $0.00Read more |
| 94 | No Image | Plastic Washer | 32163 | $0.00Read more |
| 95 | Not Available | Pulley 6-1/2" O.D. | 32190 | Not Available |
| 96 | Not Available | Drive Belt B45 | 32246 | Not Available |
| 97 | Not Available | Wheel Bracket | 32247 | Not Available |
| 98 | Not Available | Clutch Return Spring | 32262 | Not Available |
| 99 | Not Available | Shoulder Screw 1/4" x 1/4" | 32265 | Not Available |
| 101 | Not Available | Yellow Dust Skirt 24" | 31534 | Not Available |
| 102 | Not Available | Fuel hose | 31160 | Not Available |
| 103 |  | Cable Battery Jumper 6ga X 18 Blk | 30725 | $43.99Add to cart Product is special order please allow 2-4 weeks for delivery. |
| 104 | No Image | Battery Cable 6 Awg X 30" | 30810 | $0.00Read more |
| 105 |  | Coupling Tank 97430 | 31158 | $40.99Add to cart Product is special order please allow 2-4 weeks for delivery. |
| 107 | No Image | Neoprene Hose 3/8" I.D. X 9/16" O.D. X 7" (Oil Drain Hose) | 32248 | $0.00Read more |
| 108 | Not Available | Clutch Release Cable | 32261 | Not Available |
| 109 | Not Available | Screw | 12270 | Not Available |
| 110 | Not Available | Catalytic Converter | 32304 | Not Available |
| 111 | Not Available | Exhaust Manifold | 32305 | Not Available |
