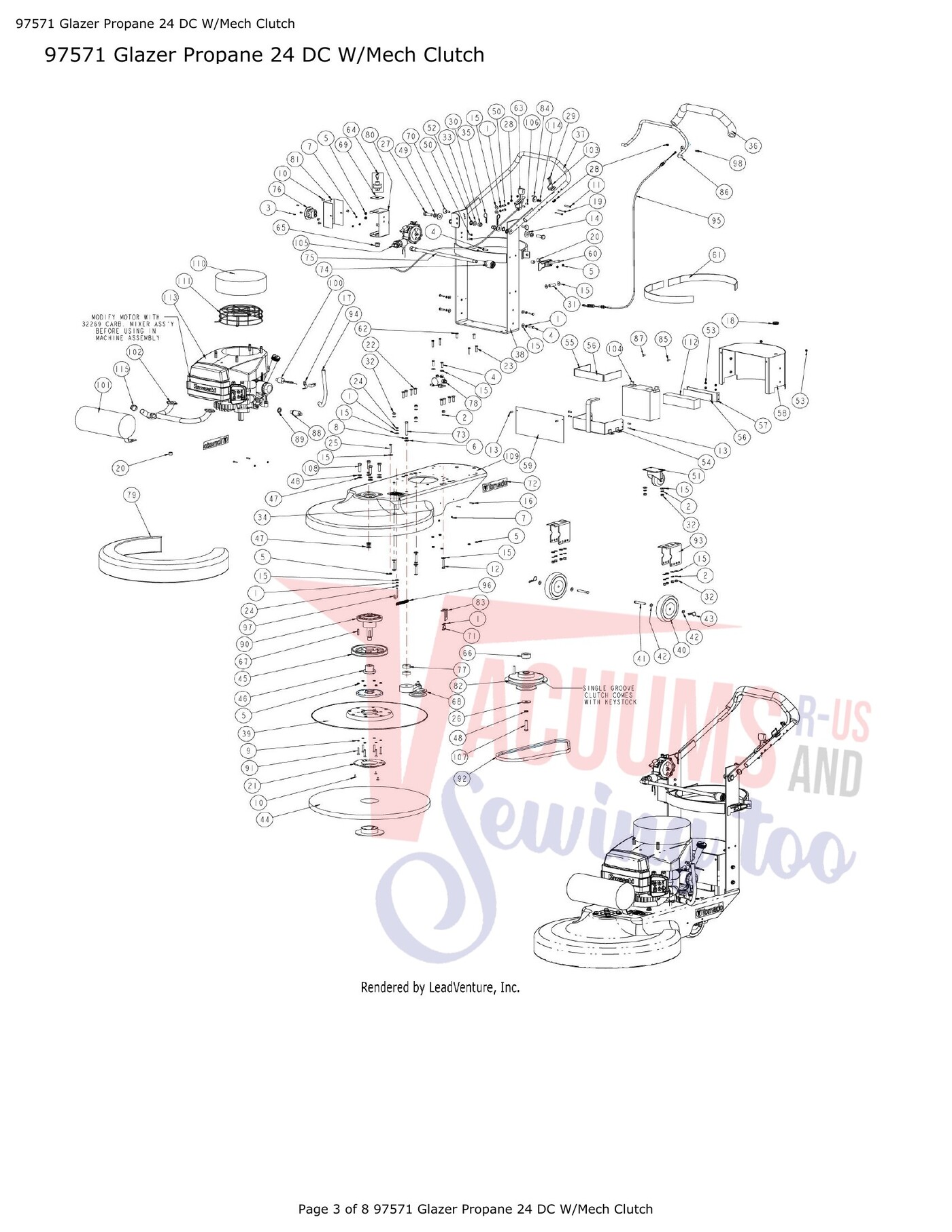

Schematic and parts book for Tornado 97571 . Repairs should be done by trained technicians. Vacuums R Us & Sewing Too provides vacuum cleaner and carpet cleaner parts and accessories for vacuum cleaner repair purposes. We are committed to delivering high-quality components, but it is important to note that all appliance repairs involve risks, and we cannot guarantee the outcome of your repair. When using our vacuum parts for repairs, you accept the terms and conditions HERE
| # | Part image | Description | SKU | Price |
| 1 |  | Washer Lock Split 5/16 Zn Regular | 01577 | $2.99Add to cart Product is special order please allow 2-4 weeks for delivery. |
| 2 |  | Screw PH Pan 6-32x3/8 MS Zn | 01734 | $2.99Add to cart Product is special order please allow 2-4 weeks for delivery. |
| 3 | No Image | Screw 1/4-20 X 1" | 02046 | $0.00Read more |
| 4 | No Image | Screw 1/4-20 X 1" | 02046 | $0.00Read more |
| 5 | No Image | Nut Hex Jam Lock Nylock 1/4 20 ZP | 02217 | $1.99Add to cart Product is special order please allow 2-4 weeks for delivery. |
| 6 | Not Available | Screw | 02566 | Not Available |
| 7 | No Image | Keps Nut | 02958 | $0.00Read more |
| 8 | Not Available | Lock Washer | 03536 | Not Available |
| 9 | No Image | Lock Washer | 07870 | $0.00Read more |
| 10 |  | SCREW, No 10 12 X 1/2 TFT (A) P.H. | 10677 | $2.99Add to cart Product is special order please allow 2-4 weeks for delivery. |
| 11 | No Image | Screw #10-24 X 1" | 10895 | $0.00Read more |
| 12 | No Image | SCREW HEX HD CAP 5/16 18 X 1 3/4 (ZP) | 12812 | $1.99Add to cart Product is special order please allow 2-4 weeks for delivery. |
| 13 | No Image | SCREW, No 10 32 X 5/8 PHIL. RND HD MACH ZP | 12896 | $2.99Add to cart Product is special order please allow 2-4 weeks for delivery. |
| 14 |  | Washer 1/2 ID ZP | 12957 | $2.99Add to cart Product is special order please allow 2-4 weeks for delivery. |
| 15 |  | Washer-plain .265 Id Part Number 14142 for Cleanmax Models CM-WAV | 14142 | $2.99Add to cart Product is special order please allow 2-4 weeks for delivery. |
| 16 | No Image | SCREW PHIL. FLAT HD MACH No 6 32 X 7/8 (ZP) | 14544 | $1.99Add to cart Product is special order please allow 2-4 weeks for delivery. |
| 17 | Not Available | Nozzle Bar Clamp | 15061 | Not Available |
| 18 | | STRAIN RELIEF BUSHING Part Number 15330 for Simplicity Models SCE | 15330 | $2.19Add to cart Product is special order please allow 2-4 weeks for delivery. |
| 19 | No Image | Screw #10-24 X 1-3/4" | 15378 | $0.00Read more |
| 20 | No Image | SPACER SQUEEGEE LIFT | 15666 | $10.99Add to cart Product is special order please allow 2-4 weeks for delivery. |
| 21 | No Image | Pad Retainer | 15887 | $0.00Read more |
| 22 | No Image | SCREW, 5/16 18 X 1 1/4 FLAT HD.SOCKET CAP SS BLACK | 16069 | $1.99Add to cart Product is special order please allow 2-4 weeks for delivery. |
| 23 |  | SCREW, 1/4-20X1 1/4 HCS SS | 7DC001 | $1.99Read more |
| 24 | | NUT-FINISHED HEX 1/4-20 Part Number 17508 for Simplicity Models SCE | 17508 | |
| 25 | No Image | Shoulder Bolt ¼-20 x 1-3/4 | 18641 | $1.99Add to cart Product is special order please allow 2-4 weeks for delivery. |
| 26 | No Image | WASHER, .500 PLAIN ID ZP | 18666 | $1.99Add to cart Product is special order please allow 2-4 weeks for delivery. |
| 27 | No Image | Screw 1/2-13 X 1-3/4" | 18875 | $0.00Read more |
| 28 | | NUT-HEX LOCK (NYLON INSERT) #10-24 Part Number 19145 for Simplicity Models SCE | 19145 | |
| 29 | No Image | SCREW PHIL. PAN HD MACH No 10 24 X 1 1/4 (SS) | 19205 | $1.99Add to cart Product is special order please allow 2-4 weeks for delivery. |
| 30 | No Image | Nyloc Nut | 19337 | $0.00Read more |
| 31 | No Image | Spacer 5/16ID x 1/2OD x 1.4 Plastic | 19506 | $21.99Add to cart Product is special order please allow 2-4 weeks for delivery. |
| 32 |  | Nut 5/16 Lock with Nylon Insert Zinc | X8248 | $2.99Add to cart Product is special order please allow 2-4 weeks for delivery. |
| 33 |  | Washer-plain Part Number 19616 for Cleanmax Models CM-WAV | 19616 | $2.99Add to cart Product is special order please allow 2-4 weeks for delivery. |
| 34 | No Image | When Changing Pad This Side Up Label | 19652 | $0.00Read more |
| 35 | Not Available | Bridge Pin | 19666 | Not Available |
| 36 | Not Available | Handle Grip Pad | 30278 | Not Available |
| 37 | Not Available | Deluxe Upper Handle Assembly | 30280 | Not Available |
| 38 | No Image | WELDMENT LOWR.HANDL.ASSY (PROPANE) BLACK PAINT | 30293 | $253.99Read more |
| 39 | Not Available | Pad Driver 24" Propane | 30308 | Not Available |
| 40 |  | Wheel, 6 Grey (Propane) | 30314 | $37.99Add to cart Product is special order please allow 2-4 weeks for delivery. |
| 41 |  | PIN CLEVIS (WHEEL) 5/16D X 2.6 LG (ZP) | 30315 | $2.99Add to cart Product is special order please allow 2-4 weeks for delivery. |
| 42 |  | SPACER WHEEL 3/8 (NYLON) | 30316 | $1.99Add to cart Product is special order please allow 2-4 weeks for delivery. |
| 43 |  | HAIRPIN COTTER .12 X 2.37 ZP | 30319 | $1.99Add to cart Product is special order please allow 2-4 weeks for delivery. |
| 44 | Not Available | Beige Pad 24" | 30323 | Not Available |
| 45 | No Image | Pulley | 30330 | $0.00Read more |
| 46 | Not Available | Pulley Bushing | 30332 | Not Available |
| 47 |  | WASHER PLAIN 7/16 ID (ZP) | 30335 | $1.99Add to cart Product is special order please allow 2-4 weeks for delivery. |
| 48 | No Image | WASHER SPRING LOCK 7/16 | 30340 | $1.99Add to cart Product is special order please allow 2-4 weeks for delivery. |
| 50 | No Image | SCREW HEX HD CAP 1/4 20 X 5/8 (ZP) | 30354 | $1.99Add to cart Product is special order please allow 2-4 weeks for delivery. |
| 51 | No Image | Caster Wheel | 30355 | $0.00Read more |
| 52 | Not Available | Lock Washer | 30356 | Not Available |
| 53 | | Nut Hex Lock Part Number 30358 for Cleanmax Models CM-WAV | 30358 | $2.99Add to cart Product is special order please allow 2-4 weeks for delivery. |
| 54 | No Image | WELDMENT BATTERY TRAY (PROPANE) PAINT BLACK | 30363 | $74.99Read more |
| 55 | No Image | Felt Side Battery Tray Propane | 30367 | $5.99Add to cart Product is special order please allow 2-4 weeks for delivery. |
| 56 | No Image | Felt Back Battery Tray Propane | 30368 | $5.99Add to cart Product is special order please allow 2-4 weeks for delivery. |
| 57 | Not Available | Battery Bracket | 30370 | Not Available |
| 58 | No Image | WELDMENT BATTERY COVER (PROPANE) PAINT BLACK | 30371 | $85.99Read more |
| 59 | No Image | Cover Battery Back Propane Paint Blk | 30374 | $198.99Add to cart Product is special order please allow 2-4 weeks for delivery. |
| 60 | Not Available | Propane Tank Latch | 30375 | Not Available |
| 61 | No Image | FELT TANK RET. BACK (PROPANE) | 30377 | $6.99Add to cart Product is special order please allow 2-4 weeks for delivery. |
| 62 | No Image | Screw 5/16-18 X 1" | 30384 | $0.00Read more |
| 63 |  | Control, Throttle (Propane) | 30394 | $104.99Add to cart Product is special order please allow 2-4 weeks for delivery. |
| 64 |  | Switch Key Propane | 30414 | $50.99Add to cart Product is special order please allow 2-4 weeks for delivery. |
| 65 | Not Available | Strain Relief Bushing | 30460 | Not Available |
| 66 | No Image | SPACER CLUTCH (ZP) 1.06 I.D. X .80 WIDE | 30549 | $36.99Read more |
| 67 |  | Key Shaft ZP Propane | 30609 | $4.99Add to cart Product is special order please allow 2-4 weeks for delivery. |
| 68 | No Image | Belt Tension Adjustment Assembly | 30662 | $0.00Read more |
| 69 | No Image | Pin W/Ring | 30666 | $0.00Read more |
| 70 | No Image | Pin W/Ring | 30666 | $0.00Read more |
| 71 | No Image | SCREW PHIL. PAN HD MACH 1/4 20 X 5/8 (SS) | 30674 | $1.99Add to cart Product is special order please allow 2-4 weeks for delivery. |
| 72 | No Image | LABEL, TORNADO W/ LOGO 2.25 WIDE X 9.50 LG. BLK | 30816 | $2.99Add to cart Product is special order please allow 2-4 weeks for delivery. |
| 73 | No Image | BOLT, 3/8 16 X 2 3/4 HEX TAP FULL THREAD ZP | 31127 | $1.99Add to cart Product is special order please allow 2-4 weeks for delivery. |
| 74 |  | Coupling Tank 97430 | 31158 | $40.99Add to cart Product is special order please allow 2-4 weeks for delivery. |
| 75 | Not Available | Fuel hose | 31160 | Not Available |
| 76 | No Image | Hour Meter | 31399 | $0.00Read more |
| 77 | No Image | Belt Tensioner Spacer | 31445 | $0.00Read more |
| 78 |  | RELAY 12V DC 4 TERMINAL TROMBETTA CONTACTOR | 31453 | $48.99Add to cart Product is special order please allow 2-4 weeks for delivery. |
| 79 | Not Available | Yellow Dust Skirt 24" | 31534 | Not Available |
| 80 | No Image | Key/Meter Box Base | 31547 | $0.00Read more |
| 81 | No Image | Key/Meter Box Cover | 31548 | $0.00Read more |
| 82 | Not Available | Mechanical Clutch | 32134 | Not Available |
| 83 | Not Available | Deck Cable Bracket | 32136 | Not Available |
| 84 | No Image | BRACKET HANDLE CABLE | 32137 | $482.99Read more |
| 85 | No Image | Boot Battery Straight cover Blk 97571 | 32139 | $13.99Add to cart Product is special order please allow 2-4 weeks for delivery. |
| 86 | Not Available | Clutch Bail Lever | 32140 | Not Available |
| 87 | No Image | BOOT BATTERY STRAIGHT COVER (RED) 97571 | 32141 | $9.99Read more |
| 88 | No Image | Oil Plug (Kawasaki Propane) | 32149 | $0.00Read more |
| 89 | No Image | Plastic Washer | 32163 | $0.00Read more |
| 90 | No Image | Plastic Front End Assembly (Propanes) | 32208 | $0.00Read more |
| 91 | No Image | SCREW PHIL. OVAL HD MACH 1/4 20 X 1.50 LG. (SS) | 32214 | $1.99Add to cart Product is special order please allow 2-4 weeks for delivery. |
| 92 | Not Available | Drive Belt B45 | 32246 | Not Available |
| 93 | Not Available | Wheel Bracket | 32247 | Not Available |
| 94 | No Image | Neoprene Hose 3/8" I.D. X 9/16" O.D. X 7" (Oil Drain Hose) | 32248 | $0.00Read more |
| 95 | Not Available | Clutch Release Cable | 32261 | Not Available |
| 96 | Not Available | Clutch Return Spring | 32262 | Not Available |
| 97 | Not Available | Return Spring Hook | 32264 | Not Available |
| 98 | Not Available | Shoulder Screw 1/4" x 1/4" | 32265 | Not Available |
| 100 | Not Available | Oil Pressure Switch (Kawasaki) | 32271 | Not Available |
| 101 | Not Available | Catalytic Converter | 32303 | Not Available |
| 102 | Not Available | Exhaust Manifold | 32305 | Not Available |
| 103 | Not Available | Cable Stop Bracket | 32351 | Not Available |
| 104 |  | BATTERY,Burnisher,12,AGM,18A | 32401 | $191.99Add to cart Product is special order please allow 2-4 weeks for delivery. |
| 106 | No Image | Spacer | 32405 | $0.00Read more |
| 107 | No Image | SCREW, 7/16 20 X 2.00 HEX HD CAP ZP | 32481 | $1.99Add to cart Product is special order please allow 2-4 weeks for delivery. |
| 108 | No Image | SCREW HEX HD CAP 7/16 14 X 1 1/2 (ZP) | 32482 | $1.99Add to cart Product is special order please allow 2-4 weeks for delivery. |
| 110 |  | Filter,Burnisher,Bonnet,9 Inch Wide by 3 Inch High | 33887 | $8.99Add to cart Product is special order please allow 2-4 weeks for delivery. |
| 111 | No Image | FILTER CAGE,PROPANE (31937)SEND TO SERCO FOR X9636 | 33904 | $66.99Read more |
| 112 | Not Available | Kawasaki Engine 17 HP | 32268 | Not Available |
| 114 |  | WASHER, No 10 FLAT S/S MS-15795 No. 841 | 7CM003 | $2.99Add to cart Product is special order please allow 2-4 weeks for delivery. |
| 115 | No Image | Clamp 1-1/2 Worm Gear SS Hex Slot Hd SAE Size 20 | 7DL005 | $8.99Add to cart Product is special order please allow 2-4 weeks for delivery. |
