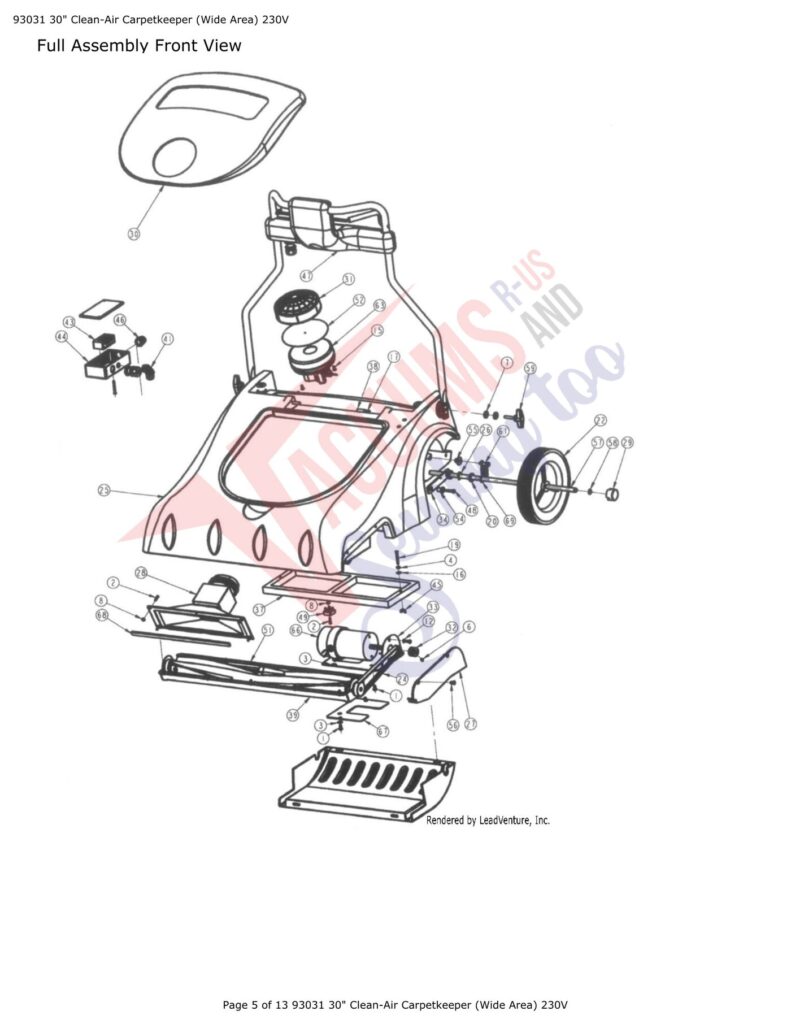

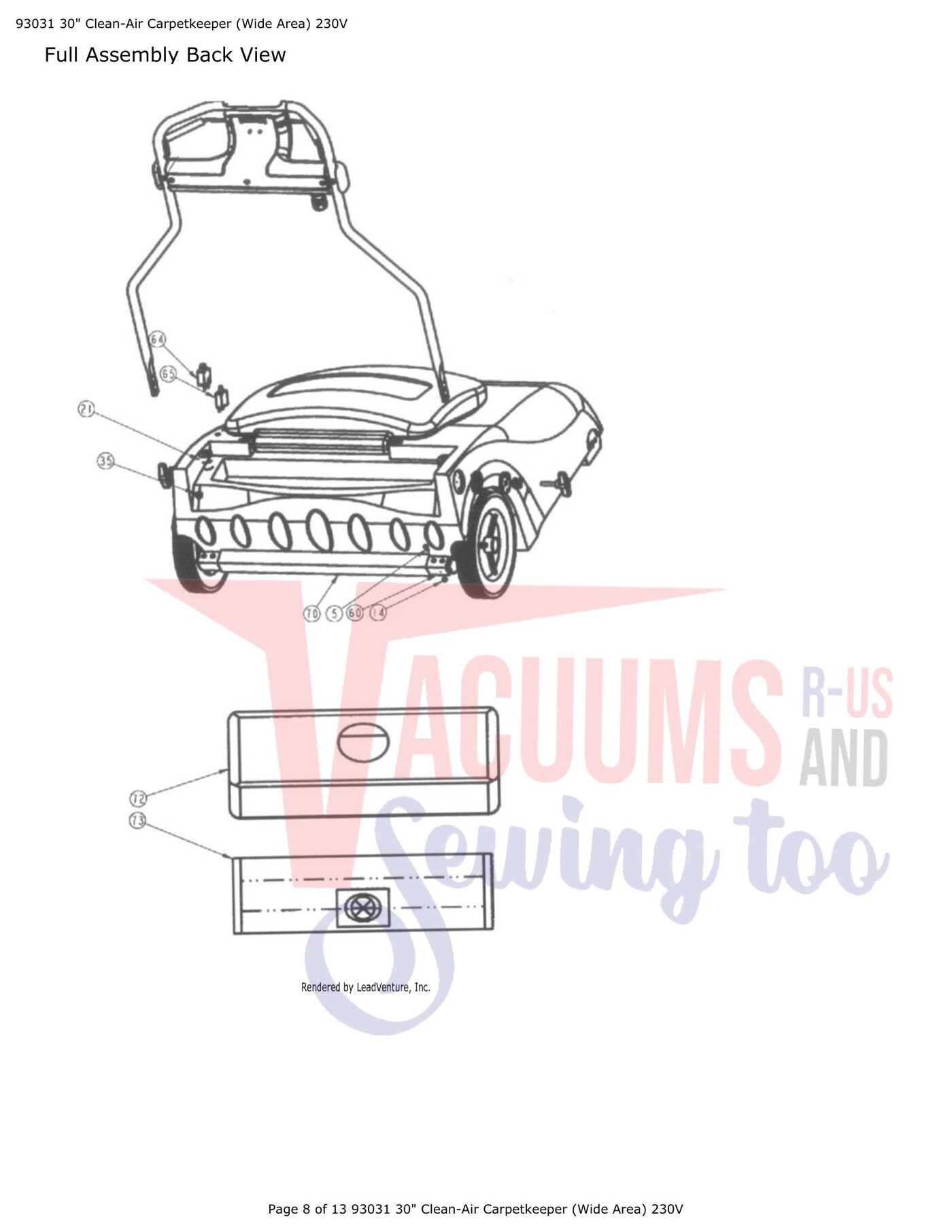

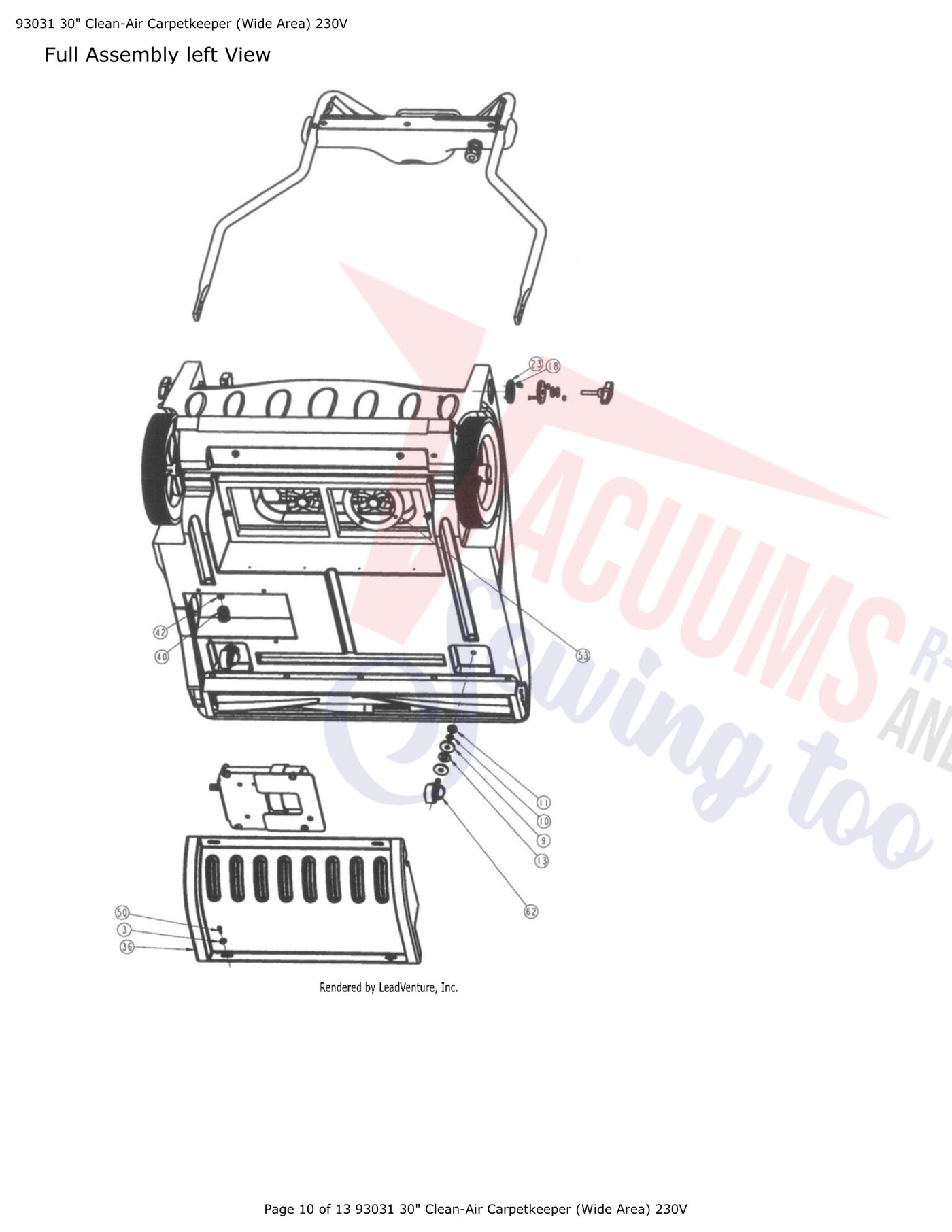

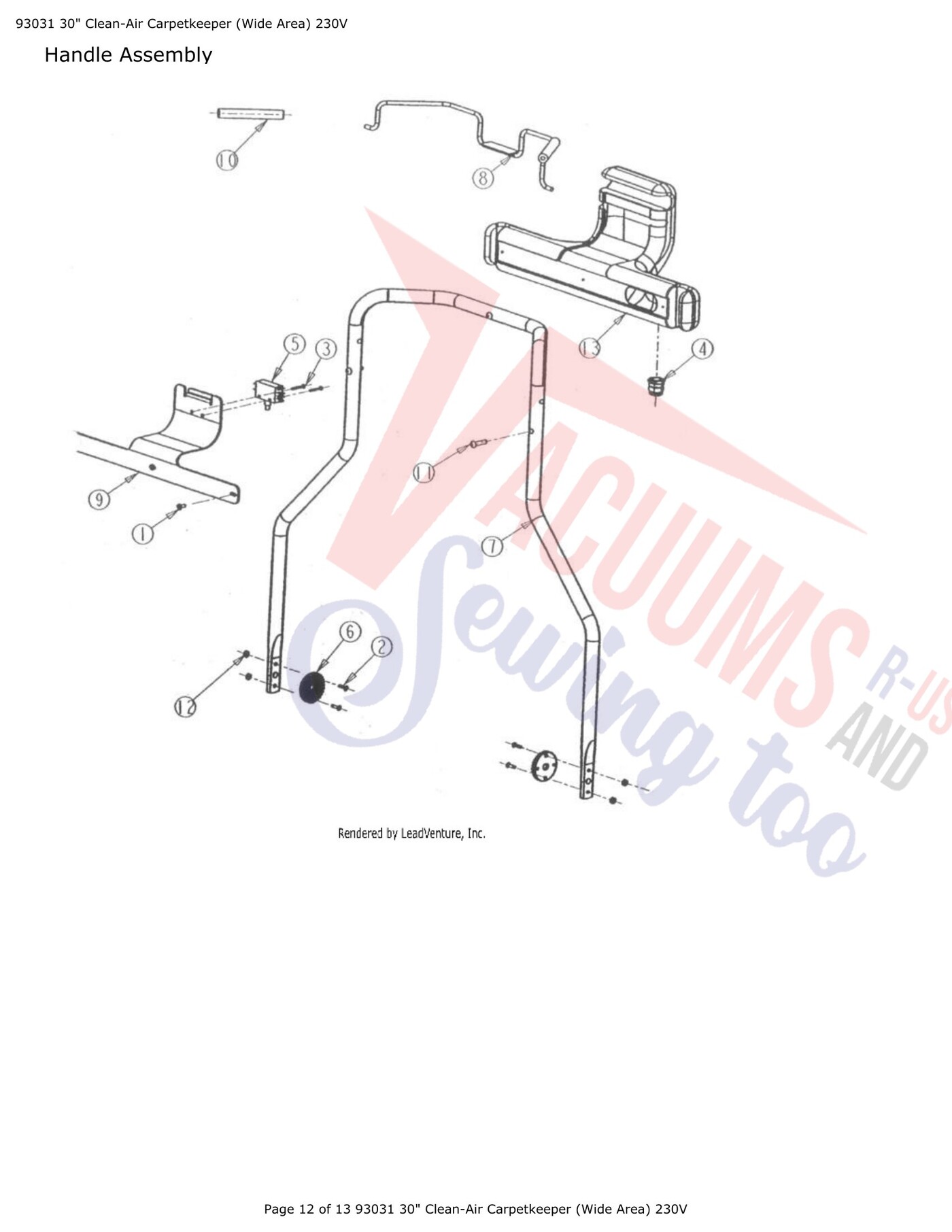

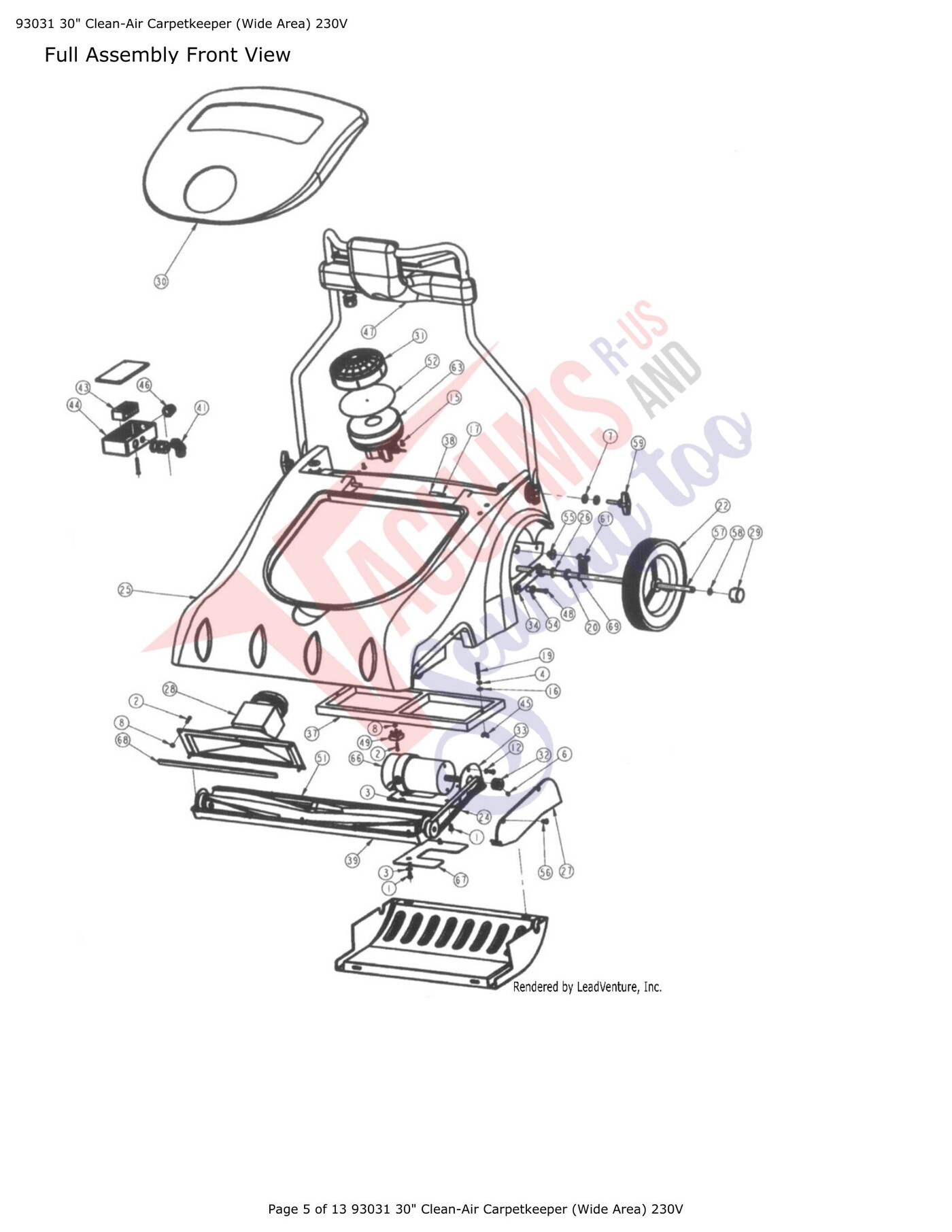

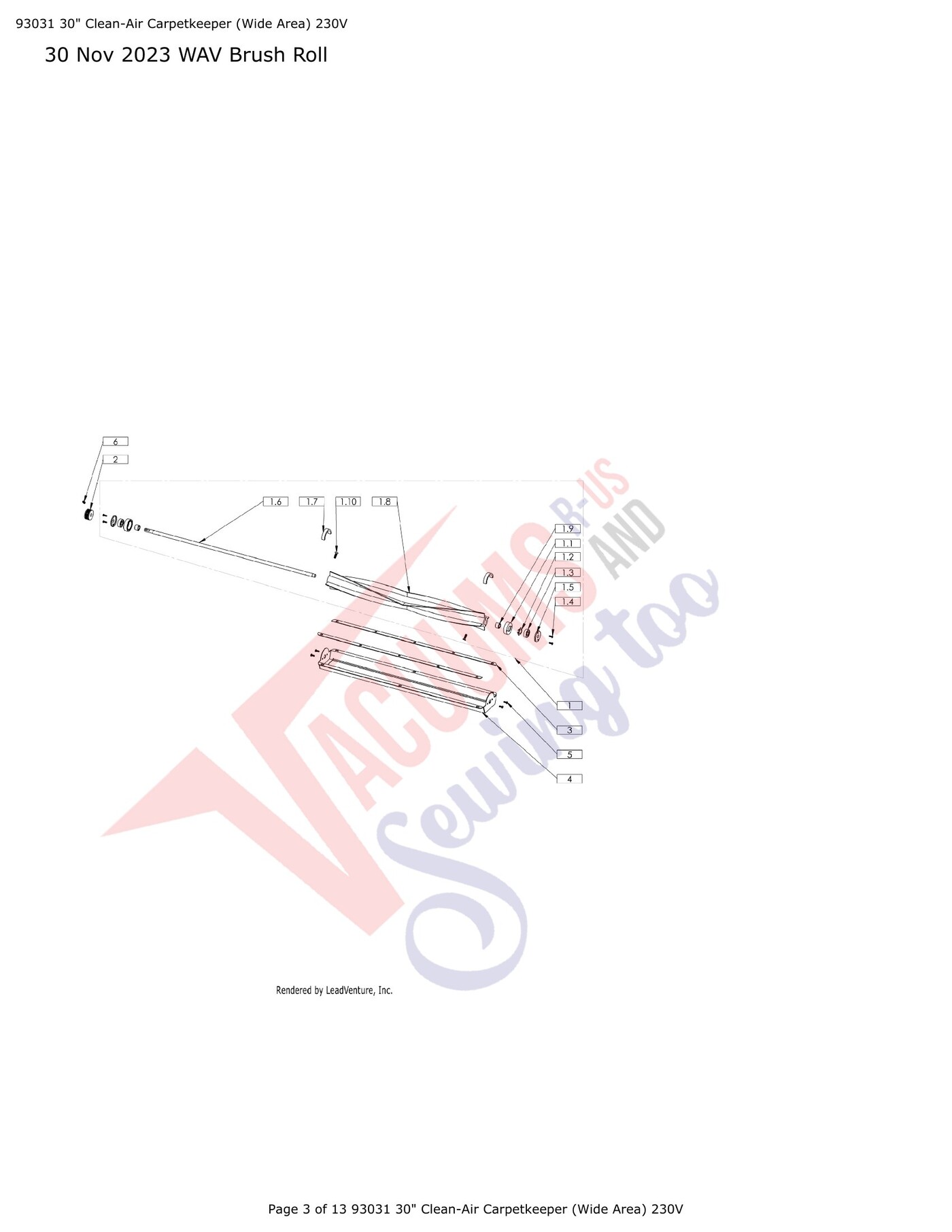

Schematic and parts book for Tornado 93031 . Repairs should be done by trained technicians. Vacuums R Us & Sewing Too provides vacuum cleaner and carpet cleaner parts and accessories for vacuum cleaner repair purposes. We are committed to delivering high-quality components, but it is important to note that all appliance repairs involve risks, and we cannot guarantee the outcome of your repair. When using our vacuum parts for repairs, you accept the terms and conditions HERE
| # | Part image | Description | SKU | Price |
| 1 |  | Brush Roll Assembly WAV N0 Shoe Or Pulley Part Number X1298 for Cleanmax Models CM-WAV | X1298 | $525.79Read more |
| 1.1 | | Block, Bearing Brush Alum Part Number 19805 for Cleanmax Models CM-WAV | 19805 | $34.99Add to cart Product is special order please allow 2-4 weeks for delivery. |
| 1.2 | No Image | Spring | 07858 | $0.00Read more |
| 1.3 | | Bearing Part Number 19809 for Cleanmax Models CM-WAV | 19809 | $13.19Read more |
| 1.4 |  | Screw HI-LO #8 x 7/16” Part Number A732-8414 for Simplicity and Maytag and Riccar Models 7250, 73... | A7328414 | $2.99Add to cart Product is special order please allow 2-4 weeks for delivery. |
| 1.5 | | Guard Thread Part Number 19848 for Cleanmax Models CM-WAV | 19848 | $24.99Add to cart Product is special order please allow 2-4 weeks for delivery. |
| 1.6 | | Axle Brush Roller Part Number 19808 for Cleanmax Models CM-WAV | 19808 | $65.99Add to cart Product is special order please allow 2-4 weeks for delivery. |
| 1.7 | | Gasket 3/16 X 1/2 X 3 Part Number 32896 for Cleanmax Models CM-WAV | 32896 | $3.99Add to cart Product is special order please allow 2-4 weeks for delivery. |
| 1.8 | Not Available | ASSY BRUSH ROLLER 28 NO SHOE | X1697 | Not Available |
| 1.9 | No Image | Bushing for WAV Brushroll | X1429 | $3.99Add to cart Product is special order please allow 2-4 weeks for delivery. |
| 1.10 | | Screw 1/4-20 X 7/8 W/ Adhesive Patch Part Number 11276A for Cleanmax Models CM-WAV | 11276A | $2.99Add to cart Product is special order please allow 2-4 weeks for delivery. |
| 3 | | Gasket-Shoe Mount Part Number 30077 for Cleanmax Models CM-WAV | 30077 | $2.99Add to cart Product is special order please allow 2-4 weeks for delivery. |
| 4 | | Shoe Brush Mount Part Number 19810 for Cleanmax Models CM-WAV | 19810 | $132.99Add to cart Product is special order please allow 2-4 weeks for delivery. |
| 5 | | Screw #10-32 X 1/2 Part Number 16142B for Cleanmax Models CM-WAV | 16142B | $2.99Add to cart Product is special order please allow 2-4 weeks for delivery. |
| # | Part image | Description | SKU | Price |
| 1 | No Image | Screw Rnd Hd PH Machine 1/4 20x1/2 ZP | 00086 | $2.99Add to cart Product is special order please allow 2-4 weeks for delivery. |
| 2 | Not Available | Screw #8-32 x 3/4" | 00600 | Not Available |
| 3 | No Image | Washer | 00851 | $0.00Read more |
| 4 | No Image | Nut | 01604 | $0.00Read more |
| 6 | No Image | Screw 1/4-20 X 5/16" | 02011 | $0.00Read more |
| 7 | Not Available | Washer | 07428 | Not Available |
| 8 | No Image | Keps Nut | 02956 | $0.00Read more |
| 12 | No Image | Lock Washer | 07870 | $0.00Read more |
| 15 | No Image | Screw #10-24 X 1/2" | 11240 | $0.00Read more |
| 16 | | Washer-sealing Part Number 11385 for Cleanmax Models CM-WAV | 11385 | $2.99Add to cart Product is special order please allow 2-4 weeks for delivery. |
| 17 | | Spring Part Number 15357 for Cleanmax Models CM-WAV | 15357 | $6.99Add to cart Product is special order please allow 2-4 weeks for delivery. |
| 19 | Not Available | Screw #10-32 x 1-3/4" | 16433 | Not Available |
| 20 | No Image | Washer | 16581 | $0.00Read more |
| 22 | | Wheel Part Number 19797 for Cleanmax Models CM-WAV | 19797 | $83.99Add to cart Product is special order please allow 2-4 weeks for delivery. |
| 24 |  | Brush Drive Belt Part Number 19802 for Cleanmax Models CM-WAV | 19802 | $45.99Add to cart Product is special order please allow 2-4 weeks for delivery. |
| 25 | No Image | Main Chassis | 19814 | $0.00Read more |
| 26 | | Spring 1/2 Curved Part Number 19818 for Cleanmax Models CM-WAV | 19818 | $6.99Add to cart Product is special order please allow 2-4 weeks for delivery. |
| 27 | No Image | Belt Cover | 19819 | $0.00Read more |
| 28 | No Image | Intake Duct | 19822 | $0.00Read more |
| 29 | No Image | Hub Cap | 19831 | $0.00Read more |
| 30 | No Image | Lid, Molded (WAV) (93030) Yellow | 19832 | $192.99Add to cart Product is special order please allow 2-4 weeks for delivery. |
| 31 | | Filter Intake Part Number 19834 for Cleanmax Models CM-WAV | 19834 | $5.99Add to cart Product is special order please allow 2-4 weeks for delivery. |
| 32 | | Pulley Brush Drive Motor Part Number 19835 for Cleanmax Models CM-WAV | 19835 | $34.99Add to cart Product is special order please allow 2-4 weeks for delivery. |
| 33 |  | Mount Brush Motor Part Number 19836 for Cleanmax Models CM-WAV | 19836 | $21.99Add to cart Product is special order please allow 2-4 weeks for delivery. |
| 34 | Not Available | Wheel Pivot Arm | 19841 | Not Available |
| 37 | No Image | Filter Exhaust WAV | X3819 | $20.99Add to cart Product is special order please allow 2-4 weeks for delivery. |
| 38 | | Pin Lid Hinge Part Number 19864 for Cleanmax Models CM-WAV | 19864 | $2.99Add to cart Product is special order please allow 2-4 weeks for delivery. |
| 39 | | Brush Roller assembly Part Number 19870 for Cleanmax Models CM-WAV | 19870 | $870.99Read more |
| 41 | No Image | Elbow Cable Fitting | 19876 | $0.00Read more |
| 43 | Not Available | Terminal Block | 19879 | Not Available |
| 44 | No Image | Plastic Electrical Box | 19880 | $0.00Read more |
| 45 | | Nut Wing Part Number 19975 for Cleanmax Models CM-WAV | 19975 | $1.99Add to cart Product is special order please allow 2-4 weeks for delivery. |
| 46 | No Image | Plastic Strain Relief | 19977 | $0.00Read more |
| 47 | Not Available | Handle Assembly | 19984 | Not Available |
| 48 | | Screw 1/4-20 X 1-1/8 Part Number 19999 for Cleanmax Models CM-WAV | 19999 | $2.99Add to cart Product is special order please allow 2-4 weeks for delivery. |
| 49 | No Image | Rectifier 50A | 24185 | $0.00Read more |
| 51 | | Gasket-Shoe Mount Part Number 30077 for Cleanmax Models CM-WAV | 30077 | $2.99Add to cart Product is special order please allow 2-4 weeks for delivery. |
| 52 | No Image | FILTER VACUUM PRE | 30088 | $1.99Add to cart Product is special order please allow 2-4 weeks for delivery. |
| 54 |  | Sleeve-pivot Part Number 30461 for Cleanmax Models CM-WAV | 30461 | $8.99Add to cart Product is special order please allow 2-4 weeks for delivery. |
| 55 |  | Sleeve-pivot Part Number 30464 for Cleanmax Models CM-WAV | 30464 | $8.99Add to cart Product is special order please allow 2-4 weeks for delivery. |
| 56 |  | SCREW PHIL. FLAT HD MACH 1/4 20 X 1/2 (ZP) | 30467 | $1.99Add to cart Product is special order please allow 2-4 weeks for delivery. |
| 57 | | Axle, Brush Level Part Number 30491 for Cleanmax Models CM-WAV | 30491 | $54.99Add to cart Product is special order please allow 2-4 weeks for delivery. |
| 58 | No Image | STARLOCK WASHER 12.7 ID REF: BV6143 CAS16 | 0202540000 | $1.99Add to cart Product is special order please allow 2-4 weeks for delivery. |
| 59 | No Image | Knob | 30558 | $0.00Read more |
| 61 | | Bolt-shoulder Socket Part Number 30617 for Cleanmax Models CM-WAV | 30617 | $4.99Add to cart Product is special order please allow 2-4 weeks for delivery. |
| 63 | No Image | Vacuum Motor 230V | 31306B | $0.00Read more |
| 66 |  | Brush Motor 230 VAC 0.25hp 3.25dia PM | 33501 | $850.00Add to cart Product is special order please allow 2-4 weeks for delivery. |
| 68 |  | GASKET MATL. NEOPRENE 3/16 X 1/2 (CLSD CELL) | 80605 | $2.99Add to cart Product is special order please allow 2-4 weeks for delivery. |
| 69 | | Spring-tension Part Number 30466 for Cleanmax Models CM-WAV | 30466 | $10.99Add to cart Product is special order please allow 2-4 weeks for delivery. |
| # | Part image | Description | SKU | Price |
| 5 | No Image | Screw #10-24 X 5/8" | 01993 | $0.00Read more |
| 14 |  | Nut 10-24 Nylon Insert Lock Zn | 10894 | $2.99Add to cart Product is special order please allow 2-4 weeks for delivery. |
| 21 | | Strain Relief Part Number 33191 for Cleanmax Models CM-WAV,CM-WAV | 33191 | $12.99Add to cart Product is special order please allow 2-4 weeks for delivery. |
| 35 | | On/off Switch Part Number 32966 for Cleanmax and Simplicity Models CM-WAV,SCE | 32966 | $10.99Add to cart Product is special order please allow 2-4 weeks for delivery. |
| 60 | No Image | Adjustment Foot Pedal | 30595 | $0.00Read more |
| 64 | | 10 AMP CIRCUIT BREAKER Part Number 32964 for Simplicity Models SCE | 32964 | $16.99Add to cart Product is special order please allow 2-4 weeks for delivery. |
| 65 | | 3 AMP CIRCUIT BREAKER Part Number 32935 for Simplicity Models SCE | 32935 | $20.89Read more |
| 70 | Not Available | Pedal Cover | 30596 | Not Available |
| 72 | | Cloth Bag Part Number 19816 for Cleanmax Models CM-WAV | 19816 | $14.99Add to cart Product is special order please allow 2-4 weeks for delivery. |
| 73 |  | Bag Paper Part Number 90701 for Cleanmax Models CM-WAV | 90701 | $13.99Add to cart Product is special order please allow 2-4 weeks for delivery. |
| # | Part image | Description | SKU | Price |
| 3 | No Image | Washer | 00851 | $0.00Read more |
| 9 | Not Available | Washer | 03321 | Not Available |
| 10 | Not Available | Lock Washer | 03536 | Not Available |
| 11 | No Image | NUT HEX JAM 3/8 16 (ZP) | 05025 | $1.99Read more |
| 13 | No Image | Washer | 10373 | $0.00Read more |
| 18 | | SCREW-PHILLIPS FLAT HEAD MACHINE #8-32 X 3/8 Part Number 15475 for Simplicity Models SCE | 15475 | $1.99Add to cart Product is special order please allow 2-4 weeks for delivery. |
| 23 | No Image | Bracket Groove Handle WAV Extractor Black Plastic | 19798P | $16.99Add to cart Product is special order please allow 2-4 weeks for delivery. |
| 36 | No Image | Exhaust Cover | 19854 | $0.00Read more |
| 40 | No Image | Straight Cable Fitting | 19875 | $0.00Read more |
| 42 | No Image | Cable Conduit 10" | 19878 | $0.00Read more |
| 50 | | Screw-thumb With Shoulder #10- 32 X 1/2 Part Number 30018 for Cleanmax Models CM-WAV | 30018 | $1.99Add to cart Product is special order please allow 2-4 weeks for delivery. |
| 53 | No Image | Motor Gasket (Poly Foam) W/Adhesive | 30089 | $0.00Read more |
| 62 |  | Front Wheel Part Number 31209 for Cleanmax Models CM-WAV | 31209 | $12.99Add to cart Product is special order please allow 2-4 weeks for delivery. |
| # | Part image | Description | SKU | Price |
| 1 | No Image | Screw #10-24 X 7/16" | 03660 | $0.00Read more |
| 2 | No Image | Screw 8-32X1/2 Flat Soc Cap Allow Zn | X2708 | $0.00Read more |
| 3 | No Image | Screw #6-32 X 1" | 06686 | $0.00Read more |
| 4 | | Strain Relief Part Number 33191 for Cleanmax Models CM-WAV,CM-WAV | 33191 | $12.99Add to cart Product is special order please allow 2-4 weeks for delivery. |
| 5 |  | Switch Push Button DPST Wav 20A 125 250Vac 1hp | 19357 | $43.99Add to cart Product is special order please allow 2-4 weeks for delivery. |
| 6 | No Image | Bracket Groove Handle WAV Extractor Black Plastic | 19798P | $16.99Add to cart Product is special order please allow 2-4 weeks for delivery. |
| 7 | | Handle Main-steel Tube Part Number 19829 for Cleanmax Models CM-WAV | 19829 | $103.99Add to cart Product is special order please allow 2-4 weeks for delivery. |
| 8 | | Trigger, Brush Switch Part Number 19849 for Cleanmax Models CM-WAV | 19849 | $28.99Add to cart Product is special order please allow 2-4 weeks for delivery. |
| 9 | No Image | Control Panel Cover | 19869 | $0.00Read more |
| 10 | No Image | Foam Trigger Grip | 19971 | $0.00Read more |
| 11 | | Screw 1/4-20 X 1-1/8 Part Number 19999 for Cleanmax Models CM-WAV | 19999 | $2.99Add to cart Product is special order please allow 2-4 weeks for delivery. |
| 12 | | Nut-hex.lock # 8-32 Part Number 30074 for Cleanmax and Simplicity Models CM-WAV,SCE | 30074 | $2.99Add to cart Product is special order please allow 2-4 weeks for delivery. |
| 13 | Not Available | Control Panel | 19813 | Not Available |
