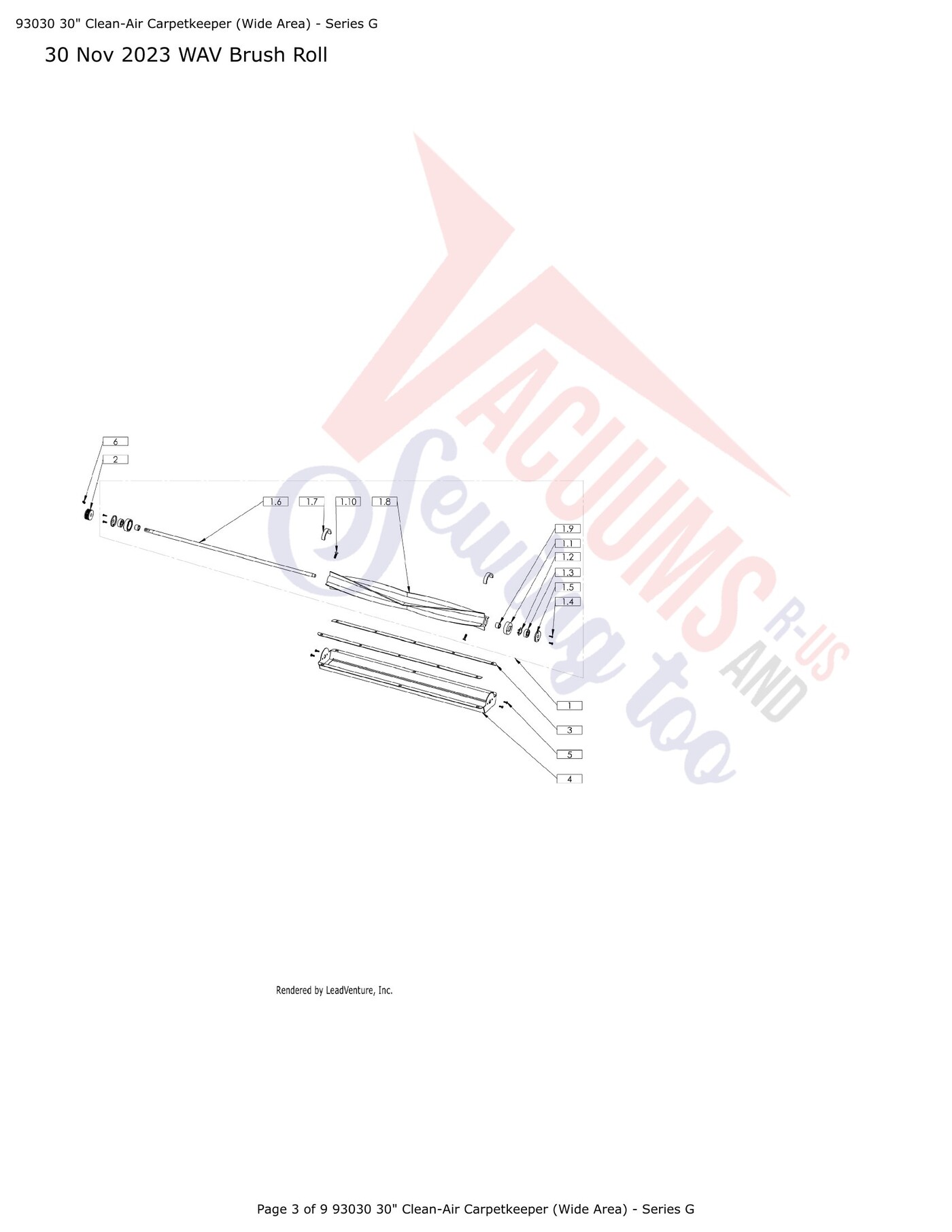

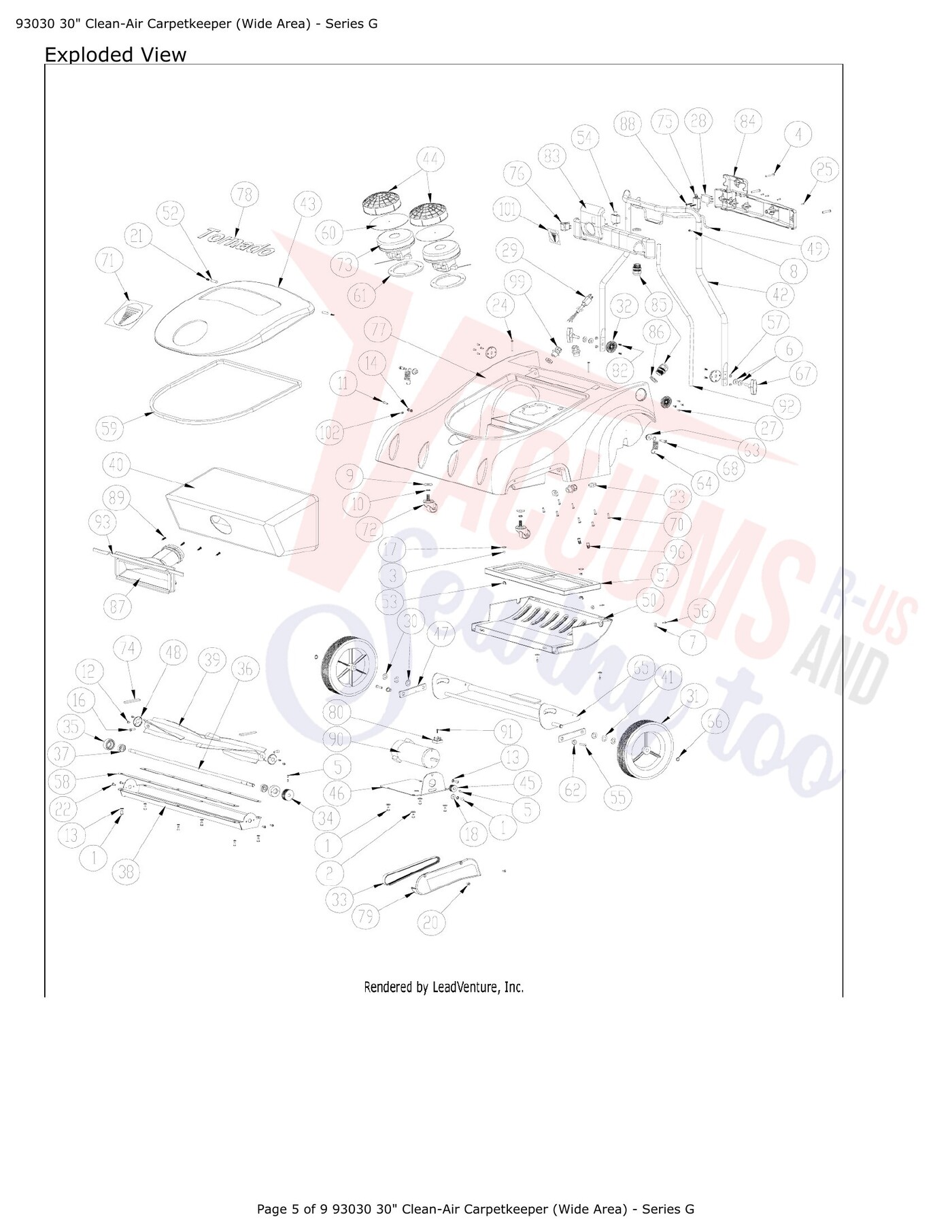

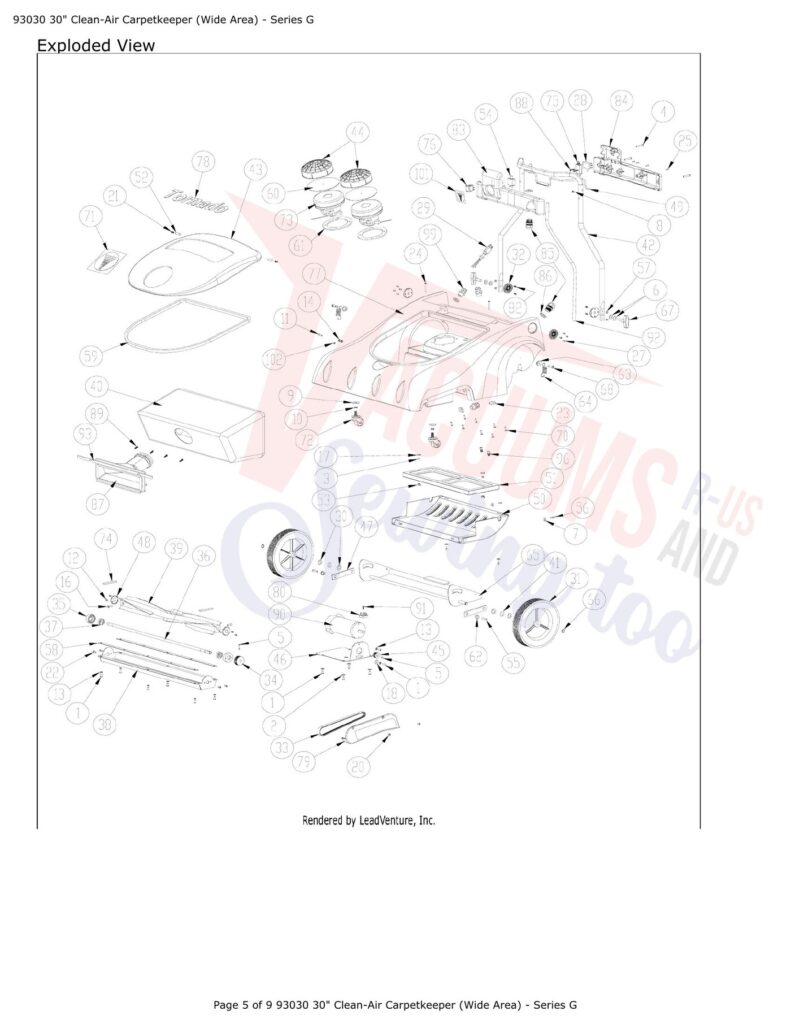

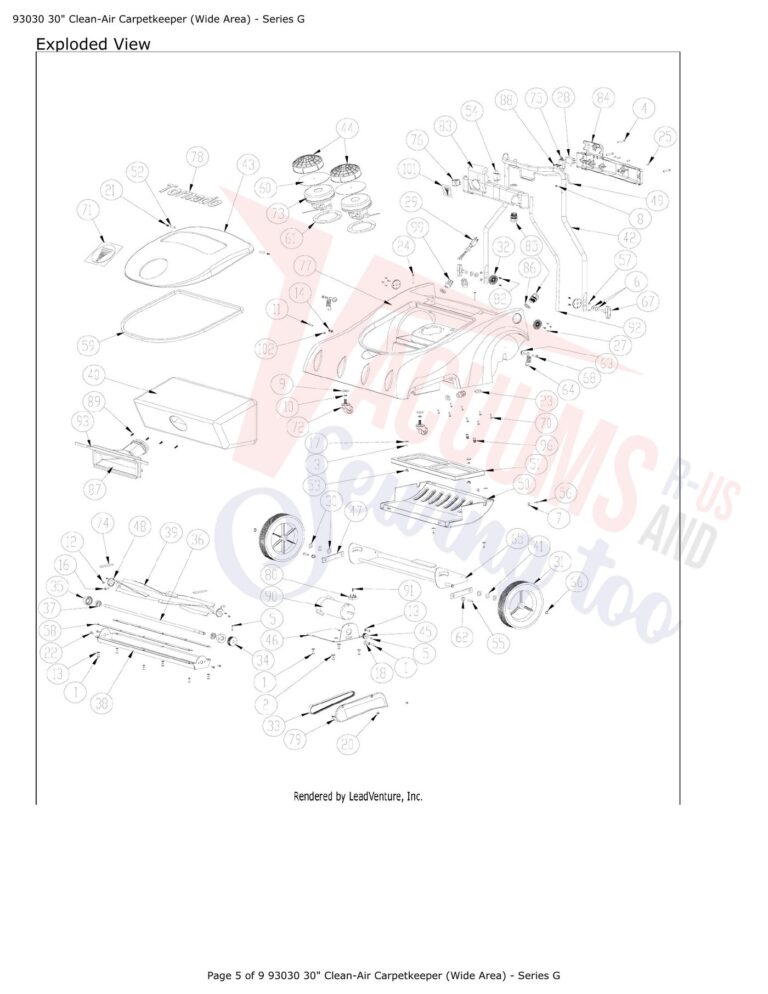

Schematic and parts book for Tornado 93030 . Repairs should be done by trained technicians. Vacuums R Us & Sewing Too provides vacuum cleaner and carpet cleaner parts and accessories for vacuum cleaner repair purposes. We are committed to delivering high-quality components, but it is important to note that all appliance repairs involve risks, and we cannot guarantee the outcome of your repair. When using our vacuum parts for repairs, you accept the terms and conditions HERE
| # | Part image | Description | SKU | Price |
| 1 |  | Brush Roll Assembly WAV N0 Shoe Or Pulley Part Number X1298 for Cleanmax Models CM-WAV | X1298 | $525.79Read more |
| 1.1 | | Block, Bearing Brush Alum Part Number 19805 for Cleanmax Models CM-WAV | 19805 | $34.99Add to cart Special order: ships in 2 to 4 weeks |
| 1.2 | No Image | Spring | 07858 | $0.00Read more |
| 1.3 | | Bearing Part Number 19809 for Cleanmax Models CM-WAV | 19809 | $13.19Read more |
| 1.4 |  | Screw HI-LO #8 x 7/16” Part Number A732-8414 for Simplicity and Maytag and Riccar Models 7250, 73... | A7328414 | $2.99Add to cart Special order: ships in 2 to 4 weeks |
| 1.5 | | Guard Thread Part Number 19848 for Cleanmax Models CM-WAV | 19848 | $24.99Add to cart Special order: ships in 2 to 4 weeks |
| 1.6 | | Axle Brush Roller Part Number 19808 for Cleanmax Models CM-WAV | 19808 | $65.99Add to cart Special order: ships in 2 to 4 weeks |
| 1.7 | | Gasket 3/16 X 1/2 X 3 Part Number 32896 for Cleanmax Models CM-WAV | 32896 | $3.99Add to cart Special order: ships in 2 to 4 weeks |
| 1.8 | Not Available | ASSY BRUSH ROLLER 28 NO SHOE | X1697 | Not Available |
| 1.9 | No Image | Bushing for WAV Brushroll | X1429 | $3.99Add to cart Special order: ships in 2 to 4 weeks |
| 1.10 | | Screw 1/4-20 X 7/8 W/ Adhesive Patch Part Number 11276A for Cleanmax Models CM-WAV | 11276A | $2.99Add to cart Special order: ships in 2 to 4 weeks |
| 3 | | Gasket-Shoe Mount Part Number 30077 for Cleanmax Models CM-WAV | 30077 | $2.99Add to cart Special order: ships in 2 to 4 weeks |
| 4 | | Shoe Brush Mount Part Number 19810 for Cleanmax Models CM-WAV | 19810 | $132.99Add to cart Special order: ships in 2 to 4 weeks |
| 5 | | Screw #10-32 X 1/2 Part Number 16142B for Cleanmax Models CM-WAV | 16142B | $2.99Add to cart Special order: ships in 2 to 4 weeks |
| # | Part image | Description | SKU | Price |
| 1 | No Image | Screw Rnd Hd PH Machine 1/4 20x1/2 ZP | 00086 | $2.99Add to cart Special order: ships in 2 to 4 weeks |
| 2 | No Image | Washer | 00851 | $0.00Read more |
| 3 | No Image | Nut | 01604 | $0.00Read more |
| 4 | Not Available | Screw 1/4-20 x 1-1/2" | 01978 | Not Available |
| 5 | No Image | Screw 1/4-20 X 5/16" | 02011 | $0.00Read more |
| 6 |  | Washer 5/16 Plain ID ZP | 02568 | $2.99Add to cart Special order: ships in 2 to 4 weeks |
| 7 | | Washer-plain .265 Id Part Number 14142 for Cleanmax Models CM-WAV | 14142 | $2.99Add to cart Special order: ships in 2 to 4 weeks |
| 8 | No Image | Screw #10-32 X 3/8" | 03261 | $0.00Read more |
| 9 | Not Available | Washer | 03321 | Not Available |
| 10 | Not Available | Lock Washer | 03536 | Not Available |
| 11 |  | Screw Ph Truss HD No.10 24x3/4 ZP | 04735 | $2.99Add to cart Special order: ships in 2 to 4 weeks |
| 12 | Not Available | Screw #8-18 x 5/8" | A732-8314 | Not Available |
| 13 | No Image | Lock Washer | 07870 | $0.00Read more |
| 14 |  | Nut Hex.Lock #10, 24 Part Number 10892 for Cleanmax Models CM-WAV | 10892 | $2.99Add to cart Special order: ships in 2 to 4 weeks |
| 16 |  | Screw Ph Flat Hd 1/4 20x7/8 Machine ZP | 11276 | $2.99Add to cart Special order: ships in 2 to 4 weeks |
| 17 | | Washer-sealing Part Number 11385 for Cleanmax Models CM-WAV | 11385 | $2.99Add to cart Special order: ships in 2 to 4 weeks |
| 18 | | Washer-plain .265 Id Part Number 14142 for Cleanmax Models CM-WAV | 14142 | $2.99Add to cart Special order: ships in 2 to 4 weeks |
| 19 |  | Terminal, Female .250 Blue .032 Amp | F25 | $2.99Add to cart Special order: ships in 2 to 4 weeks |
| 20 | | Screw, 1/4-20 X 1/2” Part Number 15162 for Cleanmax Models CM-WAV | 15162 | $2.99Read more |
| 21 | | Spring Part Number 15357 for Cleanmax Models CM-WAV | 15357 | $6.99Add to cart Special order: ships in 2 to 4 weeks |
| 22 | | Screw #10-32 X 1/2 Part Number 16142B for Cleanmax Models CM-WAV | 16142B | $2.99Add to cart Special order: ships in 2 to 4 weeks |
| 23 | No Image | Conduit Nut | 16169 | $0.00Read more |
| 24 | Not Available | Screw #10-32 x 1-3/4" | 16433 | Not Available |
| 25 | | Screw # 6-32 X ¾ Part Number 16924 for Cleanmax Models CM-WAV | 16924 | $2.99Add to cart Special order: ships in 2 to 4 weeks |
| 26 | No Image | Wire Tie 15 Blk | 18706 | $2.99Add to cart Special order: ships in 2 to 4 weeks |
| 27 |  | SCREW SCKT. FLAT HD MACH No 8 32 X 1/2 (BLK OXIDE) | 19255 | $1.99Read more |
| 28 |  | Switch Push Button DPST Wav 20A 125 250Vac 1hp | 19357 | $43.99Add to cart Special order: ships in 2 to 4 weeks |
| 29 |  | Power Cord Part Number 19473 for Cleanmax Models CM-WAV | 19473 | $225.99Add to cart Special order: ships in 2 to 4 weeks |
| 30 |  | Washer-plain Part Number 19616 for Cleanmax Models CM-WAV | 19616 | $2.99Add to cart Special order: ships in 2 to 4 weeks |
| 31 | | Wheel Part Number 19797 for Cleanmax Models CM-WAV | 19797 | $83.99Add to cart Special order: ships in 2 to 4 weeks |
| 32 | No Image | Bracket Groove Handle WAV Extractor Black Plastic | 19798P | $16.99Add to cart Special order: ships in 2 to 4 weeks |
| 33 |  | Brush Drive Belt Part Number 19802 for Cleanmax Models CM-WAV | 19802 | $45.99Add to cart Special order: ships in 2 to 4 weeks |
| 34 | | Pulley Brush Drive Part Number 19804A for Cleanmax Models CM-WAV | 19804A | $40.99Add to cart Special order: ships in 2 to 4 weeks |
| 35 | | Block, Bearing Brush Alum Part Number 19805 for Cleanmax Models CM-WAV | 19805 | $34.99Add to cart Special order: ships in 2 to 4 weeks |
| 36 | | Axle Brush Roller Part Number 19808 for Cleanmax Models CM-WAV | 19808 | $65.99Add to cart Special order: ships in 2 to 4 weeks |
| 37 | | Bearing Part Number 19809 for Cleanmax Models CM-WAV | 19809 | $13.19Read more |
| 38 | | Shoe Brush Mount Part Number 19810 for Cleanmax Models CM-WAV | 19810 | $132.99Add to cart Special order: ships in 2 to 4 weeks |
| 39 | Not Available | ASSY BRUSH ROLLER 28 NO SHOE | X1697 | Not Available |
| 40 | | Cloth Bag Part Number 19816 for Cleanmax Models CM-WAV | 19816 | $14.99Add to cart Special order: ships in 2 to 4 weeks |
| 41 | | Spring 1/2 Curved Part Number 19818 for Cleanmax Models CM-WAV | 19818 | $6.99Add to cart Special order: ships in 2 to 4 weeks |
| 42 | | Handle Main-steel Tube Part Number 19829 for Cleanmax Models CM-WAV | 19829 | $103.99Add to cart Special order: ships in 2 to 4 weeks |
| 43 | No Image | Lid, Molded (WAV) (93030) Yellow | 19832 | $192.99Add to cart Special order: ships in 2 to 4 weeks |
| 44 | | Filter Intake Part Number 19834 for Cleanmax Models CM-WAV | 19834 | $5.99Add to cart Special order: ships in 2 to 4 weeks |
| 45 | | Pulley Brush Drive Motor Part Number 19835 for Cleanmax Models CM-WAV | 19835 | $34.99Add to cart Special order: ships in 2 to 4 weeks |
| 46 |  | Mount Brush Motor Part Number 19836 for Cleanmax Models CM-WAV | 19836 | $21.99Add to cart Special order: ships in 2 to 4 weeks |
| 47 | Not Available | Wheel Pivot Arm | 19841 | Not Available |
| 48 | | Guard Thread Part Number 19848 for Cleanmax Models CM-WAV | 19848 | $24.99Add to cart Special order: ships in 2 to 4 weeks |
| 49 | | Trigger, Brush Switch Part Number 19849 for Cleanmax Models CM-WAV | 19849 | $28.99Add to cart Special order: ships in 2 to 4 weeks |
| 50 | No Image | Exhaust Cover | 19854 | $0.00Read more |
| 51 | No Image | Filter Exhaust WAV | X3819 | $20.99Add to cart Special order: ships in 2 to 4 weeks |
| 52 | | Pin Lid Hinge Part Number 19864 for Cleanmax Models CM-WAV | 19864 | $2.99Add to cart Special order: ships in 2 to 4 weeks |
| 53 | | Nut Wing Part Number 19975 for Cleanmax Models CM-WAV | 19975 | $1.99Add to cart Special order: ships in 2 to 4 weeks |
| 54 | | Circuit Breaker 15 Amp Part Number 19990 for Cleanmax Models CM-WAV | 19990 | $21.99Add to cart Special order: ships in 2 to 4 weeks |
| 55 | | Screw 1/4-20 X 1-1/8 Part Number 19999 for Cleanmax Models CM-WAV | 19999 | $2.99Add to cart Special order: ships in 2 to 4 weeks |
| 56 | | Screw-thumb With Shoulder #10- 32 X 1/2 Part Number 30018 for Cleanmax Models CM-WAV | 30018 | $1.99Add to cart Special order: ships in 2 to 4 weeks |
| 57 | | Nut-hex.lock # 8-32 Part Number 30074 for Cleanmax and Simplicity Models CM-WAV,SCE | 30074 | $2.99Add to cart Special order: ships in 2 to 4 weeks |
| 58 | | Gasket-Shoe Mount Part Number 30077 for Cleanmax Models CM-WAV | 30077 | $2.99Add to cart Special order: ships in 2 to 4 weeks |
| 59 | No Image | Lid Gasket W/Adhesive | 30078 | $0.00Read more |
| 60 | No Image | FILTER VACUUM PRE | 30088 | $1.99Add to cart Special order: ships in 2 to 4 weeks |
| 61 | No Image | Motor Gasket (Poly Foam) W/Adhesive | 30089 | $0.00Read more |
| 62 |  | Sleeve-pivot Part Number 30461 for Cleanmax Models CM-WAV | 30461 | $8.99Add to cart Special order: ships in 2 to 4 weeks |
| 63 |  | Sleeve-pivot Part Number 30464 for Cleanmax Models CM-WAV | 30464 | $8.99Add to cart Special order: ships in 2 to 4 weeks |
| 64 | | Spring-tension Part Number 30466 for Cleanmax Models CM-WAV | 30466 | $10.99Add to cart Special order: ships in 2 to 4 weeks |
| 65 | | Axle, Brush Level Part Number 30491 for Cleanmax Models CM-WAV | 30491 | $54.99Add to cart Special order: ships in 2 to 4 weeks |
| 66 | No Image | STARLOCK WASHER 12.7 ID REF: BV6143 CAS16 | 0202540000 | $1.99Add to cart Special order: ships in 2 to 4 weeks |
| 67 | No Image | Knob | 30558 | $0.00Read more |
| 68 | | Bolt-shoulder Socket Part Number 30617 for Cleanmax Models CM-WAV | 30617 | $4.99Add to cart Special order: ships in 2 to 4 weeks |
| 69 | No Image | Decal Carpet Level Adj 93030 | 30618 | $1.99Add to cart Special order: ships in 2 to 4 weeks |
| 70 | | Screw #10-16 X 3/4 ( Motor mount- ing screws) Part Number 30620 for Cleanmax Models CM-WAV | 30620 | $2.99Add to cart Special order: ships in 2 to 4 weeks |
| 71 | No Image | LABEL LOGO SWIRL 5.00 DIA. BLACK | 30811 | $3.99Add to cart Special order: ships in 2 to 4 weeks |
| 72 |  | Front Wheel Part Number 31209 for Cleanmax Models CM-WAV | 31209 | $12.99Add to cart Special order: ships in 2 to 4 weeks |
| 73 | No Image | Vacuum Motor | 31540 | $0.00Read more |
| 74 | | Gasket 3/16 X 1/2 X 3 Part Number 32896 for Cleanmax Models CM-WAV | 32896 | $3.99Add to cart Special order: ships in 2 to 4 weeks |
| 75 | | 3 AMP CIRCUIT BREAKER Part Number 32935 for Simplicity Models SCE | 32935 | $20.89Read more |
| 76 | | On/off Switch Part Number 32966 for Cleanmax and Simplicity Models CM-WAV,SCE | 32966 | $10.99Add to cart Special order: ships in 2 to 4 weeks |
| 77 | No Image | Main Chassis | 33036 | $0.00Read more |
| 78 | No Image | Decal TOR No Logo WAV | 33047 | $20.99Add to cart Special order: ships in 2 to 4 weeks |
| 79 | | Belt Cover Part Number 33057A for Cleanmax Models CM-WAV | 33057A | $7.99Add to cart Special order: ships in 2 to 4 weeks |
| 80 | | 25a Rectifier Part Number 33061 for Cleanmax and Simplicity Models CM-WAV,SCE | 33061 | $15.99Add to cart Special order: ships in 2 to 4 weeks |
| 81 | No Image | Heat Shrink Tubing 6" | 33096 | $0.00Read more |
| 82 | No Image | SCREW, PHIL. FLAT HD SFTP No 8-32 X 1/2 LG. (SS) | X9582 | $1.99Read more |
| 83 | No Image | Box Switch Top and Bottom | 33199 | $29.00Add to cart Special order: ships in 2 to 4 weeks |
| 85 | | Strain Relief Part Number 33191 for Cleanmax Models CM-WAV,CM-WAV | 33191 | $12.99Add to cart Special order: ships in 2 to 4 weeks |
| 86 | | Nut, Lock for Strain Relief Part Number 33192 for Cleanmax Models CM-WAV | 33192 | $10.99Add to cart Special order: ships in 2 to 4 weeks |
| 87 | | Filter Chute Part Number 33193 for Cleanmax Models CM-WAV | 33193 | $31.99Add to cart Special order: ships in 2 to 4 weeks |
| 88 | No Image | Screw No.6 13x1L Plastite | 33194 | $1.99Read more |
| 89 | No Image | Screw No.10 3/4 PanHd PH PT | 33195 | $2.99Add to cart Special order: ships in 2 to 4 weeks |
| 90 | | Motor 3.25 Dia. .25hp Part Number 33197 for Cleanmax Models CM-WAV | 33197 | $352.99Add to cart Special order: ships in 2 to 4 weeks |
| 91 | | Screw, 10-24 X 5/8” Part Number 33451 for Cleanmax Models CM-WAV | 33451 | $2.99Add to cart Special order: ships in 2 to 4 weeks |
| 92 | | Handle Harness Part Number 33452A for Cleanmax Models CM-WAV | 33452A | $173.79Read more |
| 93 | | Gasket, Chute Part Number 33502 for Cleanmax Models CM-WAV | 33502 | $4.99Add to cart Special order: ships in 2 to 4 weeks |
| 94 | No Image | Wiring Harness | 33503B | $0.00Read more |
| 95 |  | Bag Paper Part Number 90701 for Cleanmax Models CM-WAV | 90701 | $13.99Add to cart Special order: ships in 2 to 4 weeks |
| 96 | | Wire Connectors Lg Part Number B123-2700 for Riccar and Simplicity Models PRIMAP.FSN, R50FSN,RSL1... | B1232700 | $2.99Add to cart Special order: ships in 2 to 4 weeks |
| 97 |  | Terminal Spade 1/4 Male .032 X 250 14-16AWG | F27 | $2.99Add to cart Special order: ships in 2 to 4 weeks |
| 98 |  | TERMINAL RING 1/4 No 10 14-16 AWG YCO No 32961 | F28 | $2.99Add to cart Special order: ships in 2 to 4 weeks |
| 99 | | Strain Relief 1/2” Part Number PD8 for Cleanmax Models CM-WAV | PD8 | $6.99Add to cart Special order: ships in 2 to 4 weeks |
| 100 |  | Zip Tie Part Number A732-0100 for Simplicity and Cleanmax and Maytag and Riccar Models 6100, 6370... | A7320100 | $2.99Add to cart Special order: ships in 2 to 4 weeks |
| 101 |  | LABEL ROUND GRILL F5 WRD TORNADO AXIAL FAN | X9189TOR | $2.99Read more |
| 102 | No Image | LABEL GROUND SYMBOL | X9214 | $2.99Add to cart Special order: ships in 2 to 4 weeks |
| 103 | No Image | Ring Terminal #10 X 16/14 Awg | 00611 | $0.00Read more |
