Schematic and parts book for Tornado 90314B PAC-VAC. Repairs should be done by trained technicians. Vacuums R Us & Sewing Too provides vacuum cleaner and carpet cleaner parts and accessories for vacuum cleaner repair purposes. We are committed to delivering high-quality components, but it is important to note that all appliance repairs involve risks, and we cannot guarantee the outcome of your repair. When using our vacuum parts for repairs, you accept the terms and conditions HERE
Popular Supplies

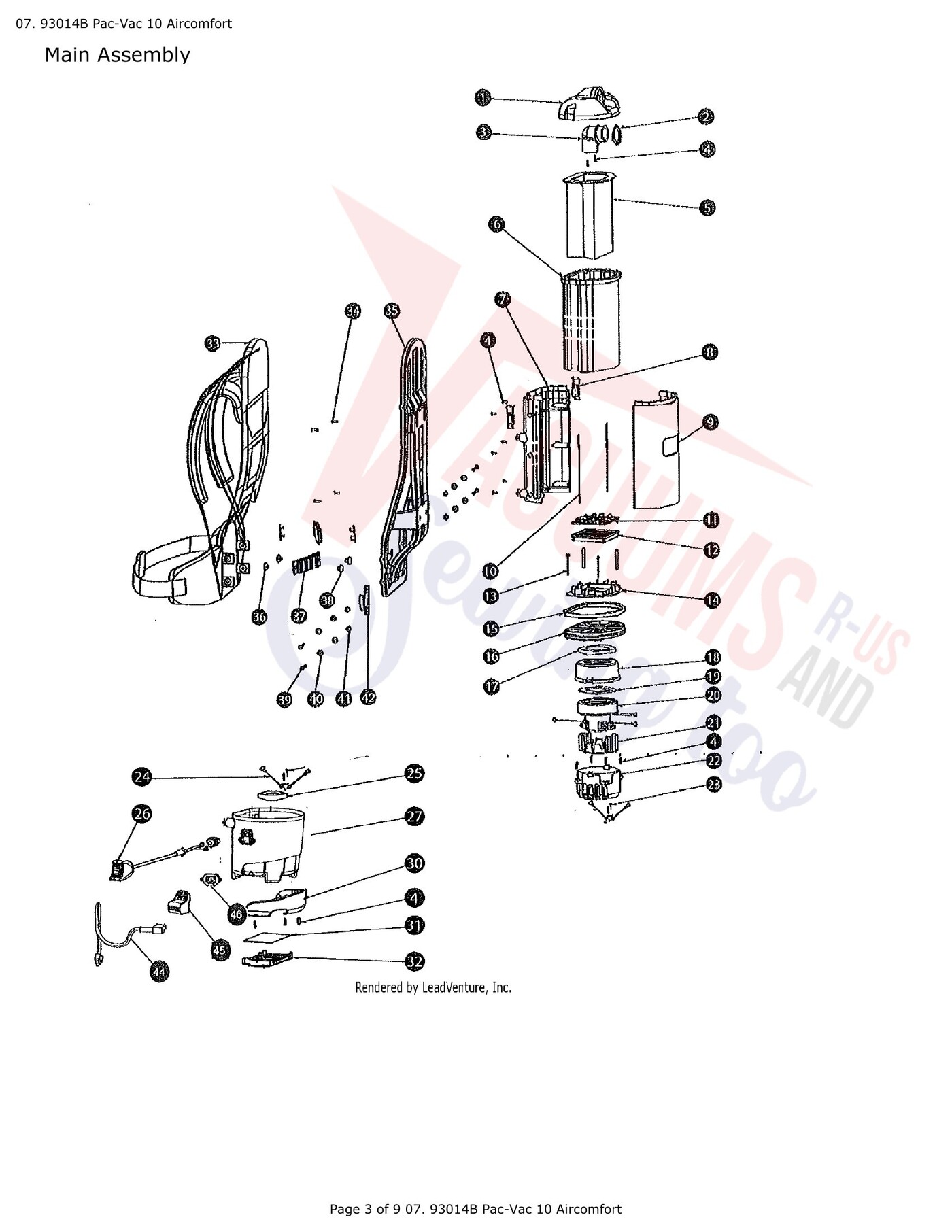

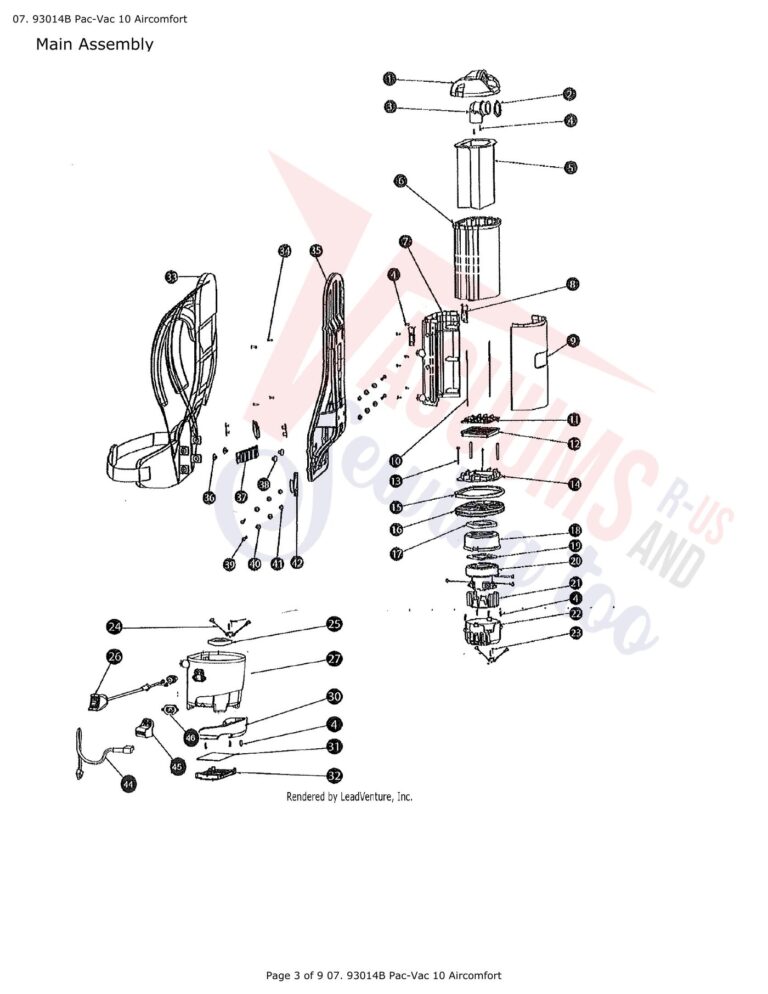

| # | Part image | Description | SKU | Price |
| Not Shown | No Image | Screw 8-32x1/2 Pan Hd PH Blk Zinc | X8278 | $2.99Add to cart Product is special order please allow 2-4 weeks for delivery. |
| 1 |  | Cover Part Number B352-0500 for Cleanmax Models CMBP-6 | B3520500 | $23.09Add to cart Product is special order please allow 2-4 weeks for delivery. |
| 2 |  | Inlet seal Part Number B352-4800 for Cleanmax Models CMBP-6 | B3524800 | $1.99Add to cart Product is special order please allow 2-4 weeks for delivery. |
| 3 |  | Hose,Inlet,Backpack | B3520600 | $2.99Add to cart Product is special order please allow 2-4 weeks for delivery. |
| 4 |  | Phillps pan head screw 8.625 Part Number A732-8300 for Cleanmax Models CMBP-6,CMBP-6,CMBP-6 | A7328300 | $1.99Add to cart Product is special order please allow 2-4 weeks for delivery. |
| 5 |  | BAG PAPER VACUUM 6QT 10PK 24/CASE | C3522500 | $34.99Add to cart |
| 5 |  | BAG PAPER VACUUM 10QT 10PK | B3527800 | $18.99Add to cart Product is special order please allow 2-4 weeks for delivery. |
| 6 |  | Cloth Bag, SC412 Backpack Part Number: C3521400 for Eureka | C3521400 | $39.33Add to cart Product is special order please allow 2-4 weeks for delivery. |
| 6 |  | Bag,Vacuum,Cloth,10 Qt,Shake Out | C3521500 | $18.99Read more |
| 7 |  | Cover,Backpack,Smokey Gray,Back Plate, 6QT Vac | B3520443 | $22.99Read more |
| 7 | No Image | Back Plate (10 Qt) | B3527743 | $0.00Read more |
| 8 | Not Available | Metal Latch | A352-3300 | Not Available |
| 9 | No Image | Tornado 6 qt Yellow Front Cover | BAA0013108 | $19.99Add to cart Product is special order please allow 2-4 weeks for delivery. |
| 9 | No Image | TORNADO 10QT. YELLOW FRONT COVER | BAA0043108 | $29.99Add to cart Product is special order please allow 2-4 weeks for delivery. |
| 10 |  | Bag compartment seal Part Number B352-6100 for Cleanmax Models CMBP-6 | B3526100 | $1.99Add to cart Product is special order please allow 2-4 weeks for delivery. |
| 11 |  | Secondary Filter Cap BPV PF300BP | B3521000 | $2.99Add to cart Product is special order please allow 2-4 weeks for delivery. |
| 12 |  | HEPA Filter for Clean Max and Carpet Pro Back Pack Vac alternate pn 6.011 | WP11164 | $4.00Add to cart |
| 13 |  | CleanMax 8-16 x 2.500 Phillips Pan Head Screw | A4300205 | $2.99Add to cart Product is special order please allow 2-4 weeks for delivery. |
| 14 |  | Secondary filter plate Part Number B352-0800 for Cleanmax Models CMBP-6 | B3520800 | $4.99Add to cart |
| 15 |  | Body seal Part Number B352-1200 for Cleanmax Models CMBP-6 | B3521200 | $2.99Add to cart Product is special order please allow 2-4 weeks for delivery. |
| 16 |  | Motor cover Part Number B352-0700 for Cleanmax Models CMBP-6 | B3520700 | $8.99Add to cart Product is special order please allow 2-4 weeks for delivery. |
| 17 |  | Top motor mount Part Number B352-1800 for Cleanmax Models CMBP-6,CMBP-6 | B3521800 | $12.99Add to cart Product is special order please allow 2-4 weeks for delivery. |
| 18 |  | Motor shroud cover - top Part Number B352-5400 for Cleanmax Models CMBP-6 | B3525400 | $8.99Add to cart Product is special order please allow 2-4 weeks for delivery. |
| 19 |  | MOTOR SEAL .125 POLYURETHANE BPV | B3525500 | $5.99Add to cart Product is special order please allow 2-4 weeks for delivery. |
| 20 | No Image | MOTOR ASSEMBLY FOR BACK PACK BUILD/SHIP FROM | D1235300 | $117.99Add to cart Product is special order please allow 2-4 weeks for delivery. |
| 21 |  | Motor Shroud Part Number B113-0915 for Simplicity and Cleanmax and Riccar Models 7400, 7450, 7900... | B1130915 | $2.99Add to cart Product is special order please allow 2-4 weeks for delivery. |
| 22 |  | Motor shroud cover – bottom Part Number B352-5300 for Cleanmax Models CMBP-6 | B3525300 | $7.99Add to cart Product is special order please allow 2-4 weeks for delivery. |
| 23 | No Image | Screw | A3528200 | $0.00Read more |
| 24 |  | Thermal Switch Assembly Part Number D123-1000 for Simplicity and Riccar Models 7250, 7350, 7450, ... | D1231000 | $7.99Add to cart Product is special order please allow 2-4 weeks for delivery. |
| 25 |  | Bottom motor mount Part Number B352-1900 for Cleanmax Models CMBP-6 | B3521900 | $5.99Read more |
| 26 |  | Switch,Housing,Backpack,Assembly | C3522800 | $27.99Add to cart Product is special order please allow 2-4 weeks for delivery. |
| 27 |  | Motor Compartment Dk Grey Switch Cord and Kettle ZH BPV | X1288 | $29.99Add to cart Product is special order please allow 2-4 weeks for delivery. |
| 30 | No Image | Bumper | B3520200 | $0.00Read more |
| 31 |  | Filter,Backpack,Post | B3522400 | $1.99Add to cart Product is special order please allow 2-4 weeks for delivery. |
| 32 |  | Filter,Frame,Backpack,Post | B3521100 | $2.99Add to cart Product is special order please allow 2-4 weeks for delivery. |
| 33 |  | Tornado Backpack Shoulder Harness, Pac-Vac Aircomfort From Deuter | X1152 | $162.99Add to cart Product is special order please allow 2-4 weeks for delivery. |
| 34 |  | Phillips pan head screw 10.750 Part Number A352-8100 for Cleanmax Models CMBP-6 | A3528100 | $0.00Read more |
| 35 |  | Harness Frame TOR for Deuter Straps | 34861 | $15.99Read more |
| 36 |  | SHOULDER RIVET MALE BPV PF300BP CFR30BP SCBP-1 | A3529402 | $2.99Add to cart Product is special order please allow 2-4 weeks for delivery. |
| 37 | No Image | TOOL BELT CLIP W/ RETAINER CP STYLE BP | X1241 | $2.99Add to cart Product is special order please allow 2-4 weeks for delivery. |
| 38 |  | ''Shldr Strp - Rvt (Nut) Female'' For: eureka,sanitaire | A3529401 | $4.98Read more |
| 39 |  | SCREW 10-24 X 1.75 PHIL PAN HEAD BLACK | X9746 | $2.99Add to cart Product is special order please allow 2-4 weeks for delivery. |
| 40 | No Image | Washer No.10 Flat SAE Blk | X9747 | $2.99Read more |
| 41 |  | NUT, 10-24 NYLON INSERT LOCK ZINC | X8271 | $2.99Add to cart Product is special order please allow 2-4 weeks for delivery. |
| 42 |  | Hook, Cord,Backpack,Autoscrubber,Extractor | X9718 | $3.99Add to cart Product is special order please allow 2-4 weeks for delivery. |
| 44 |  | X9714 Power Cord for CleanMax and Carpet Pro backpacks | WP10824 | $98.99Add to cart Product is special order please allow 2-4 weeks for delivery. |
| 45 |  | Plug Cover, Power Cord, Comfort Pro | X1042 | $3.99Add to cart Product is special order please allow 2-4 weeks for delivery. |
| 46 |  | Eureka,Sanitaire Socket Assy-sanitaire Scbp1.2 Back Packsc412 | 34864 | $22.63Add to cart Product is special order please allow 2-4 weeks for delivery. |
| # | Part image | Description | SKU | Price |

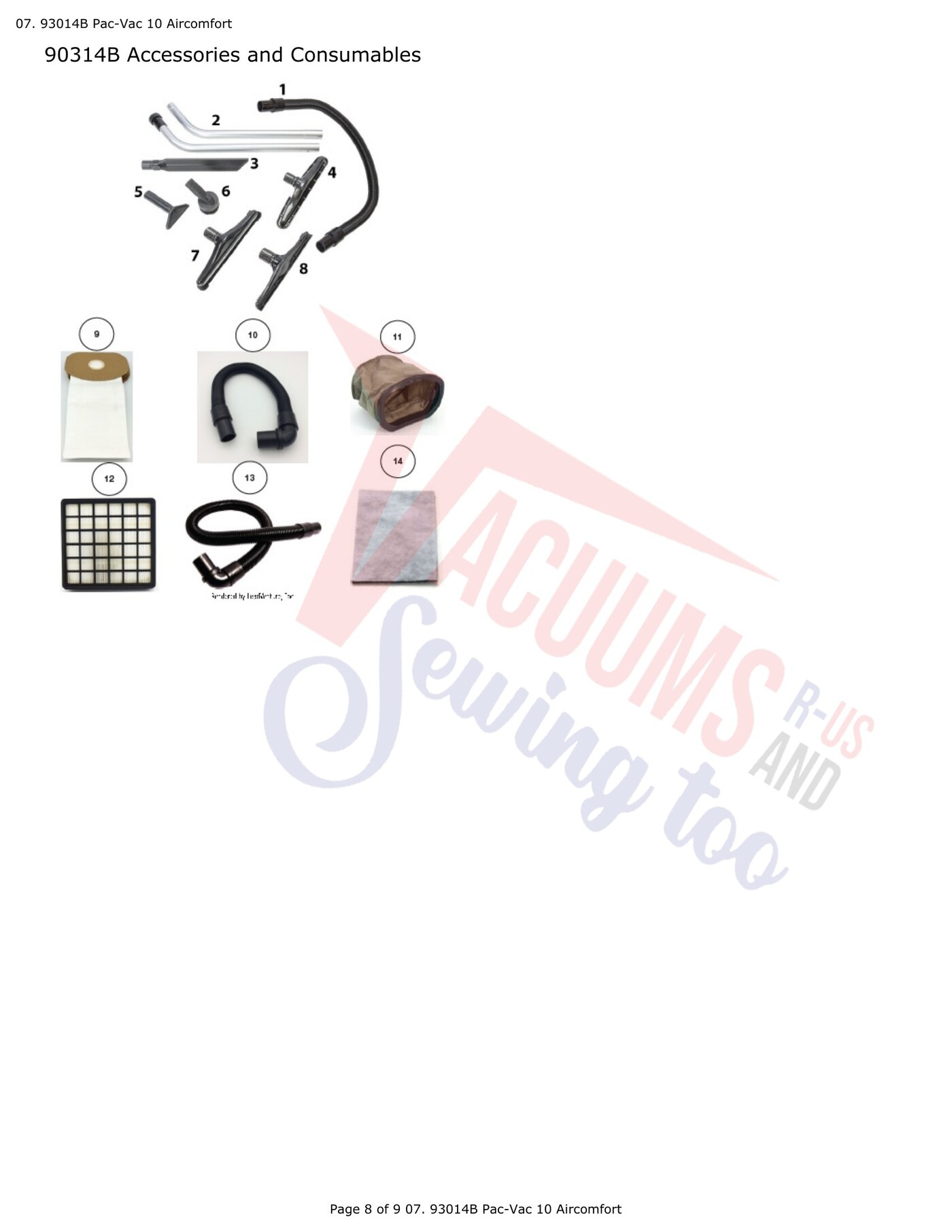

| # | Part image | Description | SKU | Price |
| 1 |  | Hose, Black Stretch SC412 Backpack Part Number: A3526900 for Eureka | A3526900 | $70.32Add to cart Product is special order please allow 2-4 weeks for delivery. |
| 2 |  | Wand Backpack 54in Button | B3524000B | $54.99Add to cart Product is special order please allow 2-4 weeks for delivery. |
| 3 |  | Tool Crevice 17in Blk Plastic Ring Clip Backpack | CT176 | $6.99Add to cart Product is special order please allow 2-4 weeks for delivery. |
| 4 |  | Tool,Vac,Backpack,14 IN,Carpet,W/screw in clip | B352PF10 | $24.99Add to cart Product is special order please allow 2-4 weeks for delivery. |
| 5 |  | Upholstery Tool, SCBP1 Backpack Part Number: CT188 for Carpet Pro | CT188 | $42.85Read more |
| 6 | No Image | Dust Brush 3in Blk Plastic screw in clip | CT184 | $19.99Add to cart Product is special order please allow 2-4 weeks for delivery. |
| 7 |  | Tool Hard Floor w/screw in clip 14in Backpack | C352PF20 | $34.99Add to cart Product is special order please allow 2-4 weeks for delivery. |
| 7 |  | Floor Tool, Black commercial for backpacks 1-1/2"x 14" Nylon Bristles | CM5525 | $27.04Add to cart |
| 8 |  | powr-glide tool carpet too for tacony backpacks | CT190 | $17.99Add to cart Product is special order please allow 2-4 weeks for delivery. |
| 9 | | BAG PAPER VACUUM 10QT 10PK | B3527800 | $18.99Add to cart Product is special order please allow 2-4 weeks for delivery. |
| 10 | No Image | Hose Stretch 1-1/2 in 2 ft 90 degree cuff | J1005 | $25.99Add to cart Product is special order please allow 2-4 weeks for delivery. |
| 11 | | Bag,Vacuum,Cloth,10 Qt,Shake Out | C3521500 | $18.99Read more |
| 12 | | HEPA Filter for Clean Max and Carpet Pro Back Pack Vac alternate pn 6.011 | WP11164 | $4.00Add to cart |
| 13 | No Image | Hose Rigid 1-1/2 in 4 ft 90 degree cuff Backpack | J1006 | $23.99Add to cart Product is special order please allow 2-4 weeks for delivery. |
| 14 | | Filter,Backpack,Post | B3522400 | $1.99Add to cart Product is special order please allow 2-4 weeks for delivery. |
