Schematic and parts book for Snap-on YA1105-4.5 . Repairs should be done by trained technicians. Vacuums R Us & Sewing Too provides vacuum cleaner and carpet cleaner parts and accessories for vacuum cleaner repair purposes. We are committed to delivering high-quality components, but it is important to note that all appliance repairs involve risks, and we cannot guarantee the outcome of your repair. When using our vacuum parts for repairs, you accept the terms and conditions HERE

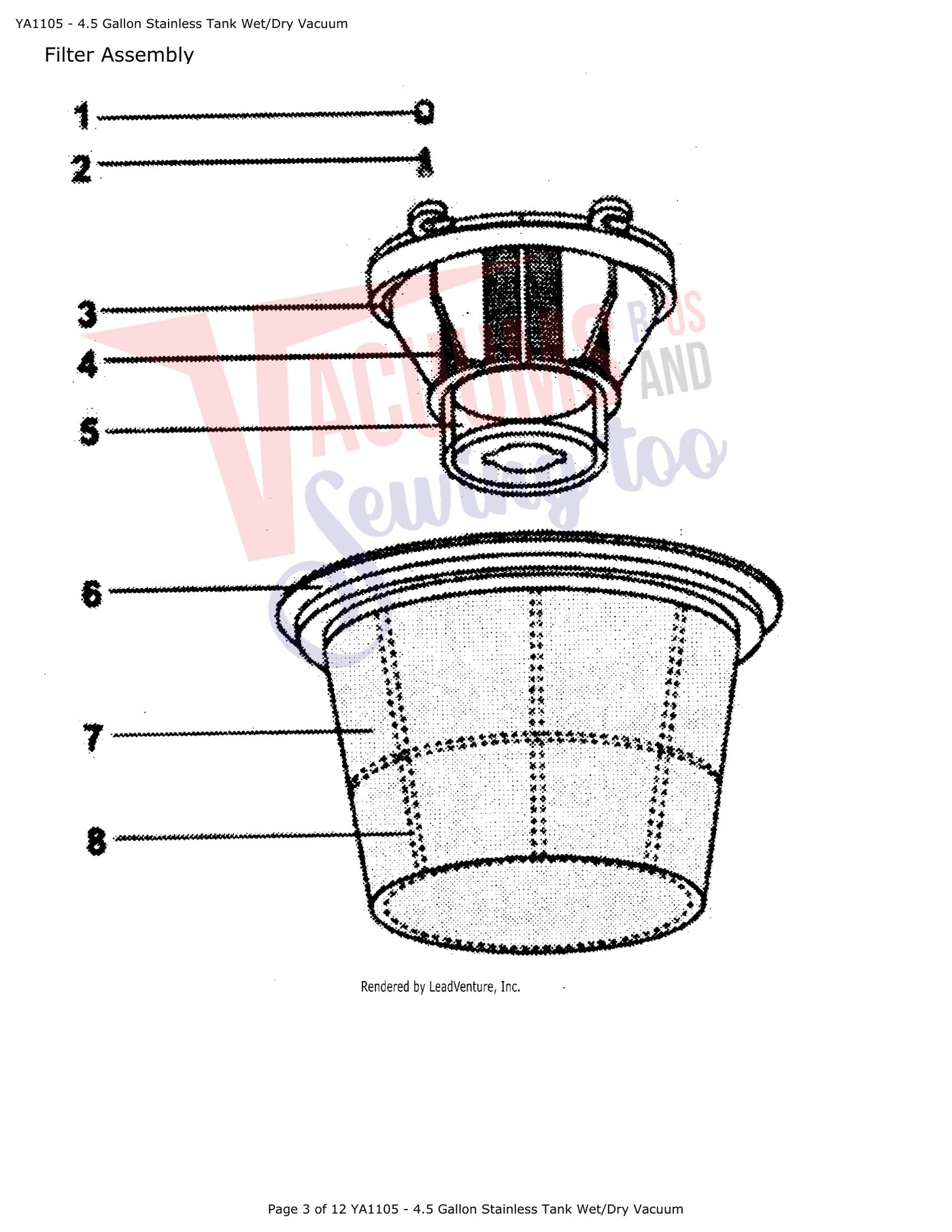

| # | Part image | Description | SKU | Price |
| 1 | No Image | Spacer | YAT27431 | $0.00Read more |
| 2 | No Image | Screw M5 X 25 | YAT24258 | $0.00Read more |
| 4 | No Image | Float Screen | YAT24172 | $0.00Read more |
| 5 | No Image | Float | YAT24360 | $0.00Read more |
| 6 | No Image | Filter Frame Ring | YAT24137 | $0.00Read more |
| 6-8 | No Image | Cone Filter 11-1/2" D X 8" H | YAT24519 | $0.00Read more |

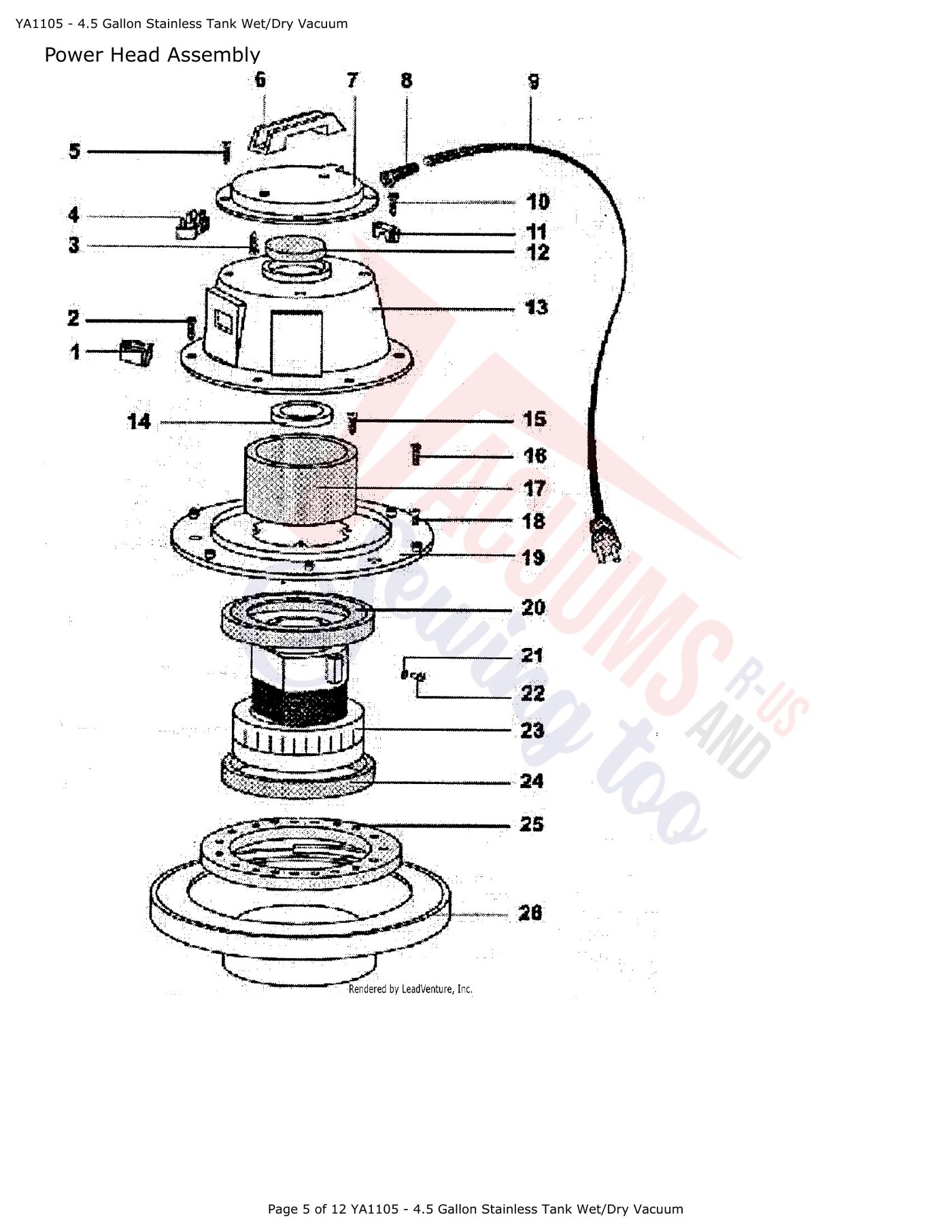

| # | Part image | Description | SKU | Price |
| 1 | No Image | Power Switch | YAT24142 | $0.00Read more |
| 2 | No Image | Screw M5 X 20 | YAT24144 | $0.00Read more |
| 3 | No Image | Screw M5 X 20 | YAT24144 | $0.00Read more |
| 4 | No Image | Terminal Board | YAT24140 | $0.00Read more |
| 5 | No Image | Screw M5 X 20 | YAT24144 | $0.00Read more |
| 6 | No Image | Handle | YAT24528 | $0.00Read more |
| 7 | Not Available | Top Cover | YAT24529 | Not Available |
| 8 | No Image | Strain Relief | YAT24138 | $0.00Read more |
| 9 | No Image | Power Cord | YAT24153 | $0.00Read more |
| 10 | No Image | Screw M5 X 20 | YAT24144 | $0.00Read more |
| 11 | No Image | Cord Clamp | YAT24139 | $0.00Read more |
| 12 | No Image | FILTER | YAT24475 | $20.99Read more |
| 13 | Not Available | Vacuum Head Cover | YAT24530 | Not Available |
| 14 | No Image | Gasket | YAT24478 | $0.00Read more |
| 15 | No Image | Screw M5 X 20 | YAT24144 | $0.00Read more |
| 16 | No Image | Screw M5 X 14 | YAT24143 | $0.00Read more |
| 17 | No Image | Foam Filter | YAT24480 | $0.00Read more |
| 18 | No Image | Screw M5 X 9.5 | YAT24482 | $0.00Read more |
| 19 | No Image | Baffle Plate | YAT24174 | $0.00Read more |
| 20 | No Image | Motor Gasket | YAT24483 | $0.00Read more |
| 21 | No Image | Washer | YAT24145 | $0.00Read more |
| 22 | No Image | Screw M4 X 8 | YAT24147 | $0.00Read more |
| 23 |  | Motor Extractor 115 VAC Bypass SS 2stg 50 60hz | 14800 | $245.99Add to cart Product is special order please allow 2-4 weeks for delivery. |
| 24 | No Image | Motor Gasket | YAT24483 | $0.00Read more |
| 25 | No Image | Gasket | YAT24485 | $0.00Read more |
| 26 | Not Available | Base | YAT24486 | Not Available |

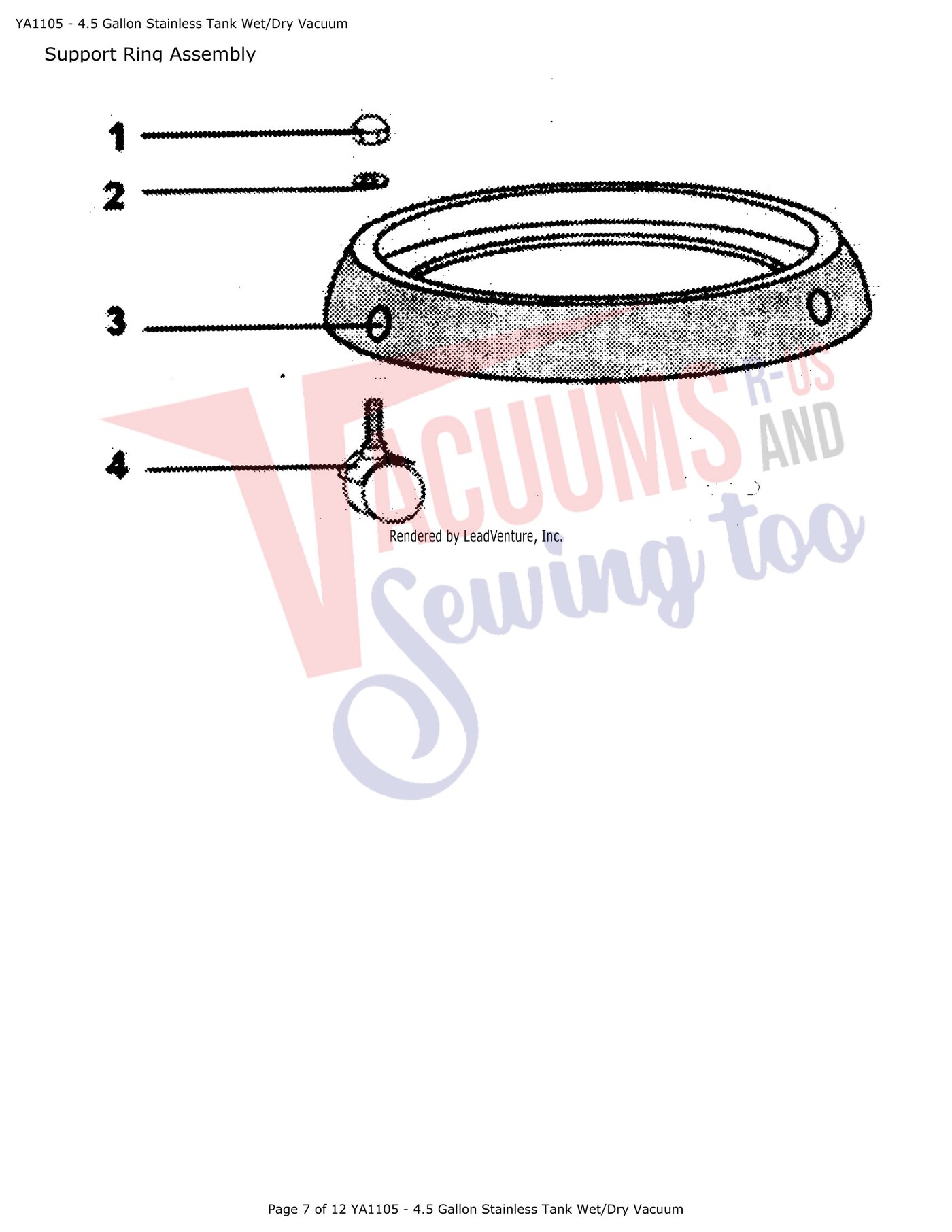

| # | Part image | Description | SKU | Price |
| 1 | Not Available | Nut | YAT24506 | Not Available |
| 2 | Not Available | Washer | YAT24507 | Not Available |
| 3 | Not Available | Support Ring | YAT24508 | Not Available |
| 4 | Not Available | Caster M8 x | YAT24509 | Not Available |

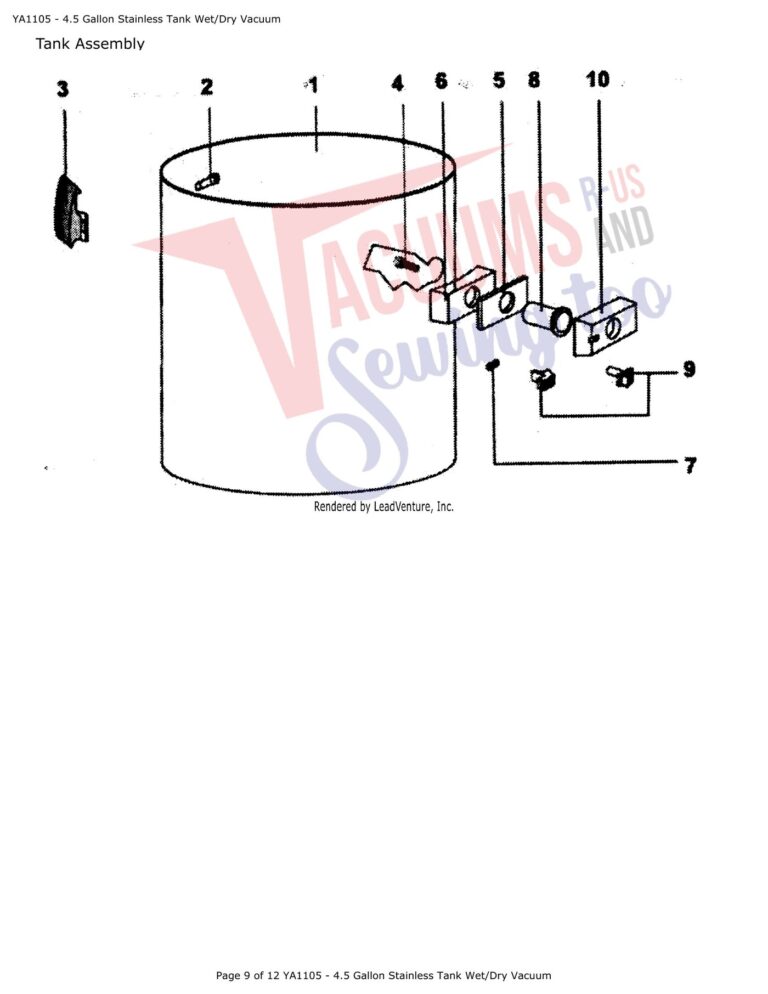

| # | Part image | Description | SKU | Price |
| XX | Not Available | Tank | YAT24516 | Not Available |
| 1 | Not Available | Tank | YAT24504 | Not Available |
| 2 | Not Available | Rivet | YAT24279 | Not Available |
| 3 | No Image | Tank Latch | YAT24158 | $0.00Read more |
| 4 | No Image | Screw M5 X 30 | YAT24224 | $0.00Read more |
| 5 | No Image | Gasket | YAT24168 | $0.00Read more |
| 6 | No Image | Gasket | YAT24505 | $0.00Read more |
| 7 | Not Available | Spring | YAT24274 | Not Available |
| 8 | No Image | Intake Deflector | YAT24163 | $0.00Read more |
| 9 | Not Available | Nozzle Release Button | YAT24273 | Not Available |
| 10 | No Image | Intake | YAT24272 | $0.00Read more |
| # | Part image | Description | SKU | Price |
| XX | Not Available | 6' Hose Assembly | YAT24510 | Not Available |
| XX | Not Available | Extension Tube | YAT24511 | Not Available |
| XX | Not Available | Convertible Floor Tool | YAT24514 | Not Available |
| XX | Not Available | Crevice Tool | YAT24512 | Not Available |
| XX | Not Available | Upholstery Tool | YAT24513 | Not Available |
