Schematic and parts book for Snap-on YA1023 . Repairs should be done by trained technicians. Vacuums R Us & Sewing Too provides vacuum cleaner and carpet cleaner parts and accessories for vacuum cleaner repair purposes. We are committed to delivering high-quality components, but it is important to note that all appliance repairs involve risks, and we cannot guarantee the outcome of your repair. When using our vacuum parts for repairs, you accept the terms and conditions HERE
| # | Part image | Description | SKU | Price |

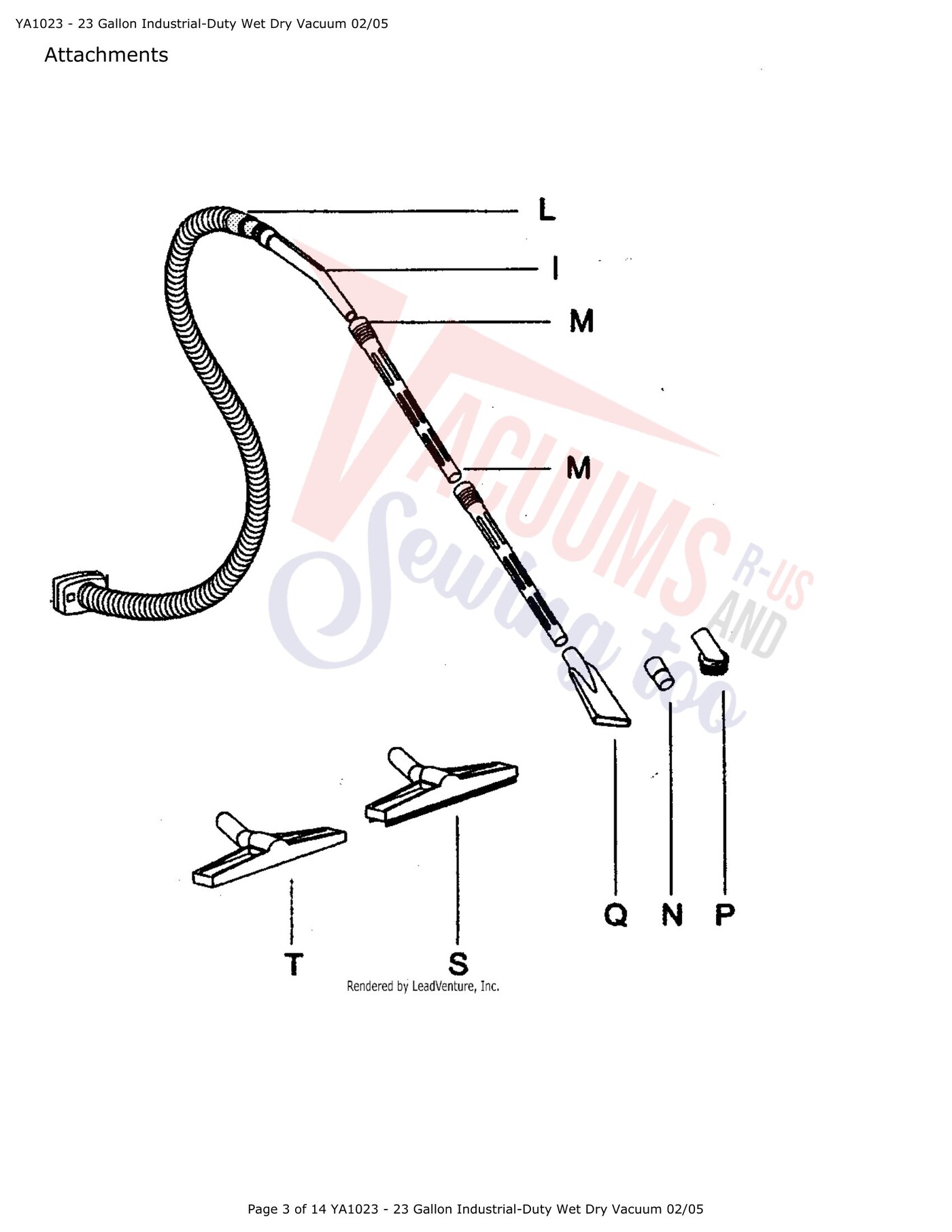

| I | No Image | Single Bend Wand | YAT24489 | $0.00Read more |
| L | No Image | Poly Hose 1-1/2" X 8' (W/Sleeve) | YAT90431 | $0.00Read more |
| M | No Image | 1-1/2" Wand Extension (2 Pieces) | YAT90438 | $0.00Read more |
| N | No Image | Hand Tool Adapter | YAT24500 | $0.00Read more |
| N, P, Q | No Image | 1-1/2" 3 Pc. Tool Set (Crevice, Brush, And Adaptor) (New Style) | YAT90439 | $0.00Read more |
| P | No Image | Round Dusting Brush | YAT24499 | $0.00Read more |
| Q | No Image | Crevice Tool | YAT24177 | $0.00Read more |

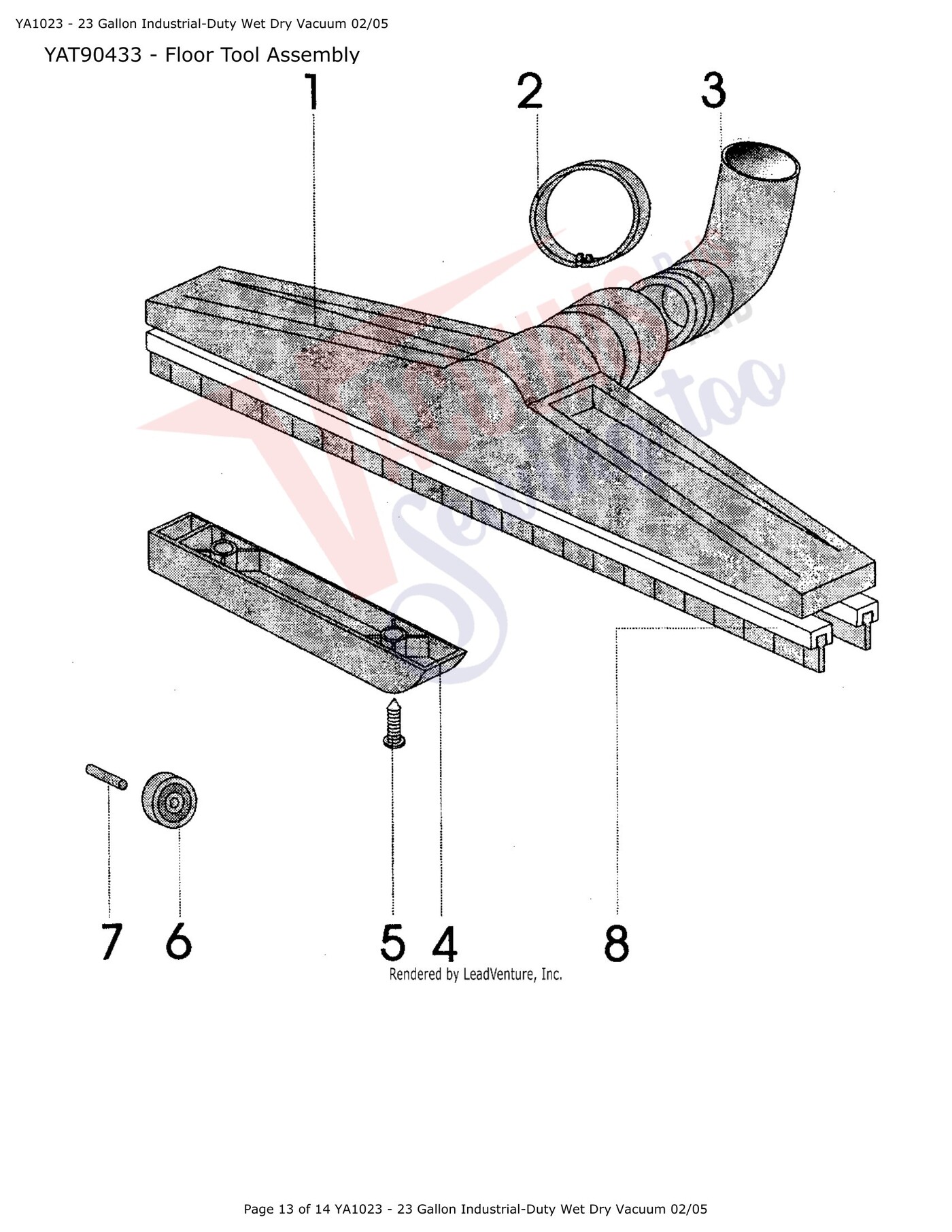

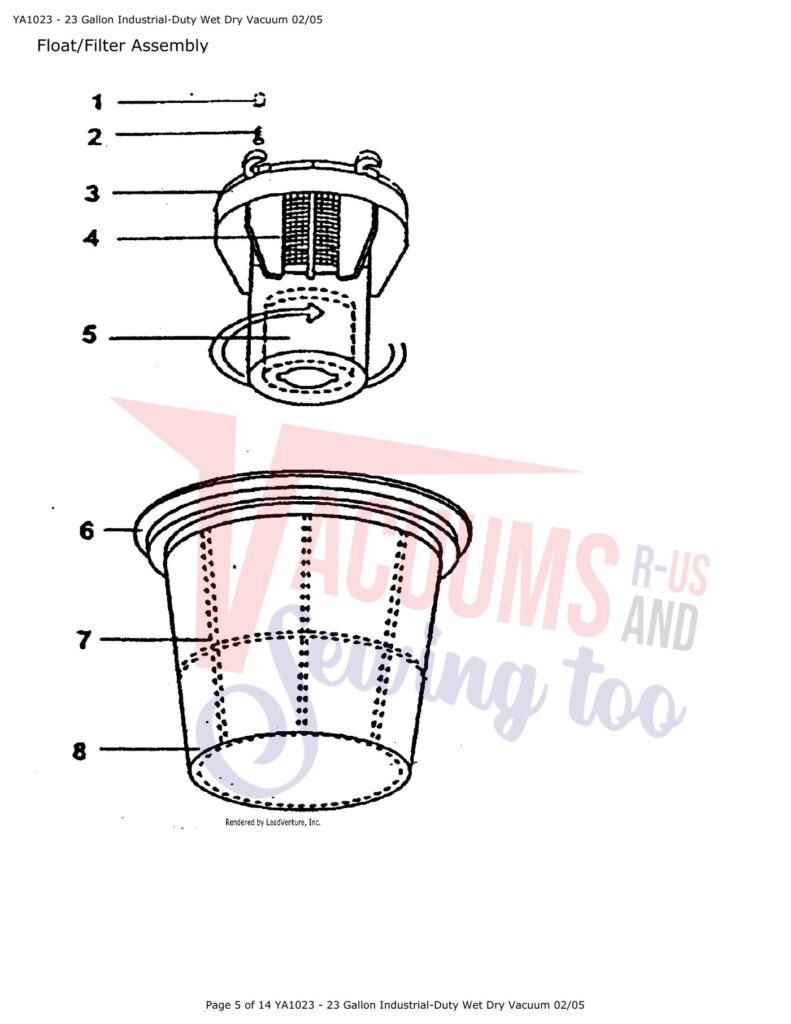

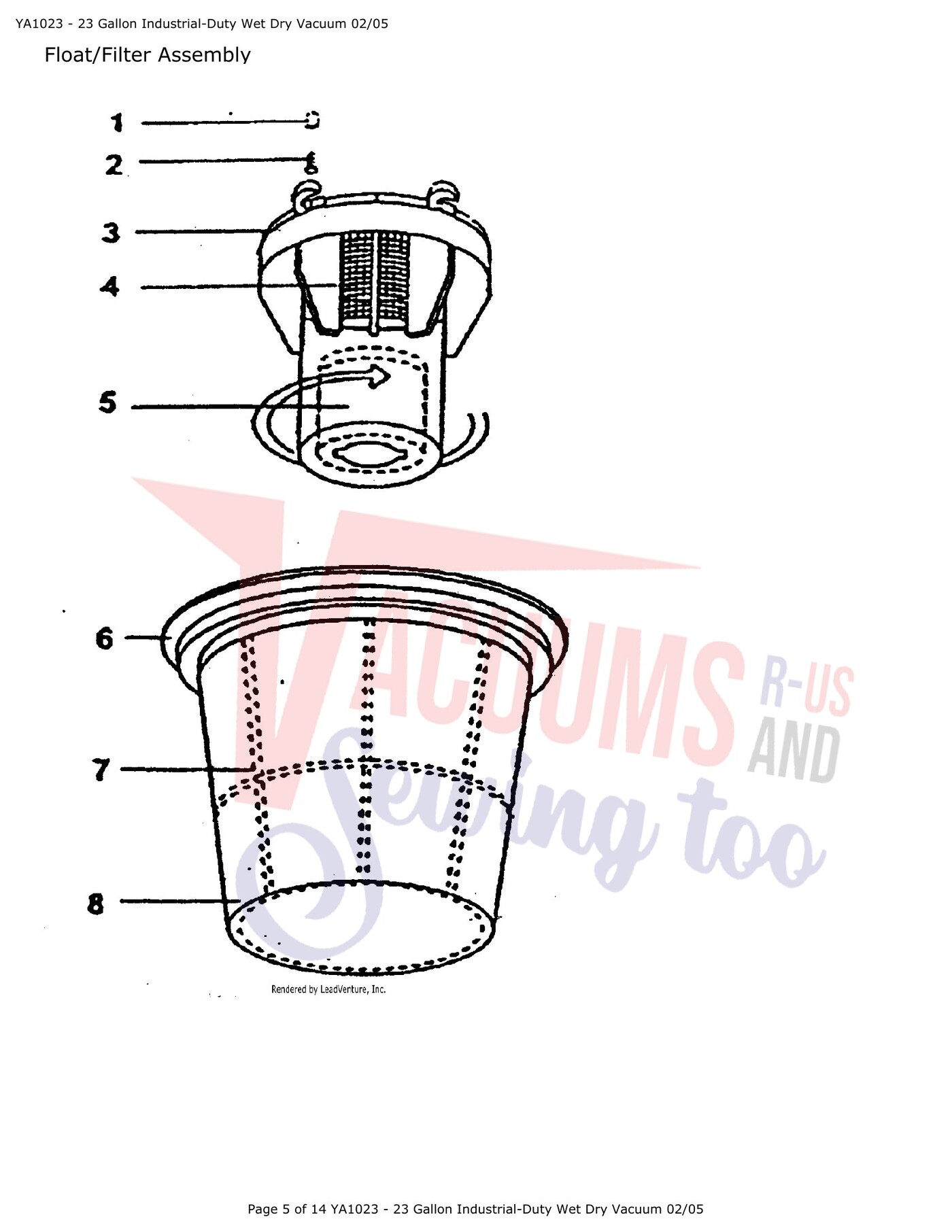

| S | No Image | 1-1/2" X 17" Plastic Squeegee Floor Tool | YAT90433 | $0.00Read more |
| T | No Image | 1-1/2" X 16" Plastic Floor Tool | YAT90441 | $0.00Read more |
| XX | No Image | Squeegee Blade (2 Required) | YAT24491 | $0.00Read more |
| XX | No Image | Screw M5 X 14 | YAT24143 | $0.00Read more |
| XX | No Image | 1-1/2" X 16" Plastic Carpet Floor Tool | YAT90434 | $0.00Read more |
| XX |  | Bag Vacuum Paper Filter 12 Pack primary Hepa | 98588 | $32.99Add to cart Product is special order please allow 2-4 weeks for delivery. |

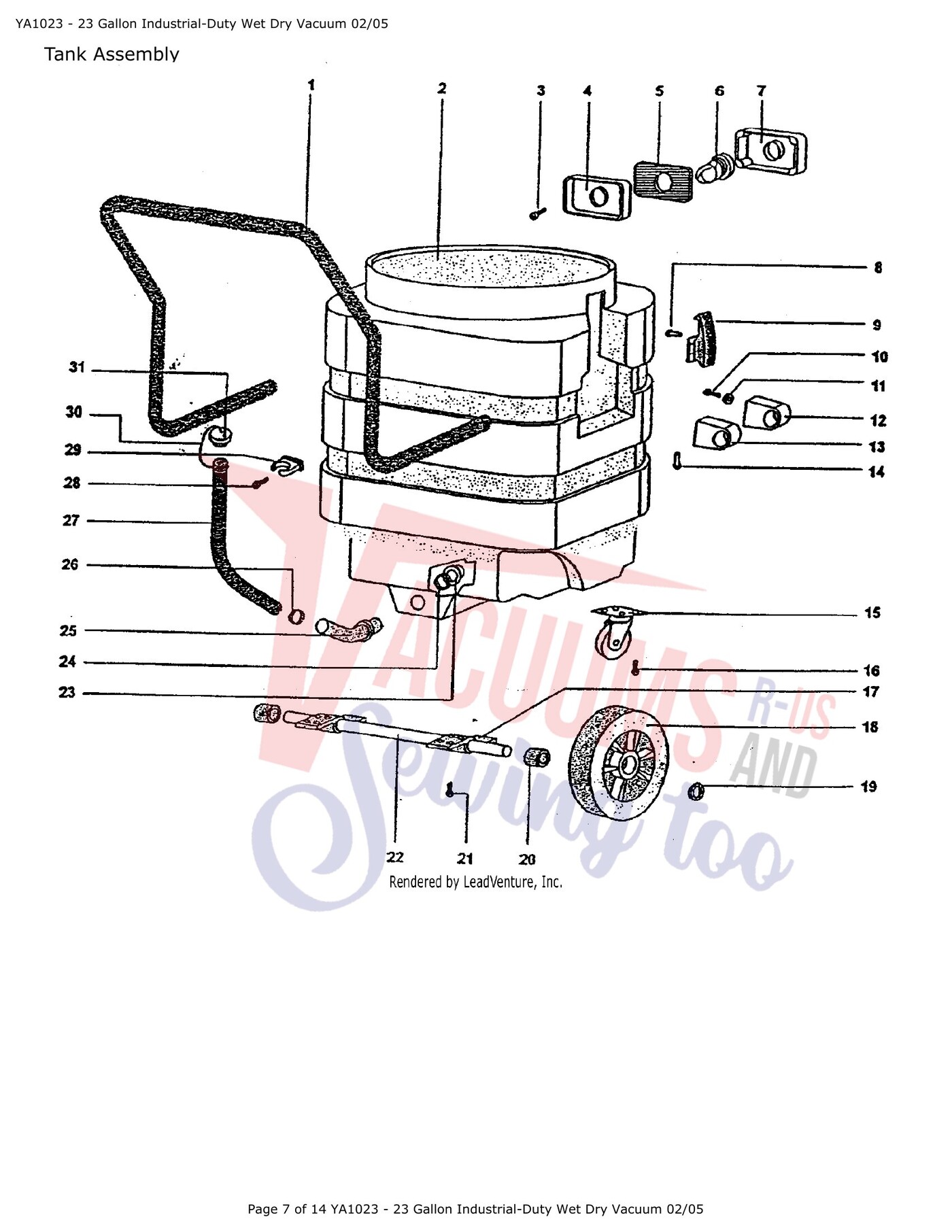

| # | Part image | Description | SKU | Price |
| 1 | No Image | TANK HANDLE | YAT24239 | $2.99Add to cart Product is special order please allow 2-4 weeks for delivery. |
| 2 | Not Available | Tank | YAT24243 | Not Available |
| 3 | No Image | Screw M5 X 30 | YAT24224 | $0.00Read more |
| 4 | Not Available | Gasket | YAT24241 | Not Available |
| 5 | No Image | Gasket | YAT24168 | $0.00Read more |
| 6 | No Image | Intake Deflector | YAT24163 | $0.00Read more |
| 7 | Not Available | Intake | YAT24164 | Not Available |
| 8 | No Image | Rivet | YAT24157 | $0.00Read more |
| 9 | No Image | Tank Latch | YAT24158 | $0.00Read more |
| 10 | No Image | Screw M5 X 30 | YAT24224 | $0.00Read more |
| 11 | Not Available | Washer | YAT24250 | Not Available |
| 12 | Not Available | Front Tank Handle Mounting Block | YAT24225 | Not Available |
| 13 | No Image | TANK HANDLE MOUNTING BLOCK REAR | YAT24235 | $109.99Add to cart Product is special order please allow 2-4 weeks for delivery. |
| 14 | Not Available | Rivet | YAT24234 | Not Available |
| 15 | Not Available | Caster | YAT24240 | Not Available |
| 16 | Not Available | Screw M4 x | YAT24166 | Not Available |
| 17 | Not Available | Axle Mounting Bracket | YAT24237 | Not Available |
| 18 | Not Available | Wheel | YAT24223 | Not Available |
| 19 | Not Available | Wheel Retainer | YAT24238 | Not Available |
| 20 | No Image | Spacer | YAT24242 | $0.00Read more |
| 21 | No Image | Screw M5 X 20 | YAT24144 | $0.00Read more |
| 22 | No Image | Axle | YAT24236 | $0.00Read more |
| 23 | No Image | Drain Fitting | YAT24222 | $0.00Read more |
| 24 | No Image | Gasket | YAT24215 | $0.00Read more |
| 25 | No Image | Drain Fitting | YAT24244 | $0.00Read more |
| 26 | No Image | Hose Clamp | YAT24252 | $0.00Read more |
| 27 | No Image | Drain Hose | YAT24246 | $0.00Read more |
| 28 | No Image | Screw M5 X 20 | YAT24170 | $0.00Read more |
| 29 | No Image | Retaining Clip | YAT24247 | $0.00Read more |
| 30 | No Image | Drain Plug Retainer | YAT24248 | $0.00Read more |
| 31 | No Image | Drain Plug | YAT24245 | $0.00Read more |

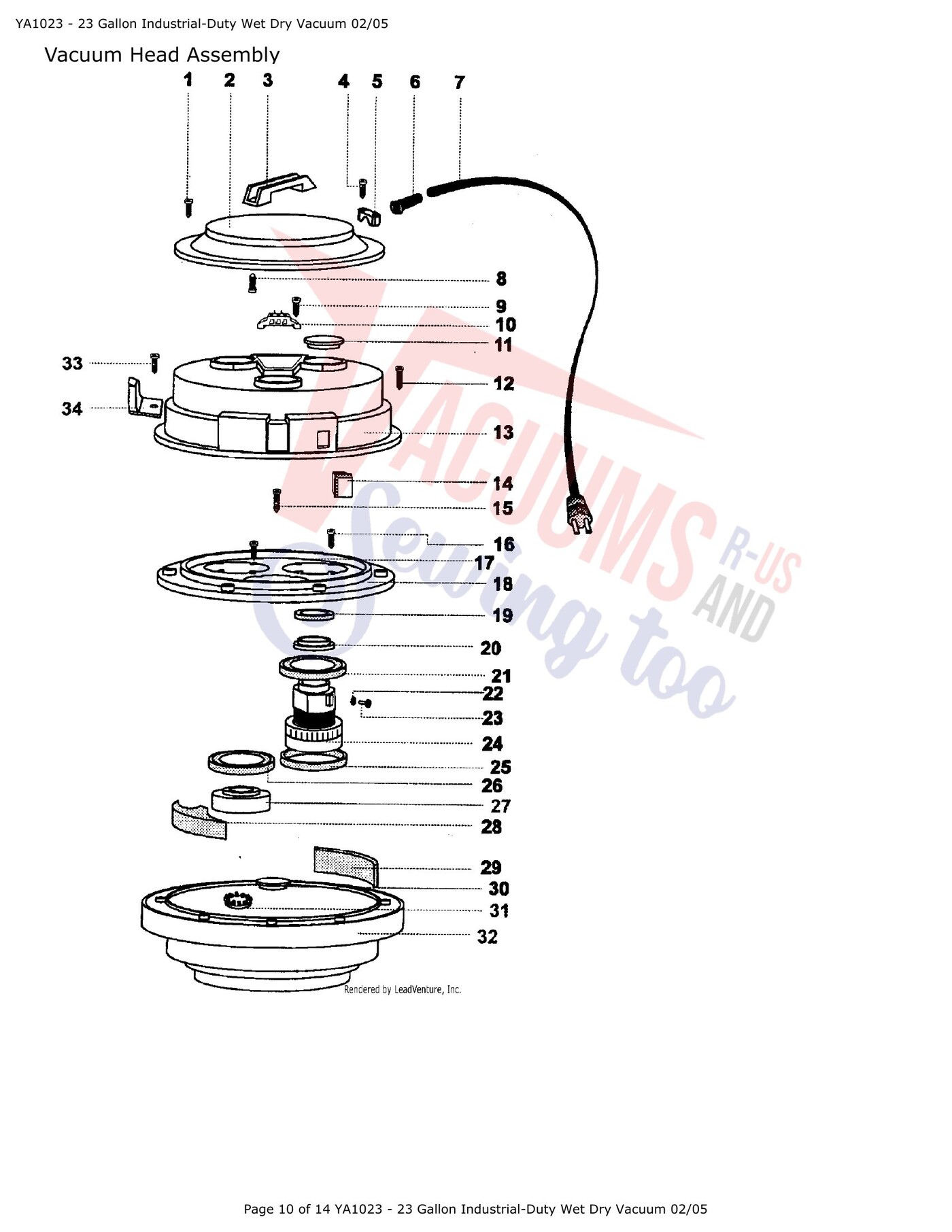

| # | Part image | Description | SKU | Price |
| 1 | No Image | Screw M5 X 20 | YAT24144 | $0.00Read more |
| 2 | No Image | TOP COVER | YAT24232 | $118.99Read more |
| 3 | No Image | Handle | YAT24528 | $0.00Read more |
| 4 | No Image | Screw M5 X 20 | YAT24144 | $0.00Read more |
| 5 | No Image | Cord Clamp | YAT24139 | $0.00Read more |
| 6 | No Image | Strain Relief | YAT24138 | $0.00Read more |
| 7 | No Image | Power Cord | YAT24153 | $0.00Read more |
| 8 | No Image | Screw M5 X 20 | YAT24144 | $0.00Read more |
| 9 | No Image | Screw M5 X 14 | YAT24143 | $0.00Read more |
| 10 | Not Available | Terminal Board | YAT24221 | Not Available |
| 11 | Not Available | Cap | YAT27432 | Not Available |
| 12 | Not Available | Screw M5 x | YAT24146 | Not Available |
| 13 | Not Available | Vacuum Head Cover | YAT24231 | Not Available |
| 14 | No Image | Power Switch | YAT24142 | $0.00Read more |
| 15 | No Image | Screw M5 X 30 | YAT24224 | $0.00Read more |
| 16 | No Image | Screw M5 X 20 | YAT24144 | $0.00Read more |
| 17 | Not Available | Screw M5 x | YAT24226 | Not Available |
| 18 | Not Available | Baffle Plate | YAT24261 | Not Available |
| 19 | No Image | Gasket | YAT24478 | $0.00Read more |
| 21 | No Image | Motor Gasket | YAT24483 | $0.00Read more |
| 22 | No Image | Washer | YAT24145 | $0.00Read more |
| 23 | No Image | Screw M4 X 8 | YAT24147 | $0.00Read more |
| 24 |  | Motor Extractor 115 VAC Bypass SS 2stg 50 60hz | 14800 | $245.99Add to cart Product is special order please allow 2-4 weeks for delivery. |
| 25 | No Image | Motor Gasket | YAT24483 | $0.00Read more |
| 26 | No Image | Motor Gasket | YAT24483 | $0.00Read more |
| 27 | Not Available | Gasket | YAT27428 | Not Available |
| 28 | Not Available | Baffle | YAT24253 | Not Available |
| 29 | Not Available | Baffle | YAT24255 | Not Available |
| 30 | Not Available | Cap | YAT27430 | Not Available |
| 31 | Not Available | Vacuum Motor Intake valve | YAT24217 | Not Available |
| 32 | Not Available | Base | YAT24220 | Not Available |
| 33 | Not Available | Screw M5 x | YAT24498 | Not Available |
| 34 | No Image | Cord Hook | YAT24176 | $0.00Read more |
| # | Part image | Description | SKU | Price |
| 2 | Not Available | Flexible Collar | YAT24493 | Not Available |
| 3 | No Image | Hose Connection | YAT24494 | $0.00Read more |
| 4 | No Image | Squeegee Blade Retainer | YAT24495 | $0.00Read more |
| 5 | No Image | Screw M5 X 14 | YAT24143 | $0.00Read more |
| 6 | No Image | Wheel | YAT24496 | $0.00Read more |
| 7 | No Image | Axle | YAT24497 | $0.00Read more |
| 8 | No Image | Squeegee Blade (2 Required) | YAT24491 | $0.00Read more |
