Schematic and parts book for Snap-on YA1009SS-9 . Repairs should be done by trained technicians. Vacuums R Us & Sewing Too provides vacuum cleaner and carpet cleaner parts and accessories for vacuum cleaner repair purposes. We are committed to delivering high-quality components, but it is important to note that all appliance repairs involve risks, and we cannot guarantee the outcome of your repair. When using our vacuum parts for repairs, you accept the terms and conditions HERE

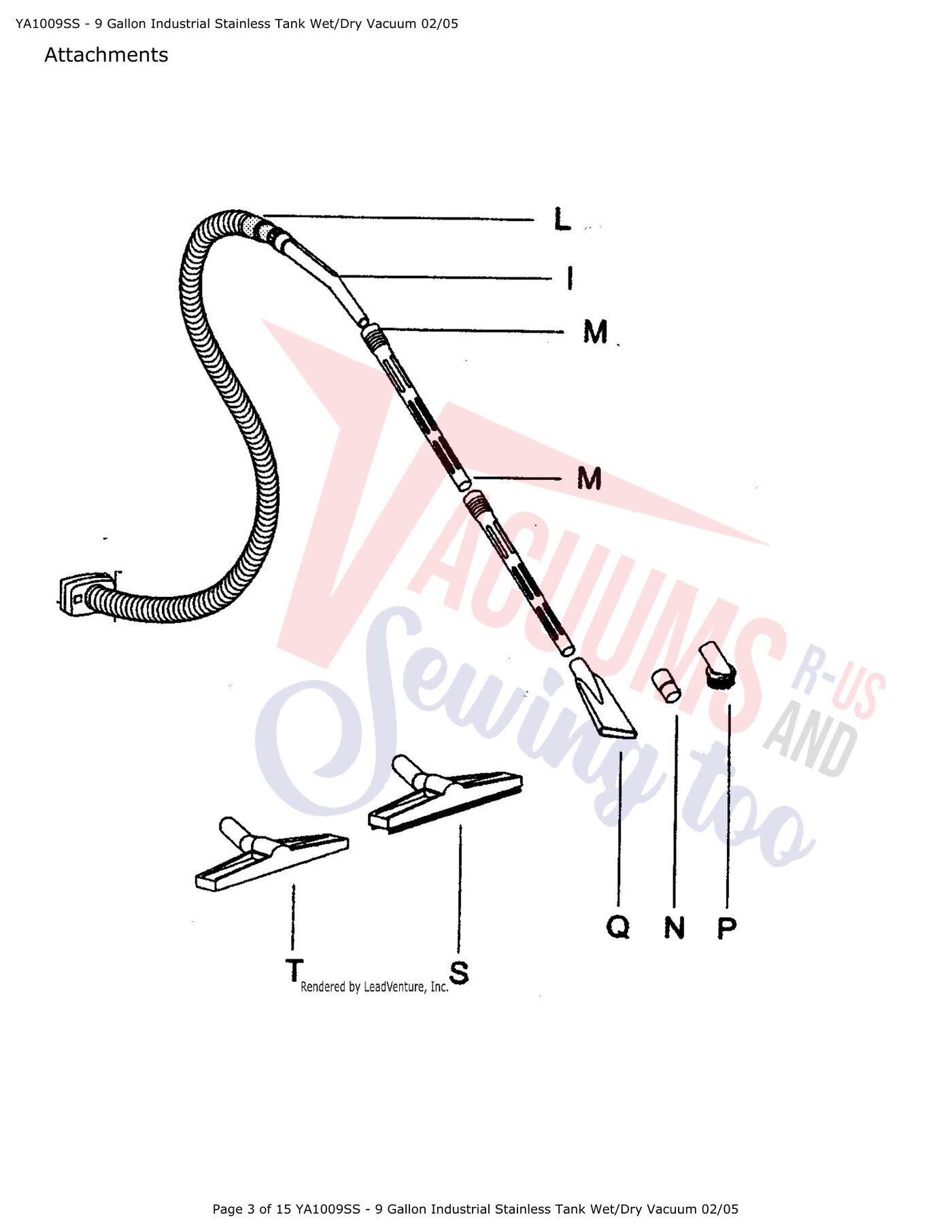

| # | Part image | Description | SKU | Price |
| I | No Image | Single Bend Wand | YAT24489 | $0.00Read more |
| L | No Image | Poly Hose 1-1/2" X 8' (W/Sleeve) | YAT90431 | $0.00Read more |
| M | No Image | 1-1/2" Wand Extension (2 Pieces) | YAT90438 | $0.00Read more |
| N | Not Available | Hose Cuff | YAT22045 | Not Available |
| Q, N, P | No Image | 1-1/2" 3 Pc. Tool Set (Crevice, Brush, And Adaptor) (New Style) | YAT90439 | $0.00Read more |

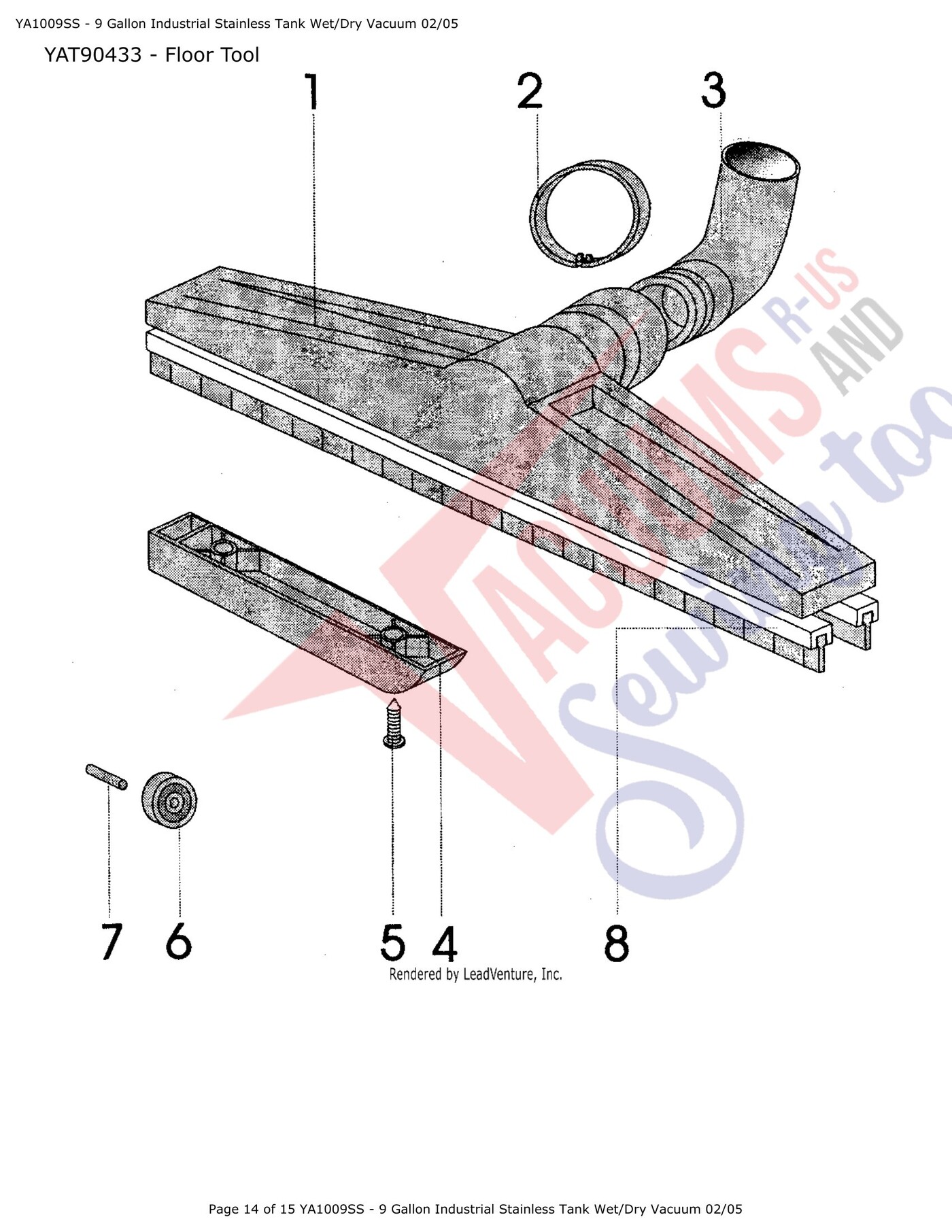

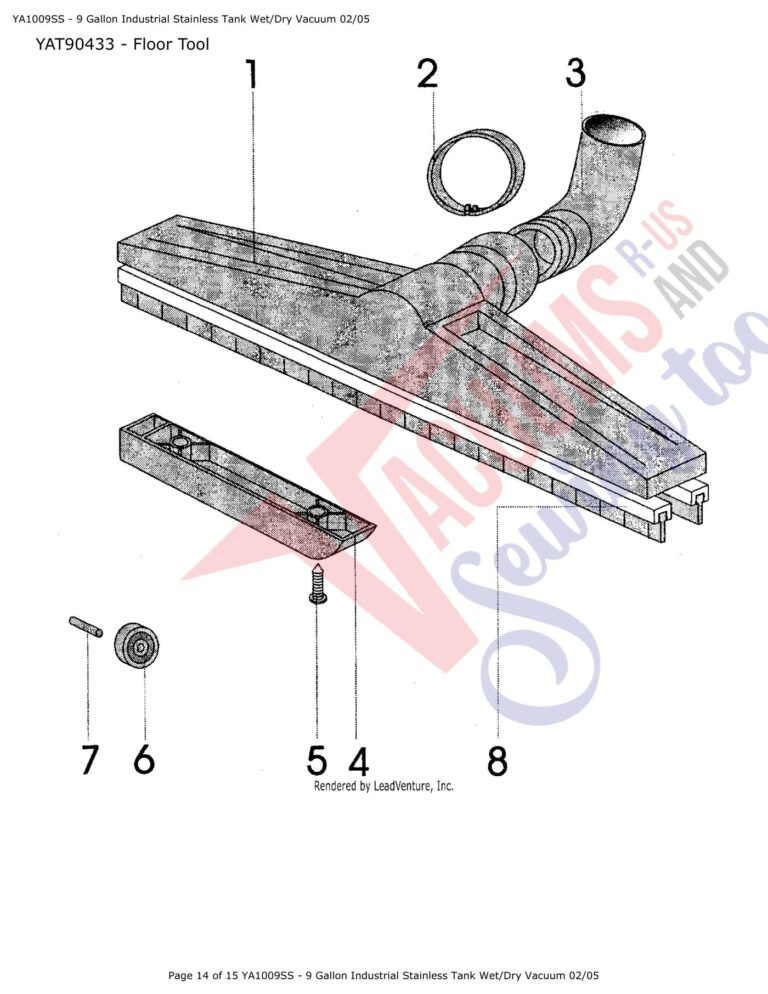

| S | No Image | 1-1/2" X 17" Plastic Squeegee Floor Tool | YAT90433 | $0.00Read more |
| T | No Image | 1-1/2" X 16" Plastic Floor Tool | YAT90441 | $0.00Read more |
| XX | No Image | Squeegee Blade (2 Required) | YAT24491 | $0.00Read more |
| XX | No Image | Screw M5 X 14 | YAT24143 | $0.00Read more |
| XX | No Image | 1-1/2" X 16" Plastic Carpet Floor Tool | YAT90434 | $0.00Read more |
| XX |  | Bag Vacuum Paper Filter 12 Pack primary Hepa | 98588 | $32.99Add to cart Product is special order please allow 2-4 weeks for delivery. |
| # | Part image | Description | SKU | Price |

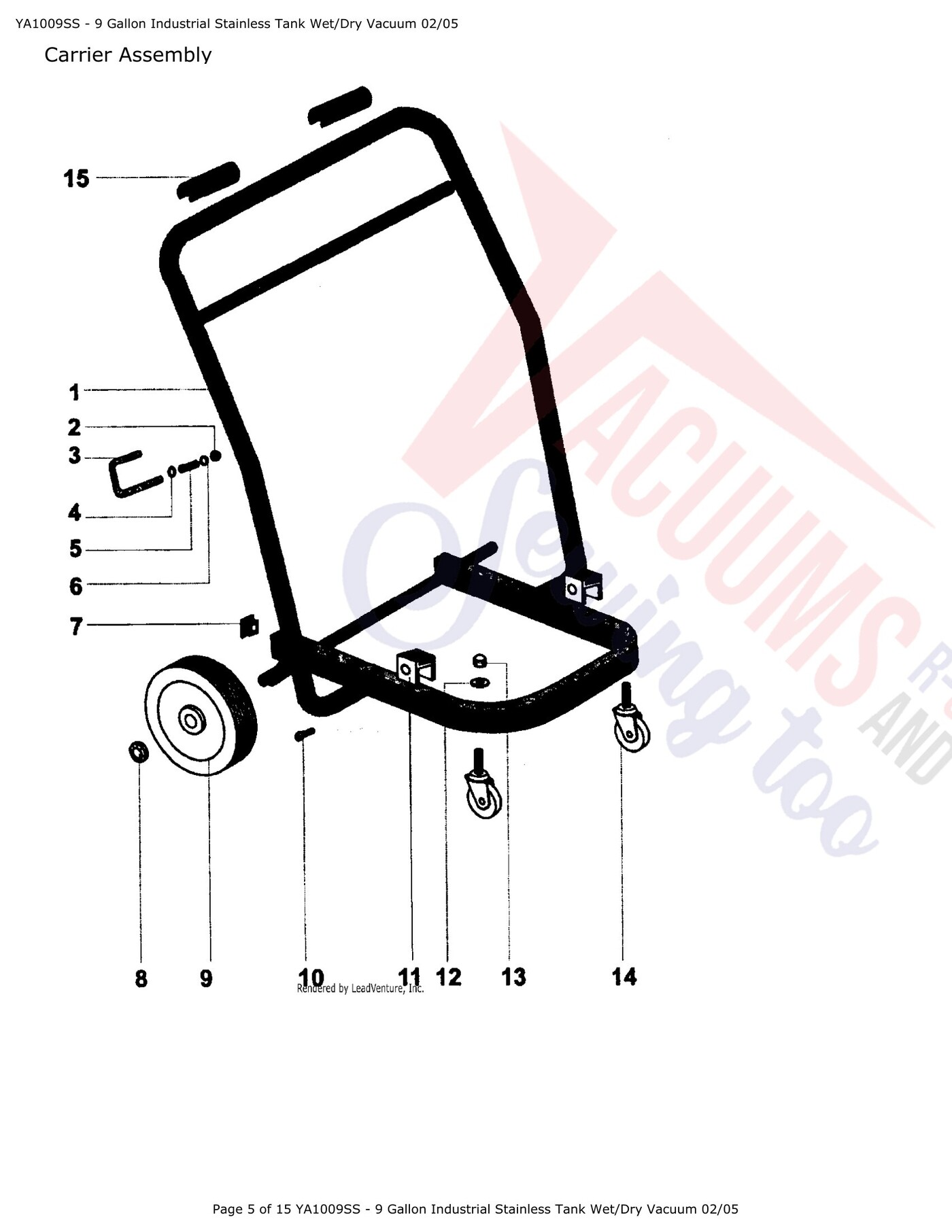

| 1 | Not Available | Carrier Frame | YAT24281 | Not Available |
| 2 | Not Available | Cap | YAT24282 | Not Available |
| 3 | Not Available | Tank Release | YAT24283 | Not Available |
| 4 | Not Available | Washer | YAT24284 | Not Available |
| 5 | Not Available | Spring | YAT24285 | Not Available |
| 6 | Not Available | Washer | YAT24284 | Not Available |
| 7 | Not Available | Plug | YAT24286 | Not Available |
| 8 | Not Available | Wheel Retainer | YAT24238 | Not Available |
| 9 | Not Available | Wheel | YAT24223 | Not Available |
| 10 | No Image | Screw M5 X 20 | YAT24144 | $0.00Read more |
| 11 | Not Available | Bumper | YAT24287 | Not Available |
| 12 | Not Available | Washer | YAT24288 | Not Available |
| 13 | Not Available | Nut | YAT24289 | Not Available |
| 14 | Not Available | Caster | YAT24290 | Not Available |
| 15 | Not Available | Handle Grip | YAT24490 | Not Available |
| # | Part image | Description | SKU | Price |

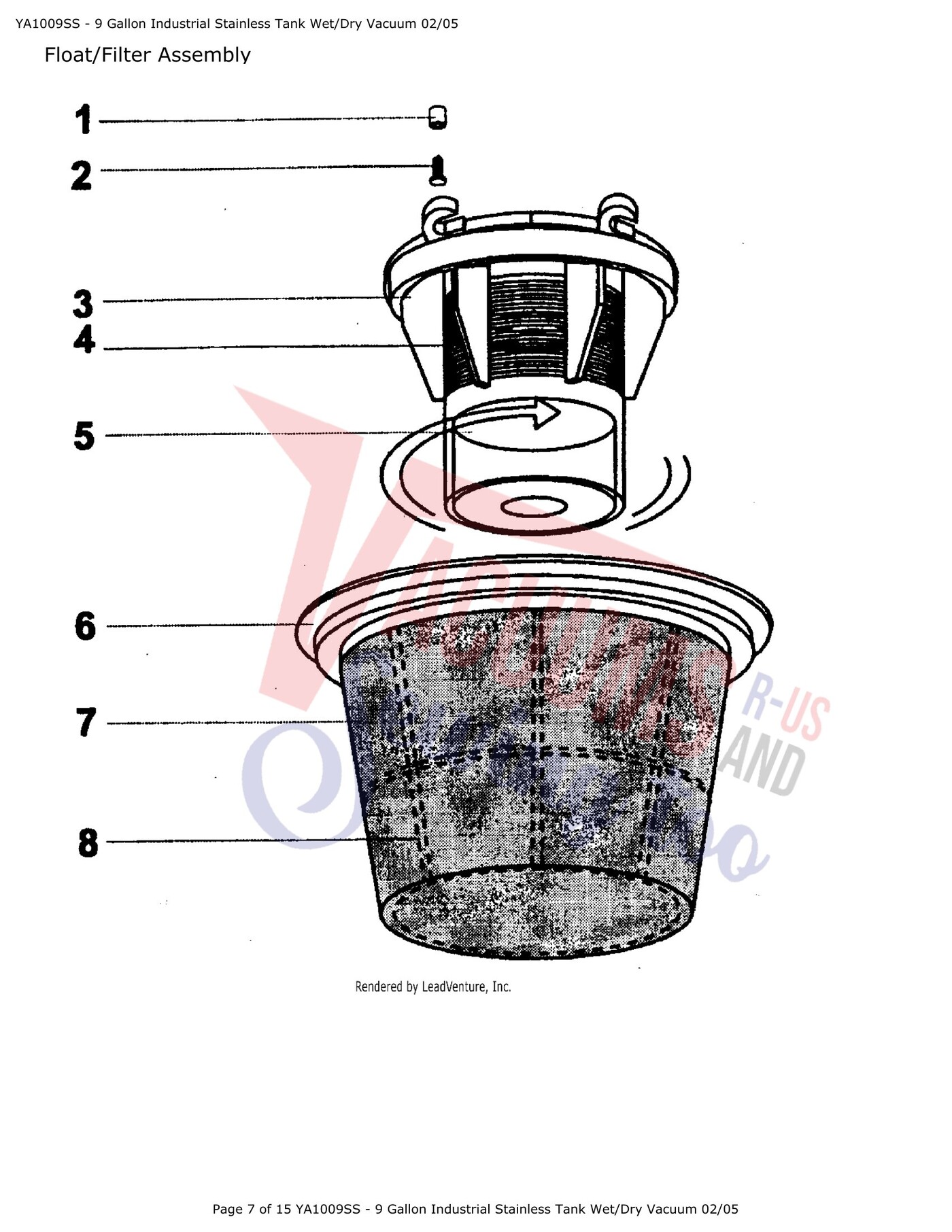

| 1 | No Image | Spacer | YAT27431 | $0.00Read more |
| 2 | No Image | Screw M5 X 20 | YAT24170 | $0.00Read more |
| 3 | No Image | Float Cage | YAT24167 | $0.00Read more |
| 4 | No Image | Float Screen | YAT24172 | $0.00Read more |
| 5 | Not Available | Float | YAT24165 | Not Available |
| 6 | No Image | Filter Frame Ring | YAT24137 | $0.00Read more |
| 7 | Not Available | Filter | YAT90430 | Not Available |
| 8 | Not Available | Filter Frame | YAT24169 | Not Available |
| # | Part image | Description | SKU | Price |

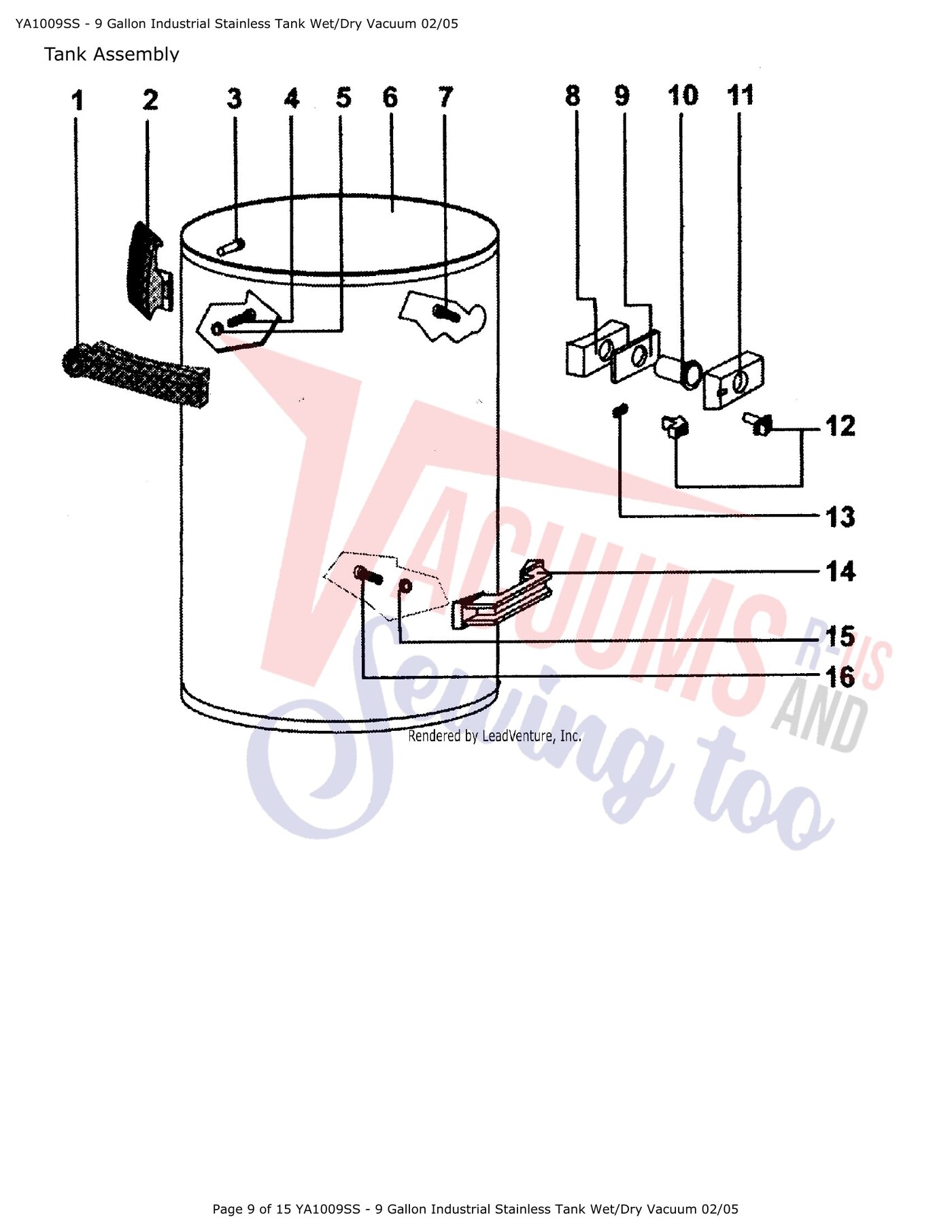

| 1 | Not Available | Handle | YAT31344 | Not Available |
| 2 | No Image | Tank Latch | YAT24158 | $0.00Read more |
| 3 | Not Available | Rivet | YAT24279 | Not Available |
| 4 | Not Available | Screw | YAT24277 | Not Available |
| 5 | Not Available | Washer | YAT24276 | Not Available |
| 6 | Not Available | Stainless Steel Tank | YAT24280 | Not Available |
| 7 | No Image | Screw M5 X 30 | YAT24224 | $0.00Read more |
| 8 | No Image | Gasket | YAT24505 | $0.00Read more |
| 9 | No Image | Gasket | YAT24168 | $0.00Read more |
| 10 | No Image | Intake Deflector | YAT24163 | $0.00Read more |
| 11 | No Image | Intake | YAT24272 | $0.00Read more |
| 12 | Not Available | Nozzle Release Button | YAT24273 | Not Available |
| 13 | Not Available | Spring | YAT24274 | Not Available |
| 14 | Not Available | Tank Handle | YAT24275 | Not Available |
| 15 | Not Available | Washer | YAT24276 | Not Available |
| 16 | Not Available | Screw | YAT24277 | Not Available |
| # | Part image | Description | SKU | Price |

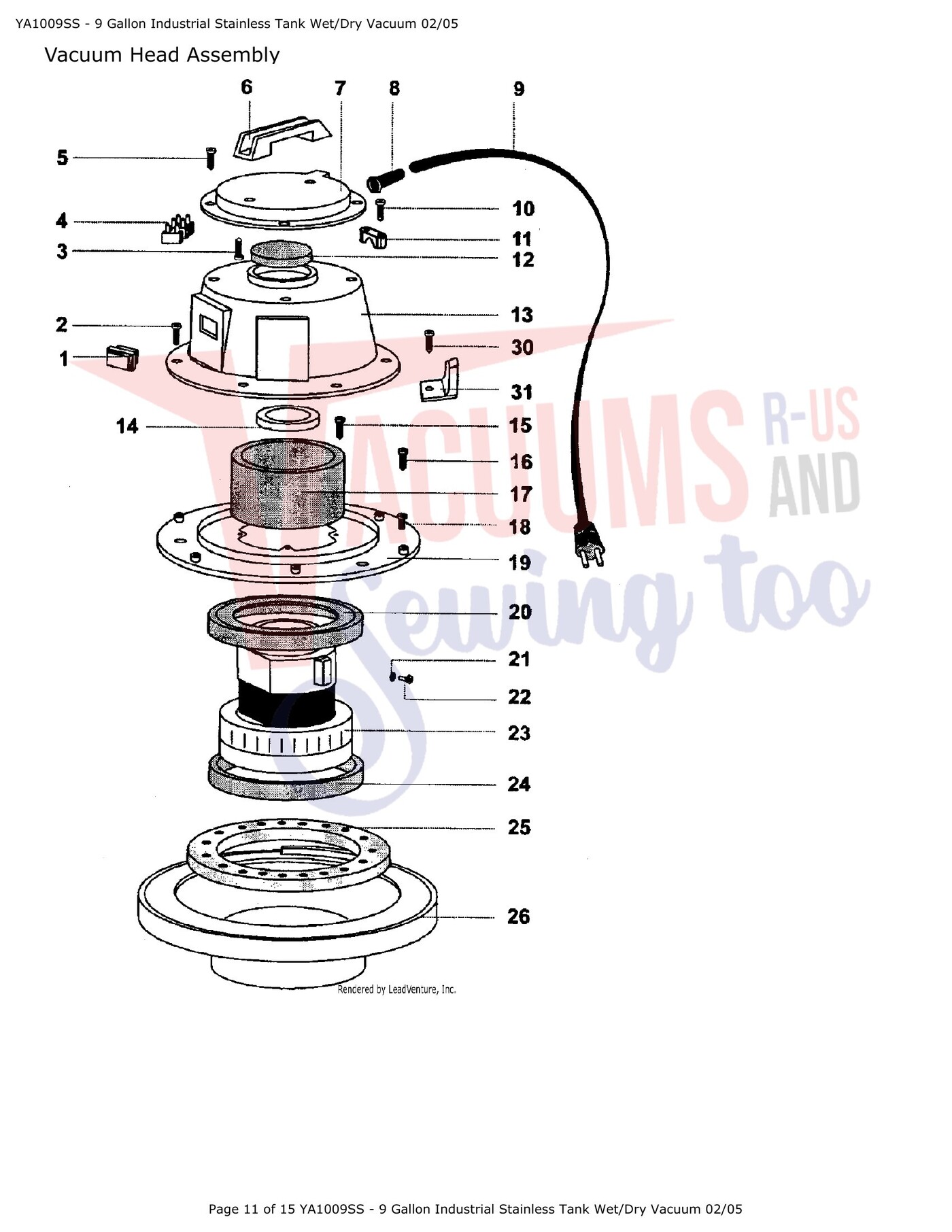

| 1 | No Image | Power Switch | YAT24142 | $0.00Read more |
| 2 | No Image | Screw M5 X 20 | YAT24144 | $0.00Read more |
| 3 | No Image | Screw M5 X 20 | YAT24144 | $0.00Read more |
| 4 | No Image | Terminal Board | YAT24140 | $0.00Read more |
| 5 | No Image | Screw M5 X 20 | YAT24144 | $0.00Read more |
| 6 | No Image | Handle | YAT24528 | $0.00Read more |
| 7 | Not Available | Top Cover | YAT24529 | Not Available |
| 8 | No Image | Strain Relief | YAT24138 | $0.00Read more |
| 9 | No Image | Power Cord | YAT24153 | $0.00Read more |
| 10 | No Image | Screw M5 X 20 | YAT24144 | $0.00Read more |
| 11 | No Image | Cord Clamp | YAT24139 | $0.00Read more |
| 12 | No Image | FILTER | YAT24475 | $20.99Read more |
| 13 | Not Available | Vacuum Head Cover | YAT24530 | Not Available |
| 14 | No Image | Gasket | YAT24478 | $0.00Read more |
| 15 | No Image | Screw M5 X 20 | YAT24144 | $0.00Read more |
| 16 | No Image | Screw M5 X 14 | YAT24143 | $0.00Read more |
| 17 | No Image | Foam Filter | YAT24480 | $0.00Read more |
| 18 | No Image | Screw M5 X 9.5 | YAT24482 | $0.00Read more |
| 19 | No Image | Baffle Plate | YAT24174 | $0.00Read more |
| 20 | No Image | Motor Gasket | YAT24483 | $0.00Read more |
| 21 | No Image | Washer | YAT24145 | $0.00Read more |
| 22 | No Image | Screw M4 X 8 | YAT24147 | $0.00Read more |
| 23 |  | Motor Extractor 115 VAC Bypass SS 2stg 50 60hz | 14800 | $245.99Add to cart Product is special order please allow 2-4 weeks for delivery. |
| 24 | No Image | Gasket | YAT24484 | $0.00Read more |
| 25 | No Image | Gasket | YAT24485 | $0.00Read more |
| 26 | Not Available | Base | YAT24486 | Not Available |
| 30 | No Image | Screw M5 X 25 | YAT24159 | $0.00Read more |
| 31 | No Image | Cord Hook | YAT24176 | $0.00Read more |
| # | Part image | Description | SKU | Price |
| 2 | Not Available | Flexible Collar | YAT24493 | Not Available |
| 3 | No Image | Hose Connection | YAT24494 | $0.00Read more |
| 4 | No Image | Squeegee Blade Retainer | YAT24495 | $0.00Read more |
| 5 | No Image | Screw M5 X 14 | YAT24143 | $0.00Read more |
| 6 | No Image | Wheel | YAT24496 | $0.00Read more |
| 7 | No Image | Axle | YAT24497 | $0.00Read more |
| 8 | No Image | Squeegee Blade (2 Required) | YAT24491 | $0.00Read more |
