Schematic and parts book for Snap-on YA 1023 A . Repairs should be done by trained technicians. Vacuums R Us & Sewing Too provides vacuum cleaner and carpet cleaner parts and accessories for vacuum cleaner repair purposes. We are committed to delivering high-quality components, but it is important to note that all appliance repairs involve risks, and we cannot guarantee the outcome of your repair. When using our vacuum parts for repairs, you accept the terms and conditions HERE

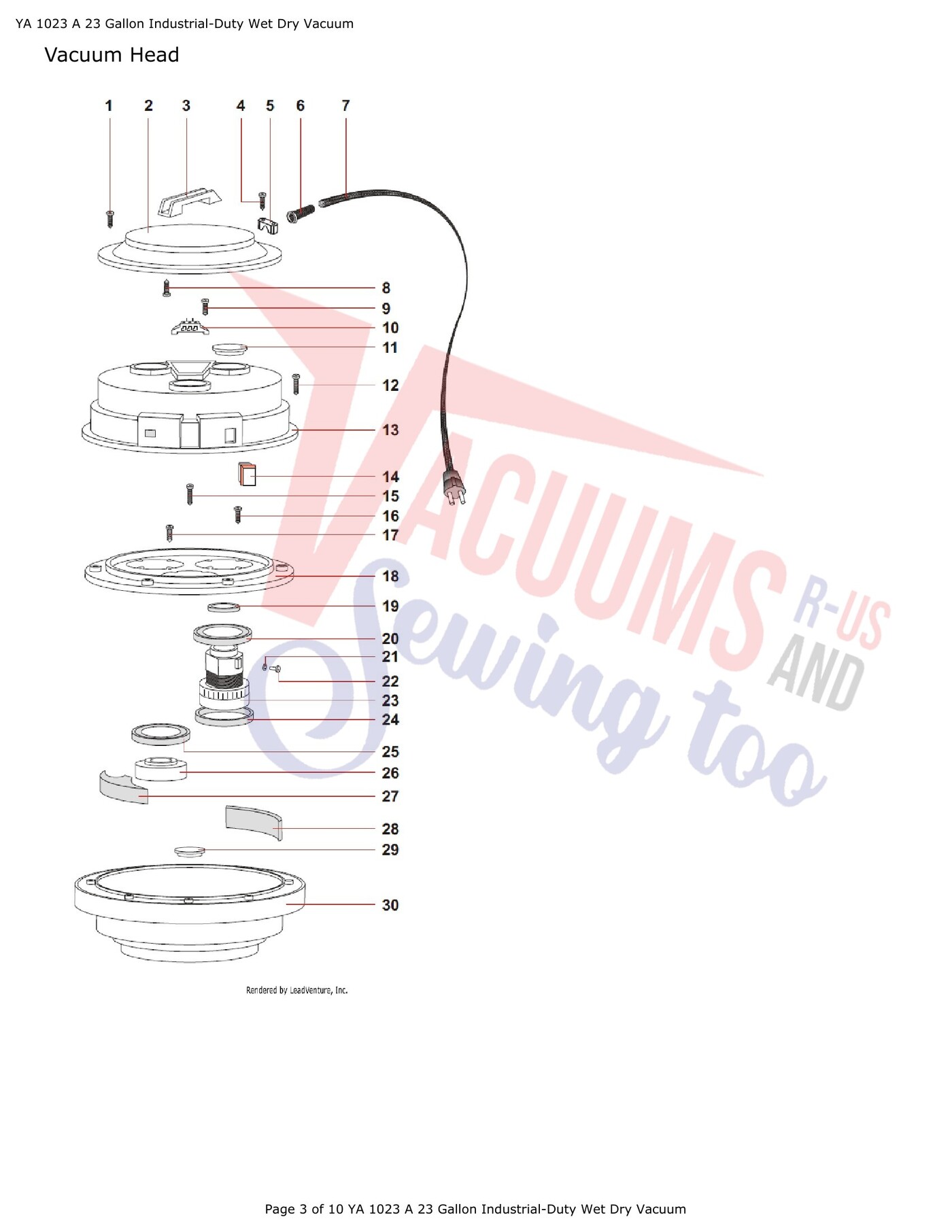

| # | Part image | Description | SKU | Price |
| 1 | No Image | Screw M5 X 20 | YAT24144 | $0.00Read more |
| 2 | Not Available | Top Cover | YAT24310 | Not Available |
| 3 | No Image | Screw M5 X 20 | YAT24144 | $0.00Read more |
| 4 | No Image | Screw M5 X 20 | YAT24144 | $0.00Read more |
| 5 | No Image | Cord Clamp | YAT24139 | $0.00Read more |
| 6 | No Image | Strain Relief | YAT24138 | $0.00Read more |
| 7 | No Image | Power Cord | YAT24153 | $0.00Read more |
| 8 | No Image | Screw M5 X 20 | YAT24144 | $0.00Read more |
| 9 | No Image | Screw M5 X 14 | YAT24143 | $0.00Read more |
| 10 | Not Available | Terminal Board | YAT24221 | Not Available |
| 11 | Not Available | Cap | YAT27432 | Not Available |
| 12 | Not Available | Screw M5 x | YAT24146 | Not Available |
| 13 | Not Available | Vacuum Head Cover | YAT24231 | Not Available |
| 14 | No Image | Power Switch | YAT24142 | $0.00Read more |
| 15 | No Image | Screw M5 X 30 | YAT24224 | $0.00Read more |
| 16 | No Image | Screw M5 X 20 | YAT24144 | $0.00Read more |
| 17 | No Image | Screw M5 X 20 | YAT24144 | $0.00Read more |
| 18 | Not Available | Baffle Plate | YAT24261 | Not Available |
| 19 | No Image | Gasket | YAT24478 | $0.00Read more |
| 20 | No Image | Motor Gasket | YAT24483 | $0.00Read more |
| 21 | No Image | Washer | YAT24145 | $0.00Read more |
| 22 | No Image | Screw M4 X 8 | YAT24147 | $0.00Read more |
| 23 |  | Motor Extractor 115 VAC Bypass SS 2stg 50 60hz | 14800 | $245.99Add to cart Product is special order please allow 2-4 weeks for delivery. |
| 24 | No Image | Motor Gasket | YAT24483 | $0.00Read more |
| 25 | No Image | Motor Gasket | YAT24483 | $0.00Read more |
| 26 | Not Available | Gasket | YAT27428 | Not Available |
| 27 | Not Available | Baffle | YAT24253 | Not Available |
| 28 | Not Available | Baffle | YAT27427 | Not Available |
| 29 | Not Available | Cap | YAT27430 | Not Available |
| 30 | Not Available | Base | YAT24220 | Not Available |

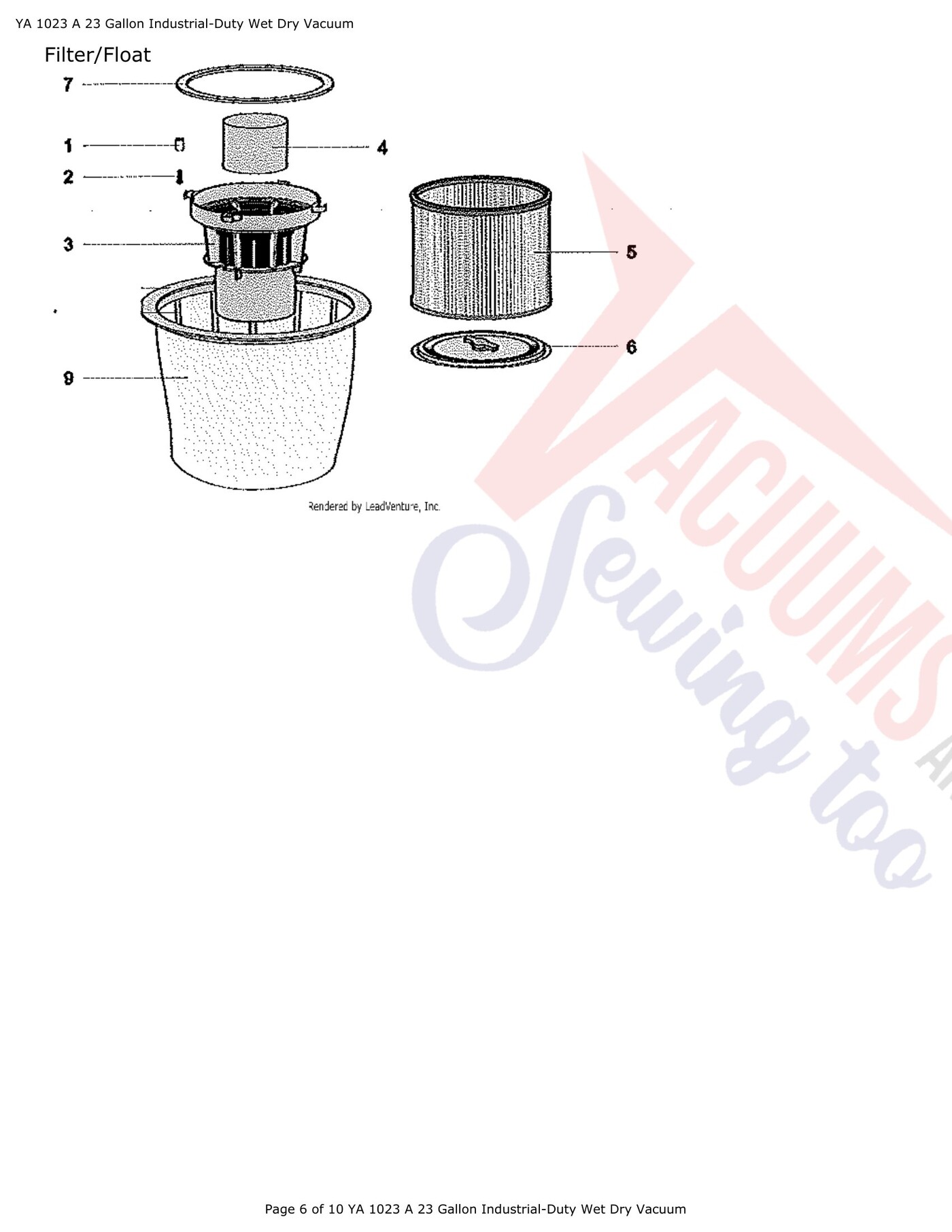

| # | Part image | Description | SKU | Price |
| 1 | No Image | Spacer | YAT27431 | $0.00Read more |
| 2 | No Image | Screw M5 X 20 | YAT24170 | $0.00Read more |
| 3 | No Image | Float Cage | YAT24167 | $0.00Read more |
| 4 | Not Available | Float | YAT24165 | Not Available |
| 5 | Not Available | HEPA Filter Cartridge | YAT24300 | Not Available |
| 6 | Not Available | Filter Locking Plate | YAT27420 | Not Available |
| 7 | No Image | Hose Clamp | YAT24252 | $0.00Read more |
| 9 | Not Available | Poly Filter Assembly | 90448 | Not Available |
| 9A | Not Available | Filter Frame Ring | YAT27421 | Not Available |
| 9B | Not Available | Filter | YAT27422 | Not Available |
| 9C | Not Available | Filter Frame | YAT27423 | Not Available |

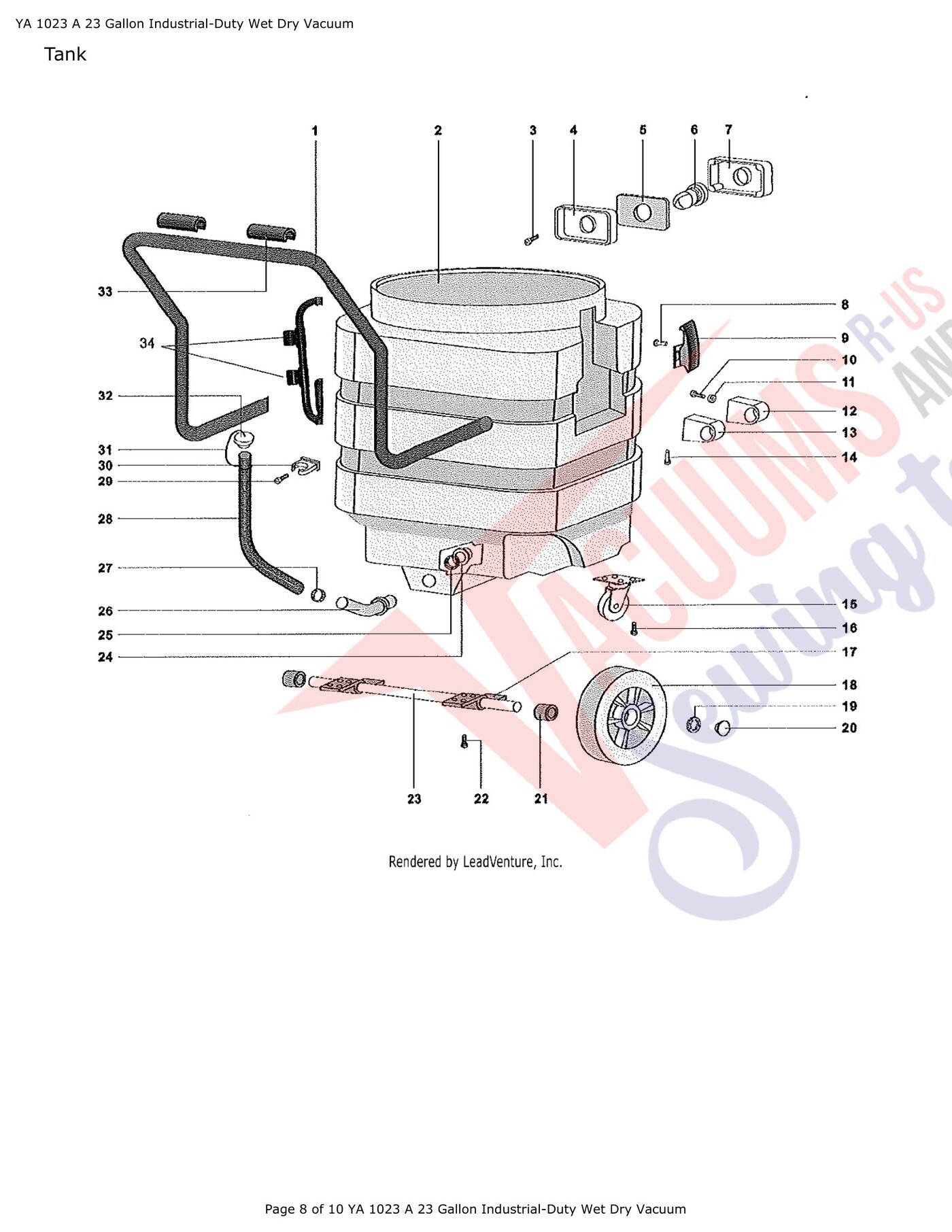

| # | Part image | Description | SKU | Price |
| Not Shown | Not Available | Tool Clip Assembly | YAT24254 | Not Available |
| 1 | No Image | TANK HANDLE | YAT24239 | $2.99Add to cart Product is special order please allow 2-4 weeks for delivery. |
| 2 | Not Available | Tank | YAT24266 | Not Available |
| 3 | No Image | Screw M5 X 30 | YAT24224 | $0.00Read more |
| 4 | Not Available | Intake | YAT27425 | Not Available |
| 5 | No Image | Gasket | YAT24168 | $0.00Read more |
| 6 | No Image | Intake Deflector | YAT24163 | $0.00Read more |
| 7 | Not Available | Intake | YAT24164 | Not Available |
| 8 | No Image | Rivet | YAT24157 | $0.00Read more |
| 9 | No Image | Tank Latch | YAT24158 | $0.00Read more |
| 10 | Not Available | Screw M5 x | YAT24146 | Not Available |
| 11 | Not Available | Washer | YAT24250 | Not Available |
| 12 | Not Available | Front Tank Handle Mounting Block | YAT24225 | Not Available |
| 13 | No Image | TANK HANDLE MOUNTING BLOCK REAR | YAT24235 | $109.99Add to cart Product is special order please allow 2-4 weeks for delivery. |
| 14 | No Image | Rivet | YAT24269 | $0.00Read more |
| 15 | Not Available | Caster | YAT24240 | Not Available |
| 16 | Not Available | Screw M4 x | YAT24166 | Not Available |
| 17 | Not Available | Axle Mounting Bracket | YAT24237 | Not Available |
| 18 | Not Available | Wheel | YAT24223 | Not Available |
| 19 | Not Available | Wheel Retainer | YAT24238 | Not Available |
| 20 | Not Available | Wheel Cap | YAT27424 | Not Available |
| 21 | No Image | Spacer | YAT24242 | $0.00Read more |
| 22 | No Image | Screw M5 X 20 | YAT24144 | $0.00Read more |
| 23 | No Image | Axle | YAT24236 | $0.00Read more |
| 24 | No Image | Drain Fitting | YAT24222 | $0.00Read more |
| 25 | No Image | Gasket | YAT24215 | $0.00Read more |
| 26 | No Image | Drain Fitting | YAT24244 | $0.00Read more |
| 27 | No Image | Hose Clamp | YAT24252 | $0.00Read more |
| 28 | No Image | Drain Hose | YAT24246 | $0.00Read more |
| 29 | Not Available | Screw M5 x | YAT27429 | Not Available |
| 30 | No Image | Retaining Clip | YAT24247 | $0.00Read more |
| 31 | No Image | Drain Plug Retainer | YAT24248 | $0.00Read more |
| 32 | No Image | Drain Plug | YAT24245 | $0.00Read more |
| 33 | Not Available | Handle grip | YAT27426 | Not Available |
