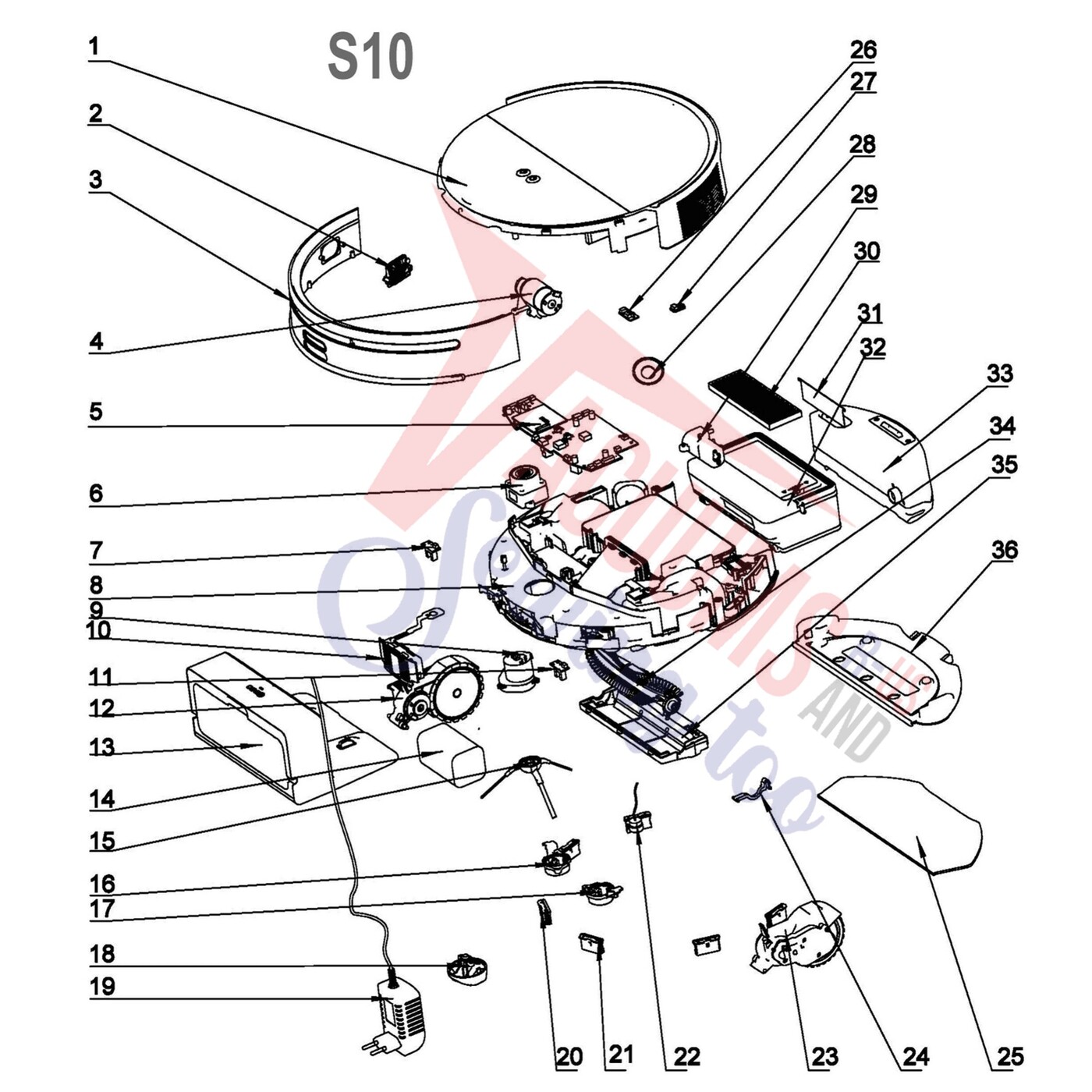

Schematic and parts book for Smart 360 S10 . Repairs should be done by trained technicians. Vacuums R Us & Sewing Too provides vacuum cleaner and carpet cleaner parts and accessories for vacuum cleaner repair purposes. We are committed to delivering high-quality components, but it is important to note that all appliance repairs involve risks, and we cannot guarantee the outcome of your repair. When using our vacuum parts for repairs, you accept the terms and conditions HERE
| # | Part image | Description | SKU | Price |
| 2 | Not Available | Wall solid linear radar components | F3010957 | Not Available |
| 3 | Not Available | Front collision assembly | F3010977 | Not Available |
| 4 | No Image | Kit, Middle Sweeping Motor/Tooth box Assembly S10 Part Number: F3010975 for Smart 360 | F3010975 | $15.35Read more |
| 5 | Not Available | Main_PCBA | F3010949 | Not Available |
| 6 | Not Available | Main radar | F3010951 | Not Available |
| 7 | Not Available | Left ground inspection component + left photoelectric switch component | F3010970 | Not Available |
| 9 | No Image | Kit, Motor Asseembly Side Sweeping S10 Part Number: F3010974 for Smart 360 | F3010974 | $15.35Read more |
| 10 | Not Available | Forward solid linear radar component | F3010958 | Not Available |
| 11 | Not Available | Left ground inspection component + left photoelectric switch component | F3010970 | Not Available |
| 12 | No Image | Wheel, Right Assembly S10 Part Number: F3010954 for Smart 360 | F3010954 | $31.97Read more |
| 13 | Not Available | Charging Pile | F3010959 | Not Available |
| 14 | Not Available | Battery | F3010950 | Not Available |
| 15 |  | Brush, Side Sweeping S10 Part Number: F3010966 for Smart 360 | F3010966 | $15.35Read more |
| 16 | No Image | Kit, Charging Pole Assembly S10 Part Number: F3010981 for Smart 360 | F3010981 | $18.06Read more |
| 17 | No Image | Kit, Charging Pole Assembly S10 Part Number: F3010981 for Smart 360 | F3010981 | $18.06Read more |
| 18 | No Image | Wheel, Universal S10 Part Number: F3010968 for Smart 360 | F3010968 | $3.50Read more |
| 19 | Not Available | Adapter | F3010960 | Not Available |
| 20 | Not Available | Rght ground inspection component + left photoelectric switch + wall component | F3010969 | Not Available |
| 21 | Not Available | Left ground inspection component + left photoelectric switch component | F3010970 | Not Available |
| 22 | Not Available | Ultrasonic Module | F3010980 | Not Available |
| 23 | No Image | Wheel, Left Assembly S10 Part Number: F3010955 for Smart 360 | F3010955 | $31.97Read more |
| 24 | Not Available | Middle sweeping brush buckle | F3010967 | Not Available |
| 25 |  | Pad, :( Mop S10 Part Number: F3010979 for Smart 360 | F3010979 | $12.99Read more |
| 26 | Not Available | Front detect sensor plate R | F3010977 | Not Available |
| 27 | Not Available | Dust Mop Bracket Hall Small Board | F3010972 | Not Available |
| 28 | Not Available | Speaker | F3010978 | Not Available |
| 29 | Not Available | Peristaltic Pump Components | F3010973 | Not Available |
| 30 |  | Filter, :( S10 Robot Vac Part Number: F3010961 for Smart 360 | F3010961 | $29.58Read more |
| 31 | Not Available | Dust box inner baffle | F3010953 | Not Available |
| 32 | No Image | Kit, Dust Box Assembly w/ Filter S10 Pk Part Number: F3010952 for Smart 360 | F3010952 | $39.39Read more |
| 33 | No Image | Tank, Water Tank Components S10 Part Number: F3010962 for Smart 360 | F3010962 | $21.05Read more |
| 34 |  | Brush, Middle Sweeping Assembly S10 Part Number: F3010965 for Smart 360 | F3010965 | $39.39Read more |
| 35 | No Image | Cover, Middle Sweeping Assembly, S10 Part Number: F3010964 for Smart 360 | F3010964 | $13.95Read more |
| 36 | Not Available | Mop bracket assembly including mop | F3010963 | Not Available |
