Schematic and parts book for Simplicity Scout, Scout Plus . Repairs should be done by trained technicians. Vacuums R Us & Sewing Too provides vacuum cleaner and carpet cleaner parts and accessories for vacuum cleaner repair purposes. We are committed to delivering high-quality components, but it is important to note that all appliance repairs involve risks, and we cannot guarantee the outcome of your repair. When using our vacuum parts for repairs, you accept the terms and conditions HERE
Popular Supplies
| # | Part image | Description | SKU | Price |
| MFP-3 |  | White Microfiber Floor Pad 3 Pack for Floor Tool Skinny Type MFP-3 | HFIP3 | $27.99Add to cart Product is special order please allow 2-4 weeks for delivery. |

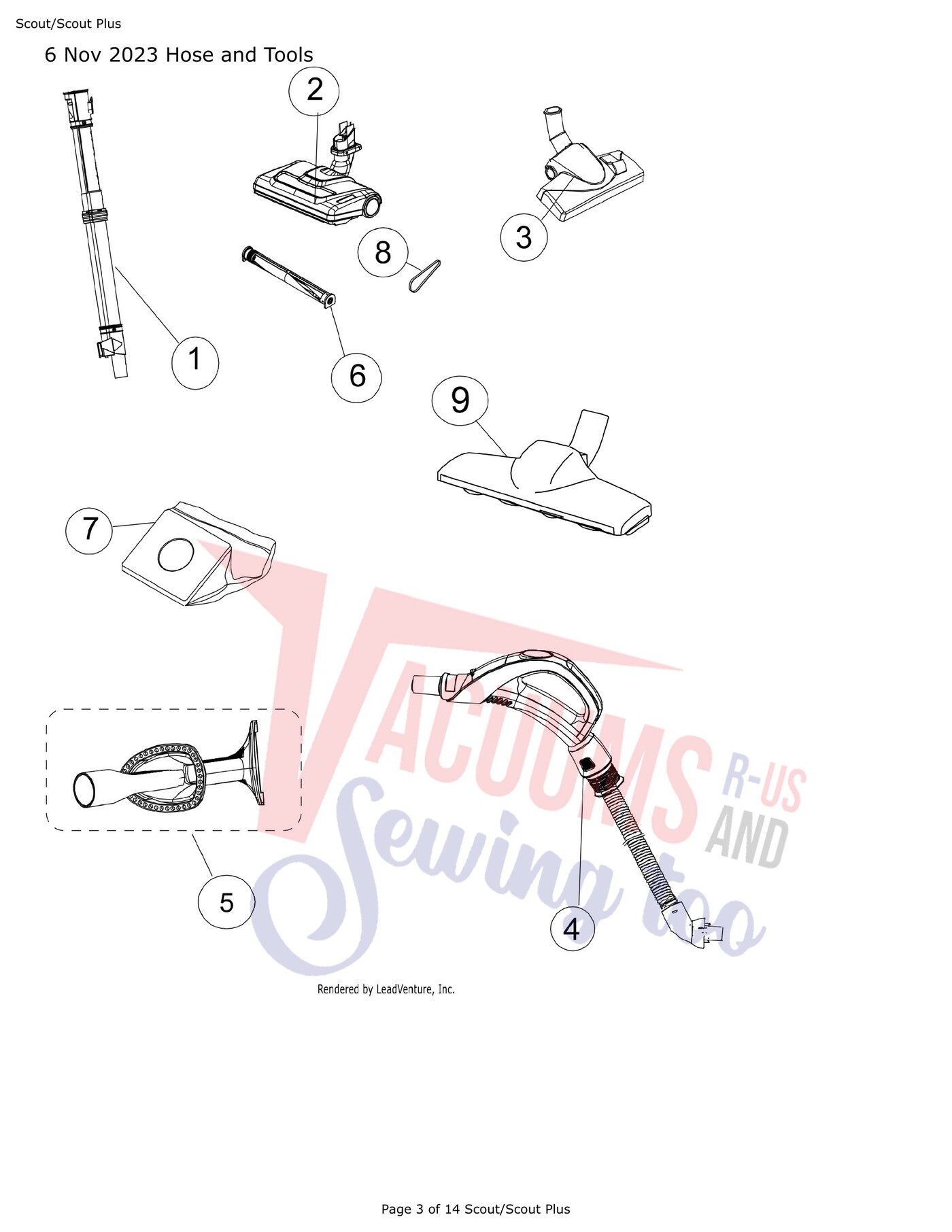

| 1 | No Image | WAND ASSEMBLY, SCOUT | C4810002 | $25.99Add to cart Product is special order please allow 2-4 weeks for delivery. |
| 1A | No Image | WAND ASSEMBLY, SCOUTPLUS | C4820001 | $89.99Add to cart Product is special order please allow 2-4 weeks for delivery. |
| 2 | No Image | POWER NOZZLE COMPLETE, SCOUTPLUS | C4820002 | $236.99Add to cart Product is special order please allow 2-4 weeks for delivery. |
| 3 | No Image | FLOOR TOOL ASSEMBLY, SCOUT | C4810003 | $57.99Add to cart Product is special order please allow 2-4 weeks for delivery. |
| 4 | No Image | HOSE ASSEMBLY, SCOUT | C4810005 | $70.99Add to cart Product is special order please allow 2-4 weeks for delivery. |
| 4A | No Image | Powered Hose Assembly Kit Scoutplus | C4820003K | $223.99Add to cart Product is special order please allow 2-4 weeks for delivery. |
| 5 | No Image | CLEANING TOOL KIT, SCOUT and SCOUT | C4810004 | $13.99Add to cart Product is special order please allow 2-4 weeks for delivery. |
| 6 | No Image | ROLLER BRUSH COMPLETE, POWER NOZZLE, SCOUTPLUS | C4820004 | $16.99Add to cart Product is special order please allow 2-4 weeks for delivery. |
| 7 |  | Simplicity HEPA Vacuum Bags for Scout Canister Vacuum - 6pk | SSH6 | $21.99Add to cart Product is special order please allow 2-4 weeks for delivery. |
| 8 | No Image | Belt Scout Plus Power Nozzle | B4810009 | $11.99Add to cart Product is special order please allow 2-4 weeks for delivery. |
| 9 | No Image | Hard Floor Tool Scout Plus | C4820007 | $25.99Add to cart Product is special order please allow 2-4 weeks for delivery. |
| # | Part image | Description | SKU | Price |

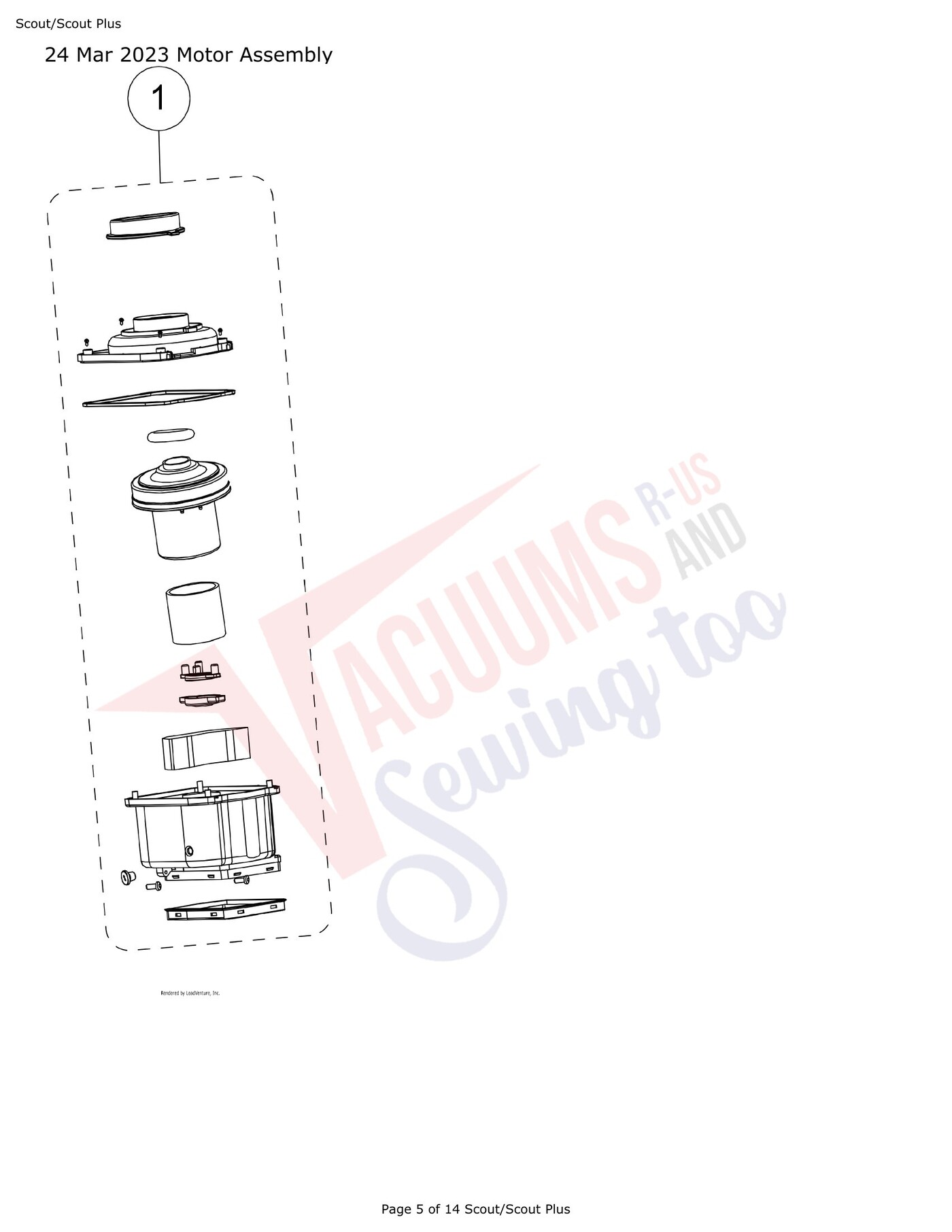

| 1 | No Image | VAC MOTOR ASSEMBLY, SCOUT and SCOUTPLUS | C4810001 | $132.99Add to cart Product is special order please allow 2-4 weeks for delivery. |
| # | Part image | Description | SKU | Price |

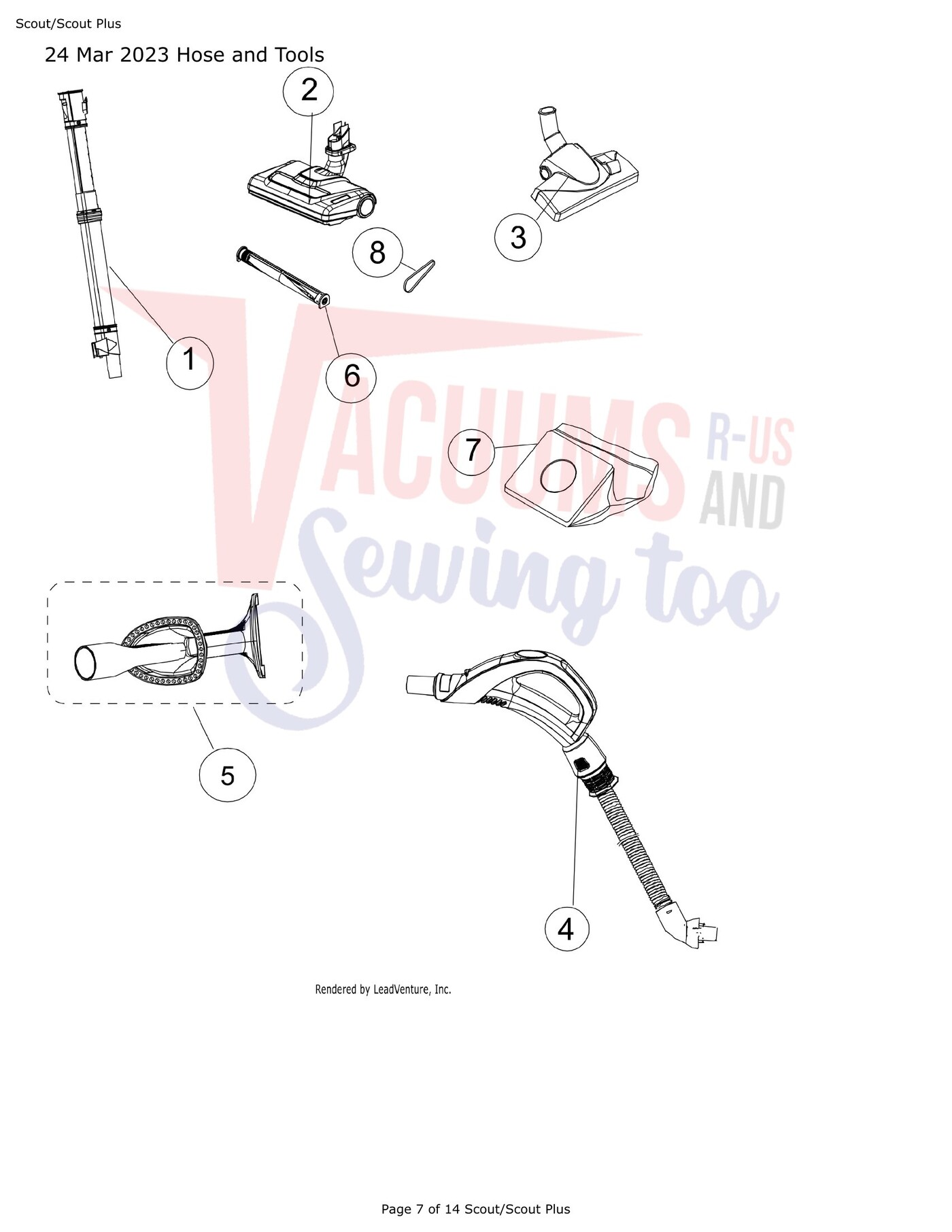

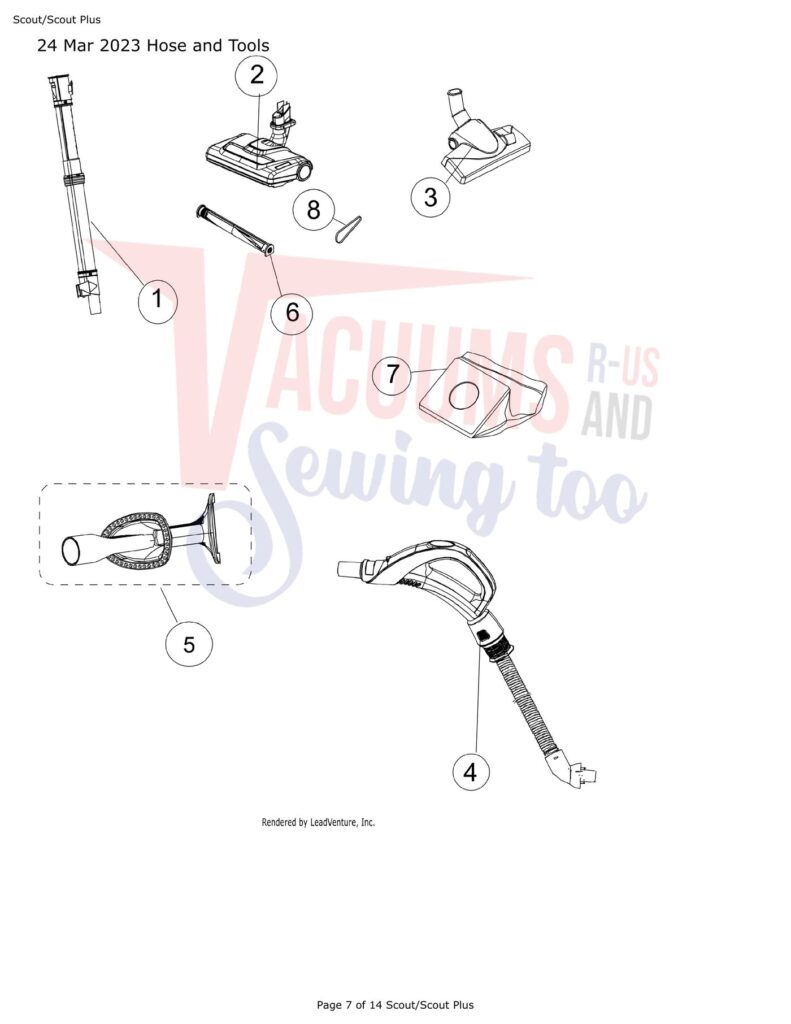

| 1 | No Image | WAND ASSEMBLY, SCOUT | C4810002 | $25.99Add to cart Product is special order please allow 2-4 weeks for delivery. |
| 1A | No Image | WAND ASSEMBLY, SCOUTPLUS | C4820001 | $89.99Add to cart Product is special order please allow 2-4 weeks for delivery. |
| 2 | No Image | POWER NOZZLE COMPLETE, SCOUTPLUS | C4820002 | $236.99Add to cart Product is special order please allow 2-4 weeks for delivery. |
| 3 | No Image | FLOOR TOOL ASSEMBLY, SCOUT | C4810003 | $57.99Add to cart Product is special order please allow 2-4 weeks for delivery. |
| 4 | No Image | HOSE ASSEMBLY, SCOUT | C4810005 | $70.99Add to cart Product is special order please allow 2-4 weeks for delivery. |
| 4A | No Image | Powered Hose Assembly Kit Scoutplus | C4820003K | $223.99Add to cart Product is special order please allow 2-4 weeks for delivery. |
| 5 | No Image | CLEANING TOOL KIT, SCOUT and SCOUT | C4810004 | $13.99Add to cart Product is special order please allow 2-4 weeks for delivery. |
| 6 | No Image | ROLLER BRUSH COMPLETE, POWER NOZZLE, SCOUTPLUS | C4820004 | $16.99Add to cart Product is special order please allow 2-4 weeks for delivery. |
| 7 | | Simplicity HEPA Vacuum Bags for Scout Canister Vacuum - 6pk | SSH6 | $21.99Add to cart Product is special order please allow 2-4 weeks for delivery. |
| 8 | No Image | Belt Scout Plus Power Nozzle | B4810009 | $11.99Add to cart Product is special order please allow 2-4 weeks for delivery. |
| # | Part image | Description | SKU | Price |

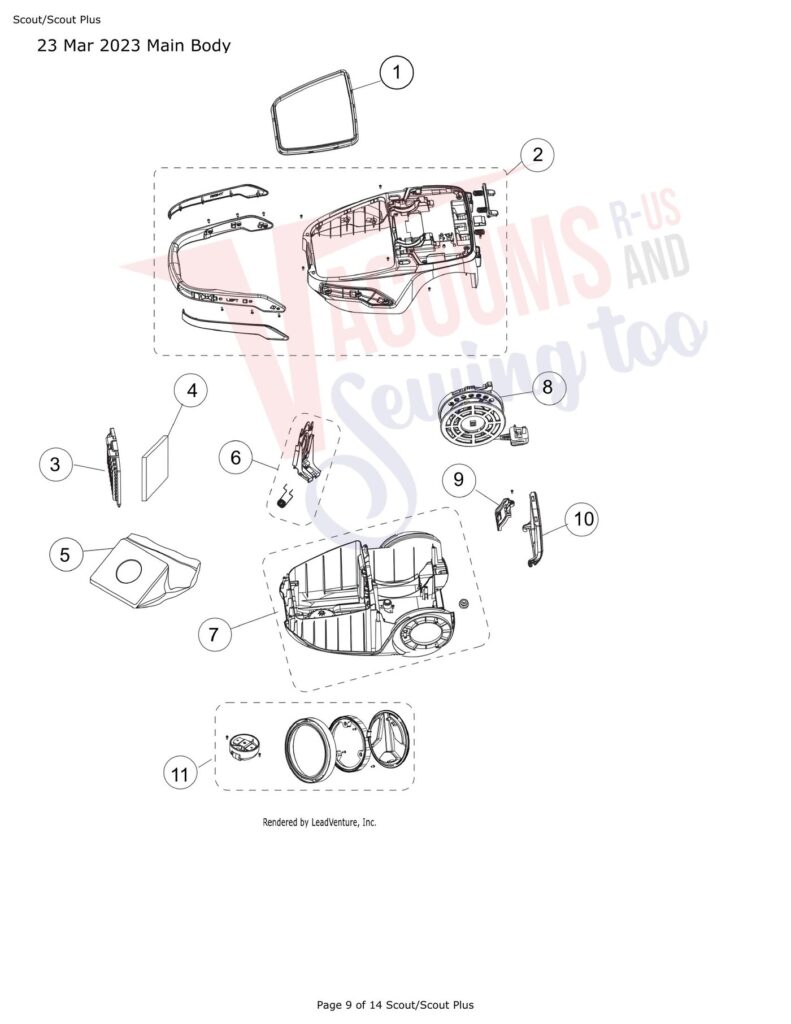

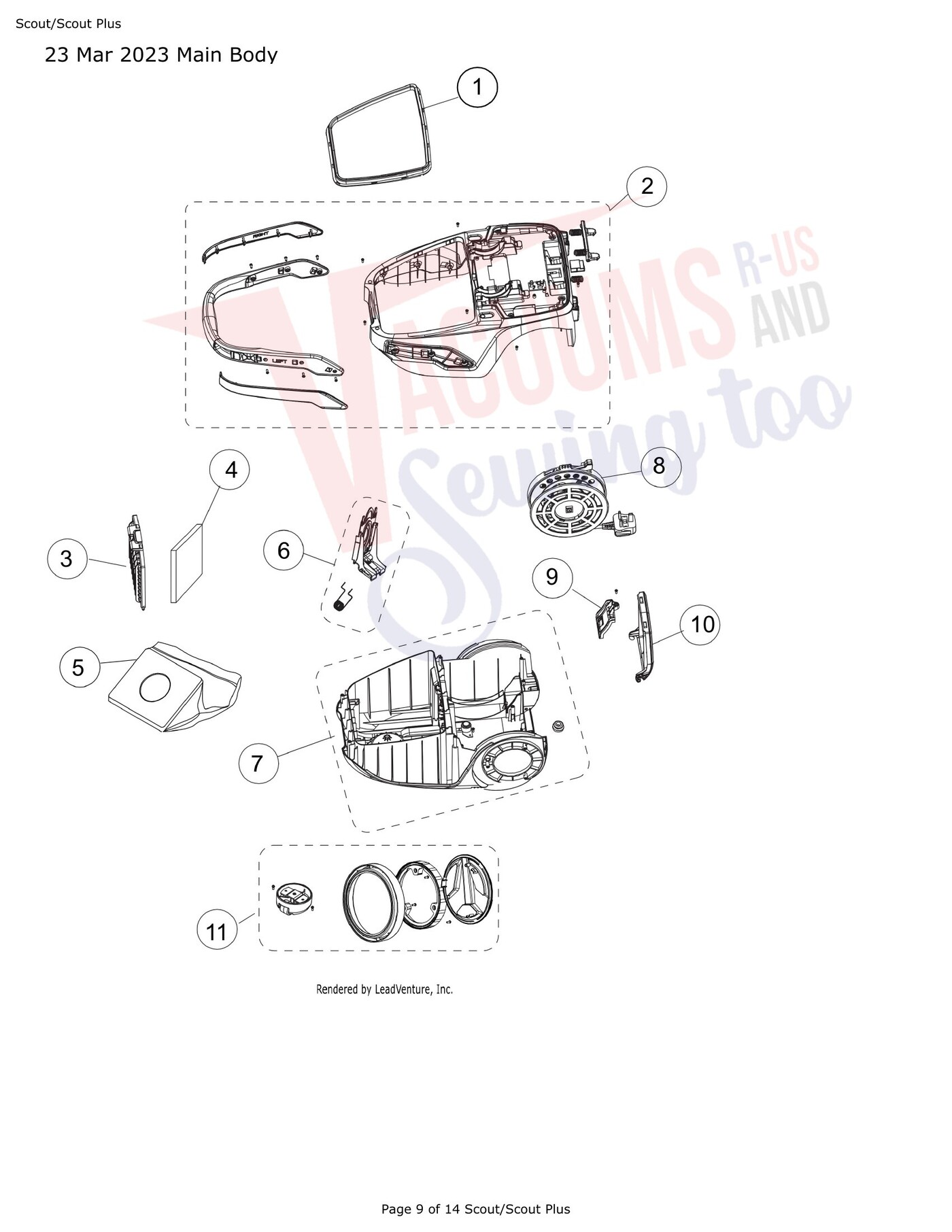

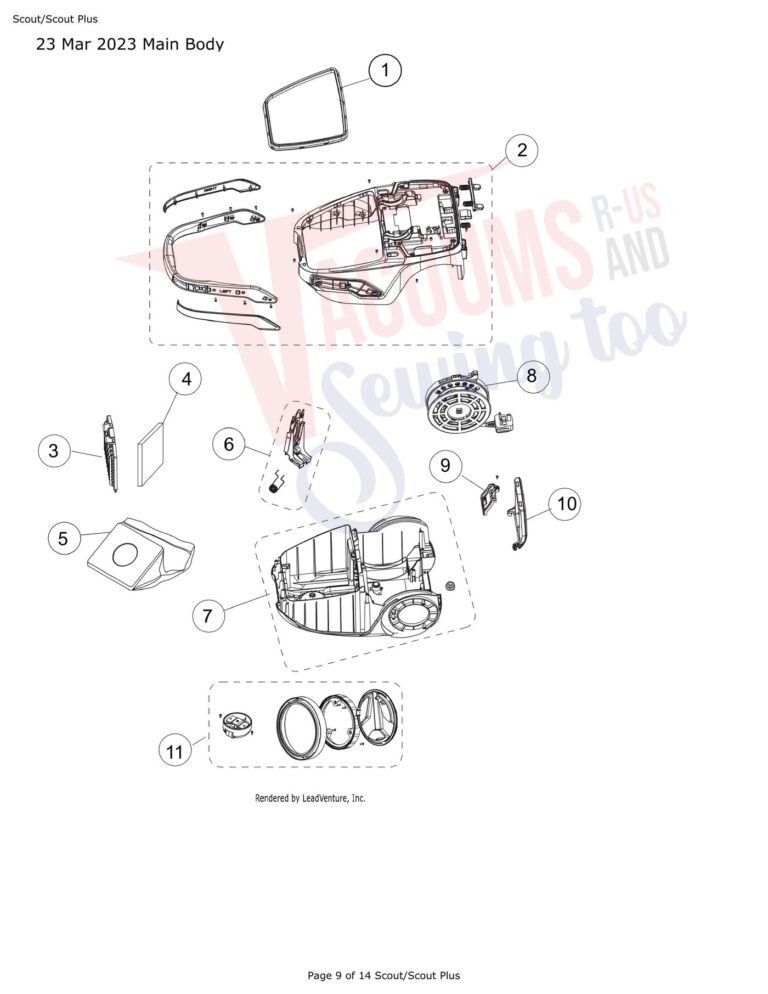

| 1 | No Image | Seal Ring for Dust Compartment Scout ScoutPlus | B4810001 | $5.99Add to cart Product is special order please allow 2-4 weeks for delivery. |
| 2 | No Image | Middle Housing Assembly SCOUT | C4810006 | $61.99Add to cart Product is special order please allow 2-4 weeks for delivery. |
| 2A | No Image | Middle Housing Assembly SCOUTPLUS | C4820006 | $61.99Add to cart Product is special order please allow 2-4 weeks for delivery. |
| 3 | No Image | AIR INLET GRID, SCOUT and SCOUTPLUS | B4810002 | $11.99Add to cart Product is special order please allow 2-4 weeks for delivery. |
| 4 |  | Filter Pk Pre and Post Motor 1ea Scout ScoutPlus | SSFPK | $52.99Add to cart Product is special order please allow 2-4 weeks for delivery. |
| 5 | | Simplicity HEPA Vacuum Bags for Scout Canister Vacuum - 6pk | SSH6 | $21.99Add to cart Product is special order please allow 2-4 weeks for delivery. |
| 6 | No Image | BAG BRACKET ASSEMBLY, SCOUT and SCOUTPLUS | C4810008 | $5.99Add to cart Product is special order please allow 2-4 weeks for delivery. |
| 7 | No Image | LOWER HOUSING ASSEMBLY, SCOUT and SCOUTPLUS | C4810009 | $43.99Add to cart Product is special order please allow 2-4 weeks for delivery. |
| 8 | No Image | CORD REWIND, SCOUT and SCOUTPLUS | B4810004 | $92.99Read more |
| 9 | No Image | CORD COVER, SCOUT and SCOUTPLUS | B4810005 | $2.99Add to cart Product is special order please allow 2-4 weeks for delivery. |
| 10 | No Image | AIR OUTLET GRID, SCOUT and SCOUTPLUS | B4810006 | $8.99Add to cart Product is special order please allow 2-4 weeks for delivery. |
| 11 | No Image | SINGLE WHEEL KIT ASSEMBLY, SCOUT and SCOUTPLUS | C4810007 | $33.99Add to cart Product is special order please allow 2-4 weeks for delivery. |
| # | Part image | Description | SKU | Price |

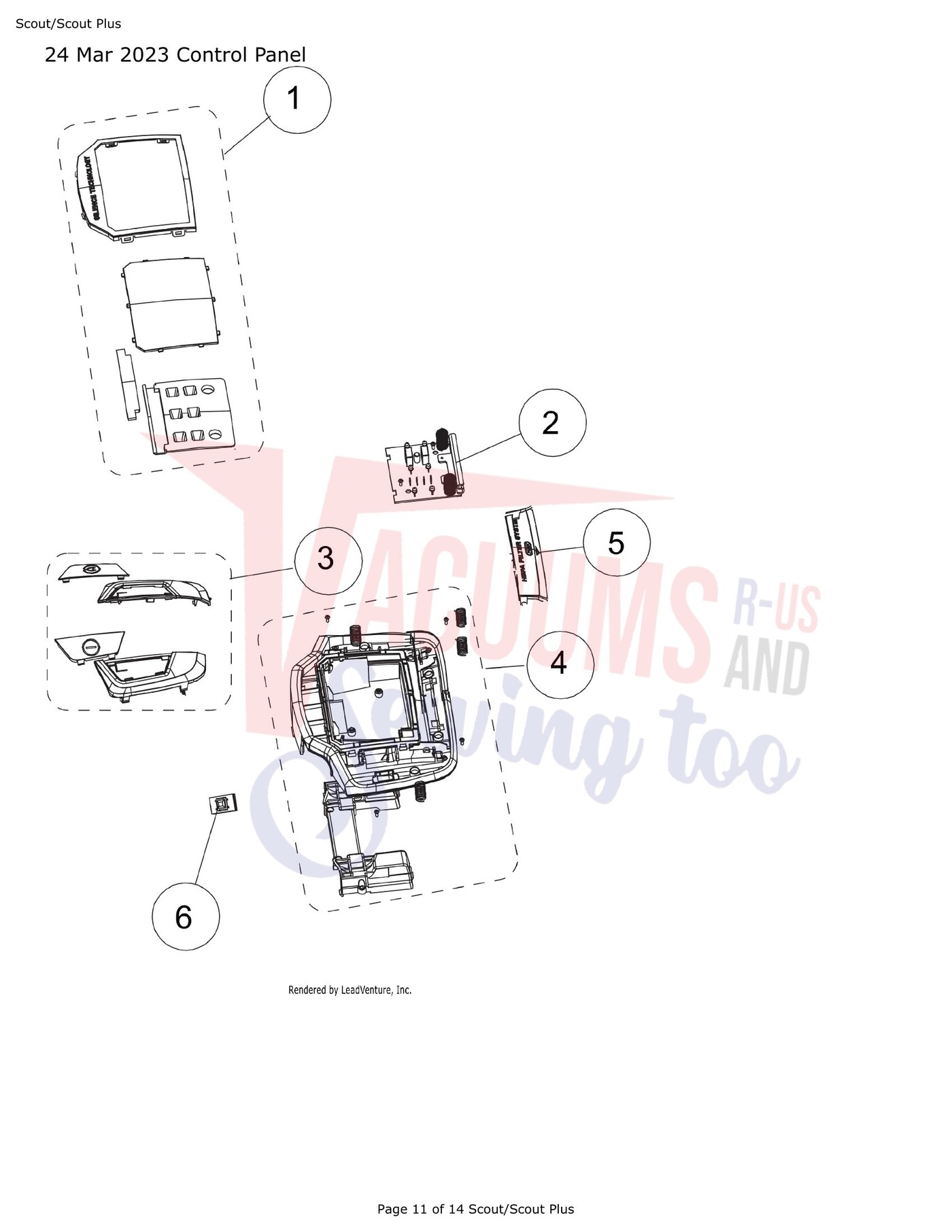

| 1 | No Image | Control Panel Housing Assy Scout ScoutPlus | C4810010 | $17.99Add to cart Product is special order please allow 2-4 weeks for delivery. |
| 2 | No Image | CONTROL PANEL, PCBA, SCOUT | C4810011 | $69.99Add to cart Product is special order please allow 2-4 weeks for delivery. |
| 2A | No Image | CONTROL PANEL, PCBA, SCOUTPLUS | C4820011 | $139.99Add to cart Product is special order please allow 2-4 weeks for delivery. |
| 3 | No Image | Cord Rewind/Switch Housing Assy Scout ScoutPlus | C4810012 | $6.99Add to cart Product is special order please allow 2-4 weeks for delivery. |
| 4 | No Image | REAR PANEL HOUSING ASSEMBLY | C4810014 | $31.99Add to cart Product is special order please allow 2-4 weeks for delivery. |
| 5 | No Image | Release Button for Air Outlet Grid Scout ScoutPlus | B4810008 | $3.99Add to cart Product is special order please allow 2-4 weeks for delivery. |
| 6 | No Image | ON OFF SWITCH, SCOUT and SCOUTPLUS | B4810007 | $4.99Add to cart Product is special order please allow 2-4 weeks for delivery. |
| # | Part image | Description | SKU | Price |

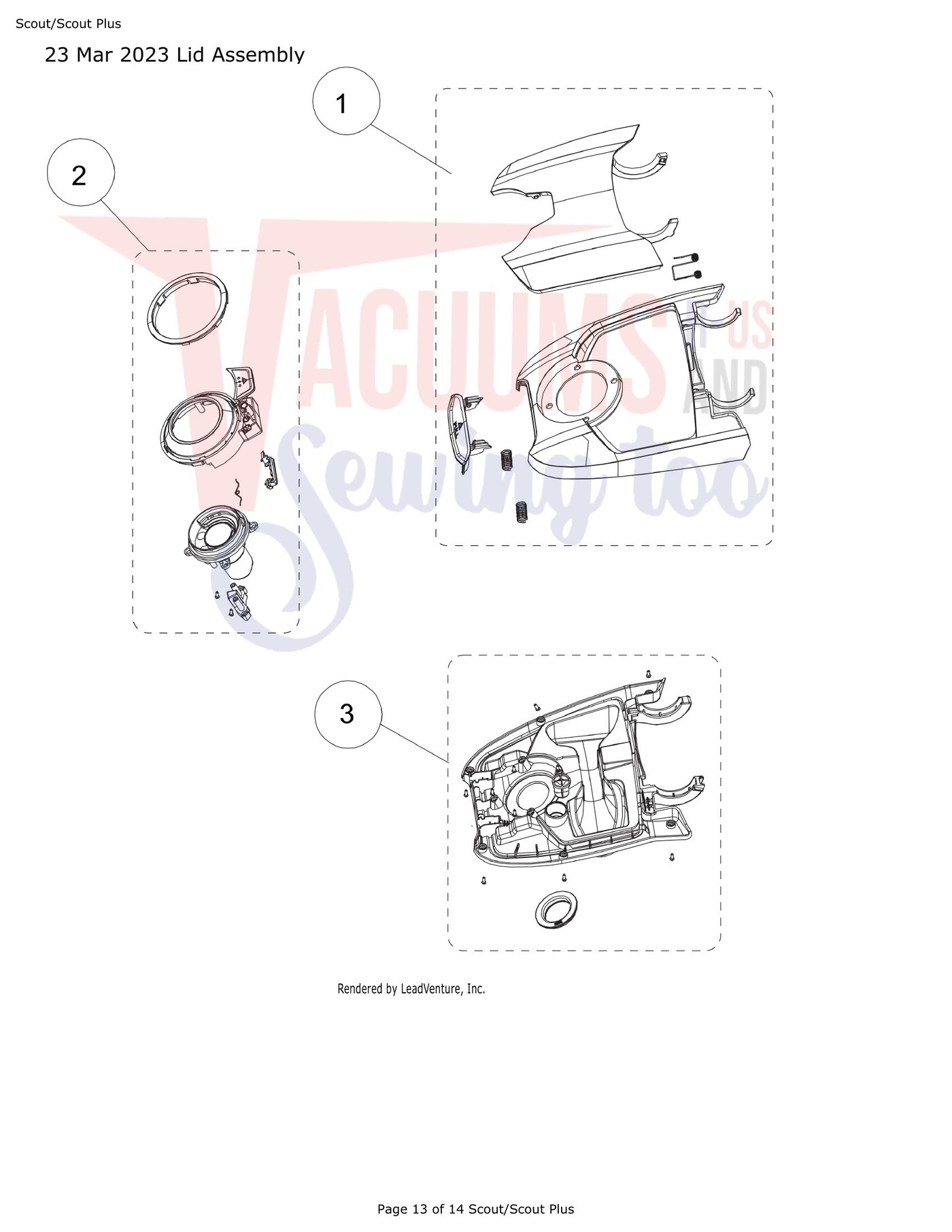

| 1 | No Image | ACCESSORY TOP COVER ASSEMBLY, SCOUT and SCOUTPLUS | C4810016 | $28.99Add to cart Product is special order please allow 2-4 weeks for delivery. |
| 2 | No Image | HOSE CONNECTION ASSEMBLY, SCOUT | C4810015 | $14.99Add to cart Product is special order please allow 2-4 weeks for delivery. |
| 2A | No Image | HOSE CONNECTION ASSEMBLY, SCOUTPLUS | C4820005 | $12.99Add to cart Product is special order please allow 2-4 weeks for delivery. |
| 3 | No Image | Accessory Bottom Housing Assy Scout ScoutPlus | C4810017 | $26.99Add to cart Product is special order please allow 2-4 weeks for delivery. |
