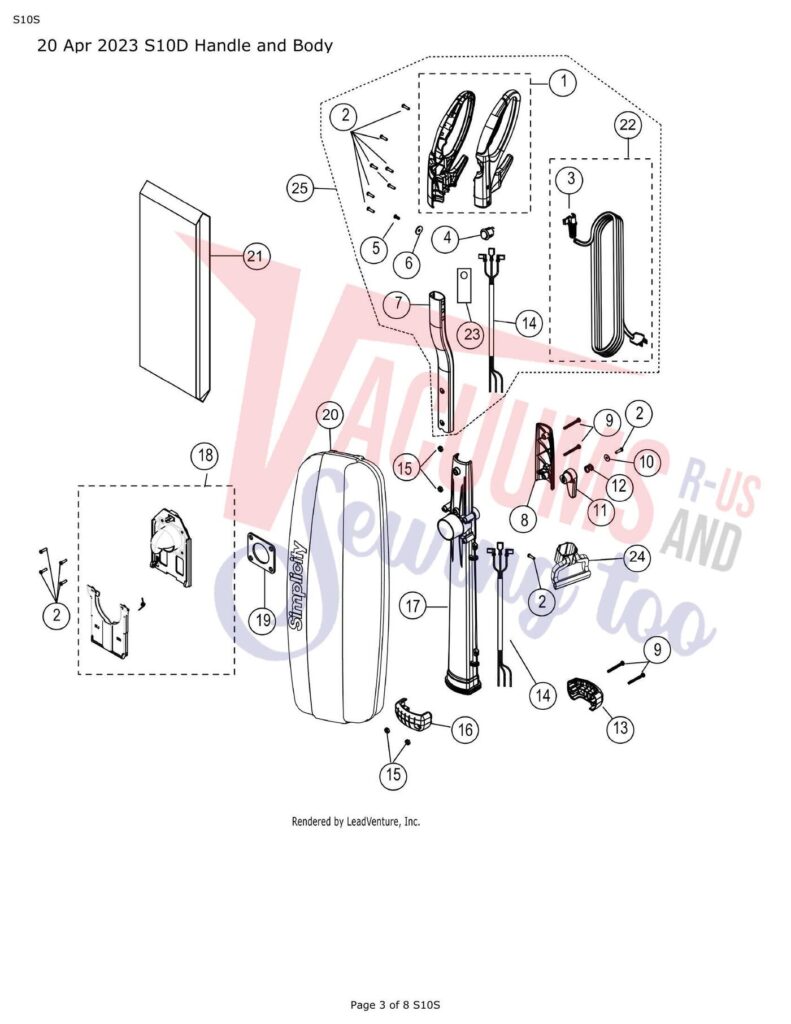

Schematic and parts book for Simplicity S10S, S10D Simplicity S10S Supralite Standard and S10D Supralite Deluxe. Repairs should be done by trained technicians. Vacuums R Us & Sewing Too provides vacuum cleaner and carpet cleaner parts and accessories for vacuum cleaner repair purposes. We are committed to delivering high-quality components, but it is important to note that all appliance repairs involve risks, and we cannot guarantee the outcome of your repair. When using our vacuum parts for repairs, you accept the terms and conditions HERE
Popular Supplies
| # | Part image | Description | SKU | Price |
| 1 |  | Handle Grip Assembly Part Number C220-3514 for Maytag and Riccar Models M500,R10S, R10D, R10P, R1... | C2203514 | $25.99Add to cart Product is special order please allow 2-4 weeks for delivery. |
| 2 |  | s10s r10s screw hi lo | WP10362 | $2.99Add to cart |
| 3 |  | Strain Relief Part Number B333-3014B for Simplicity and Maytag and Riccar Models BRLS, BRLD, BRLD... | B3333014B | $2.99Add to cart |
| 4 |  | Riccar and Simplicity 2 Speed Round Switch for Supralites | A3281700 | $3.99Add to cart |
| 5 |  | Screw HI-LO #8 x 7/16” Part Number A732-8414 for Simplicity and Maytag and Riccar Models 7250, 73... | A7328414 | $2.99Add to cart Product is special order please allow 2-4 weeks for delivery. |
| 6 |  | Nylon Washer Part Number B017-2500 for Simplicity and Maytag and Riccar Models 6100, 6370, 6400, ... | B0172500 | $2.99Add to cart Product is special order please allow 2-4 weeks for delivery. |
| 7 |  | Handle Tube Part Number B220-3400 for Maytag and Riccar and Simplicity Models M500,R10CV, R10CV.2... | B2203400 | $12.99Add to cart Product is special order please allow 2-4 weeks for delivery. |
| 8 |  | Handle Back Cover Part Number B220-3114 for Maytag and Riccar and Simplicity Models M500,R10CV, R... | B2203114 | $3.99Add to cart Product is special order please allow 2-4 weeks for delivery. |
| 9 |  | Screws #10 Handle Bolts S10E r10E | A432-0705 | $2.99Add to cart |
| 10 |  | Upper Cord Hook Washer Hardened | A430-0405 | $2.99Add to cart Product is special order please allow 2-4 weeks for delivery. |
| 11 |  | Swivel Cord Hook Part Number B220-3314 for Maytag and Riccar Models M500,R10S, R10D, R10P, R10SAN... | B2203314 | $2.99Add to cart |
| 12 |  | Upper Cork Hook Spring | B430-0200 | $2.99Add to cart |
| 13 |  | s10s r10s Back Neck Coupling | WP10361 | $2.99Add to cart Product is special order please allow 2-4 weeks for delivery. |
| 14 |  | Wire Harness Sensor Part Number A434-4043 for Maytag and Riccar Models M500, R10S, and R10D | A4344043 | $2.99Add to cart Product is special order please allow 2-4 weeks for delivery. |
| 15 |  | Hex Nut #10-32 Nylon Part Number A432-0805 for Simplicity and Maytag and Riccar Models F3100, F33... | A4320805 | $2.99Add to cart Product is special order please allow 2-4 weeks for delivery. |
| 16 |  | Neck Coupling Front Black | WP10347 | $2.99Add to cart Product is special order please allow 2-4 weeks for delivery. |
| 17 |  | Handle Duct Part Number B220-3014C for Maytag and Riccar and Simplicity Models M500,R10CV, R10CV.... | B2203014C | $16.99Add to cart Product is special order please allow 2-4 weeks for delivery. |
| 18 |  | Bag Mount Assembly Part Number D484-2282 for Maytag and Riccar and Simplicity Models M500,R10CV, ... | D4842282 | $13.99Add to cart Product is special order please allow 2-4 weeks for delivery. |
| 19 |  | Bag Mount Seal Part Number B220-3900 for Maytag and Riccar and Simplicity Models M500,R10CV, R10C... | B2203900 | $2.99Add to cart |
| 20 | Not Available | Hard Shell Bag | D220-5400 | Not Available |
| 21a | | HEPA Bag (Bulk Single) Part Number B220-5382C for Maytag and Riccar and Simplicity Models M500,R1... | B2205382C | $4.99Add to cart Product is special order please allow 2-4 weeks for delivery. |
| 21b |  | Charcoal/HEPA Bag (Bulk Single) Part Number B220-5382D for Riccar and Simplicity Models R10CV, R1... | B2205382D | $4.99Add to cart Product is special order please allow 2-4 weeks for delivery. |
| 21c |  | DO NOT USE THIS SKU Sub for Riccar Simplicity Freedom HEPA Bags with Activated Charcoal 6pk for S... | 098612552468 | Original price was: $22.77.$21.99Current price is: $21.99.Read more |
| 21d | Not Available | Charcoal /HEPA Bag (6 Pack) | SLHC-6 | Not Available |
| 21e | | Paper Bag (Bulk Single) Part Number B211-8800 for Maytag and Riccar and Simplicity Models M500,R1... | B2118800 | $3.29Add to cart Product is special order please allow 2-4 weeks for delivery. |
| 22 |  | 35’ Power Cord Assembly (R10S, R10D) Part Number D434-4243 for Riccar Models R10S, R10D, R10P, R1... | D4344243 | $50.99Add to cart Product is special order please allow 2-4 weeks for delivery. |
| 23 | | Polyurethane Handle Spacer Part Number B388-5900 for Maytag and Riccar and Simplicity Models M500... | B3885900 | $2.99Add to cart Product is special order please allow 2-4 weeks for delivery. |
| 24 |  | Carry Handle Part Number B220-6214 for Maytag and Riccar Models M500,R10S, R10D, R10P, R10SAND, R17 | B2206214 | $5.99Add to cart |
| 25 | | Handle Assembly (R10S, R10D) Part Number D220-3100 for Riccar Models R10S, R10D, R10P, R10SAND, R17 | D2203100 | $129.99Add to cart Product is special order please allow 2-4 weeks for delivery. |

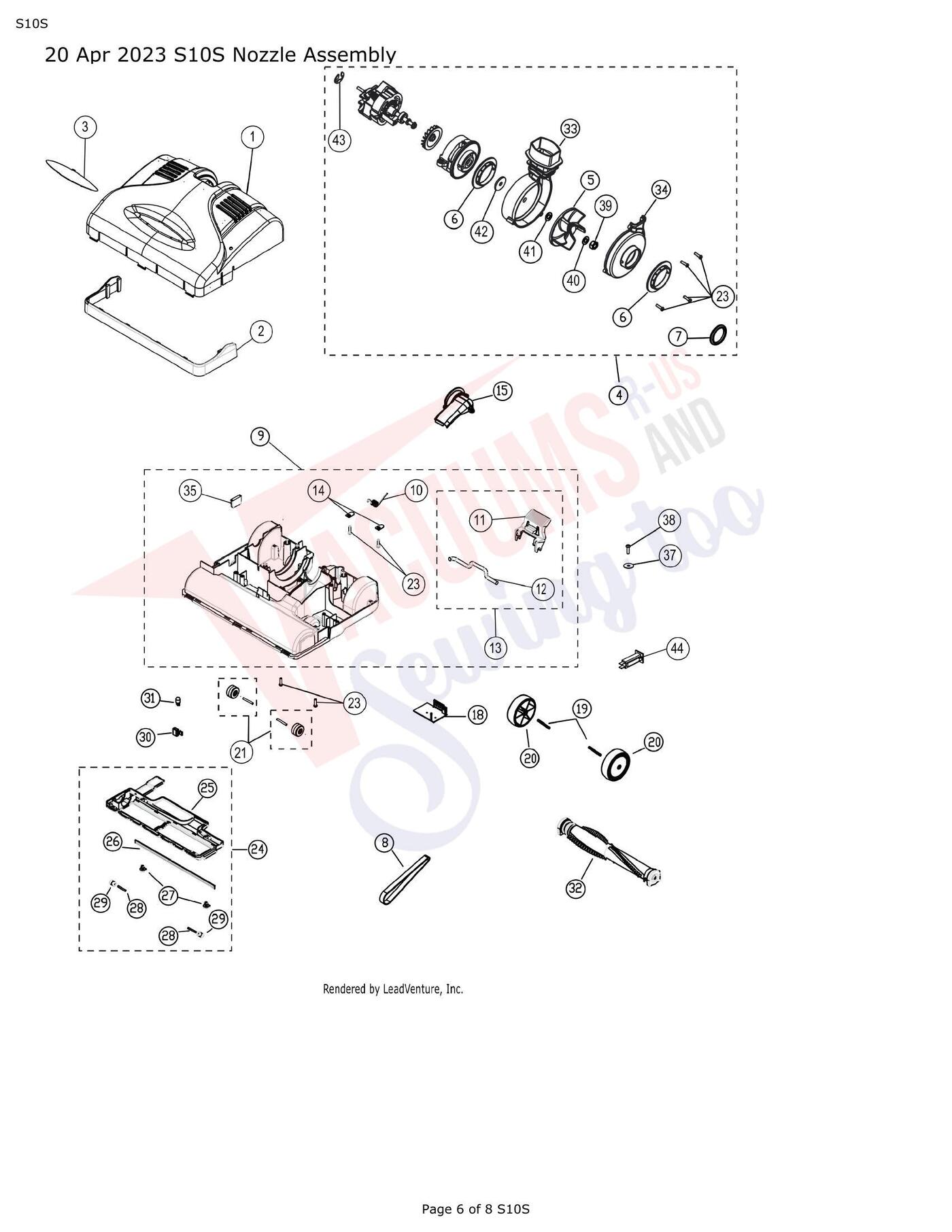

| # | Part image | Description | SKU | Price |
| 2 |  | Black Furniture Bumper for Riccar Simplicity CleanMax R10 S10 R17 ZM500 ZM700 ZM800 | WP11778 | $5.99Add to cart |
| 3 |  | Headlamp Lens Textured F3300 6000 Symmetry S10 S20 | B0180315C | $2.99Add to cart Product is special order please allow 2-4 weeks for delivery. |
| 4 |  | Motor Assembly for Riccar and Simplicity ULW S10 | D2204000 | $151.99Add to cart Product is special order please allow 2-4 weeks for delivery. |
| 5 |  | DIRECT AIR MOTOR FAN 5 BLADE DC M500 R10 S10 ULW | B2204314 | $17.99Add to cart Product is special order please allow 2-4 weeks for delivery. |
| 6 |  | Pivot Bushing for Riccar Vacuums | WP10773 | $2.99Add to cart Product is special order please allow 2-4 weeks for delivery. |
| 7 |  | Direct Air Motor Inlet Seal ULW | WP10774 | $2.99Add to cart Product is special order please allow 2-4 weeks for delivery. |
| 8a |  | Replacement aftermarket belt for Simplicity Freedom And Riccar Supralite R10 and S10 bissell styl... | 36310001 | Original price was: $6.00.$4.99Current price is: $4.99.Add to cart |
| 8a |  | Compatible alternateBelt-Panasonic - Flat - Ub3/Ub7 - Mc6210 - Mc6640
Also Fits Simplicity Freedom - Replacement For:... More Product Details | 17394 | $6.00Add to cart Special order — allow 2-4 weeks. |
| 8a |  | Compatible alternateRubber Stretch Belt for Riccar Supralight Simplicity Freedom - 2pk More Product Details | RBS2 | $10.99Add to cart Special order — allow 2-4 weeks. |
| 8b |  | Single Belt for Riccar, Simplicity, and CleanMax Lightweight Vacuums | B0140814B | $6.00Add to cart Product is special order please allow 2-4 weeks for delivery. |
| 9 |  | Basetray Assembly M500 S10 R10 | D220-0114 | $42.99Add to cart Product is special order please allow 2-4 weeks for delivery. |
| 9 |  | Available ReconditionedReconditioned Basetray Assembly M500 S10 R10 More Product Details | D220-0114R | $36.99Add to cart |
| 10 |  | Foot spring for riccar r10 and simplicity s10 freedom supralights | B2200900 | $2.99Add to cart Product is special order please allow 2-4 weeks for delivery. |
| 11 |  | Foot pedal for Riccar R10 SupraLight and Simplicity S10 Freedom | B2200714 | $2.99Add to cart Product is special order please allow 2-4 weeks for delivery. |
| 12 | No Image | Upright Stop Pedal Pivot for Riccar R10 and Simplicity S10 | B2200800 | $3.99Add to cart |
| 13 |  | UPRIGHT STOP PEDAL ASSEMBLY WITH PIVOT DC M500 R10 S10 | D2200714 | $13.99Add to cart |
| 15 |  | Inlet Duct Cover Part Number B220-0214 for Maytag and Riccar and Simplicity Models M500,PRIMAP.TA... | B2200214 | $3.99Add to cart |
| 18 |  | PC Board (F3600) Part Number B317-0000K for Simplicity and Maytag and Riccar Models F3400, F3500,... | B3170000K | $21.99Add to cart Product is special order please allow 2-4 weeks for delivery. |
| 19 |  | Large Wheel Axis for Riccar and Simplicity Machines | WP11836 | $2.99Add to cart |
| 20 |  | Rear Wheel Part Number C220-0531C for Maytag and Riccar and Simplicity Models M500,PRIMAP.TAD, PR... | C2200531C | $4.99Add to cart Product is special order please allow 2-4 weeks for delivery. |
| 21 |  | Front Wheel Assembly and Axle for UltraLightWeights | WP11198 | $5.99Add to cart Product is special order please allow 2-4 weeks for delivery. |
| 23 | | s10s r10s screw hi lo | WP10362 | $2.99Add to cart |
| 24a |  | Standard Base Plate for Riccar R10S, R10D, R10P, R10SAND, the Simplicity S10S, S10D, S10P, S10SAN... | D2200414 | $15.99Add to cart |
| 24b |  | ULW Baseplate Assembly for Soft Carpet | D220-1414 | $29.99Add to cart Product is special order please allow 2-4 weeks for delivery. |
| 26a |  | Baseplate Squeegee Part Number B015-3000B for Simplicity and Maytag and Riccar Models F3400, F350... | B0153000B | $1.99Add to cart |
| 26b |  | Squeegee (Soft Carpet Baseplate) Part Number B015-3200 for Maytag and Riccar Models M500,R10S, R1... | B0153200 | $2.99Add to cart Product is special order please allow 2-4 weeks for delivery. |
| 27 |  | Base Plate Cover Screw Black for R10 and S10 | B2200414 | $2.99Add to cart Product is special order please allow 2-4 weeks for delivery. |
| 28 |  | Base Plate Axle Part Number B370-1700B for Simplicity and Maytag and Riccar Models F3400, F3500, ... | B3701700B | $2.99Add to cart Product is special order please allow 2-4 weeks for delivery. |
| 29 |  | Base Plate Wheel Part Number B370-1843 for Simplicity and Maytag and Riccar Models F3400, F3500, ... | B3701843 | $2.99Add to cart |
| 30 | | Light Socket Part Number A018-0900 for Simplicity and Maytag and Riccar Models F3100, F3300, F330... | A0180900 | $3.99Add to cart Product is special order please allow 2-4 weeks for delivery. |
| 31 | Not Available | Light Bulb | A350-0000 | Not Available |
| 32 |  | Agitator Wood ULW Assembly S10E, R10E,F3300 | D012-2800 | $35.99Add to cart Product is special order please allow 2-4 weeks for delivery. |
| 33 |  | Scroll Housing RH Black DC 10 Series riccar R10 simplicity S10 maytag M500 D220-4014 | B220-4014 | $7.99Add to cart |
| 34 |  | Scroll Housing Lefthand Fan Cover for Riccar R10 and Simplicity S10 | B220-4114 | $4.99Add to cart Product is special order please allow 2-4 weeks for delivery. |
| 35 |  | Basetray Plug Non Hall Sensor Models (F3400 F3500 F3500C F3600) Part Number B016-1914 for Simplic... | B0161914 | $2.99Add to cart Product is special order please allow 2-4 weeks for delivery. |
| 37 |  | Strain Relief Washer Part Number B034-0100 for Simplicity and Maytag and Riccar Models BRLS, BRLD... | B0340100 | $2.99Add to cart Product is special order please allow 2-4 weeks for delivery. |
| 38 |  | Combination Screw M4x12Combination Screw M4x12 Part Number A732-2500 for Simplicity and Maytag an... | A7322500 | $2.99Add to cart Product is special order please allow 2-4 weeks for delivery. |
| 39 |  | HANDLE BOLT NUT 4000 & 6000 1/4-20 for R10 and other Motors | WP10349 | $2.99Add to cart |
| 40 |  | Washer (TEK Motor) Part Number A733-2200 for Simplicity and Maytag and Riccar Models F3400, F3500... | A7332200 | $2.99Add to cart Product is special order please allow 2-4 weeks for delivery. |
| 41 |  | Behind Fan Washer (TEK Motor) Part Number A733-3300 for Simplicity and Maytag and Riccar Models F... | A7333300 | $2.99Add to cart Product is special order please allow 2-4 weeks for delivery. |
| 42 |  | Felt Seal Part Number B220-4500 for Maytag and Riccar and Simplicity Models M500,PRIMAP.TAD, PRIM... | B2204500 | $2.99Add to cart Product is special order please allow 2-4 weeks for delivery. |
| 43 |  | E-Clip .250 Part Number A732-3000 for Simplicity and Maytag and Riccar Models BRLS, BRLD, BRLD.US... | A7323000 | $2.99Add to cart |
| 44 |  | Circuit Breaker 5 Amp for Riccar | A028-0114B | $4.99Add to cart |
