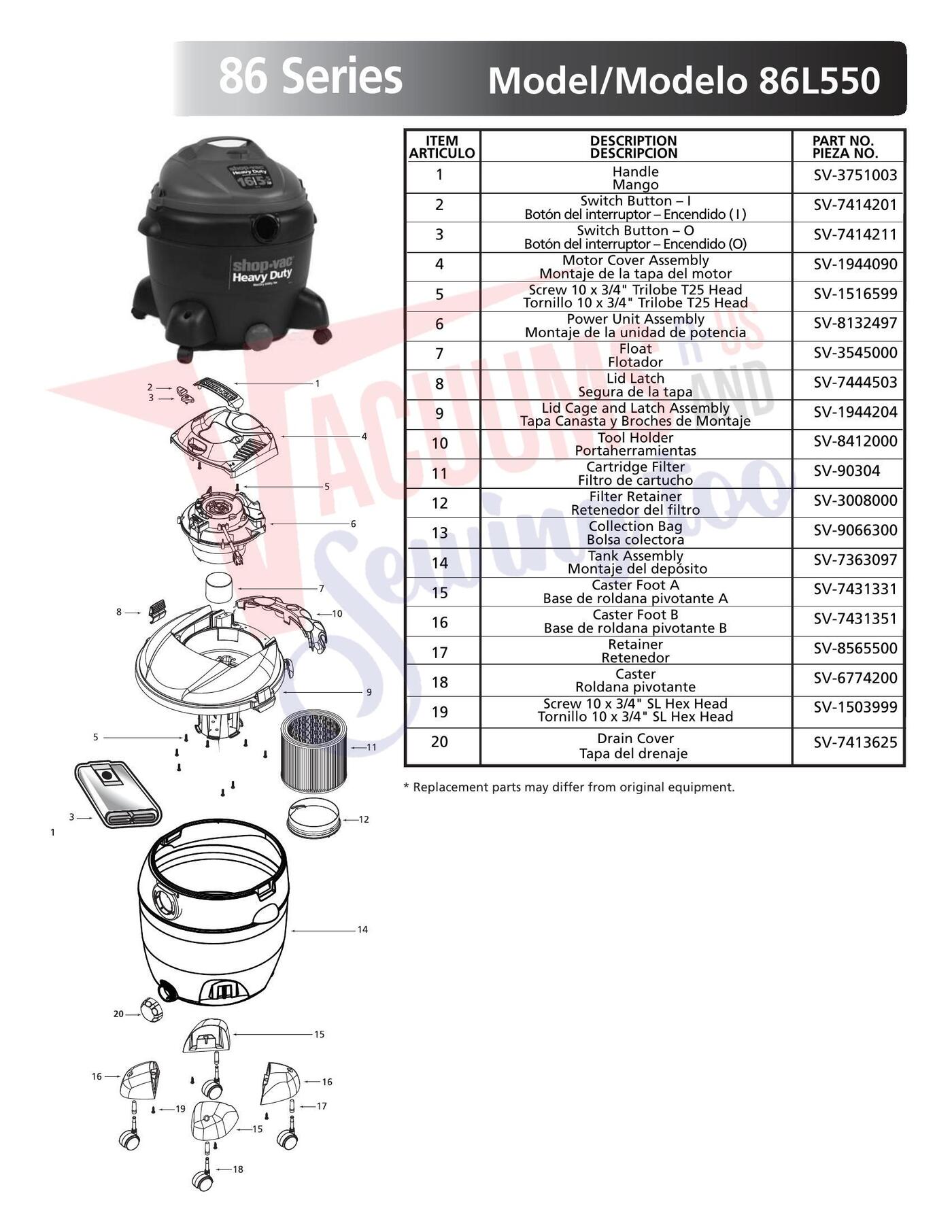

Schematic and parts book for ShopVac 86L500 . Repairs should be done by trained technicians. Vacuums R Us & Sewing Too provides vacuum cleaner and carpet cleaner parts and accessories for vacuum cleaner repair purposes. We are committed to delivering high-quality components, but it is important to note that all appliance repairs involve risks, and we cannot guarantee the outcome of your repair. When using our vacuum parts for repairs, you accept the terms and conditions HERE
| # | Part image | Description | SKU | Price |
| 1 | Not Available | Handle Mango | SV-3751003 | Not Available |
| 2 | Not Available | Switch Button – I Botón del interruptor – Encendido ( I ) | SV-7414201 | Not Available |
| 3 | Not Available | Switch Button – O Botón del interruptor – Encendido (O) | SV-7414211 | Not Available |
| 4 | Not Available | Motor Cover Assembly Montaje de la tapa del motor | SV-1944090 | Not Available |
| 5 | Not Available | Screw 10 x 3/4" Trilobe T25 Head Tornillo 10 x 3/4" Trilobe T25 Head | SV-1516599 | Not Available |
| 6 | Not Available | Power Unit Assembly Montaje de la unidad de potencia | SV-8132497 | Not Available |
| 7 | Not Available | Float Flotador | SV-3545000 | Not Available |
| 8 | Not Available | Lid Latch Segura de la tapa | SV-7444503 | Not Available |
| 9 | Not Available | Lid Cage and Latch Assembly Tapa Canasta y Broches de Montaje | SV-1944204 | Not Available |
| 10 | Not Available | Tool Holder Portaherramientas | SV-8412000 | Not Available |
| 11 |  | Filter, DVC 5/6/8 Gal Cartridge #90304 Ea Part Number: 413960 for Shop Vac Replacement | 413960 | $22.94Read more |
| 12 | Not Available | Filter Retainer Retenedor del filtro | SV-3008000 | Not Available |
| 13 | Not Available | Collection Bag Bolsa colectora | SV-9066300 | Not Available |
| 14 | Not Available | Tank Assembly Montaje del depósito | SV-7363097 | Not Available |
| 15 | Not Available | Caster Foot A Base de roldana pivotante A | SV-7431331 | Not Available |
| 16 | Not Available | Caster Foot B Base de roldana pivotante B | SV-7431351 | Not Available |
| 17 | Not Available | Retainer Retenedor | SV-8565500 | Not Available |
| 18 | Not Available | Caster Roldana pivotante Screw 10 x 3/4" SL Hex Head SV-1503999 19 Tornillo 10 x 3/4" SL Hex Head | SV-6774200 | Not Available |
| 20 | Not Available | Drain Cover Tapa del drenaje * Replacement parts may differ from original equipment. 20 | SV-7413625 | Not Available |
