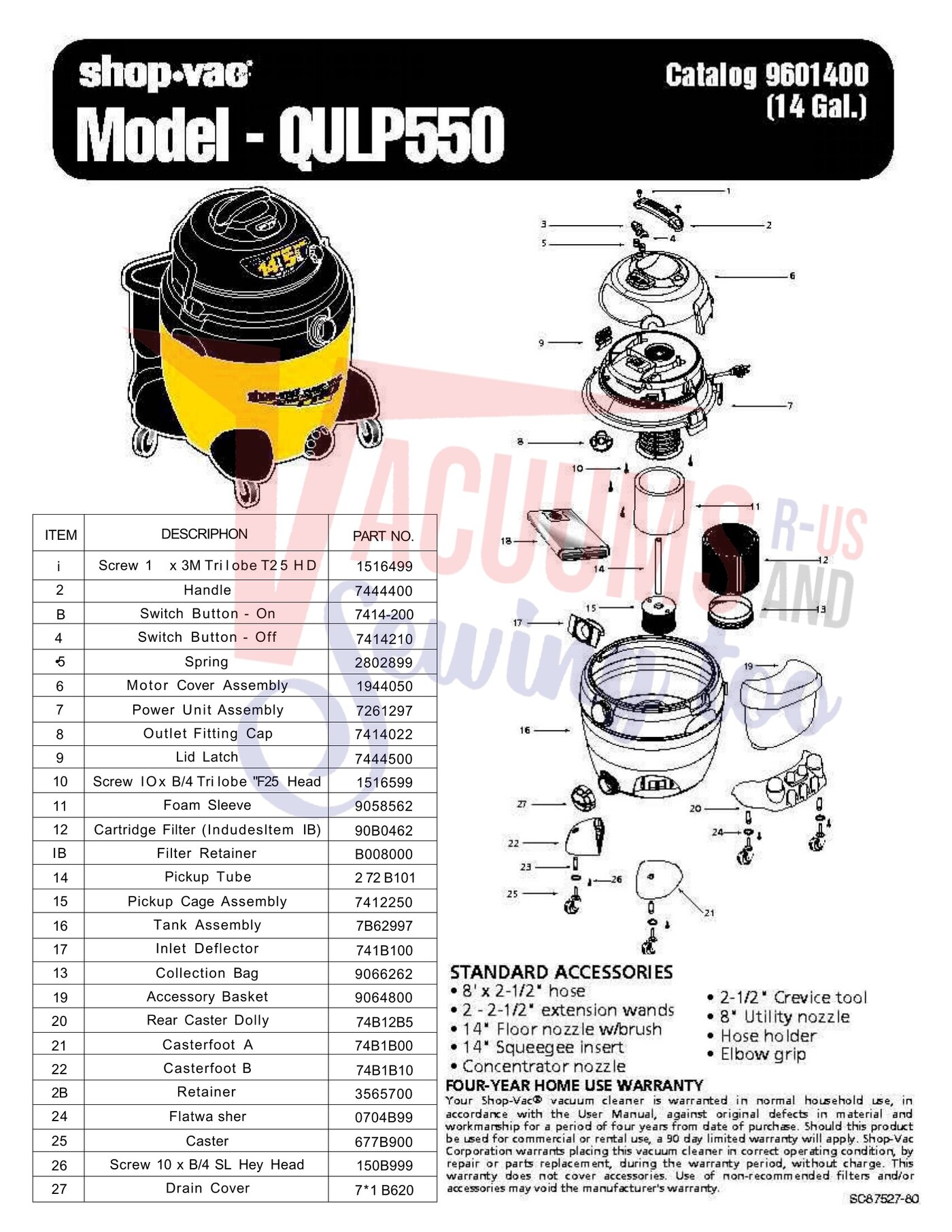

Schematic and parts book for Shop Vac QULP550 . Repairs should be done by trained technicians. Vacuums R Us & Sewing Too provides vacuum cleaner and carpet cleaner parts and accessories for vacuum cleaner repair purposes. We are committed to delivering high-quality components, but it is important to note that all appliance repairs involve risks, and we cannot guarantee the outcome of your repair. When using our vacuum parts for repairs, you accept the terms and conditions HERE
| # | Part image | Description | SKU | Price |
| B | Not Available | Switch Button - On | 7414-200 | Not Available |
| i | Not Available | Screw 1 x 3M Tri I obe T2 5 H D | 1516499 | Not Available |
| IB | Not Available | Filter Retainer | B008000 | Not Available |
| •5 | Not Available | Spring | 2802899 | Not Available |
| 2 | Not Available | Handle | 7444400 | Not Available |
| 2B | No Image | Holder Anthracite | 3565700 | $22.00Add to cart Product is special order please allow 2-4 weeks for delivery. |
| 4 | Not Available | Switch Button - Off | 7414210 | Not Available |
| 6 | Not Available | Motor Cover Assembly | 1944050 | Not Available |
| 7 | Not Available | Power Unit Assembly | 7261297 | Not Available |
| 8 | Not Available | Outlet Fitting Cap | 7414022 | Not Available |
| 9 | Not Available | Lid Latch | 7444500 | Not Available |
| 10 | Not Available | Screw lOx B/4 Tri lobe "F25 Head | 1516599 | Not Available |
| 11 | Not Available | Foam Sleeve | 9058562 | Not Available |
| 12 | Not Available | Cartridge Filter (Indudesltem IB) | 90B0462 | Not Available |
| 13 | Not Available | Collection Bag | 9066262 | Not Available |
| 14 | Not Available | Pickup Tube | 272 B101 | Not Available |
| 15 | Not Available | Pickup Cage Assembly | 7412250 | Not Available |
| 16 | Not Available | Tank Assembly | 7B62997 | Not Available |
| 17 | Not Available | Inlet Deflector | 741B100 | Not Available |
| 19 | Not Available | Accessory Basket | 9064800 | Not Available |
| 20 | Not Available | Rear Caster Dolly | 74B12B5 | Not Available |
| 21 | Not Available | Casterfoot A | 74B1B00 | Not Available |
| 22 | Not Available | Casterfoot B | 74B1B10 | Not Available |
| 24 | Not Available | Flatwa sher | 0704B99 | Not Available |
| 25 | Not Available | Caster | 677B900 | Not Available |
| 26 | Not Available | Screw 10 x B/4 SL Hey Head | 150B999 | Not Available |
| 27 | Not Available | Drain Cover | 7*1 B620 | Not Available |
