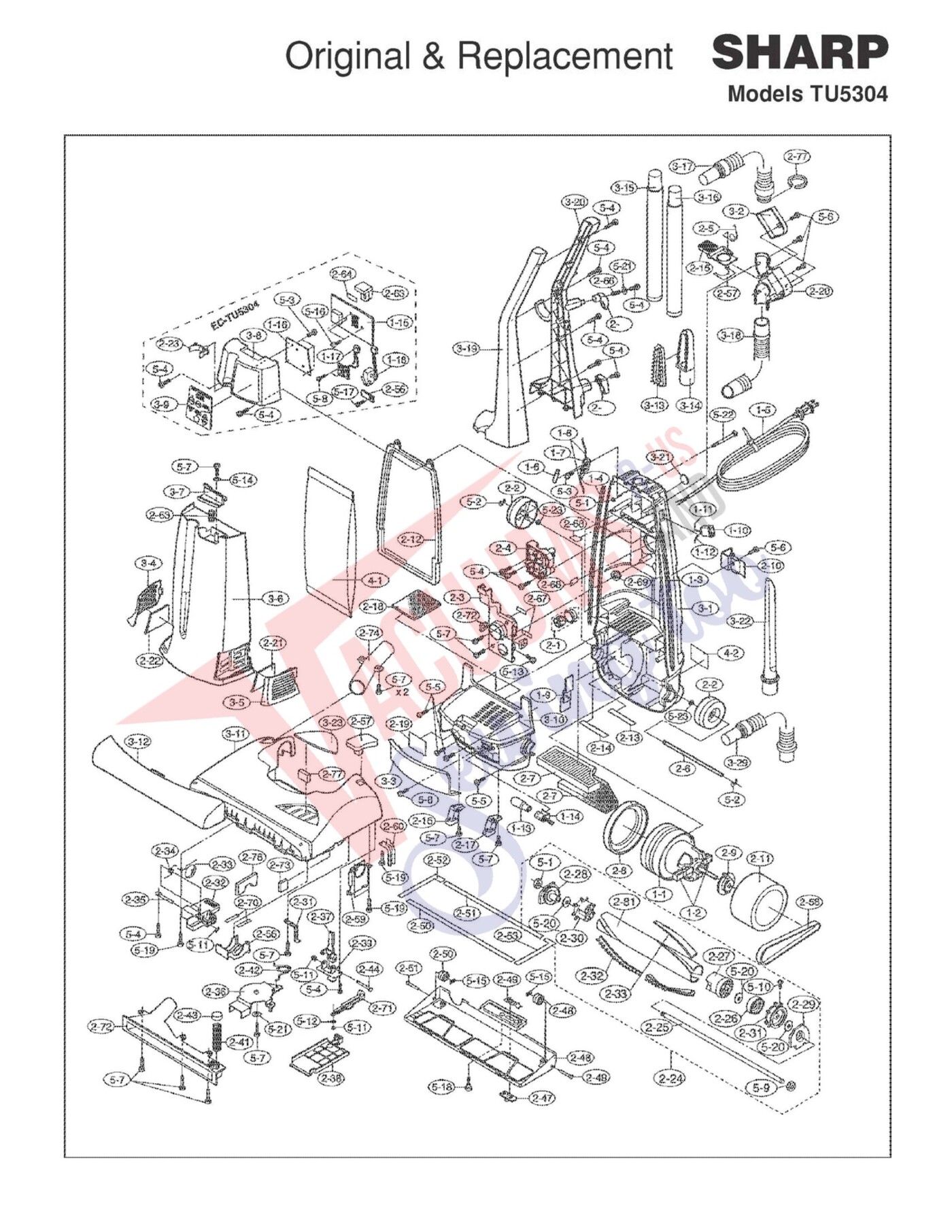

Schematic and parts book for sharp tu5304 . Repairs should be done by trained technicians. Vacuums R Us & Sewing Too provides vacuum cleaner and carpet cleaner parts and accessories for vacuum cleaner repair purposes. We are committed to delivering high-quality components, but it is important to note that all appliance repairs involve risks, and we cannot guarantee the outcome of your repair. When using our vacuum parts for repairs, you accept the terms and conditions HERE
| # | Part image | Description | SKU | Price |
| 1 | Not Available | Motor Assembly 2- | SH-CM0TCA142ABK0 | Not Available |
| 1 | Not Available | Air Valve Assembly 2- | SH-FVLV-A013VBK0 | Not Available |
| 1 | Not Available | Main Body | SH-75110 | Not Available |
| 2 | Not Available | Carbon Brush 2- | SH-63017 | Not Available |
| 2 | Not Available | Wheel 2- | SH-71002 | Not Available |
| 2 | Not Available | Valve Cover | SH-GC0V-A490VBFA | Not Available |
| 3 | Not Available | Motor Lead Wire 2- | SH-36000 | Not Available |
| 3 | Not Available | Sensor Cover 2- | SH-GC0V-A455VBFA | Not Available |
| 3 | Not Available | Lens | SH-PLNS-A015VBFA | Not Available |
| 4 | Not Available | Lead Wire Single 2- | SH-QW-VZA748VBE0 | Not Available |
| 4 | Not Available | Handle Mounting Base 2- | SH-LPLT-A066VBF0 | Not Available |
| 4 | Not Available | Filter Cover Left | SH-GC0V-A457VBFK | Not Available |
| 5 | Not Available | Power Cord Assembly 2- | SH-30001 | Not Available |
| 5 | Not Available | Valve Spring 2- | SH-77012 | Not Available |
| 5 | Not Available | Filter Cover Right | SH-GC0V-A458VBFK | Not Available |
| 6 | Not Available | Fuse 2- | SH-36036 | Not Available |
| 6 | Not Available | Wheel Shaft 2- | SH-71005 | Not Available |
| 6 | Not Available | Dust Cover | SH-GC0V-A735VBFA | Not Available |
| 7 | Not Available | Fuse Holder 2- | SH-QFSHDA001VBE0 | Not Available |
| 7 | Not Available | HEPA Filter 2- | SH-18058 | Not Available |
| 7 | Not Available | Clamp Knob | SH-JKNB-A071VBFF | Not Available |
| 8 | Not Available | Lead Wire F 2- | SH-QW-VZA383VBE0 | Not Available |
| 8 | Not Available | Vib-Proof Rubber 2- | SH-PGUMMA159VBE0 | Not Available |
| 8 | Not Available | Panel | SH-HPNL-A056VBFC | Not Available |
| 9 | Not Available | Triac PWB Assembly 2- | SH-FPWB-A118VBK0 | Not Available |
| 9 | Not Available | Vib-Proof Fix Rubber 2- | SH-76007 | Not Available |
| 9 | Not Available | Decoration Plate | SH-HDECQA015VBE0 | Not Available |
| 10 | Not Available | Body Switch 2- | SH-34007 | Not Available |
| 10 | Not Available | Pipe Clamp 2- | SH-70771 | Not Available |
| 10 | Not Available | Motor Cover | SH-75068 | Not Available |
| 11 | Not Available | Lead Wire A 2- | SH-QW-VZA381VBE0 | Not Available |
| 11 | Not Available | Sound Proof Sponge 2- | SH-PMUF-A044VBE0 | Not Available |
| 11 | Not Available | Nozzle Housing | SH-73070 | Not Available |
| 12 | Not Available | Lead Wire S 2- | SH-QW-VZA382VBE0 | Not Available |
| 12 | Not Available | Body Packing 2- | SH-PPACGA066VBFA | Not Available |
| 12 | Not Available | Bumper | SH-RH0G-A011VBFA | Not Available |
| 13 | Not Available | Lamp 2- | SH-RLMP-A003VBE0 | Not Available |
| 13 | Not Available | Seal Tape M 2- | SH-PTPEHA029VBE0 | Not Available |
| 14 | Not Available | Lamp Socket 2- | SH-QS0C-A004VBE0 | Not Available |
| 14 | Not Available | Seal Tape N 2- | SH-PTPEHA030VBE0 | Not Available |
| 15 | Not Available | Power Control PWB 2- | SH-FPWB-A131VBK0 | Not Available |
| 15 | Not Available | Body Valve 2- | SH-75061 | Not Available |
| 16 | Not Available | Indicate PWB Assembly 2- | SH-FPWB-A132VBK0 | Not Available |
| 16 | Not Available | Leg Assembly - Right 2- | SH-75168 | Not Available |
| 17 | Not Available | Dust Sensor PWB Assembly 2- | SH-FPWB-A11SVBK0 | Not Available |
| 17 | Not Available | Leg Assembly - Left 2- | SH-75169 | Not Available |
| 18 | Not Available | Micro Switch Assembly 2- | SH-FSW-MA030VBK0 | Not Available |
| 18 | Not Available | Foam Filter 2- | SH-18055 | Not Available |
| 19 | Not Available | Reflection Tape 2- | SH-PTPE-A172VBE0 | Not Available |
| 20 | Not Available | Valve Cover 2- | SH-GC0V-A466VBFA | Not Available |
| 21 | Not Available | Micron Filter Left 2- | NLA | Not Available |
| 22 | Not Available | Micron Filter Right 2- | NLA | Not Available |
| 23 | Not Available | Panel Holder 2- | SH-PHLD-A010VBFE | Not Available |
| 24 | Not Available | Agitator Assembly 2- | SH-20222 | Not Available |
| 25 | Not Available | Agitator Shaft 2- | SH-NSFT-A011VBS0 | Not Available |
| 26 | Not Available | Idle Pulley Assembly 2- | SH-FPLYBA006VBKZ | Not Available |
| 27 | Not Available | Main Pulley 3- | SH-NPLYBA007VBFA | Not Available |
| 28 | Not Available | Agitator Support 3- | NLA | Not Available |
| 29 | Not Available | Agitator Support 3- | NLA | Not Available |
| 30 | Not Available | Brush Rotor A 3- | SH-20540 | Not Available |
| 31 | Not Available | Brush Rotor B 3- | SH-NRTR-A026VBFA | Not Available |
| 32 | Not Available | Brush Base Assembly 3- | SH-PBRS-A110VBEZ | Not Available |
| 33 | Not Available | Brush Cap 3- | SH-PBRS-A112VBEZ | Not Available |
| 34 | Not Available | Belt Stopper 3- | SH-73402 | Not Available |
| 35 | Not Available | Pedal 3- | SH-73417 | Not Available |
| 36 | Not Available | Pedal Support 3- | SH-LANGA05 | Not Available |
| 37 | Not Available | Pedal Spring 3- | SH-77011 | Not Available |
| 38 | Not Available | Pedal Shaft 3- | SH-73481 | Not Available |
| 39 | Not Available | B/C Plate Assembly | SH-FLEV-A015VBK0 | Not Available |
| 40 | Not Available | B/C Lever 2nd Assembly | SH-FLEVFA001VBK0 | Not Available |
| 41 | Not Available | Belt Cover | SH-73434 | Not Available |
| 42 | Not Available | B/C Lever Support | SH-LANG-A068VBM0 | Not Available |
| 43 | Not Available | Brush Rotor | SH-20534 | Not Available |
| 44 | Not Available | Head Valve Spring | SH-MSPRCA212VBP0 | Not Available |
| 45 | Not Available | Belt Change Spring | SH-MSPRDA001VBN0 | Not Available |
| 46 | Not Available | Head Valve | SH-PVLVAA012VBFA | Not Available |
| 47 | Not Available | B/C Lever Shaft | SH-NSFT-A026VBM0 | Not Available |
| 48 | Not Available | Bottom Plate Knob | SH-73525 | Not Available |
| 49 | Not Available | B/Plate 2nd Assembly | SH-76122 | Not Available |
| 50 | Not Available | Bottom Plate Spring | SH-77014 | Not Available |
| 51 | Not Available | Roller | SH-73432 | Not Available |
| 52 | Not Available | Roller Shaft | SH-73431 | Not Available |
| 53 | Not Available | B/P Seal Tape 1 | SH-76036 | Not Available |
| 54 | Not Available | B/P Seal Tape 2 | SH-76035 | Not Available |
| 55 | Not Available | B/P Seal Tape 3 | SH-76037 | Not Available |
| 56 | Not Available | B/P Seal Tape 4 | SH-76038 | Not Available |
| 57 | Not Available | Switch Holder | SH-LPLT-A078VBW0 | Not Available |
| 58 | Not Available | Seal Tape R | SH-76080 | Not Available |
| 59 | Not Available | Pulley Cover Assembly | SH-73443 | Not Available |
| 60 | Not Available | Belt Change Pedal | SH-JBTN-A147VBFA | Not Available |
| 61 | Not Available | Flat Belt 2 Pk | SH-10150 | Not Available |
| 61 | Not Available | Flat Belt | SHR-1000 | Not Available |
| 62 | Not Available | Body Support | SH-LANGFA061VBM0 | Not Available |
| 63 | Not Available | Belt Stopper 15 | SH-LPLT-A106VBM0 | Not Available |
| 64 | Not Available | PWB Cushion | SH-PCUS-A008VBE0 | Not Available |
| 65 | Not Available | Insulating Tape | SH-PTPEHA044VBE0 | Not Available |
| 66 | Not Available | Clamp Spring | SH-MSPRCA196VBE0 | Not Available |
| 67 | Not Available | Hanger Spring | SH-70500 | Not Available |
| 68 | Not Available | Lower Hanger | SH-70785 | Not Available |
| 69 | Not Available | Upper Hanger | SH-70786 | Not Available |
| 70 | Not Available | Seal Tape Z | SH-PTPEHA039VBE0 | Not Available |
| 71 | Not Available | Seal Tape W | SH-PTPEHA037VBE0 | Not Available |
| 72 | Not Available | Seal Tape Y | SH-PTPEHA038VBE0 | Not Available |
| 73 | Not Available | Pulley Cover Seal | SH-PTPEHA050VBE0 | Not Available |
| 74 | Not Available | Link Bar | SH-LPLTPA119VBFA | Not Available |
| 75 | Not Available | Suction Duct | SH-PDUC-A008VBFA | Not Available |
| 76 | Not Available | B/C Plate Stopper | SH-PGUMSA001VBE0 | Not Available |
| 77 | Not Available | Head Pipe | SH-PPIPPA251VBFA | Not Available |
| 78 | Not Available | Stop Ring | SH-75605 | Not Available |
| 79 | Not Available | Head Seal Tape | SH-PTPEHA049VBE0 | Not Available |
| 80 | Not Available | Valve Seal Tape | SH-PTPEHA052VBE0 | Not Available |
| 81 | Not Available | Agitator Pipe | SH-PPIPPA332VBEZ | Not Available |

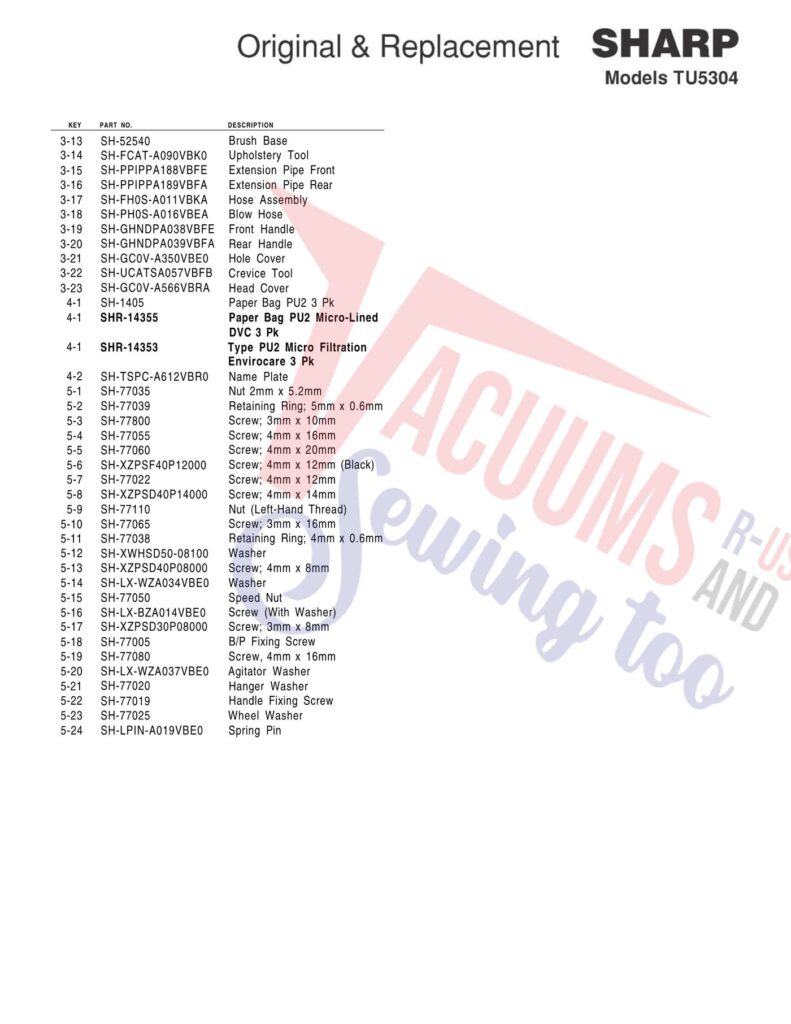

| # | Part image | Description | SKU | Price |
| 1 | Not Available | Paper Bag PU2 3 Pk | SH-1405 | Not Available |
| 1 | No Image | Paper Bag, DVC Sharp PU2 Microlined 3Pk | SHR-14355 | $8.79Read more |
| 1 | Not Available | Type PU2 Micro Filtration | SHR-14353 | Not Available |
| 1 | Not Available | Nut 2mm x 5.2mm | SH-77035 | Not Available |
| 2 | Not Available | Name Plate | SH-TSPC-A612VBR0 | Not Available |
| 2 | Not Available | Retaining Ring; 5mm x 0.6mm | SH-77039 | Not Available |
| 3 | Not Available | Screw; 3mm x 10mm | SH-77800 | Not Available |
| 4 | Not Available | Screw; 4mm x 16mm | SH-77055 | Not Available |
| 5 | Not Available | Screw; 4mm x 20mm | SH-77060 | Not Available |
| 6 | Not Available | Screw; 4mm x 12mm (Black) | SH-XZPSF40P12000 | Not Available |
| 7 | Not Available | Screw; 4mm x 12mm | SH-77022 | Not Available |
| 8 | Not Available | Screw; 4mm x 14mm | SH-XZPSD40P14000 | Not Available |
| 9 | Not Available | Nut (Left-Hand Thread) | SH-77110 | Not Available |
| 10 | Not Available | Screw; 3mm x 16mm | SH-77065 | Not Available |
| 11 | Not Available | Retaining Ring; 4mm x 0.6mm | SH-77038 | Not Available |
| 12 | Not Available | Washer | SH-XWHSD50-08100 | Not Available |
| 13 | Not Available | Brush Base | SH-52540 | Not Available |
| 13 | Not Available | Screw; 4mm x 8mm | SH-XZPSD40P08000 | Not Available |
| 14 | Not Available | Upholstery Tool | SH-FCAT-A090VBK0 | Not Available |
| 14 | Not Available | Washer | SH-LX-WZA034VBE0 | Not Available |
| 15 | Not Available | Extension Pipe Front | SH-PPIPPA188VBFE | Not Available |
| 15 | Not Available | Speed Nut | SH-77050 | Not Available |
| 16 | Not Available | Extension Pipe Rear | SH-PPIPPA189VBFA | Not Available |
| 16 | Not Available | Screw (With Washer) | SH-LX-BZA014VBE0 | Not Available |
| 17 | Not Available | Hose Assembly | SH-FH0S-A011VBKA | Not Available |
| 17 | Not Available | Screw; 3mm x 8mm | SH-XZPSD30P08000 | Not Available |
| 18 | Not Available | Blow Hose | SH-PH0S-A016VBEA | Not Available |
| 18 | Not Available | B/P Fixing Screw | SH-77005 | Not Available |
| 19 | Not Available | Front Handle | SH-GHNDPA038VBFE | Not Available |
| 19 | Not Available | Screw 4mm x 16mm | SH-77080 | Not Available |
| 20 | Not Available | Rear Handle | SH-GHNDPA039VBFA | Not Available |
| 20 | Not Available | Agitator Washer | SH-LX-WZA037VBE0 | Not Available |
| 21 | Not Available | Hole Cover | SH-GC0V-A350VBE0 | Not Available |
| 21 | Not Available | Hanger Washer | SH-77020 | Not Available |
| 22 | Not Available | Crevice Tool | SH-UCATSA057VBFB | Not Available |
| 22 | Not Available | Handle Fixing Screw | SH-77019 | Not Available |
| 23 | Not Available | Head Cover | SH-GC0V-A566VBRA | Not Available |
| 23 | Not Available | Wheel Washer | SH-77025 | Not Available |
| 24 | Not Available | Spring Pin | SH-LPIN-A019VBE0 | Not Available |
