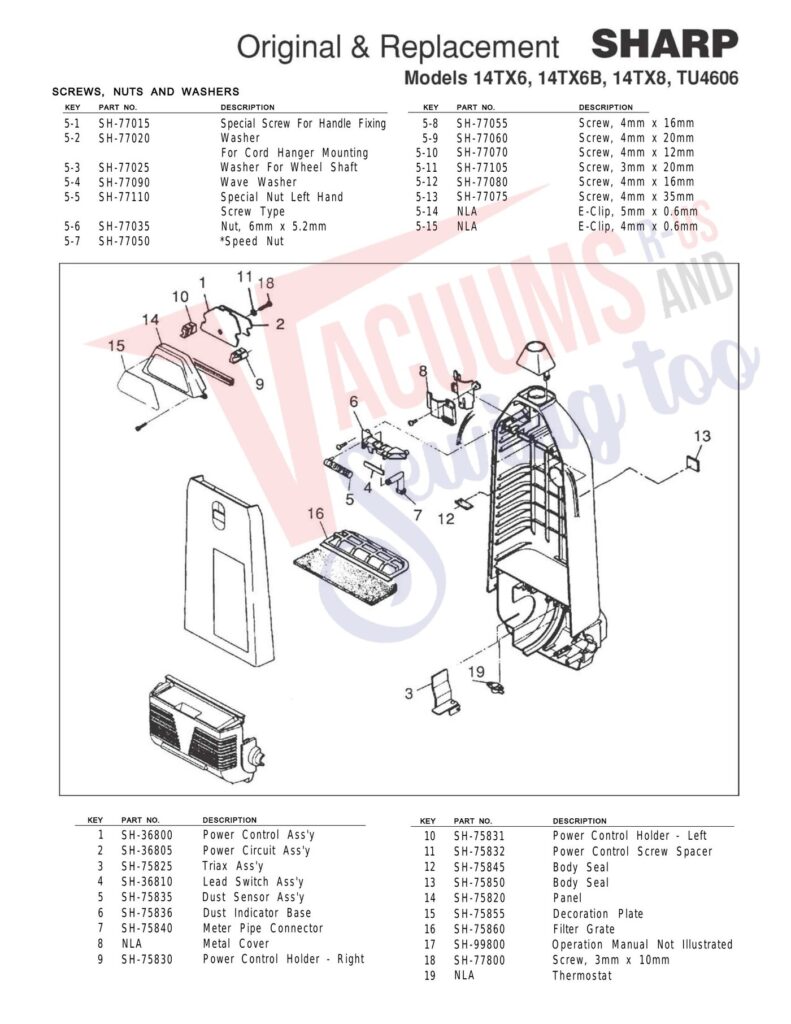

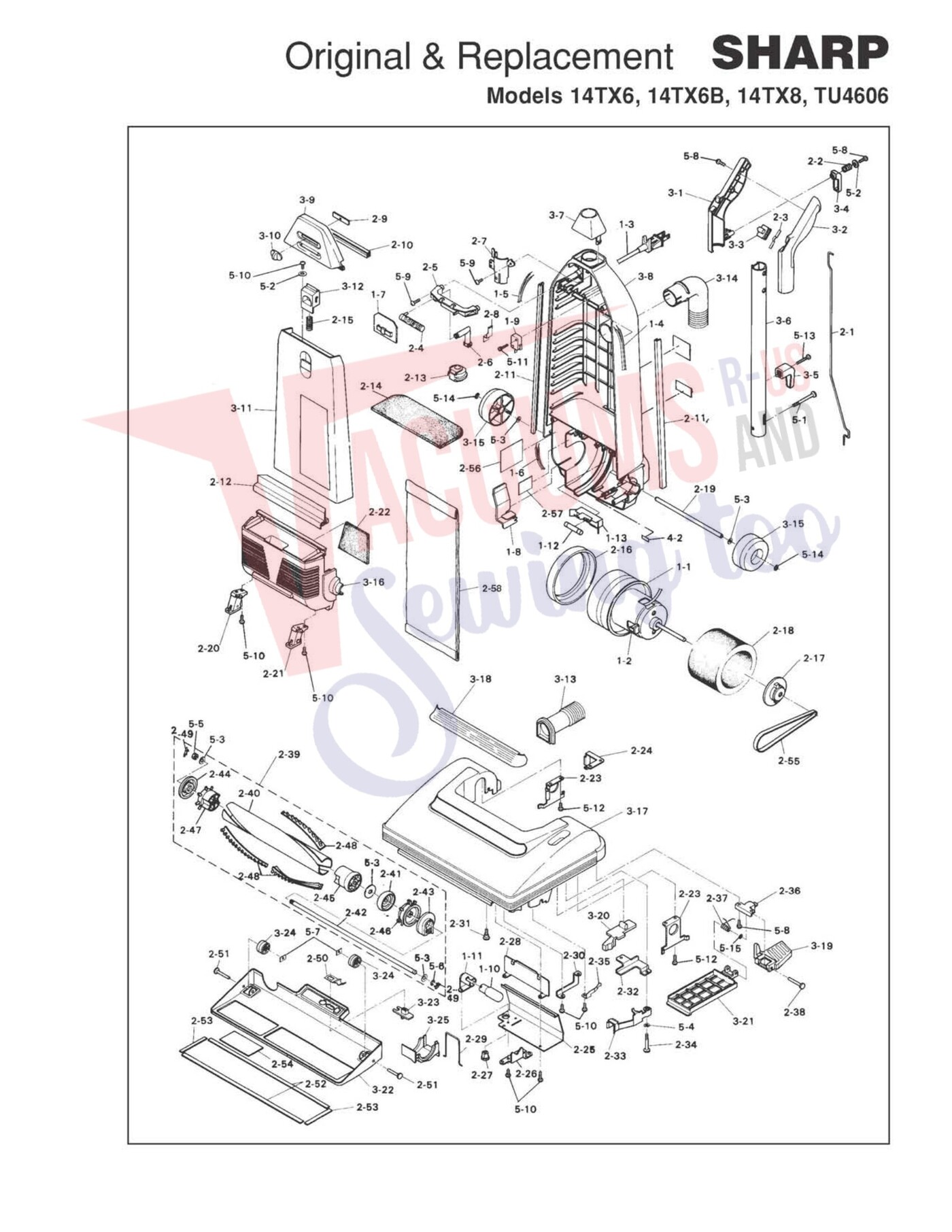

Schematic and parts book for sharp TU4606, 14tx6, 14tx6b, 14tx8 . Repairs should be done by trained technicians. Vacuums R Us & Sewing Too provides vacuum cleaner and carpet cleaner parts and accessories for vacuum cleaner repair purposes. We are committed to delivering high-quality components, but it is important to note that all appliance repairs involve risks, and we cannot guarantee the outcome of your repair. When using our vacuum parts for repairs, you accept the terms and conditions HERE
| # | Part image | Description | SKU | Price |
| 1 | Not Available | Motor Ass'y 9 Amp 2- | SH-60010 | Not Available |
| 1 | Not Available | Motor Ass'y 12 Amp 2- | SH-60032 | Not Available |
| 1 | Not Available | Lamp Socket 2- | SH-36020 | Not Available |
| 1 | Not Available | Switch Rod 2- | SH-34505 | Not Available |
| 1 | Not Available | Grip Right | SH-70255 | Not Available |
| 1 | Not Available | Dust Cover 14TX6 14TX8 | SH-75040 | Not Available |
| 1 | Not Available | Dust Cover 14TX6B | SH-75042 | Not Available |
| 1 | Not Available | Dust Cover TU4606 | SH-75044 | Not Available |
| 2 | Not Available | Carbon Brush 14TX6 14TX8 2- | SH-63000 | Not Available |
| 2 | Not Available | Carbon Brush 14TX6B TU4606 (Order SH-20250) | SH-63015 | Not Available |
| 2 | Not Available | Fuse 14TX6 14TX8 2- | NLA | Not Available |
| 2 | Not Available | Spring for Cord Hanger 2- | SH-70500 | Not Available |
| 2 | Not Available | Grip Left | SH-70260 | Not Available |
| 2 | Not Available | Clamp Knob | SH-75046 | Not Available |
| 3 | Not Available | Power Cord 14TX6 14TX8 2- | SH-30010 | Not Available |
| 3 | Not Available | Power Cord 14TX6B TU4606 (Order SH-20250) | SH-FACC-A044VBE0 | Not Available |
| 3 | Not Available | Fuse Holder 14TX6 14TX8 2- | SH-36030 | Not Available |
| 3 | Not Available | Fuse Holder 14TX6B TU4606 2- | SH-QFSHDA001VBE0 | Not Available |
| 3 | Not Available | Switch Knob Spring 2- | SH-34510 | Not Available |
| 3 | Not Available | Main Switch Knob | SH-70750 | Not Available |
| 4 | Not Available | Motor Lead Wires 2- | SH-36000 | Not Available |
| 4 | Not Available | Dust Indicator Ass'y 2- | SH-75135 | Not Available |
| 4 | Not Available | Cord Hook Top | SH-70755 | Not Available |
| 4 | Not Available | Hose Elbow | SH-75065 | Not Available |
| 5 | Not Available | Circuit Lead Wires (Order SH-20250) | SH-36005 | Not Available |
| 5 | Not Available | Dust Indicator Base DVC 3 Pk | SH-75136 | Not Available |
| 5 | Not Available | Cord Hook Bottom | SH-70760 | Not Available |
| 6 | Not Available | Lamp Lead Wires 2- | SH-36010 | Not Available |
| 6 | Not Available | Meter Pipe Connector | SH-75140 | Not Available |
| 6 | Not Available | Handle Pipe | SH-70000 | Not Available |
| 6 | Not Available | Motor Cover 14TX6 14TX8 | SH-75080 | Not Available |
| 6 | Not Available | Motor Cover 14TX6B | SH-75083 | Not Available |
| 6 | Not Available | Motor Cover TU4606 | SH-75084 | Not Available |
| 7 | Not Available | Power Control Ass'y 2- | SH-36015 | Not Available |
| 7 | Not Available | Handle Fixing Plate EXTERNAL PARTS | SH-70505 | Not Available |
| 7 | Not Available | Body Cap | SH-75175 | Not Available |
| 7 | Not Available | Nozzle Head Ass'y 14TX6 | SH-73020 | Not Available |
| 7 | Not Available | Nozzle Head Ass'y 14TX6B | SH-73023 | Not Available |
| 7 | Not Available | Nozzle Head Ass'y 14TX8 | NLA | Not Available |
| 7 | Not Available | Nozzle Head Ass'y TU4606 | NLA | Not Available |
| 8 | Not Available | Triac Ass'y 2- | SH-75130 | Not Available |
| 8 | Not Available | Actuator 3- | SH-75159 | Not Available |
| 8 | Not Available | Main Body | NLA | Not Available |
| 9 | Not Available | ON-OFF Switch 2- | SH-34005 | Not Available |
| 9 | Not Available | ON-OFF Switch 14TX6B 2- | SH-QSW-WA015VBE0 | Not Available |
| 9 | Not Available | Indicating Plate 3- | SH-75150 | Not Available |
| 9 | Not Available | Panel | SH-75020 | Not Available |
| 10 | Not Available | Bulb 15W 2- | FA-3515 | Not Available |
| 10 | Not Available | Panel Seal 3- | NLA | Not Available |
| 11 | Not Available | Body Seal 3- | NLA | Not Available |
| 12 | Not Available | Fuse 14TX6B TU4606 2- | SH-36036 | Not Available |
| 12 | Not Available | Motor Cover Seal 3- | SH-76010 | Not Available |
| 13 | Not Available | Air Valve Ass'y 3- | SH-75155 | Not Available |
| 13 | Not Available | Hose | SH-75060 | Not Available |
| 14 | Not Available | Secondary Filter 3- | SH-18000 | Not Available |
| 15 | Not Available | Clamp Spring 3- | SH-77000 | Not Available |
| 15 | Not Available | Wheel | SH-71001 | Not Available |
| 16 | Not Available | Vibration Proof Rubber 3- | SH-76015 | Not Available |
| 17 | Not Available | Vibration Proof Fixing Rubber 3-1 | SH-76017 | Not Available |
| 18 | Not Available | Sound Proof Sponge 3-1 | NLA | Not Available |
| 18 | Not Available | Lens | NLA | Not Available |
| 19 | Not Available | Wheel Shaft 3-1 | SH-71005 | Not Available |
| 19 | Not Available | Pedal | SH-73415 | Not Available |
| 20 | Not Available | Leg Ass'y Right 3-1 | SH-75160 | Not Available |
| 20 | Not Available | Belt Change Lever | SH-73422 | Not Available |
| 21 | Not Available | Leg Ass'y Left 3-1 | SH-75161 | Not Available |
| 21 | Not Available | Belt Cover | NLA | Not Available |
| 22 | Not Available | Exhaust Filter 3- | SH-18010 | Not Available |
| 22 | Not Available | Exhaust Filter TU4606 3-1 | SH-18025 | Not Available |
| 22 | Not Available | Bottom Plate Complete (Includes *) | SH-76103 | Not Available |
| 22 | Not Available | Bottom Plate | SH-76105 | Not Available |
| 23 | Not Available | Body Support 3- | SH-75170 | Not Available |
| 23 | Not Available | Bottom Plate Knob | SH-73425 | Not Available |
| 24 | Not Available | Belt Stopper 3-1 | SH-73400 | Not Available |
| 24 | Not Available | Roller | SH-73430 | Not Available |
| 25 | Not Available | Reflection Plate 3-1 | SH-73405 | Not Available |
| 25 | Not Available | Pulley Cover | NLA | Not Available |
| 26 | Not Available | Lamp Support 3-1 | SH-73409 | Not Available |
| 27 | Not Available | Cord Bushing For Nozzle Head 3-1 | SH-73445 | Not Available |
| 28 | Not Available | Heat Proof Plate 3-1 | SH-73451 | Not Available |
| 29 | Not Available | Belt Guide Pin 3-1 | NLA | Not Available |
| 30 | Not Available | Head Reinforcing Plate 3-1 | NLA | Not Available |
| 31 | Not Available | Bottom Plate Fixing Screw (Order SH-73023) | SH-77005 | Not Available |
| 32 | Not Available | Belt Change Lever Support 3- | SH-73465 | Not Available |
| 33 | Not Available | Belt Change Plate 3- | SH-73466 | Not Available |
| 34 | Not Available | Belt Change Shaft 3- | SH-73477 | Not Available |
| 35 | Not Available | Belt Change Spring 3- | SH-73478 | Not Available |
| 36 | Not Available | Pedal Support 3- | NLA | Not Available |
| 37 | Not Available | Pedal Spring 3- | SH-77010 | Not Available |
| 38 | Not Available | Pedal Shaft 3- | SH-73480 | Not Available |
| 39 | Not Available | Brushroll Ass'y | SH-20250 | Not Available |
| 40 | Not Available | Agitator Pipe Ass'y | NLA | Not Available |
| 41 | Not Available | Idling Pulley Ass'y | NLA | Not Available |
| 42 | Not Available | Agitator Shaft Ass'y | NLA | Not Available |
| 43 | Not Available | Agitator Support Ass'y | NLA | Not Available |
| 44 | Not Available | Agitator Support Ass'y | SH-20513 | Not Available |
| 45 | Not Available | Main Pulley (Order SH-20250) | NLA | Not Available |
| 46 | Not Available | Brush Rotor | SH-20521 | Not Available |
| 47 | Not Available | Brush Rotor | SH-20522 | Not Available |
| 48 | Not Available | Brush Strip | SH-22000 | Not Available |
| 48 | Not Available | Brush Strip Pr | SHR-2200 | Not Available |
| 49 | Not Available | Agitator Shaft Cap | SH-22525 | Not Available |
| 50 | Not Available | *Bottom Plate Spring | SH-77014 | Not Available |
| 51 | Not Available | *Roller Shaft | SH-73431 | Not Available |
| 52 | Not Available | *Seal Tape | SH-76025 | Not Available |
| 53 | Not Available | *Seal Tape | SH-76021 | Not Available |
| 54 | Not Available | *Seal Tape | SH-76027 | Not Available |
| 55 | Not Available | Flat Belt BU3 2 Pk | SH-10150 | Not Available |
| 55 | Not Available | Belt BU3 | SHR-1000 | Not Available |
| 56 | Not Available | Body Seal Tape | SH-76022 | Not Available |
| 57 | Not Available | Body Seal Tape | SH-76023 | Not Available |
| 58 | Not Available | Paper Bag PU2 3 Pk | SH-1405 | Not Available |
| 58 | No Image | Paper Bag, DVC Sharp PU2 Microlined 3Pk | SHR-14355 | $8.79Read more |
| # | Part image | Description | SKU | Price |
| 1 | Not Available | Special Screw For Handle Fixing 5- | SH-77015 | Not Available |
| 1 | Not Available | Power Control Ass'y | SH-36800 | Not Available |
| 2 | Not Available | Washer 5- | SH-77020 | Not Available |
| 2 | Not Available | Power Circuit Ass'y | SH-36805 | Not Available |
| 3 | Not Available | Washer For Wheel Shaft 5- | SH-77025 | Not Available |
| 3 | Not Available | Triax Ass'y | SH-75825 | Not Available |
| 4 | Not Available | Wave Washer 5- | SH-77090 | Not Available |
| 4 | Not Available | Lead Switch Ass'y | SH-36810 | Not Available |
| 5 | Not Available | Special Nut Left Hand 5- | SH-77110 | Not Available |
| 5 | Not Available | Dust Sensor Ass'y | SH-75835 | Not Available |
| 6 | Not Available | Nut 6mm x 5.2mm 5- | SH-77035 | Not Available |
| 6 | Not Available | Dust Indicator Base | SH-75836 | Not Available |
| 7 | Not Available | *Speed Nut | SH-77050 | Not Available |
| 7 | Not Available | Meter Pipe Connector | SH-75840 | Not Available |
| 8 | Not Available | Screw 4mm x 16mm | SH-77055 | Not Available |
| 8 | Not Available | Metal Cover | NLA | Not Available |
| 9 | Not Available | Screw 4mm x 20mm | SH-77060 | Not Available |
| 9 | Not Available | Power Control Holder - Right | SH-75830 | Not Available |
| 10 | Not Available | Screw 4mm x 12mm | SH-77070 | Not Available |
| 10 | Not Available | Power Control Holder - Left | SH-75831 | Not Available |
| 11 | Not Available | Screw 3mm x 20mm | SH-77105 | Not Available |
| 11 | Not Available | Power Control Screw Spacer | SH-75832 | Not Available |
| 12 | Not Available | Screw 4mm x 16mm | SH-77080 | Not Available |
| 12 | Not Available | Body Seal | SH-75845 | Not Available |
| 13 | Not Available | Screw 4mm x 35mm | SH-77075 | Not Available |
| 13 | Not Available | Body Seal | SH-75850 | Not Available |
| 14 | Not Available | E-Clip 5mm x 0.6mm | NLA | Not Available |
| 14 | Not Available | Panel | SH-75820 | Not Available |
| 15 | Not Available | E-Clip 4mm x 0.6mm | NLA | Not Available |
| 15 | Not Available | Decoration Plate | SH-75855 | Not Available |
| 16 | Not Available | Filter Grate | SH-75860 | Not Available |
| 17 | Not Available | Operation Manual Not Illustrated | SH-99800 | Not Available |
| 18 | Not Available | Screw 3mm x 10mm | SH-77800 | Not Available |
| 19 | Not Available | Thermostat | NLA | Not Available |
