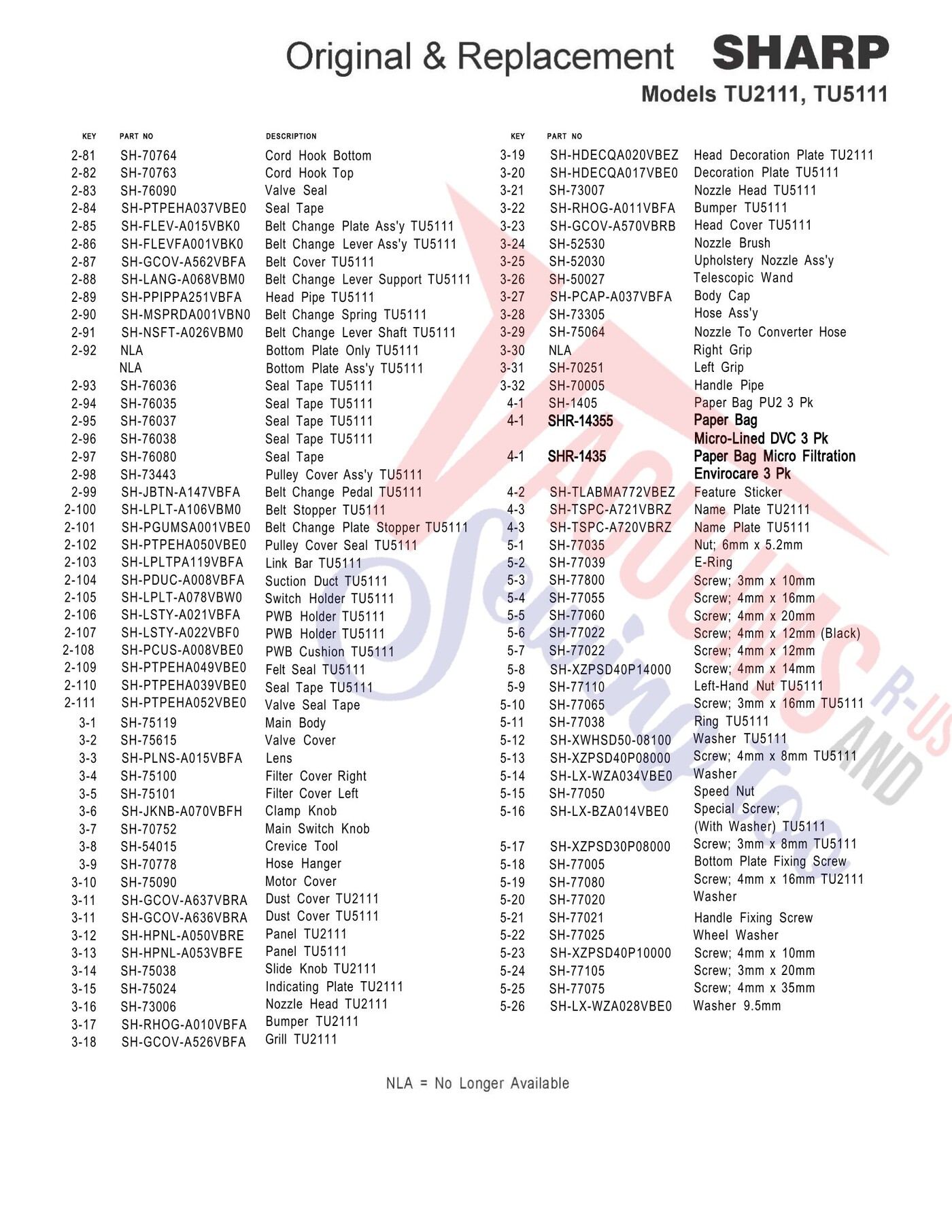

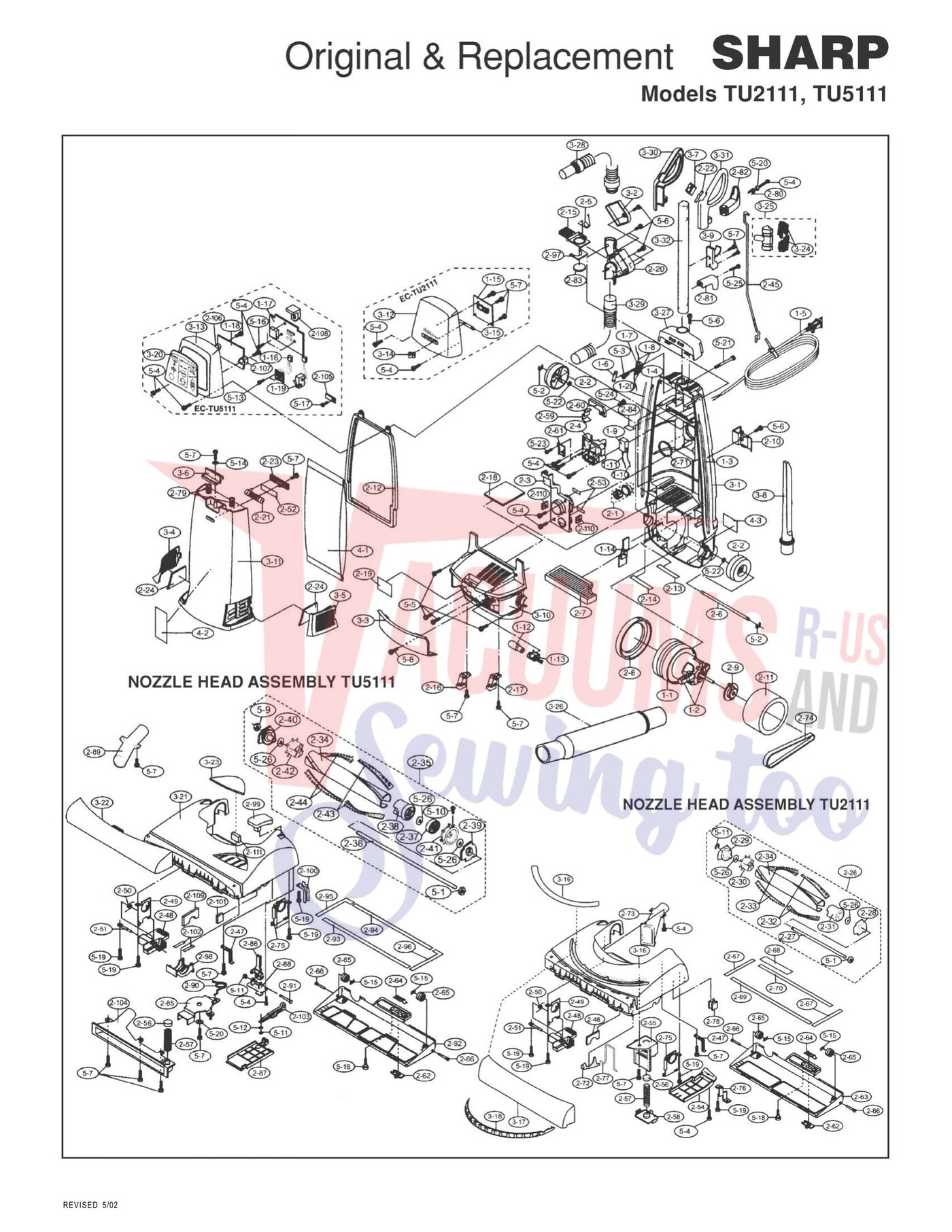

Schematic and parts book for Sharp TU2111, TU5111 . Repairs should be done by trained technicians. Vacuums R Us & Sewing Too provides vacuum cleaner and carpet cleaner parts and accessories for vacuum cleaner repair purposes. We are committed to delivering high-quality components, but it is important to note that all appliance repairs involve risks, and we cannot guarantee the outcome of your repair. When using our vacuum parts for repairs, you accept the terms and conditions HERE
| # | Part image | Description | SKU | Price |
| XX | Not Available | Bottom Plate Ass'y TU2111 | SH-76124 | Not Available |
| 1 | Not Available | Motor Ass'y 2- | NLA | Not Available |
| 1 | Not Available | Air Valve Ass'y TU2111 2- | SH-FVLV-A016VBK0 | Not Available |
| 1 | Not Available | Air Valve Ass'y TU5111 2- | SH-FVLV-A013VBK0 | Not Available |
| 2 | Not Available | Carbon Brush 2- | SH-63017 | Not Available |
| 2 | Not Available | Wheel 2- | SH-71002 | Not Available |
| 3 | Not Available | Motor Lead Wire 2- | SH-36000 | Not Available |
| 3 | Not Available | Sensor Cover 2- | SH-GCOV-A455VBFA | Not Available |
| 4 | Not Available | Circuit Lead Wire TU2111 2- | SH-36005 | Not Available |
| 4 | Not Available | Handle Mounting Base 2- | SH-LPLT-A066VBF0 | Not Available |
| 5 | Not Available | Power Cord TU2111 2- | SH-30001 | Not Available |
| 5 | Not Available | Power Cord TU5111 2- | SH-30011 | Not Available |
| 5 |  | Cord Gray W/ Polorized Plug fit all fit-all | FA3035 | $32.99Read more |
| 5 | Not Available | Valve Spring 2- | SH-77012 | Not Available |
| 6 | Not Available | Fuse 2- | SH-36036 | Not Available |
| 6 | Not Available | Wheel Shaft 2- | SH-71005 | Not Available |
| 7 | Not Available | Fuse Holder (Order SH-20220) | SH-QFSHDA001VBE0 | Not Available |
| 7 | Not Available | Secondary HEPA Filter 2- | SH-18058 | Not Available |
| 8 | Not Available | Lead Wire 2- | SH-QW-VZA383VBE0 | Not Available |
| 8 | Not Available | Vibration Proof Rubber 2- | SH-PGUMMA159VBE0 | Not Available |
| 9 | Not Available | Main Switch TU5111 (Order SH-20220) | SH-34005 | Not Available |
| 9 | Not Available | Vibration Proof Fix Rubber 2- | SH-76077 | Not Available |
| 10 | Not Available | Lead Wire 2- | SH-QW-VZA381VBE0 | Not Available |
| 10 | Not Available | Pipe Clamp 2- | SH-70770 | Not Available |
| 11 | Not Available | Lead Wire TU5111 (Order SH-20220) | SH-QW-VZA382VBE0 | Not Available |
| 11 | Not Available | Sound Proof Sponge 2- | SH-PMUF-A044VBE0 | Not Available |
| 12 | Not Available | Bulb 15W 2- | FA-3515 | Not Available |
| 12 | Not Available | Body Packing 2- | SH-PPACGA072VBFA | Not Available |
| 13 | Not Available | Lamp Socket 2- | SH-QSOC-A004VBE0 | Not Available |
| 13 | Not Available | Seal Tape | SH-PTPEHA029VBE0 | Not Available |
| 14 | Not Available | Triac PWB Ass'y TU2111 Non-Pulley End TU5111 | SH-36018 | Not Available |
| 14 | Not Available | Triac PWB Ass'y TU5111 2- | SH-FPWB-A118VBK0 | Not Available |
| 14 | Not Available | Seal Tape 2- | SH-PTPEHA030VBE0 | Not Available |
| 15 | Not Available | Power Control PWB Ass'y 2- | SH-36019 | Not Available |
| 15 | Not Available | Body Valve 2- | SH-75601 | Not Available |
| 16 | Not Available | Dust Sensor PWB Ass'y TU5111 2- | SH-FPWB-A115VBK0 | Not Available |
| 16 | Not Available | Leg Ass'y Right 2- | SH-75168 | Not Available |
| 17 | Not Available | Power Control PWB TU5111 2- | SH-36016 | Not Available |
| 17 | Not Available | Leg Ass'y Left 2- | SH-75169 | Not Available |
| 18 | Not Available | Indicate PWB Ass'y TU5111 2- | SH-FPWB-A117VBK0 | Not Available |
| 18 | Not Available | Motor Filter 2- | SH-18055 | Not Available |
| 19 | Not Available | Micro Switch Ass'y TU5111 2- | SH-FSW-MA030VBK0 | Not Available |
| 19 | Not Available | Reflection Tape 2- | SH-PTPE-A172VBE0 | Not Available |
| 20 | Not Available | Lead Wire TU5111 2- | SH-QW-VZA748VBE0 | Not Available |
| 20 | Not Available | Valve Cover 2- | SH-75610 | Not Available |
| 21 | Not Available | Dust Indicator Ass'y TU2111 2- | SH-75135 | Not Available |
| 22 | Not Available | Switch Knob Spring 2- | SH-34510 | Not Available |
| 23 | Not Available | Indicator Cover TU2111 2- | SH-GCOV-A459VBFA | Not Available |
| 24 | Not Available | Exhaust Micron Filter 2- | NLA | Not Available |
| 26 | Not Available | Agitator Ass'y TU2111 2- | SH-20210 | Not Available |
| 27 | Not Available | Agitator Shaft TU2111 2- | SH-20505 | Not Available |
| 28 | Not Available | Agitator Support Pulley End 2- | SH-LSTY-A032VBFA | Not Available |
| 29 | Not Available | Agitator Support Non-Pulley End 2- | SH-LSTY-A033VBFA | Not Available |
| 30 | Not Available | Brush Rotor Ass'y TU2111 2- | SH-FRTR-A019VBKZ | Not Available |
| 31 | Not Available | Main Pulley Ass'y TU2111 | SH-20515 | Not Available |
| 32 | Not Available | Brush Strip TU2111 | SH-22015 | Not Available |
| 33 | Not Available | Brush Strip TU2111 | SH-22017 | Not Available |
| 34 | Not Available | Agitator Core TU2111 | SH-FPIPFA005VBK0 | Not Available |
| 35 | Not Available | Agitator Ass'y TU5111 | SH-20220 | Not Available |
| 36 | Not Available | Agitator Shaft TU5111 | SH-NSFT-A011VBS0 | Not Available |
| 37 | Not Available | Idler Pulley Ass'y TU5111 | NLA | Not Available |
| 38 | Not Available | Main Pulley TU5111 | NLA | Not Available |
| 39 | Not Available | Agitator Support Pulley End | NLA | Not Available |
| 40 | Not Available | Agitator Support Non-Pulley End | NLA | Not Available |
| 41 | Not Available | Brush Rotor Pulley End TU5111 | SH-20540 | Not Available |
| 42 | Not Available | Brush Rotor | SH-NRTR-A002VBK0 | Not Available |
| 43 | Not Available | Brush Strip TU5111 | SH-22010 | Not Available |
| 44 | Not Available | Brush Strip TU5111 | SH-PBRS-A087VBEZ | Not Available |
| 45 | Not Available | Switch Rod | SH-MLEVFA005VBM0 | Not Available |
| 46 | Not Available | Felt TU2111 | SH-PFLT-A118VBE0 | Not Available |
| 47 | Not Available | Belt Stopper | SH-73402 | Not Available |
| 48 | Not Available | Pedal | SH-73417 | Not Available |
| 49 | Not Available | Pedal Support | SH-LANG-A057VBM0 | Not Available |
| 50 | Not Available | Pedal Spring | SH-77011 | Not Available |
| 51 | Not Available | Pedal Shaft | SH-73481 | Not Available |
| 52 | Not Available | Seal Tape TU2111 | SH-PTPEHA036VBE0 | Not Available |
| 53 | Not Available | Seal Tape TU2111 | SH-PTPEHA031VBE0 | Not Available |
| 54 | Not Available | Belt Cover TU2111 | SH-73449 | Not Available |
| 55 | Not Available | Valve Case TU2111 | SH-PCAS-A028VBFA | Not Available |
| 56 | Not Available | Head Valve | SH-PVLVAA012VBFA | Not Available |
| 57 | Not Available | Head Valve Spring | SH-MSPRCA212VBP0 | Not Available |
| 58 | Not Available | Head Valve Cover TU2111 | SH-PCOV-A081VBFA | Not Available |
| 59 | Not Available | Actuator | SH-LPLT-A105VBN0 | Not Available |
| 60 | Not Available | Actuator Support | SH-LANG-A046VBF0 | Not Available |
| 61 | Not Available | Screw Mounting Plate | SH-70515 | Not Available |
| 62 | Not Available | Bottom Plate Knob | SH-73525 | Not Available |
| 63 | Not Available | Bottom Plate Only TU2111 | NLA | Not Available |
| 64 | Not Available | Bottom Plate Spring | SH-77014 | Not Available |
| 65 | Not Available | Roller | SH-73432 | Not Available |
| 66 | Not Available | Roller Shaft | SH-73431 | Not Available |
| 67 | Not Available | Seal Tape TU2111 | SH-76021 | Not Available |
| 68 | Not Available | Seal Tape TU2111 | SH-76027 | Not Available |
| 69 | Not Available | Seal Tape TU2111 | SH-76020 | Not Available |
| 70 | Not Available | Seal Tape TU2111 | SH-76028 | Not Available |
| 71 | Not Available | Seal Tape | SH-PTPEHA038VBE0 | Not Available |
| 72 | Not Available | Head Shelter Plate TU2111 | SH-73447 | Not Available |
| 73 | Not Available | Head Pipe TU2111 | SH-73315 | Not Available |
| 74 | Not Available | Flat Belt 2 Pk | SH-10150 | Not Available |
| 74 | Not Available | Flat Belt | SHR-1000 | Not Available |
| 75 | Not Available | Body Support | SH-LANGFA061VBM0 | Not Available |
| 76 | Not Available | Belt Stopper TU2111 | SH-73404 | Not Available |
| 77 | Not Available | Belt Guide Pin TU2111 | SH-73455 | Not Available |
| 78 | Not Available | Stopper Rubber TU2111 | SH-PSEL-A032VBE0 | Not Available |
| 79 | Not Available | Clamp Spring | SH-MSPRCA196VBE0 | Not Available |
| 80 | Not Available | Hanger Spring | SH-70500 | Not Available |
| # | Part image | Description | SKU | Price |
| 1 | Not Available | Paper Bag PU2 3 Pk | SH-1405 | Not Available |
| 1 | No Image | Paper Bag, DVC Sharp PU2 Microlined 3Pk | SHR-14355 | $8.79Read more |
| 1 | Not Available | Paper Bag Micro Filtration | SHR-1435 | Not Available |
| 1 | Not Available | Nut; 6mm x 5.2mm | SH-77035 | Not Available |
| 1 | Not Available | Main Body 5- | SH-75119 | Not Available |
| 2 | Not Available | Feature Sticker | SH-TLABMA772VBEZ | Not Available |
| 2 | Not Available | E-Ring | SH-77039 | Not Available |
| 2 | Not Available | Valve Cover 5- | SH-75615 | Not Available |
| 3 | Not Available | Name Plate TU2111 | SH-TSPC-A721VBRZ | Not Available |
| 3 | Not Available | Name Plate TU5111 | SH-TSPC-A720VBRZ | Not Available |
| 3 | Not Available | Screw; 3mm x 10mm | SH-77800 | Not Available |
| 3 | Not Available | Lens 5- | SH-PLNS-A015VBFA | Not Available |
| 4 | Not Available | Screw; 4mm x 16mm | SH-77055 | Not Available |
| 4 | Not Available | Filter Cover Right 5- | SH-75100 | Not Available |
| 5 | Not Available | Screw; 4mm x 20mm | SH-77060 | Not Available |
| 5 | Not Available | Filter Cover Left 5- | SH-75101 | Not Available |
| 6 | Not Available | Screw; 4mm x 12mm (Black) | SH-77022 | Not Available |
| 6 | Not Available | Clamp Knob 5- | SH-JKNB-A070VBFH | Not Available |
| 7 | Not Available | Screw; 4mm x 12mm | SH-77022 | Not Available |
| 7 | Not Available | Main Switch Knob (With Washer) TU5111 | SH-70752 | Not Available |
| 8 | Not Available | Screw; 4mm x 14mm | SH-XZPSD40P14000 | Not Available |
| 8 | Not Available | Crevice Tool 5- | SH-54015 | Not Available |
| 9 | Not Available | Left-Hand Nut TU5111 | SH-77110 | Not Available |
| 9 | Not Available | Hose Hanger 5- | SH-70778 | Not Available |
| 10 | Not Available | Screw; 3mm x 16mm TU5111 | SH-77065 | Not Available |
| 10 | Not Available | Motor Cover 5- | SH-75090 | Not Available |
| 11 | Not Available | Ring TU5111 | SH-77038 | Not Available |
| 11 | Not Available | Dust Cover TU2111 5- | SH-GCOV-A637VBRA | Not Available |
| 11 | Not Available | Dust Cover TU5111 5- | SH-GCOV-A636VBRA | Not Available |
| 12 | Not Available | Washer TU5111 | SH-XWHSD50-08100 | Not Available |
| 12 | Not Available | Panel TU2111 5- | SH-HPNL-A050VBRE | Not Available |
| 13 | Not Available | Screw; 4mm x 8mm TU5111 | SH-XZPSD40P08000 | Not Available |
| 13 | Not Available | Panel TU5111 5- | SH-HPNL-A053VBFE | Not Available |
| 14 | Not Available | Washer | SH-LX-WZA034VBE0 | Not Available |
| 14 | Not Available | Slide Knob TU2111 5- | SH-75038 | Not Available |
| 15 | Not Available | Speed Nut | SH-77050 | Not Available |
| 15 | Not Available | Indicating Plate TU2111 5- | SH-75024 | Not Available |
| 16 | Not Available | Special Screw; | SH-LX-BZA014VBE0 | Not Available |
| 16 | Not Available | Nozzle Head TU2111 5- | SH-73006 | Not Available |
| 17 | Not Available | Screw; 3mm x 8mm TU5111 | SH-XZPSD30P08000 | Not Available |
| 17 | Not Available | Bumper TU2111 | SH-RHOG-A010VBFA | Not Available |
| 18 | Not Available | Bottom Plate Fixing Screw | SH-77005 | Not Available |
| 18 | Not Available | Grill TU2111 | SH-GCOV-A526VBFA | Not Available |
| 19 | Not Available | Head Decoration Plate TU2111 | SH-HDECQA020VBEZ | Not Available |
| 19 | Not Available | Screw; 4mm x 16mm TU2111 | SH-77080 | Not Available |
| 20 | Not Available | Decoration Plate TU5111 | SH-HDECQA017VBE0 | Not Available |
| 20 | Not Available | Washer | SH-77020 | Not Available |
| 21 | Not Available | Nozzle Head TU5111 | SH-73007 | Not Available |
| 21 | Not Available | Handle Fixing Screw | SH-77021 | Not Available |
| 22 | Not Available | Bumper TU5111 | SH-RHOG-A011VBFA | Not Available |
| 22 | Not Available | Wheel Washer | SH-77025 | Not Available |
| 23 | Not Available | Head Cover TU5111 | SH-GCOV-A570VBRB | Not Available |
| 23 | Not Available | Screw; 4mm x 10mm | SH-XZPSD40P10000 | Not Available |
| 24 | Not Available | Nozzle Brush | SH-52530 | Not Available |
| 24 | Not Available | Screw; 3mm x 20mm | SH-77105 | Not Available |
| 25 | Not Available | Upholstery Nozzle Ass'y | SH-52030 | Not Available |
| 25 | Not Available | Screw; 4mm x 35mm | SH-77075 | Not Available |
| 26 | Not Available | Telescopic Wand | SH-50027 | Not Available |
| 26 | Not Available | Washer 9.5mm | SH-LX-WZA028VBE0 | Not Available |
| 27 | Not Available | Body Cap | SH-PCAP-A037VBFA | Not Available |
| 28 | Not Available | Hose Ass'y | SH-73305 | Not Available |
| 29 | Not Available | Nozzle To Converter Hose | SH-75064 | Not Available |
| 30 | Not Available | Right Grip | NLA | Not Available |
| 31 | Not Available | Left Grip | SH-70251 | Not Available |
| 32 | Not Available | Handle Pipe | SH-70005 | Not Available |
| 81 | Not Available | Cord Hook Bottom 3- | SH-70764 | Not Available |
| 82 | Not Available | Cord Hook Top 3- | SH-70763 | Not Available |
| 83 | Not Available | Valve Seal 3- | SH-76090 | Not Available |
| 84 | Not Available | Seal Tape 3- | SH-PTPEHA037VBE0 | Not Available |
| 85 | Not Available | Belt Change Plate Ass'y TU5111 3- | SH-FLEV-A015VBK0 | Not Available |
| 86 | Not Available | Belt Change Lever Ass'y TU5111 3- | SH-FLEVFA001VBK0 | Not Available |
| 87 | Not Available | Belt Cover TU5111 3- | SH-GCOV-A562VBFA | Not Available |
| 88 | Not Available | Belt Change Lever Support TU5111 3- | SH-LANG-A068VBM0 | Not Available |
| 89 | Not Available | Head Pipe TU5111 3- | SH-PPIPPA251VBFA | Not Available |
| 90 | Not Available | Belt Change Spring TU5111 3- | SH-MSPRDA001VBN0 | Not Available |
| 91 | Not Available | Belt Change Lever Shaft TU5111 3- | SH-NSFT-A026VBM0 | Not Available |
| 92 | Not Available | Bottom Plate Only TU5111 3- | NLA | Not Available |
| 93 | Not Available | Seal Tape TU5111 3- | SH-76036 | Not Available |
| 94 | Not Available | Seal Tape TU5111 4- | SH-76035 | Not Available |
| 95 | Not Available | Seal Tape TU5111 4- | SH-76037 | Not Available |
| 96 | Not Available | Seal Tape TU5111 Micro-Lined DVC 3 Pk | SH-76038 | Not Available |
| 97 | Not Available | Seal Tape 4- | SH-76080 | Not Available |
| 98 | Not Available | Pulley Cover Ass'y TU5111 Envirocare 3 Pk | SH-73443 | Not Available |
| 99 | Not Available | Belt Change Pedal TU5111 4- | SH-JBTN-A147VBFA | Not Available |
| 100 | Not Available | Belt Stopper TU5111 4- | SH-LPLT-A106VBM0 | Not Available |
| 101 | Not Available | Belt Change Plate Stopper TU5111 4- | SH-PGUMSA001VBE0 | Not Available |
| 102 | Not Available | Pulley Cover Seal TU5111 5- | SH-PTPEHA050VBE0 | Not Available |
| 103 | Not Available | Link Bar TU5111 5- | SH-LPLTPA119VBFA | Not Available |
| 104 | Not Available | Suction Duct TU5111 5- | SH-PDUC-A008VBFA | Not Available |
| 105 | Not Available | Switch Holder TU5111 5- | SH-LPLT-A078VBW0 | Not Available |
| 106 | Not Available | PWB Holder TU5111 5- | SH-LSTY-A021VBFA | Not Available |
| 107 | Not Available | PWB Holder TU5111 5- | SH-LSTY-A022VBF0 | Not Available |
| 108 | Not Available | PWB Cushion TU5111 5- | SH-PCUS-A008VBE0 | Not Available |
| 109 | Not Available | Felt Seal TU5111 5- | SH-PTPEHA049VBE0 | Not Available |
| 110 | Not Available | Seal Tape TU5111 5- | SH-PTPEHA039VBE0 | Not Available |
| 111 | Not Available | Valve Seal Tape 5- | SH-PTPEHA052VBE0 | Not Available |
Report errors on this page HERE
