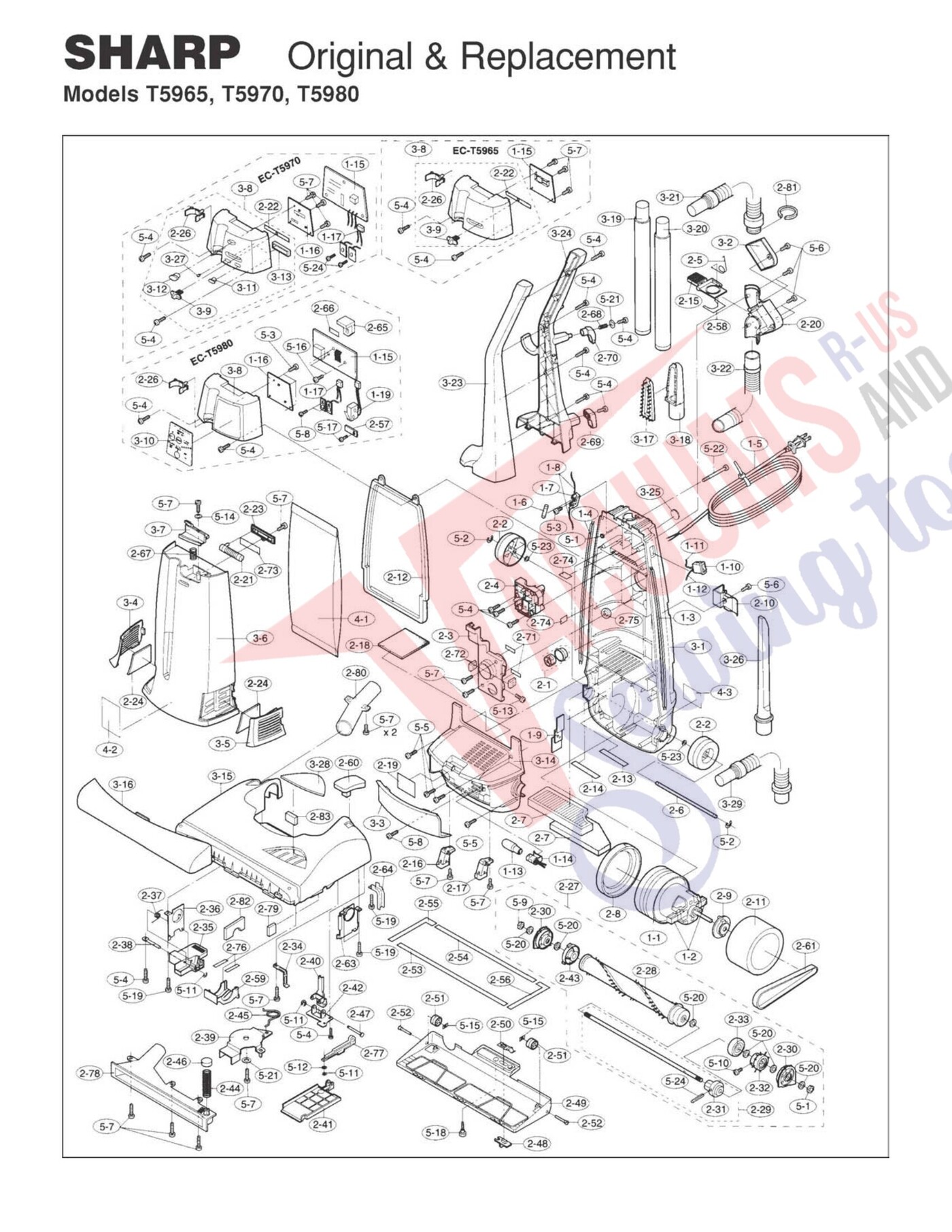

Schematic and parts book for sharp T5970, T5965, T5980 . Repairs should be done by trained technicians. Vacuums R Us & Sewing Too provides vacuum cleaner and carpet cleaner parts and accessories for vacuum cleaner repair purposes. We are committed to delivering high-quality components, but it is important to note that all appliance repairs involve risks, and we cannot guarantee the outcome of your repair. When using our vacuum parts for repairs, you accept the terms and conditions HERE
| # | Part image | Description | SKU | Price |
| XX | Not Available | Belt Change Lever Shaft | NSFT-A026VBM0 | Not Available |
| 1 | Not Available | Motor Ass'y 2- | SH-60045 | Not Available |
| 1 | Not Available | Air Valve Ass'y T5965 2- | SH-FVLV-A016VBK0 | Not Available |
| 1 | Not Available | Air Valve Ass'y T5980 2- | SH-FVLV-A013VBK0 | Not Available |
| 2 | Not Available | Carbon Brush 2- | SH-63017 | Not Available |
| 2 | Not Available | Wheel 2- | SH-71001 | Not Available |
| 3 | Not Available | Motor Lead Wire 2- | SH-36000 | Not Available |
| 3 | Not Available | Sensor Cover 2- | SH-GC0V-A455VBFA | Not Available |
| 4 | Not Available | Circuit Lead Wire 2- | SH-36005 | Not Available |
| 4 | Not Available | Lead Wire Single T5980 2- | SH-QW-VZA748VBE0 | Not Available |
| 4 | Not Available | Handle Mounting Base 2- | SH-LPLT-A066VBF0 | Not Available |
| 5 | Not Available | Power Cord Ass'y 2- | SH-30001 | Not Available |
| 5 | Not Available | Valve Spring 2- | SH-77012 | Not Available |
| 6 | Not Available | Fuse 2- | SH-36036 | Not Available |
| 6 | Not Available | Wheel Shaft 2- | SH-71005 | Not Available |
| 7 | Not Available | Fuse Holder 2- | SH-QFSHDA001VBE0 | Not Available |
| 7 | Not Available | Secondary Filter T5965 T5970 2- | NLA | Not Available |
| 7 | Not Available | Hepa Filter T5980 2- | SH-18058 | Not Available |
| 8 | Not Available | Lead Wire 2- | SH-QW-VZA383VBE0 | Not Available |
| 8 | Not Available | Vibration Proof Rubber 2- | SH-PGUMMA159VBE0 | Not Available |
| 9 | Not Available | Triac Ass'y T5965 2- | SH-36018 | Not Available |
| 9 | Not Available | Triac Ass'y T5970 2- | SH-FPWB-A112VBK0 | Not Available |
| 9 | Not Available | Triac Ass'y T5980 2- | SH-FPWB-A118VBK0 | Not Available |
| 9 | Not Available | Vibration Proof Fix Rubber 2- | SH-76077 | Not Available |
| 10 | Not Available | Main Switch 2- | SH-34007 | Not Available |
| 10 | Not Available | Pipe Clamp 2- | SH-70771 | Not Available |
| 11 | Not Available | Lead Wire 2- | SH-QW-VZA381VBE0 | Not Available |
| 11 | Not Available | Sound Proof Sponge 2- | SH-PMUF-A044VBE0 | Not Available |
| 12 | Not Available | Lead Wire 2- | SH-QW-VZA382VBE0 | Not Available |
| 12 | Not Available | Body Packing 2- | SH-PPACGA066VBFA | Not Available |
| 13 | Not Available | Lamp Lever Support | SH-RLMP-A003VBE0 | Not Available |
| 13 | Not Available | Seal Tape 2- | SH-PTPEHA029VBE0 | Not Available |
| 14 | Not Available | Lamp Socket 2- | SH-QS0C-A004VBE0 | Not Available |
| 14 | Not Available | Seal Tape 2- | SH-PTPEHA030VBE0 | Not Available |
| 15 | Not Available | Power Control 2- | SH-36019 | Not Available |
| 15 | Not Available | Power Control 2- | SH-FPWB-A111VBK0 | Not Available |
| 15 | Not Available | Power Control 2- | SH-FPWB-A131VBK0 | Not Available |
| 15 | Not Available | Body Valve 2- | SH-75601 | Not Available |
| 16 | Not Available | Indicate PWB Ass'y T5970 NLA Bottom Plate Ass'y | SH-FPWB-A114VBK0 | Not Available |
| 16 | Not Available | Indicate PWB Ass'y T5980 2- | SH-FPWB-A132VBK0 | Not Available |
| 16 | Not Available | Leg Ass'y Right 2- | SH-75168 | Not Available |
| 17 | Not Available | Dust Sensor PWB Ass'y 2- | SH-FPWB-A115VBK0 | Not Available |
| 17 | Not Available | Leg Ass'y Left 2- | SH-75169 | Not Available |
| 18 | Not Available | Motor Filter T5970 T5980 | SH-18055 | Not Available |
| 19 | Not Available | Micro Switch Ass'y T5980 2- | SH-FSW-MA030VBK0 | Not Available |
| 19 | Not Available | Reflection Tape 2- | SH-PTPE-A172VBE0 | Not Available |
| 20 | Not Available | Valve Cover T5965 T5970 | SH-75610 | Not Available |
| 21 | Not Available | Dust Indicator Ass'y 2- | SH-75135 | Not Available |
| 22 | Not Available | Knob Sheet T5965 T5970 2- | SH-PSHT-A029VBE0 | Not Available |
| 23 | Not Available | Indicator Cover T5965 T5970 2- | SH-GC0V-A459VBFF | Not Available |
| 24 | Not Available | Exhaust HEPA Type Filter 2- | SH-18012 | Not Available |
| 24 | Not Available | Exhaust Micron Filter 2- | NLA | Not Available |
| 26 | Not Available | Panel Holder 2- | SH-PHLD-A010VBFE | Not Available |
| 27 | Not Available | Agitator Ass'y (Order SH-20220) | NLA | Not Available |
| 28 | Not Available | Agitator Core | SH-20281 | Not Available |
| 29 | Not Available | Agitator Shaft Ass'y | SH-20504 | Not Available |
| 30 | Not Available | Agitator Support (Order SH-20220) | NLA | Not Available |
| 31 | Not Available | Pulley Spacer | SH-20503 | Not Available |
| 32 | Not Available | Brush Rotor Pulley End | SH-20538 | Not Available |
| 33 | Not Available | Idler Pulley Ass'y | SH-20533 | Not Available |
| 34 | Not Available | Belt Stopper | SH-73402 | Not Available |
| 35 | Not Available | Pedal | SH-73417 | Not Available |
| 36 | Not Available | Pedal Support | SH-LANG-A057VBM0 | Not Available |
| 37 | Not Available | Pedal Spring | SH-MSPRCA226VBN0 | Not Available |
| 38 | Not Available | Pedal Shaft | SH-73481 | Not Available |
| 39 | Not Available | Belt Change Plate | SH-FLEV-A015VBK0 | Not Available |
| 40 | Not Available | Belt Change Lever | SH-FLEVFA001VBK0 | Not Available |
| 41 | Not Available | Belt Cover | SH-73434 | Not Available |
| 42 | Not Available | Belt Change | SH-LANG-A068VBM0 | Not Available |
| 43 | Not Available | Brush Rotor | SH-20534 | Not Available |
| 44 | Not Available | Head Valve Spring | SH-MSPRCA212VBP0 | Not Available |
| 45 | Not Available | Belt Change Spring | SH-MSPRDA001VBN0 | Not Available |
| 46 | Not Available | Head Valve | SH-PVLVAA012VBFA | Not Available |
| 47 | Not Available | Belt Change Lever Shaft | SH-NSFT-A026VBM0 | Not Available |
| 48 | Not Available | Bottom Plate Knob | SH-73525 | Not Available |
| 49 | Not Available | Bottom Plate Only | NLA | Not Available |
| 50 | Not Available | Bottom Plate Spring | SH-77014 | Not Available |
| 51 | Not Available | Roller | SH-73430 | Not Available |
| 52 | Not Available | Roller Shaft | SH-73431 | Not Available |
| 53 | Not Available | Seal Tape | SH-76036 | Not Available |
| 54 | Not Available | Seal Tape | SH-76035 | Not Available |
| 55 | Not Available | Seal Tape | SH-76037 | Not Available |
| 56 | Not Available | Seal Tape | SH-76038 | Not Available |
| 57 | Not Available | Switch Holder | SH-LPLT-A078VBW0 | Not Available |
| 58 | Not Available | Seal Tape | SH-76080 | Not Available |
| 59 | Not Available | Pulley Cover | SH-73443 | Not Available |
| 60 | Not Available | Foot Pedal (Rug/Floor) | SH-JBTN-A147VBFA | Not Available |
| 61 | Not Available | Flat Belt 2 Pk | SH-10150 | Not Available |
| 61 | Not Available | Flat Belt | SHR-1000 | Not Available |
| 63 | Not Available | Body Support | SH-LANGFA061VBM0 | Not Available |
| 64 | Not Available | Belt Stopper | SH-LPLT-A106VBM0 | Not Available |
| 65 | Not Available | PWB Cushion | SH-PCUS-A008VBE0 | Not Available |
| 66 | Not Available | Insulation Tape T5980 | SH-PTPEHA044VBE0 | Not Available |
| 67 | Not Available | Clamp Spring | SH-MSPRCA196VBE0 | Not Available |
| 68 | Not Available | Spring For Cord Hanger | SH-70500 | Not Available |
| 69 | Not Available | Cord Hook Bottom | SH-70762 | Not Available |
| 70 | Not Available | Cord Hook Top | SH-70761 | Not Available |
| 71 | Not Available | Seal Tape T5965 | SH-PTPEHA031VBE0 | Not Available |
| 72 | Not Available | Seal Tape | SH-PTPEHA039VBE0 | Not Available |
| 73 | Not Available | Seal Tape | SH-PTPEHA036VBE0 | Not Available |
| 74 | Not Available | Seal Tape | SH-PTPEHA037VBE0 | Not Available |
| 75 | Not Available | Seal Tape | SH-PTPEHA038VBE0 | Not Available |
| 76 | Not Available | Pulley Cover Seal | SH-PTPEHA050VBE0 | Not Available |
| 77 | Not Available | Link Bar | SH-LPLTPA119VBFA | Not Available |
| 78 | Not Available | Suction Duct | SH-PDUC-A008VBFA | Not Available |
| 79 | Not Available | Belt Change Plate Stopper | SH-PGUMSA001VBE0 | Not Available |
| 80 | Not Available | Head Pipe | SH-PPIPPA251VBFA | Not Available |
| 81 | Not Available | Stop Ring | SH-75605 | Not Available |
| 82 | Not Available | Head Seal Tape | SH-PTPEHA049VBE0 | Not Available |
| 83 | Not Available | Valve Seal Tape | SH-PTPEHA052VBE0 | Not Available |

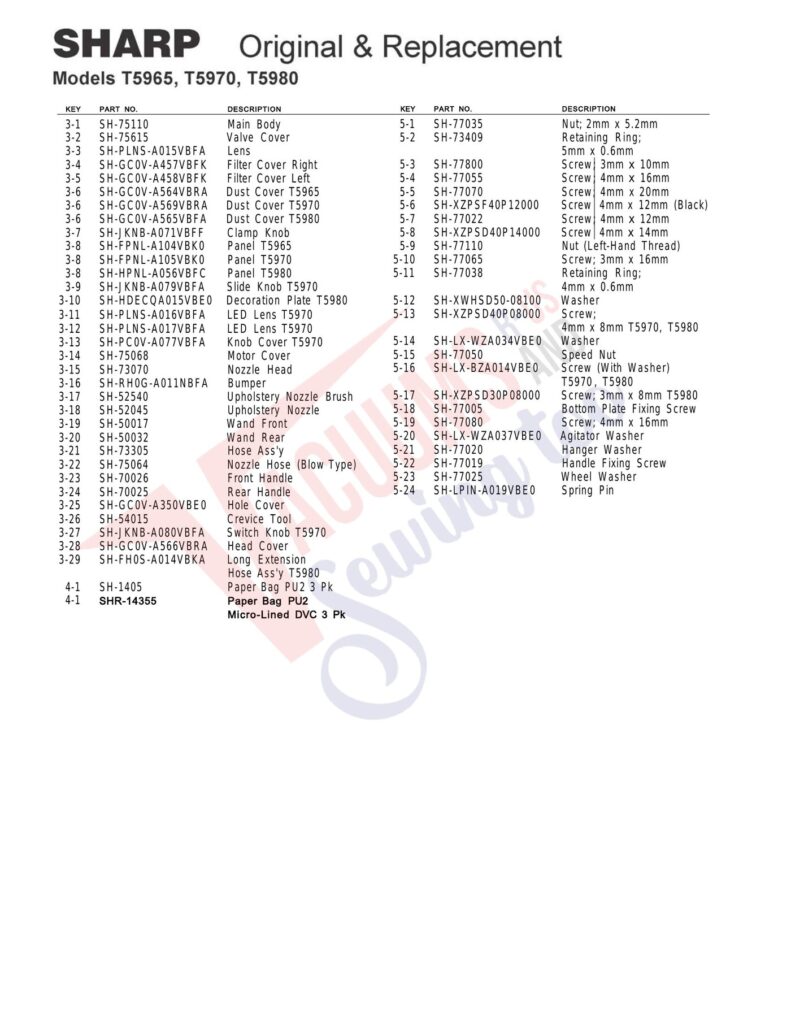

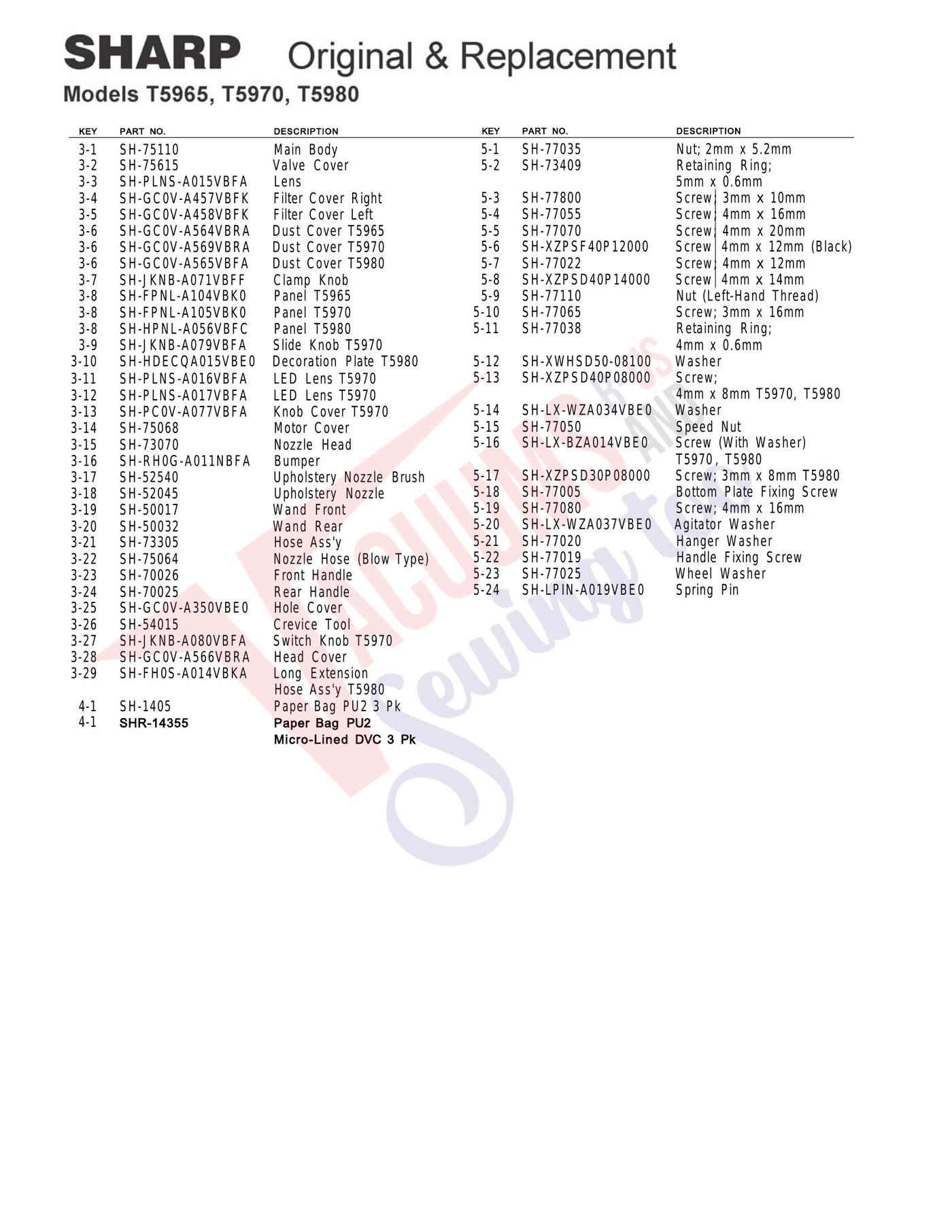

| # | Part image | Description | SKU | Price |
| 1 | Not Available | Main Body 5- | SH-75110 | Not Available |
| 1 | Not Available | Nut; 2mm x 5.2mm | SH-77035 | Not Available |
| 1 | Not Available | Paper Bag PU2 3 Pk | SH-1405 | Not Available |
| 1 | No Image | Paper Bag, DVC Sharp PU2 Microlined 3Pk | SHR-14355 | $8.79Read more |
| 2 | Not Available | Valve Cover 5- | SH-75615 | Not Available |
| 2 | Not Available | Retaining Ring; | SH-73409 | Not Available |
| 3 | Not Available | Lens 5mm x 0.6mm | SH-PLNS-A015VBFA | Not Available |
| 3 | Not Available | Screw ; 3mm x 10mm | SH-77800 | Not Available |
| 4 | Not Available | Filter Cover Right 5- | SH-GC0V-A457VBFK | Not Available |
| 4 | Not Available | Screw ; 4mm x 16mm | SH-77055 | Not Available |
| 5 | Not Available | Filter Cover Left 5- | SH-GC0V-A458VBFK | Not Available |
| 5 | Not Available | Screw ; 4mm x 20mm | SH-77070 | Not Available |
| 6 | Not Available | Dust Cover T5965 5- | SH-GC0V-A564VBRA | Not Available |
| 6 | Not Available | Dust Cover T5970 5- | SH-GC0V-A569VBRA | Not Available |
| 6 | Not Available | Screw 4mm x 12mm (Black) | SH-XZPSF40P12000 | Not Available |
| 6 | Not Available | Dust Cover T5980 5- | SH-GC0V-A565VBFA | Not Available |
| 7 | Not Available | Screw ; 4mm x 12mm | SH-77022 | Not Available |
| 7 | Not Available | Clamp Knob 5- | SH-JKNB-A071VBFF | Not Available |
| 8 | Not Available | Screw 4mm x 14mm | SH-XZPSD40P14000 | Not Available |
| 8 | Not Available | Panel T5965 5- | SH-FPNL-A104VBK0 | Not Available |
| 8 | Not Available | Panel T5970 5- | SH-FPNL-A105VBK0 | Not Available |
| 8 | Not Available | Panel T5980 5- | SH-HPNL-A056VBFC | Not Available |
| 9 | Not Available | Nut (Left-Hand Thread) | SH-77110 | Not Available |
| 9 | Not Available | Slide Knob T5970 4mm x 0.6mm | SH-JKNB-A079VBFA | Not Available |
| 10 | Not Available | Screw; 3mm x 16mm | SH-77065 | Not Available |
| 10 | Not Available | Decoration Plate T5980 5- | SH-HDECQA015VBE0 | Not Available |
| 11 | Not Available | Retaining Ring; | SH-77038 | Not Available |
| 11 | Not Available | LED Lens T5970 5- | SH-PLNS-A016VBFA | Not Available |
| 12 | Not Available | Washer | SH-XWHSD50-08100 | Not Available |
| 12 | Not Available | LED Lens T5970 4mm x 8mm T5970 T5980 | SH-PLNS-A017VBFA | Not Available |
| 13 | Not Available | Screw; | SH-XZPSD40P08000 | Not Available |
| 13 | Not Available | Knob Cover T5970 5- | SH-PC0V-A077VBFA | Not Available |
| 14 | Not Available | Washer | SH-LX-WZA034VBE0 | Not Available |
| 14 | Not Available | Motor Cover 5- | SH-75068 | Not Available |
| 15 | Not Available | Speed Nut | SH-77050 | Not Available |
| 15 | Not Available | Nozzle Head 5- | SH-73070 | Not Available |
| 16 | Not Available | Screw (With Washer) | SH-LX-BZA014VBE0 | Not Available |
| 16 | Not Available | Bumper T5970 T5980 | SH-RH0G-A011NBFA | Not Available |
| 17 | Not Available | Upholstery Nozzle Brush 5- | SH-52540 | Not Available |
| 17 | Not Available | Screw; 3mm x 8mm T5980 | SH-XZPSD30P08000 | Not Available |
| 18 | Not Available | Upholstery Nozzle 5- | SH-52045 | Not Available |
| 18 | Not Available | Bottom Plate Fixing Screw | SH-77005 | Not Available |
| 19 | Not Available | Wand Front 5- | SH-50017 | Not Available |
| 19 | Not Available | Screw; 4mm x 16mm | SH-77080 | Not Available |
| 20 | Not Available | Wand Rear 5- | SH-50032 | Not Available |
| 20 | Not Available | Agitator Washer | SH-LX-WZA037VBE0 | Not Available |
| 21 | Not Available | Hose Ass'y 5- | SH-73305 | Not Available |
| 21 | Not Available | Hanger Washer | SH-77020 | Not Available |
| 22 | Not Available | Nozzle Hose (Blow Type) 5- | SH-75064 | Not Available |
| 22 | Not Available | Handle Fixing Screw | SH-77019 | Not Available |
| 23 | Not Available | Front Handle 5- | SH-70026 | Not Available |
| 23 | Not Available | Wheel Washer | SH-77025 | Not Available |
| 24 | Not Available | Rear Handle 5- | SH-70025 | Not Available |
| 24 | Not Available | Spring Pin | SH-LPIN-A019VBE0 | Not Available |
| 25 | Not Available | Hole Cover | SH-GC0V-A350VBE0 | Not Available |
| 26 | Not Available | Crevice Tool | SH-54015 | Not Available |
| 27 | Not Available | Switch Knob T5970 | SH-JKNB-A080VBFA | Not Available |
| 28 | Not Available | Head Cover | SH-GC0V-A566VBRA | Not Available |
| 29 | Not Available | Long Extension | SH-FH0S-A014VBKA | Not Available |
Report errors on this page HERE
