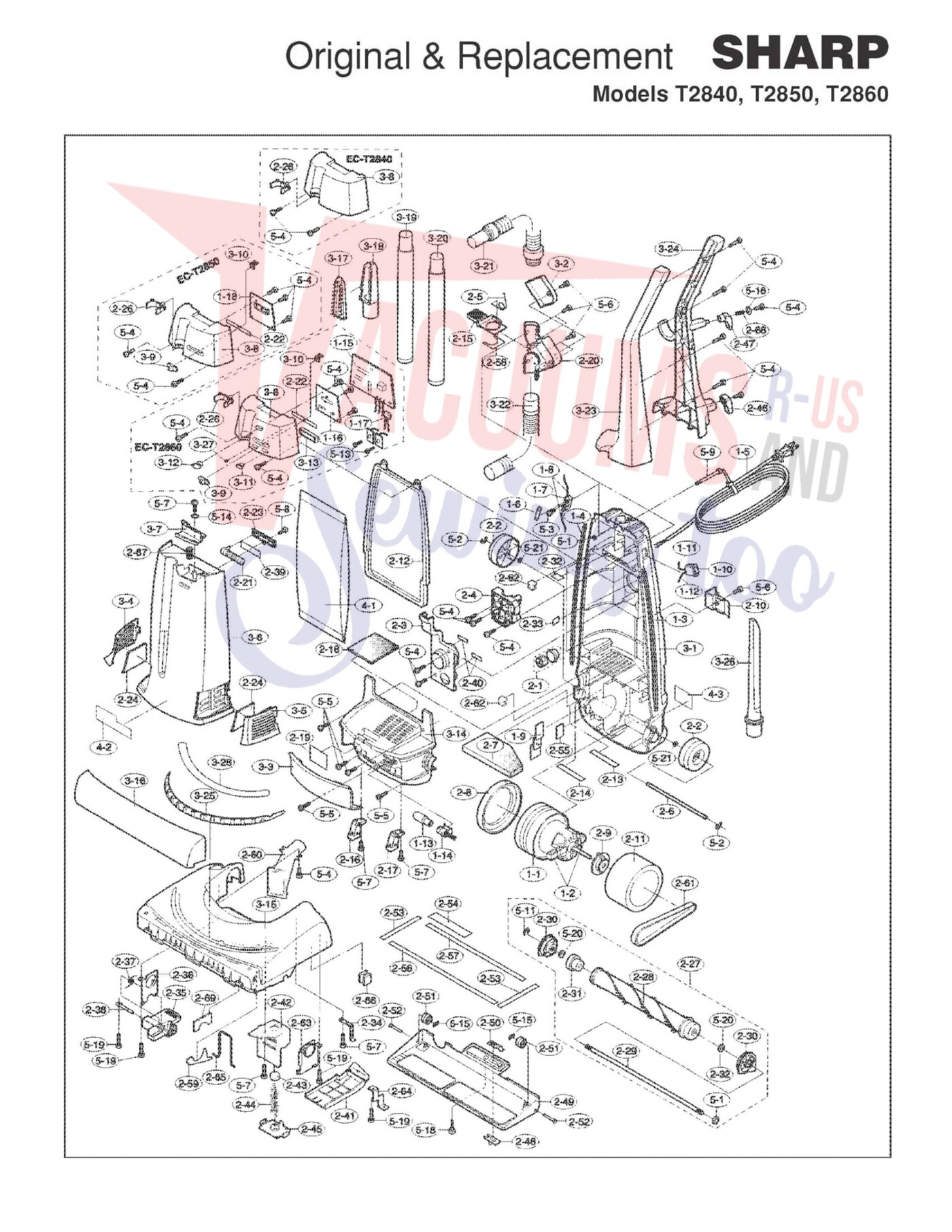

Schematic and parts book for Sharp T2860 . Repairs should be done by trained technicians. Vacuums R Us & Sewing Too provides vacuum cleaner and carpet cleaner parts and accessories for vacuum cleaner repair purposes. We are committed to delivering high-quality components, but it is important to note that all appliance repairs involve risks, and we cannot guarantee the outcome of your repair. When using our vacuum parts for repairs, you accept the terms and conditions HERE
| # | Part image | Description | SKU | Price |
| XX | Not Available | Bottom Plate Ass'y | SH-76126 | Not Available |
| XX | Not Available | Clamp Knob | JKNB-A071VBFB | Not Available |
| 1 | Not Available | Motor Ass'y 2- | SH-60045 | Not Available |
| 1 | Not Available | Air Valve Ass'y 2- | SH-FVLV-A016VBK0 | Not Available |
| 1 | Not Available | Main Body | SH-75110 | Not Available |
| 2 | Not Available | Carbon Brush 2- | SH-63017 | Not Available |
| 2 | Not Available | Wheel 2- | SH-71002 | Not Available |
| 2 | Not Available | Valve Cover | SH-75615 | Not Available |
| 3 | Not Available | Motor Lead Wire 2- | SH-36000 | Not Available |
| 3 | Not Available | Sensor Cover 2- | SH-GC0V-A455VBFA | Not Available |
| 3 | Not Available | Lens | SH-PLNS-A015VBFA | Not Available |
| 4 | Not Available | Circuit Lead Wire T2850 T2860 2- | SH-QW-VZA373VBE0 | Not Available |
| 4 | Not Available | Handle Mounting Base 2- | SH-LPLT-A066VBF0 | Not Available |
| 4 | Not Available | Filter Cover Right | SH-75115 | Not Available |
| 5 | Not Available | Power Cord T2840 2- | SH-FACC-A054VBE0 | Not Available |
| 5 | Not Available | Power Cord T2850 T2860 2- | SH-FACC-A055VBE0 | Not Available |
| 5 | Not Available | Valve Spring 2- | SH-MSPRCA195VBN0 | Not Available |
| 5 | Not Available | Filter Cover Left | SH-GC0V-A458VBFF | Not Available |
| 6 | Not Available | Fuse 2- | SH-36036 | Not Available |
| 6 | Not Available | Wheel Shaft 2- | SH-71005 | Not Available |
| 6 | Not Available | Dust Cover | SH-GC0V-A480VBFB | Not Available |
| 7 | Not Available | Fuse Holder 2- | SH-QFSHDA002VBE0 | Not Available |
| 7 | Not Available | Secondary Filter T2840 T2850 T2860 2- | SH-18042 | Not Available |
| 7 | Not Available | Clamp Knob | SH-JKNB-A071VBFB | Not Available |
| 8 | Not Available | Lead Wire (Fuse holder) 2- | SH-QW-VZA383VBE0 | Not Available |
| 8 | Not Available | Vibration Proof Rubber 2- | SH-76015 | Not Available |
| 8 | Not Available | Panel T2840 | SH-HPNL-A054VBFA | Not Available |
| 8 | Not Available | Panel T2850 | SH-HPNL-A048VBRB | Not Available |
| 8 | Not Available | Panel T2860 | SH-HPNL-A049VBRB | Not Available |
| 9 | Not Available | Triac PWB Ass'y T2850 2- | SH-FPWB-A109VBK0 | Not Available |
| 9 | Not Available | Triac PWB Ass'y T2860 2- | SH-FPWB-A112VBK0 | Not Available |
| 9 | Not Available | Vibration Proof Fix Rubber 2- | SH-PGUMMA158VBE0 | Not Available |
| 9 | Not Available | Slide Knob | SH-75027 | Not Available |
| 10 | Not Available | Switch 2- | SH-34007 | Not Available |
| 10 | Not Available | Pipe Clamp 2- | SH-70771 | Not Available |
| 10 | Not Available | Indicator plate | SH-75028 | Not Available |
| 11 | Not Available | Lead Wire 2- | SH-QW-VZA381VBE0 | Not Available |
| 11 | Not Available | Sound Proof Sponge 2- | SH-PMUF-A044VBE0 | Not Available |
| 11 | Not Available | LED Lens (Auto Ind) T2860 | SH-PLNS-A016VBFA | Not Available |
| 12 | Not Available | Lead Wire 2- | SH-QW-VZA382VBE0 | Not Available |
| 12 | Not Available | Body Packing 2- | SH-PPACGA066VBFA | Not Available |
| 12 | Not Available | LED Lens (Dirt Ind) T2860 | SH-PLNS-A017VBFA | Not Available |
| 13 | Not Available | Lamp 2- | SH-35000 | Not Available |
| 13 | Not Available | Seal Tape 2- | SH-PTPEHA029VBE0 | Not Available |
| 13 | Not Available | Knob Cover T2860 | SH-PC0V-A077VBFA | Not Available |
| 14 | Not Available | Lamp Socket 2- | SH-QSOC-A004VBE0 | Not Available |
| 14 | Not Available | Seal Tape 2- | SH-PTPEHA030VBE0 | Not Available |
| 14 | Not Available | Motor Cover | SH-75094 | Not Available |
| 15 | Not Available | Power Control PWB Ass'y T2860 2- | SH-FPWB-A111VBK0 | Not Available |
| 15 | Not Available | Valve 2- | SH-75600 | Not Available |
| 15 | Not Available | Nozzle Head | SH-73055 | Not Available |
| 16 | Not Available | Indicate PWB Ass'y T2860 | SH-FPWB-A114VBK0 | Not Available |
| 16 | Not Available | Leg Ass'y Left 2- | SH-75168 | Not Available |
| 16 | Not Available | Bumper | SH-RH0G-A010VBFA | Not Available |
| 17 | Not Available | Sensor PWB Ass'y T2860 2- | SH-FPWB-A115VBK0 | Not Available |
| 17 | Not Available | Leg Ass'y Right 2- | SH-75169 | Not Available |
| 17 | Not Available | Nozzle Brush | SH-52540 | Not Available |
| 18 | Not Available | Power Control PWB Ass'y T2850 2- | SH-FPWB-A108VBK0 | Not Available |
| 18 | Not Available | Clean Filter 2- | SH-18055 | Not Available |
| 18 | Not Available | Upholstery Nozzle | SH-52050 | Not Available |
| 19 | Not Available | Reflection Plate 3- | SH-PTPE-A172VBE0 | Not Available |
| 19 | Not Available | Extension Pipe (Front/Red) | SH-50035 | Not Available |
| 20 | Not Available | Valve Cover 3- | SH-75610 | Not Available |
| 20 | Not Available | Extension Pipe (Rear/Gray) | SH-50032 | Not Available |
| 21 | Not Available | Dust Meter Ass'y T2850 T2860 3- | SH-75135 | Not Available |
| 21 | Not Available | Hose Assy | SH-73305 | Not Available |
| 22 | Not Available | Knob Sheet T2850 T2860 3- | SH-PSHT-A022VBE0 | Not Available |
| 23 | Not Available | Indicator Cover T2850 3- | SH-GC0V-A459VBFC | Not Available |
| 24 | Not Available | Exhaust Hepa Type Filter 3- | SH-18012 | Not Available |
| 26 | Not Available | Panel Holder 3- | SH-PHLD-A010VBFB | Not Available |
| 27 | Not Available | Agitator Ass'y 3- | SH-20269 | Not Available |
| 28 | Not Available | Agitator Rotor Ass'y 3- | SH-FRTR-A008VBK0 | Not Available |
| 29 | Not Available | Agitator Shaft 3- | SH-20509 | Not Available |
| 30 | Not Available | Agitator Support 3- | SH-20528 | Not Available |
| 31 | Not Available | Bearing Holder Ass'y 3- | SH-FRTR-A009VBK0 | Not Available |
| 32 | Not Available | Seal Tape 3- | SH-PTPEHA037VBE0 | Not Available |
| 33 | Not Available | Seal Tape 3- | SH-PTPEHA038VBE0 | Not Available |
| 34 | Not Available | Belt Stopper | SH-LPLT-A032VBM0 | Not Available |
| 35 | Not Available | Pedal | SH-73417 | Not Available |
| 36 | Not Available | Pedal Support | SH-LANG-A057VBM0 | Not Available |
| 37 | Not Available | Pedal Spring | SH-MSPRCA168VBN0 | Not Available |
| 38 | Not Available | Pedal Shaft | SH-73481 | Not Available |
| 39 | Not Available | Seal Tape | SH-PTPEHA036VBE0 | Not Available |
| 40 | Not Available | Seal Tape T2850 | SH-PTPEHA031VBE0 | Not Available |
| 40 | Not Available | Seal Tape T2860 | SH-PTPEHA039VBE0 | Not Available |
| 41 | Not Available | Belt Cover | SH-73449 | Not Available |
| 42 | Not Available | Valve Case | SH-PCAS-A028VBFA | Not Available |
| 43 | Not Available | Head Valve | SH-PVLVAA012VBFA | Not Available |
| 44 | Not Available | Valve Spring | SH-MSPRCA212VBP0 | Not Available |
| 45 | Not Available | Valve Cover | SH-PC0V-A081VBFA | Not Available |
| 46 | Not Available | Cord Hook Bottom | SH-70785 | Not Available |
| 47 | Not Available | Cord Hook Top | SH-70786 | Not Available |
| 48 | Not Available | Bottom Plate Knob | SH-73525 | Not Available |
| 49 | Not Available | Bottom Plate Only | SH-76125 | Not Available |
| 50 | Not Available | Bottom Plate Spring (Knob) | SH-77014 | Not Available |
| 51 | Not Available | Roller | SH-73432 | Not Available |
| 52 | Not Available | Roller Shaft | SH-73431 | Not Available |
| 53 | Not Available | Seal Tape | SH-76021 | Not Available |
| 54 | Not Available | Seal Tape | SH-76027 | Not Available |
| 55 | Not Available | Seal Tape | SH-PTPEHA005VBE0 | Not Available |
| 56 | Not Available | Seal Tape | SH-76020 | Not Available |
| 57 | Not Available | Seal Tape | SH-76028 | Not Available |
| 58 | Not Available | Seal Tape | SH-76080 | Not Available |
| 59 | Not Available | Head Shelter Plate | SH-LPLT-A095VBK0 | Not Available |
| 60 | Not Available | Head Pipe | SH-PPIPPA234VBFA | Not Available |
| 61 | Not Available | Flat Belt 2 Pk | SH-10150 | Not Available |
| 62 | Not Available | Body Packing | SH-75145 | Not Available |
| 63 | Not Available | Body Support (Metal) | SH-LANGFA061VBM0 | Not Available |
| 64 | Not Available | Belt Stopper | SH-LPLT-A074VBM0 | Not Available |
| 65 | Not Available | Belt Guide Pin | SH-73455 | Not Available |
| 66 | Not Available | Stopper Rubber | SH-PSEL-A032VBE0 | Not Available |
| 67 | Not Available | Clamp Spring | SH-MSPRCA196VBE0 | Not Available |
| 68 | Not Available | Spring For Cord Hanger | SH-70500 | Not Available |
| 69 | Not Available | H-felt | SH-PFLT-A118VBE0 | Not Available |

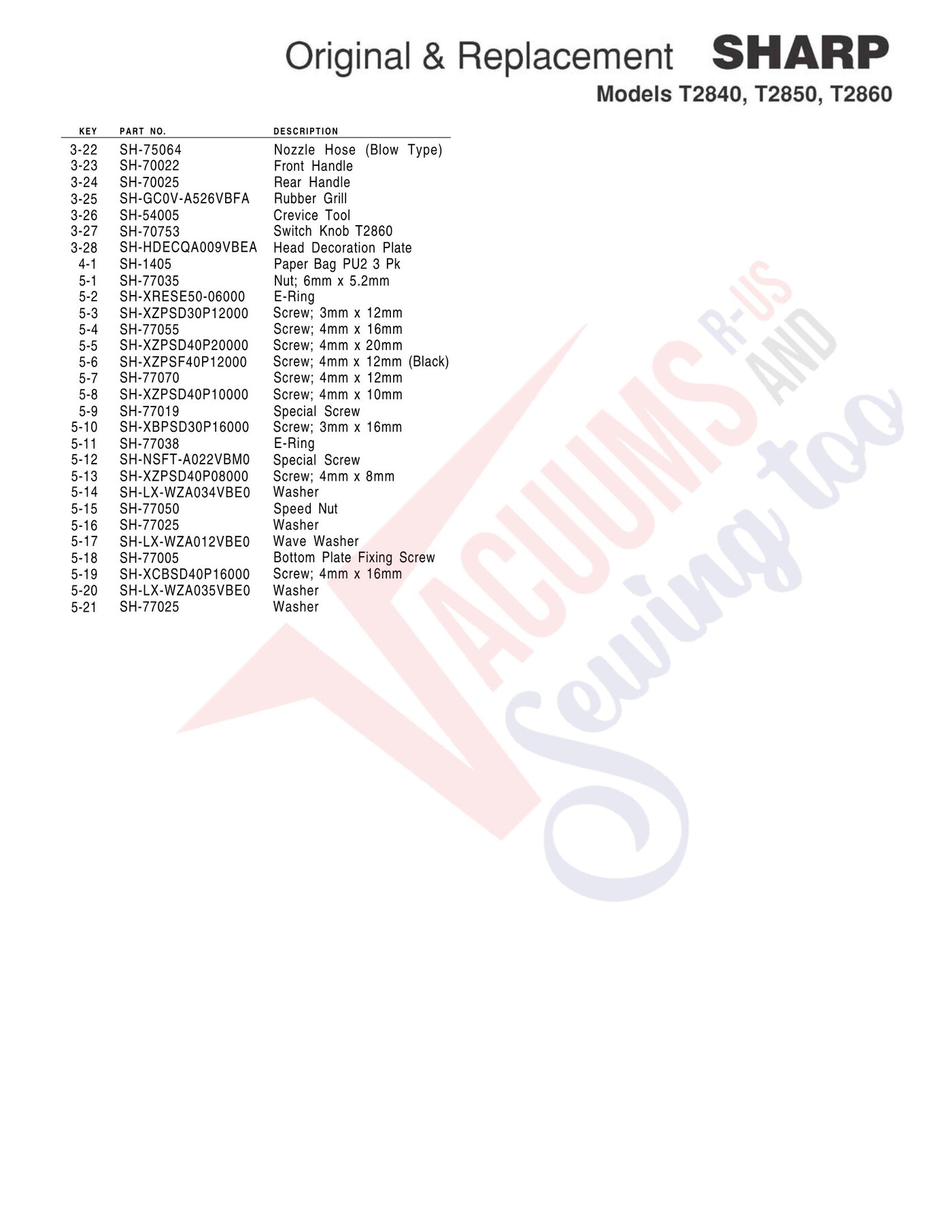

| # | Part image | Description | SKU | Price |
| 1 | Not Available | Paper Bag PU2 3 Pk | SH-1405 | Not Available |
| 1 | Not Available | Nut; 6mm x 5.2mm | SH-77035 | Not Available |
| 2 | Not Available | E-Ring | SH-XRESE50-06000 | Not Available |
| 3 | Not Available | Screw; 3mm x 12mm | SH-XZPSD30P12000 | Not Available |
| 4 | Not Available | Screw; 4mm x 16mm | SH-77055 | Not Available |
| 5 | Not Available | Screw; 4mm x 20mm | SH-XZPSD40P20000 | Not Available |
| 6 | Not Available | Screw; 4mm x 12mm (Black) | SH-XZPSF40P12000 | Not Available |
| 7 | Not Available | Screw; 4mm x 12mm | SH-77070 | Not Available |
| 8 | Not Available | Screw; 4mm x 10mm | SH-XZPSD40P10000 | Not Available |
| 9 | Not Available | Special Screw | SH-77019 | Not Available |
| 10 | Not Available | Screw; 3mm x 16mm | SH-XBPSD30P16000 | Not Available |
| 11 | Not Available | E-Ring | SH-77038 | Not Available |
| 12 | Not Available | Special Screw | SH-NSFT-A022VBM0 | Not Available |
| 13 | Not Available | Screw; 4mm x 8mm | SH-XZPSD40P08000 | Not Available |
| 14 | Not Available | Washer | SH-LX-WZA034VBE0 | Not Available |
| 15 | Not Available | Speed Nut | SH-77050 | Not Available |
| 16 | Not Available | Washer | SH-77025 | Not Available |
| 17 | Not Available | Wave Washer | SH-LX-WZA012VBE0 | Not Available |
| 18 | Not Available | Bottom Plate Fixing Screw | SH-77005 | Not Available |
| 19 | Not Available | Screw; 4mm x 16mm | SH-XCBSD40P16000 | Not Available |
| 20 | Not Available | Washer | SH-LX-WZA035VBE0 | Not Available |
| 21 | Not Available | Washer | SH-77025 | Not Available |
| 22 | Not Available | Nozzle Hose (Blow Type) | SH-75064 | Not Available |
| 23 | Not Available | Front Handle | SH-70022 | Not Available |
| 24 | Not Available | Rear Handle | SH-70025 | Not Available |
| 25 | Not Available | Rubber Grill | SH-GC0V-A526VBFA | Not Available |
| 26 | Not Available | Crevice Tool | SH-54005 | Not Available |
| 27 | Not Available | Switch Knob T2860 | SH-70753 | Not Available |
| 28 | Not Available | Head Decoration Plate | SH-HDECQA009VBEA | Not Available |
