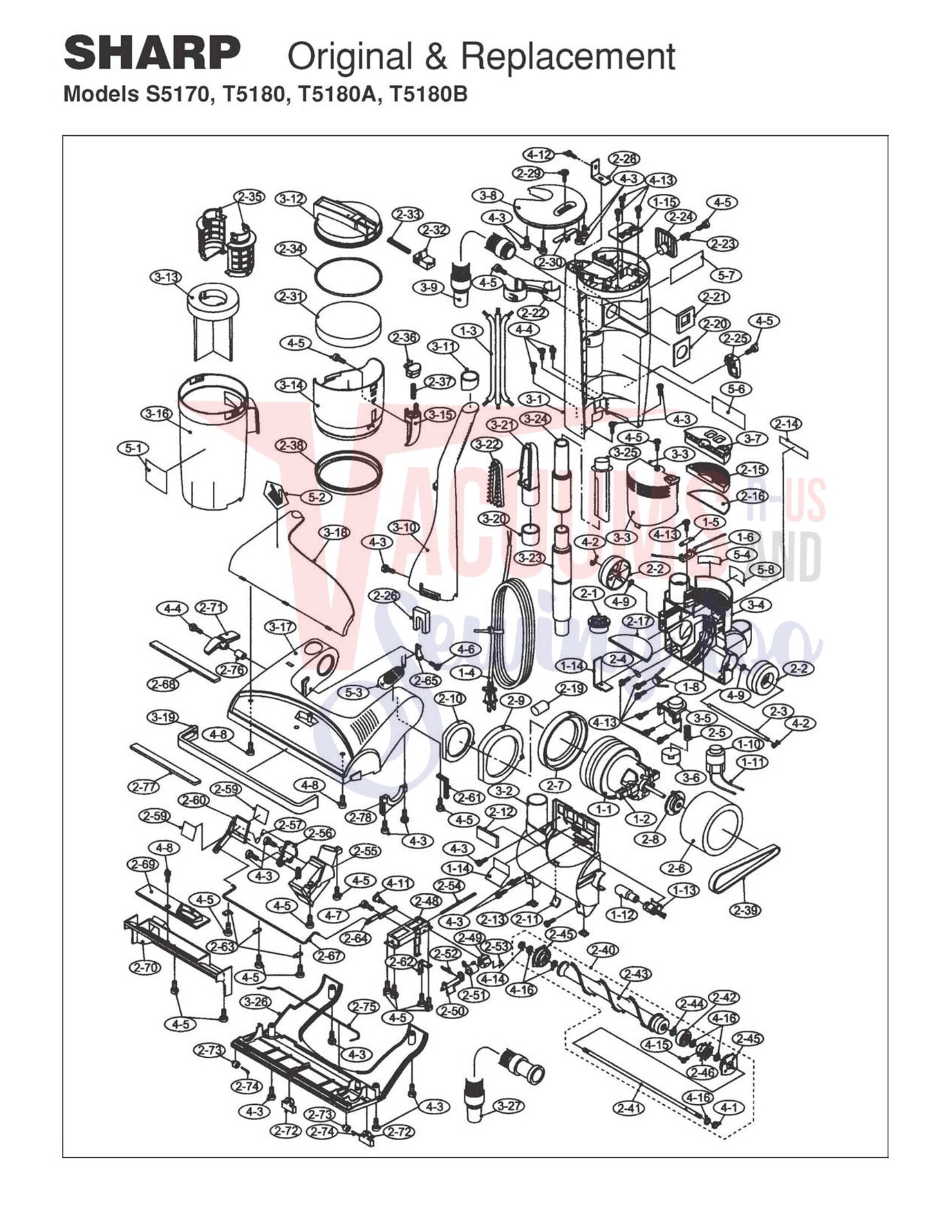

Schematic and parts book for Sharp S5170, T5180, T5180A, T5180B . Repairs should be done by trained technicians. Vacuums R Us & Sewing Too provides vacuum cleaner and carpet cleaner parts and accessories for vacuum cleaner repair purposes. We are committed to delivering high-quality components, but it is important to note that all appliance repairs involve risks, and we cannot guarantee the outcome of your repair. When using our vacuum parts for repairs, you accept the terms and conditions HERE
| # | Part image | Description | SKU | Price |
| XX | Not Available | Lid Clamp | JKNB-A088VBFA | Not Available |
| XX | Not Available | Bin Clamp | JKNB-A089VBFA | Not Available |
| XX | Not Available | Belt Change Support Ass'y | FDAI-A020VBKZ | Not Available |
| XX | Not Available | Belt Change Plate | MLEV-A018VBMZ | Not Available |
| XX | Not Available | Belt Flipping Mechanism Valve | PVLV-A006VBFA | Not Available |
| XX | Not Available | Name Plate T5180B | TSPC-A734VBRZ | Not Available |
| XX | Not Available | Bottom Plate Ass'y | SH-76129 | Not Available |
| 1 | Not Available | Motor Ass'y 2- | NLA | Not Available |
| 1 | Not Available | Motor Ass'y S5170 2- | SH-60045 | Not Available |
| 1 | Not Available | Air Valve Ass'y 2- | SH-75155 | Not Available |
| 1 | Not Available | Air Valve Ass'y S5170 2- | SH-FVLV-A023VBKZ | Not Available |
| 1 | Not Available | Main Body 4- | SH-75123 | Not Available |
| 1 | Not Available | Nut; 6mm x 5.2mm | SH-77035 | Not Available |
| 1 | Not Available | Feature Sticker | SH-TLABMA794VBEZ | Not Available |
| 2 | Not Available | Carbon Brush 2- | SH-63017 | Not Available |
| 2 | Not Available | Wheel 2- | SH-71004 | Not Available |
| 2 | Not Available | Motor Cover Front 4- | SH-75122 | Not Available |
| 2 | Not Available | E-ring | SH-77039 | Not Available |
| 2 | Not Available | Head Label | SH-TLABMA793VBRZ | Not Available |
| 3 | Not Available | Motor Lead Wire 2- | SH-36000 | Not Available |
| 3 | Not Available | Wheel Shaft 2- | SH-71005 | Not Available |
| 3 | Not Available | Lens T5180B 4- | SH-PLNS-A019VBFA | Not Available |
| 3 | Not Available | Screw; 4mm x 16mm | SH-77055 | Not Available |
| 3 | Not Available | Lens S5170 T5180 T5180A 4- | SH-PLNS-A019VBFB | Not Available |
| 3 | Not Available | Head Caution Label | SH-TLABMA798VBEZ | Not Available |
| 4 | Not Available | Power Cord Ass'y 2- | SH-FACC-A094VBEZ | Not Available |
| 4 | Not Available | Power Cord Ass'y S5170 2- | SH-FACC-A095VBEZ | Not Available |
| 4 | Not Available | Cord Hold 2- | SH-LPLT-A132VBEZ | Not Available |
| 4 | Not Available | Screw; 4mm x 20mm | SH-77060 | Not Available |
| 4 | Not Available | Motor Cover 4- | SH-GCOV-A646VBFA | Not Available |
| 4 | Not Available | Fuse Label | SH-TLABMA801VBEZ | Not Available |
| 5 | Not Available | Fuse 2- | SH-36036 | Not Available |
| 5 | Not Available | Switch Spring Cover | SH-MSPRCA258VBNZ | Not Available |
| 5 | Not Available | Screw; 4mm x 12mm | SH-77022 | Not Available |
| 5 | Not Available | Switch Cover 4- | SH-GCOV-A645VBFA | Not Available |
| 5 | Not Available | Indication Label | SH-TLABMA804VBEZ | Not Available |
| 6 | Not Available | Fuse Holder 2- | SH-QFSHDA001VBE0 | Not Available |
| 6 | Not Available | Sound Proof Sponge 2- | SH-PMUF-A072VBEZ | Not Available |
| 6 | Not Available | Screw 4mm x 8mm | SH-XZTSD40P08000 | Not Available |
| 6 | Not Available | Foot Switch Button 4- | SH-JBTN-A156VBFA | Not Available |
| 6 | Not Available | Body Caution Label | SH-TLABMA795VBEZ | Not Available |
| 7 | Not Available | Lead Wire (Fuse holder) 2- | SH-QW-VZA383VBE0 | Not Available |
| 7 | Not Available | Vibration Proof Rubber Spring | SH-PGUMMA159VBE0 | Not Available |
| 7 | Not Available | Screw; 4mm x 8mm | SH-XFTSD40P10000 | Not Available |
| 7 | Not Available | Filter Case 4- | SH-PCOV-A103VBFA | Not Available |
| 7 | Not Available | Carrying Handle Label | SH-TLABMA802VBEZ | Not Available |
| 8 | Not Available | Thermostat 2- | SH-RTHM-A015VBZZ | Not Available |
| 8 | Not Available | Vibration Proof Fix Rubber 2- | SH-76077 | Not Available |
| 8 | Not Available | Screw; 4mm x 10mm | SH-XZPSD40P10000 | Not Available |
| 8 | Not Available | Panel S5170 4- | SH-HPNL-A057VBFA | Not Available |
| 8 | Not Available | Panel T5180 T5180A 4- | SH-HPNL-A060VBRA | Not Available |
| 8 | Not Available | Panel T5180B 4- | SH-HPNL-A060VBRB | Not Available |
| 8 | Not Available | Name Plate S5170 | SH-TSPC-A724VBRZ | Not Available |
| 8 | Not Available | Name Plate T5180 | SH-TSPC-A726VBRZ | Not Available |
| 8 | Not Available | Name Plate T5180A | SH-TSPC-A735VBRZ | Not Available |
| 8 | Not Available | Name Plate T5180B | SH-TSPC-A734VBRZ | Not Available |
| 9 | Not Available | Lead Wire (Thermostat) 2- | SH-QW-VZB005VBZZ | Not Available |
| 9 | Not Available | Motor Shelter Plate S5170 2- | SH-GCOV-A647VBFA | Not Available |
| 9 | Not Available | Wheel Washer | SH-77025 | Not Available |
| 9 | Not Available | Hose Ass'y 4- | SH-FHOS-A023VBKA | Not Available |
| 10 | Not Available | ON/OFF Switch 2- | SH-QSW-PA007VBE0 | Not Available |
| 10 | Not Available | Motor Shelter Plate Packing Valve Seal | SH-PSEL-A048VBFA | Not Available |
| 10 | Not Available | Hanger Washer | SH-LX-WZA040VBEZ | Not Available |
| 10 | Not Available | Handle 4- | SH-70016 | Not Available |
| 11 | Not Available | Lead Wire (ON/OFF Switch) 2- | SH-QW-VZB004VBZZ | Not Available |
| 11 | Not Available | Lens Seal Tape 2- | SH-PTPEHA075VBEZ | Not Available |
| 11 | Not Available | Belt Change Arm Screw | SH-LX-BZA021VBMZ | Not Available |
| 11 | Not Available | Handle Cap 4- | SH-PCAP-A050VBFA | Not Available |
| 12 | Not Available | Bulb 15W (Order SH-20275) | FA-3515 | Not Available |
| 12 | Not Available | Seal Tape 2- | SH-PTPEHA076VBEZ | Not Available |
| 12 | Not Available | Handle Fixing Screw | SH-LX-BZA020VBMZ | Not Available |
| 12 | Not Available | Filter Box Lid 4- | SH-GCOV-A640VBFA | Not Available |
| 13 | Not Available | Lamp Socket 2- | SH-QSOC-A007VBZZ | Not Available |
| 13 | Not Available | Leg Cover 2- | SH-GCOV-A650VBFA | Not Available |
| 13 | Not Available | Screw; 3mm x 10mm | SH-77800 | Not Available |
| 13 | Not Available | Guide Disk T5180B 4- | SH-LPLTPA136VBFA | Not Available |
| 13 | Not Available | Guide Disk 5- | NLA | Not Available |
| 14 | Not Available | Triac PWB Ass'y 2- | SH-FPWB-A145VBKZ | Not Available |
| 14 | Not Available | Filter Case Seal 2- | SH-PTPEHA070VBEZ | Not Available |
| 14 | Not Available | Left-hand Nut | SH-77110 | Not Available |
| 14 | Not Available | Filter Box 5- | SH-GBOX-A004VBJA | Not Available |
| 15 | Not Available | Power Control 2- | SH-36015 | Not Available |
| 15 | Not Available | Exhaust Filter 2- | SH-18067 | Not Available |
| 15 | Not Available | Machine Screw | SH-77065 | Not Available |
| 15 | Not Available | Bin Handle 5- | SH-GHNDPA072VBFA | Not Available |
| 16 | Not Available | Exhaust Filter S5170 2- | SH-18066 | Not Available |
| 16 | Not Available | Agitator Washer | SH-LX-WZA037VBE0 | Not Available |
| 16 | Not Available | Dust Bin T5180B 5- | SH-GYOK-A015VBRA | Not Available |
| 16 | Not Available | Dust Bin 5- | SH-GYOK-A015VBRB | Not Available |
| 17 | Not Available | Clean Filter 2- | SH-18062 | Not Available |
| 17 | Not Available | Nozzle Head 5- | SH-73261 | Not Available |
| 18 | Not Available | Reflection Tape 2- | SH-PTPE-A172VBE0 | Not Available |
| 18 | Not Available | Head CoverT5180B 5- | SH-GCOV-A651VBJA | Not Available |
| 18 | Not Available | Head Cover 5- | SH-GCOV-A651VBJB | Not Available |
| 19 | Not Available | Flame Retardant Cap 2- | SH-PTPE-A264VBEZ | Not Available |
| 19 | Not Available | Bumper | SH-GCOVHA049VBFA | Not Available |
| 20 | Not Available | Body Packing 2- | SH-PSEL-A046VBEZ | Not Available |
| 20 | Not Available | Nozzle Pipe | SH-PPIPPA190VBFH | Not Available |
| 21 | Not Available | Bin Packing 2- | SH-PSEL-A047VBEZ | Not Available |
| 21 | Not Available | Upholstery Nozzle | SH-UCAT-A015VBFH | Not Available |
| 22 | Not Available | Wand Holder 2- | SH-PHAG-A030VBFA | Not Available |
| 22 | Not Available | Upholstery Nozzle Brush | SH-PBRS-A061VBEB | Not Available |
| 23 | Not Available | Cord Hook Spring 2- | SH-70500 | Not Available |
| 23 | Not Available | Out Extension Pipe | SH-PPIPPA163VBFE | Not Available |
| 24 | Not Available | Top Cord Hook 2- | SH-PHAG-A031VBFA | Not Available |
| 24 | Not Available | In Extension Pipe | SH-PPIPPA164VBFC | Not Available |
| 25 | Not Available | Lower Cord Hook 2- | SH-70785 | Not Available |
| 25 | Not Available | Crevice Tool | SH-UCATSA057VBFE | Not Available |
| 26 | Not Available | Reinforcing Plate 2- | SH-LPLTPA139VBFA | Not Available |
| 26 | Not Available | Bottom Plate Only | SH-76104 | Not Available |
| 27 | Not Available | Stop Ring Seal Tape | SH-75605 | Not Available |
| 27 | Not Available | Optional Hose Ass'y | SH-FHOS-A024VBKA | Not Available |
| 28 | Not Available | Handle Support 2- | SH-LANGFA068VBWZ | Not Available |
| 29 | Not Available | Slide Knob | SH-JKNB-A092VBFA | Not Available |
| 30 | Not Available | Indicating Plate | SH-75151 | Not Available |
| 31 | Not Available | Main Filter | SH-18065 | Not Available |
| 32 | Not Available | Lid Clamp | SH-JKNB-A088VBFA | Not Available |
| 33 | Not Available | Lid Clamp Spring | SH-MSPRCA255VBNZ | Not Available |
| 34 | Not Available | Lid Packing | SH-PPACGA126VBFA | Not Available |
| 35 | Not Available | Net Filter (2 Req'd) | SH-18061 | Not Available |
| 36 | Not Available | Bin Clamp | SH-JKNB-A089VBFA | Not Available |
| 37 | Not Available | Clamp Spring | SH-MSPRCA279VBNZ | Not Available |
| 38 | Not Available | Filter Box Packing | SH-PPACGA127VBFA | Not Available |
| 39 | Not Available | Flat Belt 2 Pk | SH-10150 | Not Available |
| 39 | Not Available | Flat Belt | SHR-1000 | Not Available |
| 40 | Not Available | Agitator Ass'y | SH-20275 | Not Available |
| 41 | Not Available | Agitator Shaft Ass'y | SH-20504 | Not Available |
| 42 | Not Available | Idler Pulley Ass'y | SH-FPLYBA005VBKZ | Not Available |
| 43 | Not Available | Agitator Core | SH-FRTR-A020VBKZ | Not Available |
| 44 | Not Available | Pulley Spacer | SH-20503 | Not Available |
| 45 | Not Available | Agitator Support | NLA | Not Available |
| 46 | Not Available | Brush Rotor Pulley End | SH-20538 | Not Available |
| 47 | Not Available | Brush Rotor | SH-NRTR-A014VBFA | Not Available |
| 48 | Not Available | Belt Change Support Ass'y | SH-FDAI-A020VBKZ | Not Available |
| 49 | Not Available | Belt Change Lever | SH-MARMPA001VBFA | Not Available |
| 50 | Not Available | Belt Change Plate | SH-MLEV-A018VBMZ | Not Available |
| 51 | Not Available | Belt Change Hook | SH-MLEVPA019VBFA | Not Available |
| 52 | Not Available | Belt Change Plate Spring | SH-MSPRCA262VBNZ | Not Available |
| 53 | Not Available | Belt Change Lever Spring | SH-MSPRDA004VBNZ | Not Available |
| 54 | Not Available | Belt Change Lever Shaft | SH-NSFT-A031VBMZ | Not Available |
| 55 | Not Available | Belt Flipping Mechanism Body | SH-GBDY-A064VBFA | Not Available |
| 56 | Not Available | Belt Flipping Mechanism | SH-GCOV-A639VBFA | Not Available |
| 57 | Not Available | Belt Flipping Mechanism | SH-MSPRDA003VBNZ | Not Available |
| 58 | Not Available | Belt Flipping Mechanism Ring | SH-PRNG-A064VBEZ | Not Available |
| 59 | Not Available | Belt Flipping Mechanism | SH-PTPEHA064VBEZ | Not Available |
| 60 | Not Available | Belt Flipping Mechanism Valve | SH-PVLV-A006VBFA | Not Available |
| 61 | Not Available | Belt Stopper | SH-LPLT-A122VBMZ | Not Available |
| 62 | Not Available | Belt Stopper | SH-LPLT-A125VBMZ | Not Available |
| 63 | Not Available | Link Bar Washer | SH-LX-WZA039VBEZ | Not Available |
| 64 | Not Available | Belt Change Arm | SH-MLEVFA009VBMZ | Not Available |
| 65 | Not Available | Head Lock Hook | SH-MLEVPA018VBFA | Not Available |
| 66 | Not Available | Head Lock Spring | SH-MSPRCA257VBNZ | Not Available |
| 67 | Not Available | Link Bar | SH-NSFT-A032VBMZ | Not Available |
| 68 | Not Available | Seal Tape | SH-PTPEHA071VBEZ | Not Available |
| 69 | Not Available | Main Duct Cover | SH-GCOV-A649VBFA | Not Available |
| 70 | Not Available | Main Duct | SH-PDUC-A024VBFA | Not Available |
| 71 | Not Available | Belt Flipping Mechanism Lever | SH-JKNB-A086VBFA | Not Available |
| 72 | Not Available | Bottom Pad | SH-76041 | Not Available |
| 73 | Not Available | Roller | SH-73438 | Not Available |
| 74 | Not Available | Roller Shaft | SH-73439 | Not Available |
| 75 | Not Available | Bottom Plate Seal Tape | SH-76039 | Not Available |
| 76 | Not Available | Belt Flipping Mechanism Ring | SH-PRNG-A064VBEZ | Not Available |
| 77 | Not Available | Belt Flipping Mechanism | SH-PTPEHA074VBEZ | Not Available |
| 78 | Not Available | Body Support | SH-LANGFA067VBFA | Not Available |
Report errors on this page HERE
