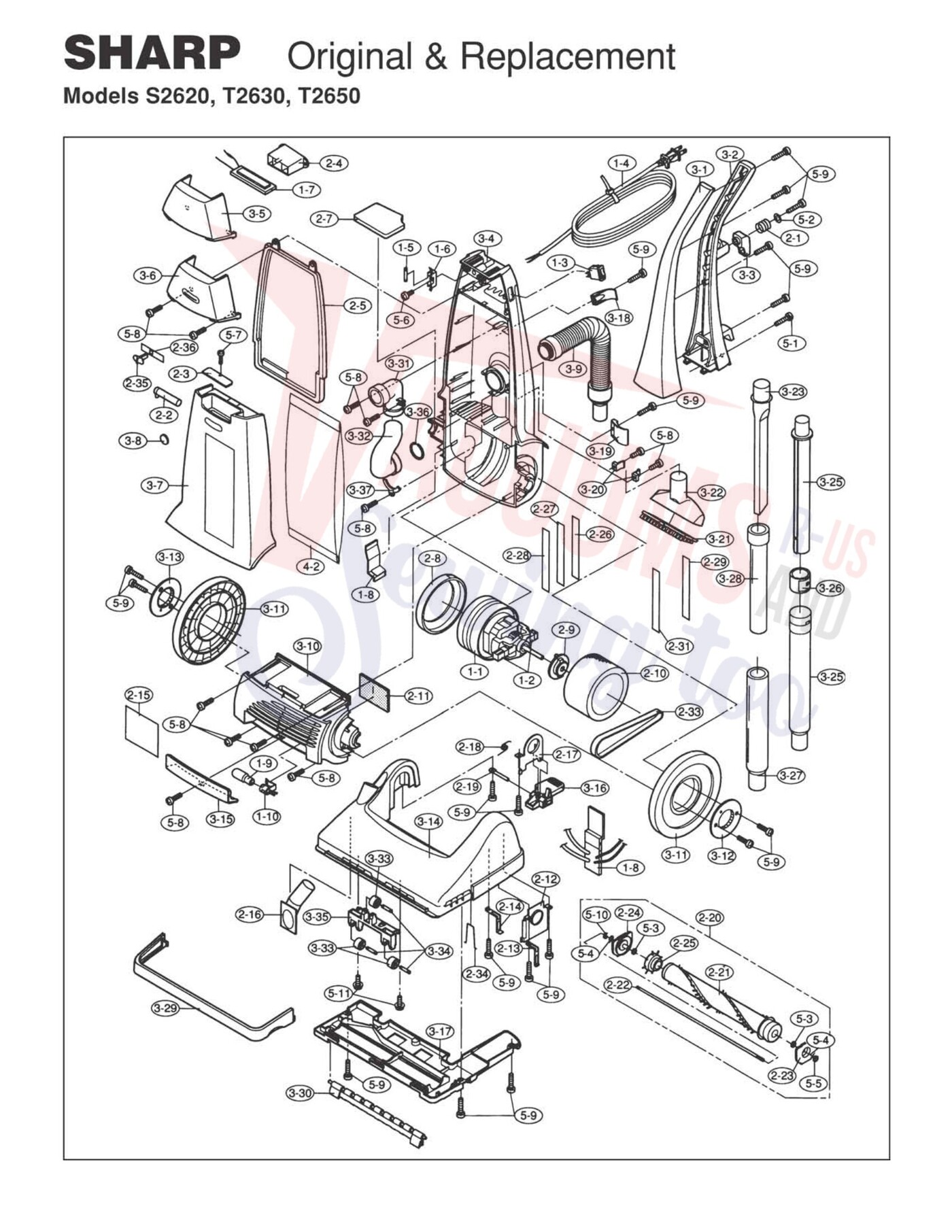

Schematic and parts book for Sharp S2620, T2630, T2650 . Repairs should be done by trained technicians. Vacuums R Us & Sewing Too provides vacuum cleaner and carpet cleaner parts and accessories for vacuum cleaner repair purposes. We are committed to delivering high-quality components, but it is important to note that all appliance repairs involve risks, and we cannot guarantee the outcome of your repair. When using our vacuum parts for repairs, you accept the terms and conditions HERE
| # | Part image | Description | SKU | Price |
| 1 | Not Available | Motor Ass'y S2620 3- | SH-60035 | Not Available |
| 1 | Not Available | Motor Ass'y T2630 T2650 3- | SH-60032 | Not Available |
| 1 | Not Available | Spring For Cord Hanger 3- | SH-70500 | Not Available |
| 1 | Not Available | Handle Fixing Screw | SH-77018 | Not Available |
| 1 | Not Available | Front Handle S2620 5- | SH-70019 | Not Available |
| 1 | Not Available | Front Handle T2630 5- | SH-70017 | Not Available |
| 1 | Not Available | Front Handle T2650 5- | SH-70018 | Not Available |
| 1 | Not Available | Screw; 4mm x 12mm | SH-XZPSD40P12WS0 | Not Available |
| 2 | Not Available | Carbon Brush S2620 3- | SH-63017 | Not Available |
| 2 | Not Available | Carbon Brush T2630 T2650 3- | SH-63015 | Not Available |
| 2 | Not Available | Dust Indicator Ass'y T2650 3-1 | SH-75135 | Not Available |
| 2 | Not Available | Wheel Cover Left | SH-71010 | Not Available |
| 2 | Not Available | Paper Bag PU2 3 Pk | SH-1405 | Not Available |
| 2 | Not Available | Washer | SH-77020 | Not Available |
| 2 | Not Available | Rear Handle 5- | SH-70015 | Not Available |
| 3 | Not Available | Switch 3- | SH-34007 | Not Available |
| 3 | Not Available | Dust Indicator Cover T2650 3-1 | SH-GC0V-A399VBFA | Not Available |
| 3 | Not Available | Wheel Cover Right | SH-71011 | Not Available |
| 3 | Not Available | Washer | SH-LX-WZA028VBE0 | Not Available |
| 3 | Not Available | Cord Hook Top 5- | SH-70756 | Not Available |
| 4 | Not Available | Main Body | SH-75112 | Not Available |
| 4 | Not Available | Power Cord Ass'y S2620 3- | SH-FACC-A052VBE0 | Not Available |
| 4 | Not Available | Power Cord Ass'y T2630 3- | SH-FACC-A053VBE0 | Not Available |
| 4 | Not Available | Power Cord Ass'y T2650 3- | SH-30001 | Not Available |
| 4 | Not Available | Volume Angle T2650 3-1 | SH-LANG-A052VBF0 | Not Available |
| 4 | Not Available | Nozzle Head S2620 | SH-73036 | Not Available |
| 4 | Not Available | Nozzle Head T2630 | SH-73037 | Not Available |
| 4 | Not Available | Nozzle Head T2650 | SH-73035 | Not Available |
| 4 | Not Available | Washer: 6mm x 1.5mm | SH-XWWSD60-15000 | Not Available |
| 5 | Not Available | Panel S2620 | SH-HPNL-A044VBFA | Not Available |
| 5 | Not Available | Panel T2630 | SH-HPNL-A044VBFB | Not Available |
| 5 | Not Available | Fuse 3- | SH-36036 | Not Available |
| 5 | Not Available | Body Packing 3-1 | SH-PSEL-A026VBE0 | Not Available |
| 5 | Not Available | Nut: 6mm x 5.2mm | SH-77035 | Not Available |
| 6 | Not Available | Panel T2650 | SH-HPNL-A045VBRC | Not Available |
| 6 | Not Available | Fuse Holder 3- | SH-QFSHDA001VBE0 | Not Available |
| 6 | Not Available | Screw; 3mm x 10mm | SH-77800 | Not Available |
| 7 | Not Available | Dust Cover S2620 | SH-GC0V-A397VBRA | Not Available |
| 7 | Not Available | Dust Cover T2630 | SH-GC0V-A398VBRA | Not Available |
| 7 | Not Available | Dust Cover T2650 | SH-GC0V-A400VBRA | Not Available |
| 7 | Not Available | Panel PWB Ass'y T2650 3- | FPWB-A099VBK0 | Not Available |
| 7 | Not Available | Secondary Micron Filter 3-1 | NLA | Not Available |
| 7 | Not Available | Bottom Plate | SH-76120 | Not Available |
| 7 | Not Available | Screw; 4mm x 10mm T2650 | SH-XZPSD40P10000 | Not Available |
| 8 | Not Available | Gate Cover S2620 | SH-GC0V-A401VBFA | Not Available |
| 8 | Not Available | Gate Cover T2630 | SH-GC0V-A401VBFB | Not Available |
| 8 | Not Available | Gate Cover T2650 | SH-GC0V-A401VBFE | Not Available |
| 8 | Not Available | Triac Ass'y T2650 3-1 | FPWB-A100VBK0 | Not Available |
| 8 | Not Available | Vibration Proof Rubber 3- | SH-PGUMMA182VBE0 | Not Available |
| 8 | Not Available | Vibration Proof Rubber 3-1 | SH-PGUMMA183VBE0 | Not Available |
| 8 | Not Available | Hose Clamp | SH-70775 | Not Available |
| 8 | Not Available | Screw; 4mm x 12mm | SH-77022 | Not Available |
| 9 | Not Available | Hose Ass'y | SH-73306 | Not Available |
| 9 | Not Available | Bulb 15W 3-1 | FA-3515 | Not Available |
| 9 | Not Available | Vibration Proof Fixing Rubber 3-1 | SH-76077 | Not Available |
| 9 | Not Available | Pipe Clamp | SH-70776 | Not Available |
| 9 | Not Available | Screw; 4mm x 16mm | SH-77055 | Not Available |
| 10 | Not Available | Lamp Socket 3-1 | SH-QS0C-A004VBE0 | Not Available |
| 10 | Not Available | Sound Proof Sponge 3- | SH-PMUF-A054VBE0 | Not Available |
| 10 | Not Available | E-Clip | SH-77038 | Not Available |
| 11 | Not Available | Wheel | SH-71003 | Not Available |
| 11 | Not Available | Exhaust Filter 3- | SH-18045 | Not Available |
| 12 | Not Available | Body Support 3- | SH-LANGFA058VBM0 | Not Available |
| 13 | Not Available | Belt Stopper 3- | SH-73401 | Not Available |
| 14 | Not Available | Belt Stopper 3- | SH-73403 | Not Available |
| 15 | Not Available | Lens | SH-PLNS-A013VBFA | Not Available |
| 15 | Not Available | Reflection Plate 3- | SH-PTPE-A172VBE0 | Not Available |
| 16 | Not Available | Pedal | SH-73418 | Not Available |
| 16 | Not Available | Head Pipe 3- | SH-73317 | Not Available |
| 17 | Not Available | Pedal Support S2620 T2630 | SH-LANG-A051VBM0 | Not Available |
| 18 | Not Available | Pedal Spring 3- | SH-77011 | Not Available |
| 19 | Not Available | Pedal Shaft S2620 T2630 | SH-73482 | Not Available |
| 20 | Not Available | Brush Clamp | SH-70768 | Not Available |
| 20 | Not Available | Agitator Ass'y 3- | SH-20270 | Not Available |
| 21 | Not Available | Nozzle Brush | SH-52500 | Not Available |
| 21 | Not Available | Agitator Rotor 3- | SH-FRTR-A006VBK0 | Not Available |
| 22 | Not Available | Upholstery Nozzle | SH-52000 | Not Available |
| 22 | Not Available | Agitator Shaft 3- | SH-20508 | Not Available |
| 23 | Not Available | Crevice Tool | SH-54005 | Not Available |
| 23 | Not Available | Agitator Support Pulley End 3- | SH-20535 | Not Available |
| 24 | Not Available | Agitator Support 3- | SH-20536 | Not Available |
| 25 | Not Available | Wand Ass'y T2650 | SH-50015 | Not Available |
| 25 | Not Available | Brush Rotor 3- | SH-20537 | Not Available |
| 26 | Not Available | Pipe Ring T2650 | SH-PRNG-A045VBFA | Not Available |
| 26 | Not Available | Seal Tape 3- | SH-PTPEHA014VBE0 | Not Available |
| 27 | Not Available | Out Extension Pipe | SH-50013 | Not Available |
| 27 | Not Available | Seal Tape 3- | SH-PTPEHA015VBE0 | Not Available |
| 28 | Not Available | In Extension Pipe | SH-50014 | Not Available |
| 28 | Not Available | Seal Tape 3- | SH-PTPEHA016VBE0 | Not Available |
| 29 | Not Available | Bumper | SH-RH0G-A008VBFA | Not Available |
| 29 | Not Available | Seal Tape 4- | SH-76024 | Not Available |
| 30 | Not Available | Shutter Ass'y | SH-FSHT-A007VBEA | Not Available |
| 31 | Not Available | Bag Supporter | SH-GC0V-A395VBFA | Not Available |
| 31 | Not Available | Seal Tape 5- | SH-PTPEHA019VBE0 | Not Available |
| 32 | Not Available | Air Inlet | SH-GC0V-A408VBFA | Not Available |
| 33 | Not Available | Roller | SH-73430 | Not Available |
| 33 | Not Available | Flat Belt 2 Pk 5- | SH-10150 | Not Available |
| 34 | Not Available | Leg Shaft | SH-73433 | Not Available |
| 34 | Not Available | Belt Guide Pin 5- | SH-LPIN-A008VBM0 | Not Available |
| 35 | Not Available | Leg Angle | NLA | Not Available |
| 35 | Not Available | Slide Knob 5- | SH-75029 | Not Available |
| 36 | Not Available | Stop Ring | SH-PRNG-A044VBFA | Not Available |
| 36 | Not Available | Indicator Plate 5- | SH-75024 | Not Available |
| 37 | Not Available | Cover Support | SH-GC0V-A409VBFA | Not Available |
