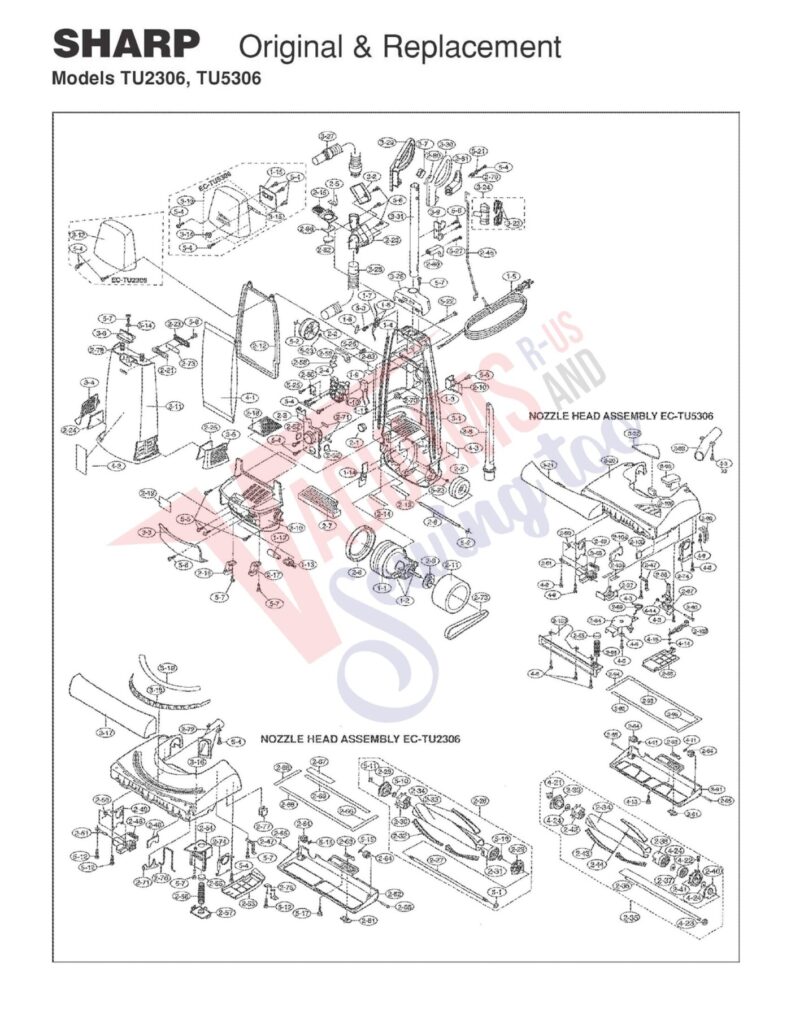

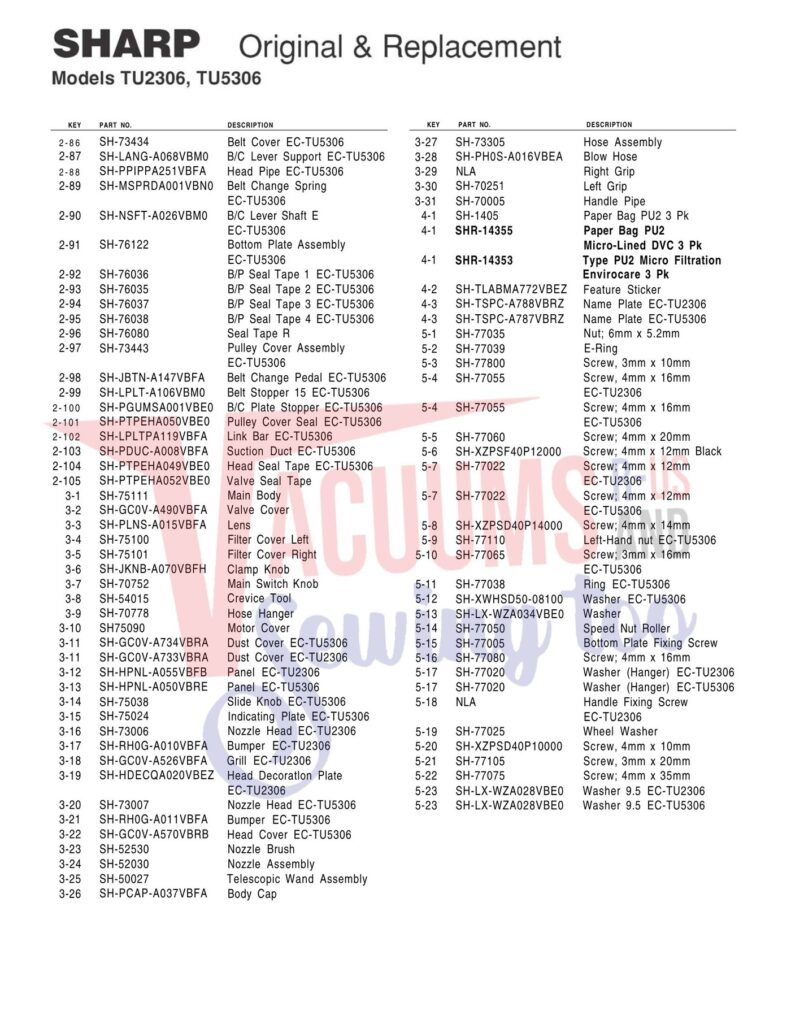

Schematic and parts book for Sharp EC-TU5306 . Repairs should be done by trained technicians. Vacuums R Us & Sewing Too provides vacuum cleaner and carpet cleaner parts and accessories for vacuum cleaner repair purposes. We are committed to delivering high-quality components, but it is important to note that all appliance repairs involve risks, and we cannot guarantee the outcome of your repair. When using our vacuum parts for repairs, you accept the terms and conditions HERE
| # | Part image | Description | SKU | Price |
| 1 | Not Available | Motor Assembly 2- | SH-CM0TCA145ABK0 | Not Available |
| 1 | Not Available | Air Valve Substitute 2- | SH-PVLV-A009VBFZ | Not Available |
| 2 | Not Available | Carbon Brush EC-TU5306 | SH-63017 | Not Available |
| 2 | Not Available | Wheel 2- | SH-71002 | Not Available |
| 3 | Not Available | Motor Lead Wire 2- | SH-36000 | Not Available |
| 3 | Not Available | Sensor Cover 2- | SH-GC0V-A455VBFA | Not Available |
| 4 | Not Available | Circuit Lead Wire EC-TU5306 2- | SH-36005 | Not Available |
| 4 | Not Available | Handle Mounting Base 2- | SH-LPLT-A066VBF0 | Not Available |
| 5 | Not Available | Power Cord EC-TU2306 EC-TU5306 | SH-30001 | Not Available |
| 5 | Not Available | Power Cord EC-TU5306 2- | SH-30001 | Not Available |
| 5 | Not Available | Valve Spring 2- | SH-77012 | Not Available |
| 6 | Not Available | Fuse EC-TU5306 | SH-36036 | Not Available |
| 6 | Not Available | Wheel Shaft 2- | SH-71005 | Not Available |
| 7 | Not Available | Fuse Holder 2- | SH-QFSHDA001VBE0 | Not Available |
| 7 | Not Available | HEPA Filter 2- | SH-18058 | Not Available |
| 8 | Not Available | Lead Wire F (Fuse Holder) 2- | SH-QW-VZA383VBE0 | Not Available |
| 8 | Not Available | Vibration Proof Rubber 2- | SH-PGUMMA159VBE0 | Not Available |
| 9 | Not Available | On/Off Micro Switch 2- | SH-QSW-MA004VBE0 | Not Available |
| 9 | Not Available | Vibration Proof Fix Rubber 2- | SH-76077 | Not Available |
| 10 | Not Available | Lead Wire A (On/Off Switch) EC-TU5306 | SH-QW-VZA381VBE0 | Not Available |
| 10 | Not Available | Pipe Clamp 2- | SH-70770 | Not Available |
| 11 | Not Available | Lead Wire S (On/Off Switch) 2- | SH-QW-VZA382VBE0 | Not Available |
| 11 | Not Available | Sound Proof Sponge 2- | SH-PMUFA044V | Not Available |
| 12 | Not Available | Lamp 2- | SH-RLMP-A003VBE0 | Not Available |
| 12 | Not Available | Body Packing 2- | SH-PPACGA072VBFA | Not Available |
| 13 | Not Available | Lamp Socket 2- | SH-QS0C-A004VBE0 | Not Available |
| 13 | Not Available | Seal Tape M EC-TU2306 | SH-PTPEHA029VBE0 | Not Available |
| 14 | Not Available | Triac PWB Assembly EC-TU5306 2- | SH-FPWB-A109VBK0 | Not Available |
| 14 | Not Available | Seal Tape N 2- | SH-PTPEHA030VBE0 | Not Available |
| 15 | Not Available | Power Control PWB Assembly 2- | SH-FPWB-A108VBK0 | Not Available |
| 15 | Not Available | Body Valve 2- | SH-75061 | Not Available |
| 16 | Not Available | Leg Assembly Right 2- | SH-75168 | Not Available |
| 17 | Not Available | Leg Assembly Left 2- | SH-75169 | Not Available |
| 18 | Not Available | Foam Filter 2- | SH-18055 | Not Available |
| 19 | Not Available | Reflection Tape 2- | SH-PTPE-A172VBE0 | Not Available |
| 20 | Not Available | Valve Cover 2- | SH-GC0V-A466VBFA | Not Available |
| 21 | Not Available | Dust Indicator Assembly 2- | SH-75135 | Not Available |
| 22 | Not Available | Switch Knob Spring EC-TU2306 | SH-34510 | Not Available |
| 23 | Not Available | Indicator Cover EC-TU5306 2- | SH-GC0V-A459 | Not Available |
| 24 | Not Available | Micron Filter Left 2- | NLA | Not Available |
| 25 | Not Available | Micron Filter Right 2- | NLA | Not Available |
| 26 | Not Available | Agitator Assembly EC-TU2306 2- | SH-20215 | Not Available |
| 27 | Not Available | Agitator Shaft EC-TU2306 2- | SH-NSFT-A040VBSZ | Not Available |
| 28 | Not Available | Agitator Support L EC-TU2306 2- | SH-LSTY-A032VBFA | Not Available |
| 29 | Not Available | Agitator Support L EC-TU2306 2- | SH-LSTY-A032VBFA | Not Available |
| 30 | Not Available | Brush Rotor B Assembly 2- | SH-FRTR-A023VBKZ | Not Available |
| 31 | Not Available | Main Pulley Assembly 2- | SH-FPLYBA007VBKZ | Not Available |
| 32 | Not Available | Brush Base Assembly EC-TU2306 2- | SH-PBRS-A111VBEZ | Not Available |
| 33 | Not Available | Brush Cap EC-TU2306 2- | SH-PBRS-A112VBEZ | Not Available |
| 34 | Not Available | Agitator Pipe EC-TU2306 2- | SH-PPIPPA332VBEZ | Not Available |
| 35 | Not Available | Agitator Assembly EC-TU5306 EC-TU5306 | SH-20222 | Not Available |
| 36 | Not Available | Agitator Shaft EC-TU5306 2- | SH-NSFT-A011VBS0 | Not Available |
| 37 | Not Available | Idler Pulley Assembly | SH-FPLYBA006VBKZ | Not Available |
| 38 | Not Available | Main Pulley EC-TU5306 | SH-NPLYBA007VBFA | Not Available |
| 39 | Not Available | Agitator Support A Assembly | NLA | Not Available |
| 40 | Not Available | Agitator Support B Assembly | NLA | Not Available |
| 41 | Not Available | Brush Rotor A EC-TU5306 | SH-NRTR-A021VBEZ | Not Available |
| 42 | Not Available | Brush Rotor B EC-TU5306 | SH-NRTR-A026VBFA | Not Available |
| 43 | Not Available | Brush Base Assembly | SH-PBRS-A110VBEZ | Not Available |
| 44 | Not Available | Brush Cap EC-TU5306 | SH-PBRS-A112VBEZ | Not Available |
| 45 | Not Available | Switch Rod | SH-MLEVFA005VBM0 | Not Available |
| 46 | Not Available | H-Felt EC-TU2306 | SH-PFLT-A118VBE0 | Not Available |
| 47 | Not Available | Belt Stopper | SH-73402 | Not Available |
| 48 | Not Available | Pedal L (Plastic) | SH-73417 | Not Available |
| 49 | Not Available | Pedal Support (Metal) | SH-LANGA057 | Not Available |
| 50 | Not Available | Pedal Spring | SH-77011 | Not Available |
| 51 | Not Available | Pedal Shaft | SH-73481 | Not Available |
| 52 | Not Available | Seal Tape P | SH-PTPEHA031 | Not Available |
| 53 | Not Available | Belt Cover EC-TU2306 | SH-73449 | Not Available |
| 54 | Not Available | Valve Case EC-TU2306 | SH-PCAS-A028VBFA | Not Available |
| 55 | Not Available | Head Valve | SH-PVLVAA012VBFA | Not Available |
| 56 | Not Available | Head Valve Spring | SH-MSPRCA212VBP0 | Not Available |
| 57 | Not Available | Head Valve Cover EC-TU2306 | SH-PC0V-A081VBFA | Not Available |
| 58 | Not Available | Actuator | SH-LPLT-A105VBN0 | Not Available |
| 59 | Not Available | Actuator Support | SH-LANG-A046VBF0 | Not Available |
| 60 | Not Available | Screw Mounting Plate | SH-70515 | Not Available |
| 61 | Not Available | Bottom Plate Knob | SH-73525 | Not Available |
| 62 | Not Available | Bottom Plate 2" Assembly | SH-FPLT-A047VBKZ | Not Available |
| 63 | Not Available | Bottom Plate Spring (Knob) | SH-77014 | Not Available |
| 64 | Not Available | Roller | SH-73432 | Not Available |
| 65 | Not Available | Roller Shaft | SH-73431 | Not Available |
| 66 | Not Available | Seal Tape B EC-TU2306 | SH-76021 | Not Available |
| 67 | Not Available | Seal Tape C EC-TU2306 | SH-76027 | Not Available |
| 68 | Not Available | Seal Tape E EC-TU2306 | SH-76020 | Not Available |
| 69 | Not Available | Seal Tape G98 EC-TU2306 | SH-76028 | Not Available |
| 70 | Not Available | Seal Tape Y | SH-PTPEHA038VBE0 | Not Available |
| 71 | Not Available | Head Shelter Plate | SH-73447 | Not Available |
| 72 | Not Available | Head Pipe EC-TU2306 | SH-73315 | Not Available |
| 73 | Not Available | Flat Belt 2 Pk | SH-10150 | Not Available |
| 73 | Not Available | Flat Belt | SHR-1000 | Not Available |
| 74 | Not Available | Body Support (Metal) | SH-LANGFA061VBM0 | Not Available |
| 75 | Not Available | Belt Stopper EC-TU2306 | SH-73404 | Not Available |
| 76 | Not Available | Belt Guide Pin EC-TU2306 | SH-73455 | Not Available |
| 77 | Not Available | Stopper Rubber EC-TU2306 | SH-PSEL-A032VBE0 | Not Available |
| 78 | Not Available | Clamp Spring | SH-MSPRCA196VBE0 | Not Available |
| 79 | Not Available | Hanger Spring | SH-70500 | Not Available |
| 80 | Not Available | Lower Hanger | SH-70764 | Not Available |
| 81 | Not Available | Upper Hanger | SH-70763 | Not Available |
| 82 | Not Available | Valve Seal | SH-76090 | Not Available |
| 83 | Not Available | Seal Tape W | SH-PTPEHA037VBE0 | Not Available |
| 84 | Not Available | B/C Plate Assembly | SH-FLEV-A015VBK0 | Not Available |
| 85 | Not Available | B/C Lever 2nd Assembly | SH-FLEVFA001VBK0 | Not Available |

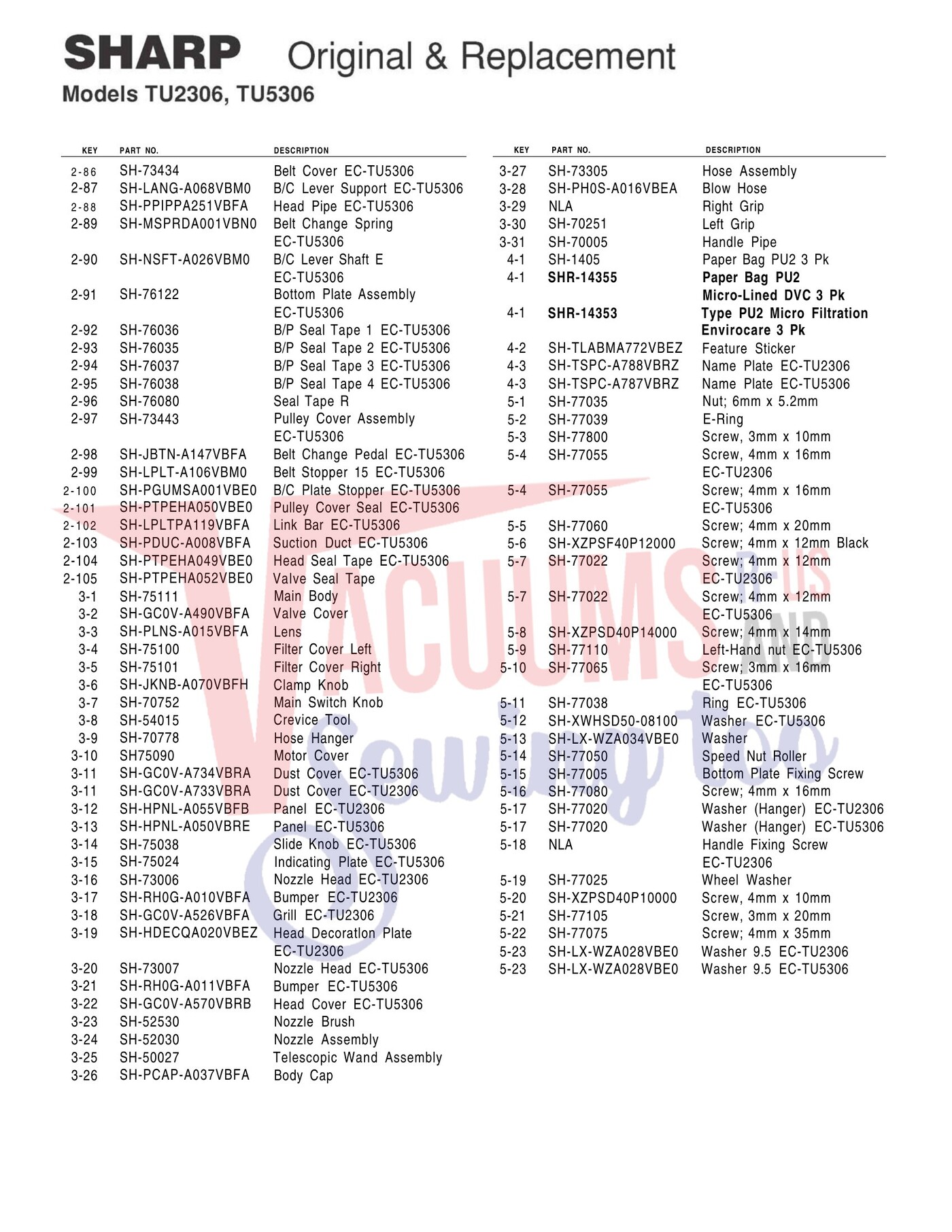

| # | Part image | Description | SKU | Price |
| XX | Not Available | Washer 9.5 EC-TU2306 | LX-WZA028VBE0 | Not Available |
| 1 | Not Available | Paper Bag PU2 3 Pk | SH-1405 | Not Available |
| 1 | No Image | Paper Bag, DVC Sharp PU2 Microlined 3Pk | SHR-14355 | $8.79Read more |
| 1 | Not Available | Type PU2 Micro Filtration | SHR-14353 | Not Available |
| 1 | Not Available | Envirocare 3 Pk | EC-TU5306 | Not Available |
| 1 | Not Available | Nut; 6mm x 5.2mm | SH-77035 | Not Available |
| 1 | Not Available | Main Body 5- | SH-75111 | Not Available |
| 2 | Not Available | 4- | EC-TU5306 | Not Available |
| 2 | Not Available | Feature Sticker | SH-TLABMA772VBEZ | Not Available |
| 2 | Not Available | E-Ring | SH-77039 | Not Available |
| 2 | Not Available | Valve Cover EC-TU5306 | SH-GC0V-A490VBFA | Not Available |
| 3 | Not Available | 4- | EC-TU5306 | Not Available |
| 3 | Not Available | Name Plate EC-TU2306 | SH-TSPC-A788VBRZ | Not Available |
| 3 | Not Available | Name Plate EC-TU5306 | SH-TSPC-A787VBRZ | Not Available |
| 3 | Not Available | Screw 3mm x 10mm | SH-77800 | Not Available |
| 3 | Not Available | Lens 5- | SH-PLNS-A015VBFA | Not Available |
| 4 | Not Available | 4- | EC-TU5306 | Not Available |
| 4 | Not Available | Screw 4mm x 16mm | SH-77055 | Not Available |
| 4 | Not Available | Screw; 4mm x 16mm | SH-77055 | Not Available |
| 4 | Not Available | Filter Cover Left 5- | SH-75100 | Not Available |
| 5 | Not Available | Screw; 4mm x 20mm | SH-77060 | Not Available |
| 5 | Not Available | Filter Cover Right 5- | SH-75101 | Not Available |
| 6 | Not Available | Screw; 4mm x 12mm Black | SH-XZPSF40P12000 | Not Available |
| 6 | Not Available | Clamp Knob EC-TU5306 | SH-JKNB-A070VBFH | Not Available |
| 7 | Not Available | Screw; 4mm x 12mm | SH-77022 | Not Available |
| 7 | Not Available | Screw; 4mm x 12mm | SH-77022 | Not Available |
| 7 | Not Available | Main Switch Knob 5- | SH-70752 | Not Available |
| 8 | Not Available | Screw; 4mm x 14mm | SH-XZPSD40P14000 | Not Available |
| 8 | Not Available | Crevice Tool 5- | SH-54015 | Not Available |
| 9 | Not Available | Left-Hand nut EC-TU5306 | SH-77110 | Not Available |
| 9 | Not Available | Hose Hanger 5- | SH-70778 | Not Available |
| 10 | Not Available | Screw; 3mm x 16mm | SH-77065 | Not Available |
| 10 | Not Available | Motor Cover 5- | SH75090 | Not Available |
| 11 | Not Available | Ring EC-TU5306 | SH-77038 | Not Available |
| 11 | Not Available | Dust Cover EC-TU5306 5- | SH-GC0V-A734VBRA | Not Available |
| 11 | Not Available | Dust Cover EC-TU2306 5- | SH-GC0V-A733VBRA | Not Available |
| 12 | Not Available | Washer EC-TU5306 | SH-XWHSD50-08100 | Not Available |
| 12 | Not Available | Panel EC-TU2306 5- | SH-HPNL-A055VBFB | Not Available |
| 13 | Not Available | Washer | SH-LX-WZA034VBE0 | Not Available |
| 13 | Not Available | Panel EC-TU5306 5- | SH-HPNL-A050VBRE | Not Available |
| 14 | Not Available | Speed Nut Roller | SH-77050 | Not Available |
| 14 | Not Available | Slide Knob EC-TU5306 5- | SH-75038 | Not Available |
| 15 | Not Available | EC-TU2306 | EC-TU5306 | Not Available |
| 15 | Not Available | Bottom Plate Fixing Screw | SH-77005 | Not Available |
| 15 | Not Available | Indicating Plate EC-TU5306 EC-TU2306 | SH-75024 | Not Available |
| 16 | Not Available | Screw; 4mm x 16mm | SH-77080 | Not Available |
| 16 | Not Available | Nozzle Head EC-TU2306 5- | SH-73006 | Not Available |
| 17 | Not Available | Washer (Hanger) EC-TU2306 | SH-77020 | Not Available |
| 17 | Not Available | Washer (Hanger) EC-TU5306 | SH-77020 | Not Available |
| 17 | Not Available | Bumper EC-TU2306 5- | SH-RH0G-A010VBFA | Not Available |
| 18 | Not Available | Handle Fixing Screw | NLA | Not Available |
| 18 | Not Available | Grill EC-TU2306 5- | SH-GC0V-A526VBFA | Not Available |
| 19 | Not Available | Wheel Washer | SH-77025 | Not Available |
| 19 | Not Available | Head Decoratlon Plate 5- | SH-HDECQA020VBEZ | Not Available |
| 20 | Not Available | Screw 4mm x 10mm | SH-XZPSD40P10000 | Not Available |
| 20 | Not Available | Nozzle Head EC-TU5306 5- | SH-73007 | Not Available |
| 21 | Not Available | Screw 3mm x 20mm | SH-77105 | Not Available |
| 21 | Not Available | Bumper EC-TU5306 | SH-RH0G-A011VBFA | Not Available |
| 22 | Not Available | Screw; 4mm x 35mm | SH-77075 | Not Available |
| 22 | Not Available | Head Cover EC-TU5306 | SH-GC0V-A570VBRB | Not Available |
| 23 | Not Available | Washer 9. | SH-LX-WZA028VBE0 | Not Available |
| 23 | Not Available | Washer 9. | SH-LX-WZA028VBE0 | Not Available |
| 23 | Not Available | Nozzle Brush | SH-52530 | Not Available |
| 24 | Not Available | Nozzle Assembly | SH-52030 | Not Available |
| 25 | Not Available | Telescopic Wand Assembly | SH-50027 | Not Available |
| 26 | Not Available | Body Cap | SH-PCAP-A037VBFA | Not Available |
| 27 | Not Available | Hose Assembly | SH-73305 | Not Available |
| 28 | Not Available | Blow Hose | SH-PH0S-A016VBEA | Not Available |
| 29 | Not Available | Right Grip | NLA | Not Available |
| 30 | Not Available | Left Grip | SH-70251 | Not Available |
| 31 | Not Available | Handle Pipe | SH-70005 | Not Available |
| 86 | Not Available | Belt Cover EC-TU5306 3- | SH-73434 | Not Available |
| 87 | Not Available | B/C Lever Support EC-TU5306 3- | SH-LANG-A068VBM0 | Not Available |
| 88 | Not Available | Head Pipe EC-TU5306 3- | SH-PPIPPA251VBFA | Not Available |
| 89 | Not Available | Belt Change Spring 3- | SH-MSPRDA001VBN0 | Not Available |
| 90 | Not Available | B/C Lever Shaft E 4- | SH-NSFT-A026VBM0 | Not Available |
| 91 | Not Available | Bottom Plate Assembly Micro-Lined DVC 3 Pk | SH-76122 | Not Available |
| 92 | Not Available | B/P Seal Tape | SH-76036 | Not Available |
| 93 | Not Available | B/P Seal Tape | SH-76035 | Not Available |
| 94 | Not Available | B/P Seal Tape | SH-76037 | Not Available |
| 95 | Not Available | B/P Seal Tape | SH-76038 | Not Available |
| 96 | Not Available | Seal Tape R 5- | SH-76080 | Not Available |
| 97 | Not Available | Pulley Cover Assembly 5- | SH-73443 | Not Available |
| 98 | Not Available | Belt Change Pedal EC-TU5306 5- | SH-JBTN-A147VBFA | Not Available |
| 99 | Not Available | Belt Stopper | SH-LPLT-A106VBM0 | Not Available |
| 100 | Not Available | B/C Plate Stopper EC-TU5306 5- | SH-PGUMSA001VBE0 | Not Available |
| 101 | Not Available | Pulley Cover Seal EC-TU5306 EC-TU5306 | SH-PTPEHA050VBE0 | Not Available |
| 102 | Not Available | Link Bar EC-TU5306 5- | SH-LPLTPA119VBFA | Not Available |
| 103 | Not Available | Suction Duct EC-TU5306 5- | SH-PDUC-A008VBFA | Not Available |
| 104 | Not Available | Head Seal Tape EC-TU5306 5- | SH-PTPEHA049VBE0 | Not Available |
| 105 | Not Available | VaIve Seal Tape EC-TU2306 | SH-PTPEHA052VBE0 | Not Available |
Report errors on this page HERE
