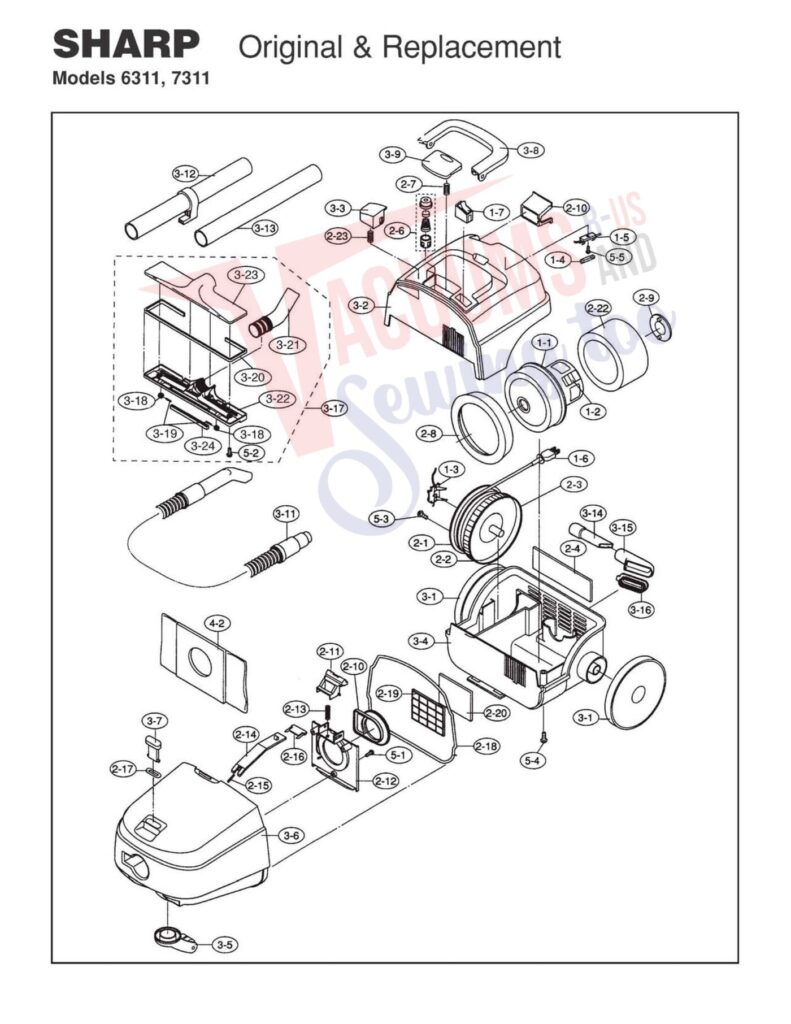

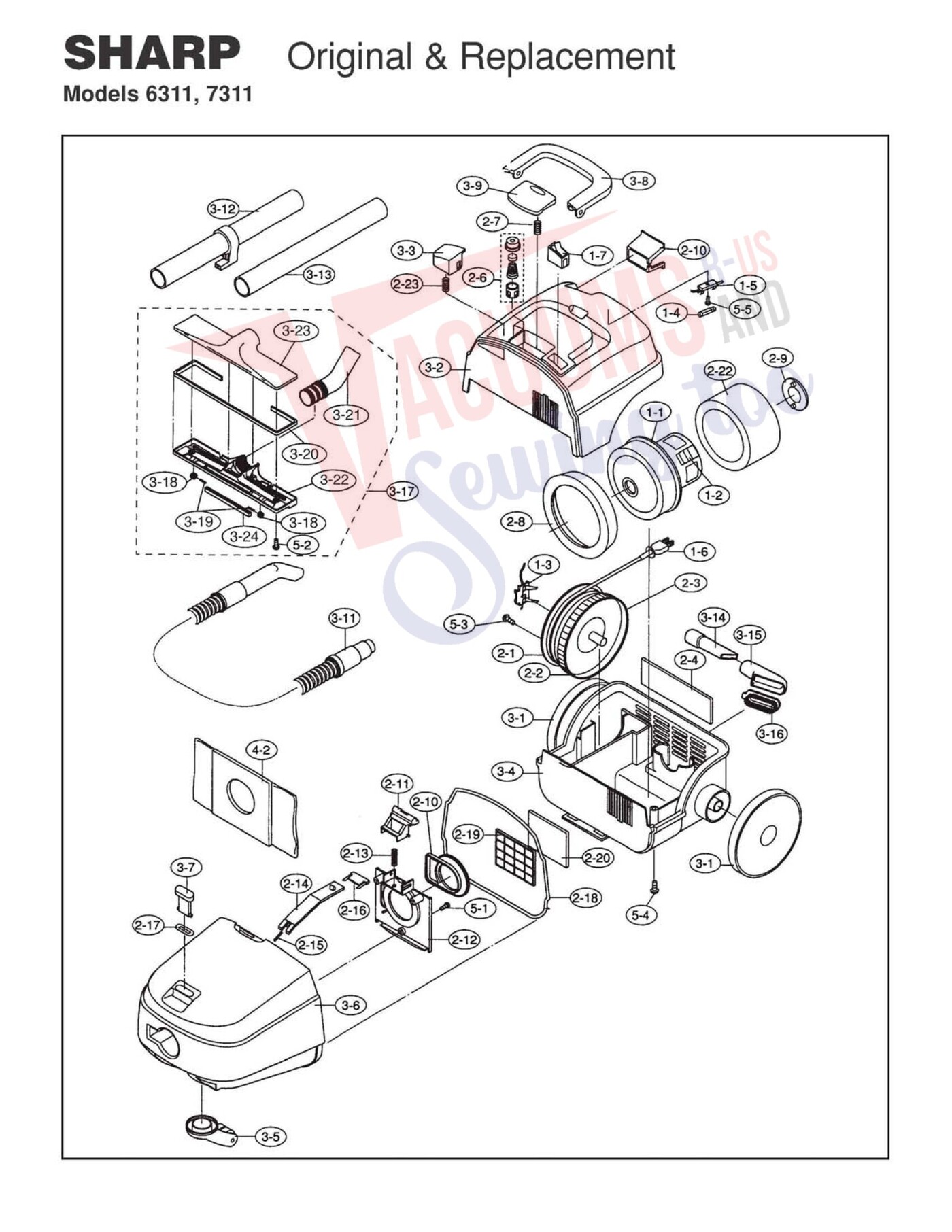

Schematic and parts book for sharp 7311, 6311 . Repairs should be done by trained technicians. Vacuums R Us & Sewing Too provides vacuum cleaner and carpet cleaner parts and accessories for vacuum cleaner repair purposes. We are committed to delivering high-quality components, but it is important to note that all appliance repairs involve risks, and we cannot guarantee the outcome of your repair. When using our vacuum parts for repairs, you accept the terms and conditions HERE
Popular Supplies
| # | Part image | Description | SKU | Price |
| 1 | Not Available | Motor Ass'y 7311 3- | SH-60040 | Not Available |
| 1 | Not Available | Motor Ass'y 6311 3- | SH-60041 | Not Available |
| 1 | Not Available | Reel Drum (1) Ass'y 3- | SH-FDRM-A052VBK0 | Not Available |
| 1 | Not Available | Screw; 4mm x 12mm | SH-77022 | Not Available |
| 1 | Not Available | Wheel 5- | SH-71032 | Not Available |
| 2 | Not Available | Carbon Brush 3- | SH-QBRSCA025ABE0 | Not Available |
| 2 | Not Available | Reel Drum (2) Ass'y 3- | SH-FDRM-A053VBK0 | Not Available |
| 2 | Not Available | Paper Bag PC2 5 Pk | SH-1430 | Not Available |

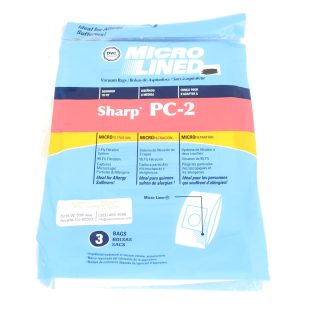

| 2 |  | Sharp Type PC-2 Paper Bags 3pk for Canisters | SHR1445 | $10.99Add to cart |
| 2 | Not Available | Screw; 4mm x 10mm | SH-XZPSD40P10000 | Not Available |
| 2 | Not Available | Upper Body 6311 5- | SH-GBDYUA065VBR0 | Not Available |
| 2 | Not Available | Upper Body 7311 5- | SH-GBDYUA062VBRA | Not Available |
| 3 | Not Available | Contact Table Ass'y 3- | SH-FDAI-A014VBK0 | Not Available |
| 3 | Not Available | Cord Reel Ass'y 3- | SH-30012 | Not Available |
| 3 | Not Available | Screw; 4mm x 8mm | SH-XZPSD40P08000 | Not Available |
| 3 | Not Available | Brake Button 6311 5- | SH-JBTN-A125VBFB | Not Available |
| 3 | Not Available | Brake Button 7311 | SH-JBTN-A125VBFA | Not Available |
| 4 | Not Available | Fuse 3- | SH-36036 | Not Available |
| 4 | Not Available | Exhaust Filter 3- | SH-1817 | Not Available |
| 4 | Not Available | Screw; 4mm x 20mm | SH-77060 | Not Available |
| 4 | Not Available | Lower Body 6311 | SH-GBDYDA026VBFB | Not Available |
| 4 | Not Available | Lower Body 7311 | SH-GBDYDA026VBFA | Not Available |
| 5 | Not Available | Fuse Holder 3- | SH-QFSHDA001VBE0 | Not Available |
| 5 | Not Available | Brake Angle 3- | SH-30800 | Not Available |
| 5 | Not Available | Screw; 4mm x 8mm | SH-XZPSD30P12000 | Not Available |
| 5 | Not Available | Castor Ass'y | SH-71030 | Not Available |
| 6 | Not Available | Power Cord 3- | SH-FACC-A046VBEA | Not Available |
| 6 | Not Available | Air Valve Ass'y 3- | SH-FVLVAA026VBK0 | Not Available |
| 6 | Not Available | Front Body 6311 | SH-GBDYFA043VBFB | Not Available |
| 6 | Not Available | Front Body 7311 | SH-GBDYFA043VBFA | Not Available |
| 7 | Not Available | Bag Button 6311 7311 | SH-75057 | Not Available |
| 7 | Not Available | Switch 3- | SH-34006 | Not Available |
| 7 | Not Available | Clamp Spring 3- | SH-77003 | Not Available |
| 8 | Not Available | Handle 6311 | SH-70262 | Not Available |
| 8 | Not Available | Handle 7311 | SH-70254 | Not Available |
| 8 | Not Available | Vibration Proof Rubber 3- | SH-PGUMMA159VBE0 | Not Available |
| 9 | Not Available | Clamp 6311 | SH-LCRA-A009VBFB | Not Available |
| 9 | Not Available | Clamp 7311 | SH-75055 | Not Available |
| 9 | Not Available | Fixing Rubber 3- | SH-76077 | Not Available |
| 10 | Not Available | Cord Stopper 6311 | SH-LPLTPA091VBFB | Not Available |
| 10 | Not Available | Cord Stopper 7311 | SH-LPLTPA091VBFA | Not Available |
| 10 | Not Available | Suction Mouth Packing 3- | SH-76075 | Not Available |
| 11 | Not Available | Suction Hose Ass'y | SH-40010 | Not Available |
| 11 | Not Available | Bag Clamp 3- | SH-JKNB-A058VBFA | Not Available |
| 12 | Not Available | Extension Pipe Ass'y | SH-50021 | Not Available |
| 12 | Not Available | Bag Plate 3- | SH-LPLTPA089VBFA | Not Available |
| 13 | Not Available | Extension Pipe | SH-50020 | Not Available |
| 13 | Not Available | Bag Clamp Spring 3- | SH-MSPRCA160VBP0 | Not Available |
| 14 | Not Available | Crevice Tool | SH-54010 | Not Available |
| 14 | No Image | BOTTOM PLATE, Part Number: SHLPLTPA087VBFA for Sharp | SHLPLTPA087VBFA | $4.59Read more |
| 15 | Not Available | Upholstery Nozzle | SH-52020 | Not Available |
| 15 | Not Available | Safety Spring 3- | SH-MSPRCA157VBP0 | Not Available |
| 16 | Not Available | Upholstery Nozzle Brush | SH-52520 | Not Available |
| 16 | Not Available | Plate Guide 3- | SH-PGID-A009VBFA | Not Available |
| 17 | Not Available | Floor Nozzle 6311 | SH-FCATH0400VBEJ | Not Available |
| 17 | Not Available | Floor Nozzle 7311 | SH-55000 | Not Available |
| 17 | Not Available | Button Seal Rubber 3- | SH-PGUMMA175VBF0 | Not Available |
| 18 | Not Available | Roller 6311 | SH-NR0L-0070VBFB | Not Available |
| 18 | Not Available | Roller 7311 | SH-71020 | Not Available |
| 18 | Not Available | Body Packing 3- | SH-PPACGA050VBF0 | Not Available |
| 19 | Not Available | Roller Shaft 6311 | SH-NSFTD0500VBM0 | Not Available |
| 19 | Not Available | Roller Shaft 7311 | SH-71025 | Not Available |
| 19 | Not Available | Filter Guide 3- | SH-18101 | Not Available |
| 20 | Not Available | Bumper 6311 | SH-PGUMMA680VBFJ | Not Available |
| 20 | Not Available | Bumper 7311 | SH-PGUMMA174VBFA | Not Available |
| 20 | Not Available | Secondary Filter 6311 3- | SH-18051 | Not Available |
| 20 | Not Available | Secondary Micron Filter 7311 4- | SH-18150 | Not Available |
| 21 | Not Available | Nozzle Pipe 6311 | SH-PPIPP0430VBFC | Not Available |
| 21 | Not Available | Nozzle Pipe 7311 | NLA | Not Available |
| 21 | Not Available | Brake Roller Ass'y 4- | SH-MR0L-A004VBK0 | Not Available |
| 22 | Not Available | Nozzle Bottom Plate 6311 | SH-PS0R-0110VBFL | Not Available |
| 22 | Not Available | Nozzle Bottom Plate 7311 | SH-PS0R-A034VBFA | Not Available |
| 22 | Not Available | Sound Proof Sponge Micro-Lined DVC 3 Pk | SH-PMUF-A044VBE0 | Not Available |
| 23 | Not Available | Nozzle Body 6311 | SH-UCATH0420VBFK | Not Available |
| 23 | Not Available | Nozzle Body 7311 | SH-UCATHA038VBFA | Not Available |
| 23 | Not Available | Brake Button Spring 5- | SH-MSPRCA159VBP0 | Not Available |
| 24 | Not Available | Nozzle Cover | SH-FC0V-A284VBFA | Not Available |
