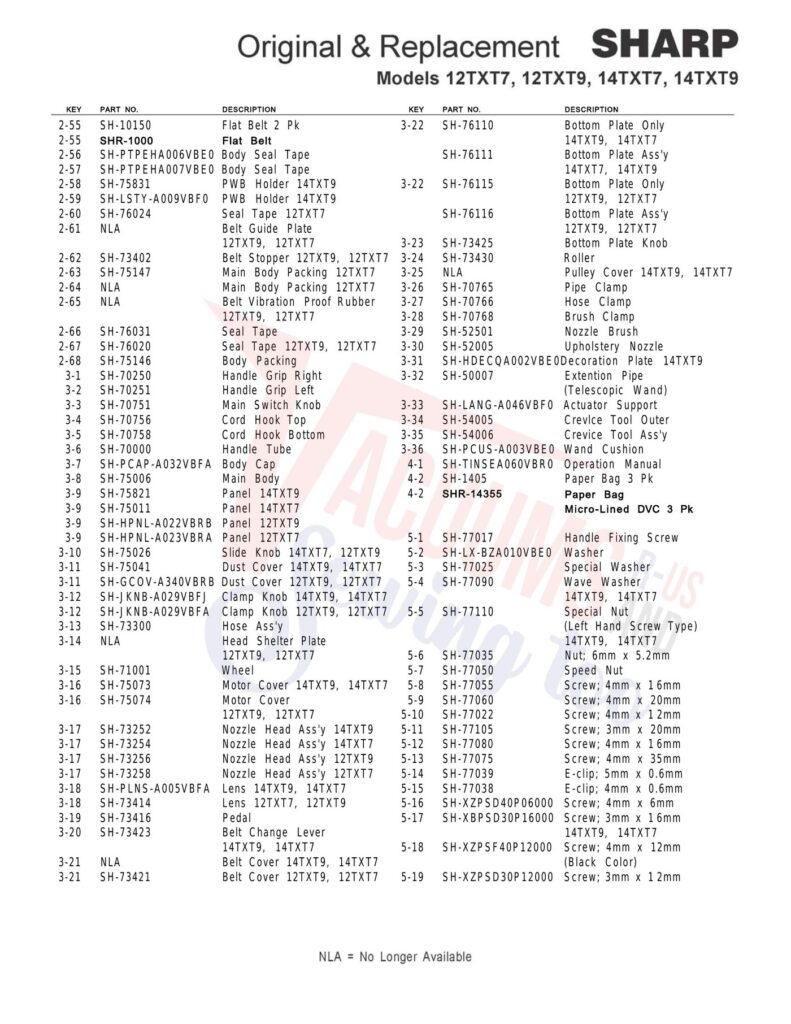

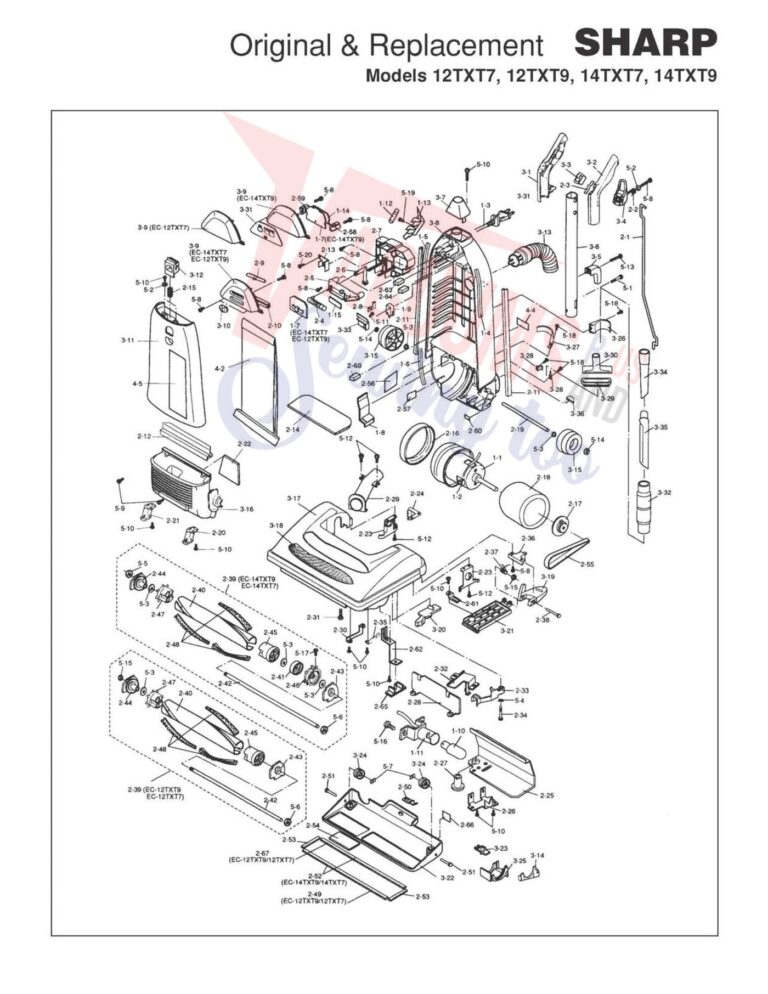

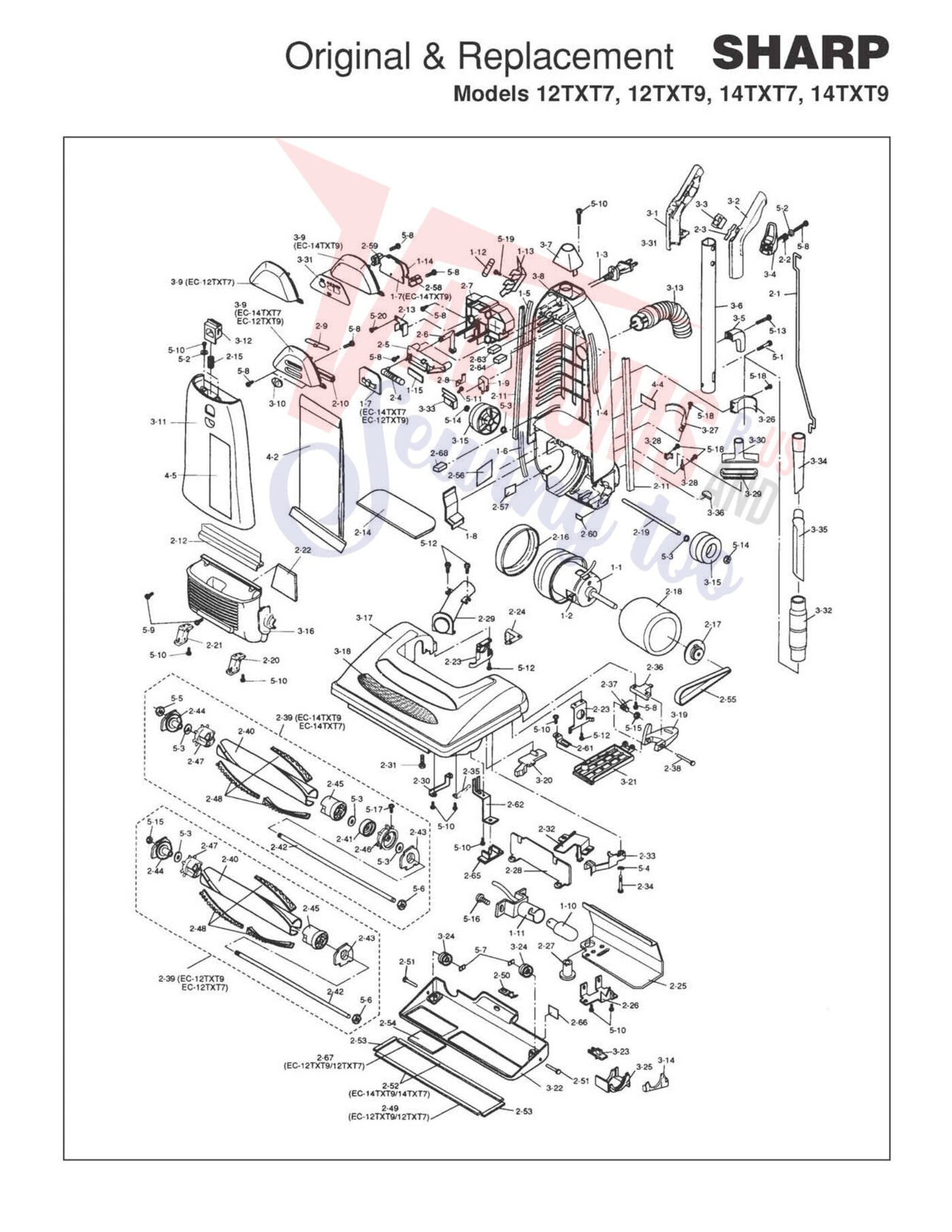

Schematic and parts book for sharp 14TXT7, 12txt7, 14txt9 . Repairs should be done by trained technicians. Vacuums R Us & Sewing Too provides vacuum cleaner and carpet cleaner parts and accessories for vacuum cleaner repair purposes. We are committed to delivering high-quality components, but it is important to note that all appliance repairs involve risks, and we cannot guarantee the outcome of your repair. When using our vacuum parts for repairs, you accept the terms and conditions HERE
| # | Part image | Description | SKU | Price |
| 1 | Not Available | Motor Ass'y 2- | NLA | Not Available |
| 1 | Not Available | Lamp Socket 12TXT9 12TXT7 | SH-36021 | Not Available |
| 1 | Not Available | Switch Rod (Order SH-20265) | SH-34503 | Not Available |
| 2 | Not Available | Carbon Brush 2- | SH-63011 | Not Available |
| 2 | Not Available | Spring For Cord Hanger 2- | SH-70500 | Not Available |
| 3 | Not Available | Power Cord 14TXT9 14TXT7 14TXT9 14TXT7 | SH-30010 | Not Available |
| 3 | Not Available | Power Cord 12TXT9 2- | SH-30001 | Not Available |
| 3 | Not Available | Power Cord 12TXT7 2- | SH-30005 | Not Available |
| 3 | Not Available | Switch Knob Spring 14TXT9 14TXT7 | SH-74510 | Not Available |
| 4 | Not Available | Motor Lead Wires 14TXT9 14TXT7 | SH-36000 | Not Available |
| 4 | Not Available | Power Circuit Ass'y 14TXT9 2- | SH-36805 | Not Available |
| 4 | Not Available | Dust Indicator Ass'y (Order SH-20265) | SH-75135 | Not Available |
| 4 | Not Available | Dust Indicator Ass'y 14TXT9 12TXT9 12TXT7 | SH-75835 | Not Available |
| 5 | Not Available | Circuit Lead Wires 2- | SH-36005 | Not Available |
| 5 | Not Available | Reed Switch PWB Ass'y 2- | SH-36810 | Not Available |
| 5 | Not Available | Dust Indicator Base 2- | SH-LPLTPA072VBFA | Not Available |
| 6 | Not Available | Lamp Lead Wires 2- | SH-36010 | Not Available |
| 6 | Not Available | Meter Pipe Connector (Order SH-20265) | SH-PPIPPA127VBF0 | Not Available |
| 6 | Not Available | Meter Pipe Connector 14TXT9 12TXT9 12TXT7 | SH-PPIPPA132VBF0 | Not Available |
| 7 | Not Available | Power Control Ass'y 14TXT9 14TXT9 14TXT7 | SH-36800 | Not Available |
| 7 | Not Available | Power Control Ass'y 2- | SH-36015 | Not Available |
| 7 | Not Available | Handle Mounting Base 2- | SH-70510 | Not Available |
| 8 | Not Available | Triac Ass'y 14TXT9 2- | SH-75132 | Not Available |
| 8 | Not Available | Triac Ass'y 14TXT7 12TXT9 2- | SH-75131 | Not Available |
| 8 | Not Available | Actuator 14TXT7 (Order SH-20265) | SH-75159 | Not Available |
| 9 | Not Available | Micro Switch 2- | SH-34002 | Not Available |
| 9 | Not Available | Indicating Plate 2- | SH-75024 | Not Available |
| 10 | Not Available | Bulb 15W 2- | FA-3515 | Not Available |
| 10 | Not Available | Panel Seal 2- | SH-76001 | Not Available |
| 11 | Not Available | Body Seal 12TXT9 12TXT7 | SH-76006 | Not Available |
| 12 | Not Available | Fuse 2- | SH-36036 | Not Available |
| 12 | Not Available | Motor Cover Seal 2- | SH-76003 | Not Available |
| 13 | Not Available | Fuse Holder 14TXT9 14TXT7 | SH-QFSHDA001VBE0 | Not Available |
| 13 | Not Available | Screw Mounting Plate 14TXT7 (Order SH-20265) | SH-70515 | Not Available |
| 14 | Not Available | Secondary Filter 2- | SH-18015 | Not Available |
| 15 | Not Available | Clamp Spring 14TXT9 14TXT7 | SH-77000 | Not Available |
| 16 | Not Available | Vibration Proof Rubber 2- | SH-76015 | Not Available |
| 17 | Not Available | Vibration Proof Fixing Rubber 12TXT9 12TXT7 | SH-76077 | Not Available |
| 18 | Not Available | Sound Proof Sponge 2- | SH-PMUF-A044VBE0 | Not Available |
| 19 | Not Available | Wheel Shaft 14TXT9 14TXT7 | SH-71005 | Not Available |
| 20 | Not Available | Leg Ass'y 2- | SH-75162 | Not Available |
| 21 | Not Available | Leg Ass'y 2- | SH-75163 | Not Available |
| 22 | Not Available | Exhaust Filter 12TXT9 12TXT7 | SH-18030 | Not Available |
| 23 | Not Available | Body Support 2- | SH-75171 | Not Available |
| 24 | Not Available | Belt Stopper 2- | SH-LPLT-A036VBM0 | Not Available |
| 25 | Not Available | Reflection Plate 2- | SH-LPLT-A038VBW0 | Not Available |
| 26 | Not Available | Lamp Support 14TXT9 14TXT7 | SH-LANG-A045VBM0 | Not Available |
| 27 | Not Available | Cord Bushing For Nozzle Head 2- | SH-73445 | Not Available |
| 28 | Not Available | Heat Proof Plate 2- | SH-73452 | Not Available |
| 29 | Not Available | Head Pipe | SH-73310 | Not Available |
| 30 | Not Available | Head Reinforcing Plate | NLA | Not Available |
| 31 | Not Available | Bottom Plate Fixing Screw | SH-77005 | Not Available |
| 32 | Not Available | Belt Change Lever Support | SH-FPLT-A010VBK0 | Not Available |
| 33 | Not Available | Belt Change Plate | SH-73467 | Not Available |
| 34 | Not Available | Belt Change Shaft | SH-73477 | Not Available |
| 35 | Not Available | Belt Change Spring | SH-MSPRPA026VBN0 | Not Available |
| 36 | Not Available | Pedal Support | NLA | Not Available |
| 37 | Not Available | Pedal Spring | SH-77010 | Not Available |
| 38 | Not Available | Pedal Shaft | SH-73480 | Not Available |
| 39 | Not Available | Agitator Ass'y | SH-20200 | Not Available |
| 39 | Not Available | Agitator Ass'y | SH-20265 | Not Available |
| 40 | Not Available | Agitator Pipe Ass'y | SH-FPIPFA005VBK0 | Not Available |
| 41 | Not Available | Idler Pulley Ass'y | NLA | Not Available |
| 42 | Not Available | Agitator Shaft | NLA | Not Available |
| 42 | Not Available | Agitator Shaft | SH-20505 | Not Available |
| 43 | Not Available | Agitator Support Pulley End | NLA | Not Available |
| 43 | Not Available | Agitator Support Pulley End | SH-20510 | Not Available |
| 44 | Not Available | Agitator Support 14TXT9 | NLA | Not Available |
| 44 | Not Available | Agitator Support | SH-20511 | Not Available |
| 45 | Not Available | Main Pulley | SH-20515 | Not Available |
| 45 | Not Available | Main Pulley 14TXT9 | NLA | Not Available |
| 46 | Not Available | Brush Rotor | SH-20521 | Not Available |
| 47 | Not Available | Brush Rotor Ass'y | SH-20520 | Not Available |
| 47 | Not Available | Brush Rotor | SH-20522 | Not Available |
| 48 | Not Available | Brush Strip | SH-22000 | Not Available |
| 49 | Not Available | Seal Tape | SH-76030 | Not Available |
| 50 | Not Available | Bottom Plate Spring | SH-77014 | Not Available |
| 51 | Not Available | Roller Shaft | SH-73431 | Not Available |
| 52 | Not Available | Seal Tape | SH-76025 | Not Available |
| 53 | Not Available | Seal Tape | SH-76021 | Not Available |
| 54 | Not Available | Seal Tape | SH-76027 | Not Available |

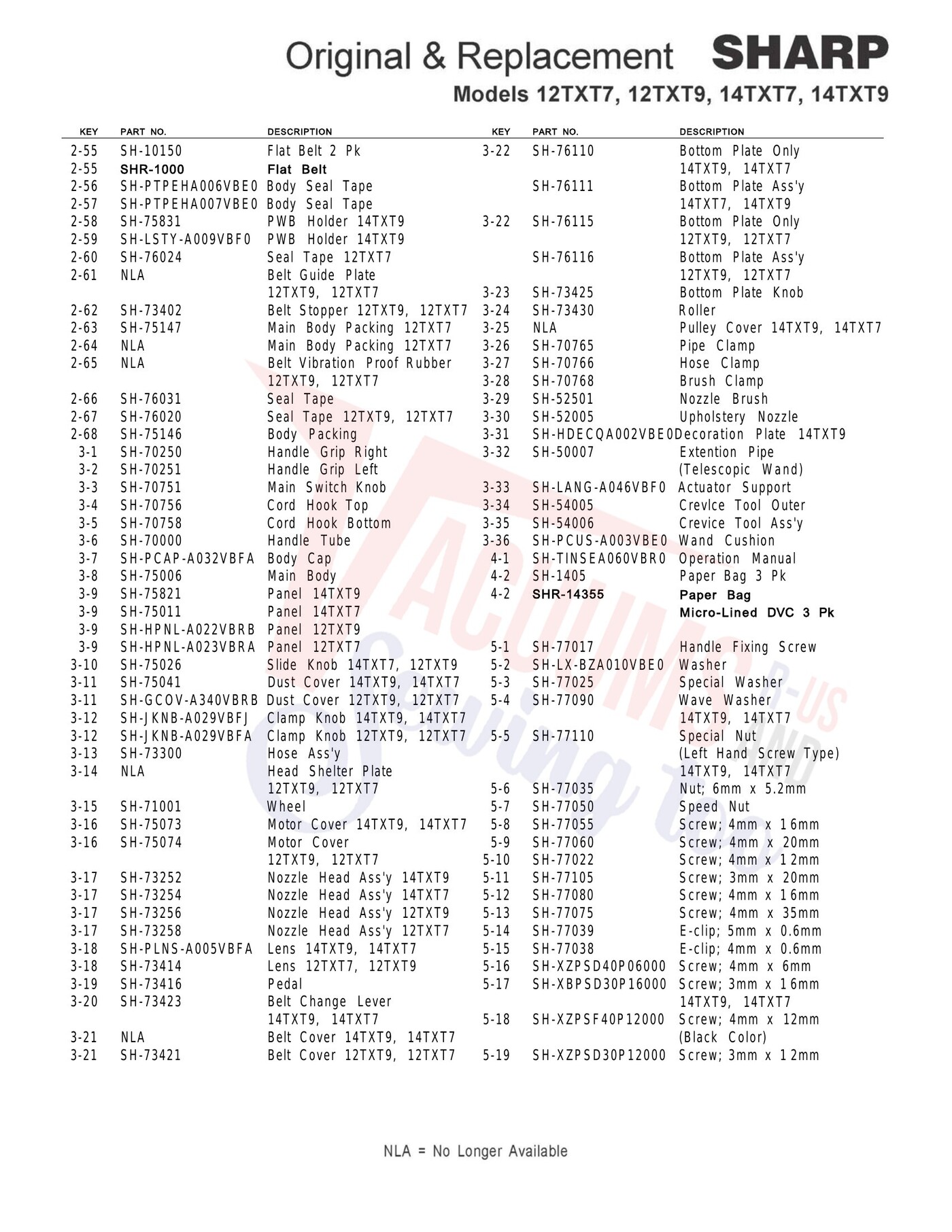

| # | Part image | Description | SKU | Price |
| XX | Not Available | Bottom Plate Ass'y | SH-76111 | Not Available |
| XX | Not Available | Bottom Plate Ass'y | SH-76116 | Not Available |
| 1 | Not Available | Handle Grip Right 3- | SH-70250 | Not Available |
| 1 | Not Available | Operation Manual | SH-TINSEA060VBR0 | Not Available |
| 1 | Not Available | Handle Fixing Screw | SH-77017 | Not Available |
| 2 | Not Available | Handle Grip Left (Telescopic Wand) | SH-70251 | Not Available |
| 2 | Not Available | Paper Bag 3 Pk | SH-1405 | Not Available |
| 2 | No Image | Paper Bag, DVC Sharp PU2 Microlined 3Pk | SHR-14355 | $8.79Read more |
| 2 | Not Available | Washer | SH-LX-BZA010VBE0 | Not Available |
| 3 | Not Available | Main Switch Knob 3- | SH-70751 | Not Available |
| 3 | Not Available | Special Washer | SH-77025 | Not Available |
| 4 | Not Available | Cord Hook Top 3- | SH-70756 | Not Available |
| 4 | Not Available | Wave Washer | SH-77090 | Not Available |
| 5 | Not Available | Cord Hook Bottom 3- | SH-70758 | Not Available |
| 5 | Not Available | Special Nut | SH-77110 | Not Available |
| 6 | Not Available | Handle Tube 3- | SH-70000 | Not Available |
| 6 | Not Available | Nut; 6mm x 5.2mm | SH-77035 | Not Available |
| 7 | Not Available | Body Cap 4- | SH-PCAP-A032VBFA | Not Available |
| 7 | Not Available | Speed Nut | SH-77050 | Not Available |
| 8 | Not Available | Main Body 4- | SH-75006 | Not Available |
| 8 | Not Available | Screw; 4mm x 1 6mm | SH-77055 | Not Available |
| 9 | Not Available | Panel 14TXT9 4- | SH-75821 | Not Available |
| 9 | Not Available | Panel 14TXT7 Micro-Lined DVC 3 Pk | SH-75011 | Not Available |
| 9 | Not Available | Panel 12TXT9 | SH-HPNL-A022VBRB | Not Available |
| 9 | Not Available | Panel 12TXT7 5- | SH-HPNL-A023VBRA | Not Available |
| 9 | Not Available | Screw; 4mm x 20mm | SH-77060 | Not Available |
| 10 | Not Available | Slide Knob 14TXT7 12TXT9 5- | SH-75026 | Not Available |
| 10 | Not Available | Screw; 4mm x 1 2mm | SH-77022 | Not Available |
| 11 | Not Available | Dust Cover 14TXT9 14TXT7 5- | SH-75041 | Not Available |
| 11 | Not Available | Dust Cover 12TXT9 12TXT7 5- | SH-GCOV-A340VBRB | Not Available |
| 11 | Not Available | Screw; 3mm x 20mm | SH-77105 | Not Available |
| 12 | Not Available | Clamp Knob 14TXT9 14TXT7 14TXT9 14TXT7 | SH-JKNB-A029VBFJ | Not Available |
| 12 | Not Available | Clamp Knob 12TXT9 12TXT7 5- | SH-JKNB-A029VBFA | Not Available |
| 12 | Not Available | Screw; 4mm x 1 6mm | SH-77080 | Not Available |
| 13 | Not Available | Hose Ass'y (Left Hand Screw Type) | SH-73300 | Not Available |
| 13 | Not Available | Screw; 4mm x 35mm | SH-77075 | Not Available |
| 14 | Not Available | Head Shelter Plate 14TXT9 14TXT7 | NLA | Not Available |
| 14 | Not Available | E-clip; 5mm x 0.6mm | SH-77039 | Not Available |
| 15 | Not Available | Wheel 5- | SH-71001 | Not Available |
| 15 | Not Available | E-clip; 4mm x 0.6mm | SH-77038 | Not Available |
| 16 | Not Available | Motor Cover 14TXT9 14TXT7 5- | SH-75073 | Not Available |
| 16 | Not Available | Motor Cover 5- | SH-75074 | Not Available |
| 16 | Not Available | Screw; 4mm x 6mm | SH-XZPSD40P06000 | Not Available |
| 17 | Not Available | Nozzle Head Ass'y 14TXT9 5- | SH-73252 | Not Available |
| 17 | Not Available | Nozzle Head Ass'y 14TXT7 5- | SH-73254 | Not Available |
| 17 | Not Available | Nozzle Head Ass'y 12TXT9 5- | SH-73256 | Not Available |
| 17 | Not Available | Nozzle Head Ass'y 12TXT7 5- | SH-73258 | Not Available |
| 17 | Not Available | Screw; 3mm x 1 6mm | SH-XBPSD30P16000 | Not Available |
| 18 | Not Available | Lens 14TXT9 14TXT7 5- | SH-PLNS-A005VBFA | Not Available |
| 18 | Not Available | Lens 12TXT7 12TXT9 5- | SH-73414 | Not Available |
| 18 | Not Available | Screw; 4mm x 12mm | SH-XZPSF40P12000 | Not Available |
| 19 | Not Available | Pedal 5- | SH-73416 | Not Available |
| 19 | Not Available | Screw; 3mm x 1 2mm | SH-XZPSD30P12000 | Not Available |
| 20 | Not Available | Belt Change Lever 14TXT9 14TXT7 | SH-73423 | Not Available |
| 21 | Not Available | Belt Cover 14TXT9 14TXT7 (Black Color) | NLA | Not Available |
| 21 | Not Available | Belt Cover 12TXT9 12TXT7 5- | SH-73421 | Not Available |
| 22 | Not Available | Bottom Plate Only | SH-76110 | Not Available |
| 22 | Not Available | Bottom Plate Only | SH-76115 | Not Available |
| 23 | Not Available | Bottom Plate Knob | SH-73425 | Not Available |
| 24 | Not Available | Roller | SH-73430 | Not Available |
| 25 | Not Available | Pulley Cover 14TXT9 14TXT7 | NLA | Not Available |
| 26 | Not Available | Pipe Clamp | SH-70765 | Not Available |
| 27 | Not Available | Hose Clamp | SH-70766 | Not Available |
| 28 | Not Available | Brush Clamp | SH-70768 | Not Available |
| 29 | Not Available | Nozzle Brush | SH-52501 | Not Available |
| 30 | Not Available | Upholstery Nozzle | SH-52005 | Not Available |
| 31 | Not Available | Plate 14TXT9 | SH-HDECQA002VBE0DECORATION | Not Available |
| 32 | Not Available | Extention Pipe | SH-50007 | Not Available |
| 33 | Not Available | Actuator Support | SH-LANG-A046VBF0 | Not Available |
| 34 | Not Available | Crevlce Tool Outer | SH-54005 | Not Available |
| 35 | Not Available | Crevice Tool Ass'y | SH-54006 | Not Available |
| 36 | Not Available | Wand Cushion | SH-PCUS-A003VBE0 | Not Available |
| 55 | Not Available | Flat Belt 2 Pk 3- | SH-10150 | Not Available |
| 55 | Not Available | Flat Belt 14TXT9 14TXT7 | SHR-1000 | Not Available |
| 56 | Not Available | Body Seal Tape | SH-PTPEHA006VBE0 | Not Available |
| 57 | Not Available | Body Seal Tape 14TXT7 14TXT9 | SH-PTPEHA007VBE0 | Not Available |
| 58 | Not Available | PWB Holder 14TXT9 3- | SH-75831 | Not Available |
| 59 | Not Available | PWB Holder 14TXT9 12TXT9 12TXT7 | SH-LSTY-A009VBF0 | Not Available |
| 60 | Not Available | Seal Tape 12TXT7 | SH-76024 | Not Available |
| 61 | Not Available | Belt Guide Plate 12TXT9 12TXT7 | NLA | Not Available |
| 62 | Not Available | Belt Stopper 12TXT9 12TXT7 3- | SH-73402 | Not Available |
| 63 | Not Available | Main Body Packing 12TXT7 3- | SH-75147 | Not Available |
| 64 | Not Available | Main Body Packing 12TXT7 3- | NLA | Not Available |
| 65 | Not Available | Belt Vibration Proof Rubber 3- | NLA | Not Available |
| 66 | Not Available | Seal Tape 3- | SH-76031 | Not Available |
| 67 | Not Available | Seal Tape 12TXT9 12TXT7 3- | SH-76020 | Not Available |
| 68 | Not Available | Body Packing 3- | SH-75146 | Not Available |
Report errors on this page HERE
