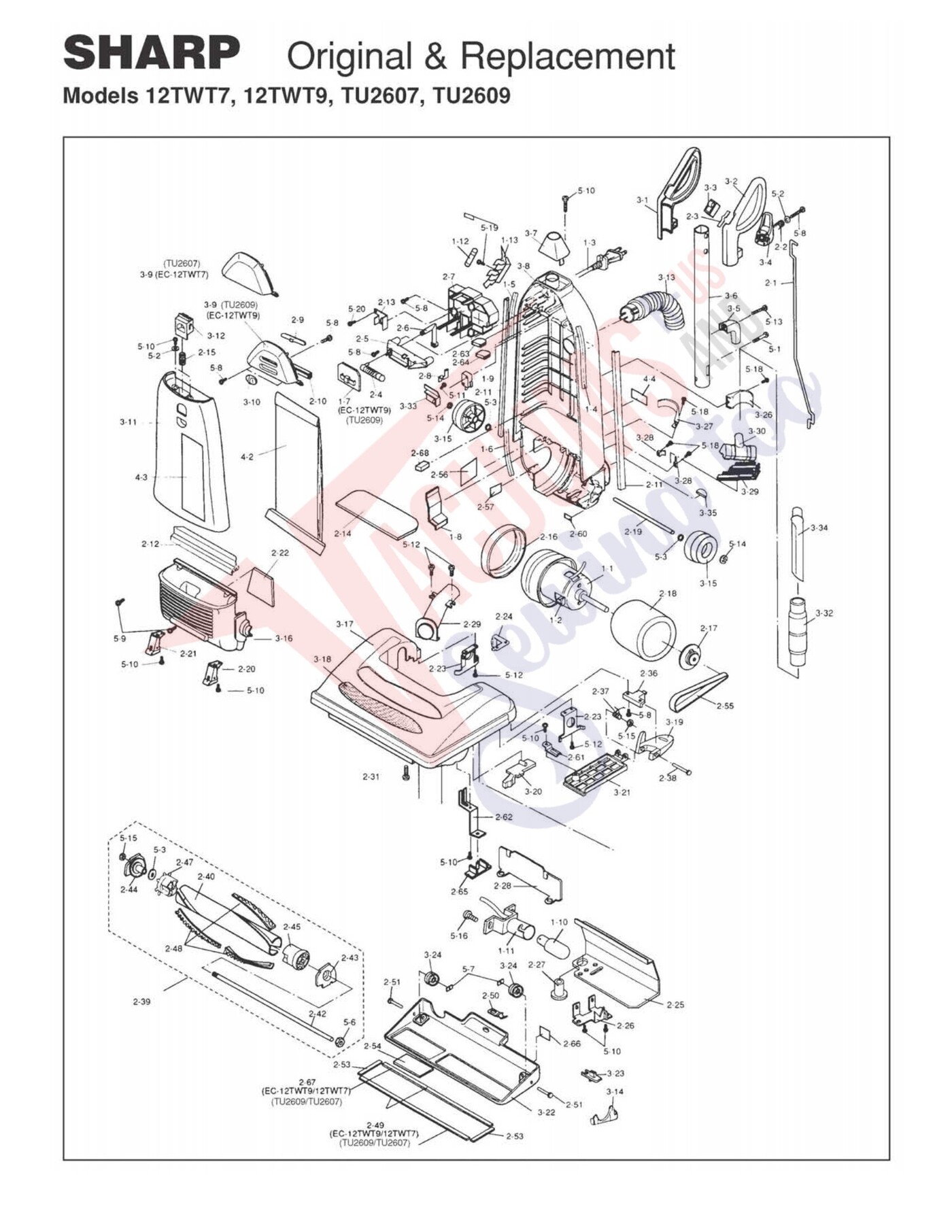

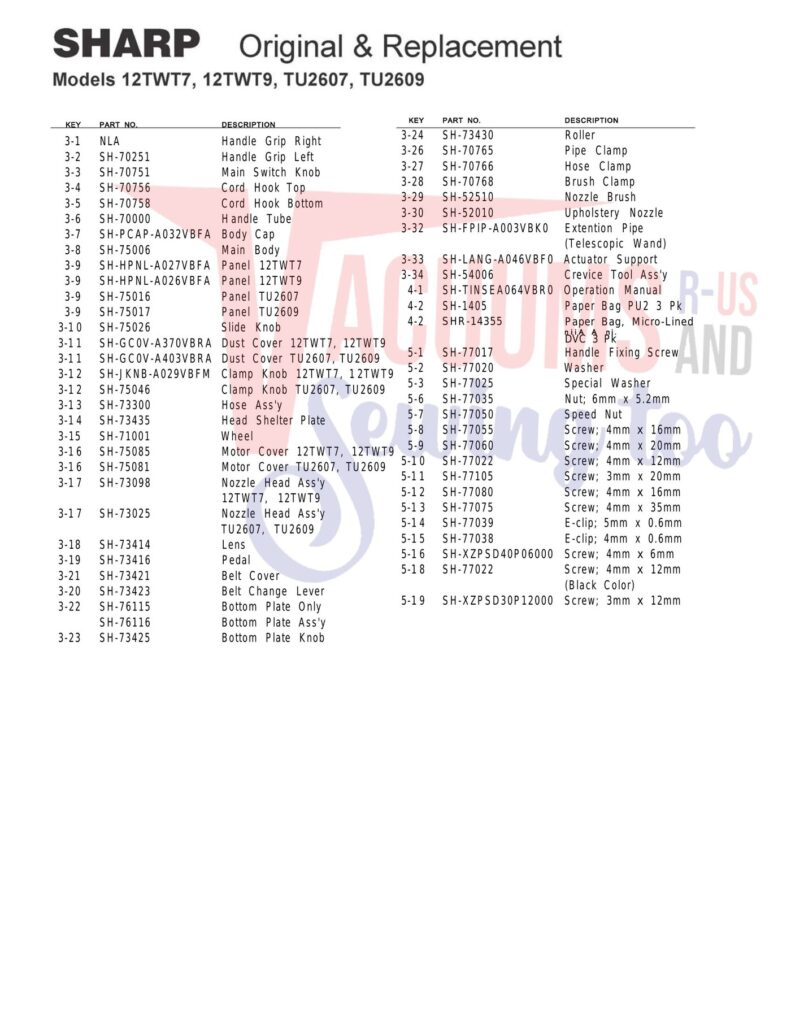

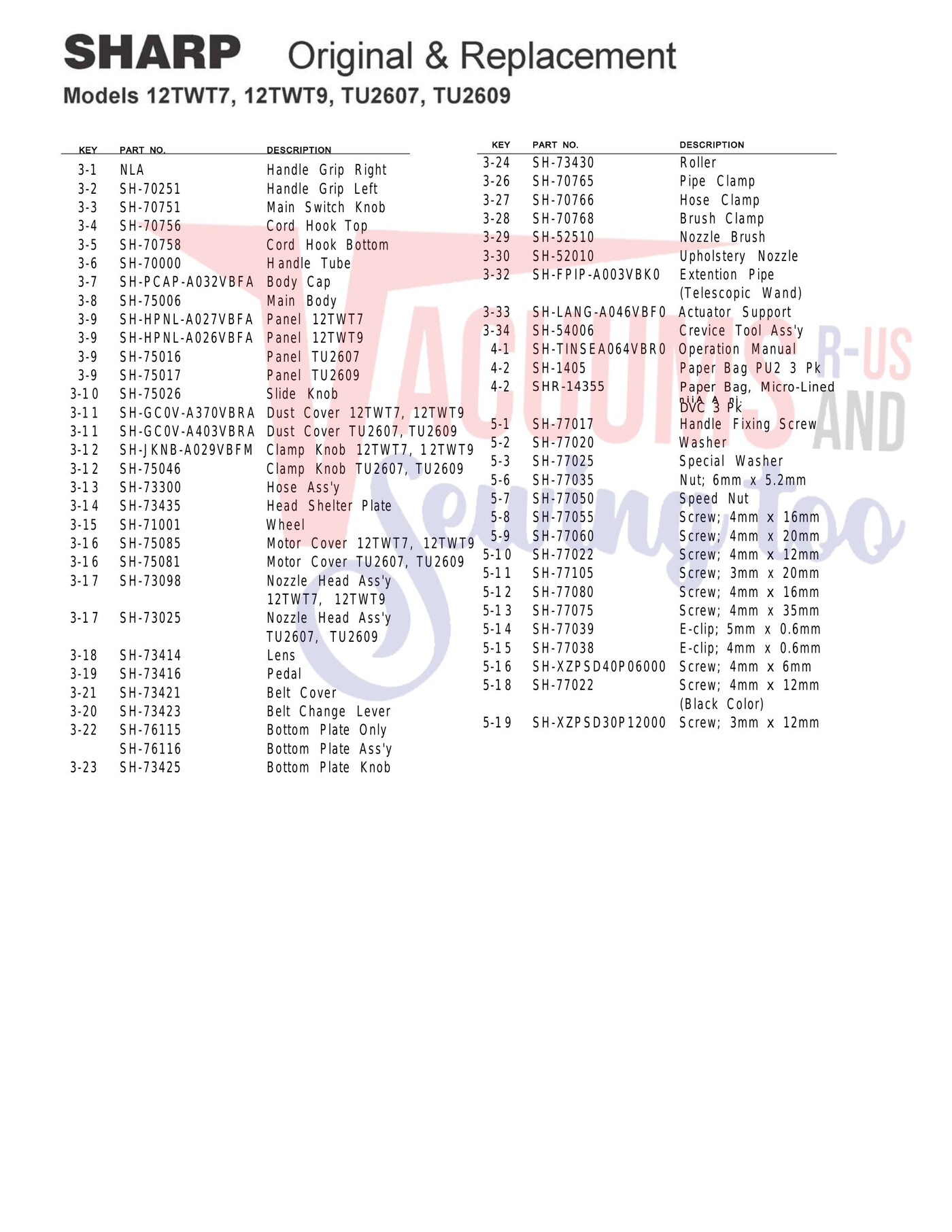

Schematic and parts book for sharp 12twt7, 12twt9, to2607, tu2609 . Repairs should be done by trained technicians. Vacuums R Us & Sewing Too provides vacuum cleaner and carpet cleaner parts and accessories for vacuum cleaner repair purposes. We are committed to delivering high-quality components, but it is important to note that all appliance repairs involve risks, and we cannot guarantee the outcome of your repair. When using our vacuum parts for repairs, you accept the terms and conditions HERE
| # | Part image | Description | SKU | Price |
| XX | Not Available | Air Valve Ass'y | SH-75023 | Not Available |
| XX | Not Available | HEPA Filter Frame Only 2-64 NLA Main Body Packing 12TWT7 | SH-18100 | Not Available |
| 1 | Not Available | Motor Ass'y 12 Amp 2- | SH-60032 | Not Available |
| 1 | Not Available | Switch Rod 2- | SH-34503 | Not Available |
| 2 | Not Available | Carbon Brush 2- | SH-63015 | Not Available |
| 2 | Not Available | Spring For Cord Hanger 2- | SH-70500 | Not Available |
| 3 | Not Available | Power Cord 12TWT7 TU2607 2- | SH-30006 | Not Available |
| 3 | Not Available | Power Cord 12TWT9 TU2609 2- | SH-FACC-A043VBE0 | Not Available |
| 3 | Not Available | Switch Knob Spring 2- | SH-74510 | Not Available |
| 4 | Not Available | Motor Lead Wires 2- | SH-36000 | Not Available |
| 4 | Not Available | Dust Indicator Ass'y 12TWT9 2- | SH-75135 | Not Available |
| 5 | Not Available | Circuit Lead Wires 2- | SH-36005 | Not Available |
| 5 | Not Available | Dust Indicator Base 12TWT9 2- | SH-LPLTPA072VBFA | Not Available |
| 6 | Not Available | Lamp Lead Wires 2- | SH-36010 | Not Available |
| 6 | Not Available | Meter Pipe Connector 12TWT9 2- | SH-PPIPPA127VBF0 | Not Available |
| 7 | Not Available | Power Control Ass'y 2- | SH-36015 | Not Available |
| 7 | Not Available | Handle Mounting Base 2- | SH-70510 | Not Available |
| 8 | Not Available | Triac Ass'y 2- | SH-75131 | Not Available |
| 8 | Not Available | Actuator 2- | SH-75159 | Not Available |
| 9 | Not Available | Switch 12TWT7 12TWT9 2- | SH-QSW-MA015VBE0MICRO | Not Available |
| 9 | Not Available | Micro Switch TU2607 TU2609 2- | SH-34002 | Not Available |
| 9 | Not Available | Indicating Plate 12TWT9 2- | SH-75024 | Not Available |
| 10 | Not Available | Bulb 15W 2- | FA-3515 | Not Available |
| 10 | Not Available | Panel Seal 2- | SH-76001 | Not Available |
| 11 | Not Available | Lamp Socket 12TWT9 TU2607 TU2609 | SH-QSOC-A003VBE0 | Not Available |
| 11 | Not Available | Body Seal 2- | SH-76006 | Not Available |
| 12 | Not Available | Fuse 2- | SH-36036 | Not Available |
| 12 | Not Available | Motor Cover Seal 2- | SH-76003 | Not Available |
| 13 | Not Available | Fuse Holder 2- | SH-QFSHDA001VBE0 | Not Available |
| 13 | Not Available | Screw Mounting Plate 2- | SH-70515 | Not Available |
| 14 | Not Available | Secondary Filter 2- | SH-18015 | Not Available |
| 14 | Not Available | Secondary HEPA Type Filter 2- | SHR-1810 | Not Available |
| 15 | Not Available | Clamp Spring 2- | SH-77000 | Not Available |
| 16 | Not Available | Vibration Proof Rubber 2- | SH-76015 | Not Available |
| 17 | Not Available | Vibration Proof Fixing Rubber | SH-76077 | Not Available |
| 18 | Not Available | Sound Proof Sponge TU2607 TU2609 | SH-PMUF-A044VBE0 | Not Available |
| 19 | Not Available | Wheel Shaft 2- | SH-71005 | Not Available |
| 20 | Not Available | Leg Ass'y Left | SH-75162 | Not Available |
| 21 | Not Available | Leg Ass'y Right | SH-75163 | Not Available |
| 22 | Not Available | Exhaust Filter | SH-18035 | Not Available |
| 23 | Not Available | Body Support | SH-75171 | Not Available |
| 24 | Not Available | Belt Stopper | SH-LPLT-A036VBM0 | Not Available |
| 25 | Not Available | Reflection Plate | SH-LPLT-A038VBW0 | Not Available |
| 26 | Not Available | Lamp Support | SH-LANG-A045VBM0 | Not Available |
| 27 | Not Available | Cord Bushing For Nozzle Head | SH-73445 | Not Available |
| 28 | Not Available | Heat Proof Plate | SH-73452 | Not Available |
| 29 | Not Available | Head Pipe | SH-73310 | Not Available |
| 31 | Not Available | Bottom Plate Fixing Screw | SH-77005 | Not Available |
| 36 | Not Available | Pedal Support | NLA | Not Available |
| 37 | Not Available | Pedal Spring | SH-77010 | Not Available |
| 38 | Not Available | Pedal Shaft | SH-73480 | Not Available |
| 39 | Not Available | Agitator Ass'y 12TWT7 | SH-20200 | Not Available |
| 40 | Not Available | Agitator Pipe Ass'y | SH-FPIPFA005VBK0 | Not Available |
| 42 | Not Available | Agitator Shaft | SH-20505 | Not Available |
| 43 | Not Available | Agitator Support Pulley End | SH-20510 | Not Available |
| 44 | Not Available | Agitator Support | SH-20511 | Not Available |
| 45 | Not Available | Main Pulley | SH-20515 | Not Available |
| 47 | Not Available | Brush Rotor Ass'y | SH-20520 | Not Available |
| 48 | Not Available | Brush Strip | SH-22000 | Not Available |
| 49 | Not Available | Seal Tape | SH-76030 | Not Available |
| 50 | Not Available | Bottom Plate Spring | SH-77014 | Not Available |
| 51 | Not Available | Roller Shaft | SH-73431 | Not Available |
| 53 | Not Available | Seal Tape | SH-76021 | Not Available |
| 54 | Not Available | Seal Tape | SH-76027 | Not Available |
| 55 | Not Available | Flat Belt 2 Pk | SH-10150 | Not Available |
| 55 | Not Available | Flat Belt | SHR-1000 | Not Available |
| 56 | Not Available | Body Seal Tape | SH-PTPEHA006VBE0 | Not Available |
| 57 | Not Available | Body Seal Tape | SH-PTPEHA007VBE0 | Not Available |
| 60 | Not Available | Seal Tape 12TWT7 | SH-76024 | Not Available |
| 61 | Not Available | Belt Guide Plate | NLA | Not Available |
| 62 | Not Available | Belt Stopper | SH-73402 | Not Available |
| 63 | Not Available | Main Body Packing 12TWT7 | SH-75147 | Not Available |
| 64 | Not Available | Main Body Packing 12TWT7 | NLA | Not Available |
| 65 | Not Available | Belt Vibration Proof Rubber | NLA | Not Available |
| 66 | Not Available | Seal Tape | SH-76031 | Not Available |
| 67 | Not Available | Seal Tape | SH-76020 | Not Available |
| 68 | Not Available | Body Packing | SH-75146 | Not Available |
| # | Part image | Description | SKU | Price |
| XX | Not Available | Bottom Plate Ass'y | SH-76116 | Not Available |
| 1 | Not Available | Handle Grip Right | NLA | Not Available |
| 1 | Not Available | Operation Manual | SH-TINSEA064VBR0 | Not Available |
| 1 | Not Available | Dust Cover 12TWT7 12TWT9 DVC 3 Pk | SH-GC0V-A370VBRA | Not Available |
| 1 | Not Available | Handle Fixing Screw | SH-77017 | Not Available |
| 1 | Not Available | Dust Cover TU2607 TU2609 | SH-GC0V-A403VBRA | Not Available |
| 1 | Not Available | Screw; 3mm x 20mm | SH-77105 | Not Available |
| 2 | Not Available | Handle Grip Left | SH-70251 | Not Available |
| 2 | Not Available | Paper Bag PU2 3 Pk | SH-1405 | Not Available |
| 2 | No Image | Paper Bag, DVC Sharp PU2 Microlined 3Pk | SHR-14355 | $8.79Read more |
| 2 | Not Available | Washer | SH-77020 | Not Available |
| 2 | Not Available | Clamp Knob 12TWT7 1 2TWT9 | SH-JKNB-A029VBFM | Not Available |
| 2 | Not Available | Clamp Knob TU2607 TU2609 | SH-75046 | Not Available |
| 2 | Not Available | Screw; 4mm x 16mm | SH-77080 | Not Available |
| 3 | Not Available | Main Switch Knob | SH-70751 | Not Available |
| 3 | Not Available | Special Washer | SH-77025 | Not Available |
| 3 | Not Available | Hose Ass'y | SH-73300 | Not Available |
| 3 | Not Available | Screw; 4mm x 35mm | SH-77075 | Not Available |
| 4 | Not Available | Cord Hook Top | SH-70756 | Not Available |
| 4 | Not Available | Head Shelter Plate | SH-73435 | Not Available |
| 4 | Not Available | E-clip; 5mm x 0.6mm | SH-77039 | Not Available |
| 5 | Not Available | Cord Hook Bottom | SH-70758 | Not Available |
| 5 | Not Available | E-clip; 4mm x 0.6mm | SH-77038 | Not Available |
| 6 | Not Available | H andle Tube | SH-70000 | Not Available |
| 6 | Not Available | Nut; 6mm x 5.2mm | SH-77035 | Not Available |
| 6 | Not Available | Motor Cover 12TWT7 12TWT9 | SH-75085 | Not Available |
| 6 | Not Available | Motor Cover TU2607 TU2609 | SH-75081 | Not Available |
| 6 | Not Available | Screw; 4mm x 6mm | SH-XZPSD40P06000 | Not Available |
| 7 | Not Available | Body Cap | SH-PCAP-A032VBFA | Not Available |
| 7 | Not Available | Speed Nut | SH-77050 | Not Available |
| 7 | Not Available | Nozzle Head Ass'y | SH-73098 | Not Available |
| 7 | Not Available | Nozzle Head Ass'y | SH-73025 | Not Available |
| 8 | Not Available | Main Body | SH-75006 | Not Available |
| 8 | Not Available | Screw; 4mm x 16mm | SH-77055 | Not Available |
| 8 | Not Available | Screw; 4mm x 12mm | SH-77022 | Not Available |
| 9 | Not Available | Panel 12TWT7 | SH-HPNL-A027VBFA | Not Available |
| 9 | Not Available | Panel 12TWT9 | SH-HPNL-A026VBFA | Not Available |
| 9 | Not Available | Panel TU2607 | SH-75016 | Not Available |
| 9 | Not Available | Panel TU2609 | SH-75017 | Not Available |
| 9 | Not Available | Screw; 4mm x 20mm | SH-77060 | Not Available |
| 9 | Not Available | Screw; 3mm x 12mm | SH-XZPSD30P12000 | Not Available |
| 15 | Not Available | Wheel | SH-71001 | Not Available |
| 18 | Not Available | Lens | SH-73414 | Not Available |
| 19 | Not Available | Pedal | SH-73416 | Not Available |
| 20 | Not Available | Belt Change Lever | SH-73423 | Not Available |
| 21 | Not Available | Belt Cover | SH-73421 | Not Available |
| 22 | Not Available | Bottom Plate Only | SH-76115 | Not Available |
| 23 | Not Available | Bottom Plate Knob | SH-73425 | Not Available |
| 24 | Not Available | Roller | SH-73430 | Not Available |
| 26 | Not Available | Pipe Clamp | SH-70765 | Not Available |
| 27 | Not Available | Hose Clamp | SH-70766 | Not Available |
| 28 | Not Available | Brush Clamp | SH-70768 | Not Available |
| 29 | Not Available | Nozzle Brush | SH-52510 | Not Available |
| 30 | Not Available | Upholstery Nozzle | SH-52010 | Not Available |
| 32 | Not Available | Extention Pipe | SH-FPIP-A003VBK0 | Not Available |
| 33 | Not Available | Actuator Support | SH-LANG-A046VBF0 | Not Available |
| 34 | Not Available | Crevice Tool Ass'y | SH-54006 | Not Available |
