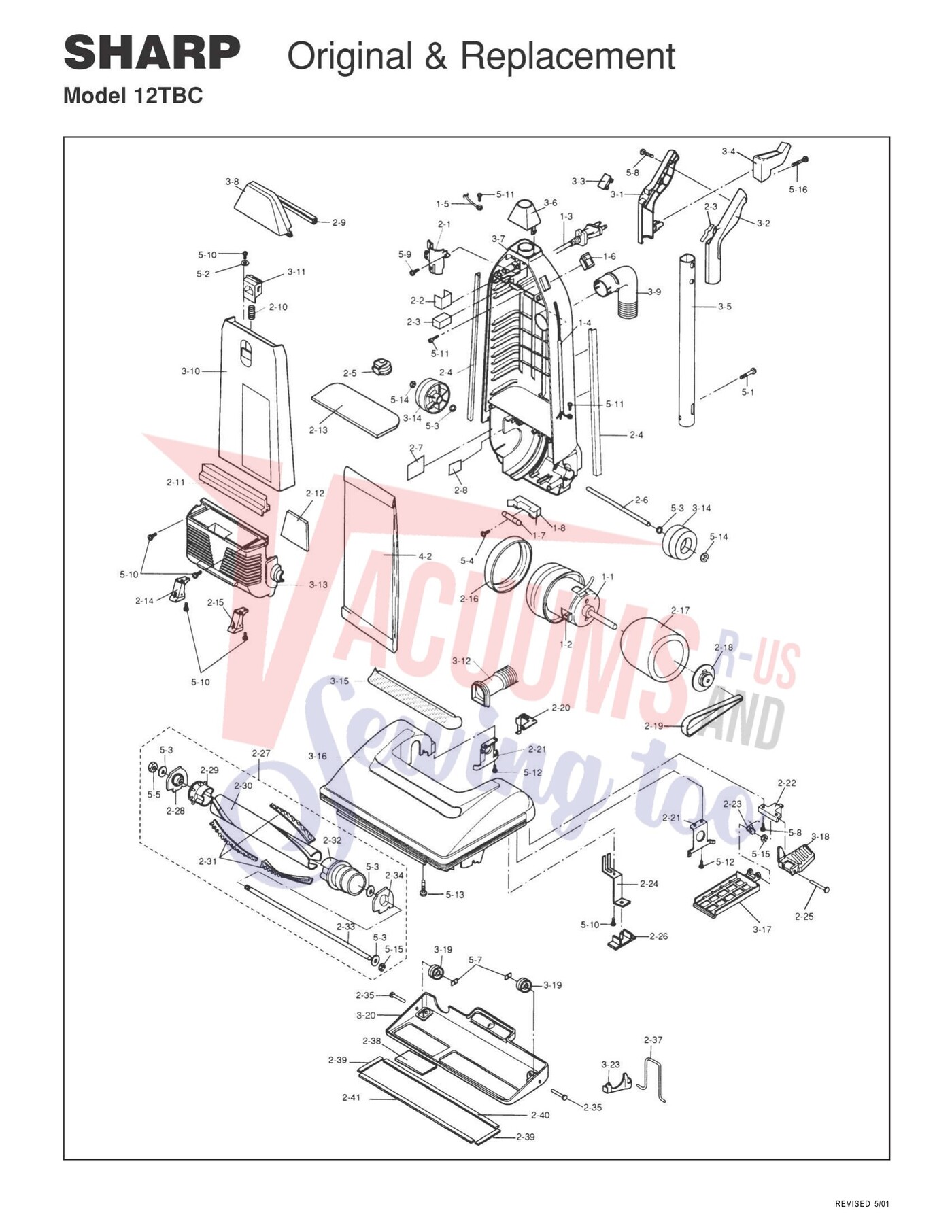

Schematic and parts book for sharp 12TBC . Repairs should be done by trained technicians. Vacuums R Us & Sewing Too provides vacuum cleaner and carpet cleaner parts and accessories for vacuum cleaner repair purposes. We are committed to delivering high-quality components, but it is important to note that all appliance repairs involve risks, and we cannot guarantee the outcome of your repair. When using our vacuum parts for repairs, you accept the terms and conditions HERE
| # | Part image | Description | SKU | Price |
| XX | Not Available | Bottom Plate Ass'y | SH-76128 | Not Available |
| 1 | Not Available | Motor Ass'y 2- | NLA | Not Available |
| 1 | Not Available | Handle Grip Right | SH-70255 | Not Available |
| 1 | Not Available | Handle Fixing Plate 3- | SH-70505 | Not Available |
| 1 | Not Available | Clamp Knob | SH-JKNB-A061VBFA | Not Available |
| 1 | Not Available | Motor Cover Seal 3-1 | SH-76010 | Not Available |
| 1 | Not Available | Handle fixing Screw | SH-77015 | Not Available |
| 1 | Not Available | Screw; 4mm x 8mm | SH-XFPSD40P08000 | Not Available |
| 2 | Not Available | Carbon Brush 2- | SH-63011 | Not Available |
| 2 | Not Available | Handle Grip Left | SH-70260 | Not Available |
| 2 | Not Available | Main Body Packing 3- | SH-75147 | Not Available |
| 2 | Not Available | Exhaust Filter 3- | SH-18010 | Not Available |
| 2 | Not Available | Cloth Bag | SH-12250 | Not Available |
| 2 | Not Available | Washer 4mm x 0.8mm | SH-XWSSD40-08000 | Not Available |
| 2 | Not Available | Screw; 4mm x 16mm | SH-77080 | Not Available |
| 3 | Not Available | Power Cord 2- | SH-30035 | Not Available |
| 3 | Not Available | Grip Cover | NLA | Not Available |
| 3 | Not Available | Main Body Packing 3- | NLA | Not Available |
| 3 | Not Available | Motor Cover | SH-75097 | Not Available |
| 3 | Not Available | Secondary Filter 3- | SH-18001 | Not Available |
| 3 | Not Available | Washer | SH-77025 | Not Available |
| 3 | Not Available | Bottom Plate Fixing Sc | SH-77030 | Not Available |
| 4 | Not Available | Motor Lead Wires 2- | SH-QW-VZA527VBE0 | Not Available |
| 4 | Not Available | Cord Hook Top | SH-70757 | Not Available |
| 4 | Not Available | Body Seal 3- | NLA | Not Available |
| 4 | Not Available | Leg Ass'y Right 3-1 | SH-75160 | Not Available |
| 4 | Not Available | Screw; 3mm x 12mm | SH-XZPSD30P12000 | Not Available |
| 4 | Not Available | E-Clip; 5mm x 0.6mm | SH-77039 | Not Available |
| 5 | Not Available | Circuit Lead Wires 2- | SH-QW-VZA519VBE0 | Not Available |
| 5 | Not Available | Handle Pipe | NLA | Not Available |
| 5 | Not Available | Air Valve Ass'y 3- | SH-75155 | Not Available |
| 5 | Not Available | Leg Ass'y Left 3-1 | SH-75161 | Not Available |
| 5 | Not Available | Special Nut | SH-77110 | Not Available |
| 5 | Not Available | E-Clip; 4mm x 0.6mm | SH-77038 | Not Available |
| 6 | Not Available | Main Switch 2- | SH-34007 | Not Available |
| 6 | Not Available | Body Cap | SH-75175 | Not Available |
| 6 | Not Available | Wheel Shaft 3- | SH-71005 | Not Available |
| 6 | Not Available | Nozzle Head Ass'y | SH-73045 | Not Available |
| 6 | Not Available | Vibration Proof Rubber 3- | SH-76015 | Not Available |
| 6 | Not Available | Nut; 6mm x 5.2mm | SH-77035 | Not Available |
| 6 | Not Available | Screw; 4mm x 16mm | SH-XFPSD40P16000 | Not Available |
| 7 | Not Available | Fuse 3- | SH-36036 | Not Available |
| 7 | Not Available | Main Body | SH-75013 | Not Available |
| 7 | Not Available | Body Seal Tape 3- | SH-PTPEHA006VBE0 | Not Available |
| 7 | Not Available | Belt Cover | SH-73421 | Not Available |
| 7 | Not Available | Sound Proof Sponge 3- | NLA | Not Available |
| 7 | Not Available | Speed Nut | SH-77050 | Not Available |
| 8 | Not Available | Fuse Holder 3- | SH-QFSHDA001VBE0 | Not Available |
| 8 | Not Available | Panel | SH-HPNL-A035VBFA | Not Available |
| 8 | Not Available | Body Seal Tape 3-1 | SH-PTPEHA007VBE0 | Not Available |
| 8 | Not Available | Screw; 4mm x 16mm | SH-77055 | Not Available |
| 9 | Not Available | Hose Elbow | SH-75065 | Not Available |
| 9 | Not Available | Panel Seal 3-1 | NLA | Not Available |
| 9 | Not Available | Screw; 4mm x 20mm | SH-77060 | Not Available |
| 10 | Not Available | Clamp Spring 3- | SH-77000 | Not Available |
| 12 | Not Available | Hose | SH-75060 | Not Available |
| 14 | Not Available | Wheel | SH-71001 | Not Available |
| 15 | Not Available | Lens | SH-PLNS-A011VBFA | Not Available |
| 18 | Not Available | Pedal | SH-73415 | Not Available |
| 18 | Not Available | Vibration Proof Fixing Rubber 3- | SH-76077 | Not Available |
| 19 | Not Available | Roller | SH-73430 | Not Available |
| 19 | Not Available | Flat Belt 2 Pk | SH-10150 | Not Available |
| 19 | Not Available | Flat Belt 3- | SHR-1000 | Not Available |
| 20 | Not Available | Bottom Plate Only | SH-76127 | Not Available |
| 20 | Not Available | Belt Stopper 4- | SH-73400 | Not Available |
| 21 | Not Available | Head Shelter Plate | NLA | Not Available |
| 21 | Not Available | Body Support 5- | SH-75170 | Not Available |
| 22 | Not Available | Pedal Support 5- | NLA | Not Available |
| 23 | Not Available | Pedal Spring 5- | SH-77010 | Not Available |
| 24 | Not Available | Belt Stopper 5- | SH-73402 | Not Available |
| 25 | Not Available | Pedal Shaft 5- | SH-73480 | Not Available |
| 26 | Not Available | Belt Vibration Proof Rubber (Left hand screw type) | NLA | Not Available |
| 27 | Not Available | Agitator Ass'y 5- | SH-20200 | Not Available |
| 28 | Not Available | Agitator Support 5- | SH-20511 | Not Available |
| 29 | Not Available | Brush Rotor 5- | SH-20520 | Not Available |
| 30 | Not Available | Agitator Pipe Ass'y 5- | SH-20500 | Not Available |
| 31 | Not Available | Brush Strip Each 5-1 | SH-22000 | Not Available |
| 31 | Not Available | Brush Strip Pair 5-1 | SHR-2200 | Not Available |
| 32 | Not Available | Main Pulley 5-1 | SH-20515 | Not Available |
| 33 | Not Available | Agitator Shaft 5-1 | SH-20505 | Not Available |
| 34 | Not Available | Agitator Support Pulley End 5-1 | SH-20510 | Not Available |
| 35 | Not Available | Roller Shaft 5-1 | SH-73431 | Not Available |
| 36 | Not Available | Seal Tape | SH-76031 | Not Available |
| 37 | Not Available | Belt Guide Pin | SH-73455 | Not Available |
| 38 | Not Available | Seal Tape | SH-76027 | Not Available |
| 39 | Not Available | Seal Tape | SH-76021 | Not Available |
| 40 | Not Available | Seal Tape | SH-76020 | Not Available |
| 41 | Not Available | Seal Tape | SH-76030 | Not Available |
