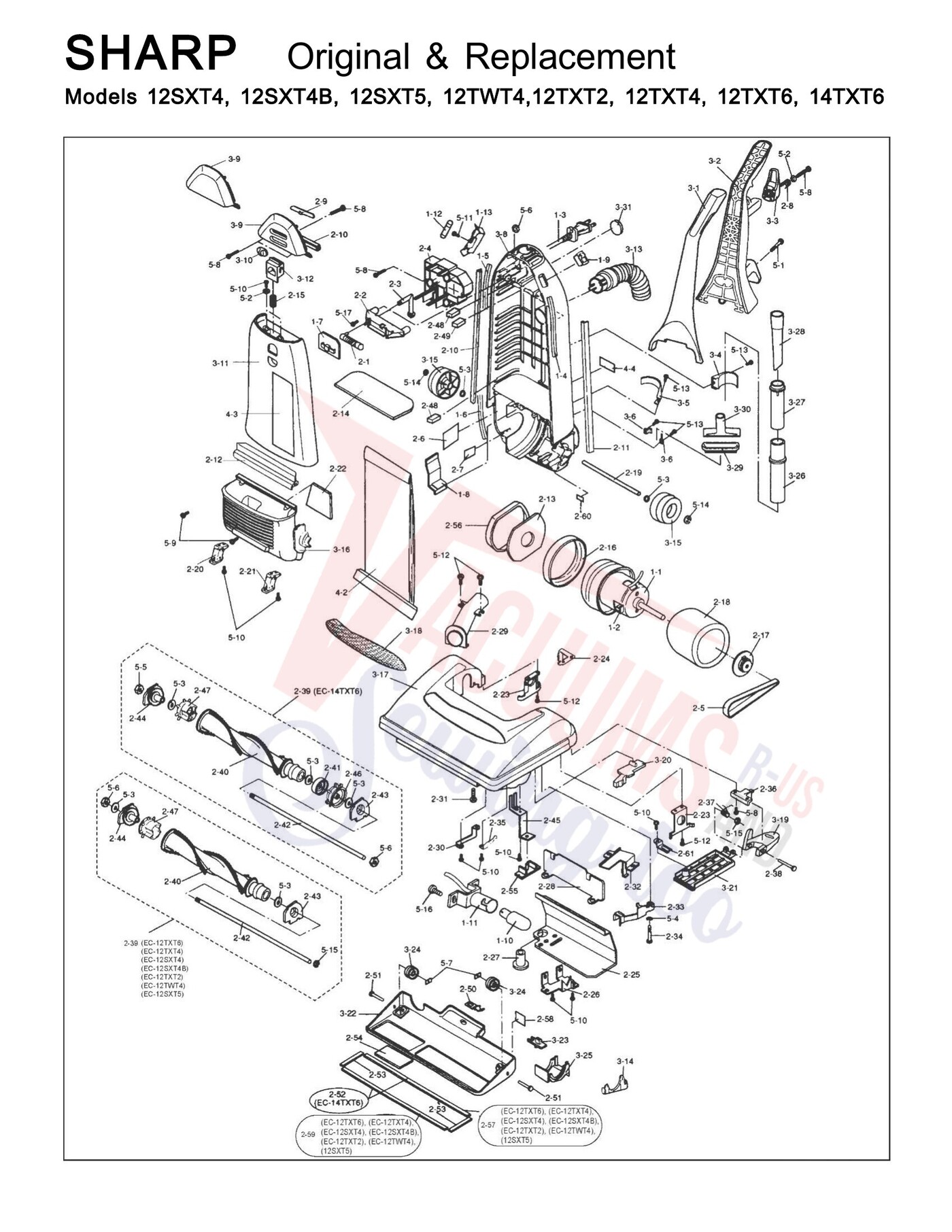

Schematic and parts book for Sharp 12SXT4, 12SXT4B, 12SXT5, 12TWT4, 12TXT2, 12TXT4, 12TXT6, 14TXT6 . Repairs should be done by trained technicians. Vacuums R Us & Sewing Too provides vacuum cleaner and carpet cleaner parts and accessories for vacuum cleaner repair purposes. We are committed to delivering high-quality components, but it is important to note that all appliance repairs involve risks, and we cannot guarantee the outcome of your repair. When using our vacuum parts for repairs, you accept the terms and conditions HERE
| # | Part image | Description | SKU | Price |
| XX | Not Available | Belt Guide Pin 12SXT5 | SH-73455 | Not Available |
| XX | Not Available | Bottom Plate Ass'y 14TXT6 | SH-76111 | Not Available |
| XX | Not Available | Bottom Plate Ass'y | SH-76116 | Not Available |
| XX | Not Available | U-Seal 2-42 | SH-PSEL-A027VBF0 | Not Available |
| XX | Not Available | Stop Rubber 12TWT4 12TXT2 | PSEL-A032VBE0 | Not Available |
| XX | Not Available | Body Seal 12SXT4/4B 12TWT4 12SXT5 | PSEL-A027VBF0 | Not Available |
| 1 | Not Available | Motor Ass'y 10 Amp 14TXT6 2- | NLA | Not Available |
| 1 | Not Available | Motor Ass'y 8.5 Amp 12SXT4/4B 2- | SH-60025 | Not Available |
| 1 | Not Available | Motor Ass'y 12 Amp 12TWT4 2- | SH-60032 | Not Available |
| 1 | Not Available | Motor Ass'y 12 Amp 12SXT5 2- | SH-60005 | Not Available |
| 1 | Not Available | Lamp Socket 12SXT4/4B 12TWT4 12SXT5 | SH-36021 | Not Available |
| 1 | Not Available | Dust Indicator Ass'y (Order SH-20275) | SH-75135 | Not Available |
| 1 | Not Available | Front Handle 3- | SH-70010 | Not Available |
| 1 | Not Available | Handle Fixing Screw | SH-77016 | Not Available |
| 2 | Not Available | Carbon Brush 14TXT6 2- | SH-63011 | Not Available |
| 2 | Not Available | Carbon Brush 12SXT4/4B 2- | SH-63012 | Not Available |
| 2 | Not Available | Carbon Brush 12TWT4 2- | SH-63015 | Not Available |
| 2 | Not Available | Carbon Brush 12SXT5 14TXT612TXT6 | SH-QBRSCA042ABE0 | Not Available |
| 2 | Not Available | Dust Indicator Base (Order SH-20275) | SH-LPLTPA072VBFA | Not Available |
| 2 | Not Available | Rear Handle 3- | SH-70011 | Not Available |
| 2 | Not Available | Paper Bag PU2 3 Pk | SH-1405 | Not Available |
| 2 | Not Available | Washer | SH-77020 | Not Available |
| 3 | Not Available | Power Cord 12TXT6 14TXT6 2- | SH-30001 | Not Available |
| 3 | Not Available | Power Cord 12TXT4 14TXT6 12TXT6 | SH-30005 | Not Available |
| 3 | Not Available | Power Cord 12SXT4 2- | SH-30003 | Not Available |
| 3 | Not Available | Power Cord 12TXT2 12SXT4B 14TXT6 12TXT6 | SH-FACC-A039VBE0 | Not Available |
| 3 | Not Available | Power Cord 12TWT4 2- | SH-30006 | Not Available |
| 3 | Not Available | Power Cord 12SXT5 14TXT6 12TXT6 | SH-FACC-A053VBE0 | Not Available |
| 3 | Not Available | Fuse Holder 2- | SH-QFSHDA001VBE0 | Not Available |
| 3 | Not Available | Meter Pipe Connector 12SXT4/4B 12TWT4 12SXT5 | SH-PPIPPA127VBF0 | Not Available |
| 3 | Not Available | Cord Hook Upper 3- | SH-70756 | Not Available |
| 3 | Not Available | Washer | SH-77025 | Not Available |
| 4 | Not Available | Motor Lead Wires 2- | SH-36000 | Not Available |
| 4 | Not Available | Handle Mounting Base 12SXT5 14TXT6 (Order SH-20275) | SH-70510 | Not Available |
| 4 | Not Available | Pipe Clamp 3- | SH-70765 | Not Available |
| 4 | Not Available | Wave Washer 14TXT6 | SH-77090 | Not Available |
| 5 | Not Available | Circuit Lead Wires 2- | SH-36005 | Not Available |
| 5 | Not Available | Flat Belt 2 Pk 12TXT612TXT4 12SXT4 | SH-10150 | Not Available |
| 5 | Not Available | Hose Clamp 3- | SH-70766 | Not Available |
| 5 | Not Available | Special Nut | SH-77110 | Not Available |
| 6 | Not Available | Lamp Lead Wires 2- | SH-36010 | Not Available |
| 6 | Not Available | Body Seal Tape 12SXT5 12TXT2 | SH-76020 | Not Available |
| 6 | Not Available | Brush Clamp 3- | SH-70768 | Not Available |
| 6 | Not Available | Nut; 6mm x 5.2mm | SH-77035 | Not Available |
| 7 | Not Available | Power Control Ass'y 2- | SH-36015 | Not Available |
| 7 | Not Available | Body Seal Tape 12SXT4B 12TWT4 | SH-76023 | Not Available |
| 7 | Not Available | Panel Seal 3- | SH-76001 | Not Available |
| 7 | Not Available | Speed nut | SH-77050 | Not Available |
| 8 | Not Available | Triac Ass'y 14TXT6 12TXT6 2- | SH-75131 | Not Available |
| 8 | Not Available | Spring For Cord Hanger 2- | SH-70500 | Not Available |
| 8 | Not Available | Main Body 12TXT2/4/6 12SXT4/4B 12TWT4 12SXT5 | SH-75005 | Not Available |
| 8 | Not Available | Main Body 12TXT2 | SH-75006 | Not Available |
| 8 | Not Available | Main Body 12SXT4B 12TXT2/4/6 | SH-75006 | Not Available |
| 8 | Not Available | Main Body 12TWT4 | SH-75015 | Not Available |
| 8 | Not Available | Main Body 12SXT5 12TXT2/4/6 | SH-75015 | Not Available |
| 8 | Not Available | Screw; 4mm x 16mm | SH-77055 | Not Available |
| 9 | Not Available | Switch 2- | NLA | Not Available |
| 9 | Not Available | Switch 12SXT4 12SXT4B 12SXT5 2- | SH-34007 | Not Available |
| 9 | Not Available | Indicating Plate (Order SH-20275) | SH-75024 | Not Available |
| 9 | Not Available | Panel 14TXT6 3- | SH-HPNL-A018VBRA | Not Available |
| 9 | Not Available | Panel 12TXT6 3- | SH-HPNL-A019VBRA | Not Available |
| 9 | Not Available | Panel 12TXT4 3- | SH-75012 | Not Available |
| 9 | Not Available | Panel 12SXT4 3- | SH-HPNL-A021VBRC | Not Available |
| 9 | Not Available | Panel 12TWT4 3- | SH-HPNL-A029VBFA | Not Available |
| 9 | Not Available | Panel 12TXT2 3- | SH-HPNL-A030VBFA | Not Available |
| 9 | Not Available | Panel 12SXT4B 3- | SH-HPNL-A031VBFA | Not Available |
| 9 | Not Available | Panel 12SXT5 3- | SH-HPNL-A029VBFC | Not Available |
| 9 | Not Available | Screw; 4mm x 20mm | SH-77060 | Not Available |
| 10 | Not Available | Bulb 15W 2- | FA-3515 | Not Available |
| 10 | Not Available | Panel Seal 12SXT4/4B 12TWT4 12SXT5 | SH-76001 | Not Available |
| 10 | Not Available | Slide Knob 3- | SH-75026 | Not Available |
| 10 | Not Available | Screw; 4mm x 12mm | SH-77022 | Not Available |
| 11 | Not Available | Body Seal 2- | SH-76006 | Not Available |
| 11 | Not Available | Dust Cover 14TXT6 4- | SH-75034 | Not Available |
| 11 | Not Available | Dust Cover 12TXT6 5- | SH-GCOV-A337VBRB | Not Available |
| 11 | Not Available | Dust Cover 12TXT4 5- | SH-GCOV-A337VBRB | Not Available |
| 11 | Not Available | Dust Cover 12SXT4 12SXT4B 5- | SH-GCOV-A345VBFA | Not Available |
| 11 | Not Available | Dust Cover 12SXT5 5- | SH-GCOV-A345VBFE | Not Available |
| 11 | Not Available | Dust Cover 12TWT4 5- | SH-GCOV-A372VBRB | Not Available |
| 11 | Not Available | Dust Cover 12TXT2 (Left Hand Screw Type) | SH-GCOV-A372VBRC | Not Available |
| 11 | Not Available | Screw; 3mm x 12mm | SH-77105 | Not Available |
| 12 | Not Available | Fuse 2- | SH-36036 | Not Available |
| 12 | Not Available | Motor Cover Seal 12TXT6 12TXT4 12SXT4 | SH-76003 | Not Available |
| 12 | Not Available | Clamp Knob 14TXT6 14TXT6 | SH-JKNB-A029VBFG | Not Available |
| 12 | Not Available | Clamp Knob 12TXT4/6 12TWT4 5- | SH-JKNB-A029VBFH | Not Available |
| 12 | Not Available | Clamp Knob 5- | SH-JKNB-A029VBFL | Not Available |
| 12 | Not Available | Clamp Knob 12TXT2 5- | SH-JKNB-A029VBFT | Not Available |
| 12 | Not Available | Screw; 4mm x 16mm | SH-77080 | Not Available |
| 13 | Not Available | Motor Shelter Plate | SH-75165 | Not Available |
| 13 | Not Available | Hose Ass'y 5- | SH-73300 | Not Available |
| 13 | Not Available | Screw; 4mm x 12mm | SH-77022 | Not Available |
| 14 | Not Available | Secondary Filter Micron 2- | SH-18015 | Not Available |
| 14 | Not Available | Secondary Filter Foam 2- | NLA | Not Available |
| 14 | Not Available | Head Shelter Plate 12TXT2/4/6 5- | NLA | Not Available |
| 14 | Not Available | E-clip; 5mm x 0.6mm | SH-77039 | Not Available |
| 15 | Not Available | Clamp Spring 12SXT4/4B 12TWT4 12SXT5 | SH-77000 | Not Available |
| 15 | Not Available | Wheel 5- | SH-71001 | Not Available |
| 15 | Not Available | E-clip; 4mm x 0.6mm | SH-77038 | Not Available |
| 16 | Not Available | Vibration Proof Rubber 14TXT6 2- | SH-76015 | Not Available |
| 16 | Not Available | Vibration Proof Rubber 2- | SH-PGUMMA159VBE0 | Not Available |
| 16 | Not Available | Motor Cover 14TXT6 12SXT5 (Black Color) | SH-75098 | Not Available |
| 16 | Not Available | Motor Cover 12TXT6 12TXT4 5- | SH-75072 | Not Available |
| 16 | Not Available | Motor Cover 12SXT4 12SXT4B 5- | SH-75077 | Not Available |
| 16 | Not Available | Motor Cover 12TWT4 5- | NLA | Not Available |
| 16 | Not Available | Screw; 4mm x 6mm | SH-XZPSD40P06000 | Not Available |
| 16 | Not Available | Motor Cover 12TXT2 12TXT6 14TXT6 | SH-75121 | Not Available |
| 17 | Not Available | Vibration Proof Fixing Rubber | SH-76077 | Not Available |
| 17 | Not Available | Nozzle Head Ass'y 14TXT6 | NLA | Not Available |
| 17 | Not Available | Nozzle Head Ass'y 12TXT6 | SH-73253 | Not Available |
| 17 | Not Available | Nozzle Head Ass'y 12TXT4 | SH-73255 | Not Available |
| 17 | Not Available | Nozzle Head Ass'y 12SXT4 | SH-73257 | Not Available |
| 17 | Not Available | Nozzle Head Ass'y | NLA | Not Available |
| 17 | Not Available | Nozzle Head Ass'y 12SXT4B | SH-73270 | Not Available |
| 17 | Not Available | Nozzle Head Ass'y 12SXT5 | SH-73260 | Not Available |
| 17 | Not Available | Screw; 4mm x 16mm | SH-77055 | Not Available |
| 18 | Not Available | Sound Proof Sponge | SH-PMUF-A044VBE0 | Not Available |
| 18 | Not Available | Lens 14TXT6 | SH-PLNS-A005VBFA | Not Available |
| 18 | Not Available | Lens 12TXT6 12TWT4 | SH-73414 | Not Available |
| 18 | Not Available | Lens 12TXT4 | SH-PLNS-A006VBFB | Not Available |
| 18 | Not Available | Lens 12SXT4 | SH-PLNS-A006VBFC | Not Available |
| 18 | Not Available | Lens 12SXT4B 12SXT5 | SH-PLNS-A008VBFG | Not Available |
| 18 | Not Available | Lens 12TXT2 | SH-PLNS-A010VBFA | Not Available |
| 19 | Not Available | Wheel Shaft | SH-71005 | Not Available |
| 19 | Not Available | Pedal | SH-73416 | Not Available |
| 20 | Not Available | Leg Ass'y Right | SH-75162 | Not Available |
| 20 | Not Available | Belt Change Lever 14TXT6 | SH-73423 | Not Available |
| 21 | Not Available | Leg Ass'y Left | SH-75163 | Not Available |
| 21 | Not Available | Belt Cover 14TXT6 | NLA | Not Available |
| 21 | Not Available | Belt Cover 12TXT2/4/6 | SH-73421 | Not Available |
| 22 | Not Available | Exhaust Filter | SH-18030 | Not Available |
| 22 | Not Available | Bottom Plate Only 14TXT6 | SH-76110 | Not Available |
| 22 | Not Available | Bottom Plate Only | SH-76115 | Not Available |
| 23 | Not Available | Body Support | SH-75172 | Not Available |
| 23 | Not Available | Bottom Plate Knob | SH-73425 | Not Available |
| 24 | Not Available | Belt Stopper | SH-LPLT-A036VBM0 | Not Available |
| 24 | Not Available | Roller | SH-73430 | Not Available |
| 25 | Not Available | Reflection Plate | SH-LPLT-A038VBW0 | Not Available |
| 25 | Not Available | Pulley Cover 14TXT6 | NLA | Not Available |
| 26 | Not Available | Lamp Support | SH-LANG-A045VBM0 | Not Available |
| 26 | Not Available | Out Extention Pipe | SH-50005 | Not Available |
| 27 | Not Available | Cord Bushing For Nozzle Head | SH-73445 | Not Available |
| 27 | Not Available | In Extention Pipe | SH-50006 | Not Available |
| 28 | Not Available | Heat Proof Plate | SH-73452 | Not Available |
| 28 | Not Available | Crevice Tool | SH-54005 | Not Available |
| 29 | Not Available | Head Pipe | SH-73310 | Not Available |
| 29 | Not Available | Nozzle Brush | SH-52501 | Not Available |
| 30 | Not Available | Head Reinforcing Plate 14TXT6 | NLA | Not Available |
| 30 | Not Available | Upholstery Nozzle | SH-52005 | Not Available |
| 31 | Not Available | Bottom Plate Fixing Screw | SH-77005 | Not Available |
| 31 | Not Available | Hole Cover | SH-GCOV-A350VBE0 | Not Available |
| 32 | Not Available | Belt Change Lever Support | SH-FPLT-A010VBK0 | Not Available |
| 33 | Not Available | Belt Change Plate 14TXT6 | SH-73467 | Not Available |
| 34 | Not Available | Belt Change Shaft 1 4TXT6 | SH-73477 | Not Available |
| 35 | Not Available | Belt Change Spring 14TXT6 | SH-77014 | Not Available |
| 36 | Not Available | Pedal Support | NLA | Not Available |
| 37 | Not Available | Pedal Spring | SH-77010 | Not Available |
| 38 | Not Available | Pedal Shaft | SH-73480 | Not Available |
| 39 | Not Available | Agitator Ass'y 14TXT6 | SH-20275 | Not Available |
| 39 | Not Available | Agitator Ass'y 12TXT2/4/6 | SH-20255 | Not Available |
| 40 | Not Available | Agitator Core (Order SH-20255) | NLA | Not Available |
| 40 | Not Available | Agitator Rotor Ass'y 14TXT6 | SH-20523 | Not Available |
| 41 | Not Available | Idler Pulley Ass'y 14TXT6 | NLA | Not Available |
| 42 | Not Available | Agitator Shaft 14TXT6 | NLA | Not Available |
| 42 | Not Available | Agitator Shaft 12TXT2/4/6 | SH-20505 | Not Available |
| 43 | Not Available | Agitator Support Pulley End | NLA | Not Available |
| 43 | Not Available | Agitator Support Pulley End | SH-20510 | Not Available |
| 44 | Not Available | Agitator Support 14TXT6 | NLA | Not Available |
| 44 | Not Available | Agitator Support 12TXT2/4/6 | SH-20511 | Not Available |
| 45 | Not Available | Belt Stopper 12SXT5 | SH-73402 | Not Available |
| 46 | Not Available | Brush Rotor Pulley End 14TXT6 | SH-20521 | Not Available |
| 47 | Not Available | Brush Rotor 14TXT6 | SH-20526 | Not Available |
| 47 | Not Available | Brush Rotor 12TXT2/4/6 | SH-20524 | Not Available |
| 48 | Not Available | Main Body Packing | SH-75146 | Not Available |
| 49 | Not Available | Main Body Packing | NLA | Not Available |
| 50 | Not Available | Bottom Plate Spring | SH-77014 | Not Available |
| 51 | Not Available | Roller Shaft 3- | SH-73431 | Not Available |
| 52 | Not Available | Seal Tape 14TXT6 3- | SH-76025 | Not Available |
| 53 | Not Available | Seal Tape 3- | SH-76021 | Not Available |
| 54 | Not Available | Seal Tape 3- | SH-76027 | Not Available |
| 55 | Not Available | Belt Vibration Proof Rubber 3- | NLA | Not Available |
| 56 | Not Available | Packing (Order SH-73008) | NLA | Not Available |
| 57 | Not Available | Seal Tape 3- | SH-76020 | Not Available |
| 58 | Not Available | Seal Tape 3- | SH-76031 | Not Available |
| 59 | Not Available | Seal Tape 3- | SH-76030 | Not Available |
| 60 | Not Available | Seal Tape 3- | SH-76024 | Not Available |
| 61 | Not Available | Belt Guide Plate 3- | NLA | Not Available |
Report errors on this page HERE
