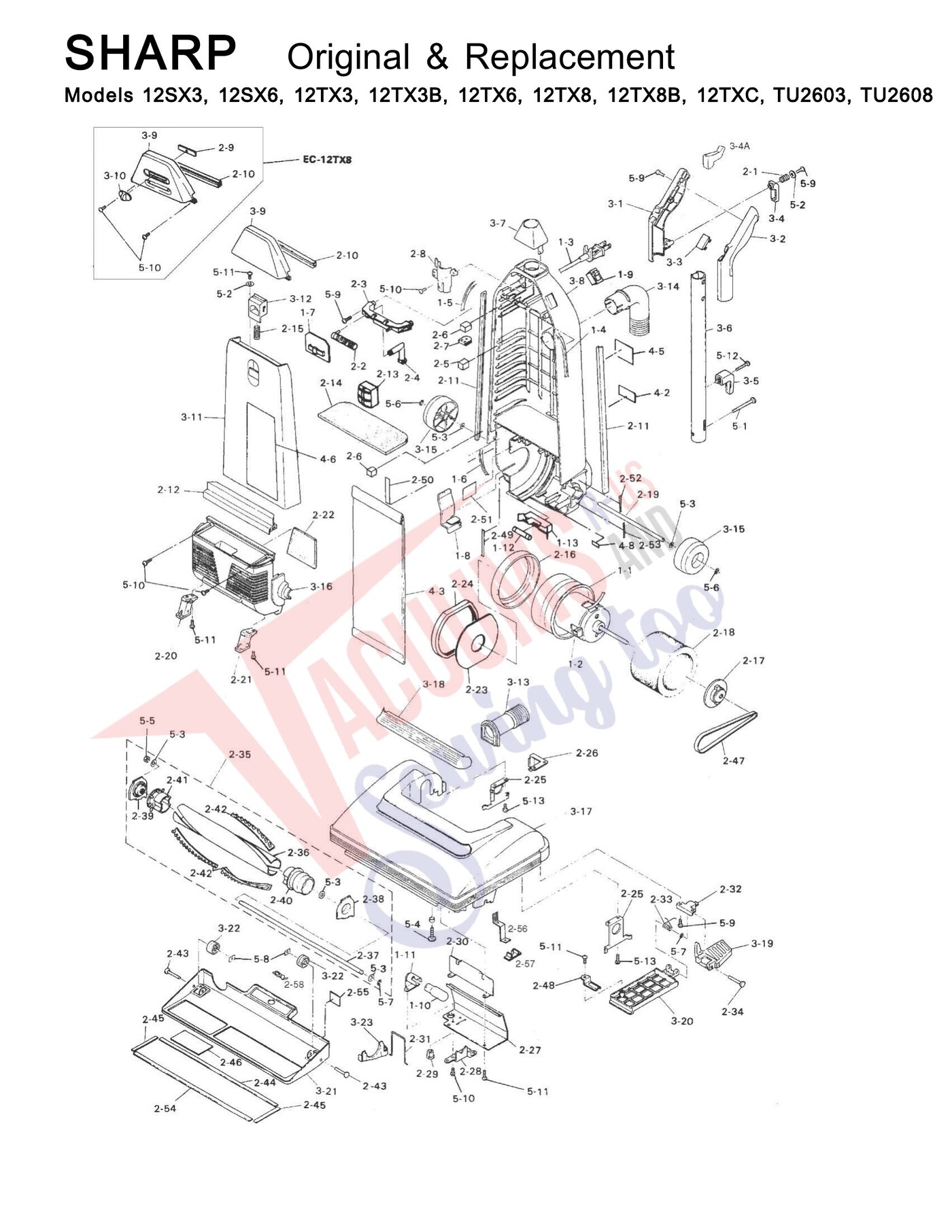

Schematic and parts book for Sharp 12SX3, 12SX6, 12TX3, 12TX3B, 12TX6, 12TX8, 12TX8B, 12TXC, TU2603, TU2608 . Repairs should be done by trained technicians. Vacuums R Us & Sewing Too provides vacuum cleaner and carpet cleaner parts and accessories for vacuum cleaner repair purposes. We are committed to delivering high-quality components, but it is important to note that all appliance repairs involve risks, and we cannot guarantee the outcome of your repair. When using our vacuum parts for repairs, you accept the terms and conditions HERE
| # | Part image | Description | SKU | Price |
| XX | Not Available | Motor Ass'y 7.5 Amp 2-18 NLA Sound Proof Sponge | SH-60000 | Not Available |
| 1 | Not Available | Motor Ass'y 9 Amp 2- | SH-60010 | Not Available |
| 1 | Not Available | Motor Ass'y 12 Amp 12TX3B 2- | SH-60032 | Not Available |
| 1 | Not Available | Spring For Cord Hanger 2- | SH-70500 | Not Available |
| 1 | Not Available | Grip Right | SH-70255 | Not Available |
| 1 | Not Available | Dust Cover 4- | NLA | Not Available |
| 1 | Not Available | Special Screw For | SH-77015 | Not Available |
| 1 | Not Available | Screw 4mm x 12mm | SH-77070 | Not Available |
| 1 | Not Available | Operation Manual | SH-99010 | Not Available |
| 1 | Not Available | Operation Manual 12TXC | SH-TINSEA044VBR0 | Not Available |
| 1 | Not Available | Operation Manual 12TX3B 12TX8B | SH-TINSEA042VBR0 | Not Available |
| 1 | Not Available | Operation Manual TU2603 TU2608 | SH-99015 | Not Available |
| 2 | Not Available | Carbon Brush 12SX3 12SX6 2- | NLA | Not Available |
| 2 | Not Available | Carbon Brush 2- | SH-63000 | Not Available |
| 2 | Not Available | Carbon Brush 12TX3B 2- | SH-63015 | Not Available |
| 2 | Not Available | Dust Indicator Ass'y 12TX8 2- | SH-75135 | Not Available |
| 2 | Not Available | Grip Left | SH-70260 | Not Available |
| 2 | Not Available | Washer For Cord Hanger and | SH-77020 | Not Available |
| 2 | Not Available | Washer For Clamp | SH-XWSSD40-08000 | Not Available |
| 2 | Not Available | Screw 4mm x 35mm | SH-77075 | Not Available |
| 2 | Not Available | Operation Manual Spanish | SH-99004 | Not Available |
| 3 | Not Available | Power Cord 12TX8 2- | SH-30001 | Not Available |
| 3 | Not Available | Power Cord 2- | SH-30005 | Not Available |
| 3 | Not Available | Power Cord 12TXC 2- | SH-30035 | Not Available |
| 3 | Not Available | Power Cord 12TX3B TU2603 2- | SH-30006 | Not Available |
| 3 | Not Available | Power Cord 12TX8B TU2608 2- | SH-FACC-A043VBE0 | Not Available |
| 3 | Not Available | Dust Indicator Base 12TX8 2- | SH-75136 | Not Available |
| 3 | Not Available | Grip Cover | NLA | Not Available |
| 3 | Not Available | Cloth Bag 12TXC | SH-12250 | Not Available |
| 3 | Not Available | Washer For Wheel Shaft | SH-77025 | Not Available |
| 3 | Not Available | Screw 4mm x 16mm | SH-77080 | Not Available |
| 3 | Not Available | Paper Bag PU2 Twin Ply 3 Pk | SH-1405 | Not Available |
| 3 | Not Available | Paper Bag PU2 Twin Ply 10 Pk | SH-1405-10 | Not Available |
| 3 | No Image | Paper Bag, DVC Sharp PU2 Microlined 3Pk | SHR-14355 | $8.79Read more |
| 4 | Not Available | Motor Lead Wires 2- | SH-36000 | Not Available |
| 4 | Not Available | Motor Lead Wires 12TXC 2- | SH-QW-VZA518VBE0 | Not Available |
| 4 | Not Available | Meter Pipe Connector 12TX8 2- | SH-75140 | Not Available |
| 4 | Not Available | Hanger Top | SH-70755 | Not Available |
| 4 | Not Available | Bottom Plate Fixing Screw | SH-77030 | Not Available |
| 4 | Not Available | Screw 3mm x 6mm | SH-77085 | Not Available |
| 4A | Not Available | Cord Hook Upper 12TXC | SH-70757 | Not Available |
| 5 | Not Available | Circuit Lead Wires 2- | SH-36005 | Not Available |
| 5 | Not Available | Main Body Packing 2- | NLA | Not Available |
| 5 | Not Available | Hanger Bottom | SH-70760 | Not Available |
| 5 | Not Available | Nut 6mm x 5.2mm | SH-77035 | Not Available |
| 6 | Not Available | Lamp Lead Wires 2- | SH-36010 | Not Available |
| 6 | Not Available | Main Body Packing 2- | SH-75146 | Not Available |
| 6 | Not Available | Handle Pipe | SH-70000 | Not Available |
| 6 | Not Available | Handle Pipe 12TXC | NLA | Not Available |
| 6 | Not Available | Feature Sticker | SH-74000 | Not Available |
| 6 | Not Available | E-clip 5mm x 0.6mm | NLA | Not Available |
| 7 | Not Available | Power Control Ass'y 12TX8 2- | SH-36015 | Not Available |
| 7 | Not Available | Main Body Packing 2- | SH-75147 | Not Available |
| 7 | Not Available | Body Cap | SH-75175 | Not Available |
| 7 | Not Available | Name Plate 12TX8 | SH-74005 | Not Available |
| 7 | Not Available | Name Plate 12TX6 | SH-74006 | Not Available |
| 7 | Not Available | Name Plate 12SX6 | SH-74007 | Not Available |
| 7 | Not Available | Name Plate 12TXC | SH-74012 | Not Available |
| 7 | Not Available | E-clip 4mm x 0.6mm | NLA | Not Available |
| 8 | Not Available | Triac Ass'y 12TX8 (Order SH-20200) | SH-75130 | Not Available |
| 8 | Not Available | Handle Fixing Plate 2- | SH-70505 | Not Available |
| 8 | Not Available | Main Body 12SX3 12SX6 | SH-75000 | Not Available |
| 8 | Not Available | Main Body 12TXC | SH-75004 | Not Available |
| 8 | Not Available | Main Body 12TX3B | SH-75003 | Not Available |
| 8 | Not Available | Fuse Label | SH-74010 | Not Available |
| 8 | Not Available | *Speed Nut | SH-77050 | Not Available |
| 9 | Not Available | Main Switch 2- | NLA | Not Available |
| 9 | Not Available | Main Switch 12TX3B 12TX8B 2- | SH-34006 | Not Available |
| 9 | Not Available | Main Switch TU2603 TU2608 2- | SH-34007 | Not Available |
| 9 | Not Available | Indicating Plate | SH-75150 | Not Available |
| 9 | Not Available | Panel 12TX8 | SH-75021 | Not Available |
| 9 | Not Available | Panel 12TX6 | NLA | Not Available |
| 9 | Not Available | Panel 12TXC | SH-75016 | Not Available |
| 9 | Not Available | Panel 12SX6 4- | SH-75822 | Not Available |
| 9 | Not Available | Panel 12TX8B 4- | SH-HPNL-A033VBRA | Not Available |
| 9 | Not Available | Panel 12TX3B 12TX8 12TX6 | SH-HPNL-A034VBFA | Not Available |
| 9 | Not Available | Panel TU2603 4- | SH-75823 | Not Available |
| 9 | Not Available | Panel TU2608 4- | SH-75824 | Not Available |
| 9 | Not Available | Screw 4mm x 16mm | SH-77055 | Not Available |
| 10 | Not Available | Bulb 15W 2- | FA-3515 | Not Available |
| 10 | Not Available | Panel Seal 3- | NLA | Not Available |
| 11 | Not Available | Lamp Socket 2- | SH-36020 | Not Available |
| 11 | Not Available | Body Seal 3- | NLA | Not Available |
| 11 | Not Available | Dust Cover 12SX6 12SX3 | NLA | Not Available |
| 11 | Not Available | Dust Cover 12TXC | SH-75040 | Not Available |
| 11 | Not Available | Dust Cover 12TX3B 12TX8B | SH-75031 | Not Available |
| 11 | Not Available | Dust Cover TU2603 TU2608 | SH-75032 | Not Available |
| 12 | Not Available | Fuse 2- | NLA | Not Available |
| 12 | Not Available | Fuse 12TX3B 2- | SH-36036 | Not Available |
| 12 | Not Available | Motor Cover Seal 3- | SH-76010 | Not Available |
| 12 | Not Available | Clamp Knob | SH-75045 | Not Available |
| 12 | Not Available | Clamp Knob 12SX6 12SX3 | NLA | Not Available |
| 12 | Not Available | Clamp Knob 12TXC | SH-JKNB-A029VBFE | Not Available |
| 13 | Not Available | Fuse Holder 2- | SH-36030 | Not Available |
| 13 | Not Available | Holder 12TX3B 2- | SH-QFSHDA001VBE0FUSE | Not Available |
| 13 | Not Available | Air Valve Ass'y 3- | SH-75155 | Not Available |
| 13 | Not Available | Hose | SH-75060 | Not Available |
| 14 | Not Available | Secondary Filter 12TX8 12TX3 3- | SH-18000 | Not Available |
| 14 | Not Available | Secondary Filter 12TX6 3- | SH-18001 | Not Available |
| 14 | Not Available | Hose Elbow | SH-75065 | Not Available |
| 15 | Not Available | Clamp Spring 3- | SH-77000 | Not Available |
| 15 | Not Available | Wheel | SH-71001 | Not Available |
| 16 | Not Available | Vibration Proof Rubber 3- | SH-76015 | Not Available |
| 16 | Not Available | Vibration Proof Rubber 3- | SH-76016 | Not Available |
| 16 | Not Available | Motor Cover 12TX8 12TX6 | SH-75070 | Not Available |
| 16 | Not Available | Motor Cover | SH-75075 | Not Available |
| 16 | Not Available | Motor Cover 12TXC | SH-75076 | Not Available |
| 16 | Not Available | Motor Cover 12TX3B 12TX8B | SH-75096 | Not Available |
| 16 | Not Available | Motor Cover TU2603 TU2608 | SH-75078 | Not Available |
| 17 | Not Available | Vibration Proof Fixing Rubber | SH-76077 | Not Available |
| 17 | Not Available | Vibration Proof Fixing Rubber 12TX8B TU2603 TU2608 | SH-76017 | Not Available |
| 17 | Not Available | Vibration Proof Fixing Rubber 3- | SH-76018 | Not Available |
| 17 | Not Available | Nozzle Head Ass'y 12TX3 | NLA | Not Available |
| 17 | Not Available | Nozzle Head Ass'y 1 2TX8 | NLA | Not Available |
| 17 | Not Available | Nozzle Head Ass'y 1 2TX6 | NLA | Not Available |
| 17 | Not Available | Nozzle Head Ass'y 12SX6 12SX3 | NLA | Not Available |
| 17 | Not Available | Nozzle Head Ass'y 12TXC | NLA | Not Available |
| 17 | Not Available | Nozzle Head Ass'y | SH-73096 | Not Available |
| 17 | Not Available | Nozzle Head Ass'y | SH-73030 | Not Available |
| 18 | Not Available | Sound Proof Sponge | NLA | Not Available |
| 18 | Not Available | Lens 12TXC | SH-73412 | Not Available |
| 18 | Not Available | Lens 12TX8B TU2608 | SH-PLNS-A002VBFA | Not Available |
| 18 | Not Available | Lens 12TX3B TU2603 | SH-PLNS-A007VBFE | Not Available |
| 19 | Not Available | Wheel Shaft | SH-71005 | Not Available |
| 19 | Not Available | Pedal | SH-73415 | Not Available |
| 20 | Not Available | Leg Ass'y Right | SH-75160 | Not Available |
| 20 | Not Available | Belt Cover | SH-73421 | Not Available |
| 21 | Not Available | Leg Ass'y Left | SH-75161 | Not Available |
| 21 | Not Available | Bottom Plate Complete | SH-76102 | Not Available |
| 21 | Not Available | Bottom Plate Only | SH-76100 | Not Available |
| 22 | Not Available | Exhaust Filter | SH-18010 | Not Available |
| 22 | Not Available | Exhaust Filter TU2603 TU2608 | SH-18025 | Not Available |
| 22 | Not Available | *Roller | SH-73430 | Not Available |
| 23 | Not Available | Motor Shelter Plate | SH-75165 | Not Available |
| 23 | Not Available | Head Shelter Plate | NLA | Not Available |
| 24 | Not Available | Motor Packing | NLA | Not Available |
| 25 | Not Available | Body Support | SH-75170 | Not Available |
| 26 | Not Available | Belt Stopper | SH-73400 | Not Available |
| 27 | Not Available | Reflection Plate | SH-73405 | Not Available |
| 28 | Not Available | Lamp Support | SH-73409 | Not Available |
| 29 | Not Available | Cord Bushing For Nozzle Head | SH-73445 | Not Available |
| 30 | Not Available | Heat Proof Plate | SH-73452 | Not Available |
| 31 | Not Available | Belt Guide Pin | SH-73455 | Not Available |
| 32 | Not Available | Pedal Support | NLA | Not Available |
| 33 | Not Available | Pedal Spring | SH-77010 | Not Available |
| 34 | Not Available | Pedal Shaft | SH-73480 | Not Available |
| 35 | Not Available | Agitator Ass'y | SH-20200 | Not Available |
| 36 | Not Available | Agitator Pipe Ass'y | NLA | Not Available |
| 37 | Not Available | Agitator Shaft | SH-20505 | Not Available |
| 38 | Not Available | Agitator Support Pulley End | SH-20510 | Not Available |
| 39 | Not Available | Agitator Support Non-Pulley End | SH-20511 | Not Available |
| 40 | Not Available | Main Pulley Ass'y | SH-20515 | Not Available |
| 41 | Not Available | Brush Rotor | SH-20520 | Not Available |
| 42 | Not Available | Brush Strip | SH-22000 | Not Available |
| 43 | Not Available | *Roller Shaft | SH-73431 | Not Available |
| 44 | Not Available | *Seal Tape | SH-76020 | Not Available |
| 45 | Not Available | *Seal Tape | SH-76021 | Not Available |
| 46 | Not Available | *Seal Tape | SH-76027 | Not Available |
| 47 | Not Available | Flat Belt BU3 | SH-10150 | Not Available |
| 47 | Not Available | Belt BU3 | SHR-1000 | Not Available |
| 48 | Not Available | Belt Guide Plate | NLA | Not Available |
| 49 | Not Available | Body Seal Tape | SH-76022 | Not Available |
| 50 | Not Available | Body Seal Tape | SH-76023 | Not Available |
| 51 | Not Available | Seal Tape | SH-76024 | Not Available |
| 52 | Not Available | Body Seal Tape | SH-76028 | Not Available |
| 53 | Not Available | Body Seal Tape | NLA | Not Available |
| 54 | Not Available | *Seal Tape | SH-76030 | Not Available |
| 55 | Not Available | *Seal Tape | SH-76031 | Not Available |
| 56 | Not Available | Belt Stopper | SH-73402 | Not Available |
| 57 | Not Available | Belt Vibration Proof Rubber | NLA | Not Available |
| 58 | Not Available | Bottom Plate Spring | SH-77014 | Not Available |
Report errors on this page HERE
