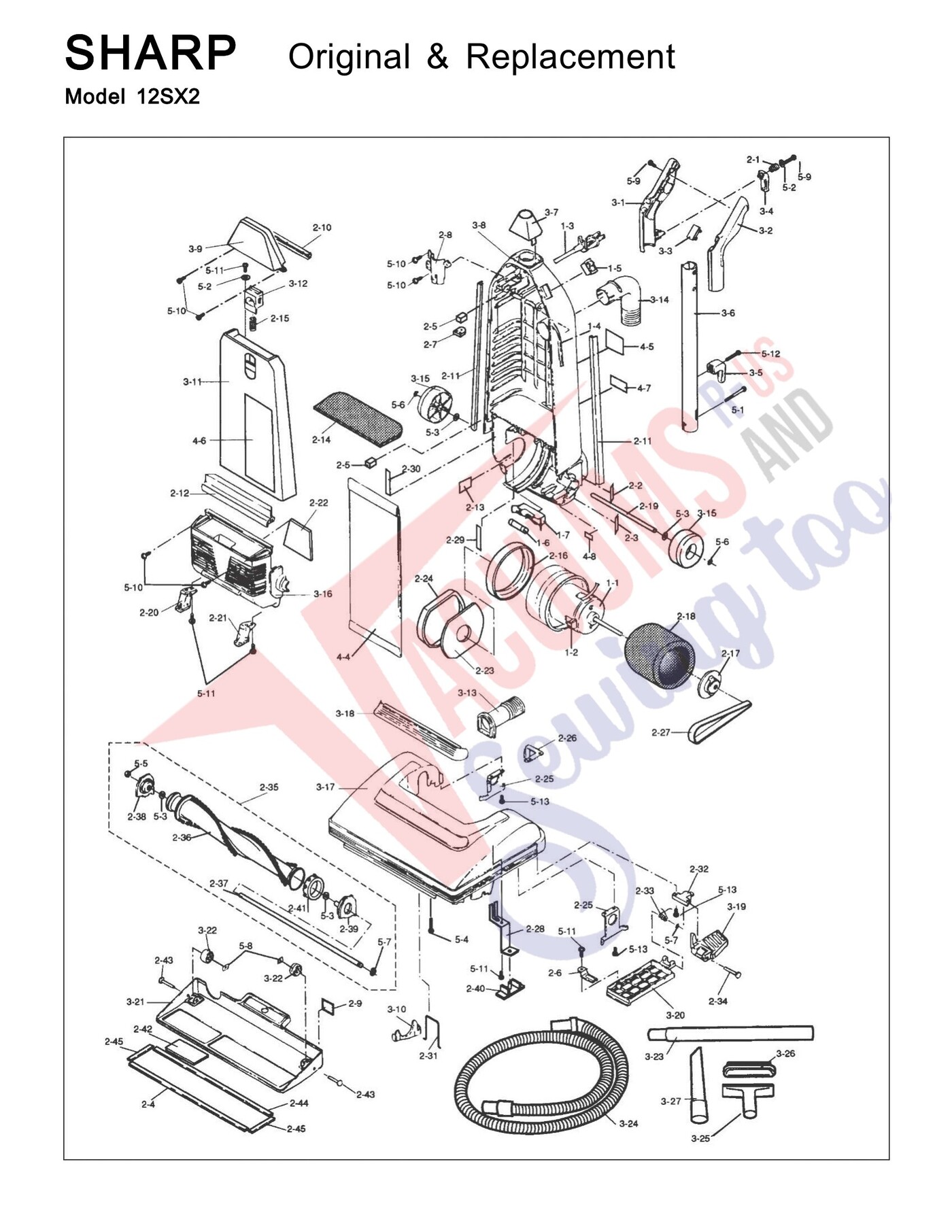

Schematic and parts book for Sharp 12SX2 . Repairs should be done by trained technicians. Vacuums R Us & Sewing Too provides vacuum cleaner and carpet cleaner parts and accessories for vacuum cleaner repair purposes. We are committed to delivering high-quality components, but it is important to note that all appliance repairs involve risks, and we cannot guarantee the outcome of your repair. When using our vacuum parts for repairs, you accept the terms and conditions HERE
| # | Part image | Description | SKU | Price |
| XX | Not Available | Operation Manual | SH-TINSEA057VBR0 | Not Available |
| XX | Not Available | Service Label | SH-TLABMA475VBE0 | Not Available |
| XX | Not Available | Bottom Plate Ass'y | SH-76102 | Not Available |
| XX | Not Available | Flat Belt SH-TLABMA576VBE0 Feature Sticker | SHR-1000 | Not Available |
| XX | Not Available | Belt Stopper SH-TSPC-A339VBR0 Name Plate | LPLT-A032VBM0 | Not Available |
| XX | Not Available | Body Seal Tape | SH-PTPEHA006VBE0 | Not Available |
| XX | Not Available | Pedal Support | SH-73479 | Not Available |
| XX | Not Available | Pedal Spring | SH-77010 | Not Available |
| XX | Not Available | Pedal Shaft | SH-73480 | Not Available |
| XX | Not Available | Agitator Ass'y | SH-20255 | Not Available |
| XX | Not Available | Agitator Core Ass'y (With Bearing) | SH-20501 | Not Available |
| XX | Not Available | Agitator Shaft | SH-20505 | Not Available |
| XX | Not Available | Agitator Support | SH-20510 | Not Available |
| XX | Not Available | Agitator Support Pulley End | SH-20511 | Not Available |
| XX | Not Available | Vibration-proof Rubber | SH-PGUMMA141VBE0BELT | Not Available |
| XX | Not Available | Brush Rotor Ass'y With Bearing | SH-20524 | Not Available |
| XX | Not Available | Seal Tape | SH-76027 | Not Available |
| XX | Not Available | Seal Tape | SH-76020 | Not Available |
| XX | Not Available | Seal Tape | SH-76021 | Not Available |
| 1 | Not Available | Motor Ass'y 3- | SH-60025 | Not Available |
| 1 | Not Available | Grip Right | SH-70255 | Not Available |
| 1 | Not Available | Spring For Cord Hanger | SH-70500 | Not Available |
| 1 | Not Available | Handle Fixing Screw | SH-77015 | Not Available |
| 2 | Not Available | Carbon Brush 3- | SH-63012 | Not Available |
| 2 | Not Available | Grip Left | SH-70260 | Not Available |
| 2 | Not Available | Body Seal Tape | SH-75146 | Not Available |
| 2 | Not Available | Washer | SH-77020 | Not Available |
| 3 | Not Available | Power Cord 3- | SH-30004 | Not Available |
| 3 | Not Available | Grip Cover | SH-70265 | Not Available |
| 3 | Not Available | Body Seal Tape | SH-PTPEHA011VBE0 | Not Available |
| 3 | Not Available | Washer | SH-77025 | Not Available |
| 4 | Not Available | Motor Lead Wires 3- | SH-36000 | Not Available |
| 4 | Not Available | Hanger Top | SH-70755 | Not Available |
| 4 | Not Available | Seal Tape | SH-76030 | Not Available |
| 4 | Not Available | Paper Bag 3 Pk | SH-1405 | Not Available |
| 4 | Not Available | Paper Bag 10 Pk | SH-1405-10 | Not Available |
| 4 | No Image | Paper Bag, DVC Sharp PU2 Microlined 3Pk | SHR-14355 | $8.79Read more |
| 4 | Not Available | B/P Fixing Screw | SH-77030 | Not Available |
| 5 | Not Available | Main Switch 3- | SH-34001 | Not Available |
| 5 | Not Available | Hanger Bottom | SH-70760 | Not Available |
| 5 | Not Available | Main Body Packing | SH-75146 | Not Available |
| 5 | Not Available | Nut - 6mm x 5.2mm | SH-77035 | Not Available |
| 6 | Not Available | Fuse 3- | SH-36025 | Not Available |
| 6 | Not Available | Handle Pipe | SH-70000 | Not Available |
| 6 | Not Available | Belt Guide Plate | SH-73485 | Not Available |
| 6 | Not Available | E-Clip; 5mm x 0.6mm | SH-XRESE50-06000 | Not Available |
| 7 | Not Available | Fuse Holder 3- | SH-36030 | Not Available |
| 7 | Not Available | Body Cap | SH-75175 | Not Available |
| 7 | Not Available | Main Body Packing | SH-PSEL-A009VBE0 | Not Available |
| 7 | Not Available | E-Clip; 4mm x 0.6mm | SH-77038 | Not Available |
| 8 | Not Available | Main Body | SH-75002 | Not Available |
| 8 | Not Available | Handle Fixing Plate | SH-70505 | Not Available |
| 8 | Not Available | Speed Nut | SH-77050 | Not Available |
| 9 | Not Available | Panel | SH-HPNL-A013VBRB | Not Available |
| 9 | Not Available | Seal Tape | SH-76031 | Not Available |
| 9 | Not Available | Screw; 4mm x 16mm | SH-77055 | Not Available |
| 10 | Not Available | Head Shelter Plate | SH-73435 | Not Available |
| 10 | Not Available | Panel Seal | SH-76000 | Not Available |
| 10 | Not Available | Screw; 4mm x 20mm | SH-77060 | Not Available |
| 11 | Not Available | Dust Cover | SH-GCOV-A303VBFB | Not Available |
| 11 | Not Available | Body Seal | NLA | Not Available |
| 11 | Not Available | Screw; 4mm x 12mm | SH-XZPSD40P12000 | Not Available |
| 12 | Not Available | Clamp Knob | SH-JKNB-A029VBFL | Not Available |
| 12 | Not Available | Motor Cover Seal | SH-76010 | Not Available |
| 12 | Not Available | Screw; 4mm x 35mm | SH-77075 | Not Available |
| 13 | Not Available | Hose | SH-75060 | Not Available |
| 13 | Not Available | Seal Tape | SH-76024 | Not Available |
| 13 | Not Available | Screw; 4mm x 16mm | SH-77080 | Not Available |
| 14 | Not Available | Hose Elbow | SH-75065 | Not Available |
| 14 | Not Available | Secondary Filter | SH-18001 | Not Available |
| 15 | Not Available | Wheel | SH-71001 | Not Available |
| 15 | Not Available | Clamp Spring | SH-77000 | Not Available |
| 16 | Not Available | Motor Cover | SH-75066 | Not Available |
| 16 | Not Available | Vlbration-proof Rubber | SH-PGUMMA159VBE0 | Not Available |
| 17 | Not Available | Nozzle Head Ass'y | SH-73259 | Not Available |
| 17 | Not Available | Vibration-proof Fixing Rubber | SH-76077 | Not Available |
| 18 | Not Available | Lens | SH-PLNS-A002VBFF | Not Available |
| 18 | Not Available | Sound Proof Sponge | SH-18005 | Not Available |
| 19 | Not Available | Pedal | SH-73415 | Not Available |
| 19 | Not Available | Wheel Shaft | SH-71005 | Not Available |
| 20 | Not Available | Belt Cover | SH-73421 | Not Available |
| 20 | Not Available | Leg Ass'y | SH-75162 | Not Available |
| 21 | Not Available | Bottom Plate Only | SH-76100 | Not Available |
| 21 | Not Available | Leg Ass'y MISCELLANEOUS | SH-75163 | Not Available |
| 22 | Not Available | Roller | SH-73430 | Not Available |
| 22 | Not Available | Exhaust Filter | SH-18030 | Not Available |
| 23 | Not Available | Extention Wand | SH-50000 | Not Available |
| 23 | Not Available | Motor Shelter Plate 4- | SH-75165 | Not Available |
| 24 | Not Available | Hose Ass'y | SH-40000 | Not Available |
| 24 | Not Available | Motor Packing 4- | SH-75148 | Not Available |
| 25 | Not Available | Upholstery Nozzle | SH-52000 | Not Available |
| 25 | Not Available | Body Support 4- | SH-75170 | Not Available |
| 26 | Not Available | Nozzle Brush | SH-52500 | Not Available |
| 26 | Not Available | Belt Stopper Micro-Lined DVC 3 Pk | SH-73400 | Not Available |
| 27 | Not Available | Crevice Tool | SH-54000 | Not Available |
| 27 | Not Available | Flat Belt 2 Pk | SH-10150 | Not Available |
| 30 | Not Available | Body Seal Tape SCREW NUT AND WASHER | SH-PTPEHA007VBE0 | Not Available |
| 31 | Not Available | Belt Guide Pin 5- | SH-73455 | Not Available |
| 43 | Not Available | Roller Shaft 5- | SH-73431 | Not Available |
