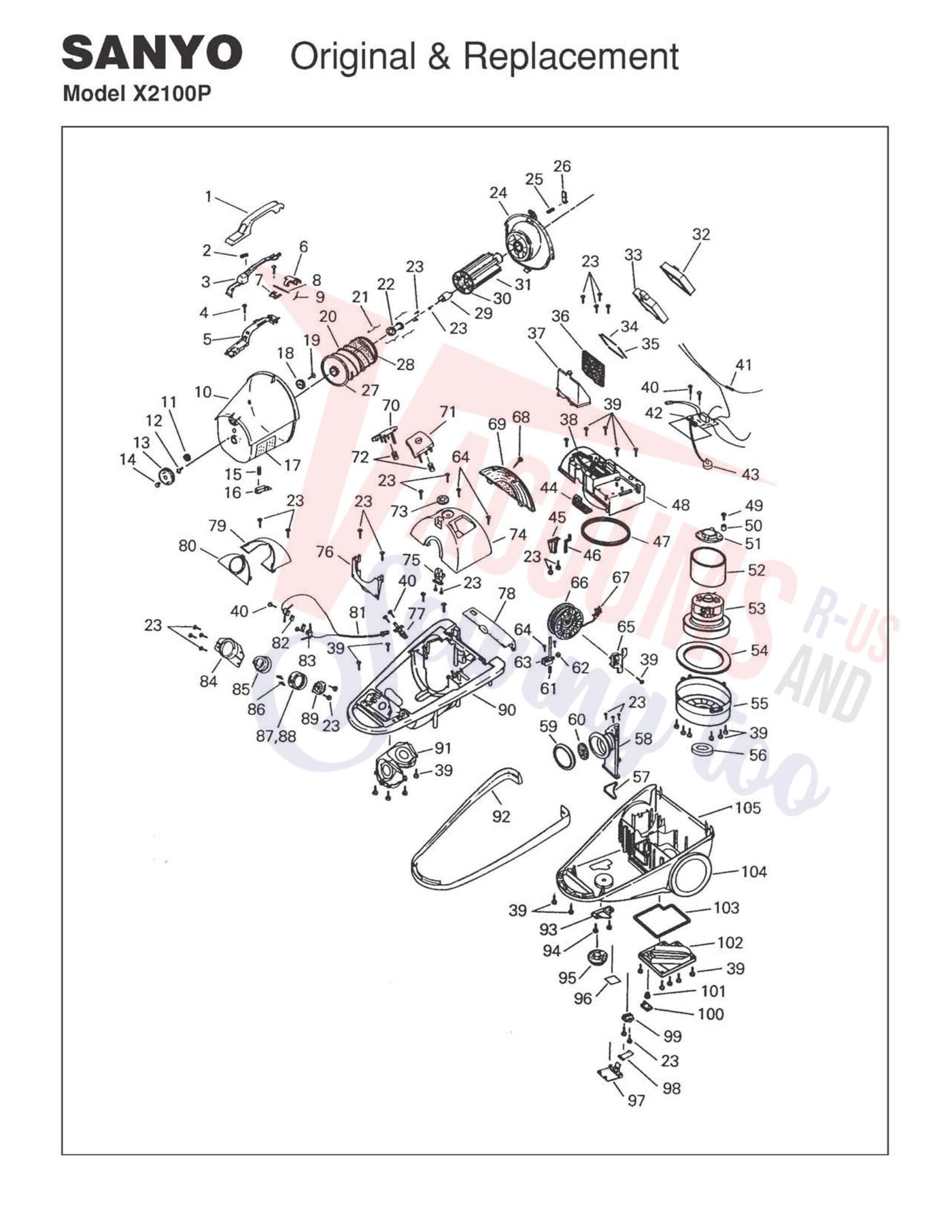

Schematic and parts book for Sanyo X2100P . Repairs should be done by trained technicians. Vacuums R Us & Sewing Too provides vacuum cleaner and carpet cleaner parts and accessories for vacuum cleaner repair purposes. We are committed to delivering high-quality components, but it is important to note that all appliance repairs involve risks, and we cannot guarantee the outcome of your repair. When using our vacuum parts for repairs, you accept the terms and conditions HERE
| # | Part image | Description | SKU | Price |
| XX | Not Available | Carbon Brush Ass'y | 6630000298 | Not Available |
| 1 | Not Available | Handle Ornament | 6630009130 | Not Available |
| 2 | No Image | SPRING, CLAMP X2100P Part Number: 6630002957 for Sanyo | 6630002957 | $1.60Read more |
| 3 | Not Available | Clamp Lever | 6630009147 | Not Available |
| 4 | No Image | SCREW, (4X14) X2100P Part Number: 6630009154 for Sanyo | 6630009154 | $1.06Read more |
| 5 | Not Available | Handle | 6630009161 | Not Available |
| 6 | Not Available | Upper Clamp Lever | 6630009178 | Not Available |
| 7 | Not Available | Clamp Piece | 6630009185 | Not Available |
| 8 | Not Available | Clamp Pin | 6630009192 | Not Available |
| 9 | No Image | SPRING, X2100P Part Number: 6630009208 for Sanyo | 6630009208 | $1.84Read more |
| 10 | Not Available | Dust Box Ass'y | 6630009215 | Not Available |
| 11 | Not Available | Gear | 6630009222 | Not Available |
| 12 | No Image | SCREW, (4X10) X2100P Part Number: 6630009239 for Sanyo | 6630009239 | $0.61Read more |
| 13 | Not Available | Gear | 6630009246 | Not Available |
| 14 | Not Available | Ornament Plate | 6630009253 | Not Available |
| 15 | No Image | SPRING, CLAMP TO BIN X2100P Part Number: 6630004425 for Sanyo | 6630004425 | $1.60Read more |
| 16 | Not Available | Clamp Ass'y | 6630009260 | Not Available |
| 17 | Not Available | Caution Label | 6630009277 | Not Available |
| 18 | Not Available | Gear | 6630009284 | Not Available |
| 19 | No Image | SCREW, (4X17) X2100P Part Number: 6630002278 for Sanyo | 6630002278 | $1.06Read more |
| 20 | No Image | PRE-FILTER, ASSY X2100P Part Number: 6630009291 for Sanyo | 6630009291 | $36.63Read more |
| 21 | Not Available | Duster Arm | 6630006395 | Not Available |
| 22 | Not Available | Duster Holder | 6630003701 | Not Available |
| 23 | No Image | SCREW, (4X16) X2100P Part Number: 6630000847 for Sanyo | 6630000847 | $0.47Read more |
| 24 | Not Available | Lid | 6630009307 | Not Available |
| 25 | Not Available | Clamp Spring | 6630009314 | Not Available |
| 26 | Not Available | Clamp Lever | 6630009321 | Not Available |
| 27 | Not Available | Packing | 6630009338 | Not Available |
| 28 | Not Available | Packing | 6630009345 | Not Available |
| 29 | Not Available | Filter Frame | 6630009352 | Not Available |
| 30 | Not Available | Packing | 6630009369 | Not Available |
| 31 | Not Available | Dust Filter Ass'y | 18085 | Not Available |
| 32 | Not Available | Outlet Filter Ass'y | 18021 | Not Available |
| 33 | Not Available | Filter Fixture | 6630009390 | Not Available |
| 34 | Not Available | Air Spreader | 6630009406 | Not Available |
| 35 | Not Available | Air Spreader | 6630009413 | Not Available |
| 36 | Not Available | Outlet Filter | 18090 | Not Available |
| 37 | Not Available | Filter Fixture | 6630009437 | Not Available |
| 38 | Not Available | Packing | 6630009444 | Not Available |
| 39 | Not Available | Screw (4x20) | NLA | Not Available |
| 40 | Not Available | Screw (3x10) | 6630002872 | Not Available |
| 41 | Not Available | Fuse Ass'y | 6630009451 | Not Available |
| 42 | Not Available | Power Control Board | 6630009468 | Not Available |
| 43 | Not Available | Control Circuit Ass'y | 6630009475 | Not Available |
| 44 | No Image | FILTER, OUTLET X2100P Part Number: 6630009482 for Sanyo | 6630009482 | $4.46Read more |
| 45 | Not Available | Brake Arm Bracket | 6630009499 | Not Available |
| 46 | Not Available | Reel Knob | 6630009505 | Not Available |
| 47 | Not Available | Air Outlet Packing | 6630009512 | Not Available |
| 48 | Not Available | Air Outlet | 6630009529 | Not Available |
| 49 | Not Available | Screw | 6630001158 | Not Available |
| 50 | Not Available | Motor Cushion Sleeve | 6630001141 | Not Available |
| 51 | Not Available | Rear Motor Cushion | 6630007884 | Not Available |
| 52 | Not Available | Foam Muffler | 6630007891 | Not Available |
| 53 | Not Available | Motor Complete | 60521 | Not Available |
| 54 | Not Available | Front Motor Cushion | 6630009543 | Not Available |
| 55 | Not Available | Motor Cushion Cover | 6630009550 | Not Available |
| 56 | Not Available | Outer Motor Cushion | 6630009567 | Not Available |
| 57 | Not Available | Rear Air Inlet Packing | 6630009574 | Not Available |
| 58 | Not Available | Air Inlet | 6630009581 | Not Available |
| 59 | Not Available | Packing | 6630009598 | Not Available |
| 60 | Not Available | Air Inlet Filter | 18092 | Not Available |
| 61 | Not Available | Brake Spring | 6630009611 | Not Available |
| 62 | Not Available | Brake Roller Ass'y | 6630000236 | Not Available |
| 63 | Not Available | Brake Arm | 6630009628 | Not Available |
| 64 | Not Available | Screw (4x16) | 6630000076 | Not Available |
| 65 | Not Available | Cord Reel Support Ass'y | 6630009635 | Not Available |
| 66 | No Image | Knob, Plastic, Large | 75179 | $57.99Read more |
| 67 | Not Available | Power Cord 18' | 30780 | Not Available |
| 68 | Not Available | Screw | 6630009659 | Not Available |
| 69 | Not Available | Rear Cover | 6630009666 | Not Available |
| 70 | Not Available | Cord Reel Button | 6630009673 | Not Available |
| 71 | Not Available | Switch Button | 6630009680 | Not Available |
| 72 | Not Available | Spring | 6630009697 | Not Available |
| 73 | Not Available | Switch Knob | 6630009703 | Not Available |
| 74 | Not Available | Case Cover | 6630009710 | Not Available |
| 75 | Not Available | Transmission Tube | 6630009727 | Not Available |
| 76 | Not Available | Case Ornament | 6630009734 | Not Available |
| 77 | Not Available | Switch | 34040 | Not Available |
| 78 | Not Available | Tool Cover | 6630009741 | Not Available |
| 79 | Not Available | Front Cover A | 6630009758 | Not Available |
| 80 | Not Available | Front Cover B | 6630009765 | Not Available |
| 81 | Not Available | Connector Ass'y | 6630009772 | Not Available |
| 82 | Not Available | Slip Ring Cleaner | 6630007716 | Not Available |
| 83 | Not Available | Collecting Shoe | 6630007709 | Not Available |
| 84 | Not Available | Base Holder | 6630009789 | Not Available |
| 85 | No Image | BASE, UPPER SLIP RING X2100P Part Number: 6630009796 for Sanyo | 6630009796 | $9.82Read more |
| 86 | No Image | SPRING, JOINT X2100P Part Number: 6630009802 for Sanyo | 6630009802 | $2.29Read more |
| 87 | No Image | BASE, LOWER SLIP RING X2100P Part Number: 6630009819 for Sanyo | 6630009819 | $4.91Read more |
| 88 | Not Available | Slip Ring | 6630007679 | Not Available |
| 89 | Not Available | Air Inlet Packing | 6630007686 | Not Available |
| 90 | Not Available | Upper Case | 6630009826 | Not Available |
| 91 | Not Available | Bypass Tube Ass'y | 6630009833 | Not Available |
| 92 | Not Available | Bumper | 6630009840 | Not Available |
| 93 | Not Available | Bypass Cover | 6630009857 | Not Available |
| 94 | Not Available | Screw | 6630009864 | Not Available |
| 95 | Not Available | Castor | 6630000823 | Not Available |
| 96 | Not Available | Name Plate | 6630009871 | Not Available |
| 97 | Not Available | Large Cord Inlet Cover | 6630009888 | Not Available |
| 98 | Not Available | Small Cord Inlet Cover | 6630009895 | Not Available |
| 99 | Not Available | Supplement Case | 6630009901 | Not Available |
| 100 | Not Available | Transmission Cover | 6630009918 | Not Available |
| 101 | Not Available | Transmission Ass'y | 6630003312 | Not Available |
| 102 | Not Available | Lower Case Cover | 6630009925 | Not Available |
| 103 | Not Available | Bottom Packing | 6630009932 | Not Available |
| 104 | Not Available | Rear Wheel | 6630009949 | Not Available |
| 105 | Not Available | Lower Case | 6630009956 | Not Available |

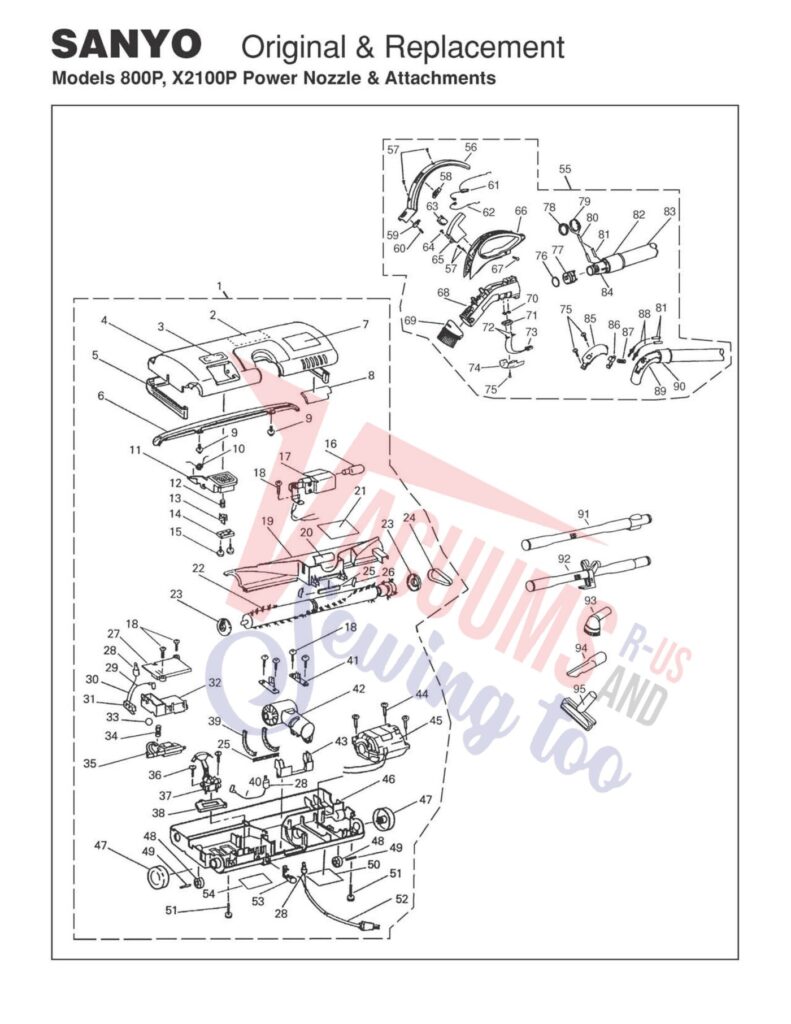

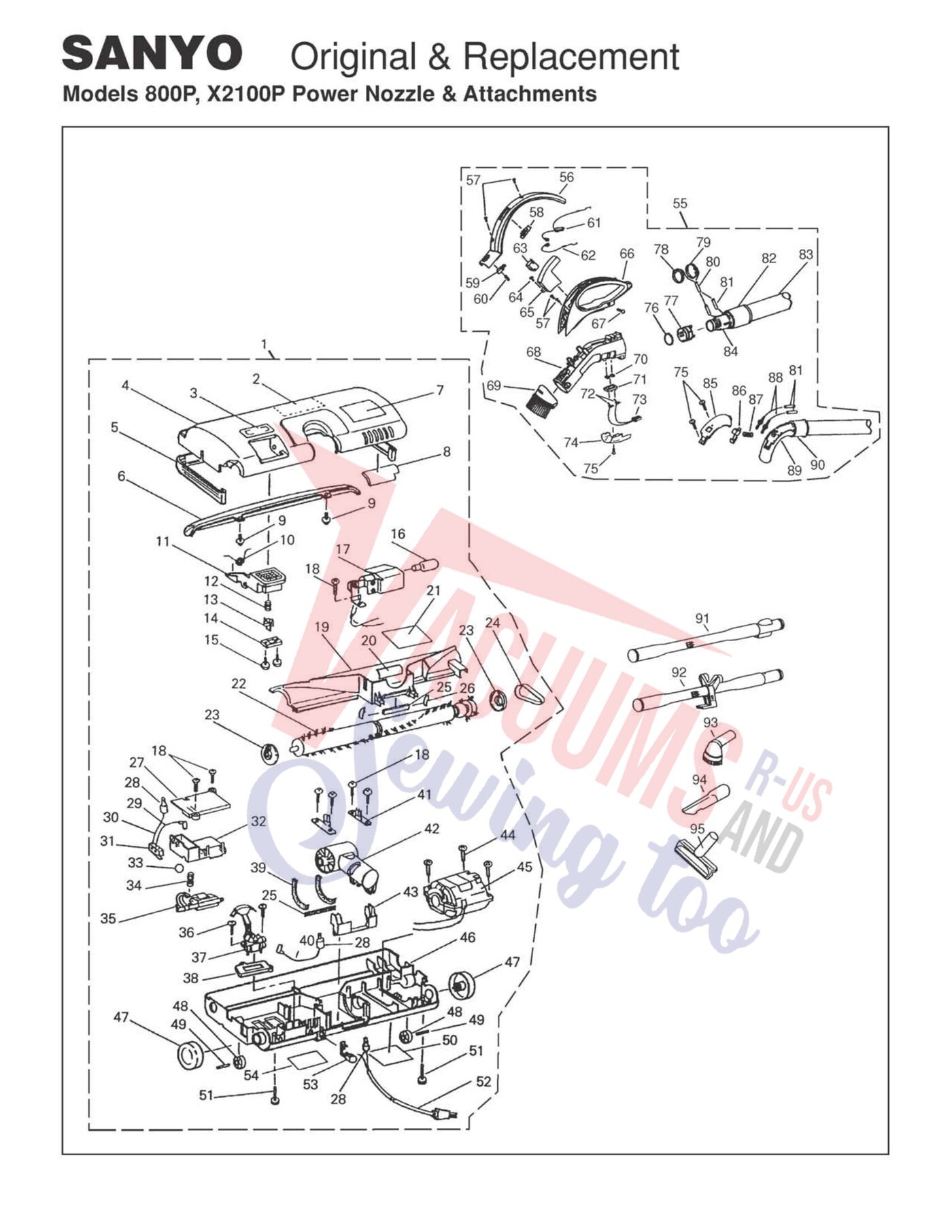

| # | Part image | Description | SKU | Price |
| XX | Not Available | Suction Hose Complete X2100P | 40017 | Not Available |
| XX | Not Available | Wand Connector (Not Shown) | 6630068663 | Not Available |
| 1 | Not Available | Power Nozzle Complete 800P | 57000 | Not Available |
| 2 | Not Available | Case Cushion | 6630008621 | Not Available |
| 3 | Not Available | Switch Ornament | 6630008638 | Not Available |
| 4 | Not Available | Nozzle Housing | 6630008645 | Not Available |
| 5 | No Image | BUMPER, 800P X2100P POWER NOZZLE Part Number: 6630008652 for Sanyo | 6630008652 | $15.48Read more |
| 6 | Not Available | Lens Incl. 54-90 | 6630008669 | Not Available |
| 7 | Not Available | Caution Label | 6630008676 | Not Available |
| 8 | Not Available | Packing Incl. 54-90 | 6630008683 | Not Available |
| 9 | Not Available | Screw | 6630008690 | Not Available |
| 10 | Not Available | Spring | 6630008706 | Not Available |
| 11 | Not Available | Switch Button | 6630008713 | Not Available |
| 12 | No Image | SPRING, BUTTON X1000P Part Number: 6630008720 for Sanyo | 6630008720 | $2.53Read more |
| 13 | Not Available | Moveable Reed | 6630008737 | Not Available |
| 14 | Not Available | Moveable Reed Base | 6630008744 | Not Available |
| 15 | Not Available | Screw | 6630008751 | Not Available |
| 16 | Not Available | Bulb 15W | 6630003398 | Not Available |
| 16 | Not Available | Bulb 15W | FA-3515 | Not Available |
| 17 | Not Available | Socket Ass'y | 6630008768 | Not Available |
| 18 | Not Available | Screw | NLA | Not Available |
| 19 | Not Available | Brushroll Cover | 6630008782 | Not Available |
| 20 | Not Available | Shield Sheet | 6630008799 | Not Available |
| 21 | Not Available | Caution Label | 6630008805 | Not Available |
| 22 | No Image | Pet Stain Eraser Deluxe | 20028 | $152.98Read more |
| 23 | Not Available | End Cap | 20530 | Not Available |
| 24 |  | Brush, Auxiliary Dust Care Carpet Sweeper Part Number: 1001-2 for Dust Care | 10012 | $13.49Read more |
| 25 | Not Available | Rotary Seal C | 6630008836 | Not Available |
| 26 | Not Available | Rotary Seal B | 6630008843 | Not Available |
| 27 | Not Available | Case Cover | 6630008850 | Not Available |
| 28 | Not Available | Wire Nut | SS-3270 | Not Available |
| 29 | Not Available | Lead Wire (White) | 6630008867 | Not Available |
| 30 | Not Available | Lead Wire (Black) | 6630008874 | Not Available |
| 31 | Not Available | Micro Switch | 34045 | Not Available |
| 32 | Not Available | Switch Holder | 6630008898 | Not Available |
| 33 | Not Available | Steel Ball | 6630008904 | Not Available |
| 34 | No Image | SPRING, MICRO SWITCH 800P 2100P POWER NOZZLE Part Number: 6630008911 for Sanyo | 6630008911 | $1.60Read more |
| 35 | Not Available | Switch Lever Ass'y | 6630008928 | Not Available |
| 36 | No Image | SCREW, Part Number: 6630008263 for Sanyo | 6630008263 | $0.70Read more |
| 37 | Not Available | Switch Ass'y | 34035 | Not Available |
| 38 | Not Available | Switch Bracket | 6630008942 | Not Available |
| 39 | Not Available | Rotary Seal | 6630008959 | Not Available |
| 40 | No Image | CORD ASSY SC800 Part Number: 6630008966 for Sanyo | 6630008966 | $0.00Read more |
| 41 | Not Available | Pivot Retainer | 6630008973 | Not Available |
| 42 | Not Available | Pivot | 6630008980 | Not Available |
| 43 | Not Available | Cord Inlet Cover | 6630008997 | Not Available |
| 44 | Not Available | Screw | 6630009000 | Not Available |
| 45 | Not Available | Brushroll Motor | 60510 | Not Available |
| 46 | No Image | HOUSING, NOZZLE SC800P Part Number: 6630009024 for Sanyo | 6630009024 | $29.29Read more |
| 47 | Not Available | Rear Wheel | 6630009031 | Not Available |
| 48 | Not Available | Front Wheel | 6630009048 | Not Available |
| 49 | Not Available | Front Axle | 6630009055 | Not Available |
| 50 | Not Available | Caution Label | 6630009062 | Not Available |
| 51 | Not Available | Screw | 6630009079 | Not Available |
| 52 | Not Available | Pigtail | 6630009086 | Not Available |
| 53 | Not Available | Grommet | 6630009093 | Not Available |
| 54 | Not Available | Caution Label | 6630009109 | Not Available |
| 55 | Not Available | Suction Hose Complete 800P | 40016 | Not Available |
| 56 | Not Available | Control Switch Case | 6630008256 | Not Available |
| 57 | No Image | SCREW, Part Number: 6630008263 for Sanyo | 6630008263 | $0.70Read more |
| 58 | Not Available | Switch Button 800P | 6630008270 | Not Available |
| 59 | Not Available | Clamp Hook 800P | 6630008287 | Not Available |
| 60 | Not Available | Clamp Spring | 6630008294 | Not Available |
| 61 | No Image | HOUSING, CONNECTOR HOSE HANDLE 800P Part Number: 6630008300 for Sanyo | 6630008300 | $23.13Read more |
| 62 | Not Available | Lead Wire (Black) | 6630008317 | Not Available |
| 63 | Not Available | Micro Switch | 6630008324 | Not Available |
| 64 | Not Available | Screw (4x16) | 6630000335 | Not Available |
| 65 | Not Available | Switch Base | 6630008331 | Not Available |
| 66 | Not Available | Grip 800P | 6630008348 | Not Available |
| 67 | Not Available | Screw (4x16) | 6630000076 | Not Available |
| 68 | Not Available | Hose Joint Pipe 800P | 6630008355 | Not Available |
| 69 | No Image | DUST BRUSH, 800P Part Number: 6630008362 for Sanyo | 6630008362 | $3.00Read more |
| 70 | Not Available | Lock Ring Cleaner | 6630008379 | Not Available |
| 71 | Not Available | Collecting Shoe Holder 800P | 6630008386 | Not Available |
| 72 | Not Available | Collecting Shoe | 6630008393 | Not Available |
| 73 | No Image | HOUSING, CONNECTOR X2100P Part Number: 6630008409 for Sanyo | 6630008409 | $23.13Read more |
| 74 | Not Available | Collecting Shoe Cover 800P | 6630008416 | Not Available |
| 75 | Not Available | Screw (3x8) | 6630007693 | Not Available |
| 76 | Not Available | Joint Pipe Packing | 6630008423 | Not Available |
| 77 | Not Available | Slip Ring Base | 6630008430 | Not Available |
| 78 | Not Available | Slip Ring Ass'y A | 6630008447 | Not Available |
| 79 | Not Available | Slip Ring Ass'y B | 6630008454 | Not Available |
| 80 | Not Available | Tube | 6630008461 | Not Available |
| 81 | Not Available | Tube | 6630008478 | Not Available |
| 82 | Not Available | Suction Hose Cover 800P | 6630008485 | Not Available |
| 83 | Not Available | Suction Hose 800P | 6630008492 | Not Available |
| 84 | Not Available | Hose Joint Pipe 800P | 6630008508 | Not Available |
| 85 | Not Available | Hose Hook Cover 800P | 6630008515 | Not Available |
| 86 | Not Available | Hose Hook 800P | 6630008522 | Not Available |
| 87 | No Image | SPRING, HOSE LOCK 240/270 CANS Part Number: 6630000519 for Sanyo | 6630000519 | $1.60Read more |
| 88 | Not Available | Lead Wire | 6630008539 | Not Available |
| 89 | Not Available | Hose Joint Pipe 800P | 6630008546 | Not Available |
| 90 | Not Available | Suction Hose Cover 800P | 6630008553 | Not Available |
| 91 | Not Available | Upper Wand 800P | 50022 | Not Available |
| 92 | Not Available | Lower Wand 800P | 50023 | Not Available |
| 93 | Not Available | Dust Brush | 53005 | Not Available |
| 94 |  | Furniture Guard Black Part Number 54.015 for Simplicity Models SHD-1T | 54015 | |
| 95 | Not Available | Upholstery Tool Ass'y | 52008 | Not Available |
Report errors on this page HERE
