Schematic and parts book for Sanyo U8MA, U101, U124 . Repairs should be done by trained technicians. Vacuums R Us & Sewing Too provides vacuum cleaner and carpet cleaner parts and accessories for vacuum cleaner repair purposes. We are committed to delivering high-quality components, but it is important to note that all appliance repairs involve risks, and we cannot guarantee the outcome of your repair. When using our vacuum parts for repairs, you accept the terms and conditions HERE
Popular Supplies

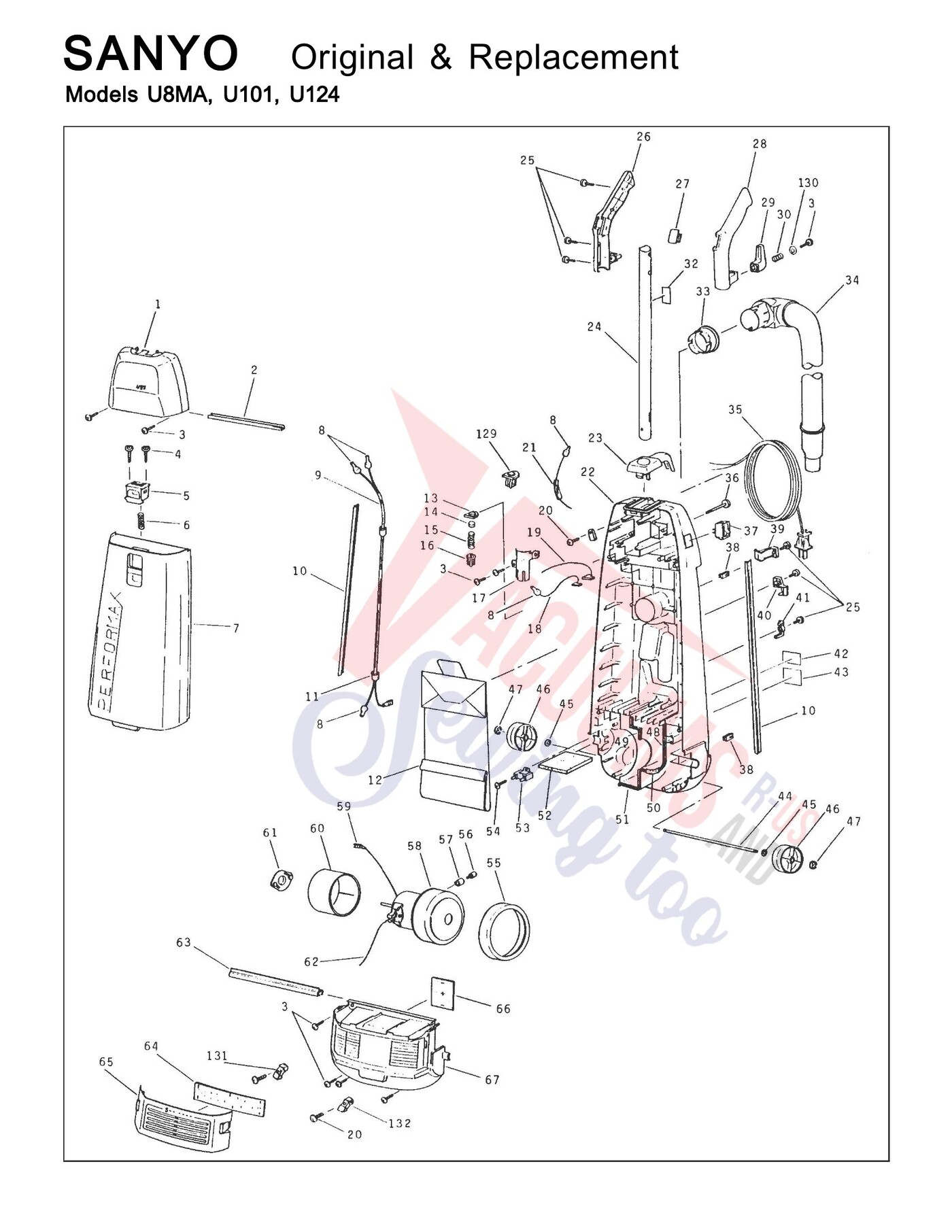

| # | Part image | Description | SKU | Price |
| XX | Not Available | Carbon Brush Ass'y | 63000 | Not Available |
| 1 | No Image | Bracket, Plug | 75024 | $26.99Read more |
| 1 | Not Available | Case Cover U101 | 75027 | Not Available |
| 1 | No Image | Bracket, Lift, Head | 75021 | $221.99Read more |
| 2 | Not Available | Dust Box Packing | 76005 | Not Available |
| 3 | Not Available | Screw | 77245 | Not Available |
| 4 | Not Available | Screw (4 x 16) | 77120 | Not Available |
| 5 | No Image | Block, Weight, Balance | 75036 | $86.99Read more |
| 6 | Not Available | Helical Spring | 77130 | Not Available |
| 7 | No Image | -Handle Grey | 75032 | $17.25Read more |
| 8 | Not Available | Wire Connector | SS-3270 | Not Available |
| 9 | Not Available | Lead Wire U8MA | 36001 | Not Available |
| 9 | No Image | WAND TELESCOPIC CK 14 1 PRO 98147 | 36000 | $47.99Add to cart Special order: ships in 2 to 4 weeks |
| 10 | Not Available | Dust Box Packing | 76006 | Not Available |
| 11 | No Image | Foam Barrier Noise | 75055 | $22.99Add to cart Special order: ships in 2 to 4 weeks |
| 12 | Not Available | Paper Bag Micron 3 Pk | 1401 | Not Available |
| 13 | Not Available | Bleeder Valve Packing | 75014 | Not Available |
| 14 | Not Available | Bleeder Valve Float | NLA | Not Available |
| 15 | Not Available | Bleeder Valve Spring | NLA | Not Available |
| 16 | Not Available | Bleeder Valve Nozzle | NLA | Not Available |
| 17 | No Image | Axle, Wheel, Squeegee | 75016 | $160.99Add to cart Special order: ships in 2 to 4 weeks |
| 18 | Not Available | Lead Wire (Black) | 36018 | Not Available |
| 19 | Not Available | Lead Wire (Black) | 36020 | Not Available |
| 20 | Not Available | Screw | 77070 | Not Available |
| 21 | Not Available | Fuse Ass'y U8MA | 34401 | Not Available |
| 22 | No Image | Pad, Wire Tie | 75004 | $12.99Read more |
| 23 | Not Available | Lower Cord Hook | 70350 | Not Available |
| 24 | Not Available | Handle Tube | NLA | Not Available |
| 25 | Not Available | Screw | 77115 | Not Available |
| 26 | Not Available | Handle Grip Right | 70250 | Not Available |
| 27 | Not Available | Handle Grip Switch Plug | 70750 | Not Available |
| 28 |  | Handle, Lower Hose EXL/MG Series Part Number: 70252 for Compact | 70252 | $37.71Read more |
| 29 | Not Available | Upper Cord Hook U8MA | 70500 | Not Available |
| 29 | Not Available | Upper Cord Hook U101 U124 | 70510 | Not Available |
| 30 | Not Available | Helical Spring | 70505 | Not Available |
| 31 | Not Available | Screw U8MA | 77140 | Not Available |
| 31 | Not Available | Screw U101 U124 | 77015 | Not Available |
| 32 | Not Available | Caution Label | 74000 | Not Available |
| 33 | Not Available | Hose Joint Pipe U8MA | NLA | Not Available |
| 33 | Not Available | Hose Joint Pipe U101 U124 | 75405 | Not Available |
| 34 | Not Available | Nozzle to Bag Housing Hose | NLA | Not Available |
| 35 | Not Available | Power Cord U8MA | 30010 | Not Available |
| 35 | Not Available | Power Cord U101 | 30015 | Not Available |
| 35 |  | Screw-thumb With Shoulder #10- 32 X 1/2 Part Number 30018 for Cleanmax Models CM-WAV | 30018 | $1.99Add to cart Special order: ships in 2 to 4 weeks |
| 35 |  | Cord Gray W/ Polorized Plug fit all fit-all | FA3035 | $32.99Read more |
| 36 | Not Available | Screw | 77150 | Not Available |
| 37 | Not Available | Switch | 34010 | Not Available |
| 38 | No Image | Bushing, Rubber | 75034 | $21.99Add to cart Special order: ships in 2 to 4 weeks |
| 38 | No Image | Handle Rod, for SOFTCASE | 75033 | $24.00Read more |
| 39 | No Image | Charger 24V 25A Universal Flooded/Agm/Gel | 75045 | $849.99Add to cart Special order: ships in 2 to 4 weeks |
| 40 | No Image | Guide, Pad, Plastic | 75060 | $182.99Add to cart Special order: ships in 2 to 4 weeks |
| 40 | Not Available | Attachment Supporter U101 U124 | 75046 | Not Available |
| 41 | Not Available | Attachment Supporter | NLA | Not Available |
| 42 | Not Available | Caution Label U8MA | 74010 | Not Available |
| 42 | Not Available | Caution Label U101 U124 | 74045 | Not Available |
| 43 | Not Available | Name Plate U8MA | 74035 | Not Available |
| 43 | Not Available | Name Plate U101 | 74037 | Not Available |
| 43 | Not Available | Name Plate U124 | 74038 | Not Available |
| 44 | Not Available | Shaft Rear | 71010 | Not Available |
| 45 | Not Available | Washer | 77100 | Not Available |
| 46 | Not Available | Wheel Rear | 71000 | Not Available |
| 47 | Not Available | E Ring | NLA | Not Available |
| 48 | No Image | Bracket, Support, Head | 75026 | $147.99Read more |
| 49 | Not Available | Air Spreader | 75028 | Not Available |
| 50 | No Image | Bracket, Link, Squeegee | 75030 | $210.99Read more |
| 51 | No Image | Clamp, Over-Center, Band | 75038 | $90.99Read more |
| 52 | Not Available | Secondary Filter | 18005 | Not Available |
| 53 | Not Available | Fuse Ass'y U8MA | 34400 | Not Available |
| 53 | Not Available | Fuse Ass'y U101 | 34405 | Not Available |
| 53 | No Image | Cable Sleeve 4,0Qmm | 34415 | $2.10Read more |
| 54 | Not Available | Screw | NLA | Not Available |
| 55 | Not Available | Motor Cushion Front | 76002 | Not Available |
| 56 | Not Available | Screw U8MA | 77160 | Not Available |
| 57 | Not Available | Motor Cushion Sleeve U8MA | NLA | Not Available |
| 58 | Not Available | Motor Complete U8MA | 60010 | Not Available |
| 58 | Not Available | Motor Complete U101 | NLA | Not Available |
| 58 | Not Available | Motor Complete U124 | 60000 | Not Available |
| 59 | Not Available | Lead Wire (Black) | 36008 | Not Available |
| 60 | Not Available | Noise Suppressor U8MA U101 | 18010 | Not Available |
| 61 | Not Available | Motor Cushion Rear | 62012 | Not Available |
| 62 | Not Available | Lead Wire (White) | 36012 | Not Available |
| 63 | Not Available | Dust Box Packing | 76014 | Not Available |
| 64 |  | Belt-Bissell - Style 8 - 14 Lift Off Upright For: bissell | 18002 | $6.00Add to cart Special order: ships in 2 to 4 weeks |
| 65 |  | Cap Hose Drain - Repl For 75062 | 75037 | $91.99Add to cart Special order: ships in 2 to 4 weeks |
| 65 | No Image | Bail, Molded | 75035 | $34.99Read more |
| 66 | Not Available | Internal Exhaust Filter | 18015 | Not Available |
| 67 | Not Available | Motor Cover U8MA | NLA | Not Available |
| 67 | No Image | Cover, Mtg, Vacuum | 75042 | $138.99Read more |
| 129 | No Image | Filter, Screen, Bowl | 75013 | $89.99Add to cart Special order: ships in 2 to 4 weeks |
| 129 | No Image | Squeegee, Front, 30 Inch | 75017 | $78.99Add to cart Special order: ships in 2 to 4 weeks |
| 130 | Not Available | Washer U101 U124 | 77005 | Not Available |
| 131 | Not Available | Arm Right U101 U124 | NLA | Not Available |
| 132 | Not Available | Arm Left U101 U124 | 75008 | Not Available |

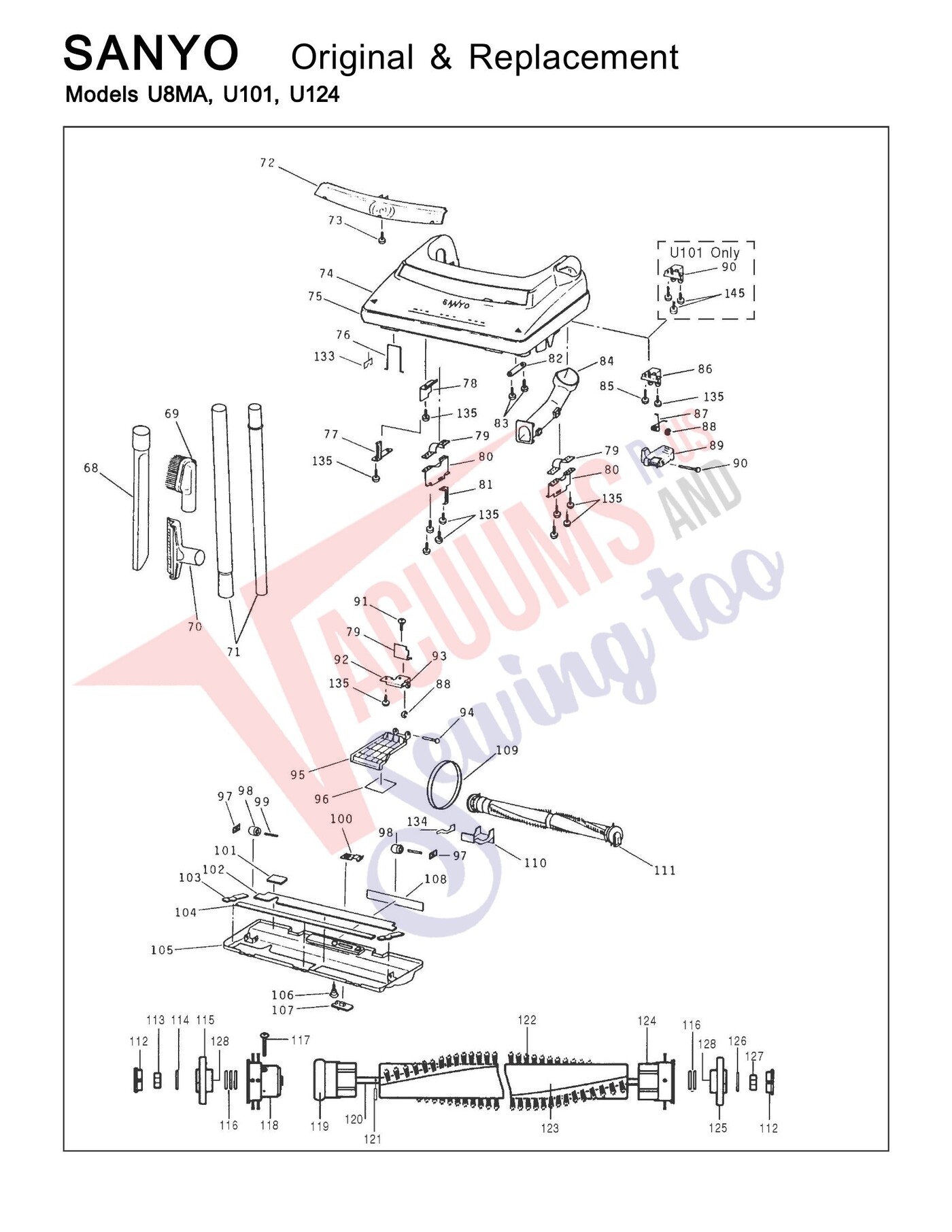

| # | Part image | Description | SKU | Price |
| XX | Not Available | Bottom Plate Ass'y | 76010 | Not Available |
| 68 | Not Available | Crevice Tool | 54000 | Not Available |
| 69 | Not Available | Dusting Brush | 53000 | Not Available |
| 70 | Not Available | Upholstery Tool | 52000 | Not Available |
| 71 | Not Available | Wand | 50000 | Not Available |
| 72 | Not Available | Lens U8MA U101 | 73404 | Not Available |
| 72 | Not Available | Lens U124 | NLA | Not Available |
| 73 | Not Available | Screw (Includes 97-108) | 77030 | Not Available |
| 74 | Not Available | Nozzle Housing U8MA | 73015 | Not Available |
| 74 | Not Available | Nozzle Housing U101 U124 | 73017 | Not Available |
| 75 | Not Available | Bumper | 74040 | Not Available |
| 76 | Not Available | Belt Cover Wire | 73410 | Not Available |
| 77 | Not Available | Belt Cover | 73406 | Not Available |
| 78 | Not Available | Belt Cover U8MA | 73408 | Not Available |
| 79 | Not Available | Base Holder | NLA | Not Available |
| 80 | Not Available | Base Holder | 73418 | Not Available |
| 81 | Not Available | Belt Cover Includes Key 112 - 128 | 73476 | Not Available |
| 82 | Not Available | Base Holder | 73420 | Not Available |
| 83 | Not Available | Screw | NLA | Not Available |
| 84 | Not Available | Nozzle Pipe | 73425 | Not Available |
| 85 | Not Available | Screw | 77050 | Not Available |
| 86 | Not Available | Pedal Holder | 73428 | Not Available |
| 87 | Not Available | Torsion Spring | 77180 | Not Available |
| 88 | Not Available | E Ring | 77205 | Not Available |
| 89 | Not Available | Foot Pedal U8MA | 73430 | Not Available |
| 89 | Not Available | Foot Pedal U101 U124 | 73431 | Not Available |
| 90 | Not Available | Foot Pedal Pin | 73432 | Not Available |
| 91 | Not Available | Screw | 77210 | Not Available |
| 92 | Not Available | Pedal Holder | 77020 | Not Available |
| 93 | Not Available | Cushion | 73478 | Not Available |
| 94 | Not Available | Belt Cover Pin | 73435 | Not Available |
| 95 | Not Available | Belt Cover | 73452 | Not Available |
| 96 | Not Available | Caution Label | 74030 | Not Available |
| 97 | Not Available | Special Nut | 77110 | Not Available |
| 98 | Not Available | Wheel Front | 71016 | Not Available |
| 99 | Not Available | Shaft Front | 73454 | Not Available |
| 100 | Not Available | Leaf Spring | 77190 | Not Available |
| 101 | Not Available | Air Spreader | 73456 | Not Available |
| 102 | Not Available | Air Spreader | 73458 | Not Available |
| 103 | Not Available | Air Spreader | 73460 | Not Available |
| 104 | Not Available | Air Spreader | 73462 | Not Available |
| 105 | Not Available | Bottom Plate | 76000 | Not Available |
| 106 | Not Available | Screw | 77195 | Not Available |
| 107 | Not Available | Latch U8MA | 73464 | Not Available |
| 107 | Not Available | Latch U101 U124 | 73465 | Not Available |
| 108 | Not Available | Caution Label | 74025 | Not Available |
| 109 | Not Available | Flat Belt 2 Pk | 10000 | Not Available |
| 109 | Not Available | Flat Belt | SHR-1000 | Not Available |
| 110 | Not Available | Pulley Cover | 73475 | Not Available |
| 111 | Not Available | Agitator Ass'y | NLA | Not Available |
| 112 | Not Available | Bearing Holder Cap | 62090 | Not Available |
| 113 | Not Available | Special Nut | 77170 | Not Available |
| 114 | Not Available | Lock Washer | 77163 | Not Available |
| 115 | Not Available | Bearing Holder Pulley End | 20507 | Not Available |
| 116 | Not Available | Washer | 77165 | Not Available |
| 117 | Not Available | Screw | 77155 | Not Available |
| 118 | Not Available | Edge Cleaner Pulley End | 20508 | Not Available |
| 119 | Not Available | Pulley | 20509 | Not Available |
| 120 | Not Available | Agitator Shaft | 20510 | Not Available |
| 121 | Not Available | 1 Pin Spring | 2051 | Not Available |
| 122 | Not Available | Brush Strip 4 Pk | 22000 | Not Available |
| 123 | Not Available | Brushroll Core | 20505 | Not Available |
| 124 | Not Available | Edge Cleaner Non-Pulley End | 20506 | Not Available |
| 125 | Not Available | Bearing Holder | 20529 | Not Available |
| 126 | Not Available | Lock Washer | 77163 | Not Available |
| 127 | Not Available | Nut Hex | 77145 | Not Available |
| 128 | Not Available | Brushroll Bearing | PR-6200 | Not Available |
| 133 | Not Available | Seal U101 U124 | 73405 | Not Available |
| 134 | Not Available | Seal U101 U124 | 73473 | Not Available |
| 135 | Not Available | Screw | 77245 | Not Available |
