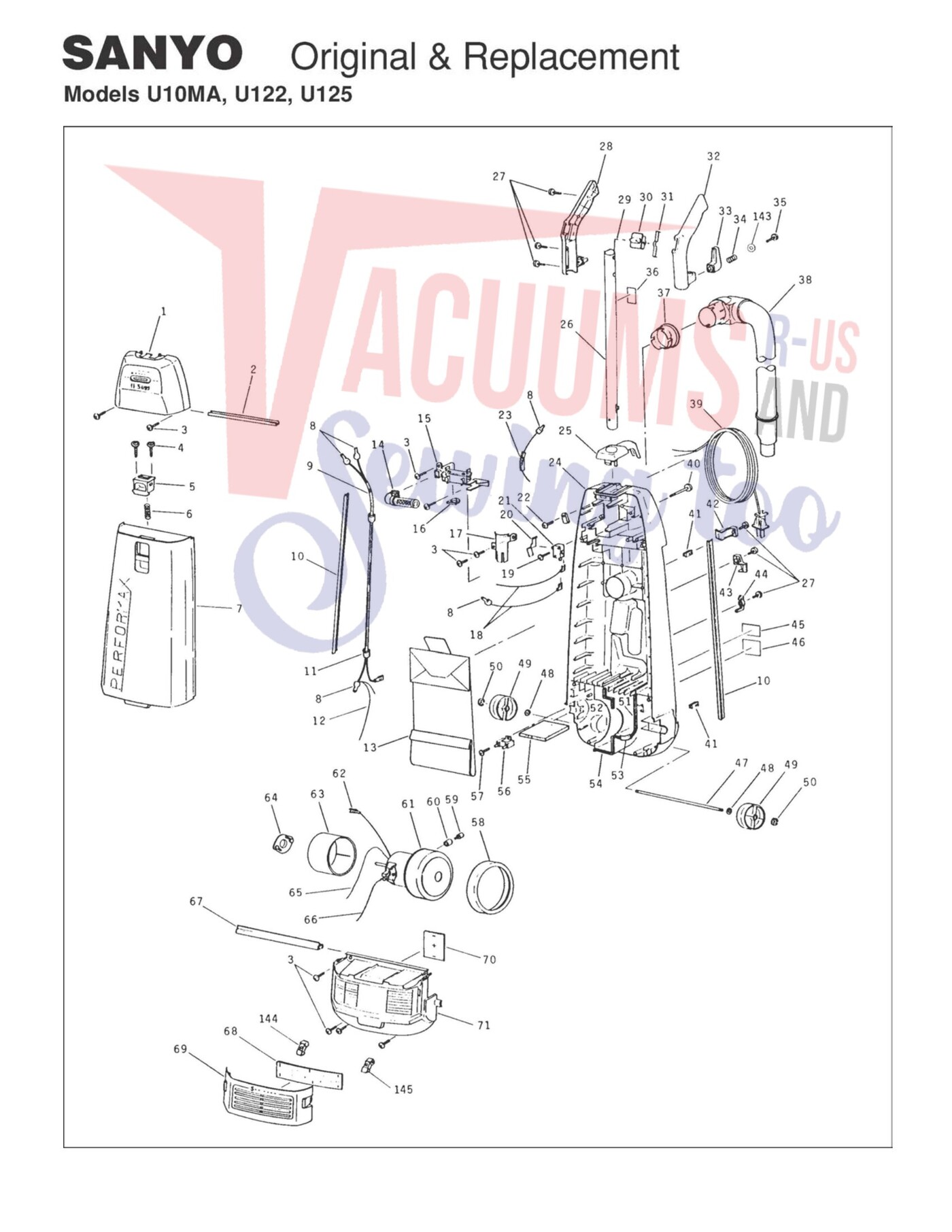

Schematic and parts book for Sanyo U10MA, U112, U125 . Repairs should be done by trained technicians. Vacuums R Us & Sewing Too provides vacuum cleaner and carpet cleaner parts and accessories for vacuum cleaner repair purposes. We are committed to delivering high-quality components, but it is important to note that all appliance repairs involve risks, and we cannot guarantee the outcome of your repair. When using our vacuum parts for repairs, you accept the terms and conditions HERE
| # | Part image | Description | SKU | Price |
| XX | Not Available | Carbon Brush Ass'y | 63000 | Not Available |
| 1 | No Image | Charger Mounting Bracket | 75022 | $0.00Read more |
| 1 | No Image | Bracket, Mounting, Cord | 75023 | $45.99Read more |
| 2 | Not Available | Dust Box Packing | 76005 | Not Available |
| 3 | Not Available | Screw | 77245 | Not Available |
| 4 | Not Available | Screw | 77120 | Not Available |
| 5 | No Image | Fitting, Modified 1.5 Inch Squeegee hose | 75054 | $69.99Add to cart Special order: ships in 1 to 3 weeks |
| 5 |  | Foam, Noise, Vacuum | 75053 | $37.99Add to cart Special order: ships in 1 to 3 weeks |
| 5 | Not Available | Clamp Knob U125 | 75052 | Not Available |
| 6 | Not Available | Helical Spring | 77130 | Not Available |
| 7 | No Image | TUBING, Vinyl 1/4 Inch Diameter 15 Inch Long | 75000 | $4.99Add to cart Special order: ships in 1 to 3 weeks |
| 7 | No Image | Casing Bottom Light Grey | 75001 | $269.00Read more |
| 8 | Not Available | Wire Connector | SS-3270 | Not Available |
| 9 | Not Available | Lead Wire U10MA | 36001 | Not Available |
| 9 | No Image | WAND TELESCOPIC CK 14 1 PRO 98147 | 36000 | $47.99Add to cart Special order: ships in 1 to 3 weeks |
| 10 | Not Available | Dust Box Packing | 76006 | Not Available |
| 11 | No Image | Foam Barrier Noise | 75055 | $22.99Add to cart Special order: ships in 1 to 3 weeks |
| 12 | Not Available | Lead Wire (White) | 36002 | Not Available |
| 13 | Not Available | Paper Bag Micron 3 Pk | 1401 | Not Available |
| 14 | Not Available | Indicator Ass'y | 75010 | Not Available |
| 15 | No Image | Clamp, Plastic, P-Shaped | 75012 | $5.99Read more |
| 15 | No Image | Squeegee, Front, 30 Inch, Ureth (Optl) | 75019 | $147.99Add to cart Special order: ships in 1 to 3 weeks |
| 16 | Not Available | Bleeder Valve Packing | 75014 | Not Available |
| 17 | No Image | Axle, Wheel, Squeegee | 75016 | $160.99Add to cart Special order: ships in 1 to 3 weeks |
| 18 | Not Available | Lead Wire (Black) | 36005 | Not Available |
| 19 | Not Available | Screw | 77040 | Not Available |
| 20 | No Image | Squeegee, Rear, 30 Inch | 75018 | $121.99Add to cart Special order: ships in 1 to 3 weeks |
| 21 | Not Available | Micro Switch | 34005 | Not Available |
| 22 | Not Available | Screw U10MA U122 | 77070 | Not Available |
| 22 | Not Available | Screw U125 | 77075 | Not Available |
| 23 | Not Available | Fuse Ass'y U10MA (Not Shown) | 34405 | Not Available |
| 24 | No Image | Float, Shutoff | 75002 | $265.99Add to cart Special order: ships in 1 to 3 weeks |
| 25 | Not Available | Lower Cord Hook | 70350 | Not Available |
| 26 | Not Available | Handle Tube | NLA | Not Available |
| 27 | Not Available | Screw | 77115 | Not Available |
| 28 | Not Available | Handle Grip Right | 70250 | Not Available |
| 29 | Not Available | Lever Spring Shaft | NLA | Not Available |
| 30 | Not Available | Switch Knob U10MA | 35510 | Not Available |
| 30 | Not Available | Switch Knob U122 U125 Micron Filter | 35525 | Not Available |
| 31 | Not Available | Leaf Spring | 34506 | Not Available |
| 32 |  | Handle, Lower Hose EXL/MG Series Part Number: 70252 for Compact | 70252 | $37.71Read more |
| 33 | Not Available | Upper Cord Hook U10MA | 70500 | Not Available |
| 33 | Not Available | Upper Cord Hook U122 U125 | 70510 | Not Available |
| 34 | Not Available | Helical Spring | 70505 | Not Available |
| 35 | Not Available | Screw U10MA | 77140 | Not Available |
| 35 | Not Available | Screw U122 U125 | 77015 | Not Available |
| 36 | Not Available | Caution Label | 74000 | Not Available |
| 37 | Not Available | Hose Joint Pipe U10MA | NLA | Not Available |
| 37 | Not Available | Hose Joint Pipe U122 U125 | 75405 | Not Available |
| 38 | Not Available | Nozzle to Bag Housing Hose | NLA | Not Available |
| 39 |  | Charger Base For: kenmore | 30005 | $15.82Add to cart Special order: ships in 1 to 2 weeks |
| 39 |  | Compatible alternateCord, 40' Gray 17/2 SVT 12A Power W/Polar Plug More Product Details | 32-5432-25 | $32.56Add to cart Special order: ships in 2 to 4 weeks |
| 39 |  | Compatible alternateCord, 40' Beige 17/2 12A Power W/Polar Plug Part Number: 32-5446-93 for Fitall More Product Details | 32544693 | $15.82Add to cart Special order: ships in 1 to 2 weeks |
| 39 |  | Compatible alternateFit All Cord 40' Black - Two Prong fitall fit-all More Product Details | FA3040 | $32.56Add to cart Special order: ships in 2 to 4 weeks |
| 39 |  | Cartridge Filter Assembly
Fits 10340 For: kenmore | 30002 | $26.84Read more |
| 39 | Not Available | Power Cord U125 | 30007 | Not Available |
| 39 |  | Cord Gray W/ Polorized Plug fit all fit-all | FA3035 | $32.99Read more |
| 40 | Not Available | Screw | 77150 | Not Available |
| 41 | No Image | Bushing, Rubber | 75034 | $21.99Add to cart Special order: ships in 1 to 3 weeks |
| 41 | No Image | Handle Rod, for SOFTCASE | 75033 | $24.00Read more |
| 42 | No Image | Charger 24V 25A Universal Flooded/Agm/Gel | 75045 | $849.99Add to cart Special order: ships in 1 to 3 weeks |
| 43 | No Image | Guide, Pad, Plastic | 75060 | $182.99Add to cart Special order: ships in 1 to 3 weeks |
| 43 | Not Available | Attachment Supporter U122 U125 | 75046 | Not Available |
| 44 | Not Available | Attachment Supporter | NLA | Not Available |
| 45 | Not Available | Caution Label U10MA | 74010 | Not Available |
| 45 | Not Available | Caution Label U122 U125 | 74045 | Not Available |
| 46 | Not Available | Name Plate U10MA | 74008 | Not Available |
| 46 | Not Available | Name Plate U122 | 74009 | Not Available |
| 46 | Not Available | Name Plate U125 | 74007 | Not Available |
| 47 | Not Available | Shaft Rear | 71010 | Not Available |
| 48 | Not Available | Washer | 77100 | Not Available |
| 49 | Not Available | Wheel Rear | 71000 | Not Available |
| 50 | Not Available | E Ring | 77215 | Not Available |
| 51 | No Image | Bracket, Support, Head | 75026 | $147.99Read more |
| 52 | Not Available | Air Spreader | 75028 | Not Available |
| 53 | No Image | Bracket, Link, Squeegee | 75030 | $210.99Read more |
| 54 | No Image | Clamp, Over-Center, Band | 75038 | $90.99Read more |
| 55 | Not Available | Secondary Filter | 18005 | Not Available |
| 56 | Not Available | Fuse Ass'y U10MA | 34400 | Not Available |
| 56 | No Image | Cable Sleeve 4,0Qmm | 34415 | $2.10Read more |
| 57 | Not Available | Screw | NLA | Not Available |
| 58 | Not Available | Motor Cushion Front | 76002 | Not Available |
| 59 | Not Available | Screw U10MA | 77160 | Not Available |
| 60 | Not Available | Motor Cushion Sleeve U10MA | NLA | Not Available |
| 61 | Not Available | Motor Complete U10MA | NLA | Not Available |
| 61 | Not Available | Motor Complete U122 U125 | 60000 | Not Available |
| 62 | Not Available | Lead Wire (Black) | 36008 | Not Available |
| 63 | Not Available | Noise Suppressor | 18010 | Not Available |
| 64 | Not Available | Motor Cushion Rear | 62012 | Not Available |
| 65 | Not Available | Lead Wire (Black) | 36010 | Not Available |
| 66 | Not Available | Lead Wire (White) | 36012 | Not Available |
| 67 | Not Available | Dust Box Packing | 76014 | Not Available |
| 68 | Not Available | External Electrostatic | 18000 | Not Available |
| 69 | Not Available | Filter Cover U10MA | 73400 | Not Available |
| 69 | Not Available | Filter Cover U122 U125 | 73401 | Not Available |
| 70 | Not Available | Internal Exhaust Filter | 18015 | Not Available |
| 71 | Not Available | Motor Cover U10MA | NLA | Not Available |
| 71 | Not Available | Motor Cover U122 U125 | 75011 | Not Available |
| 143 | Not Available | Washer U122 | 77005 | Not Available |
| 144 | Not Available | Arm Right U122 U125 | NLA | Not Available |
| 145 | Not Available | Arm Left U122 U125 | 75008 | Not Available |

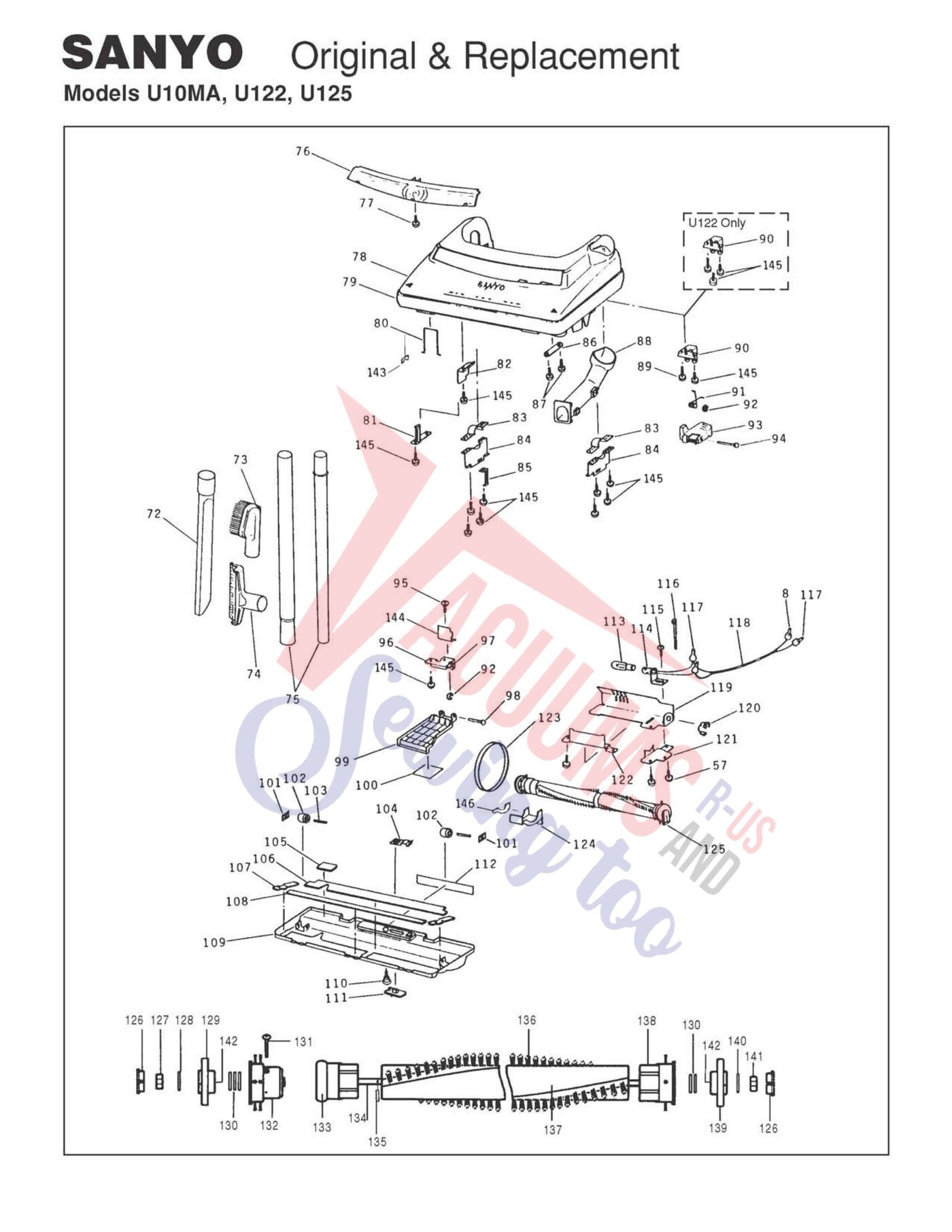

| # | Part image | Description | SKU | Price |
| XX | Not Available | Bottom Plate Ass'y 146 SA-73473 Seal U122 | 76010 | Not Available |
| 72 | Not Available | Crevice Tool | 54000 | Not Available |
| 73 | Not Available | Dusting Brush | 53000 | Not Available |
| 74 | Not Available | Upholstery Tool | 52000 | Not Available |
| 75 |  | Wand, Black Ratchet Style With Cuffs CR77C Part Number: 700192401 for Cirrus | 700192401 | $37.10Read more |
| 76 | Not Available | Lens | NLA | Not Available |
| 77 | Not Available | Screw | 77030 | Not Available |
| 78 |  | Nozzle, W/Lock Screw CR69A/CR9100 Part Number: 570002691 for Cirrus | 570002691 | $45.58Read more |
| 78 | Not Available | Nozzle Housing U122 U125 | 73012 | Not Available |
| 79 | Not Available | Bumper | 74040 | Not Available |
| 80 | Not Available | Belt Cover Wire | 73410 | Not Available |
| 81 | Not Available | Belt Cover U122 U125 | 73406 | Not Available |
| 82 | Not Available | Belt Cover U10MA | 73408 | Not Available |
| 83 | Not Available | Base Holder | NLA | Not Available |
| 84 | Not Available | Base Holder | 73418 | Not Available |
| 85 | Not Available | Belt Cover | 73476 | Not Available |
| 86 | Not Available | Base Holder | 73420 | Not Available |
| 87 | Not Available | Screw | NLA | Not Available |
| 88 | Not Available | Nozzle Pipe | 73425 | Not Available |
| 89 | Not Available | Screw U10MA | 77060 | Not Available |
| 90 | Not Available | Pedal Holder Includes Key 126 - 142 | 73428 | Not Available |
| 91 | Not Available | Torsion Spring | 77180 | Not Available |
| 92 | Not Available | E Ring | 77205 | Not Available |
| 93 | Not Available | Foot Pedal U10MA | 73430 | Not Available |
| 93 | Not Available | Foot Pedal U122 U125 | 73431 | Not Available |
| 94 |  | Bushing, Axle Rear Wheel SC5713/SC5815/SC5845 Part Number: 73432A for Eureka | 73432A | $4.18Add to cart Special order: ships in 2 to 4 weeks |
| 95 | Not Available | Screw | 77210 | Not Available |
| 96 | Not Available | Pedal Holder | 77020 | Not Available |
| 97 | Not Available | Cushion | 73478 | Not Available |
| 98 | Not Available | Belt Cover Pin | 73438 | Not Available |
| 99 | Not Available | Belt Cover | 73452 | Not Available |
| 100 | Not Available | Caution Label | 74030 | Not Available |
| 101 | Not Available | Special Nut | 77110 | Not Available |
| 102 | Not Available | Wheel Front | 71016 | Not Available |
| 103 | Not Available | Shaft Front | 73454 | Not Available |
| 104 | Not Available | Leaf Spring | 77190 | Not Available |
| 105 | Not Available | Air Spreader | 73456 | Not Available |
| 106 | Not Available | Air Spreader | 73458 | Not Available |
| 107 | Not Available | Air Spreader | 73460 | Not Available |
| 108 | Not Available | Air Spreader | 73462 | Not Available |
| 109 | Not Available | Bottom Plate | 76000 | Not Available |
| 110 | Not Available | Screw | 77195 | Not Available |
| 111 | Not Available | Latch | 73465 | Not Available |
| 112 | Not Available | Caution Label | 74025 | Not Available |
| 113 | Not Available | Bulb 20W | 35010 | Not Available |
| 113 | Not Available | Bulb 15W | FA-3515 | Not Available |
| 114 | Not Available | Socket Ass'y | 36014 | Not Available |
| 115 | Not Available | Screw U10MA | NLA | Not Available |
| 115 | Not Available | Screw U122 U125 | 77210 | Not Available |
| 116 | No Image | Sand Paper Grain 120 | 73450 | $6.60Read more |
| 117 | Not Available | Wire Connector | SS-3270 | Not Available |
| 118 | Not Available | Lead Wire | 36016 | Not Available |
| 119 | Not Available | Lamp Holder | 73466 | Not Available |
| 120 | Not Available | Cord Bushing | 73468 | Not Available |
| 121 | Not Available | Lamp Holder | 73470 | Not Available |
| 122 | Not Available | Lamp Holder | 73472 | Not Available |
| 123 | Not Available | Flat Belt 2 Pk | 10000 | Not Available |
| 123 | Not Available | Flat Belt | SHR-1000 | Not Available |
| 124 | Not Available | Pulley Cover | 73475 | Not Available |
| 125 | Not Available | Agitator Ass'y | NLA | Not Available |
| 126 | Not Available | Bearing Holder Cap | 62090 | Not Available |
| 127 | Not Available | Special Nut | 77170 | Not Available |
| 128 | Not Available | Lock Washer | 77163 | Not Available |
| 129 | Not Available | Bearing Holder Pulley End | 20507 | Not Available |
| 130 | Not Available | Washer | 77165 | Not Available |
| 131 | Not Available | Screw | 77155 | Not Available |
| 132 | Not Available | Edge Cleaner Pulley End | 20508 | Not Available |
| 133 | Not Available | Pulley | 20509 | Not Available |
| 134 | Not Available | Agitator Shaft | 20510 | Not Available |
| 135 | Not Available | 1 Pin Spring | 2051 | Not Available |
| 136 | Not Available | Brush Strip 4 Pk | 22000 | Not Available |
| 137 | Not Available | Brushroll Core | 20505 | Not Available |
| 138 | Not Available | Edge Cleaner Non-Pulley End | 20506 | Not Available |
| 139 | Not Available | Bearing Holder | 20529 | Not Available |
| 140 | Not Available | Lock Washer | 77163 | Not Available |
| 141 | Not Available | Nut Hex | 77145 | Not Available |
| 142 | Not Available | Brushroll Bearing | PR-6200 | Not Available |
| 143 | Not Available | Seal U122 | 73405 | Not Available |
| 144 | Not Available | Belt Cover U122 | 73408 | Not Available |
| 145 | Not Available | Screw | 77245 | Not Available |
| 146 | Not Available | Seal U122 | 73473 | Not Available |
Report errors on this page HERE
