Schematic and parts book for Sanyo SC-Y130 . Repairs should be done by trained technicians. Vacuums R Us & Sewing Too provides vacuum cleaner and carpet cleaner parts and accessories for vacuum cleaner repair purposes. We are committed to delivering high-quality components, but it is important to note that all appliance repairs involve risks, and we cannot guarantee the outcome of your repair. When using our vacuum parts for repairs, you accept the terms and conditions HERE
| # | Part image | Description | SKU | Price |
| 1 | Not Available | DUST BOX COVER (PB-1) | 6630100356 | Not Available |
| 2 | Not Available | TRANSMISSION ASSEMBLY KEYNO3-6 | 6630079072 | Not Available |
| 3 | Not Available | TRANSMISSION PACKING (GRAY) | 6630071236 | Not Available |
| 4 | Not Available | TRANSMISSION FLOAT (NN-07) | 6630071243 | Not Available |
| 5 | Not Available | TRANSMISSION SPRING | 6630098387 | Not Available |
| 6 | Not Available | TRANSMISSION NOZZLE (NN -07) | 6630071267 | Not Available |
| 7 | Not Available | BACKING PLATE (NN-07) | 6630071274 | Not Available |
| 8 | Not Available | SCREW (4X12) | 6630071281 | Not Available |
| 9 | Not Available | SCREW (3X10) | 6630002872 | Not Available |
| 10 | Not Available | HANDLE UPPER (PB-1) | 6630100363 | Not Available |
| 11 | Not Available | SCREW (4X20) | 6630000243 | Not Available |
| 12 | No Image | SWITCH, MAIN BODY Y120 POWERBOY CANISTER Part Number: 6630080047 for Sanyo | 6630080047 | $9.55Read more |
| 13 | Not Available | CORD ASSEMBLY (RED) L=220 | 6630078655 | Not Available |
| 14 | Not Available | HANDLE LOWER (N3-137) | 6630078662 | Not Available |
| 15 | Not Available | CASE UPPER (N3-137) | 6630071311 | Not Available |
| 16 | Not Available | CORD REEL COMP. INCL/P.CORD | 6630076682 | Not Available |
| 17 | Not Available | POWER CORD (U2) | 6630100370 | Not Available |
| 18 | Not Available | BRAKE ROLLER ASSEMBLY B | 6630000236 | Not Available |
| 19 | Not Available | BRAKE SPRING | 6630071342 | Not Available |
| 20 | Not Available | BRAKE ARM (N3-137) | 6630071359 | Not Available |
| 21 | Not Available | REEL SUPPORTER B (NN-07) | 6630080054 | Not Available |
| 22 | Not Available | CONTROL CIRCUITE ASSEMBLY INCL/FUSE | 6630076705 | Not Available |
| 23 | Not Available | FUSE 125V 12A | 6630088845 | Not Available |
| 24 | Not Available | REEL SUPPORTER ASSEMBLY A | 6630071380 | Not Available |
| 25 | Not Available | OUTLET FILTER R | 6630071397 | Not Available |
| 26 | Not Available | SUPPORTER (TRANSFORMER ) | 6630071403 | Not Available |
| 27 | Not Available | TRANSFOMER | 6630076729 | Not Available |
| 28 | Not Available | POLYURETHANE FORM | 6630076736 | Not Available |
| 29 | Not Available | CRAMP BUTTON (NW-13) | 6630071434 | Not Available |
| 30 | No Image | SPRING, BAG LATCH CLAMP SCY120 POWERBOY Part Number: 6630071441 for Sanyo | 6630071441 | $1.60Read more |
| 31 | Not Available | CLOTH FILTER BAG | 6630071458 | Not Available |
| 32 | Not Available | DUST FILTER PACKING | 6630071465 | Not Available |
| 33 | Not Available | AIR INLET PACKING (BLACK) | 6630071472 | Not Available |
| 34 | Not Available | CONNECTOR HOUSING ASSEMBLY | 6630071489 | Not Available |
| 35 | Not Available | JOINT SPRING | 6630071496 | Not Available |
| 36 | No Image | SCREW, Part Number: 6630008263 for Sanyo | 6630008263 | $0.70Read more |
| 37 | Not Available | FRONT COVER | 6630071502 | Not Available |
| 38 | Not Available | MOTOR CUSHION FRONT (NN -B) | 6630071519 | Not Available |
| 39 | No Image | MOTOR, SCY120 POWERBOY CANISTER Part Number: 6630080061 for Sanyo | 6630080061 | $92.47Read more |
| 40 | Not Available | MOTOR CUSHION REAR(BLACK) | 6630071533 | Not Available |
| 41 | Not Available | THERMAL PROTECTOR | 6630076767 | Not Available |
| 42 | Not Available | WIRE CONNECTOR (CE-230) | 6630000700 | Not Available |
| 43 | Not Available | HEAT-SHRINKABLETUBE | 6630076774 | Not Available |
| 44 | Not Available | THERMAL PROTECTOR HOLDER | 6630076781 | Not Available |
| 45 | Not Available | SCREW (4X6) | 6630076798 | Not Available |
| 46 | No Image | FILTER, SECONDARY Y120 Part Number: 6630071540 for Sanyo | 6630071540 | $2.03Read more |
| 47 | Not Available | OUTLET FILTER | 6630071557 | Not Available |
| 48 | Not Available | OUTLET FILTER L | 6630071564 | Not Available |
| 49 | Not Available | CASE LOWER (NN-07) | 6630080238 | Not Available |
| 50 | Not Available | WHEEL REAR (NN-07) | 6630075418 | Not Available |
| 51 | Not Available | NAME PLATE | 6630100387 | Not Available |
| 52 | Not Available | CASTER (NN-04) | 6630071601 | Not Available |

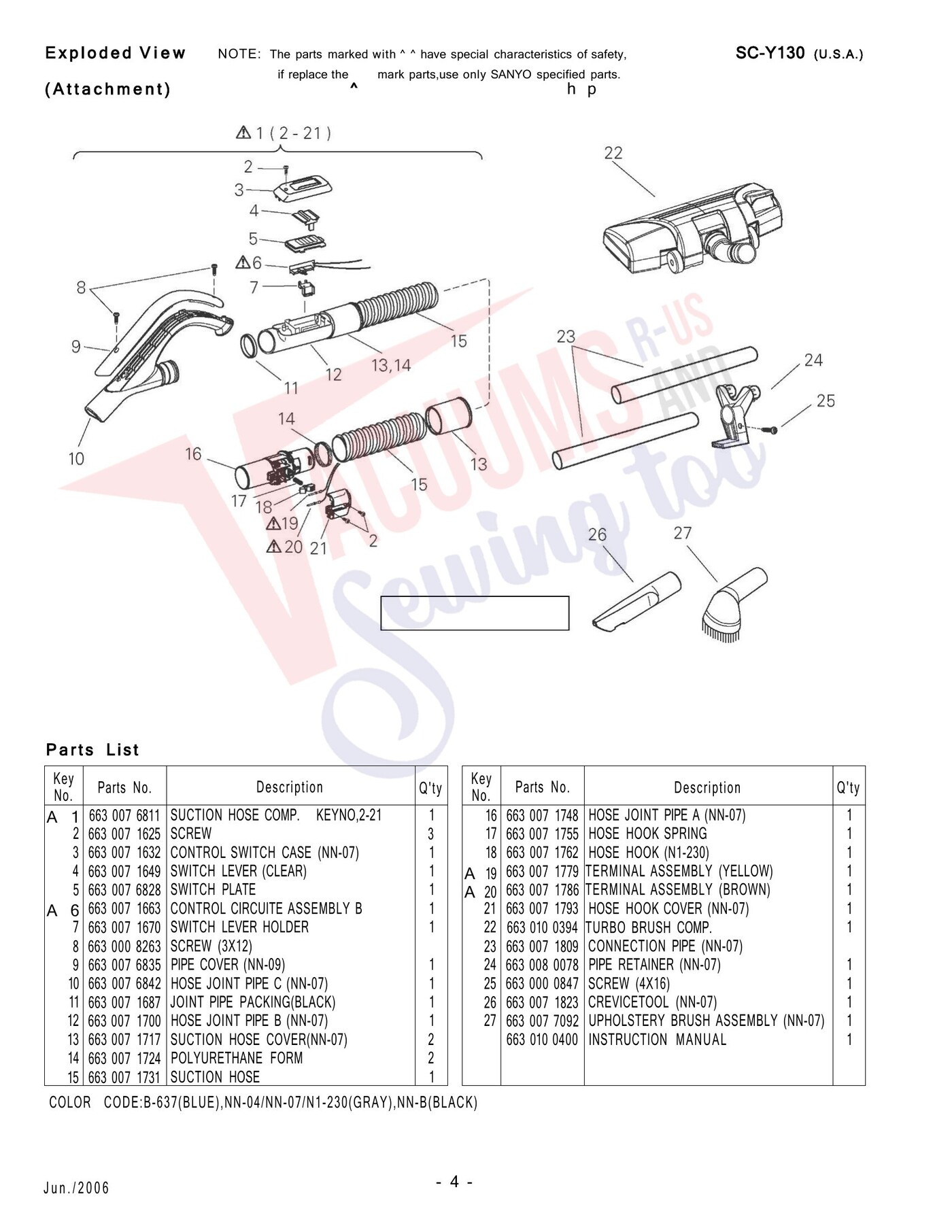

| # | Part image | Description | SKU | Price |
| 1 | Not Available | SUCTION HOSE COMP. KEYNO2-21 | 6630076811 | Not Available |
| 2 | Not Available | SCREW | 6630071625 | Not Available |
| 2 | Not Available | INSTRUCTION MANUAL | 6630100400 | Not Available |
| 3 | Not Available | CONTROL SWITCH CASE (NN-07) | 6630071632 | Not Available |
| 4 | Not Available | SWITCH LEVER (CLEAR) 1 A | 6630071649 | Not Available |
| 5 | Not Available | SWITCH PLATE 1 A | 6630076828 | Not Available |
| 6 | Not Available | CONTROL CIRCUITE ASSEMBLY B | 6630071663 | Not Available |
| 7 | Not Available | SWITCH LEVER HOLDER | 6630071670 | Not Available |
| 8 | No Image | SCREW, Part Number: 6630008263 for Sanyo | 6630008263 | $0.70Read more |
| 9 | Not Available | PIPE COVER (NN-09) | 6630076835 | Not Available |
| 10 | Not Available | HOSE JOINT PIPE C (NN-07) | 6630076842 | Not Available |
| 11 | Not Available | JOINT PIPE PACKING(BLACK) | 6630071687 | Not Available |
| 12 | Not Available | HOSE JOINT PIPE B (NN-07) | 6630071700 | Not Available |
| 13 | Not Available | SUCTION HOSE COVER(NN-07) | 6630071717 | Not Available |
| 14 | Not Available | POLYURETHANE FORM | 6630071724 | Not Available |
| 15 | Not Available | SUCTION HOSE | 6630071731 | Not Available |
| 16 | Not Available | HOSE JOINT PIPE A (NN-07) | 6630071748 | Not Available |
| 17 | Not Available | HOSE HOOK SPRING | 6630071755 | Not Available |
| 18 | Not Available | HOSE HOOK (N1-230) | 6630071762 | Not Available |
| 19 | Not Available | TERMINAL ASSEMBLY (YELLOW) | 6630071779 | Not Available |
| 20 | Not Available | TERMINAL ASSEMBLY (BROWN) | 6630071786 | Not Available |
| 21 | Not Available | HOSE HOOK COVER (NN-07) | 6630071793 | Not Available |
| 22 | No Image | SANYO SC-Y130 TURBO BRUSH COMPLETE Part Number: 6630100394 for Sanyo | 6630100394 | $0.00Read more |
| 23 | No Image | WAND, Y120 POWERBOY Part Number: 6630071809 for Sanyo | 6630071809 | $37.92Read more |
| 24 | Not Available | PIPE RETAINER (NN-07) | 6630080078 | Not Available |
| 25 | No Image | SCREW, (4X16) X2100P Part Number: 6630000847 for Sanyo | 6630000847 | $0.47Read more |
| 26 | No Image | CREVICE TOOL, CANSITER Y120 Part Number: 6630071823 for Sanyo | 6630071823 | $3.85Read more |
| 27 | Not Available | UPHOLSTERY BRUSH ASSEMBLY (NN-07) | 6630077092 | Not Available |
