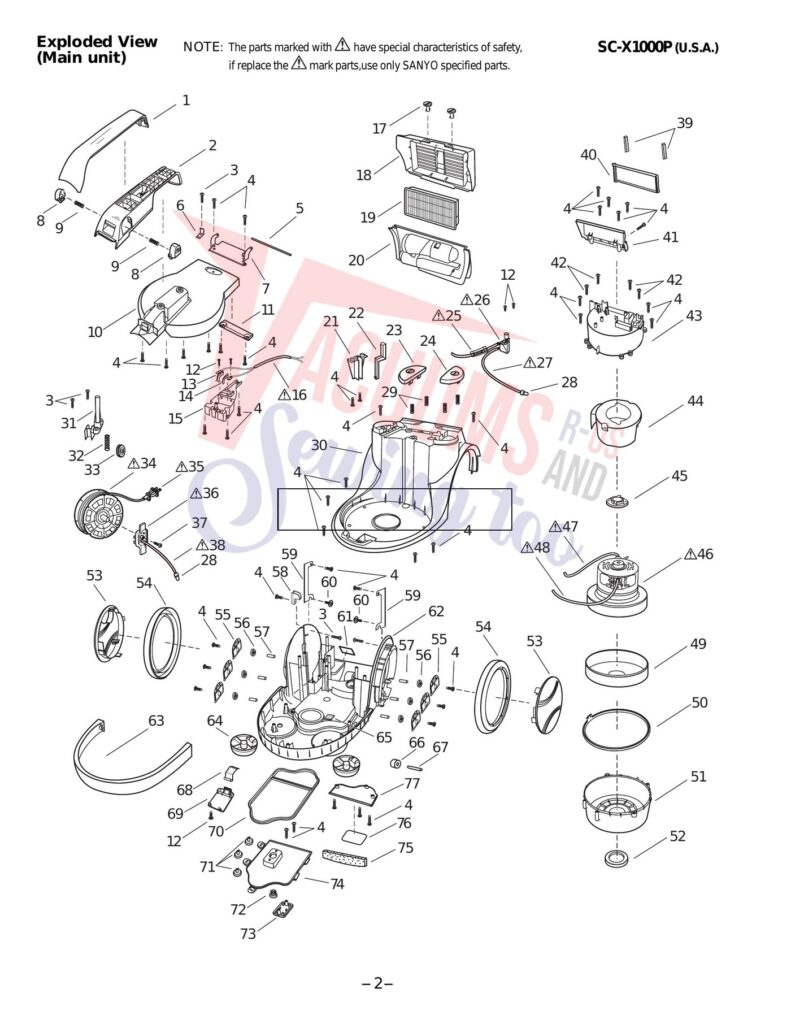

Schematic and parts book for Sanyo SC-X1000P . Repairs should be done by trained technicians. Vacuums R Us & Sewing Too provides vacuum cleaner and carpet cleaner parts and accessories for vacuum cleaner repair purposes. We are committed to delivering high-quality components, but it is important to note that all appliance repairs involve risks, and we cannot guarantee the outcome of your repair. When using our vacuum parts for repairs, you accept the terms and conditions HERE

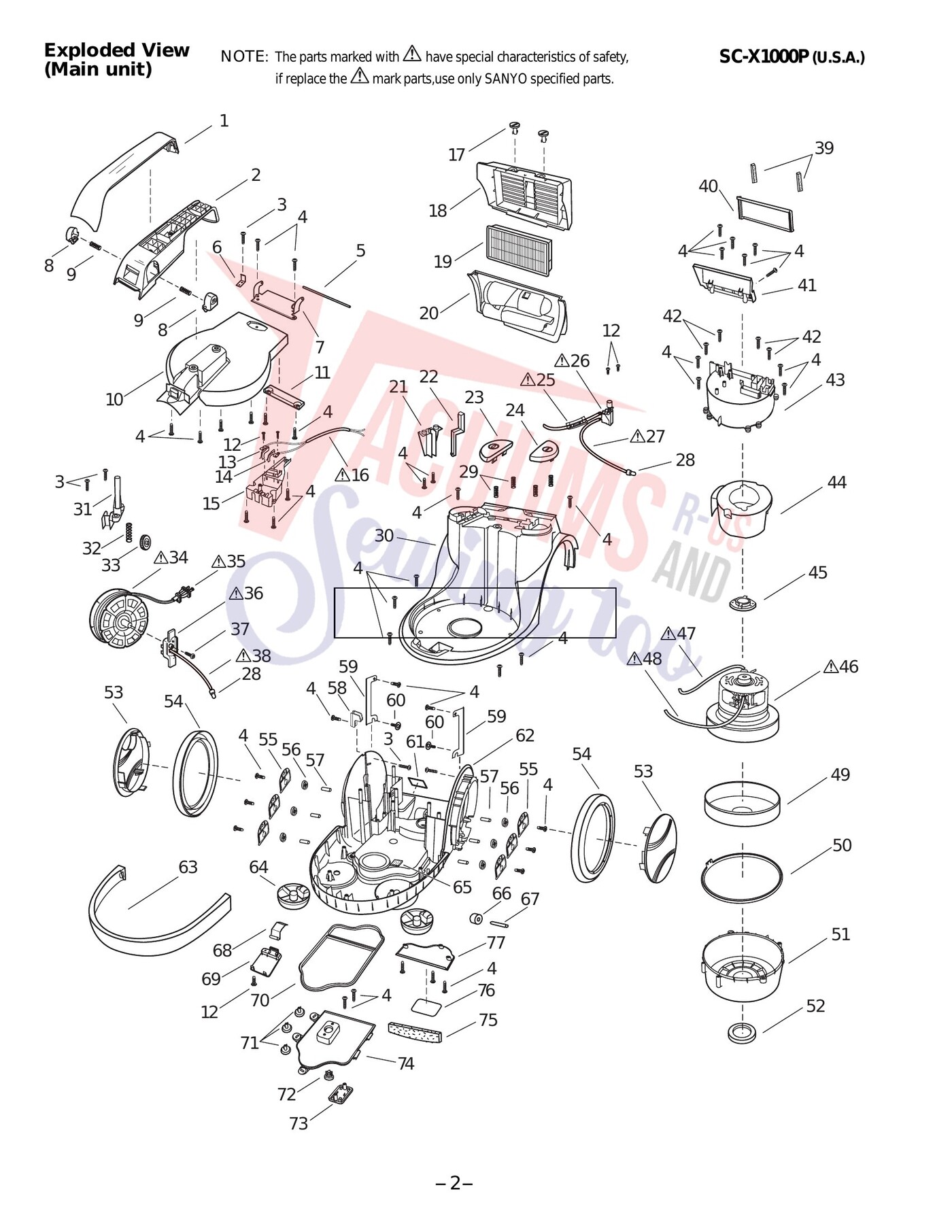

| # | Part image | Description | SKU | Price |
| XX | Not Available | CARBON BRUSH ASSEMBLY | 6630000298 | Not Available |
| 1 | Not Available | HANDLE UPPER (N3-99T) | 6630069714 | Not Available |
| 2 | Not Available | HANDLE LOWER (N1-233) | 6630066492 | Not Available |
| 3 | Not Available | SCREW (4X16) | 6630000076 | Not Available |
| 4 | No Image | SCREW, (4X16) X2100P Part Number: 6630000847 for Sanyo | 6630000847 | $0.47Read more |
| 5 | Not Available | HINGE PIN | 6630066508 | Not Available |
| 6 | Not Available | HINGE SPRING | 6630066515 | Not Available |
| 7 | Not Available | HINGE | 6630066522 | Not Available |
| 8 | Not Available | CRAMP LEVER (NN-B) | 6630069721 | Not Available |
| 9 | Not Available | CRAMP SPRING (HANDLE) | 6630066546 | Not Available |
| 10 | Not Available | CASE COVER (N3-99T) | 6630066553 | Not Available |
| 11 | Not Available | SUPPLEMENT COVER UPPER | 6630066560 | Not Available |
| 12 | No Image | SCREW, Part Number: 6630008263 for Sanyo | 6630008263 | $0.70Read more |
| 13 | Not Available | JOINT SPRING RIGHT | 6630069738 | Not Available |
| 14 | Not Available | JOINT SPRING LEFT | 6630069745 | Not Available |
| 15 | Not Available | CORD COVER (N1-233) | 6630069752 | Not Available |
| 16 | Not Available | OTHER STANDARD CORD | 6630069769 | Not Available |
| 17 | No Image | SCREW, PLASTIC FILTER COVER X1000P Part Number: 6630066577 for Sanyo | 6630066577 | $1.84Read more |
| 18 | Not Available | AIR OUTLET OUTER (N3-99T) | 6630067284 | Not Available |
| 19 | Not Available | OUTLET FILTER ASSEMBLY | 6630067291 | Not Available |
| 20 | Not Available | TOOL STORAGE (N3-99T) | 6630066607 | Not Available |
| 21 | Not Available | BRAKE ARM BRACKET (N1-233) | 6630009499 | Not Available |
| 22 | Not Available | REEL KNOB (N1-233) | 6630066614 | Not Available |
| 23 | Not Available | REEL BUTTON (NN-B) | 6630069776 | Not Available |
| 24 | Not Available | SWITCH BUTTON (NN-B) | 6630069783 | Not Available |
| 25 | Not Available | FUSE ASSEMBLY (125V 15A) | 6630009451 | Not Available |
| 26 | No Image | SWITCH, 800P Part Number: 6630002896 for Sanyo | 6630002896 | $12.61Read more |
| 27 | Not Available | CORD ASSEMBLY (BLACK) L=300 | 6630069790 | Not Available |
| 28 | Not Available | WIRE CONNECTOR (CE-530) | 6630002193 | Not Available |
| 29 | Not Available | HELICAL SPRING | 6630066645 | Not Available |
| 30 | Not Available | CASE UPPER (N3-99T) | 6630066652 | Not Available |
| 31 | Not Available | BRAKE ARM (N1-233) | 6630009628 | Not Available |
| 32 | Not Available | BRAKE SPRING | 6630009611 | Not Available |
| 33 | Not Available | BRAKE ROLLER ASSEMBLY B | 6630000236 | Not Available |
| 34 | Not Available | CORD REEL COMP. INCL/P.CORD | 6630069806 | Not Available |
| 35 | No Image | CORD, 18' 800P CANISTER Part Number: 6630008034 for Sanyo | 6630008034 | $37.13Read more |
| 36 | Not Available | REEL SUPPORTER ASSEMBLY | 6630055557 | Not Available |
| 37 | Not Available | SCREW (TORX SCREW) | 6630050378 | Not Available |
| 38 | Not Available | CORD ASSEMBLY (WHITE) | 6630069813 | Not Available |
| 39 | Not Available | POLYURETHANE FORM | 6630066683 | Not Available |
| 40 | Not Available | AIR OUTLET PACKING (N1-233) | 6630066690 | Not Available |
| 41 | Not Available | AIR OUTLET INNER (N1-233) | 6630066706 | Not Available |
| 42 | Not Available | SCREW (4X20) | 6630000243 | Not Available |
| 43 | Not Available | MOTOR BASE (NATURAL) | 6630066713 | Not Available |
| 44 | Not Available | SILENCER PIPE (NATURAL) | 6630066720 | Not Available |
| 45 | Not Available | MOTOR CUSHION REAR (NN-B) | 6630066737 | Not Available |
| 46 | No Image | MOTOR, SUCTION X1000P CAN Part Number: 6630069820 for Sanyo | 6630069820 | $114.02Read more |
| 47 | Not Available | CORD ASSEMBLY (WHITE) L=400 | 6630069837 | Not Available |
| 48 | Not Available | CORD ASSEMBLY (BLACK) L=450 | 6630069844 | Not Available |
| 49 | Not Available | MOTOR CUSHION FRONT | 6630056486 | Not Available |
| 50 | Not Available | MOTOR BASE PACKING (N1-233) | 6630066751 | Not Available |
| 51 | Not Available | MOTOR CUSHION COVER (NATURAL) | 6630066768 | Not Available |
| 52 | Not Available | MOTOR CUSHION OUTER | 6630009567 | Not Available |
| 53 | Not Available | WHEEL CAP (N3-99T) | 6630066775 | Not Available |
| 54 | Not Available | WHEEL REAR COMP. (N1-248) | 6630066782 | Not Available |
| 55 | Not Available | HOLDER PLATE (N1-233) | 6630057735 | Not Available |
| 56 | Not Available | WHEEL SMALL (N1-233) | 6630057728 | Not Available |
| 57 | Not Available | SHAFT WHEEL | 6630057711 | Not Available |
| 58 | Not Available | CASE COVER (REEL SHAFT)(N1-233) | 6630066799 | Not Available |
| 59 | Not Available | METAL COVER | 6630066805 | Not Available |
| 60 | Not Available | SCREW (4X17) | 6630066812 | Not Available |
| 61 | Not Available | CAUTION LABEL | 6630005125 | Not Available |
| 62 | Not Available | CASE LOWER (N1-248) | 6630069851 | Not Available |
| 63 | Not Available | CASE BUMPER (N1-248) | 6630066836 | Not Available |
| 64 | Not Available | CASTER (N1-248) | 6630066843 | Not Available |
| 65 | Not Available | AIR SPREADER | 6630069868 | Not Available |
| 66 | Not Available | WHEEL SMALL (NN-B) | 6630008225 | Not Available |
| 67 | Not Available | WHEEL SHAFT | 6630008218 | Not Available |
| 68 | Not Available | CORD INLET COVER SMALL | 6630066850 | Not Available |
| 69 | Not Available | CORD INLET COVER (N1-248) | 6630066867 | Not Available |
| 70 | Not Available | BOTTOM PACKING (N1-233) | 6630066874 | Not Available |
| 71 | Not Available | CRAMP HOOK (N1-248) | 6630066881 | Not Available |
| 72 | Not Available | TRANSMISSON ASSEMBLY | 6630003312 | Not Available |
| 73 | Not Available | TRANSMISSION COVER (N1-248) | 6630066898 | Not Available |
| 74 | Not Available | CASE LOWER BOTTOM LARGE | 6630066904 | Not Available |
| 75 | No Image | FILTER, AIR INLET GRAY SC-X1000P CAN Part Number: 6630066911 for Sanyo | 6630066911 | $0.98Read more |
| 76 | Not Available | NAME PLATE | 6630069875 | Not Available |
| 77 | Not Available | CASE LOWER BOTTOM SMALL | 6630066935 | Not Available |

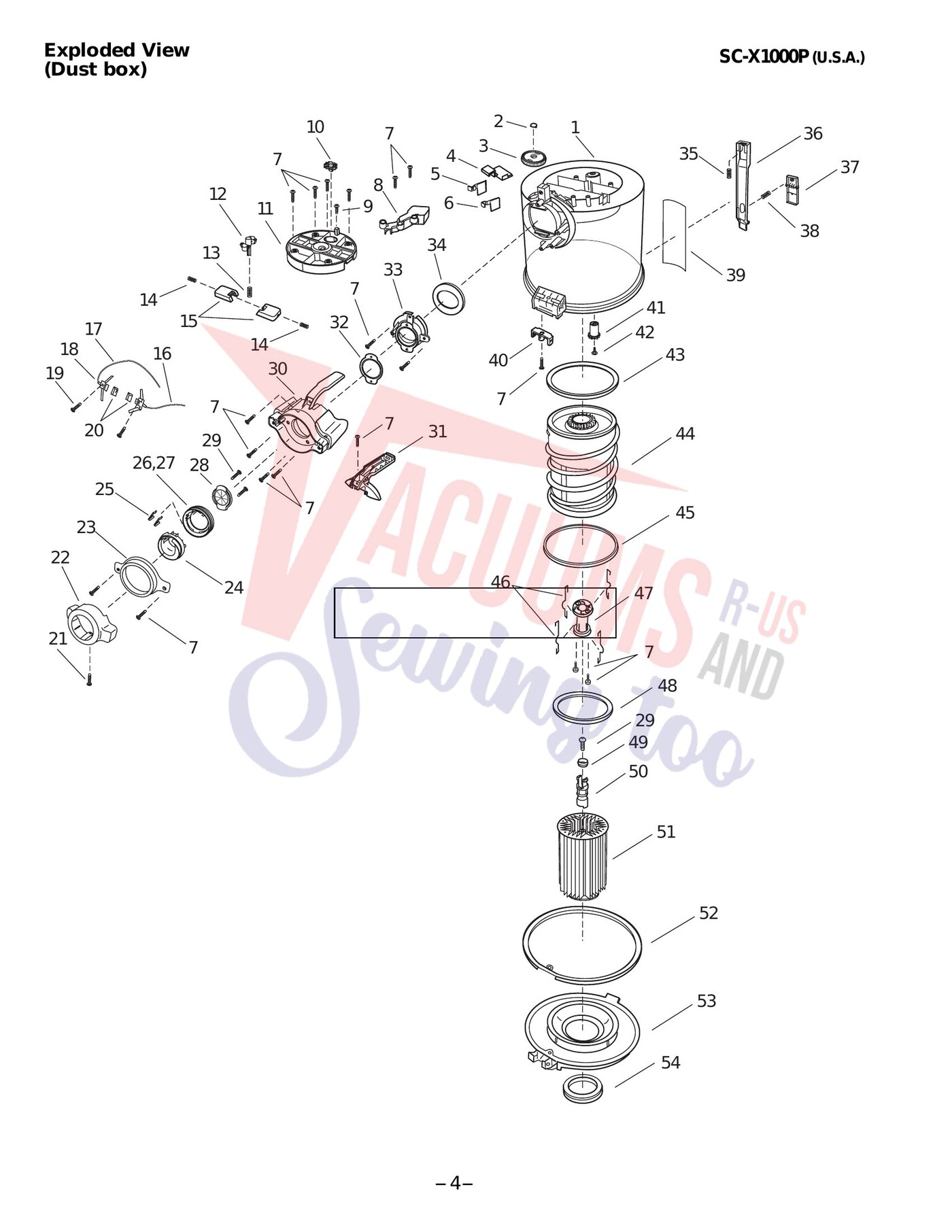

| # | Part image | Description | SKU | Price |
| 1 | Not Available | DUST BOX (B-552) | 6630069882 | Not Available |
| 2 | Not Available | ORNAMENT PLATE (NN-B) | 6630069899 | Not Available |
| 3 | Not Available | GEAR C (NN-B) | 6630069905 | Not Available |
| 4 | Not Available | SHIELD PLATE | 6630069912 | Not Available |
| 5 | Not Available | COLLECTING SHOE LEFT | 6630069929 | Not Available |
| 6 | Not Available | COLLECTING SHOE RIGHT | 6630069936 | Not Available |
| 7 | No Image | SCREW, (4X16) X2100P Part Number: 6630000847 for Sanyo | 6630000847 | $0.47Read more |
| 8 | Not Available | COLLECTING SHOE HOLDER | 6630066980 | Not Available |
| 9 | No Image | SCREW, (4X10) X2100P Part Number: 6630009239 for Sanyo | 6630009239 | $0.61Read more |
| 10 | Not Available | GEAR A (NN-B) | 6630069943 | Not Available |
| 11 | Not Available | CRAMP HOOK COVER (B-552) | 6630066997 | Not Available |
| 12 | Not Available | CRAMP BUTTON (NN-B) | 6630069950 | Not Available |
| 13 | Not Available | CRAMP SPRING (DUST) | 6630067017 | Not Available |
| 14 | Not Available | CRAMP SPRING | 6630067024 | Not Available |
| 15 | Not Available | CRAMP HOOK STOPPER (NN-B) | 6630069967 | Not Available |
| 16 | Not Available | LEAD WIRE (WHITE) L=250 | 6630069974 | Not Available |
| 17 | Not Available | LEAD WIRE (BLACK) L=250 | 6630069981 | Not Available |
| 18 | Not Available | COLLECTING SHOE | 6630007709 | Not Available |
| 19 | Not Available | SCREW (3X10) | 6630002872 | Not Available |
| 20 | Not Available | SLIP RING CLEANER | 6630007716 | Not Available |
| 21 | Not Available | SCREW | 6630005880 | Not Available |
| 22 | Not Available | AIR INLET (N3-99T) | 6630069998 | Not Available |
| 23 | Not Available | BASE HOLDER (N1-233) | 6630070000 | Not Available |
| 24 | No Image | BASE, UPPER SLIP RING X2100P Part Number: 6630009796 for Sanyo | 6630009796 | $9.82Read more |
| 25 | No Image | SPRING, JOINT ELECTRIC CONTACT 800P Part Number: 6630007655 for Sanyo | 6630007655 | $2.29Read more |
| 26 | No Image | BASE, LOWER SLIP RING X2100P Part Number: 6630009819 for Sanyo | 6630009819 | $4.91Read more |
| 27 | Not Available | SLIP RING | 6630007679 | Not Available |
| 28 | Not Available | AIR INLET PACKING | 6630007686 | Not Available |
| 29 | Not Available | SCREW (4X20) | 6630000243 | Not Available |
| 30 | Not Available | FRONT COVER (N3-99T) | 6630070017 | Not Available |
| 31 | Not Available | DUST BOX HANDLE LOWER | 6630067079 | Not Available |
| 32 | Not Available | BYPASS PACKING (N1-233) | 6630070024 | Not Available |
| 33 | Not Available | BYPASS COVER (N1-233) | 6630067093 | Not Available |
| 34 | Not Available | AIR INLET PACKING (N1-233) | 6630067109 | Not Available |
| 35 | Not Available | HELICAL SPRING (CRAMP) | 6630003046 | Not Available |
| 36 | Not Available | CRAMP LEVER (DUST) | 6630070031 | Not Available |
| 37 | Not Available | CRAMP HOOK (DUST)(NN-B) | 6630070048 | Not Available |
| 38 | No Image | SPRING, CLAMP X2100P Part Number: 6630002957 for Sanyo | 6630002957 | $1.60Read more |
| 39 | Not Available | CAUTION LABEL | 6630067116 | Not Available |
| 40 | Not Available | CRAMP HOLDER (N1-233) | 6630054703 | Not Available |
| 41 | Not Available | GEAR B (NN-B) | 6630070055 | Not Available |
| 42 | Not Available | SCREW (4X14) | 6630002759 | Not Available |
| 43 | Not Available | PACKING A (N1-233) | 6630067130 | Not Available |
| 44 | No Image | PRE-FILTER ASSY SC-X1000P Part Number: 6630070062 for Sanyo | 6630070062 | $28.16Read more |
| 45 | Not Available | PACKING (PRE FILTER ASSEMBLY LOWER) | 6630003688 | Not Available |
| 46 | Not Available | DUSTER ARM | 6630067154 | Not Available |
| 47 | Not Available | DUSTER HOLDER (NN-B) | 6630070079 | Not Available |
| 48 | Not Available | PACKING (DUST FILTER ASSEMBLY) UPPER | 6630054758 | Not Available |
| 49 | Not Available | PACKING (DUSTER FRAME) | 6630003503 | Not Available |
| 50 | Not Available | DUSTER FRAME (N1-233) | 6630067161 | Not Available |
| 51 |  | FILTER, DIRT CUP X1000P CAN Part Number: 6630054772 for Sanyo | 6630054772 | $36.29Read more |
| 52 | Not Available | DUST FILTER PACKING (N1-233) | 6630067178 | Not Available |
| 53 | No Image | COVER, DUST FILTER X1000P Part Number: 6630067185 for Sanyo | 6630067185 | $16.93Read more |
| 54 | Not Available | PACKING (DUST FILTER COVER) | 6630003640 | Not Available |

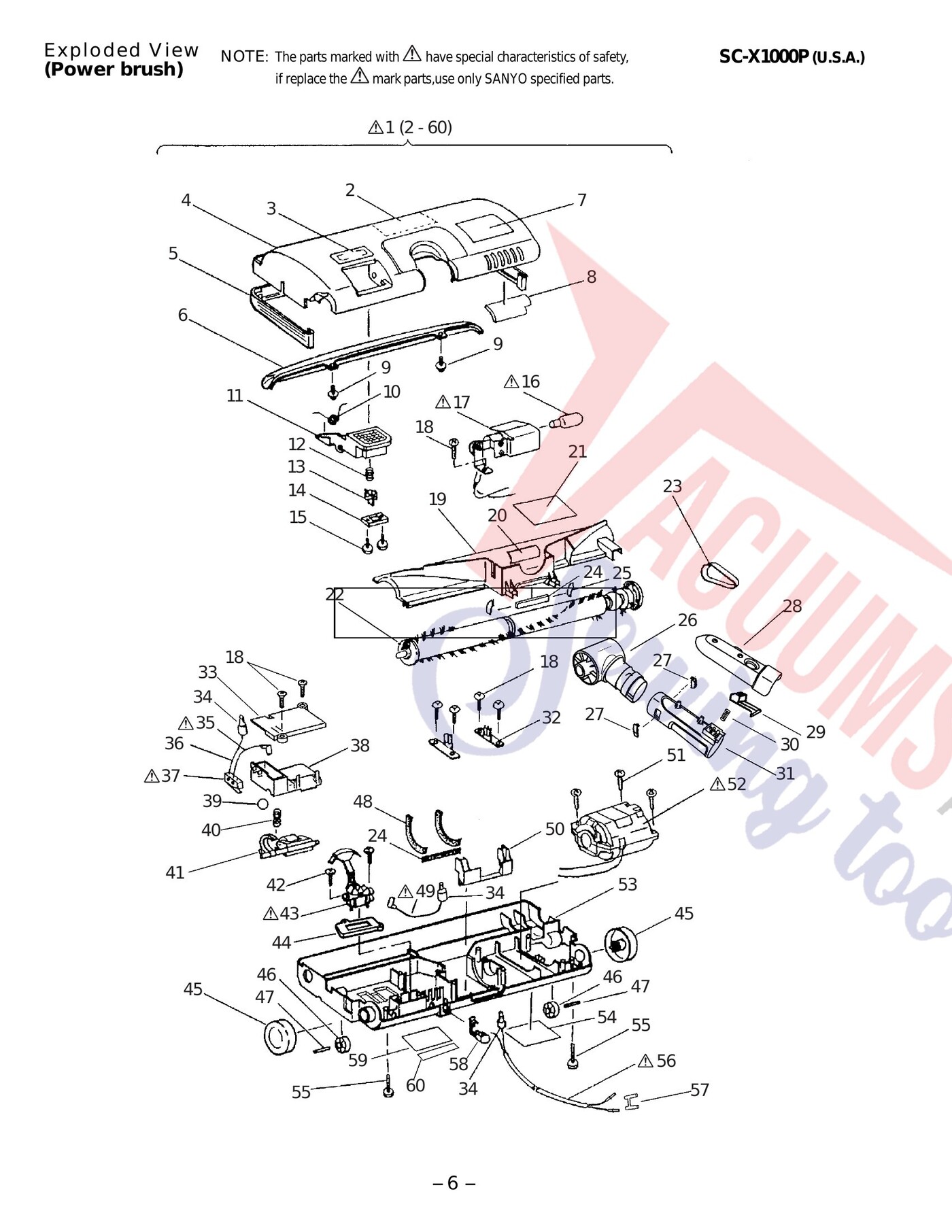

| # | Part image | Description | SKU | Price |
| 1 | Not Available | POWER BRUSH COMP. KEYNO2-60 | 6630070086 | Not Available |
| 2 | Not Available | CASE CUSHION | 6630008621 | Not Available |
| 3 | Not Available | SWITCH ORNAMENT (NN-B) | 6630070093 | Not Available |
| 4 | Not Available | CASE UPPER (N3-99T) | 6630070109 | Not Available |
| 5 | Not Available | BUMPER (NN-B) | 6630070116 | Not Available |
| 6 | Not Available | LENS (N3-78) | 6630008669 | Not Available |
| 7 | Not Available | CAUTION LABEL C | 6630008676 | Not Available |
| 8 | Not Available | POLYURETHANE FORM | 6630008683 | Not Available |
| 9 | Not Available | SCREW | 6630008690 | Not Available |
| 10 | Not Available | TORSION SPRING | 6630008706 | Not Available |
| 11 | Not Available | SWITCH BUTTON (NN-B) | 6630008713 | Not Available |
| 12 | No Image | SPRING, BUTTON X1000P Part Number: 6630008720 for Sanyo | 6630008720 | $2.53Read more |
| 13 | Not Available | MOVABLE REED (NN-B) | 6630008737 | Not Available |
| 14 | Not Available | MOVABLE REED BASE (NN-B) | 6630008744 | Not Available |
| 15 | Not Available | SCREW | 6630008751 | Not Available |
| 16 | Not Available | LAMP (15W 120V) | 6630003398 | Not Available |
| 17 | Not Available | LAMP HOLDER ASSEMBLY | 6630008768 | Not Available |
| 18 | Not Available | SCREW | 6630008775 | Not Available |
| 19 | Not Available | ROTARY PIPE COVER (N5-23) | 6630008782 | Not Available |
| 20 | Not Available | SHIELD SHEET | 6630008799 | Not Available |
| 21 | Not Available | CAUTION LABEL(E) | 6630070123 | Not Available |
| 22 | No Image | BRUSHROLL, POWER NOZZLE SC-X1000P BAGLESS Part Number: 6630068670 for Sanyo | 6630068670 | $62.26Read more |
| 23 | Not Available | BELT | 6630008829 | Not Available |
| 24 | Not Available | ROTARY SEAL C | 6630008836 | Not Available |
| 25 | Not Available | ROTARY SEAL B | 6630008843 | Not Available |
| 26 | Not Available | ROTARY PIPE (N1-233) | 6630070130 | Not Available |
| 27 | Not Available | BEND SET PIECE (N1-233) | 6630070147 | Not Available |
| 28 | Not Available | BEND COVER | 6630070154 | Not Available |
| 29 |  | Cramp Hook Sanyo Sc-X1000P Power Nozzle For: sanyo | 6630070161 | $3.56Add to cart Product is special order please allow 2-4 weeks for delivery. |
| 30 | Not Available | CRAMP SPRING | 6630008294 | Not Available |
| 31 | Not Available | BEND | 6630070178 | Not Available |
| 32 | Not Available | ARM HOLDER | 6630008973 | Not Available |
| 33 | Not Available | CASE COVER (NN-B) | 6630008850 | Not Available |
| 34 | Not Available | WIRE CONNECTOR (CE-230) | 6630000700 | Not Available |
| 35 | Not Available | CORD ASSEMBLY (WHITE) L=115 | 6630008867 | Not Available |
| 36 | Not Available | LEAD WIRE (BLACK) L=130 | 6630008874 | Not Available |
| 37 | No Image | SWITCH, MICRO 8OOP/X1000P/2100P PN Part Number: 6630008881 for Sanyo | 6630008881 | $12.61Read more |
| 38 | Not Available | SWITCH HOLDER (NN-B) | 6630008898 | Not Available |
| 39 | Not Available | STEEL BALL | 6630008904 | Not Available |
| 40 | No Image | SPRING, MICRO SWITCH 800P 2100P POWER NOZZLE Part Number: 6630008911 for Sanyo | 6630008911 | $1.60Read more |
| 41 | Not Available | SWITCH LEVER ASSEMBLY | 6630008928 | Not Available |
| 42 | No Image | SCREW, Part Number: 6630008263 for Sanyo | 6630008263 | $0.70Read more |
| 43 |  | SWITCH, PWR NOZZLE 800P/ X1000P/X2100P CANS Part Number: 6630008935 for Sanyo | 6630008935 | $15.96Read more |
| 44 | Not Available | SWITCH BRACKET (NN-B) | 6630008942 | Not Available |
| 45 | Not Available | WHEEL REAR (NN-B) | 6630009031 | Not Available |
| 46 | Not Available | WHEEL FRONT (NN-B) | 6630009048 | Not Available |
| 47 | Not Available | SHAFT | 6630009055 | Not Available |
| 48 | Not Available | ROTARY SEAL A | 6630008959 | Not Available |
| 49 | No Image | CORD ASSY SC800 Part Number: 6630008966 for Sanyo | 6630008966 | $0.00Read more |
| 50 | Not Available | CORD INLET COVER (NN-B) | 6630008997 | Not Available |
| 51 | Not Available | SCREW | 6630009000 | Not Available |
| 52 | No Image | MOTOR, POWER NOZZLE X1000P Part Number: 6630070185 for Sanyo | 6630070185 | $136.91Read more |
| 53 | No Image | HOUSING, NOZZLE SC800P Part Number: 6630009024 for Sanyo | 6630009024 | $29.29Read more |
| 54 | Not Available | CAUTION LABEL A | 6630009062 | Not Available |
| 55 | Not Available | SCREW | 6630009079 | Not Available |
| 56 | No Image | CORD, PN TO ELBOW X1000 CANISTER BLACK Part Number: 6630070192 for Sanyo | 6630070192 | $14.64Read more |
| 57 | Not Available | PIN SLEEVE (N1-233) | 6630070208 | Not Available |
| 58 | Not Available | CORD BUSHING (NN-B) | 6630009093 | Not Available |
| 59 | Not Available | CAUTION LABEL | 6630009109 | Not Available |
| 60 | Not Available | CAUTION LABEL(E) | 6630070215 | Not Available |

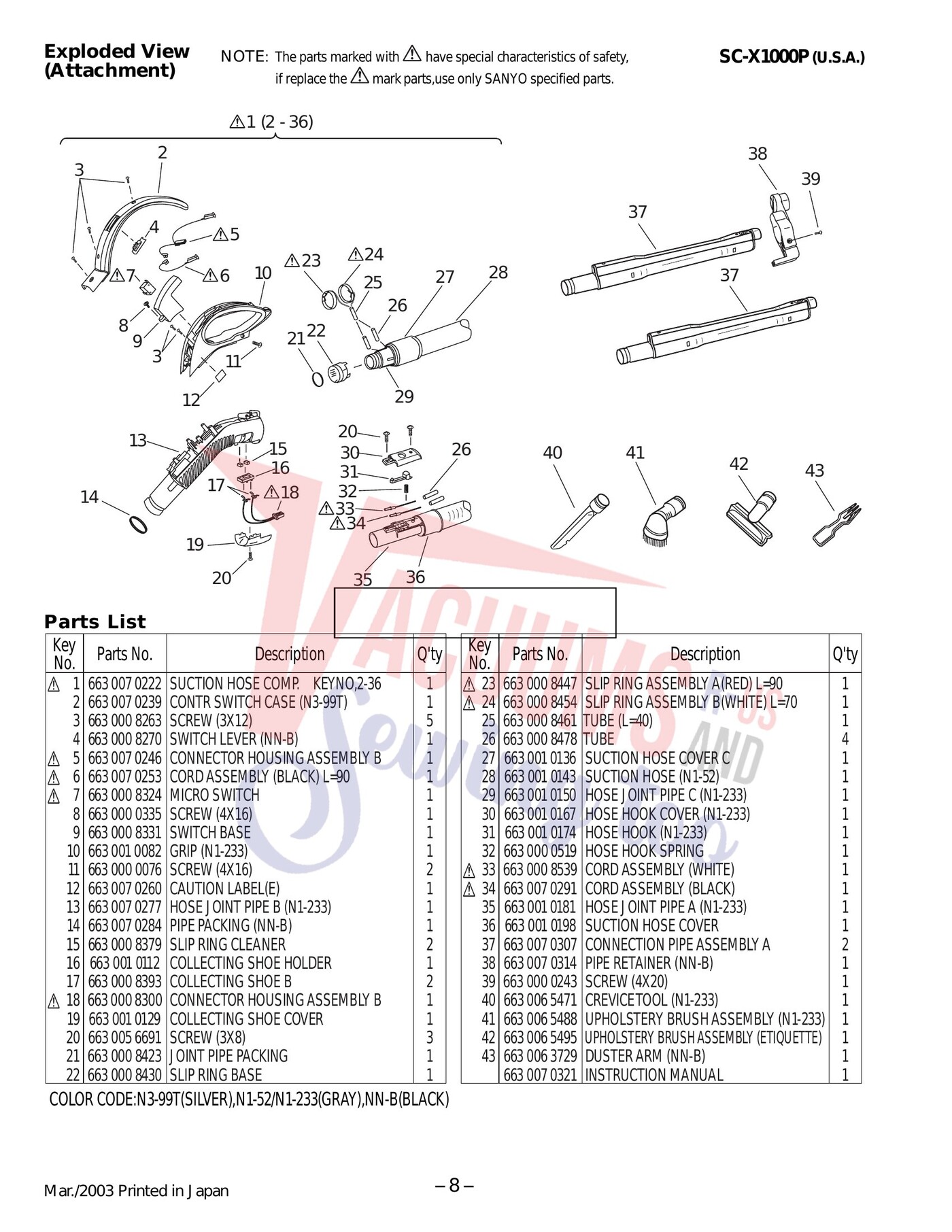

| # | Part image | Description | SKU | Price |
| 1 |  | HOSE, ELECTRIC X1000P Part Number: 6630070222 for Sanyo | 6630070222 | $140.23Read more |
| 1 | Not Available | INSTRUCTION MANUAL | 6630070321 | Not Available |
| 2 | Not Available | CONTR SWITCH CASE (N3-99T) | 6630070239 | Not Available |
| 3 | No Image | SCREW, Part Number: 6630008263 for Sanyo | 6630008263 | $0.70Read more |
| 4 | Not Available | SWITCH LEVER (NN-B) | 6630008270 | Not Available |
| 5 | Not Available | CONNECTOR HOUSING ASSEMBLY B | 6630070246 | Not Available |
| 6 | Not Available | CORD ASSEMBLY (BLACK) L=90 | 6630070253 | Not Available |
| 7 | Not Available | MICRO SWITCH | 6630008324 | Not Available |
| 8 | Not Available | SCREW (4X16) | 6630000335 | Not Available |
| 9 | Not Available | SWITCH BASE | 6630008331 | Not Available |
| 10 | Not Available | GRIP (N1-233) | 6630010082 | Not Available |
| 11 | Not Available | SCREW (4X16) | 6630000076 | Not Available |
| 12 | Not Available | CAUTION LABEL(E) | 6630070260 | Not Available |
| 13 | Not Available | HOSE JOINT PIPE B (N1-233) | 6630070277 | Not Available |
| 14 | Not Available | PIPE PACKING (NN-B) | 6630070284 | Not Available |
| 15 | Not Available | SLIP RING CLEANER | 6630008379 | Not Available |
| 16 | Not Available | COLLECTING SHOE HOLDER | 6630010112 | Not Available |
| 17 | Not Available | COLLECTING SHOE B | 6630008393 | Not Available |
| 18 | No Image | HOUSING, CONNECTOR HOSE HANDLE 800P Part Number: 6630008300 for Sanyo | 6630008300 | $23.13Read more |
| 19 | Not Available | COLLECTING SHOE COVER | 6630010129 | Not Available |
| 20 | Not Available | SCREW (3X8) | 6630056691 | Not Available |
| 21 | Not Available | JOINT PIPE PACKING | 6630008423 | Not Available |
| 22 | Not Available | SLIP RING BASE | 6630008430 | Not Available |
| 23 | Not Available | SLIP RING ASSEMBLY A(RED) L=90 | 6630008447 | Not Available |
| 24 | Not Available | SLIP RING ASSEMBLY B(WHITE) L=70 | 6630008454 | Not Available |
| 25 | Not Available | TUBE (L=40) | 6630008461 | Not Available |
| 26 | Not Available | TUBE | 6630008478 | Not Available |
| 27 | No Image | COVER, SUCTION HOSE SCX1000P Part Number: 6630010136 for Sanyo | 6630010136 | $3.79Read more |
| 28 | Not Available | SUCTION HOSE (N1-52) | 6630010143 | Not Available |
| 29 | Not Available | HOSE JOINT PIPE C (N1-233) | 6630010150 | Not Available |
| 30 | Not Available | HOSE HOOK COVER (N1-233) | 6630010167 | Not Available |
| 31 | Not Available | HOSE HOOK (N1-233) | 6630010174 | Not Available |
| 32 | No Image | SPRING, HOSE LOCK 240/270 CANS Part Number: 6630000519 for Sanyo | 6630000519 | $1.60Read more |
| 33 | Not Available | CORD ASSEMBLY (WHITE) | 6630008539 | Not Available |
| 34 | Not Available | CORD ASSEMBLY (BLACK) | 6630070291 | Not Available |
| 35 | Not Available | HOSE JOINT PIPE A (N1-233) | 6630010181 | Not Available |
| 36 | Not Available | SUCTION HOSE COVER | 6630010198 | Not Available |
| 37 | Not Available | CONNECTION PIPE ASSEMBLY A | 6630070307 | Not Available |
| 38 | Not Available | PIPE RETAINER (NN-B) | 6630070314 | Not Available |
| 39 | Not Available | SCREW (4X20) | 6630000243 | Not Available |
| 40 | No Image | CREVICE TOOL, X1000P Part Number: 6630065471 for Sanyo | 6630065471 | $5.16Read more |
| 41 | Not Available | UPHOLSTERY BRUSH ASSEMBLY (N1-233) | 6630065488 | Not Available |
| 42 | No Image | UPHOLSTREY TOOL, X1000P CANISTER Part Number: 6630065495 for Sanyo | 6630065495 | $22.08Read more |
| 43 | Not Available | DUSTER ARM (NN-B) | 6630063729 | Not Available |
Report errors on this page HERE
