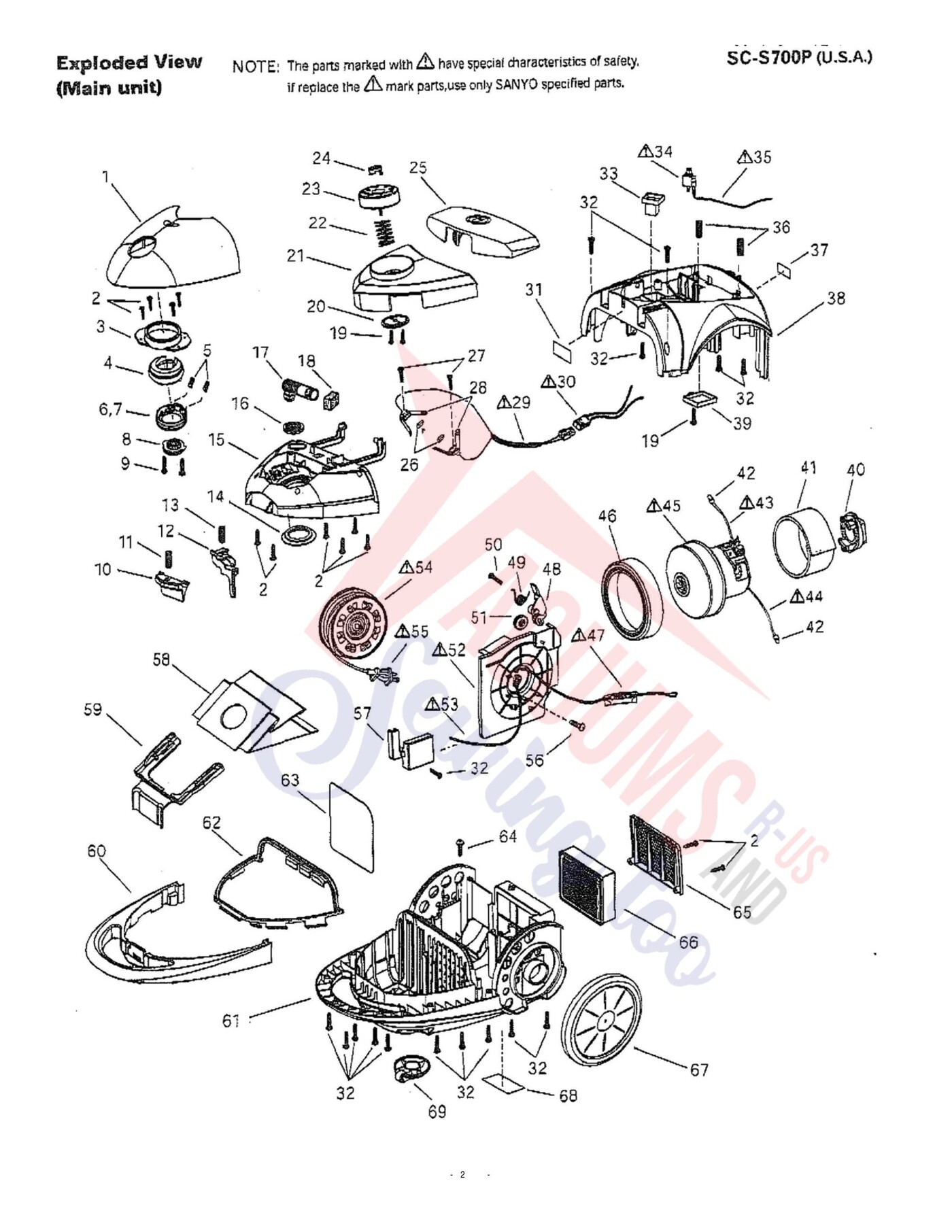

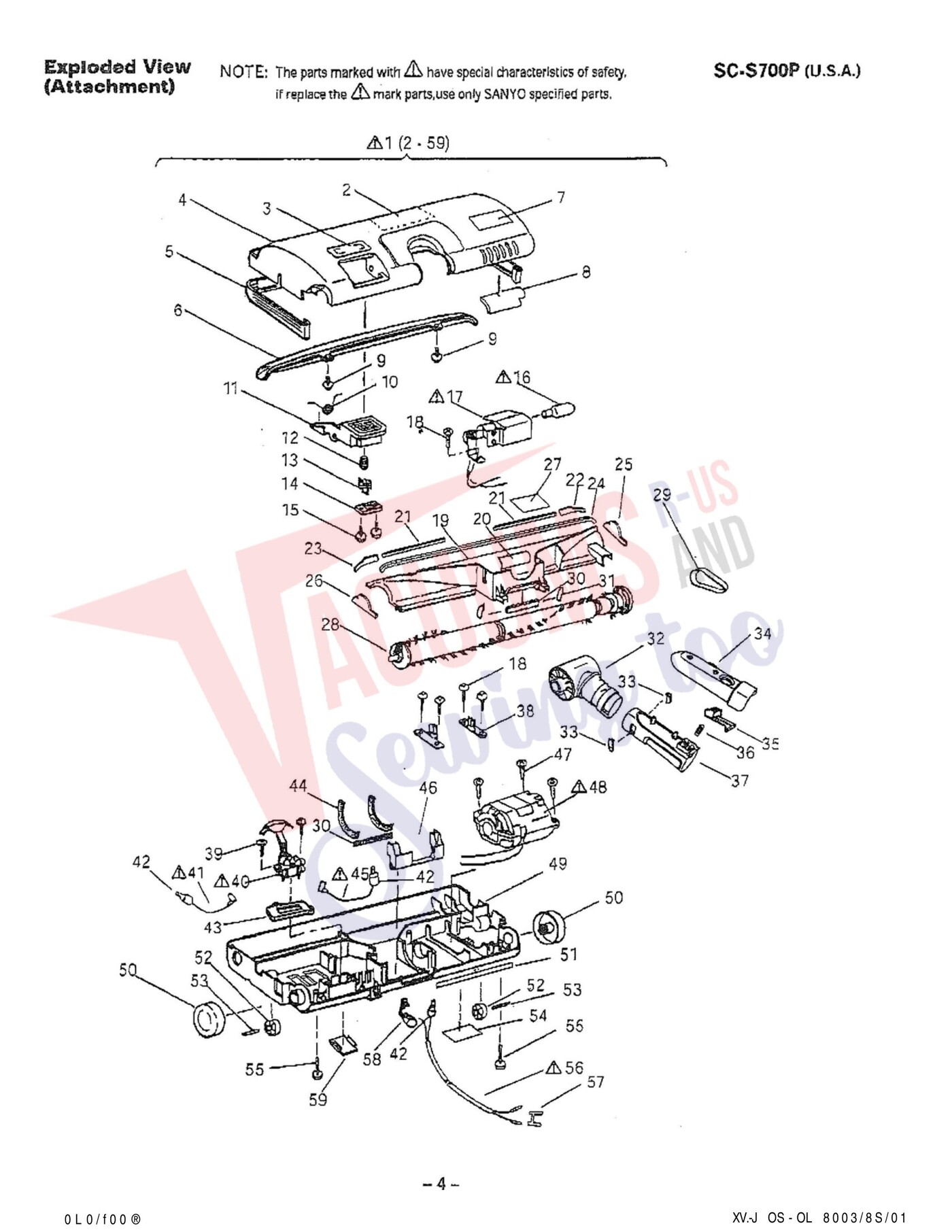

Schematic and parts book for Sanyo SC-S700P . Repairs should be done by trained technicians. Vacuums R Us & Sewing Too provides vacuum cleaner and carpet cleaner parts and accessories for vacuum cleaner repair purposes. We are committed to delivering high-quality components, but it is important to note that all appliance repairs involve risks, and we cannot guarantee the outcome of your repair. When using our vacuum parts for repairs, you accept the terms and conditions HERE
| # | Part image | Description | SKU | Price |
| 4 | Not Available | SILP RING BASE UPPER | 6530007648 | Not Available |
| 5B | Not Available | 0705 PAPER FILTER ASS'Y | 663005 | Not Available |
| 5B | Not Available | (4X16) 1 | 5CREW | Not Available |
| 8 | Not Available | 0007686 | 663 | Not Available |
| 11 | Not Available | 0092316 | 663 | Not Available |
| 13 | Not Available | 2330 CRAMP SPRING (LEVER) | 6S3009 | Not Available |
| 14 | Not Available | FILTER COVER PACKING (NN-B) | S630007761 | Not Available |
| 31 | Not Available | 0092446 | 663 | Not Available |
| 32 | Not Available | 0000335 | 663 | Not Available |
| 40 | Not Available | MOTOR CUSHION REAR | 6630092514 | Not Available |
| 45 | Not Available | 2552 MOTOR CUSHION FRONT | S63009 | Not Available |
| 51 | Not Available | BRAKE ROLLER ASSEMBLY B | 6630000236 | Not Available |
| 66 | Not Available | 2705 | 663009 | Not Available |
| 67 | Not Available | 2712 | 663009 | Not Available |
| 69 | Not Available | 2736 | SS3009 | Not Available |
| # | Part image | Description | SKU | Price |
| 6 | Not Available | LENS (TRANSPARENT GREY LT) | 6530085240 | Not Available |
| 7 | Not Available | CAUTION LABEL C | 6630008676 | Not Available |
| 10 | Not Available | S706 TORSION SPRING | 663000 | Not Available |
| 11 | Not Available | SWITCH BUTTON (NN-B). | 6630008713 | Not Available |
| 12 | No Image | SPRING, BUTTON X1000P Part Number: 6630008720 for Sanyo | 6630008720 | $2.53Read more |
| 13 | Not Available | S737 MOVABLE REED (NN-B) | 663000 | Not Available |
| 17 | Not Available | 0008768 | 663 | Not Available |
| 19 | Not Available | 5257 | 663008 | Not Available |
| 20 | Not Available | SHIELD SHEET | 6630008799 | Not Available |
| 22 | Not Available | POLYURETHANE FOAM B | 6530074039 | Not Available |
| 26 | Not Available | ROTARY BRUSH COMP. | 6630066670 | Not Available |
| 29 | Not Available | BELT | 6530008829 | Not Available |
| 30 | Not Available | ROTARY SEAL C | 5530008836 | Not Available |
| 36 | Not Available | 0008294 | 663 | Not Available |
| 37 | Not Available | 5295 | 663008 | Not Available |
| 38 | Not Available | 3973 | 6S3000 | Not Available |
| 46 | Not Available | CORD INLET COVER (NN-B) | 6630006997 | Not Available |
| 063 | Not Available | CORD ASSEMBLY (WHITE) L=115 | 0073B03 | Not Available |
