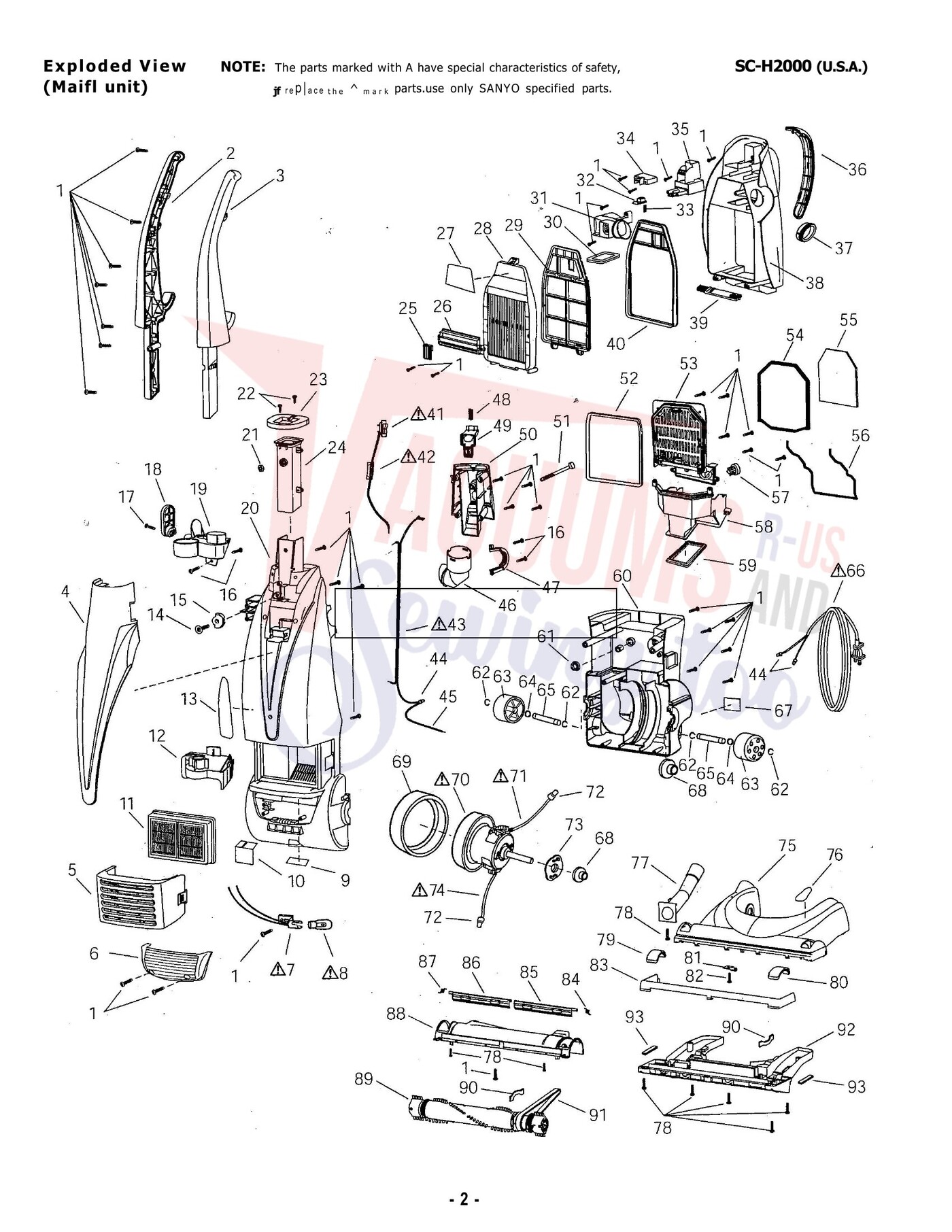

Schematic and parts book for Sanyo SC-H2000 . Repairs should be done by trained technicians. Vacuums R Us & Sewing Too provides vacuum cleaner and carpet cleaner parts and accessories for vacuum cleaner repair purposes. We are committed to delivering high-quality components, but it is important to note that all appliance repairs involve risks, and we cannot guarantee the outcome of your repair. When using our vacuum parts for repairs, you accept the terms and conditions HERE
| # | Part image | Description | SKU | Price |
| 33 | Not Available | HELICAL SPRING(CRAMP) | 6630089613 | Not Available |
| 51 | Not Available | 2063 HANDLE SCREW (M6) | 663000 | Not Available |
| 52 | Not Available | 9774 AIR INLET PACKING | 663008 | Not Available |
| 53 | Not Available | 9781 AIR INLET GUIDE REAR | 663008 | Not Available |
| 54 | Not Available | 9798 AIR INLET GUIDE PACKING U | 663008 | Not Available |
| 55 | Not Available | 9804 AIR INLET FILTER | 663008 | Not Available |
| 56 | Not Available | 9811 AIR SPREADER | 663008 | Not Available |
| 57 | Not Available | 6207 TRANSMISSION ASSEMBLY (NN-B) | 663000 | Not Available |
| 58 | Not Available | 9828 AIR INLET GUIDE FRONT | 663008 | Not Available |
| 59 | Not Available | 4352 AIR INLET PACKING LOWER | 663005 | Not Available |
| 60 | Not Available | 9835 CASE REAR (R-297) | 663008 | Not Available |
| 61 | Not Available | 9842 TRANSMISSION PACKING | 663008 | Not Available |
| 62 | Not Available | RING E6 | 6630002131 | Not Available |
| 64 | Not Available | 2155 WASHER Z (7.2X12X0.5) | 663000 | Not Available |
| 65 | Not Available | 6115 SHAFT REAR | 663000 | Not Available |
| 67 | Not Available | 9859 NAME PLATE | 663008 | Not Available |
| 68 | Not Available | 2264 SLEEVE (NATURAL) | 663007 | Not Available |
| 69 | Not Available | 2421 MOTOR CUSHION FRONT • | 663000 | Not Available |
| 69 | Not Available | CORD ASSEMBLY (WHITE) L=350 1 | 6630002438 | Not Available |
| 72 | Not Available | 2193 WWIIRREE CCOONNNNEECCTTOORR ((CCEE--553300)) | 663000 | Not Available |
| 75 | Not Available | 9866 CASE UPPER | 663008 | Not Available |
| 76 | Not Available | 9873 STICKER(B) | 663008 | Not Available |
| 77 | Not Available | 9880 AIR INLET(PH) (NN-B) | 663008 | Not Available |
| 78 | No Image | SCREW, (4X16) X2100P Part Number: 6630000847 for Sanyo | 6630000847 | $0.47Read more |
| 79 | Not Available | 9897 CASE COVER RIGHT (R-298) | 663008 | Not Available |
| 80 | Not Available | 9903 CASE COVER LEFT (R-298) | 663008 | Not Available |
| 81 | Not Available | 2551 LEAF SPRING | 663000 | Not Available |
| 82 | Not Available | 7673 SCREW (4X12) | 663006 | Not Available |
| 83 | Not Available | 9910 BUMPER (NN-B) | 663008 | Not Available |
| 84 | Not Available | 9927 TORSION SPRING LETFT | 663008 | Not Available |
| 85 | Not Available | SHUTTER LEFT (Y-143) | 6630089934 | Not Available |
| 86 | Not Available | 9941 SHUTTER RIGHT (Y-143) | 663008 | Not Available |
| 87 | Not Available | 9958 TORSION SPRING RIGHT | 663008 | Not Available |
| 88 | Not Available | CASE FRONT (N1-233) | 6630089965 | Not Available |
| 89 | Not Available | 7466 ROTARY BRUSH COMP.(R-290) | 663008 | Not Available |
| 90 | Not Available | 9972 ROTARY SHEEL | 663008 | Not Available |
| 91 | Not Available | 9989 BELT (NN-B) | 663008 | Not Available |
| 92 | Not Available | 9996 BOTTOM PLATE ASSEMBLY (NN-B) | 663008 | Not Available |
