Schematic and parts book for Sanyo SC-F1201, F1201 . Repairs should be done by trained technicians. Vacuums R Us & Sewing Too provides vacuum cleaner and carpet cleaner parts and accessories for vacuum cleaner repair purposes. We are committed to delivering high-quality components, but it is important to note that all appliance repairs involve risks, and we cannot guarantee the outcome of your repair. When using our vacuum parts for repairs, you accept the terms and conditions HERE
| # | Part image | Description | SKU | Price |
| 1 | No Image | SCREW, (4X16) X2100P Part Number: 6630000847 for Sanyo | 6630000847 | $0.47Read more |
| 1 | Not Available | INSTRUCTION MANUAL | 6630078181 | Not Available |
| 2 | Not Available | GRIP RIGHT (N3-99T) | 6630077702 | Not Available |
| 3 | Not Available | GRIP SUPPLEMENT | 6630077719 | Not Available |
| 4 | Not Available | GRIP LEFT (N3-99T) | 6630077726 | Not Available |
| 5 | Not Available | CORD HOOK (N3-99T) | 6630077733 | Not Available |
| 6 | No Image | SCREW, Part Number: 6630008263 for Sanyo | 6630008263 | $0.70Read more |
| 7 | Not Available | SUPPLEMENT CASE (N1-233) | 6630077740 | Not Available |
| 8 | Not Available | SWITCH ORNAMENT (N3-99T) | 6630077757 | Not Available |
| 9 | Not Available | CAUTION LABEL | 6630077764 | Not Available |
| 10 | Not Available | CRAMP HOOK B (PB-102) | 6630077771 | Not Available |
| 11 | Not Available | CRAMP HOOK C (PB-102) | 6630077788 | Not Available |
| 12 | No Image | SPRING, CLAMP TO BIN X2100P Part Number: 6630004425 for Sanyo | 6630004425 | $1.60Read more |
| 13 | Not Available | FRONT COVER (N3-99T) | 6630077795 | Not Available |
| 14 | No Image | FILTER, OUTLET COMPLETE SC-F1201 Part Number: 6630077801 for Sanyo | 6630077801 | $108.66Read more |
| 15 | Not Available | NUT (LEFT) | 6630072776 | Not Available |
| 16 | Not Available | GRIP PIPE FITTING (N1-233) 1 A | 6630077818 | Not Available |
| 17 | Not Available | SWITCH COVER PIECE (N3-99T) 1 A 663 000 0298 CARBON BRUSH ASSEMBLY | 6630077825 | Not Available |
| 18 | No Image | SWITCH, 800P Part Number: 6630002896 for Sanyo | 6630002896 | $12.61Read more |
| 19 | Not Available | FUSE ASSEMBLY (125V 15A) | 6630077832 | Not Available |
| 20 | Not Available | WIRE CONNECTOR (CE-230) | 6630000700 | Not Available |
| 21 | Not Available | POWER CORD (U2) | 6630078358 | Not Available |
| 22 | Not Available | SWITCH BUTTON (N3-99T) | 6630077849 | Not Available |
| 23 | Not Available | MMMCNNN um ICIMP ACCCHDIV A 11 72 ccj nm onoo AIR INLETE BB (N1-233) | 6630077856 | Not Available |
| 24 | Not Available | SCREW/WASHER 1 73 663 007 809 9 BELT COVER FRONT (N1-233) | 6630003107 | Not Available |
| 25 | Not Available | CORD RETAINER (NA TURAL) 1 74 663 007 762 7 ROTARY BRUSH COMP (PB-102) | 6630072196 | Not Available |
| 26 | Not Available | CRAMP HOOK A (PB-102) | 6630077863 | Not Available |
| 27 | Not Available | HELICAL SPRING (CRAMP) | 6630003046 | Not Available |
| 28 | Not Available | CASE FRONT (N1-233) | 6630077870 | Not Available |
| 29 | Not Available | SUCTION HOSE RETAINER | 6630077887 | Not Available |
| 30 | Not Available | SHIELD SHEET | 6630003411 | Not Available |
| 31 | Not Available | CASE ORNAMENT | 6630072486 | Not Available |
| 32 | Not Available | LAMP (15W 120V) | 6630003398 | Not Available |
| 33 | Not Available | CONNECTOR HOUSING ASSEMBLY D | 6630077894 | Not Available |
| 34 | Not Available | ATTACHMENT SUPPORTER LOWER | 6630077900 | Not Available |
| 35 | Not Available | ATTACHMENT SUPPORTER UPPER | 6630077917 | Not Available |
| 36 | Not Available | PRE FILTER ASSEMBLY (N1-233) | 6630077924 | Not Available |
| 37 | No Image | SCREW, HANDLE A115 Part Number: 6630002063 for Sanyo | 6630002063 | $4.76Read more |
| 38 | Not Available | HOSE HOOK (N1-233) | 6630077931 | Not Available |
| 39 | Not Available | SCREW (4X25) | 6630057940 | Not Available |
| 40 | Not Available | HOSE JOINT PACKING B | 6630072110 | Not Available |
| 41 | Not Available | HOSE JOINT PIPE B (NATURAL) | 6630072127 | Not Available |
| 42 | Not Available | AIR SPREADER (SUCTION HOSE) | 6630002834 | Not Available |
| 43 | Not Available | SUCTION HOSE (N1-233) | 6630077948 | Not Available |
| 44 | Not Available | HOSE GRIP PIPE (N1-233) | 6630054840 | Not Available |
| 45 | Not Available | HOSE JOINT PIPE (IN)(N1-233) | 6630077955 | Not Available |
| 46 | Not Available | CASE COVER (N1-233) | 6630077962 | Not Available |
| 47 | Not Available | CUSHION (CASE FRONT) | 6630004432 | Not Available |
| 48 | Not Available | AIR INLET COVER (N1-233) | 6630077979 | Not Available |
| 49 | Not Available | AIR INLET PACKING UPPER | 6630077986 | Not Available |
| 50 | No Image | FILTER, AIR INLET SCF1201 Part Number: 6630077993 for Sanyo | 6630077993 | $2.35Read more |
| 51 | Not Available | AIR INLET GUIDE (N1-233) | 6630078006 | Not Available |
| 52 | Not Available | TRANSMISSION ASSEMBLY | 6630078013 | Not Available |
| 53 | Not Available | AIR INLET PACKING LOWER | 6630054352 | Not Available |
| 54 | Not Available | CASE REAR (N1-233) | 6630078020 | Not Available |
| 55 | Not Available | ATTACHMENT SUPPORTER REAR | 6630078037 | Not Available |
| 56 | Not Available | CAUTION LABEL (BOTTOM PLATE) | 6630004142 | Not Available |
| 57 | Not Available | NAME PLATE | 6630078044 | Not Available |
| 58 | Not Available | CAUTION LABEL | 6630078051 | Not Available |
| 59 | Not Available | RING E6 | 6630002131 | Not Available |
| 60 | Not Available | WHEEL REAR ASSEMBLY | 6630063484 | Not Available |
| 61 | Not Available | WASHER Z (7.2X12X0.5) | 6630002155 | Not Available |
| 62 | Not Available | SHAFT REAR | 6630006115 | Not Available |
| 63 | Not Available | SLEEVE (NATURAL) | 6630072264 | Not Available |
| 64 | Not Available | MOTOR CUSHION REAR | 6630004814 | Not Available |
| 65 | Not Available | SILENCER PIPE | 6630076750 | Not Available |
| 66 | No Image | MOTOR, B1211 Part Number: 6630003930 for Sanyo | 6630003930 | $124.24Read more |
| 67 | Not Available | MOTOR CUTHION FRONT | 6630003947 | Not Available |
| 68 | Not Available | CASE COVER (B-619) | 6630078068 | Not Available |
| 69 | Not Available | HOSE JOINT PACKING B | 6630072110 | Not Available |
| 70 | Not Available | HOSE JOINT PIPE B (NATURAL) | 6630072127 | Not Available |
| 71 | Not Available | SUCTION HOSE (N1-233) | 6630078075 | Not Available |
| 75 | Not Available | BELT (NN-B) | 6630002582 | Not Available |
| 76 | Not Available | BUMPER (PB-102) | 6630078105 | Not Available |
| 77 | Not Available | SPACER (NN-B) | 6630078112 | Not Available |
| 78 | Not Available | SCREW (4X12) | 6630071281 | Not Available |
| 79 | Not Available | LEVER KNOB LOWER (NN-B) | 6630078129 | Not Available |
| 80 | Not Available | LEVER KNOB UPPER (N3-99T) | 6630078136 | Not Available |
| 81 | Not Available | CASE UPPER (N3-99T) | 6630078143 | Not Available |
| 82 | Not Available | PEDAL (RELEASE) ASSEMBLY | 6630072332 | Not Available |
| 83 | Not Available | AIR INLETE A (NN-B) | 6630078150 | Not Available |
| 84 | Not Available | SCREW (4X16) | 6630000335 | Not Available |
| 85 | Not Available | BOTTOM PLATE (NN-B) | 6630078167 | Not Available |
| 86 | Not Available | AIR SPREADER B | 6630002605 | Not Available |
| 87 | Not Available | BRUSH BASE ASSEMBLY (NN-B) | 6630069080 | Not Available |
| 88 | Not Available | WHEEL HOLDER FRONT (NN-B) | 6630078174 | Not Available |
| 89 | Not Available | SHAFT FRONT | 6630002643 | Not Available |
| 90 | Not Available | WHELL FRONT ASSEMBLY | 6630063637 | Not Available |
| 91 | Not Available | CONNECTION PIPE A (N1-233) | 6630054888 | Not Available |
| 92 | Not Available | CONNECTION PIPE B (N1-233) | 6630054895 | Not Available |
| 93 | Not Available | CREVICETOOL (N1-233) | 6630054857 | Not Available |
| 94 | Not Available | UPHOLSTERY BRUSH BASE | 6630054864 | Not Available |
| 95 | Not Available | FLOORTOOL BASE ASSEMBLY | 6630054871 | Not Available |
| 96 | Not Available | DUSTER ARM (N1-233) | 6630000892 | Not Available |

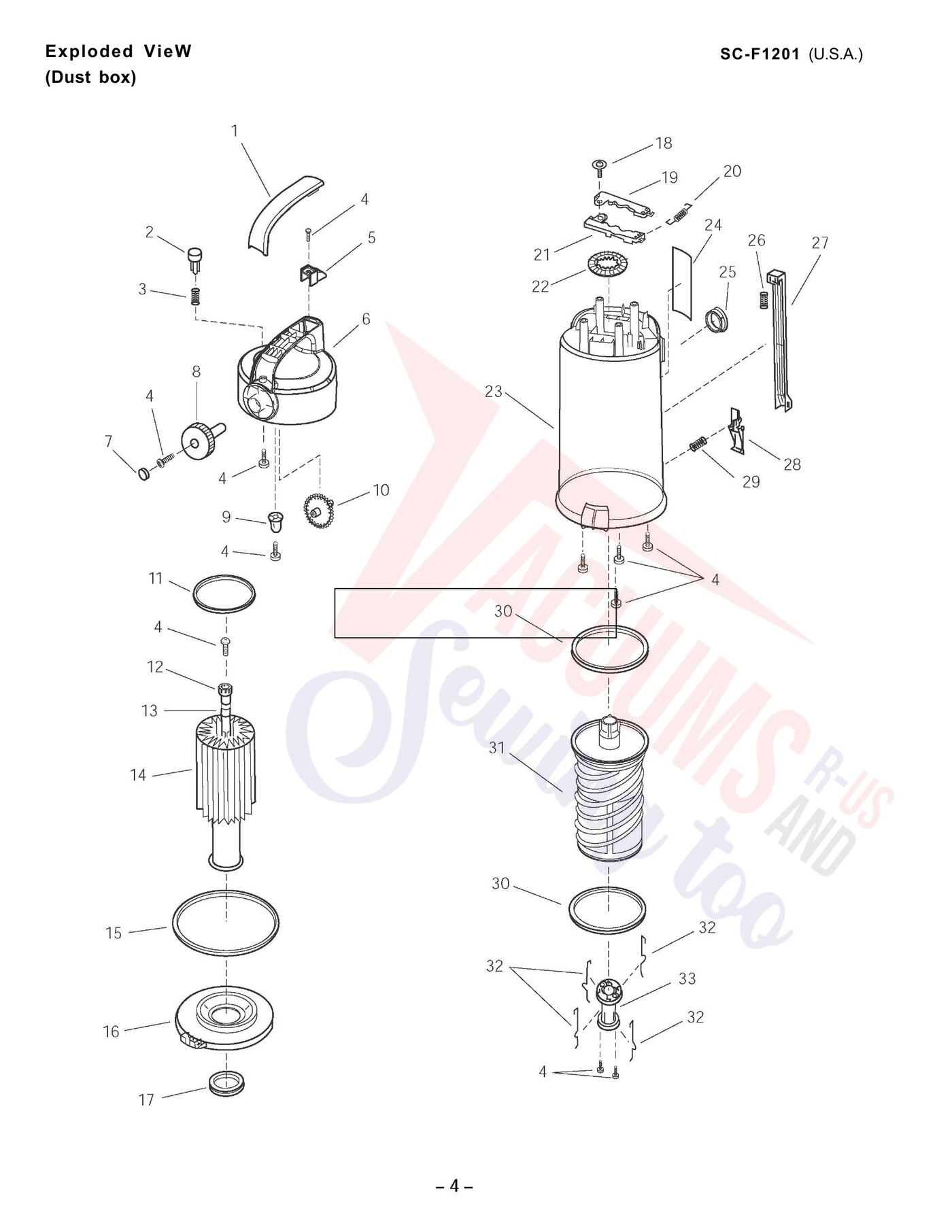

| # | Part image | Description | SKU | Price |
| 1 | Not Available | HANDLE UPPER (PB-102) | 6630078198 | Not Available |
| 2 | Not Available | CRAMP BUTTON (DUST) | 6630078204 | Not Available |
| 3 | Not Available | CRAMP SPRING (DUST) | 6630078211 | Not Available |
| 4 | No Image | SCREW, (4X16) X2100P Part Number: 6630000847 for Sanyo | 6630000847 | $0.47Read more |
| 5 | Not Available | CRAMP PIECE (PB-102) | 6630078228 | Not Available |
| 6 | Not Available | DUST BOX COVER (N1-233) | 6630078235 | Not Available |
| 7 | Not Available | HANDLE ORNAMENT (PB-102) | 6630054628 | Not Available |
| 8 | Not Available | DUSTER HANDLE (PB-102) | 6630078242 | Not Available |
| 9 | Not Available | CRAMP HOOK STOPPER MIDLE | 6630003473 | Not Available |
| 10 | Not Available | GEAR A (HANDLE) | 6630003541 | Not Available |
| 11 | Not Available | PACKING(DUST FILTER ASSEMBLY | 6630003480 | Not Available |
| 12 | Not Available | DUSTER FRAME (N1-233) | 6630003497 | Not Available |
| 13 | Not Available | PACKING (DUSTER FRAME) | 6630003503 | Not Available |
| 14 | No Image | FILTER, DUST COMPLETE SC-F1201 Part Number: 6630078259 for Sanyo | 6630078259 | $47.72Read more |
| 15 | Not Available | DUST FILTER PACKING (LOWER) | 6630078266 | Not Available |
| 16 | Not Available | DUST FILTER COVER (N1-233) | 6630078273 | Not Available |
| 17 | Not Available | PACKING (DUST FILTER COVER) | 6630003640 | Not Available |
| 18 | Not Available | SCREW/WASHER | 6630003107 | Not Available |
| 19 | Not Available | CRAMP HOOK STOPPER UPPER | 6630054642 | Not Available |
| 20 | Not Available | CRAMP SPRING (STOPPER) | 6630054659 | Not Available |
| 21 | Not Available | CRAMP HOOK STOPI ER LOWER | 6630054635 | Not Available |
| 22 | Not Available | GEAR B (DUST) | 6630003572 | Not Available |
| 23 | Not Available | DUST BOX (N1-251) | 6630078280 | Not Available |
| 24 | Not Available | CAUTION LABEL | 6630078297 | Not Available |
| 25 | Not Available | AIR INLET PACKING UPPER | 6630078303 | Not Available |
| 26 | Not Available | HELICAL SPRING (CRAMP) | 6630003046 | Not Available |
| 27 | Not Available | CRAMP LEVER (DUST) | 6630054666 | Not Available |
| 28 | Not Available | CRAMP HOOK (DUST)(PB-102) | 6630054673 | Not Available |
| 29 | No Image | SPRING, CLAMP X2100P Part Number: 6630002957 for Sanyo | 6630002957 | $1.60Read more |
| 30 | Not Available | PACKING (PRE FILTER ASS'Y) LOWER | 6630054710 | Not Available |
| 31 | No Image | FILTER, PRE-COMPLETE SC- F1201 Part Number: 6630078310 for Sanyo | 6630078310 | $29.57Read more |
| 32 | Not Available | DUSTER ARM | 6630004449 | Not Available |
| 33 | Not Available | DUSTER HOLDER (N1-233) | 6630003701 | Not Available |
