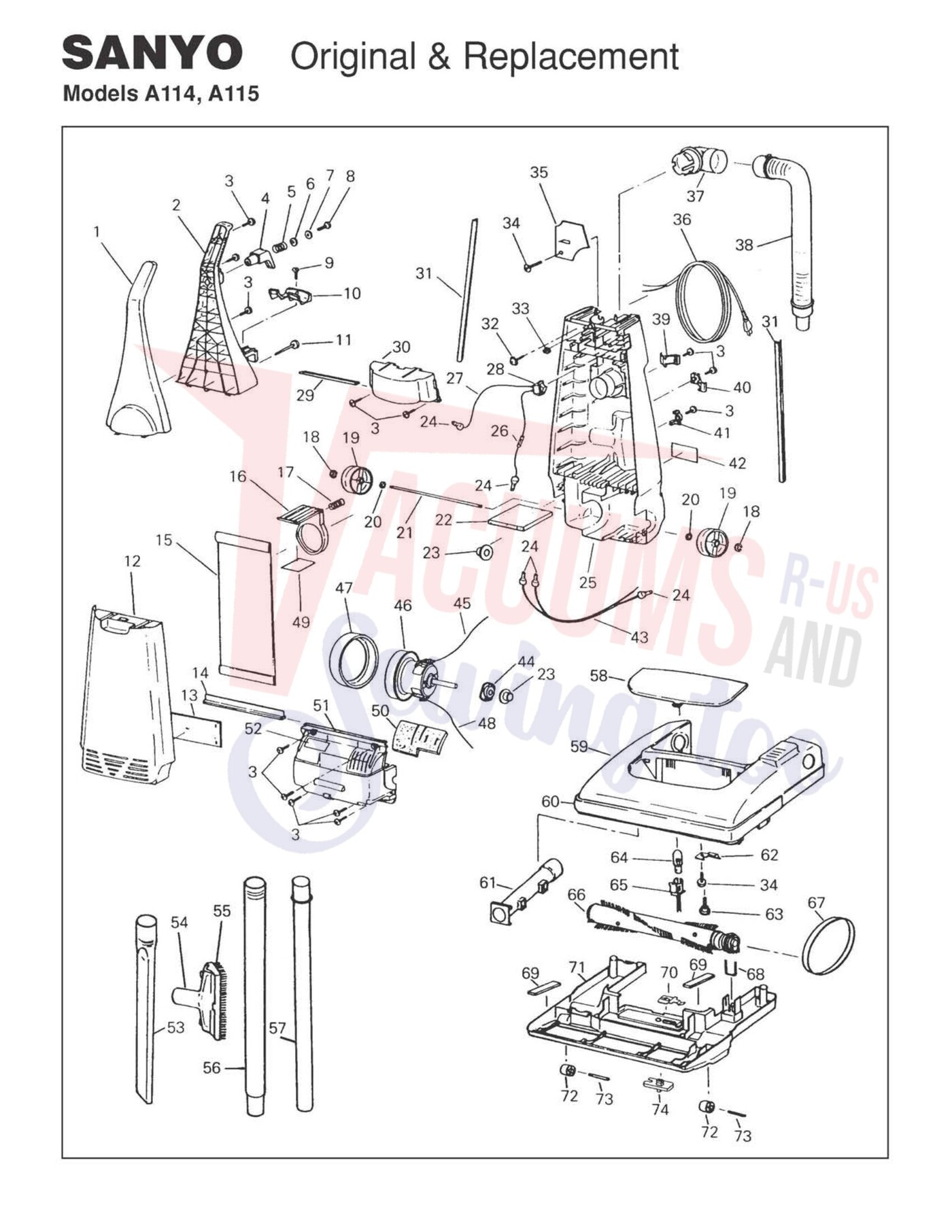

Schematic and parts book for Sanyo A114, A115 . Repairs should be done by trained technicians. Vacuums R Us & Sewing Too provides vacuum cleaner and carpet cleaner parts and accessories for vacuum cleaner repair purposes. We are committed to delivering high-quality components, but it is important to note that all appliance repairs involve risks, and we cannot guarantee the outcome of your repair. When using our vacuum parts for repairs, you accept the terms and conditions HERE
Popular Supplies
| # | Part image | Description | SKU | Price |
| XX | Not Available | Carbon Brush Ass'y | 6630000298 | Not Available |
| XX | Not Available | Bulb A115 | FA-3515 | Not Available |
| XX | Not Available | Handle Inscription A114 49 SA-6630002445 Caution Label | 6630002056 | Not Available |
| 1 | Not Available | Front Grip A114 | 6630001974 | Not Available |
| 1 | Not Available | Front Grip A115 | 6630005613 | Not Available |
| 2 | Not Available | Rear Grip | 6630001981 | Not Available |
| 3 | No Image | SCREW, HANDLE 127C COMMERCIAL Part Number: 6630001998 for Sanyo | 6630001998 | $0.47Read more |
| 4 | Not Available | Upper Cord Hook | 6630002001 | Not Available |
| 5 | No Image | SPRING, HELICAL SC116 Part Number: 6630002018 for Sanyo | 6630002018 | $1.60Read more |
| 6 | Not Available | Washer | 6630002025 | Not Available |
| 7 | Not Available | Washer | 77005 | Not Available |
| 8 | Not Available | Screw (4X33) | 6630002032 | Not Available |
| 9 | Not Available | Screw (4X12) | 6630002049 | Not Available |
| 10 | Not Available | Hose Retainer A115 | 6630005620 | Not Available |
| 11 | Not Available | Handle Screw | 77315 | Not Available |
| 12 | Not Available | Dust Box Cover A114 Blue | 6630002070 | Not Available |
| 12 | Not Available | Dust Box Cover A115 Burgundy | 6630005637 | Not Available |
| 13 | Not Available | External Exhaust Filter | NLA | Not Available |
| 13 | Not Available | Electrostatic External Exhaust Filter A115 | 18000 | Not Available |
| 14 | Not Available | Dust Box Packing | 6630002094 | Not Available |
| 15 | Not Available | Type PU1 Paper Bag Micron 3 PK | 1401 | Not Available |
| 15 | Not Available | Type PU1 Paper Bag | SAR-1400 | Not Available |
| 16 | Not Available | Bag Holder Lever | 6630002117 | Not Available |
| 17 | Not Available | Spring | 6630002124 | Not Available |
| 18 | Not Available | E Ring | 6630002131 | Not Available |
| 19 | Not Available | Rear Wheel | 71055 | Not Available |
| 20 | Not Available | Washer | 6630002155 | Not Available |
| 21 | Not Available | Rear Shaft | 6630002162 | Not Available |
| 22 | Not Available | Secondary Filter | 18007 | Not Available |
| 23 | Not Available | Sleeve | 6630002186 | Not Available |
| 24 | Not Available | Wire Connector | SS-3270 | Not Available |
| 25 | Not Available | Main Body | 6630002209 | Not Available |
| 26 | Not Available | Fuse Ass'y | 36065 | Not Available |
| 27 | Not Available | Lead Wire Black | 6630002223 | Not Available |
| 28 | Not Available | Switch | 6630002230 | Not Available |
| 29 | Not Available | Dust Box Packing | 6630002247 | Not Available |
| 30 | No Image | COVER, CASE BLUE A114 Part Number: 6630002254 for Sanyo | 6630002254 | $16.69Read more |
| 30 | Not Available | Case Cover A115 Burgundy | 6630005651 | Not Available |
| 31 | Not Available | Dust Box Packing | 6630002261 | Not Available |
| 32 | No Image | SCREW, (4X17) X2100P Part Number: 6630002278 for Sanyo | 6630002278 | $1.06Read more |
| 33 | Not Available | Hex Nut | 6630002285 | Not Available |
| 34 | Not Available | Screw (4X14) | 6630002292 | Not Available |
| 35 | Not Available | Shield Plate | 6630002308 | Not Available |
| 36 | No Image | CORD, 18' A114 Part Number: 6630002315 for Sanyo | 6630002315 | $38.96Read more |
| 36 | No Image | CORD, POWER SA115 25' Part Number: 6630005668 for Sanyo | 6630005668 | $40.18Read more |
| 36 |  | Cord Gray W/ Polorized Plug fit all fit-all | FA3035 | $32.99Read more |
| 37 | Not Available | Suction Inlet | 6630002322 | Not Available |
| 38 | Not Available | Nozzle To Bag Housing Hose A114 | 73426 | Not Available |
| 38 | Not Available | Nozzle To Bag Housing Hose A115 | 73612 | Not Available |
| 39 | Not Available | Wand Attachment Clip | 6630002346 | Not Available |
| 40 | Not Available | Hose Attachment Clip | 6630002353 | Not Available |
| 41 | Not Available | Upholstery Tool Attachment Clip | 6630002360 | Not Available |
| 42 | Not Available | Name Plate A114 | 6630002377 | Not Available |
| 42 | Not Available | Name Plate A115 | 6630005682 | Not Available |
| 43 | Not Available | Lead Wire | 6630002384 | Not Available |
| 44 | No Image | CORD REEL, TINY TANK Part Number: 62.020 for Carpet Pro | 62020 | $16.23Read more |
| 45 | Not Available | Lead Wire Black | 6630002407 | Not Available |
| 46 | No Image | MOTOR, SC-A114 UPRIGHT Part Number: 6630002414 for Sanyo | 6630002414 | $109.38Read more |
| 46 | Not Available | Motor Complete A115 | 60025 | Not Available |
| 47 | Not Available | Front Motor Cushion | 6630002421 | Not Available |
| 48 | Not Available | Lead Wire White | 6630002438 | Not Available |
| 49 | Not Available | Caution Label | 6630002445 | Not Available |
| 50 | Not Available | Internal Exhaust Filter | 18018 | Not Available |
| 51 | No Image | COVER, MOTOR A114 Part Number: 6630002469 for Sanyo | 6630002469 | $36.18Read more |
| 51 | No Image | COVER, MOTOR A115 BURGUNDY Part Number: 6630005705 for Sanyo | 6630005705 | $33.83Read more |
| 52 | Not Available | Caution Label | 6630002674 | Not Available |
| 53 | No Image | CREVICE TOOL, A127C Part Number: 663-000-2476 for Sanyo | 6630002476 | $17.72Read more |
| 54 | No Image | UPHOLSTERY TOOL, A114/A115 Part Number: 6630002483 for Sanyo | 6630002483 | $7.36Read more |
| 55 | Not Available | Slide-on Brush | 6630005279 | Not Available |
| 56 | No Image | WAND, LOWER A114/A115 Part Number: 6630002490 for Sanyo | 6630002490 | $21.38Read more |
| 57 | No Image | WAND, UPPER A114/A115 Part Number: 6630002506 for Sanyo | 6630002506 | $19.66Read more |
| 58 | Not Available | Lens A114 | 6630002513 | Not Available |
| 58 | Not Available | Lens A115 | 6630005712 | Not Available |
| 59 |  | HOUSING, NOZZLE A114 BLUE Part Number: 6630002520 for Sanyo | 6630002520 | $33.52Read more |
| 59 | Not Available | Nozzle Housing A115 Burgundy | 6630005729 | Not Available |
| 60 | No Image | BUMPER, A114 A115 Part Number: 6630002537 for Sanyo | 6630002537 | $13.99Read more |
| 61 | Not Available | Nozzle Pipe | 6630002544 | Not Available |
| 62 | No Image | SPRING, BOTTOM PLATE A115 Part Number: 6630002551 for Sanyo | 6630002551 | $3.52Read more |
| 63 | Not Available | Screw | 6630002568 | Not Available |
| 64 | Not Available | Bulb A115 | 6630003398 | Not Available |
| 65 | Not Available | Socket Ass'y A115 | 6630005736 | Not Available |
| 66 | Not Available | Agitator Ass'y Plastic A114 | 20014 | Not Available |
| 66 | Not Available | Agitator Ass'y Metal A115 | 20015 | Not Available |
| 67 | Not Available | Belt 2 Pk | 10005 | Not Available |
| 67 |  | Bissell 7, 9, 10, 12 Belt 2pk Aftermarket | BR-1008 | $9.99Add to cart |
| 67 |  | Compatible alternateBissell Belt 2PK 7 9 10 belt More Product Details | 011120320749 | $6.00Add to cart |
| 67 |  | Compatible alternateBelt, Style 10 Flat Each 088650/088750/088300 Part Number: 1860140600 for Royal More Product Details | 1860140600 | $6.00Add to cart Special order: ships in 2 to 4 weeks |
| 67 | No Image | Compatible alternateBelt Style 7910 More Product Details | 2031093 | $7.13Add to cart Special order: ships in 2 to 4 weeks |
| 67 |  | Compatible alternateBelt, Style UB11 216.37030700 Upright More Product Details | 81313207 | $6.00Add to cart Special order: ships in 2 to 4 weeks |
| 68 | No Image | COVER, BELT A114 Part Number: 6630002599 for Sanyo | 6630002599 | $1.60Read more |
| 69 | Not Available | Air Spreader | 6630002605 | Not Available |
| 70 | No Image | SPRING, LEAF A114, A115 Part Number: 6630002612 for Sanyo | 6630002612 | $3.79Read more |
| 71 | Not Available | Bottom Plate | 76077 | Not Available |
| 72 | Not Available | Front Wheel | 71060 | Not Available |
| 73 | Not Available | Front Axle | 6630002643 | Not Available |
| 74 | Not Available | Latch | 6630002650 | Not Available |
