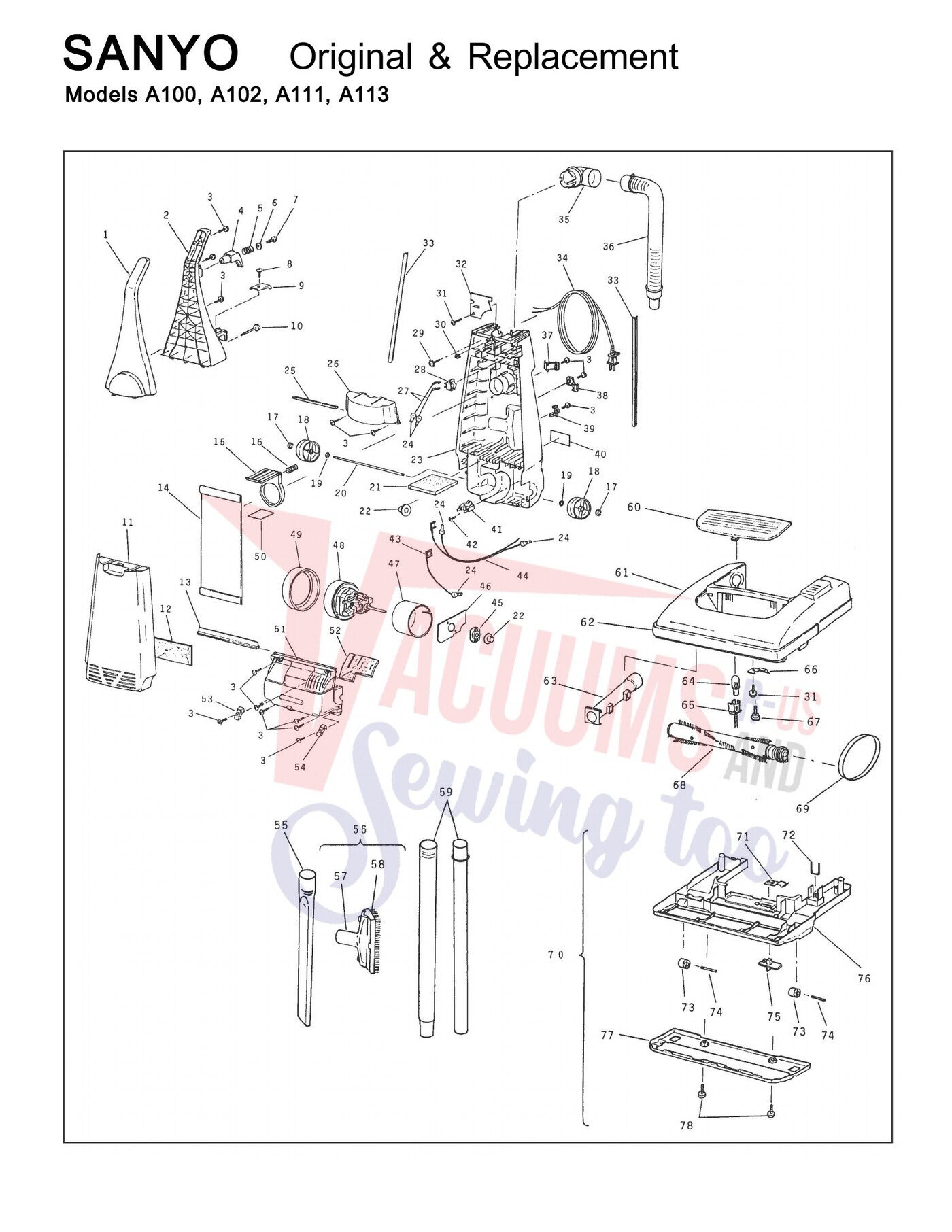

Schematic and parts book for Sanyo A100, A102, A111, A113 . Repairs should be done by trained technicians. Vacuums R Us & Sewing Too provides vacuum cleaner and carpet cleaner parts and accessories for vacuum cleaner repair purposes. We are committed to delivering high-quality components, but it is important to note that all appliance repairs involve risks, and we cannot guarantee the outcome of your repair. When using our vacuum parts for repairs, you accept the terms and conditions HERE
Popular Supplies
| # | Part image | Description | SKU | Price |
| XX | Not Available | Carbon Brush Ass'y | 63010 | Not Available |
| 1 | Not Available | Handle Front A100 A102 | 70005 | Not Available |
| 1 | Not Available | Handle Front A111 A113 | 70010 | Not Available |
| 2 | Not Available | Handle Rear | 70015 | Not Available |
| 3 | Not Available | Screw | 77115 | Not Available |
| 4 | Not Available | Upper Cord Hook | 70512 | Not Available |
| 5 | Not Available | Helical Spring | 70505 | Not Available |
| 6 | Not Available | Washer | 77005 | Not Available |
| 7 | Not Available | Screw A100 A111 | 77140 | Not Available |
| 7 | Not Available | Screw A102 A113 | 77280 | Not Available |
| 8 | Not Available | Screw A100 A111 | 77220 | Not Available |
| 8 | Not Available | Screw A102 A113 | NLA | Not Available |
| 9 | Not Available | Handle Inscription | 70755 | Not Available |
| 10 | Not Available | Handle Screw | 70515 | Not Available |
| 11 | Not Available | Dust Cover A100 | 75003 | Not Available |
| 11 | No Image | Casing Bottom Light Grey | 75001 | $269.00Read more |
| 11 | No Image | Fitting, Reducer, 1/2 Inch to 1/4 Inch | 75050 | $6.99Add to cart Special order: ships in 2 to 4 weeks |
| 11 | No Image | Power Cord, 30ft., for SOFTCASE | 75031 | $36.00Read more |
| 12 |  | Belt-Bissell - Style 8 - 14 Lift Off Upright For: bissell | 18002 | $6.00Add to cart Special order: ships in 2 to 4 weeks |
| 12 | Not Available | Electrostatic Micron Filter A111 A113 | 18000 | Not Available |
| 13 | Not Available | Dust Box Packing | 76035 | Not Available |
| 14 | Not Available | Paper Bag Micron 3 Pk | 1401 | Not Available |
| 15 | No Image | Knob, Oval, .31-18 | 75070 | $16.99Add to cart Special order: ships in 2 to 4 weeks |
| 16 | Not Available | Helical Spring | 77130 | Not Available |
| 17 | Not Available | E Ring | 77215 | Not Available |
| 18 | Not Available | Rear Wheel | 71000 | Not Available |
| 19 | Not Available | Washer | 77100 | Not Available |
| 20 | Not Available | Rear Shaft | 71010 | Not Available |
| 21 | Not Available | Secondary Filter | 18007 | Not Available |
| 22 | Not Available | Sleeve | 75087 | Not Available |
| 23 | No Image | Pile Adjustment Axle, for SOFTCASE | 75095 | $8.00Add to cart Special order: ships in 2 to 4 weeks |
| 24 | Not Available | Wire Connector | SS-3270 | Not Available |
| 25 | Not Available | Dust Box Packing | 76055 | Not Available |
| 26 | No Image | Clamp, P-Shaped, .62 Dia | 75039 | $6.99Read more |
| 26 | Not Available | Case Cover A102 | NLA | Not Available |
| 26 | Not Available | Case Cover A111 | 75043 | Not Available |
| 26 | Not Available | Case Cover A113 | NLA | Not Available |
| 27 | Not Available | Lead Wire | 36018 | Not Available |
| 28 | Not Available | Switch | 34012 | Not Available |
| 29 | Not Available | Screw | 77024 | Not Available |
| 30 | Not Available | Hex Nut | 77145 | Not Available |
| 31 | Not Available | Screw NLA Air Spreader A102 A113 | 77260 | Not Available |
| 32 | No Image | Frame, Scrubber, 20 Traction Drive | 75048 | $494.99Add to cart Special order: ships in 2 to 4 weeks |
| 33 | Not Available | Dust Box Packing A100 A102 A113 (Incl. 71-76) | 76006 | Not Available |
| 34 | Not Available | Power Cord A100 | 30010 | Not Available |
| 34 | No Image | Tank, Top 98190 Ord W/30021,30023,32382 | 30022 | $656.99Add to cart Special order: ships in 2 to 4 weeks |
| 34 | Not Available | Power Cord A111 | 30014 | Not Available |
| 34 | Not Available | Power Cord A113 (Order SA-30022) | NLA | Not Available |
| 34 |  | Cord Gray W/ Polorized Plug fit all fit-all | FA3035 | $32.99Read more |
| 35 | Not Available | Suction Inlet | 75450 | Not Available |
| 36 | Not Available | Nozzle to Bag Housing Hose | 73610 | Not Available |
| 37 | No Image | Charger 24V 25A Universal Flooded/Agm/Gel | 75045 | $849.99Add to cart Special order: ships in 2 to 4 weeks |
| 38 | Not Available | Attachment Clip Hose | 75046 | Not Available |
| 39 | Not Available | Attachment Clip Upholstery Tool | NLA | Not Available |
| 40 | Not Available | Name Plate A100 | 74046 | Not Available |
| 40 | Not Available | Name Plate A102 | NLA | Not Available |
| 40 | Not Available | Name Plate A111 | 74047 | Not Available |
| 40 | Not Available | Name Plate A113 | NLA | Not Available |
| 41 | No Image | Cable Sleeve 4,0Qmm | 34415 | $2.10Read more |
| 42 | Not Available | Screw | NLA | Not Available |
| 43 | Not Available | Lead Wire | 36060 | Not Available |
| 44 | Not Available | Lead Wire A100 A102 | 36052 | Not Available |
| 44 | Not Available | Lead Wire A111 A113 | 36020 | Not Available |
| 45 | Not Available | Motor Cushion Rear | 76008 | Not Available |
| 46 |  | Cord, Beige W/Reel Epic 6500/Le Ambasdr 2100 Part Number: 62005 for Electrolux Replacement | 62005 | $69.81Add to cart Special order: ships in 2 to 4 weeks |
| 47 | Not Available | Noise Suppressor A100 A111 | 18010 | Not Available |
| 48 | Not Available | Motor Complete A100 A102 | NLA | Not Available |
| 48 | Not Available | Motor Complete A111 A113 | NLA | Not Available |
| 49 | Not Available | Motor Cushion Front | 76004 | Not Available |
| 50 | Not Available | Caution Label | 74002 | Not Available |
| 51 | No Image | Frame, Squeegee, 30 Inch | 75049 | $403.99Read more |
| 51 | No Image | Wheel, 2 OD, .31 ID | 75015 | $51.99Add to cart Special order: ships in 2 to 4 weeks |
| 52 | Not Available | Internal Exhaust Filter | 18017 | Not Available |
| 53 | Not Available | Arm Right | NLA | Not Available |
| 54 | Not Available | Arm Left | 75008 | Not Available |
| 55 | Not Available | Crevice Tool | 54000 | Not Available |
| 56 | Not Available | Upholstery Brush Ass'y | 52005 | Not Available |
| 57 | Not Available | Upholstery Tool | 52000 | Not Available |
| 58 | Not Available | Slide-on Brush | 52006 | Not Available |
| 59 | Not Available | Wand Set | 50000 | Not Available |
| 60 | Not Available | Insert A100 A102 | 73403 | Not Available |
| 60 | Not Available | Lens A111 A113 | 73409 | Not Available |
| 61 | Not Available | Nozzle Housing A100 A102 | 73002 | Not Available |
| 61 | Not Available | Nozzle Housing A111 A113 | 73004 | Not Available |
| 62 | Not Available | Bumper | 74042 | Not Available |
| 63 | Not Available | Nozzle Pipe | 73423 | Not Available |
| 64 | Not Available | Bulb 20W A111 A113 | 35010 | Not Available |
| 64 | Not Available | Bulb 15W A111 A113 | FA-3515 | Not Available |
| 65 | Not Available | Socket Ass'y A111 A113 | 36015 | Not Available |
| 66 | Not Available | Leaf Spring | 77197 | Not Available |
| 67 | Not Available | Screw | 77195 | Not Available |
| 68 | Not Available | Agitator Ass'y Wood | 20007 | Not Available |
| 68 | Not Available | Agitator Ass'y Wood | SAR-2000 | Not Available |
| 69 | Not Available | Flat Belt 2 Pk | 10005 | Not Available |
| 69 |  | Bissell 7, 9, 10, 12 Belt 2pk Aftermarket | BR-1008 | $9.99Add to cart |
| 69 |  | Compatible alternateBissell Belt 2PK 7 9 10 belt More Product Details | 011120320749 | $6.00Add to cart |
| 69 |  | Compatible alternateBelt, Style 10 Flat Each 088650/088750/088300 Part Number: 1860140600 for Royal More Product Details | 1860140600 | $6.00Add to cart Special order: ships in 2 to 4 weeks |
| 69 | No Image | Compatible alternateBelt Style 7910 More Product Details | 2031093 | $7.13Add to cart Special order: ships in 2 to 4 weeks |
| 69 |  | Compatible alternateBelt, Style UB11 216.37030700 Upright More Product Details | 81313207 | $6.00Add to cart Special order: ships in 2 to 4 weeks |
| 70 | Not Available | Bottom Plate Ass'y | 76009 | Not Available |
| 70 | Not Available | Bottom Plate Ass'y A111 | 76011 | Not Available |
| 71 | Not Available | Leaf Spring | 77190 | Not Available |
| 72 | Not Available | Belt Cover | 72000 | Not Available |
| 73 | Not Available | Front Wheel | 71016 | Not Available |
| 74 | Not Available | Front Shaft | 71005 | Not Available |
| 75 | Not Available | Latch | 72005 | Not Available |
| 76 | Not Available | Bottom Plate A100 A102 A113 | 76075 | Not Available |
| 76 | Not Available | Bottom Plate A111 | 76070 | Not Available |
| 77 | Not Available | Metal Cover A111 | 76080 | Not Available |
| 78 | Not Available | Screw A111 | 77265 | Not Available |
