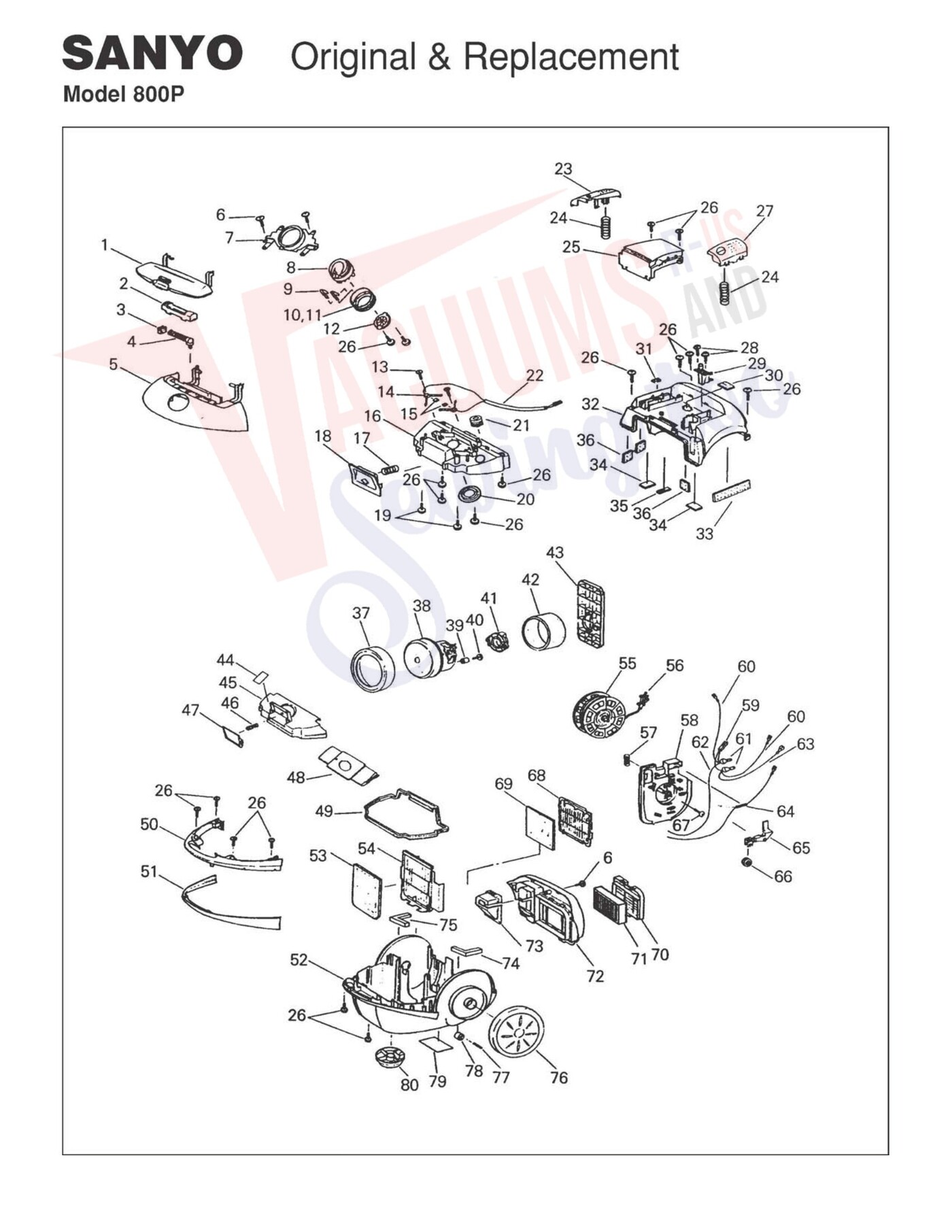

Schematic and parts book for Sanyo 800P . Repairs should be done by trained technicians. Vacuums R Us & Sewing Too provides vacuum cleaner and carpet cleaner parts and accessories for vacuum cleaner repair purposes. We are committed to delivering high-quality components, but it is important to note that all appliance repairs involve risks, and we cannot guarantee the outcome of your repair. When using our vacuum parts for repairs, you accept the terms and conditions HERE
| # | Part image | Description | SKU | Price |
| XX | Not Available | Carbon Brush Ass'y 79 SA-6630008232 Name Plate | 6630000298 | Not Available |
| 1 | No Image | COVER, TOOL 800P Part Number: 6630007594 for Sanyo | 6630007594 | $23.61Read more |
| 2 | Not Available | Bag Indicator Cover | 6630007600 | Not Available |
| 3 | Not Available | Bag Indicator Packing | 6630007617 | Not Available |
| 4 | Not Available | Bag Indicator Ass'y | 6630000960 | Not Available |
| 5 | Not Available | Dust Box Cover | 6630007624 | Not Available |
| 6 | No Image | SCREW, (4X16) X2100P Part Number: 6630000847 for Sanyo | 6630000847 | $0.47Read more |
| 7 | Not Available | Base Holder | 6630007631 | Not Available |
| 8 | No Image | BASE, SLIP RING UPPER 800P Part Number: 6630007648 for Sanyo | 6630007648 | $9.37Read more |
| 9 | No Image | SPRING, JOINT ELECTRIC CONTACT 800P Part Number: 6630007655 for Sanyo | 6630007655 | $2.29Read more |
| 10 | No Image | BASE, SLIP RING LOWER 800P Part Number: 6630007662 for Sanyo | 6630007662 | $6.36Read more |
| 11 | Not Available | Slip Ring | 6630007679 | Not Available |
| 12 | Not Available | Air Inlet Packing | 6630007686 | Not Available |
| 13 | Not Available | Screw (3x8) | 6630007693 | Not Available |
| 14 | Not Available | Collecting Shoe | 6630007709 | Not Available |
| 15 | Not Available | Slip Ring Cleaner | 6630007716 | Not Available |
| 16 | Not Available | Backing Plate | 6630007723 | Not Available |
| 17 | Not Available | Latch Spring | 6630007730 | Not Available |
| 18 | Not Available | Bag Door Latch | 6630007747 | Not Available |
| 19 | Not Available | Screw (4x10) | 6630007754 | Not Available |
| 20 | Not Available | Filter Cover Packing | 6630007761 | Not Available |
| 21 | Not Available | Transmission Ass'y | 6630006207 | Not Available |
| 22 | Not Available | Lead Wire | 6630007778 | Not Available |
| 23 | Not Available | Cord Reel Button | 6630007785 | Not Available |
| 24 | Not Available | Spring | 6630007792 | Not Available |
| 25 | Not Available | Case Cover | 6630007808 | Not Available |
| 26 | Not Available | Screw (4x20) | NLA | Not Available |
| 27 | Not Available | Switch Button | 6630007815 | Not Available |
| 28 | Not Available | Screw (3x10) | 6630002872 | Not Available |
| 29 | Not Available | Switch | 34033 | Not Available |
| 30 | Not Available | Packing C | 6630001103 | Not Available |
| 31 | Not Available | Packing F | 6630007822 | Not Available |
| 32 | Not Available | Upper Case | 6630007839 | Not Available |
| 33 | Not Available | Packing A | 6630007846 | Not Available |
| 34 | Not Available | Packing D | 6630007853 | Not Available |
| 35 | Not Available | Packing E | 6630007860 | Not Available |
| 36 | Not Available | Packing B | 6630007877 | Not Available |
| 37 | Not Available | Front Motor Cushion | 6630001110 | Not Available |
| 38 | Not Available | Motor Complete | 60048 | Not Available |
| 39 | Not Available | Motor Cushion Sleeve | 6630001141 | Not Available |
| 40 | Not Available | Screw | 6630001158 | Not Available |
| 41 | Not Available | Rear Motor Cushion | 6630007884 | Not Available |
| 42 | Not Available | Muffler | 6630007891 | Not Available |
| 43 | Not Available | Motor Support | 6630007907 | Not Available |
| 44 | Not Available | Caution Label | 6630007914 | Not Available |
| 45 | Not Available | Filter Fixture | 6630007921 | Not Available |
| 46 | Not Available | Latch Spring | 6630007938 | Not Available |
| 47 | Not Available | Latch | 6630007945 | Not Available |
| 48 | Not Available | Type SCP8 Paper Bag 3 PK | 1408 | Not Available |
| 49 | Not Available | Filter Gasket | 6630007952 | Not Available |
| 50 | Not Available | Handle | 6630007976 | Not Available |
| 51 | Not Available | Bumper | 6630007983 | Not Available |
| 52 | Not Available | Lower Case | 6630007990 | Not Available |
| 53 | Not Available | Air Inlet Filter | 18019 | Not Available |
| 54 | Not Available | Shelter Plate | 6630008010 | Not Available |
| 55 | No Image | Guide Pad Plastic | 75172 | $165.99Read more |
| 56 | Not Available | Power Cord 18' | 30780 | Not Available |
| 57 | Not Available | Brake Spring | 6630008041 | Not Available |
| 58 | Not Available | Cord Reel Support | 6630008058 | Not Available |
| 59 | Not Available | Connector Housing Ass'y | 6630008065 | Not Available |
| 60 | Not Available | Lead Wire (Black) | 6630008072 | Not Available |
| 61 | Not Available | Wire Connector | SS-3270 | Not Available |
| 62 | Not Available | Lead Wire (Yellow) | 6630008089 | Not Available |
| 63 | Not Available | Lead Wire (Red) | 6630008096 | Not Available |
| 64 | Not Available | Fuse Ass'y (15 Amp) | 6630008102 | Not Available |
| 65 | Not Available | Brake Arm | 6630008119 | Not Available |
| 66 | Not Available | Brake Roller Ass'y | 6630000236 | Not Available |
| 67 | Not Available | Screw (4x16) | 6630000335 | Not Available |
| 68 | Not Available | Filter Frame | 6630008126 | Not Available |
| 69 | Not Available | Inner Exhaust Filter | 18023 | Not Available |
| 70 | Not Available | Air Outlet | 6630008140 | Not Available |
| 71 | Not Available | Outer Exhaust Filter | 18026 | Not Available |
| 72 | Not Available | Rear Cover | 6630008164 | Not Available |
| 73 | Not Available | Cord Inlet Cover | 6630008171 | Not Available |
| 74 | Not Available | Air Spreader A | 6630008188 | Not Available |
| 75 | Not Available | Air Spreader B | 6630008195 | Not Available |
| 76 | Not Available | Rear Wheel | 6630008201 | Not Available |
| 77 | Not Available | Axle | 6630008218 | Not Available |
| 78 | Not Available | Small Roller | 6630008225 | Not Available |
| 79 | Not Available | Name Plate | 6630008232 | Not Available |
| 80 | Not Available | Castor | 6630000823 | Not Available |

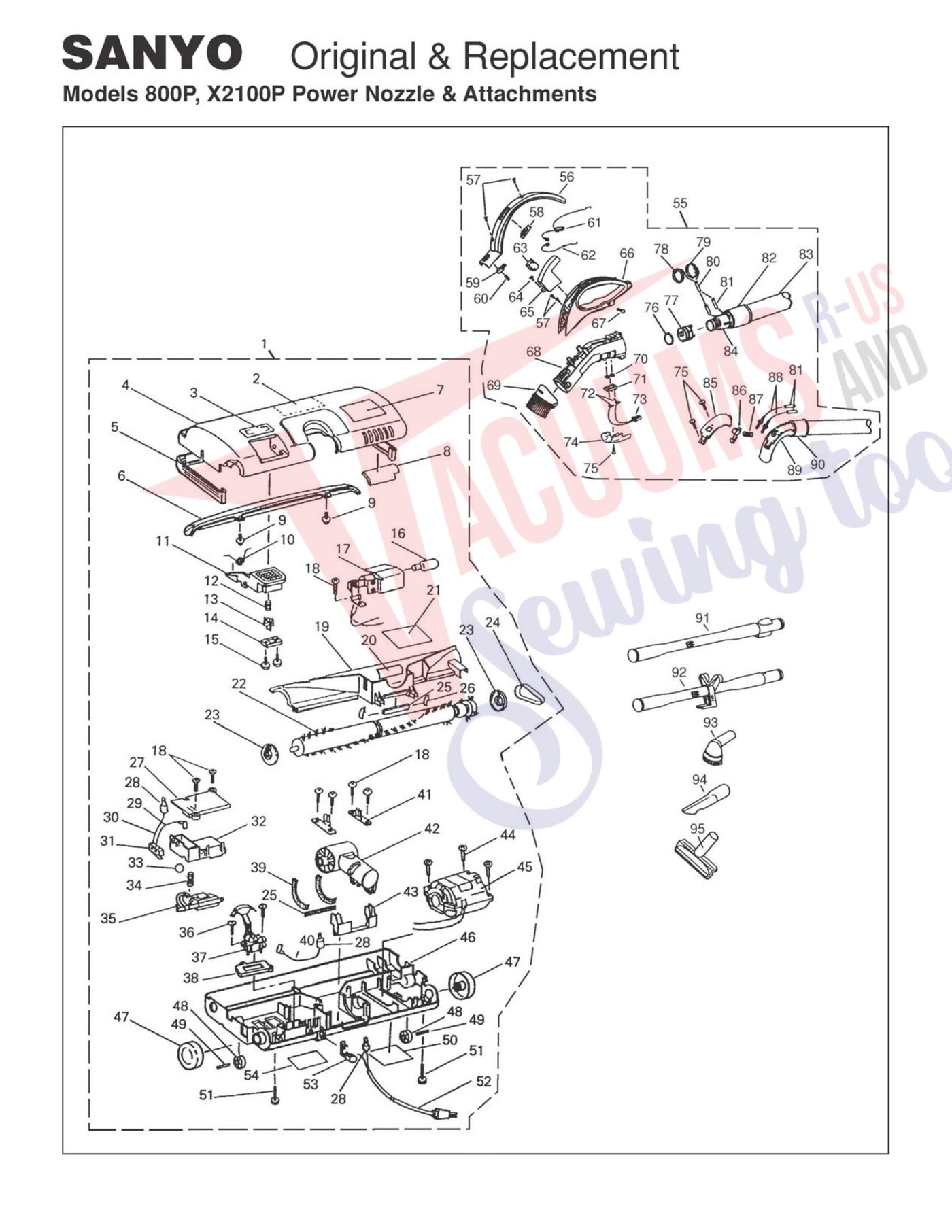

| # | Part image | Description | SKU | Price |
| XX | Not Available | Suction Hose Complete X2100P | 40017 | Not Available |
| XX | Not Available | Wand Connector (Not Shown) | 6630068663 | Not Available |
| 1 | Not Available | Power Nozzle Complete 800P | 57000 | Not Available |
| 2 | Not Available | Case Cushion | 6630008621 | Not Available |
| 3 | Not Available | Switch Ornament | 6630008638 | Not Available |
| 4 | Not Available | Nozzle Housing | 6630008645 | Not Available |
| 5 | No Image | BUMPER, 800P X2100P POWER NOZZLE Part Number: 6630008652 for Sanyo | 6630008652 | $15.48Read more |
| 6 | Not Available | Lens Incl. 54-90 | 6630008669 | Not Available |
| 7 | Not Available | Caution Label | 6630008676 | Not Available |
| 8 | Not Available | Packing Incl. 54-90 | 6630008683 | Not Available |
| 9 | Not Available | Screw | 6630008690 | Not Available |
| 10 | Not Available | Spring | 6630008706 | Not Available |
| 11 | Not Available | Switch Button | 6630008713 | Not Available |
| 12 | No Image | SPRING, BUTTON X1000P Part Number: 6630008720 for Sanyo | 6630008720 | $2.53Read more |
| 13 | Not Available | Moveable Reed | 6630008737 | Not Available |
| 14 | Not Available | Moveable Reed Base | 6630008744 | Not Available |
| 15 | Not Available | Screw | 6630008751 | Not Available |
| 16 | Not Available | Bulb 15W | 6630003398 | Not Available |
| 16 | Not Available | Bulb 15W | FA-3515 | Not Available |
| 17 | Not Available | Socket Ass'y | 6630008768 | Not Available |
| 18 | Not Available | Screw | NLA | Not Available |
| 19 | Not Available | Brushroll Cover | 6630008782 | Not Available |
| 20 | Not Available | Shield Sheet | 6630008799 | Not Available |
| 21 | Not Available | Caution Label | 6630008805 | Not Available |
| 22 | No Image | Pet Stain Eraser Deluxe | 20028 | $152.98Read more |
| 23 | Not Available | End Cap | 20530 | Not Available |
| 24 |  | Brush, Auxiliary Dust Care Carpet Sweeper Part Number: 1001-2 for Dust Care | 10012 | $13.49Read more |
| 25 | Not Available | Rotary Seal C | 6630008836 | Not Available |
| 26 | Not Available | Rotary Seal B | 6630008843 | Not Available |
| 27 | Not Available | Case Cover | 6630008850 | Not Available |
| 28 | Not Available | Wire Nut | SS-3270 | Not Available |
| 29 | Not Available | Lead Wire (White) | 6630008867 | Not Available |
| 30 | Not Available | Lead Wire (Black) | 6630008874 | Not Available |
| 31 | Not Available | Micro Switch | 34045 | Not Available |
| 32 | Not Available | Switch Holder | 6630008898 | Not Available |
| 33 | Not Available | Steel Ball | 6630008904 | Not Available |
| 34 | No Image | SPRING, MICRO SWITCH 800P 2100P POWER NOZZLE Part Number: 6630008911 for Sanyo | 6630008911 | $1.60Read more |
| 35 | Not Available | Switch Lever Ass'y | 6630008928 | Not Available |
| 36 | No Image | SCREW, Part Number: 6630008263 for Sanyo | 6630008263 | $0.70Read more |
| 37 | Not Available | Switch Ass'y | 34035 | Not Available |
| 38 | Not Available | Switch Bracket | 6630008942 | Not Available |
| 39 | Not Available | Rotary Seal | 6630008959 | Not Available |
| 40 | No Image | CORD ASSY SC800 Part Number: 6630008966 for Sanyo | 6630008966 | $0.00Read more |
| 41 | Not Available | Pivot Retainer | 6630008973 | Not Available |
| 42 | Not Available | Pivot | 6630008980 | Not Available |
| 43 | Not Available | Cord Inlet Cover | 6630008997 | Not Available |
| 44 | Not Available | Screw | 6630009000 | Not Available |
| 45 | Not Available | Brushroll Motor | 60510 | Not Available |
| 46 | No Image | HOUSING, NOZZLE SC800P Part Number: 6630009024 for Sanyo | 6630009024 | $29.29Read more |
| 47 | Not Available | Rear Wheel | 6630009031 | Not Available |
| 48 | Not Available | Front Wheel | 6630009048 | Not Available |
| 49 | Not Available | Front Axle | 6630009055 | Not Available |
| 50 | Not Available | Caution Label | 6630009062 | Not Available |
| 51 | Not Available | Screw | 6630009079 | Not Available |
| 52 | Not Available | Pigtail | 6630009086 | Not Available |
| 53 | Not Available | Grommet | 6630009093 | Not Available |
| 54 | Not Available | Caution Label | 6630009109 | Not Available |
| 55 | Not Available | Suction Hose Complete 800P | 40016 | Not Available |
| 56 | Not Available | Control Switch Case | 6630008256 | Not Available |
| 57 | No Image | SCREW, Part Number: 6630008263 for Sanyo | 6630008263 | $0.70Read more |
| 58 | Not Available | Switch Button 800P | 6630008270 | Not Available |
| 59 | Not Available | Clamp Hook 800P | 6630008287 | Not Available |
| 60 | Not Available | Clamp Spring | 6630008294 | Not Available |
| 61 | No Image | HOUSING, CONNECTOR HOSE HANDLE 800P Part Number: 6630008300 for Sanyo | 6630008300 | $23.13Read more |
| 62 | Not Available | Lead Wire (Black) | 6630008317 | Not Available |
| 63 | Not Available | Micro Switch | 6630008324 | Not Available |
| 64 | Not Available | Screw (4x16) | 6630000335 | Not Available |
| 65 | Not Available | Switch Base | 6630008331 | Not Available |
| 66 | Not Available | Grip 800P | 6630008348 | Not Available |
| 67 | Not Available | Screw (4x16) | 6630000076 | Not Available |
| 68 | Not Available | Hose Joint Pipe 800P | 6630008355 | Not Available |
| 69 | No Image | DUST BRUSH, 800P Part Number: 6630008362 for Sanyo | 6630008362 | $3.00Read more |
| 70 | Not Available | Lock Ring Cleaner | 6630008379 | Not Available |
| 71 | Not Available | Collecting Shoe Holder 800P | 6630008386 | Not Available |
| 72 | Not Available | Collecting Shoe | 6630008393 | Not Available |
| 73 | No Image | HOUSING, CONNECTOR X2100P Part Number: 6630008409 for Sanyo | 6630008409 | $23.13Read more |
| 74 | Not Available | Collecting Shoe Cover 800P | 6630008416 | Not Available |
| 75 | Not Available | Screw (3x8) | 6630007693 | Not Available |
| 76 | Not Available | Joint Pipe Packing | 6630008423 | Not Available |
| 77 | Not Available | Slip Ring Base | 6630008430 | Not Available |
| 78 | Not Available | Slip Ring Ass'y A | 6630008447 | Not Available |
| 79 | Not Available | Slip Ring Ass'y B | 6630008454 | Not Available |
| 80 | Not Available | Tube | 6630008461 | Not Available |
| 81 | Not Available | Tube | 6630008478 | Not Available |
| 82 | Not Available | Suction Hose Cover 800P | 6630008485 | Not Available |
| 83 | Not Available | Suction Hose 800P | 6630008492 | Not Available |
| 84 | Not Available | Hose Joint Pipe 800P | 6630008508 | Not Available |
| 85 | Not Available | Hose Hook Cover 800P | 6630008515 | Not Available |
| 86 | Not Available | Hose Hook 800P | 6630008522 | Not Available |
| 87 | No Image | SPRING, HOSE LOCK 240/270 CANS Part Number: 6630000519 for Sanyo | 6630000519 | $1.60Read more |
| 88 | Not Available | Lead Wire | 6630008539 | Not Available |
| 89 | Not Available | Hose Joint Pipe 800P | 6630008546 | Not Available |
| 90 | Not Available | Suction Hose Cover 800P | 6630008553 | Not Available |
| 91 | Not Available | Upper Wand 800P | 50022 | Not Available |
| 92 | Not Available | Lower Wand 800P | 50023 | Not Available |
| 93 | Not Available | Dust Brush | 53005 | Not Available |
| 94 |  | Furniture Guard Black Part Number 54.015 for Simplicity Models SHD-1T | 54015 | |
| 95 | Not Available | Upholstery Tool Ass'y | 52008 | Not Available |
Report errors on this page HERE
