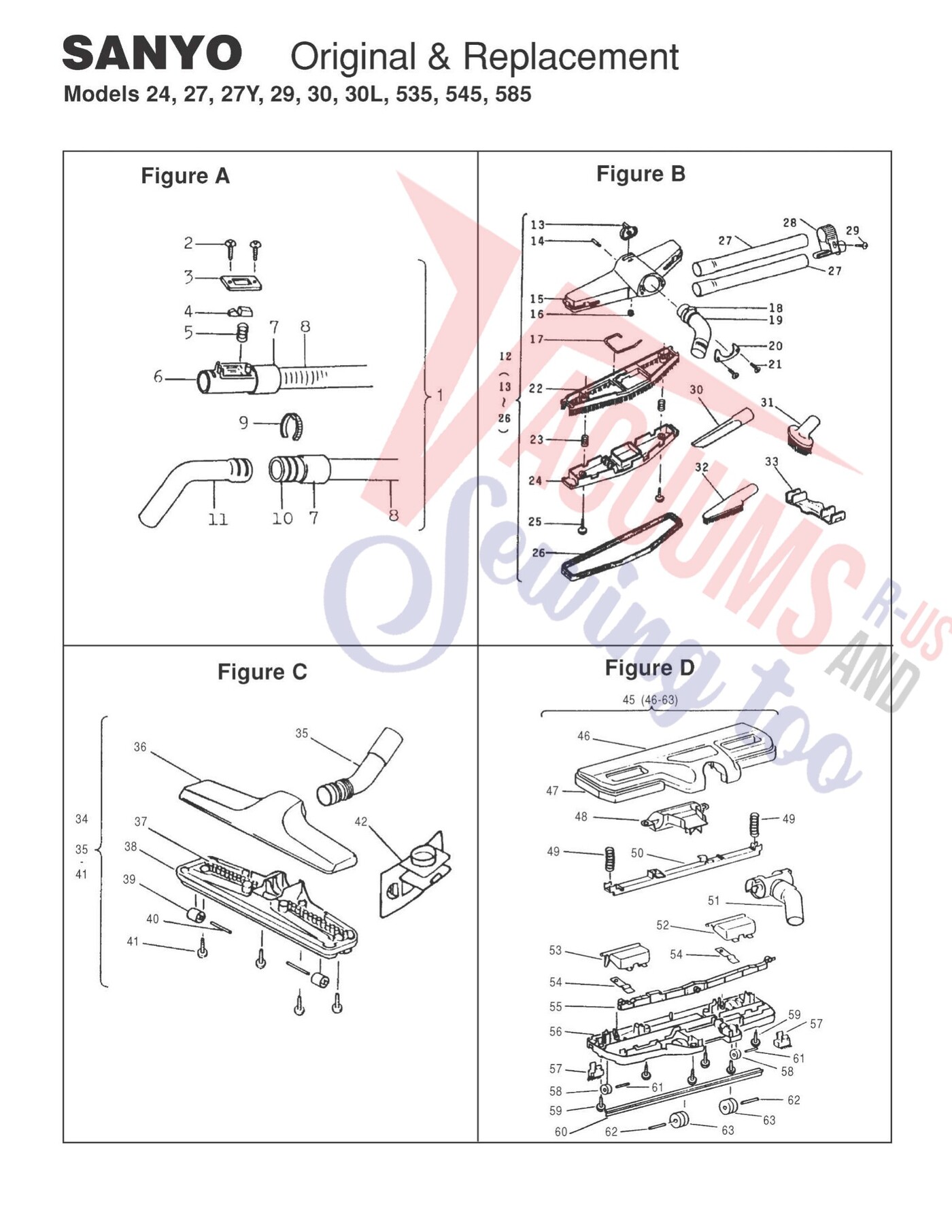

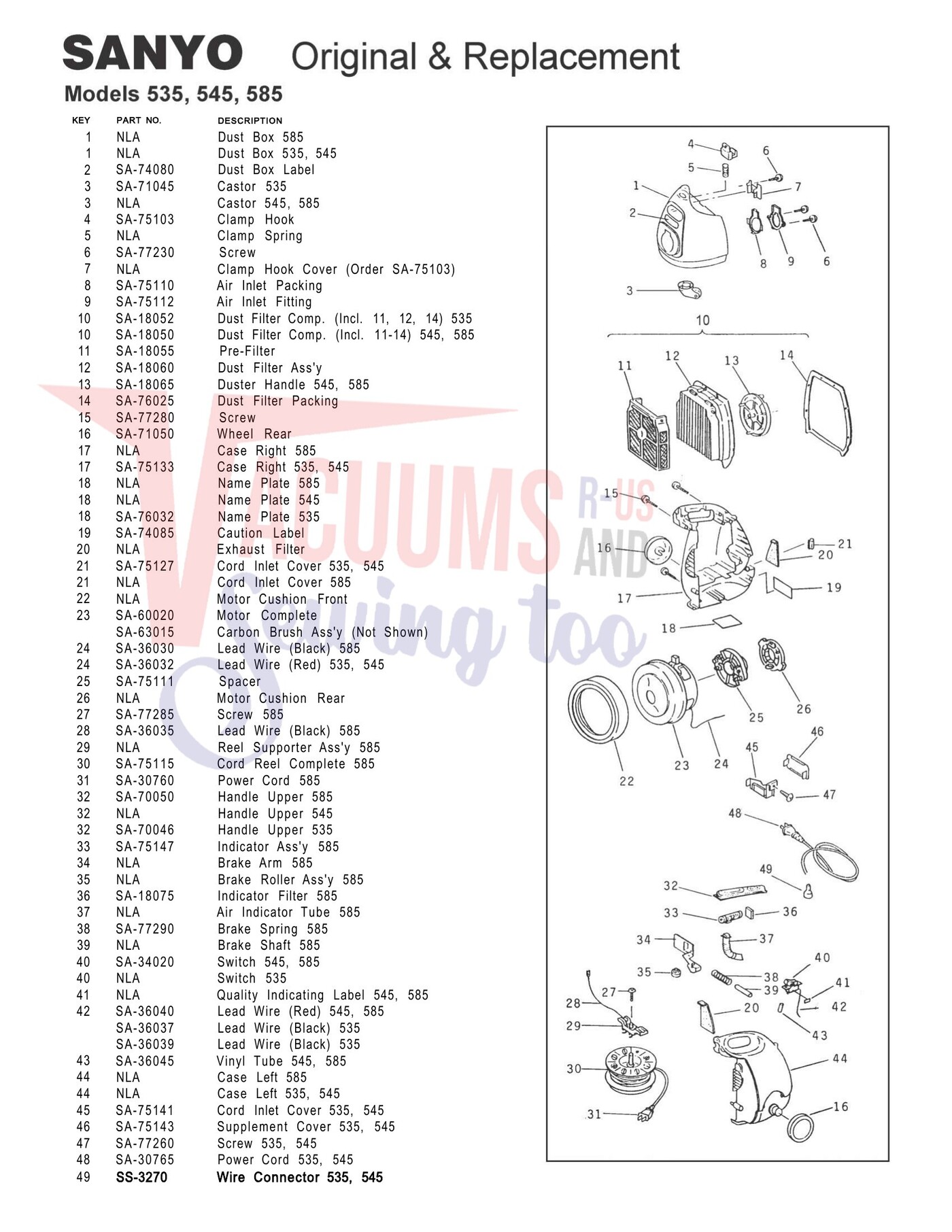

Schematic and parts book for Sanyo 535, 545, 585 . Repairs should be done by trained technicians. Vacuums R Us & Sewing Too provides vacuum cleaner and carpet cleaner parts and accessories for vacuum cleaner repair purposes. We are committed to delivering high-quality components, but it is important to note that all appliance repairs involve risks, and we cannot guarantee the outcome of your repair. When using our vacuum parts for repairs, you accept the terms and conditions HERE
| # | Part image | Description | SKU | Price |
| XX | Not Available | Carbon Brush Ass'y (Not Shown) | 63015 | Not Available |
| XX | Not Available | Lead Wire (Black) 535 | 36037 | Not Available |
| XX | Not Available | Lead Wire (Black) 535 | 36039 | Not Available |
| 1 | Not Available | Dust Box 585 | NLA | Not Available |
| 1 | Not Available | Dust Box 535 545 | NLA | Not Available |
| 2 | Not Available | Dust Box Label | 74080 | Not Available |
| 3 | Not Available | Castor 535 | 71045 | Not Available |
| 3 | Not Available | Castor 545 585 | NLA | Not Available |
| 4 | No Image | 75103 Retainer, Squeegee Rear, 31.25 Inch | 75103 | $88.99Add to cart Product is special order please allow 2-4 weeks for delivery. |
| 5 | Not Available | Clamp Spring | NLA | Not Available |
| 6 | Not Available | Screw | 77230 | Not Available |
| 7 | Not Available | Clamp Hook Cover (Order SA-75103) | NLA | Not Available |
| 8 | No Image | Spacer, Link, Squeegee | 75110 | $17.99Add to cart Product is special order please allow 2-4 weeks for delivery. |
| 9 | No Image | -Lever Bracket Black/Brown | 75112 | $36.00Read more |
| 10 | Not Available | Dust Filter Comp. (Incl. 11 12 14) 535 | 18052 | Not Available |
| 10 | Not Available | Dust Filter Comp. (Incl. 11-14) 545 585 | 18050 | Not Available |
| 11 | Not Available | Pre-Filter | 18055 | Not Available |
| 12 | Not Available | Dust Filter Ass'y | 18060 | Not Available |
| 13 | Not Available | Duster Handle 545 585 | 18065 | Not Available |
| 14 | Not Available | Dust Filter Packing | 76025 | Not Available |
| 15 | Not Available | Screw | 77280 | Not Available |
| 16 | Not Available | Wheel Rear | 71050 | Not Available |
| 17 | Not Available | Case Right 585 | NLA | Not Available |
| 17 | No Image | Squeegee, Front, 35Inch (Urethane) | 75133 | $170.99Add to cart Product is special order please allow 2-4 weeks for delivery. |
| 18 | Not Available | Name Plate 585 | NLA | Not Available |
| 18 | Not Available | Name Plate 545 | NLA | Not Available |
| 18 | Not Available | Name Plate 535 | 76032 | Not Available |
| 19 | Not Available | Caution Label | 74085 | Not Available |
| 20 | Not Available | Exhaust Filter | NLA | Not Available |
| 21 | No Image | Panel, Electronics | 75127 | $99.99Read more |
| 21 | Not Available | Cord Inlet Cover 585 | NLA | Not Available |
| 22 | Not Available | Motor Cushion Front | NLA | Not Available |
| 23 | Not Available | Motor Complete | 60020 | Not Available |
| 24 | Not Available | Lead Wire (Black) 585 | 36030 | Not Available |
| 24 | Not Available | Lead Wire (Red) 535 545 | 36032 | Not Available |
| 25 | No Image | Spacer, Rubber | 75111 | $17.99Add to cart Product is special order please allow 2-4 weeks for delivery. |
| 26 | Not Available | Motor Cushion Rear | NLA | Not Available |
| 27 | Not Available | Screw 585 | 77285 | Not Available |
| 28 | Not Available | Lead Wire (Black) 585 | 36035 | Not Available |
| 29 | Not Available | Reel Supporter Ass'y 585 | NLA | Not Available |
| 30 | No Image | Stand-Off, Insulated, .25-20 | 75115 | $19.99Read more |
| 31 | Not Available | Power Cord 585 | 30760 | Not Available |
| 32 | Not Available | Handle Upper 585 | 70050 | Not Available |
| 32 | Not Available | Handle Upper 545 | NLA | Not Available |
| 32 | Not Available | Handle Upper 535 | 70046 | Not Available |
| 33 | No Image | Bracket, Mounting, Charger | 75147 | $148.99Read more |
| 34 | Not Available | Brake Arm 585 | NLA | Not Available |
| 35 | Not Available | Brake Roller Ass'y 585 | NLA | Not Available |
| 36 | Not Available | Indicator Filter 585 | 18075 | Not Available |
| 37 | Not Available | Air Indicator Tube 585 | NLA | Not Available |
| 38 | Not Available | Brake Spring 585 | 77290 | Not Available |
| 39 | Not Available | Brake Shaft 585 | NLA | Not Available |
| 40 | Not Available | Switch 545 585 | 34020 | Not Available |
| 40 | Not Available | Switch 535 | NLA | Not Available |
| 41 | Not Available | Quality Indicating Label 545 585 | NLA | Not Available |
| 42 | Not Available | Lead Wire (Red) 545 585 | 36040 | Not Available |
| 43 | Not Available | Vinyl Tube 545 585 | 36045 | Not Available |
| 44 | Not Available | Case Left 585 | NLA | Not Available |
| 44 | Not Available | Case Left 535 545 | NLA | Not Available |
| 45 | No Image | Bracket, Mounting, Isolator | 75141 | $109.99Read more |
| 46 | No Image | Bracket, Mounting, Heat Sink | 75143 | $95.99Read more |
| 47 | Not Available | Screw 535 545 | 77260 | Not Available |
| 48 | No Image | Transaxle Bracket | 30765 | $0.00Read more |
| 49 | Not Available | Wire Connector 535 545 | SS-3270 | Not Available |
| # | Part image | Description | SKU | Price |
| XX | No Image | Screw | 40000 | $0.00Read more |
| XX | Not Available | Attachment Cuff 27 | 45077 | Not Available |
| XX | Not Available | Curved Wand 27 | 45085 | Not Available |
| XX | Not Available | Curved Wand 30 30L | 45083 | Not Available |
| XX | Not Available | Suction Control Ring 30 30L | 45079 | Not Available |
| XX | Not Available | Turbo Tool | 55000 | Not Available |
| XX | Not Available | Tape 30 | 76007 | Not Available |
| 1 | No Image | WHEEL AXLE TW050-W43-U | 40003 | $128.99Add to cart Product is special order please allow 2-4 weeks for delivery. |
| 2 | Not Available | Screw 24 27Y 29 30 30L 535 545 585 | 77270 | Not Available |
| 3 | Not Available | Hose Hook Cover | 45050 | Not Available |
| 3 | Not Available | Hose Hook Cover 27 | 45052 | Not Available |
| 3 | Not Available | Hose Hook Cover 24 | NLA | Not Available |
| 4 | Not Available | Hose Hook | 45015 | Not Available |
| 5 | Not Available | Hose Hook Spring | 77295 | Not Available |
| 6 | Not Available | Hose Joint Pipe | 45055 | Not Available |
| 6 | Not Available | Hose Joint Pipe 27 | 45057 | Not Available |
| 7 | Not Available | Suction Hose Cover | 45005 | Not Available |
| 8 | Not Available | Suction Hose 27 29 | 41000 | Not Available |
| 8 | Not Available | Suction Hose 24 27Y 30 30L 535 | 41002 | Not Available |
| 8 | Not Available | Suction Hose 545 585 | 41004 | Not Available |
| 9 | Not Available | Lock Ring 24 27 27Y | 45070 | Not Available |
| 10 | Not Available | Attachment Cuff | 45075 | Not Available |
| 11 | Not Available | Curved Wand 29 545 585 | 45080 | Not Available |
| 11 | Not Available | Curved Wand 24 27Y 535 | 45082 | Not Available |
| 12 | Not Available | Floor Tool Complete 29 | 55005 | Not Available |
| 13 | Not Available | Brush Slide Lever 29 | NLA | Not Available |
| 14 | Not Available | Brush Slide Lever Pin 29 | NLA | Not Available |
| 15 | Not Available | Floor Tool Body 29 | NLA | Not Available |
| 16 | Not Available | Ring 29 | 55135 | Not Available |
| 17 | Not Available | Brush Slide Arm 29 | NLA | Not Available |
| 18 | Not Available | Floor Tool Packing 29 | 55145 | Not Available |
| 19 | Not Available | Elbow 29 | 55150 | Not Available |
| 20 | Not Available | Elbow Housing 29 | NLA | Not Available |
| 21 | Not Available | Screw | NLA | Not Available |
| 22 | Not Available | Brush Base Ass'y 29 | 55160 | Not Available |
| 23 | Not Available | Brush Slide Spring 29 | NLA | Not Available |
| 24 | Not Available | Floor Tool Base 29 | NLA | Not Available |
| 25 | Not Available | Screw | 77285 | Not Available |
| 26 | Not Available | Floor Tool Bumper 29 | NLA | Not Available |
| 27 | Not Available | Wand 30 30L | 50008 | Not Available |
| 27 | Not Available | Wand | 50010 | Not Available |
| 28 | Not Available | Wand Retainer 27Y 29 | 50500 | Not Available |
| 29 | Not Available | Screw | 77245 | Not Available |
| 30 | No Image | DUST COMPARMENT, CPU1 Part Number: 54.010 for Carpet Pro | 54010 | $49.22Read more |
| 31 | Not Available | Upholstery Brush Ass'y | 53005 | Not Available |
| 32 | Not Available | Clothing Brush Ass'y 29 | 53010 | Not Available |
| 33 | Not Available | Tool Caddy 29 | 70260 | Not Available |
| 34 | Not Available | Floor Tool Complete 27 545 585 | 55010 | Not Available |
| 34 | Not Available | Floor Tool Complete 24 27Y 535 | NLA | Not Available |
| 35 | Not Available | Elbow 27 27Y 545 585 | 55100 | Not Available |
| 35 | Not Available | Elbow 24 535 | 55102 | Not Available |
| 36 | Not Available | Floor Tool Body 27 545 585 | NLA | Not Available |
| 36 | Not Available | Floor Tool Body 24 27Y 535 | 55107 | Not Available |
| 37 | Not Available | Floor Tool Base Ass'y 27 545 585 | 55110 | Not Available |
| 37 | Not Available | Floor Tool Base Ass'y 24 27Y 535 | 55112 | Not Available |
| 38 | Not Available | Floor Tool Bumper 27 545 585 | NLA | Not Available |
| 38 | Not Available | Floor Tool Bumper 27Y | 55116 | Not Available |
| 38 | Not Available | Floor Tool Bumper 24 535 | NLA | Not Available |
| 39 | Not Available | Floor Tool Roller 27 545 585 | NLA | Not Available |
| 39 | Not Available | Floor Tool Roller 24 27Y 535 | 71022 | Not Available |
| 40 | Not Available | Floor Tool Roller Pin 27 545 585 | 71024 | Not Available |
| 40 | Not Available | Floor Tool Roller Pin 24 27Y 535 | 71023 | Not Available |
| 41 | Not Available | Screw | 77230 | Not Available |
| 42 | Not Available | Tool Caddy 585 Only | 70255 | Not Available |
| 45 | Not Available | Floor Tool Complete 30 | NLA | Not Available |
| 46 | Not Available | Floor Tool Body 30 | 55021 | Not Available |
| 47 | Not Available | Floor Tool Bumper 30 | NLA | Not Available |
| 48 | Not Available | Floor Tool Throat 30 | NLA | Not Available |
| 49 | Not Available | Brush Slide Spring 30 | NLA | Not Available |
| 50 | Not Available | Brush Base Ass'y 30 | 55025 | Not Available |
| 51 | Not Available | Elbow 30 | 55026 | Not Available |
| 52 | Not Available | Brush Slide Lever Right 30 | NLA | Not Available |
| 53 | Not Available | Brush Slide Lever Left 30 | NLA | Not Available |
| 54 | Not Available | Leaf Spring 30 | 55029 | Not Available |
| 55 | Not Available | Brush Slide Arm 30 | NLA | Not Available |
| 56 | Not Available | Floor Tool Base 30 | NLA | Not Available |
| 57 | Not Available | Brush Base Ass'y 30 | NLA | Not Available |
| 58 | Not Available | Floor Tool Roller 30 | NLA | Not Available |
| 59 | Not Available | Screw 30 | 77230 | Not Available |
| 60 | Not Available | Packing 30 | NLA | Not Available |
| 61 | Not Available | Roller Shaft Front 30 | NLA | Not Available |
| 62 | Not Available | Roller Shaft Rear 30 | 55036 | Not Available |
| 63 | Not Available | Wheel Rear 30 | 55037 | Not Available |
