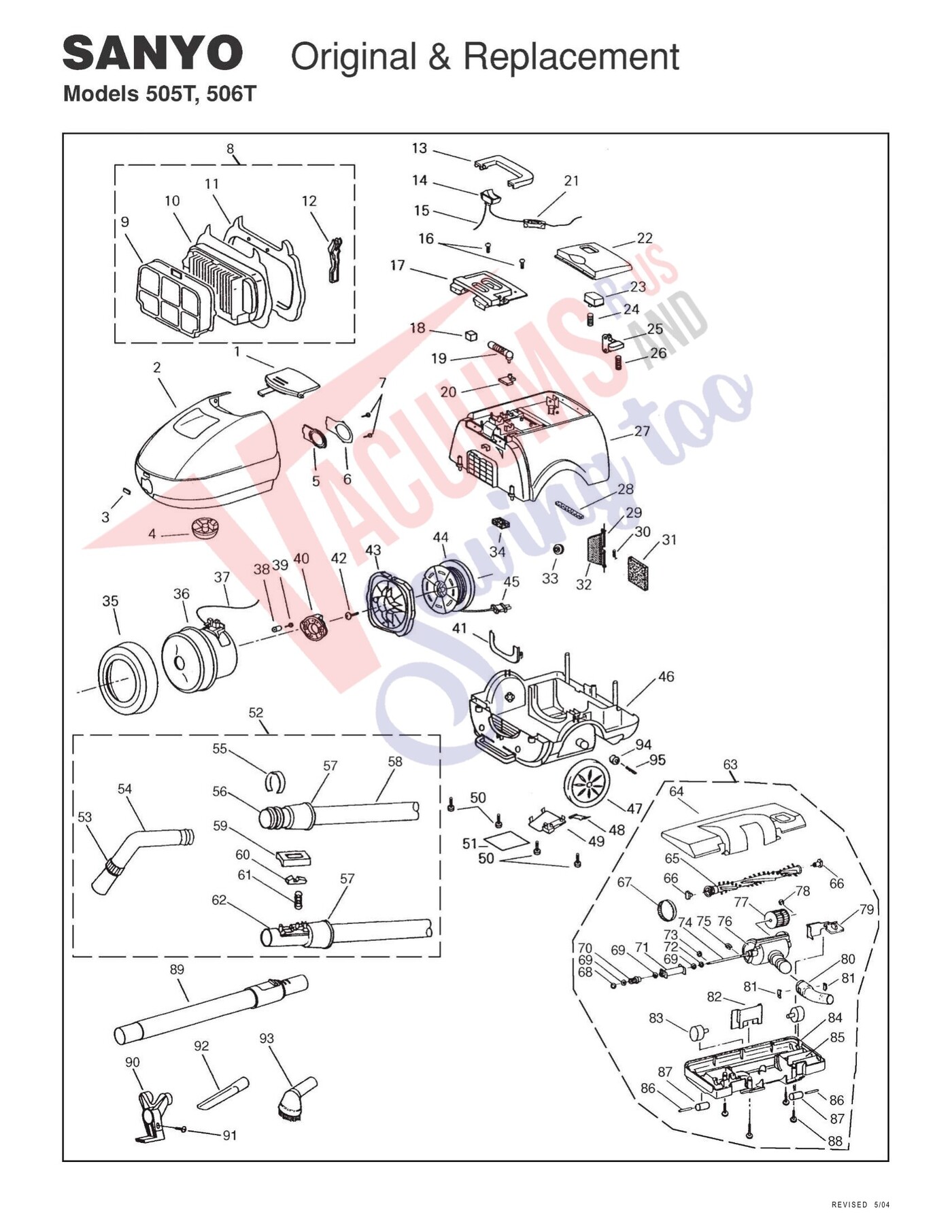

Schematic and parts book for sanyo 505T, 506t . Repairs should be done by trained technicians. Vacuums R Us & Sewing Too provides vacuum cleaner and carpet cleaner parts and accessories for vacuum cleaner repair purposes. We are committed to delivering high-quality components, but it is important to note that all appliance repairs involve risks, and we cannot guarantee the outcome of your repair. When using our vacuum parts for repairs, you accept the terms and conditions HERE
| # | Part image | Description | SKU | Price |
| XX | Not Available | Base Packing 506T (Not Shown) | 6630075807 | Not Available |
| XX | Not Available | Carbon Brush Ass'y 86 SA-6630001530 Axle | 6630000298 | Not Available |
| 1 | Not Available | Clamp Hook | 6630000793 | Not Available |
| 2 | Not Available | Dust Box 505T | 6630000809 | Not Available |
| 2 | Not Available | Dust Box 506T | 6630075715 | Not Available |
| 3 | Not Available | Dust Box Label 505T | 6630000816 | Not Available |
| 3 | Not Available | Dust Box Label 506T | 6630075722 | Not Available |
| 4 | Not Available | Castor | 6630000823 | Not Available |
| 5 | Not Available | Air Inlet Packing 505T | 6630000830 | Not Available |
| 5 | Not Available | Air Inlet Packing 506T | 6630000052 | Not Available |
| 6 | Not Available | Air Inlet Fitting | 6630000069 | Not Available |
| 7 | No Image | SCREW, (4X16) X2100P Part Number: 6630000847 for Sanyo | 6630000847 | $0.47Read more |
| 8 | Not Available | Dust Filter Ass'y Incl. 9-12 | 18032 | Not Available |
| 9 | Not Available | Pre-filter | 18034 | Not Available |
| 10 | Not Available | Dust Filter | 18031 | Not Available |
| 11 | Not Available | Dust Filter Packing | 6630000885 | Not Available |
| 12 | Not Available | Duster Arm | 6630000892 | Not Available |
| 13 | Not Available | Handle | 6630000908 | Not Available |
| 14 | Not Available | Switch | 34030 | Not Available |
| 15 | Not Available | Lead Wire | 6630000922 | Not Available |
| 16 | Not Available | Screw (4X16) | 6630000939 | Not Available |
| 17 | Not Available | Bag Indicator Ornament | 6630000946 | Not Available |
| 18 | Not Available | Bag Indicator Packing | 6630000953 | Not Available |
| 19 | Not Available | Bag Indicator Ass'y | 6630000960 | Not Available |
| 20 | Not Available | Transmission Tube | 6630000977 | Not Available |
| 21 | Not Available | Fuse | 6630000984 | Not Available |
| 22 | Not Available | Case Cover | 6630000991 | Not Available |
| 23 | Not Available | Cord Reel Button | 6630001004 | Not Available |
| 24 | Not Available | Spring | 6630001011 | Not Available |
| 25 | Not Available | Brake Arm | 6630001028 | Not Available |
| 26 | Not Available | Brake Spring | 6630001035 | Not Available |
| 27 | Not Available | Upper Case 505T | 6630001042 | Not Available |
| 27 | Not Available | Upper Case 506T | 6630075739 | Not Available |
| 28 | Not Available | Foam Packing | 6630001059 | Not Available |
| 29 | Not Available | Air Outlet 505T | 6630001066 | Not Available |
| 29 | Not Available | Air Outlet 506T | 6630001059 | Not Available |
| 30 | Not Available | Spring | 6630001073 | Not Available |
| 31 | Not Available | Exhaust Filter | 18068 | Not Available |
| 32 | Not Available | Air Spreader | 6630001097 | Not Available |
| 33 | Not Available | Brake Roller Ass'y | 6630000236 | Not Available |
| 34 | Not Available | Foam Packing | 6630001103 | Not Available |
| 35 | Not Available | Front Motor Cushion | 6630001110 | Not Available |
| 36 | Not Available | Motor Complete | 60050 | Not Available |
| 37 | Not Available | Lead Wire (Yellow) | 6630001134 | Not Available |
| 38 | Not Available | Motor Cushion Sleeve | 6630001141 | Not Available |
| 39 | Not Available | Screw | 6630001158 | Not Available |
| 40 | Not Available | Rear Motor Cushion | 6630001165 | Not Available |
| 41 | Not Available | Front Filter Fixture | 6630001172 | Not Available |
| 42 | Not Available | Screw (4X16) | 6630000335 | Not Available |
| 43 | Not Available | Motor Support Ass'y 505T | 6630001189 | Not Available |
| 43 | Not Available | Motor Support Ass'y 506T | 6630075753 | Not Available |
| 44 | Not Available | Cord Reel Complete | 75178 | Not Available |
| 45 | Not Available | Power Cord | 6630001202 | Not Available |
| 46 | Not Available | Lower Case 505T | 6630001219 | Not Available |
| 46 | Not Available | Lower Case 506T | 6630075760 | Not Available |
| 47 | Not Available | Rear Wheel 505T | 6630001226 | Not Available |
| 47 | Not Available | Rear Wheel 506T | 71065 | Not Available |
| 48 | Not Available | Cord Inlet Cover Small | 6630001233 | Not Available |
| 49 | Not Available | Cord Inlet Cover 505T | 6630001240 | Not Available |
| 49 | Not Available | Cord Inlet Cover 506T | 6630075784 | Not Available |
| 50 | Not Available | Screw | NLA | Not Available |
| 51 | Not Available | Name Plate 505T | 6630001257 | Not Available |
| 51 | Not Available | Name Plate 506T | 6630075791 | Not Available |
| 52 | Not Available | Suction Hose Complete Incl. 53-62 | 40050 | Not Available |
| 53 | Not Available | Bleeder Ring | 45078 | Not Available |
| 54 | Not Available | Curved Wand | 45090 | Not Available |
| 55 | Not Available | Lock Ring | 6630000458 | Not Available |
| 56 | Not Available | Hose Grip Pipe | 6630000489 | Not Available |
| 57 | Not Available | Suction Hose Cover | 6630000465 | Not Available |
| 58 | Not Available | Suction Hose | 6630001295 | Not Available |
| 59 | No Image | COVER, HOSE LOCK 240/270 CANS Part Number: 6630000496 for Sanyo | 6630000496 | $2.08Read more |
| 60 | Not Available | Hose Hook | 6630000502 | Not Available |
| 61 | No Image | SPRING, HOSE LOCK 240/270 CANS Part Number: 6630000519 for Sanyo | 6630000519 | $1.60Read more |
| 62 | Not Available | Hose Joint Pipe | 6630000526 | Not Available |
| 63 | No Image | TURBO BRUSH ASS'Y, 505T Part Number: 6630001301 for Sanyo | 6630001301 | $86.55Read more |
| 64 | Not Available | Nozzle Cover | 6630001318 | Not Available |
| 65 | Not Available | Agitator Ass'y | 20025 | Not Available |
| 66 |  | BASE, BRUSH Part Number: 6630001332 for Sanyo | 6630001332 | $1.53Read more |
| 67 | Not Available | Belt 2 Pk | 10020 | Not Available |
| 68 | Not Available | Washer | 6630001356 | Not Available |
| 69 | Not Available | Washer | 6630001363 | Not Available |
| 70 | Not Available | Fan Pulley | 6630001370 | Not Available |
| 71 | Not Available | Sleeve Ass'y | 6630001387 | Not Available |
| 72 | Not Available | Washer | 6630001394 | Not Available |
| 73 | Not Available | E Ring | 6630001400 | Not Available |
| 74 | Not Available | Fan Shaft | 6630001417 | Not Available |
| 75 | Not Available | U Ring | 6630001424 | Not Available |
| 76 | Not Available | Pivot | 6630001431 | Not Available |
| 77 | No Image | FAN, Y120 POWERBOY Part Number: 6630001448 for Sanyo | 6630001448 | $12.13Read more |
| 78 | Not Available | E Ring | 6630001455 | Not Available |
| 79 | Not Available | Rug Floor Selector | 6630001462 | Not Available |
| 80 | Not Available | Elbow | 6630001479 | Not Available |
| 81 | Not Available | Elbow Set Piece | 6630001486 | Not Available |
| 82 | Not Available | Fan Intake | 6630001493 | Not Available |
| 83 | No Image | WHEEL, REAR 506T Part Number: 6630001509 for Sanyo | 6630001509 | $4.29Read more |
| 84 | Not Available | Bumper | 6630001516 | Not Available |
| 85 | Not Available | Nozzle Base | 55118 | Not Available |
| 86 | Not Available | Axle | 6630001530 | Not Available |
| 87 | Not Available | Wheel | 6630001547 | Not Available |
| 88 | Not Available | Screw (4X20) | NLA | Not Available |
| 89 | Not Available | Telescopic Wand | 50020 | Not Available |
| 90 | Not Available | Wand Retainer 505T | 6630001561 | Not Available |
| 90 | Not Available | Wand Retainer 506T | 6630075814 | Not Available |
| 91 | Not Available | Screw (4X20) 505T | NLA | Not Available |
| 91 | Not Available | Screw (4X16) 506T | 6630000335 | Not Available |
| 92 | No Image | DUST COMPARMENT, CPU1 Part Number: 54.010 for Carpet Pro | 54010 | $49.22Read more |
| 93 | Not Available | Upholstery Brush | 53005 | Not Available |
| 94 | Not Available | Small Rear Wheel 506T | 6630004296 | Not Available |
| 95 | Not Available | Rear Wheel Shaft 506T | 6630056554 | Not Available |
