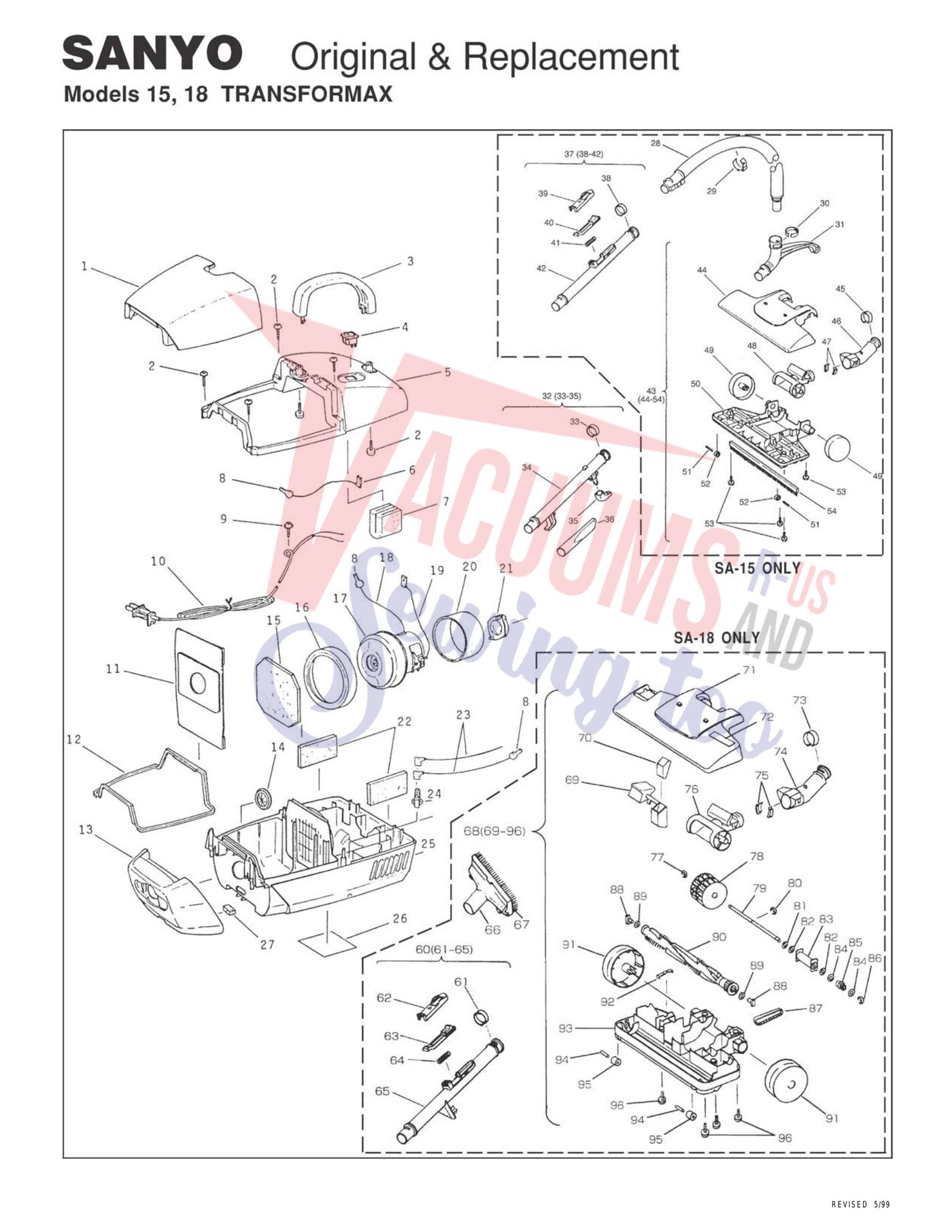

Schematic and parts book for Sanyo 15, 18 . Repairs should be done by trained technicians. Vacuums R Us & Sewing Too provides vacuum cleaner and carpet cleaner parts and accessories for vacuum cleaner repair purposes. We are committed to delivering high-quality components, but it is important to note that all appliance repairs involve risks, and we cannot guarantee the outcome of your repair. When using our vacuum parts for repairs, you accept the terms and conditions HERE
| # | Part image | Description | SKU | Price |
| XX | Not Available | Carbon Brush Ass'y 67 SA-52006 Slide On Brush 18 | 63025 | Not Available |
| 1 |  | Kit Caster 3 Inch Replacement | 75075 | $261.99Add to cart Product is special order please allow 2-4 weeks for delivery. |
| 1 | No Image | Pedal Label | 75077 | $0.00Read more |
| 2 | No Image | Hose Assembly Truckmount with Combo Tool 5ft | 77022 | $777.99Add to cart Product is special order please allow 2-4 weeks for delivery. |
| 2 | Not Available | Screw 18 | 77245 | Not Available |
| 3 |  | Axle, For Power Nozzle 2-102/2-101 Part Number: 70065 for Compact | 70065 | $2.32Read more |
| 4 | Not Available | Switch | 34025 | Not Available |
| 5 | No Image | Label, Instruction, Battery | 75080 | $7.99Read more |
| 5 | No Image | Label, Control, Brush Assist | 75082 | $25.99Read more |
| 6 | Not Available | Cord | 36050 | Not Available |
| 7 | Not Available | Fuse Packing | 18073 | Not Available |
| 8 | Not Available | Wire Connector | SS-3270 | Not Available |
| 9 | Not Available | Screw | 77024 | Not Available |
| 10 | Not Available | Power Cord | 30020 | Not Available |
| 11 | Not Available | Paper Bag 10 Pk | 1411 | Not Available |
| 12 | Not Available | Dust Box Packing | 76027 | Not Available |
| 13 | No Image | Motor, 24V, 2200 Rpm, .75Hp | 75085 | $1,867.99Read more |
| 14 | Not Available | Air Inlet Packing | 76500 | Not Available |
| 15 | Not Available | Secondary Electrostatic Filter 2 Pk | 18008 | Not Available |
| 16 | Not Available | Front Motor Cushion | 76003 | Not Available |
| 17 | Not Available | Motor Complete 15 | 60035 | Not Available |
| 17 | Not Available | Motor Complete 18 | 60040 | Not Available |
| 18 | Not Available | Lead Wire (Red) | 36055 | Not Available |
| 19 | Not Available | Lead Wire (Black) | 36057 | Not Available |
| 20 | Not Available | Muffler | 62050 | Not Available |
| 21 | Not Available | Rear Motor Cushion | 62015 | Not Available |
| 22 | Not Available | Exhaust Filter 15 | 18022 | Not Available |
| 22 | Not Available | Exhaust Filter 18 | 18024 | Not Available |
| 23 | Not Available | Lead Wire (Black) | 36020 | Not Available |
| 24 | Not Available | Fuse 10 Amp | 34407 | Not Available |
| 25 | No Image | Spring Pile Adjustment, for SOFTCASE | 75090 | $4.00Read more |
| 26 | Not Available | Name Plate 15 | 74088 | Not Available |
| 26 | Not Available | Name Plate 18 | NLA | Not Available |
| 27 | Not Available | Indicator Filter | 18072 | Not Available |
| 28 | Not Available | Hose Ass'y | 40012 | Not Available |
| 29 | Not Available | Hose Clip | 45010 | Not Available |
| 30 | Not Available | Lock Ring 15 | 45072 | Not Available |
| 30 | Not Available | Lock Ring 18 | 45012 | Not Available |
| 31 | Not Available | Grip | 45020 | Not Available |
| 32 | Not Available | Upper Wand Ass'y Incl. 33-35 | 50012 | Not Available |
| 33 | Not Available | Lock Ring 15 | 45074 | Not Available |
| 33 | Not Available | Lock Ring 18 | 45073 | Not Available |
| 34 | Not Available | Upper Wand | 50011 | Not Available |
| 35 | Not Available | Upper Cord Hook | 70502 | Not Available |
| 36 | Not Available | Crevice Tool | 54012 | Not Available |
| 37 | Not Available | Lower Wand Ass'y 15 Incl. 38-42 | 50014 | Not Available |
| 38 | Not Available | Lock Ring 15 | 45074 | Not Available |
| 38 | Not Available | Lock Ring 18 | 45073 | Not Available |
| 39 | Not Available | Pipe Cover | 45030 | Not Available |
| 40 | Not Available | Button 15 | 45032 | Not Available |
| 41 | Not Available | Spring | 77297 | Not Available |
| 42 | Not Available | Lower Wand 15 | 50013 | Not Available |
| 43 | Not Available | Floor Nozzle Ass'y 15 Incl. 44-54 | 55012 | Not Available |
| 44 | Not Available | Nozzle Cover 15 | 55132 | Not Available |
| 45 | Not Available | Lock Ring 15 | 45074 | Not Available |
| 46 | Not Available | Elbow | 55104 | Not Available |
| 47 | Not Available | Elbow Set Piece | 55106 | Not Available |
| 48 | Not Available | Pivot | 55108 | Not Available |
| 49 | Not Available | Wheel | 71030 | Not Available |
| 50 | Not Available | Nozzle Base 15 | 55122 | Not Available |
| 51 | Not Available | Front Axle 15 | 71033 | Not Available |
| 52 | Not Available | Front Wheel 15 | 71032 | Not Available |
| 53 | Not Available | Screw 15 | 77025 | Not Available |
| 54 | Not Available | Bristle Strip 15 | 55162 | Not Available |
| 60 | Not Available | Lower Wand Ass'y 18 Incl. 61-65 | 50018 | Not Available |
| 61 | Not Available | Lock Ring 18 | 45073 | Not Available |
| 62 | Not Available | Pipe Cover | 45030 | Not Available |
| 63 | Not Available | Button 18 | 45034 | Not Available |
| 64 | Not Available | Spring | 77297 | Not Available |
| 65 | Not Available | Lower Wand 18 | 50016 | Not Available |
| 66 | Not Available | Upholstery Tool 18 | 52000 | Not Available |
| 67 | Not Available | Slide On Brush 18 | 52006 | Not Available |
| 68 | Not Available | Floor Nozzle Ass'y 18 Incl. 69-96 | 55013 | Not Available |
| 69 | Not Available | Selector Lever 18 | 73438 | Not Available |
| 70 | Not Available | Air Spreader 18 | 73439 | Not Available |
| 71 | Not Available | Nozzle Cover 18 | 55133 | Not Available |
| 72 | Not Available | Caution Label 18 | 74004 | Not Available |
| 73 | Not Available | Lock Ring | 45073 | Not Available |
| 74 | Not Available | Elbow | 55104 | Not Available |
| 75 | Not Available | Elbow Set Piece | 55106 | Not Available |
| 76 | Not Available | Pivot | 55108 | Not Available |
| 77 | Not Available | Ring 18 | 77205 | Not Available |
| 78 | Not Available | Turbo Fan 18 | 72100 | Not Available |
| 79 | Not Available | Turbo Fan Shaft 18 | 72105 | Not Available |
| 80 | Not Available | Ring 18 | 77208 | Not Available |
| 81 | Not Available | Washer 18 | 77165 | Not Available |
| 82 | Not Available | Washer 18 | 77167 | Not Available |
| 83 | Not Available | Sleeve Ass'y 18 | 72200 | Not Available |
| 84 | Not Available | Washer 18 | NLA | Not Available |
| 85 | Not Available | Pulley 18 | 72210 | Not Available |
| 86 | Not Available | Ring 18 | 77212 | Not Available |
| 87 | Not Available | Geared Belt 18 | 10015 | Not Available |
| 88 | Not Available | Bearing 18 | 20598 | Not Available |
| 89 | Not Available | Washer 18 | 77172 | Not Available |
| 90 | Not Available | Brushroll 18 | 20018 | Not Available |
| 91 | Not Available | Rear Wheel 18 | 71030 | Not Available |
| 92 | Not Available | Leaf Spring 18 | 77192 | Not Available |
| 93 | Not Available | Nozzle Base 18 | 55124 | Not Available |
| 94 | Not Available | Front Axle 18 | 71035 | Not Available |
| 95 | Not Available | Front Wheel 18 | 71034 | Not Available |
| 96 | Not Available | Screw | 77245 | Not Available |
