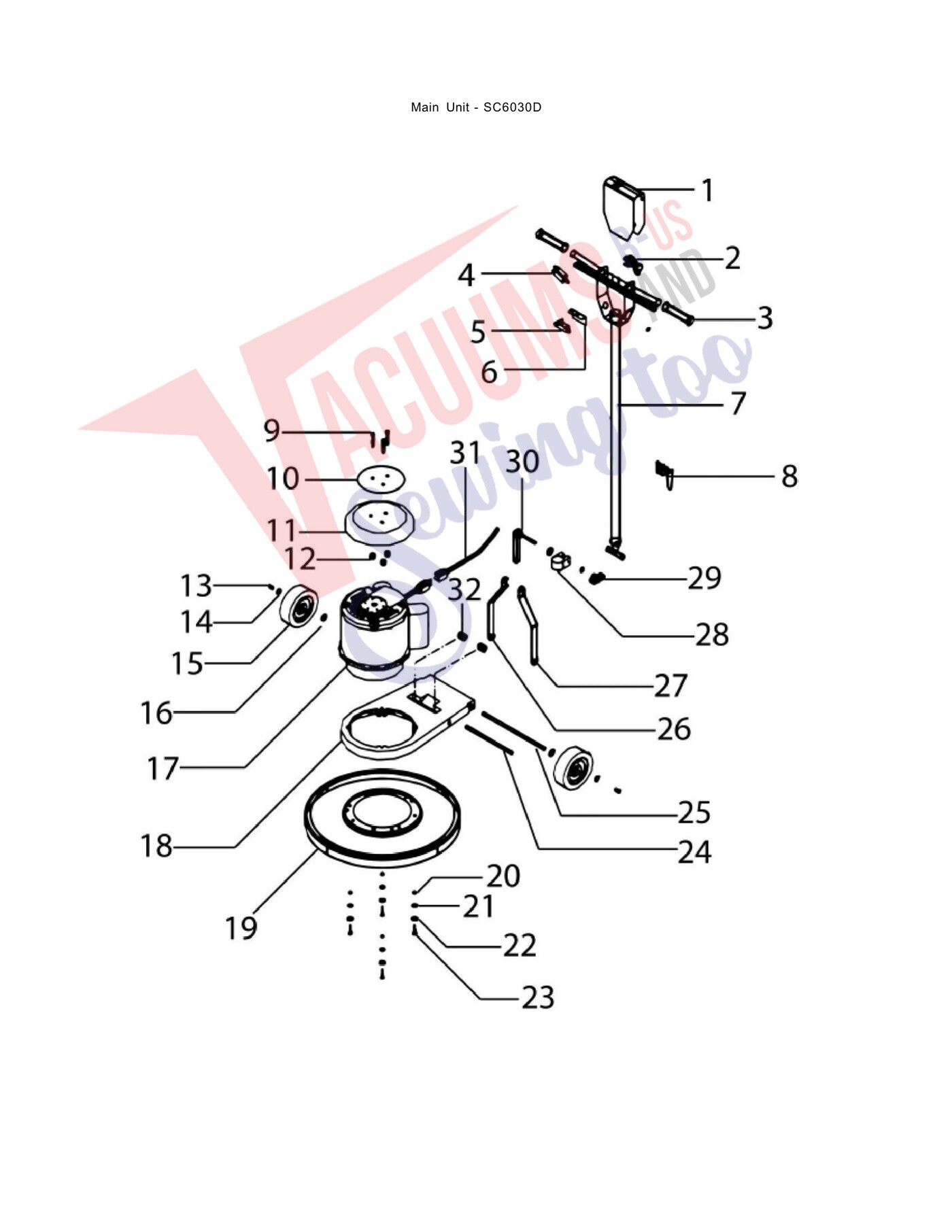

Schematic and parts book for sanitaire SC6030D, SC6030 . Repairs should be done by trained technicians. Vacuums R Us & Sewing Too provides vacuum cleaner and carpet cleaner parts and accessories for vacuum cleaner repair purposes. We are committed to delivering high-quality components, but it is important to note that all appliance repairs involve risks, and we cannot guarantee the outcome of your repair. When using our vacuum parts for repairs, you accept the terms and conditions HERE
| # | Part image | Description | SKU | Price |
| 1 | Not Available | HANDLE | 16323CP | Not Available |
| 2 | Not Available | SWITCH ACTUATOR | 16325CP | Not Available |
| 3 | Not Available | HANDLE GRIP - 1" DIA | 16324CP | Not Available |
| 4 | Not Available | CIRCUIT BREAKER -15A | 16329CP | Not Available |
| 5 | Not Available | SWITCH - 25A W/NUTS | 16327CP | Not Available |
| 6 | Not Available | INSULATION - SWITCH | 16326CP | Not Available |
| 7 | Not Available | HANDLE | 16323CP | Not Available |
| 8 | Not Available | CORD HOOK - PLATED | 16328CP | Not Available |
| 9 | Not Available | 10-32X3/4 FMHS SS | 16330CP | Not Available |
| 10 | Not Available | MOTOR COVER | 16331CP | Not Available |
| 11 | Not Available | MOTOR COVER | 16331CP | Not Available |
| 12 | Not Available | SPACER - MOTOR COVER | 16332CP | Not Available |
| 13 | Not Available | SCREW - 1/4-20 X 3/4 PHIL | 16333CP | Not Available |
| 14 | Not Available | WASHER - AXLE | 16334CP | Not Available |
| 15 | Not Available | WHEEL - BLACK | 16335CP | Not Available |
| 16 | Not Available | WASHER -SPRING | 16336CP | Not Available |
| 17 | Not Available | MOTOR - 2 SPEED W/GEARBOX | 16356CP | Not Available |
| 18 | Not Available | MOTOR BASE | 16338CP | Not Available |
| 19 | Not Available | BRUSH COVER - 17"W/BUMPER | 16339CP | Not Available |
| 20 | Not Available | WASHER 1/4 SPLIT LOCK | 16340CP | Not Available |
| 21 | Not Available | WASHER 5/16 SAE FLAT | 16341CP | Not Available |
| 22 | Not Available | WASHER 3/8 SAE FLAT | 16342CP | Not Available |
| 23 | Not Available | SCREW - 1/4-20 X 1-3/4 HE | 16343CP | Not Available |
| 24 | Not Available | PIVOT PIN | 16344CP | Not Available |
| 25 | Not Available | AXLE - WHEEL | 16345CP | Not Available |
| 26 | Not Available | HANDLE BRACE - LEFT W/SLO | 16347CP | Not Available |
| 27 | Not Available | HANDLE BRACE - RIGHT W/HO | 16348CP | Not Available |
| 28 | Not Available | COLLAR - HANDLE CLAMP | 16351CP | Not Available |
| 29 | No Image | Knob, Handle Clamp SC6030D Part Number: 16350CP for Eureka | 16350CP | $23.32Read more |
| 30 | No Image | Cam Lever Assembly SC6030D Part Number: 16352CP for Eureka | 16352CP | $129.14Read more |
| 31 | Not Available | CORD - 14/3 SJTW 51.25 BL | 16349CP | Not Available |
| 32 | Not Available | SPACER - HANDLE | 16346CP | Not Available |
| # | Part image | Description | SKU | Price |
