Schematic and parts book for Sanitaire SC5815 . Repairs should be done by trained technicians. Vacuums R Us & Sewing Too provides vacuum cleaner and carpet cleaner parts and accessories for vacuum cleaner repair purposes. We are committed to delivering high-quality components, but it is important to note that all appliance repairs involve risks, and we cannot guarantee the outcome of your repair. When using our vacuum parts for repairs, you accept the terms and conditions HERE
Popular Supplies

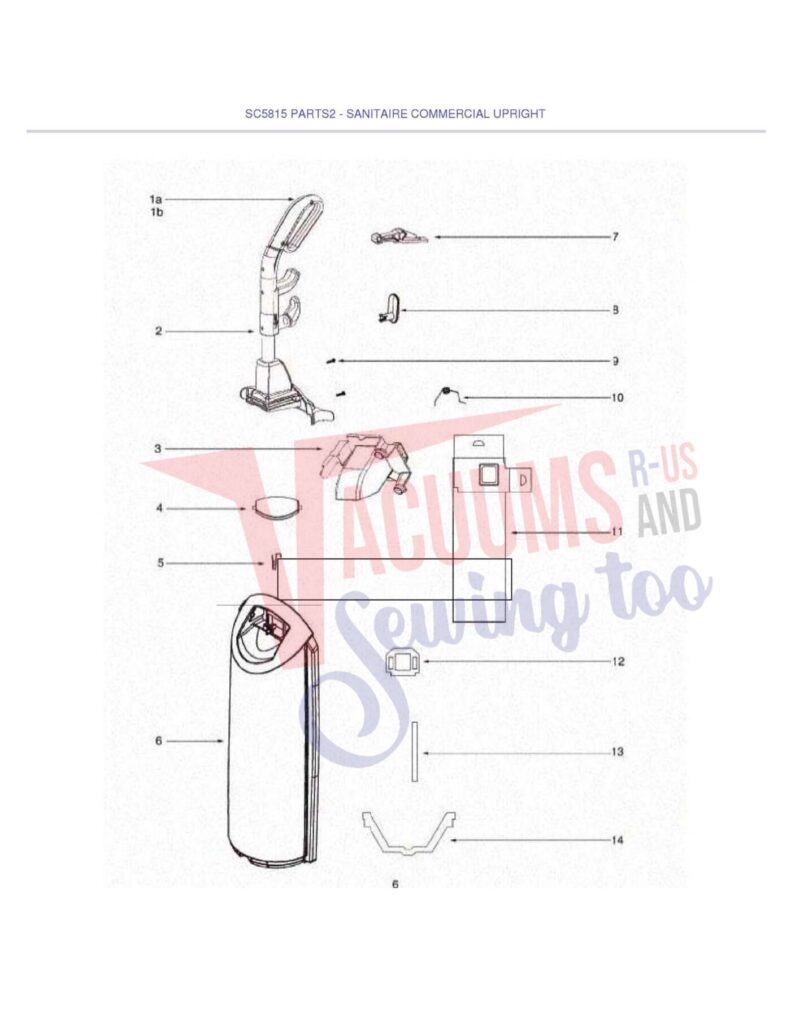

| # | Part image | Description | SKU | Price |
| 1 | Not Available | GRIP - LEFT HANDLE | 15596-355N | Not Available |
| 1B | Not Available | GRIP - RIGHT HANDLE | 15597-355N | Not Available |
| 5 | Not Available | SPRING - TORSION | 71852 | Not Available |
| 6 | Not Available | BAG COVER ASSEMBLY - PKGD | 61880-7 | Not Available |
| 8 |  | Cord Hook, Upper C4571A/C4910A/C5712A/EP9110A Part Number: 28316355N for Eureka | 28316355N | $6.56Add to cart Special order: ships in 2 to 4 weeks |
| 9 |  | Screw, SC5845/4390A/SP5035A 10Pk Part Number: 5323844 for Eureka | 5323844 | $6.78Add to cart Special order: ships in 2 to 4 weeks |
| 10 | Not Available | SPRING - TORSION | 71748 | Not Available |
| 11 | Not Available | PAPER BAG PACKAGE - STYLE | 61820 | Not Available |
| 12 | No Image | ADAPTOR, GASKET SC5815 UPRIGHT Part Number: 71854 for Eureka | 71854 | $5.98Read more |
| 13 | Not Available | GASKET - BAG COVER | 71512 | Not Available |
| 14 | Not Available | GASKET - LOWER BAG | 71765A | Not Available |
| 14 | Not Available | FILTER - EXHAUST (HEPA - | 71801A | Not Available |
| 71 | Not Available | ADAPTER - CLIP | 746-119N | Not Available |
| 71 | Not Available | BAG-IN-PLACE ARM | 747-119N | Not Available |

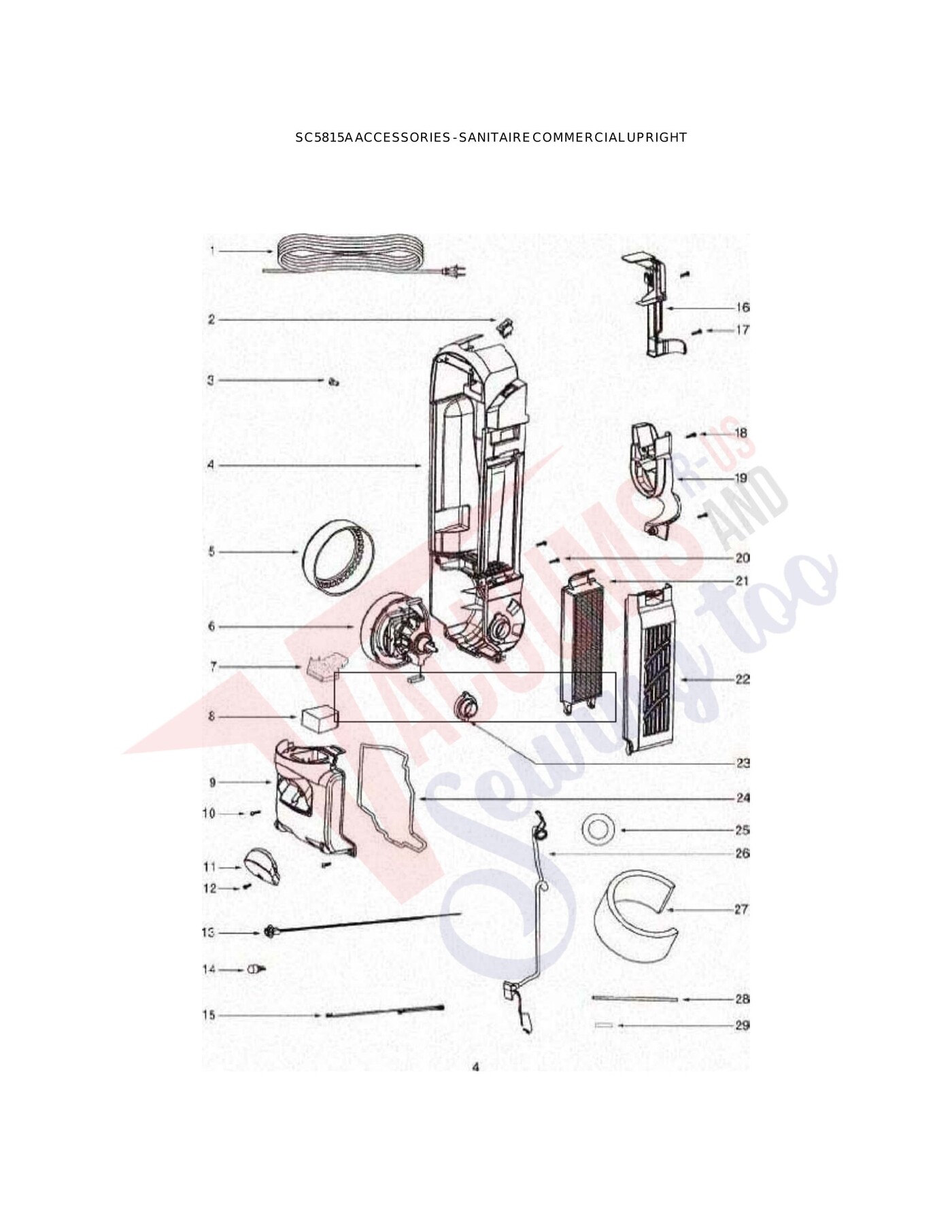

| # | Part image | Description | SKU | Price |
| 1 | Not Available | SUPPLY CORD & TERMINAL AS | 38680-31 | Not Available |
| 2 |  | Switch, Black Rect Rocker On/Off Ultra Smart Vac Part Number: 28073A for Eureka | 28073A | $8.67Add to cart Special order: ships in 2 to 4 weeks |
| 3 |  | Wire Nuts, 5Pk Part Number: 60192-1 for Eureka | 601921 | $5.38Add to cart Special order: ships in 2 to 4 weeks |
| 5 | No Image | GASKET, MOTOR 5815 Part Number: 71649 for Eureka | 71649 | $4.93Read more |
| 6 | Not Available | MOTOR ASSEMBLY - PACKAGED | 60261-10 | Not Available |
| 7 | No Image | SCREEN, MOTOR SC5815 Part Number: 71851119N for Eureka | 71851119N | $4.87Read more |
| 8 |  | Filter, Secondary Foam 5740/5840/5843/5844/5846 Part Number: 71480 for Eureka | 71480 | $4.00Add to cart Special order: ships in 2 to 4 weeks |
| 9 | Not Available | MOTOR COVER ASSY - PKGD | 61879-3 | Not Available |
| 11 | Not Available | LENS - HEADLAMP | 71460-313N | Not Available |
| 12 | | Screw, SC5845/4390A/SP5035A 10Pk Part Number: 5323844 for Eureka | 5323844 | $6.78Add to cart Special order: ships in 2 to 4 weeks |
| 13 | Not Available | SOCKET & TERMINAL ASSY | 70701-2 | Not Available |
| 14 | Not Available | LAMP - HEADLIGHT | 57940-3 | Not Available |
| 15 | Not Available | THERMOSTAT & TERMINAL ASS | 39252-3 | Not Available |
| 16 |  | SWITCH COVER ASSEMBLY Part Number: 721271 for Eureka | 721271 | $8.17Read more |
| 19 |  | Tool Pack, Lower 5800 Series Part Number: 71455119N for Eureka | 71455119N | $10.82Add to cart Special order: ships in 2 to 4 weeks |
| 20 | Not Available | SCREW PACKAGE | 53238-27 | Not Available |
| 21 | Not Available | WASHABLE HEPA FILTER - PK | 61840 | Not Available |
| 22 | Not Available | FILTER COVER & GRAPHICS A | 72006-5 | Not Available |
| 23 | Not Available | BUSHING - MOTOR SUPPORT | 70084 | Not Available |
| 24 | No Image | GASKET, MOTOR COVER 5845 Part Number: 71484 for Eureka | 71484 | $3.88Read more |
| 25 | Not Available | GASKET - MOTOR HUB | 71969-1 | Not Available |
| 26 | Not Available | CORD - JUMPER | 71465 | Not Available |
| 27 |  | FOAM, SOUND Part Number: 722241 for Eureka | 722241 | $2.93Read more |
| 28 | Not Available | TUBE - FLEXIBLE | 70651-1 | Not Available |
| 29 | Not Available | PLUG | 72167 | Not Available |

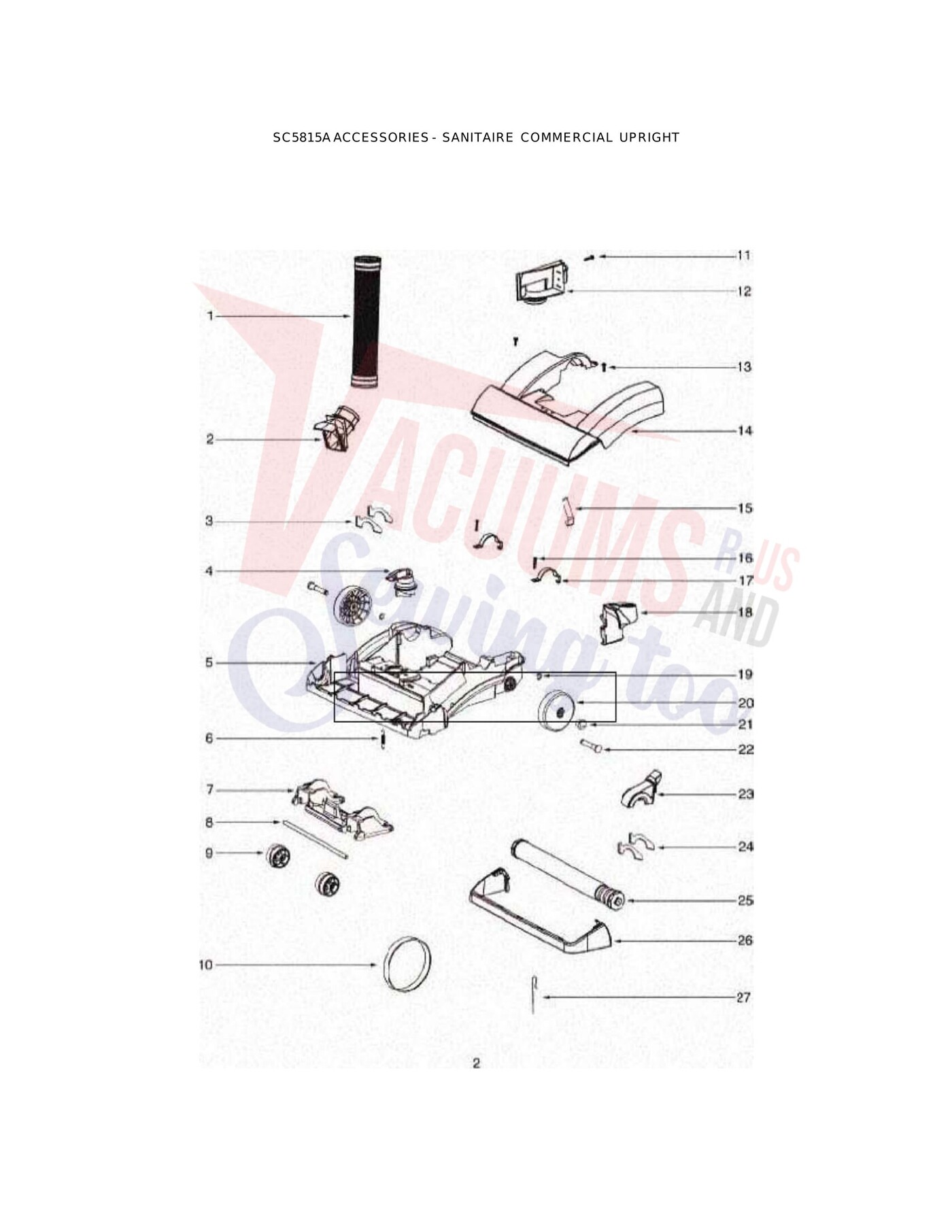

| # | Part image | Description | SKU | Price |
| 1 | Not Available | BASE HOSE ASSY | 71466 | Not Available |
| 2 | Not Available | BASE HOSE ASSY | 71447-119N | Not Available |
| 3 | Not Available | FELT - BASE | 73153 | Not Available |
| 4 |  | NO LONGER AVAILABLE Knob, Gray Height Adjustment SC5713/SC5815 Series Part Number: 71448355N for ... | 71448355N | $6.43Add to cart Special order: ships in 2 to 4 weeks |
| 5 | Not Available | BASE ASSEMBLY - PACKAGED | 61877-10 | Not Available |
| 6 |  | Spring, Wheel Retainer Ht Adjustment Victory 10Pk Part Number: 54943 for Eureka | 54943 | $10.34Add to cart Special order: ships in 2 to 4 weeks |
| 7 |  | Carriage, Front Wheel 5812A/5855AN/5857AZ Part Number: 71446A119N for Eureka | 71446A119N | $12.60Add to cart Special order: ships in 2 to 4 weeks |
| 8 |  | Axle, Front SC5713/SC5815/SC5845 Uprights Part Number: 71478 for Eureka | 71478 | $5.24Add to cart Special order: ships in 2 to 4 weeks |
| 9 |  | Wheel, Front 5191/5847AV Part Number: 39173A119N for Eureka | 39173A119N | $5.24Add to cart Special order: ships in 2 to 4 weeks |
| 10 | Not Available | BELT PKG ASSY-STYLE U EXT | 61120A | Not Available |
| 12 | Not Available | BASE HOSE ASSY | 71726-119N | Not Available |
| 13 | | Screw, SC5845/4390A/SP5035A 10Pk Part Number: 5323844 for Eureka | 5323844 | $6.78Add to cart Special order: ships in 2 to 4 weeks |
| 14 | Not Available | HOOD ASSEMBLY - PACKAGED | 61878-19 | Not Available |
| 15 |  | SPRING, HANDLE RELEASE 2903 Part Number: 71574 for Eureka | 71574 | $4.45Add to cart Special order: ships in 2 to 4 weeks |
| 16 | Not Available | SCREW PACKAGE | 53238-27 | Not Available |
| 17 |  | Clamp, Motor Part Number: 71487 for Eureka | 71487 | $3.88Read more |
| 18 |  | Pedal, Gray Foot Handle Release SC-5845 Part Number: 71457355N for Eureka | 71457355N | $6.37Add to cart Special order: ships in 2 to 4 weeks |
| 19 |  | Ring, Retaining Wheels EL6988/EL7020/EL7070/EL4300 Part Number: 54432-2 for Eureka | 544322 | $4.33Add to cart Special order: ships in 2 to 4 weeks |
| 20 | Not Available | WHEEL - REAR | 72117-119N | Not Available |
| 21 | Not Available | BUSHING - AXLE | 73432 | Not Available |
| 22 | Not Available | AXLE - REAR | 38590 | Not Available |
| 23 |  | Cover, Off-Wht Plastic Belt Cap 5700-5800 Series Part Number: 71741A for Eureka | 71741A | $5.85Read more |
| 24 |  | Belt Cap, White Felt SC5713/SC5815/SP5816 Part Number: 73152 for Eureka | 73152 | $4.02Read more |
| 25 | Not Available | BRUSHROLL ASSEMBLY - CART | 62228-3 | Not Available |
| 27 | Not Available | GUARD - BELT | 38063 | Not Available |
| 27 | Not Available | KNOB - HEIGHT ADJUSTMENT | 71448-333N | Not Available |

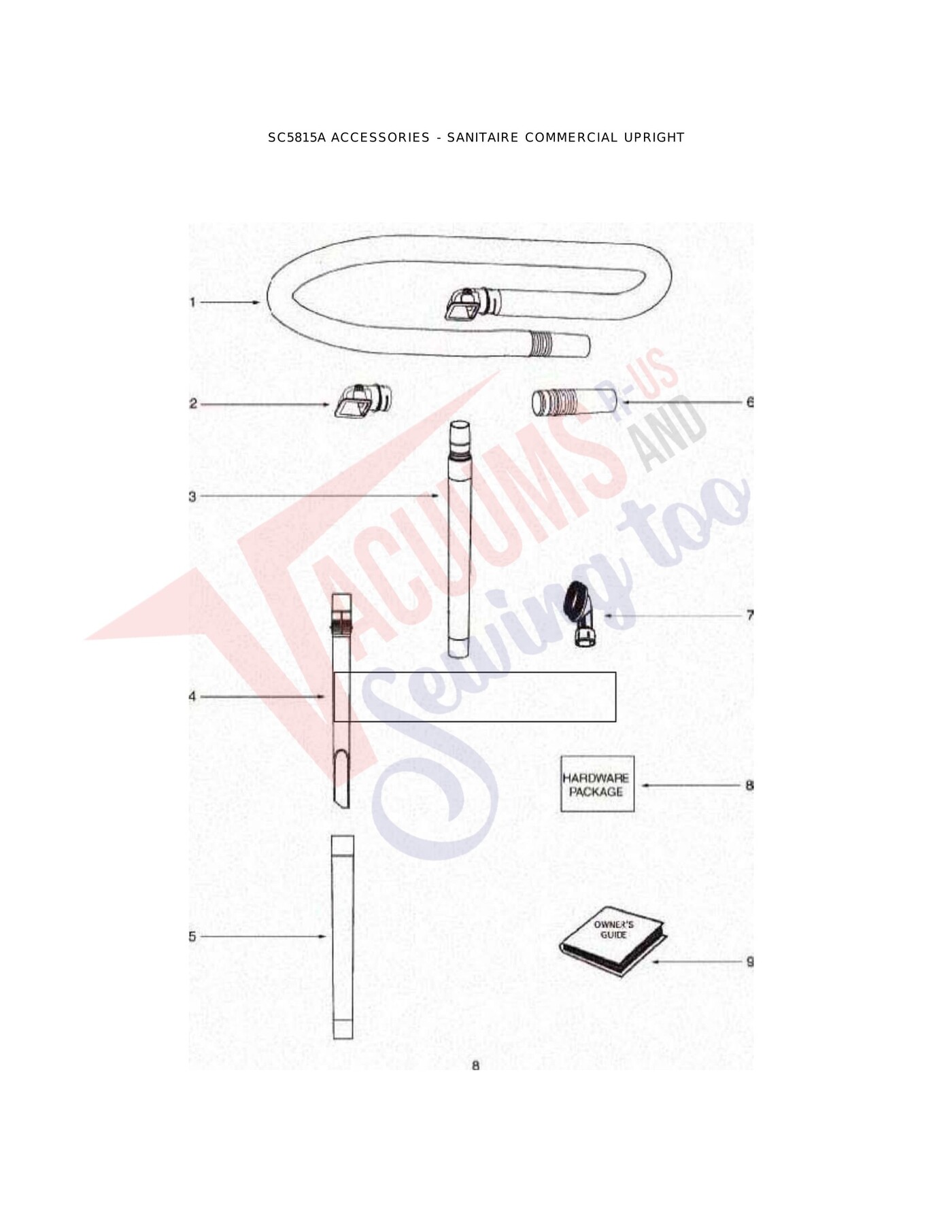

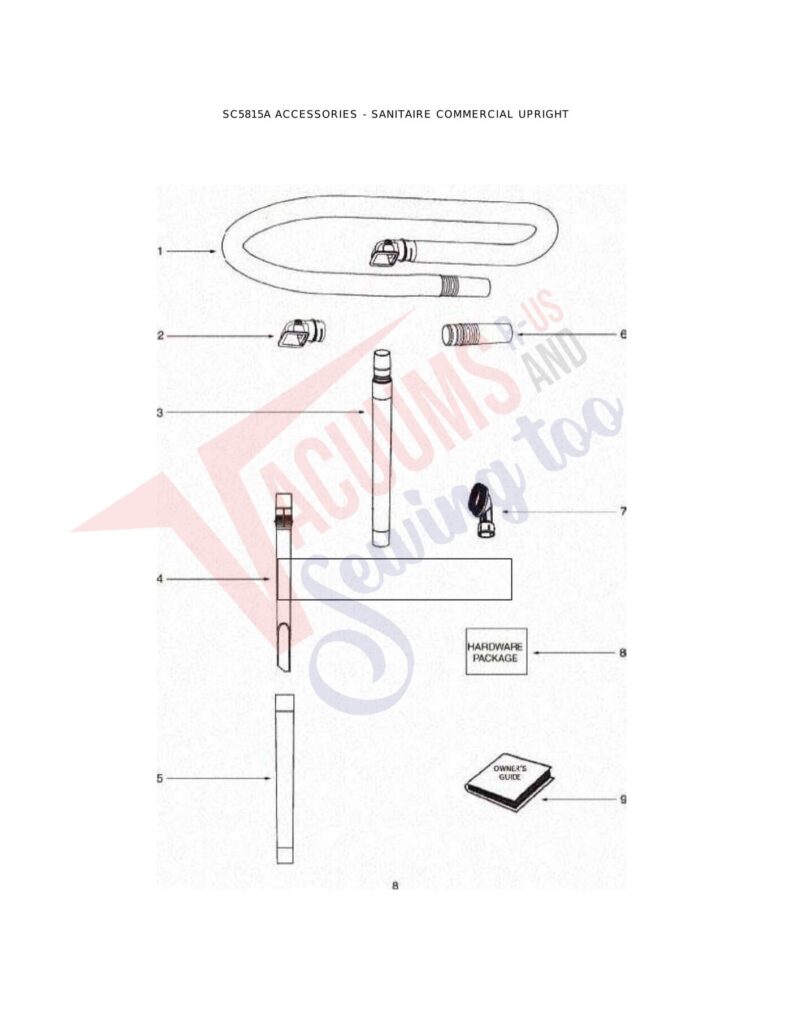

| # | Part image | Description | SKU | Price |
| 1 |  | Hose, Attach W/Adaptor/Coupling Litespeed 5811A Part Number: 618654 for Eureka | 618654 | $54.80Add to cart Special order: ships in 2 to 4 weeks |
| 2 |  | Adapter, Hose 5800/2900/SC5713/SC5815 Series Part Number: 71725313N for Eureka | 71725313N | $8.59Add to cart Special order: ships in 2 to 4 weeks |
| 3 | No Image | Solenoid,Extractor,1/8 Orifice | 71492A | $971.99Add to cart Special order: ships in 2 to 4 weeks |
| 4 | Not Available | WAND - CREVICE | 71956A-355N | Not Available |
| 5 | Not Available | WAND - OUTER | 71973-119N | Not Available |
| 6 |  | Coupling, Hose 2900/3200/5800 Series Upright Part Number: 70559A119N for Eureka | 70559A119N | $10.82Add to cart Special order: ships in 2 to 4 weeks |
| 7 |  | Dust Brush-Eureka - 7606 Combo
Sc5845 For: eureka,sanitaire | 609902 | $11.94Add to cart Special order: ships in 2 to 4 weeks |
| 8 | Not Available | PACKAGE - HARDWARE | 72322 | Not Available |
