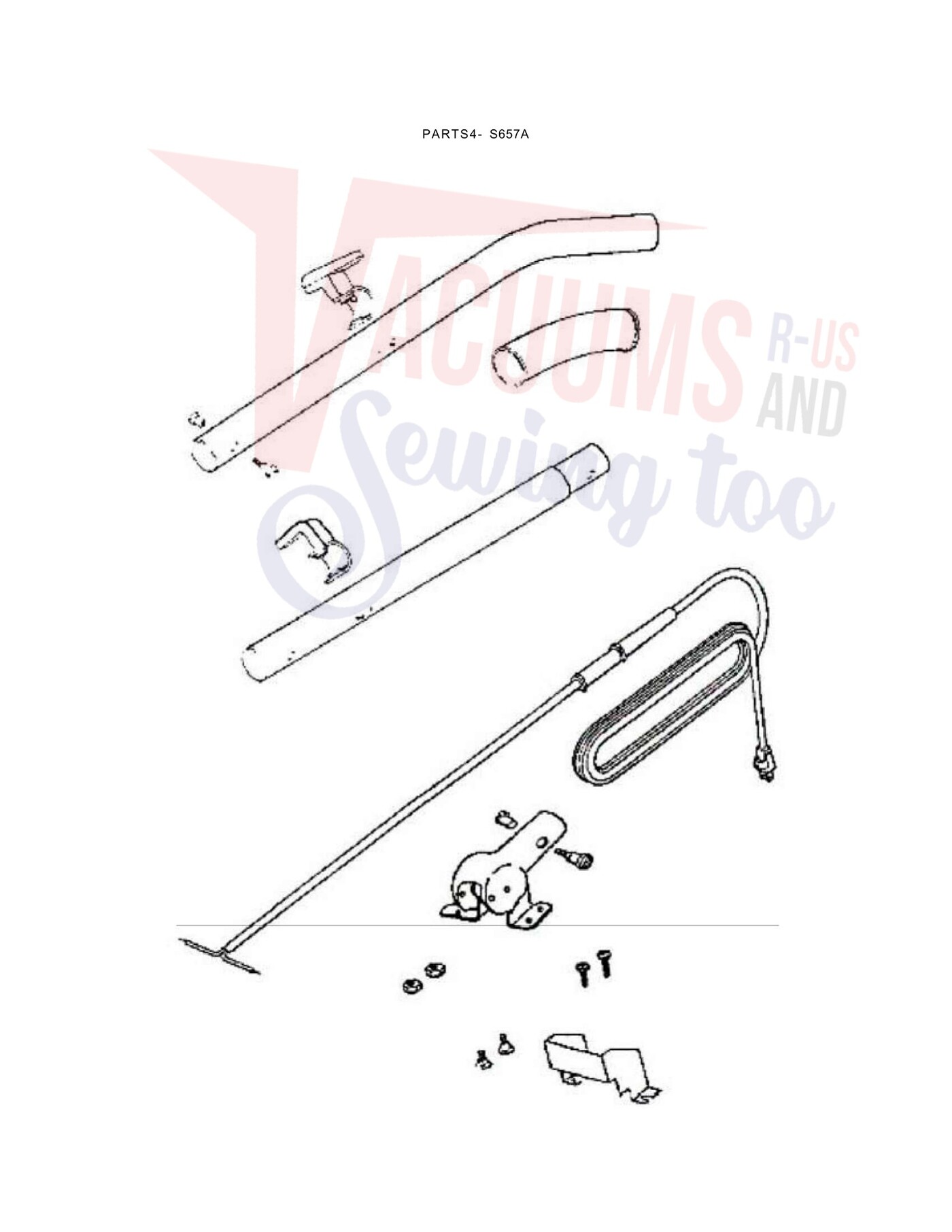

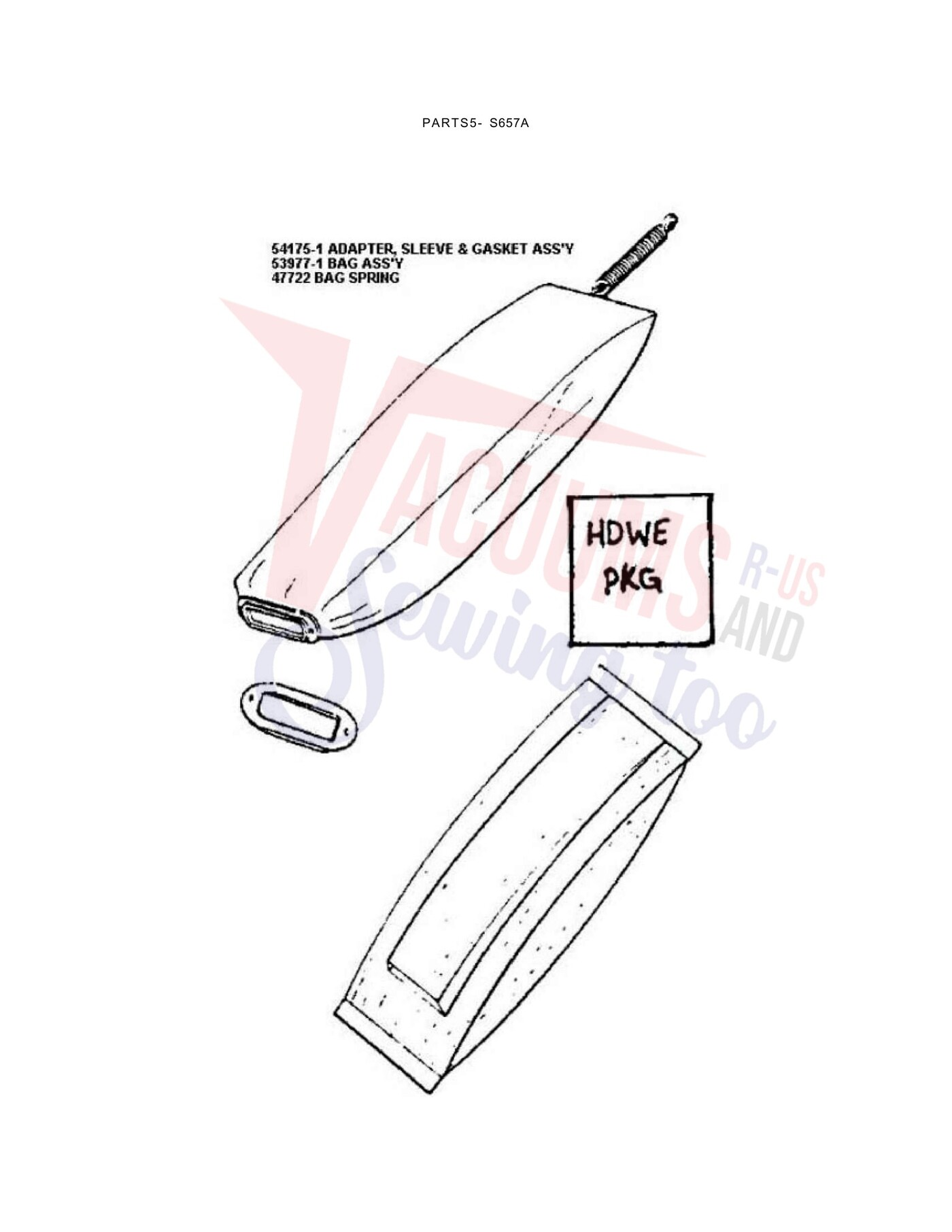

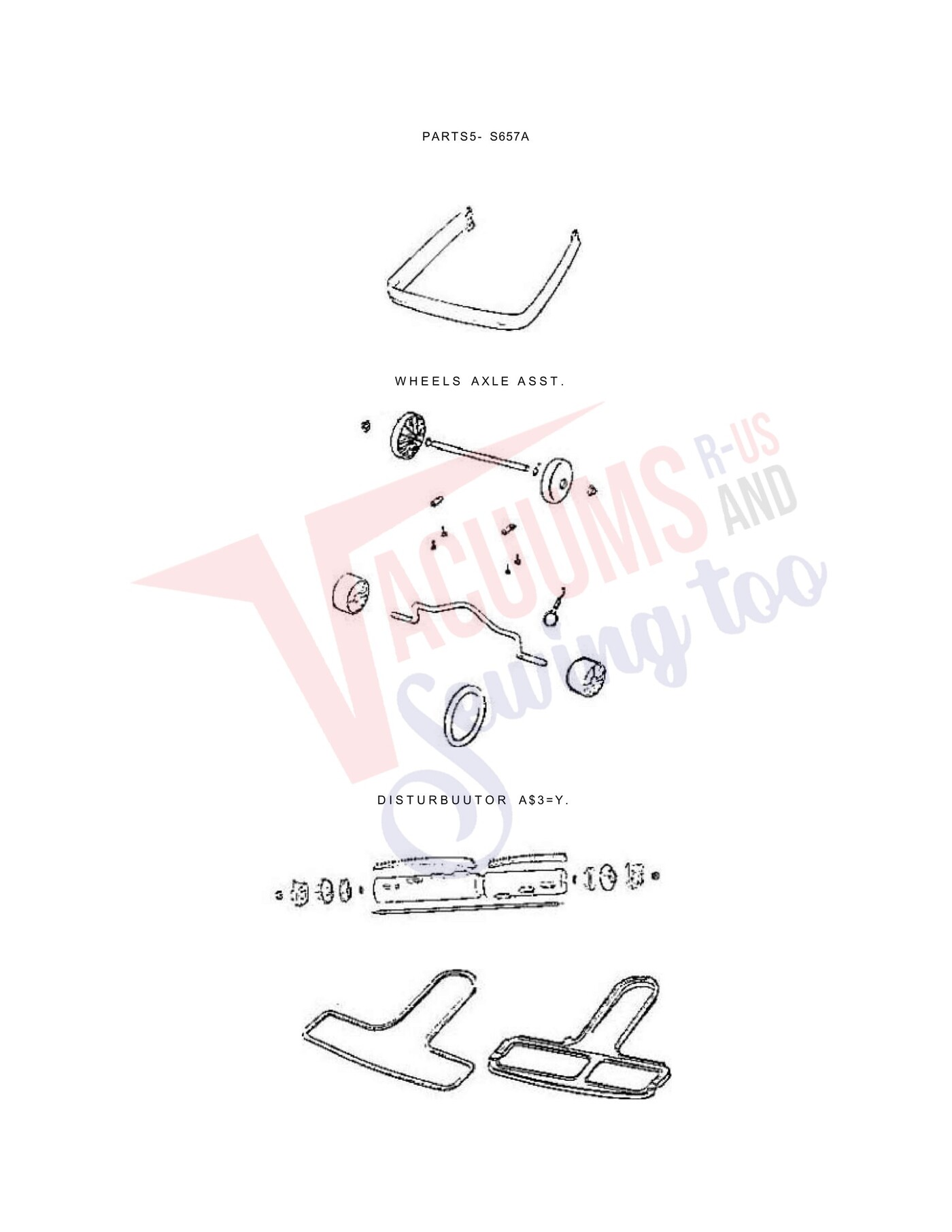

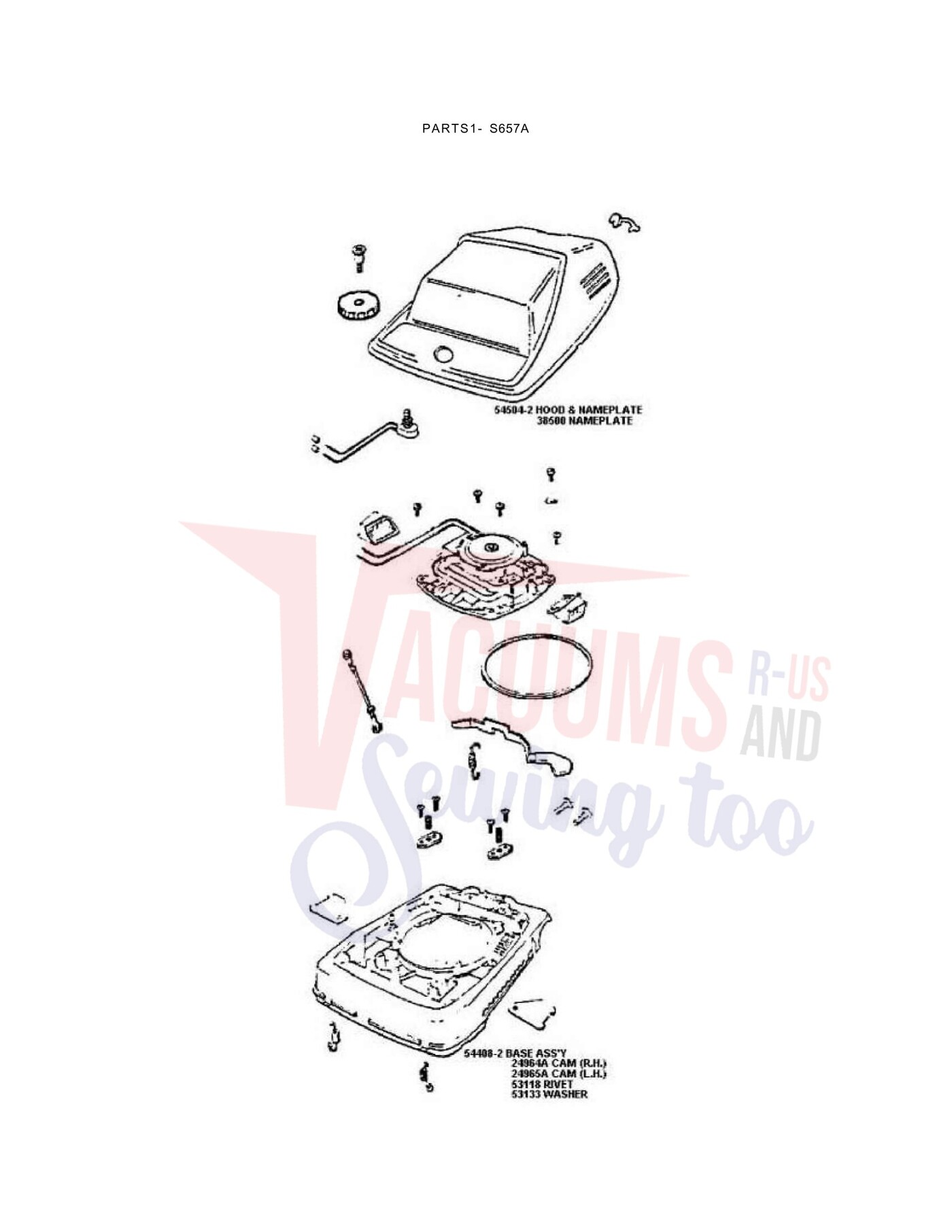

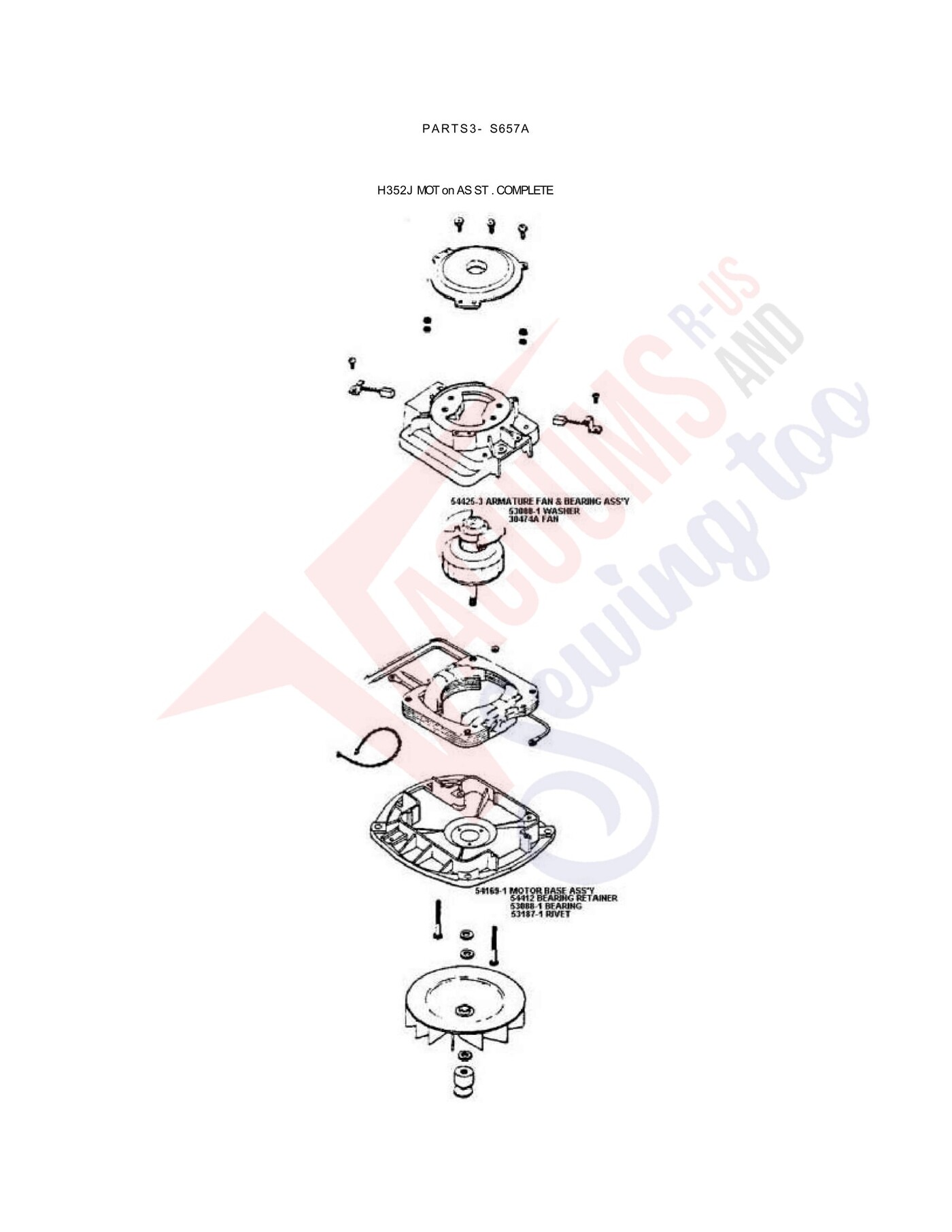

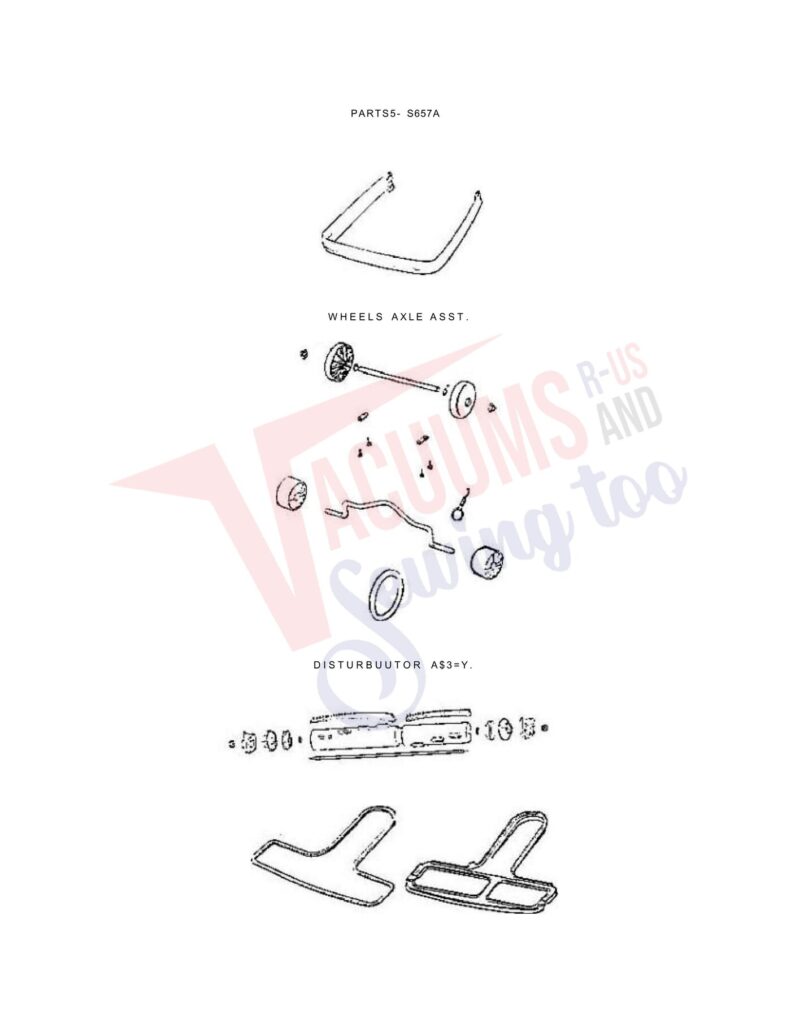

Schematic and parts book for sanitaire S657A . Repairs should be done by trained technicians. Vacuums R Us & Sewing Too provides vacuum cleaner and carpet cleaner parts and accessories for vacuum cleaner repair purposes. We are committed to delivering high-quality components, but it is important to note that all appliance repairs involve risks, and we cannot guarantee the outcome of your repair. When using our vacuum parts for repairs, you accept the terms and conditions HERE
Popular Supplies
| # | Part image | Description | SKU | Price |
| 1 | Not Available | TUBE - HANDLE (LOWER) | 12637-8 | Not Available |
| 2 | Not Available | RETAINER - CORD (LOWER) | 13521-2 | Not Available |
| 3 | Not Available | HANDLE ASSEMBLY (UPPER) | 25329-20 | Not Available |
| 4 | Not Available | CORD & POLARIZED PLUG ASS | 27382-4 | Not Available |
| 5 | Not Available | GRIP - HANDLE | 35293-8 | Not Available |
| 6 | Not Available | SLEEVE | 36097-3 | Not Available |
| 7 |  | SHIELD - HANDLE SOCKET | 36439 | $13.99Add to cart Product is special order please allow 2-4 weeks for delivery. |
| 8 | Not Available | CORD RETAINER ASSY-BLACK | 36965-2 | Not Available |
| 9 | Not Available | HANDLE SOCKET ASSEMBLY | 38183-1 | Not Available |
| 10 |  | Bolt, Handle Bracket Eur/Sanitaire Uprights Part Number: 53145 for Eureka | 53145 | $8.87Read more |
| 11 | Not Available | HANDLE SCREW ASSY PACKAGE | 53198-1 | Not Available |
| 12 |  | Nut-Eureka - 10Pk - Bravo Handle For: eureka,sanitaire | 532135 | $4.45Add to cart Product is special order please allow 2-4 weeks for delivery. |
| 13 |  | Screw, Rear Axle Retainer Clip Sanitaire/2000 Ser Part Number: 53238-13 for Eureka | 5323813 | $6.56Add to cart Product is special order please allow 2-4 weeks for delivery. |
| # | Part image | Description | SKU | Price |
| 1 | Not Available | PEDAL - FOOT | 24834A-1 | Not Available |
| 2 | Not Available | CAM (RIGHT) | 24964A | Not Available |
| 3 | Not Available | CAM (LEFT) | 24965A | Not Available |
| 4 | Not Available | GASKET - MOTOR SEAL | 30517 | Not Available |
| 5 |  | Cover, Gray Wheel C2000/1400/1900/C4000 Series Part Number: 36263 for Eureka | 36263 | $4.33Add to cart Product is special order please allow 2-4 weeks for delivery. |
| 6 |  | Eureka and Sanitaire Switch, Metal Push Button SC886/887/888/889/899 | E-36409-13 | $15.23Add to cart |
| 7 | Not Available | KNOB ASSEMBLY | 38053-1 | Not Available |
| 8 | Not Available | NAMEPLATE | 38500 | Not Available |
| 9 |  | BUSHING, HOOD 5134 UPRIGHT Part Number: 530891 for Eureka | 530891 | $8.02Add to cart Product is special order please allow 2-4 weeks for delivery. |
| 10 |  | Spring, Metal Foot Pedal For Most Uprights Part Number: 53097 for Eureka | 53097 | $5.24Add to cart |
| 11 |  | Eureka,Sanitaire Hood Attaching Spring-sanitaire 886 (10pk) | 53117 | $14.44Add to cart Product is special order please allow 2-4 weeks for delivery. |
| 11 |  | Compatible alternateEureka and Sanitaire Hood Spring More Product Details | 20750005 | $1.65Add to cart |
| 12 | Not Available | RIVET - SHOULDER PACKAGE | 53118 | Not Available |
| 13 |  | Washer, Metal Upper Cord Hook Part Number: 53133 for Eureka | 53133 | $3.17Read more |
| 14 |  | Frnt Axle Clmp Assy
6 Pack For: eureka,sanitaire | 53140 | $5.97Add to cart Product is special order please allow 2-4 weeks for delivery. |
| 15 |  | Screw, Shoulder Adjustment Knob Part Number: 53143 for Eureka | 53143 | $20.33Add to cart Product is special order please allow 2-4 weeks for delivery. |
| 16 | No Image | Clamp, 3/10 UPT Cable 5Pk Part Number: 53160 for Eureka | 53160 | $3.48Add to cart Product is special order please allow 2-4 weeks for delivery. |
| 17 | Not Available | WIRE SPLICE | 53214-1 | Not Available |
| 18 |  | Screw, Upper Bearing Plate Sanitaire 10Pk Part Number: 532282 for Eureka | 532282 | $3.65Add to cart Product is special order please allow 2-4 weeks for delivery. |
| 19 | Not Available | SCREWS - PACKAGE | 53228-7 | Not Available |
| 20 | | Screw, Rear Axle Retainer Clip Sanitaire/2000 Ser Part Number: 53238-13 for Eureka | 5323813 | $6.56Add to cart Product is special order please allow 2-4 weeks for delivery. |
| 21 |  | Screw, Motor Mount Eureka/Sanitaire 10Pk Part Number: 5323814 for Eureka | 5323814 | $4.92Add to cart Product is special order please allow 2-4 weeks for delivery. |
| 22 | Not Available | WIRE & TERMINAL ASSY | 54177 | Not Available |
| 23 | Not Available | MOTOR ASSEMBLY - PACKAGED | 54352-3 | Not Available |
| 24 | Not Available | BASE ASSEMBLY - 12" - CAR | 54408-2 | Not Available |
| 25 | Not Available | HOOD & NAMEPLATE ASSY - P | 54504-2 | Not Available |
| 26 | Not Available | DUCT ASSEMBLY (L) | 56382 | Not Available |
| 27 | Not Available | DUCT ASSEMBLY(R) | 56383 | Not Available |
| # | Part image | Description | SKU | Price |
| 1 |  | Tube Only-Eureka Vgii Brush Roll For: eureka,sanitaire | 132363 | $22.12Add to cart Product is special order please allow 2-4 weeks for delivery. |
| 2 |  | Bottom Plate, Double Slot/Front Tabs 1400 Series Part Number: 259221 for Eureka | 259221 | $26.36Add to cart Product is special order please allow 2-4 weeks for delivery. |
| 2 |  | Compatible alternateBase Plate 259221 for Sanitaire, Bissell Big Green Commercial, and Old Eureka Commercial Types More Product Details | ER-7601 | $26.36Add to cart Special order — allow 2-4 weeks. |
| 3 |  | Cover, Black Pliable Rubber End Cap Part Number: 26059A for Eureka | 26059A | $1.77Add to cart |
| 3 |  | Compatible alternateCover, Black Pliable Rubber End Cap Brushroll More Product Details | ER-2050 | $1.38Add to cart Special order — allow 2-4 weeks. |
| 4 | Not Available | WHEEL - REAR | 26242-1 | Not Available |
| 5 | Not Available | GUARD - FURNITURE | 26296-9 | Not Available |
| 6 | Not Available | CAP - DISTURBULATOR | 27144 | Not Available |
| 7 |  | Wheel, Blk Front C2000/6400/1400 & Most Sanitaires Part Number: 35859A1 for Eureka | 35859A1 | $3.24Add to cart Product is special order please allow 2-4 weeks for delivery. |
| 8 |  | Axle, Metal Front C2000/6400/1400 & Most Sanitaire Part Number: 35947A for Eureka | 35947A | $8.67Read more |
| 9 |  | Axle, Rear For Outside Rear Wheels S647/661 Series Part Number: 37183 for Eureka | 37183 | $7.76Add to cart Product is special order please allow 2-4 weeks for delivery. |
| 10 | Not Available | WHEEL & AXLE ASSY | 37234-1 | Not Available |
| 11 | Not Available | TAPE - FOAM | 46538 | Not Available |
| 12 | Not Available | WASHER - SHAFT PACKAGE | 49561 | Not Available |
| 13 | Not Available | BRISTLE STRIP PACKAGE | 52282-3 | Not Available |
| 14 |  | Spring, Handle Release Bravo Models Ea Part Number: 530762 for Eureka | 530762 | $7.04Add to cart |
| 15 |  | Push Nut, Metal Rear Wheel C2094/C2132/C4046 Ser Part Number: 53121 for Eureka | 53121 | $5.18Add to cart Product is special order please allow 2-4 weeks for delivery. |
| 16 |  | Lock Nut, End Cap VGI/VGII 10Pk Part Number: 53158 for Eureka | 53158 | $8.73Add to cart Product is special order please allow 2-4 weeks for delivery. |
| 17 |  | AXLE CLAMP - PACKAGED | 53201 | $18.99Add to cart |
| 18 |  | SCREW, REAR AXLE QUICK KLEEN EUREKA | 5323811 | $10.99Add to cart Product is special order please allow 2-4 weeks for delivery. |
| 19 | Not Available | DISTURBULATOR REPAIR KIT | 53360 | Not Available |
| 20 | Not Available | DISTURBULATOR PACKAGE | 53892-1 | Not Available |
| 21 | Not Available | BELT PKG ASSY (UPRIGHT) | 52100A | Not Available |
| # | Part image | Description | SKU | Price |
| 1 | Not Available | BAG ASSEMBLY - PACKAGED | 14335-1 | Not Available |
| 2 |  | Spring, Chrome Bag From Slide to Handle Part Number: 47722 for Eureka | 47722 | $6.58Read more |
| 3 | Not Available | PAPER BAG PKG ASSY STYLE | 52320 | Not Available |
| 4 | Not Available | BAG ASSEMBLY - PACKAGED | 53977-1 | Not Available |
| 5 |  | Adapter, Black 2-Hole Bag W/Clear Tube Part Number: 54175-1 for Eureka | 541751 | $21.88Read more |
| 6 | Not Available | GASKET - BAG ADAPTER | 55106 | Not Available |
| 7 | Not Available | HARDWARE PACKAGE | 55332 | Not Available |
| # | Part image | Description | SKU | Price |
| 1 | Not Available | FAN BLOWER - MOTOR | 12988 | Not Available |
| 2 | Not Available | RETAINER - UPPER BEARING | 20217E | Not Available |
| 3 | Not Available | FAN - MOTOR COOLING | 30474A | Not Available |
| 4 |  | Per EACH Eureka Sanitaire motor brush carbon brushes for commercial vacuums. Also for perfect and... | 30478 | $3.80Add to cart |
| 5 | Not Available | PULLEY - MOTOR DRIVE | 37012-2 | Not Available |
| 6 | Not Available | BALL BEARING - PACKAGE | 53088-1 | Not Available |
| 7 | Not Available | SCREW PACKAGE (10) | 53142 | Not Available |
| 8 | Not Available | WASHER - FAN PACKAGE (10) | 53148 | Not Available |
| 9 | | Lock Nut, End Cap VGI/VGII 10Pk Part Number: 53158 for Eureka | 53158 | $8.73Add to cart Product is special order please allow 2-4 weeks for delivery. |
| 10 | Not Available | RIVET PACKAGE | 53187-1 | Not Available |
| 11 |  | Washer, Steel C2000/1400/1900/C4046 Series Part Number: 531881 for Eureka | 531881 | $12.02Add to cart Product is special order please allow 2-4 weeks for delivery. |
| 12 |  | Nut, Hex Part Number: 532134 for Eureka | 532134 | $4.73Read more |
| 13 | Not Available | SCREWS - PACKAGE | 53219-2 | Not Available |
| 14 | Not Available | LOCKWASHERS - PACKAGE | 53222-3 | Not Available |
| 15 | Not Available | FIELD ASSEMBLY - PACKAGED | 53441-2 | Not Available |
| 16 | Not Available | MOTOR BASE ASSEMBLY | 54169-1 | Not Available |
| 17 | Not Available | MOTOR ASSEMBLY - PACKAGED | 54352-3 | Not Available |
| 18 | Not Available | MOTOR COVER ASSEMBLY - LA | 54396 | Not Available |
| 19 | Not Available | BEARING RETAINER ASSY-W/L | 54412 | Not Available |
| 20 | Not Available | KIT - ARMATURE REPLACEMEN | 54425-3 | Not Available |
| 21 | Not Available | TIE - CABLE (PURCHASED) | 56802-2 | Not Available |
