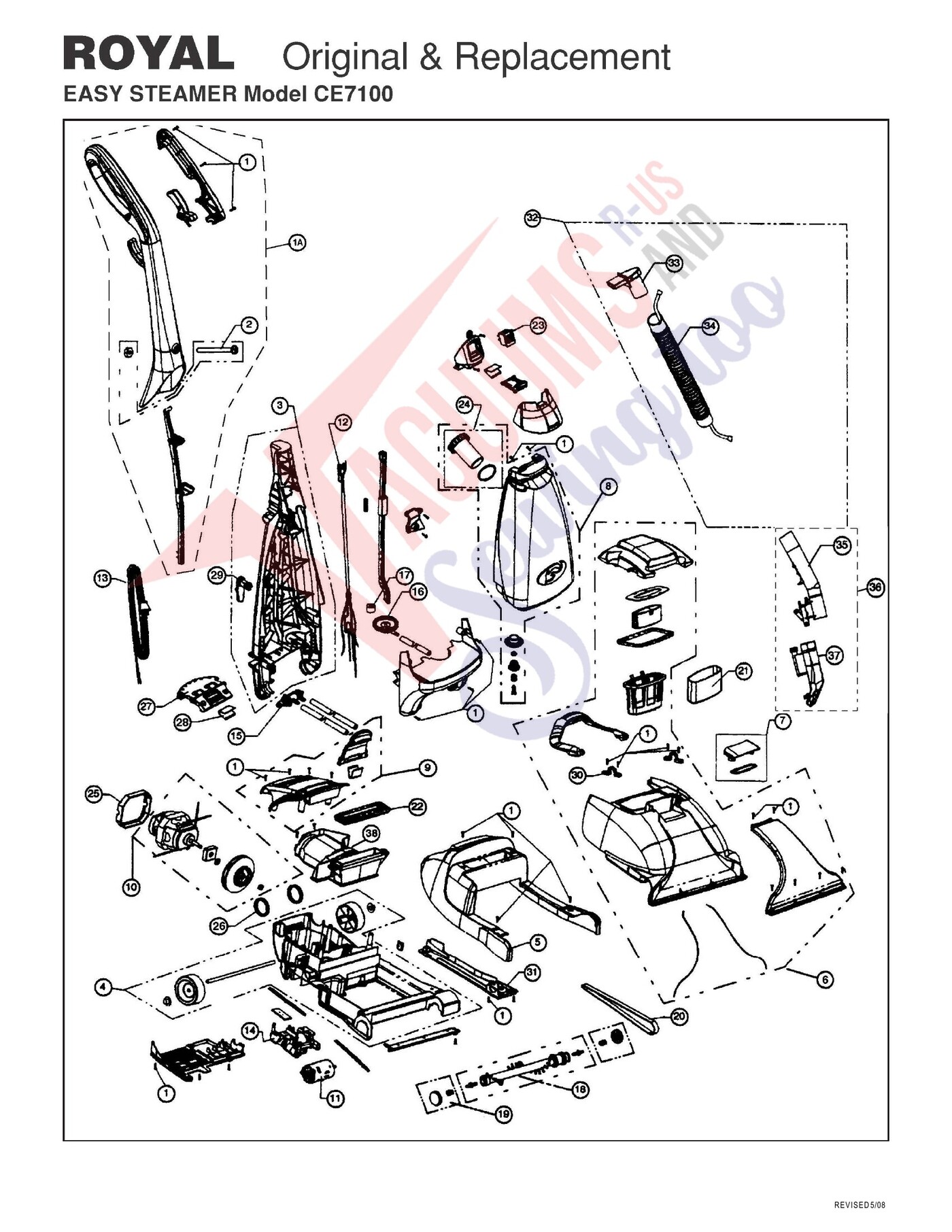

Schematic and parts book for Royal CE7100 . Repairs should be done by trained technicians. Vacuums R Us & Sewing Too provides vacuum cleaner and carpet cleaner parts and accessories for vacuum cleaner repair purposes. We are committed to delivering high-quality components, but it is important to note that all appliance repairs involve risks, and we cannot guarantee the outcome of your repair. When using our vacuum parts for repairs, you accept the terms and conditions HERE
| # | Part image | Description | SKU | Price |
| XX | Not Available | Extractor Shampoo 64 Oz. | 700912 | Not Available |
| XX | Not Available | Lower Motor Wire Harness With Rectifier 34 RO-771103 8' Hose Only | 710534 | Not Available |
| 1 | Not Available | Screw | 700130 | Not Available |
| 1A | Not Available | Upper Handle Ass'y | 700114 | Not Available |
| 2 | Not Available | Handle Screw Ass'y | 700670 | Not Available |
| 3 | Not Available | Lower Handle Ass'y | 700500 | Not Available |
| 4 | Not Available | Base Ass'y | 700100 | Not Available |
| 5 | Not Available | Base Cover | 700120 | Not Available |
| 6 | Not Available | Dirty Water Tank Ass'y | 700701 | Not Available |
| 7 | Not Available | Hose Door Ass'y | 700755 | Not Available |
| 8 | Not Available | Clean Water Bottle Ass'y | 700800 | Not Available |
| 9 | Not Available | Motor Cover Base | 700125 | Not Available |
| 10 | Not Available | Motor Ass'y | 700200 | Not Available |
| 11 | Not Available | Brushroll Motor | 700301 | Not Available |
| 12 | Not Available | Upper Wire Harness Ass'y | 700640 | Not Available |
| 13 | Not Available | Power Cord 25 ft. | 700542 | Not Available |
| 14 | Not Available | Pump | 700400 | Not Available |
| 15 | Not Available | Port Hose Connector Valve | 700575 | Not Available |
| 16 | Not Available | Valve Tank Adaptor | 700580 | Not Available |
| 17 | Not Available | Tank Adaptor Screen | 700595 | Not Available |
| 18 | Not Available | Brushroll With Pins | 700335 | Not Available |
| 19 | Not Available | End Cap Bearings | 700327 | Not Available |
| 20 | Not Available | Belt Style 7 | 460615 | Not Available |
| 21 | Not Available | Float Filter | 700750 | Not Available |
| 22 | Not Available | Seal | 700230 | Not Available |
| 23 | Not Available | Switch Plate Ass'y | 700550 | Not Available |
| 24 | Not Available | Clean Water Fill Cap | 700805 | Not Available |
| 25 | Not Available | Rear Motor Mount | 700210 | Not Available |
| 26 | Not Available | Lower Handle Pivot | 700510 | Not Available |
| 27 | Not Available | Base Handle Lock | 700135 | Not Available |
| 28 | Not Available | Base Handle Lock Spring | 700140 | Not Available |
| 29 | Not Available | Cord Hook | 720120 | Not Available |
| 30 | Not Available | Handle Clamp | 700732 | Not Available |
| 31 | Not Available | Base Belt Cover | 700115 | Not Available |
| 32 | Not Available | Hose Ass'y Complete | 771600 | Not Available |
| 33 | Not Available | Dirty Water Adaptor Ass'y | 770110 | Not Available |
| 34 | Not Available | 8' Hose Only | 771103 | Not Available |
| 35 | Not Available | Hose Handle | NLA | Not Available |
| 36 | Not Available | Upholstery Tool | NLA | Not Available |
| 37 | Not Available | Upholstery Tool Ass'y | 771600 | Not Available |
| 38 | Not Available | Motor & Fan Housing | 700225 | Not Available |
